  1. MOTORBIKE TOOLS Igor Žmavc December, 2013

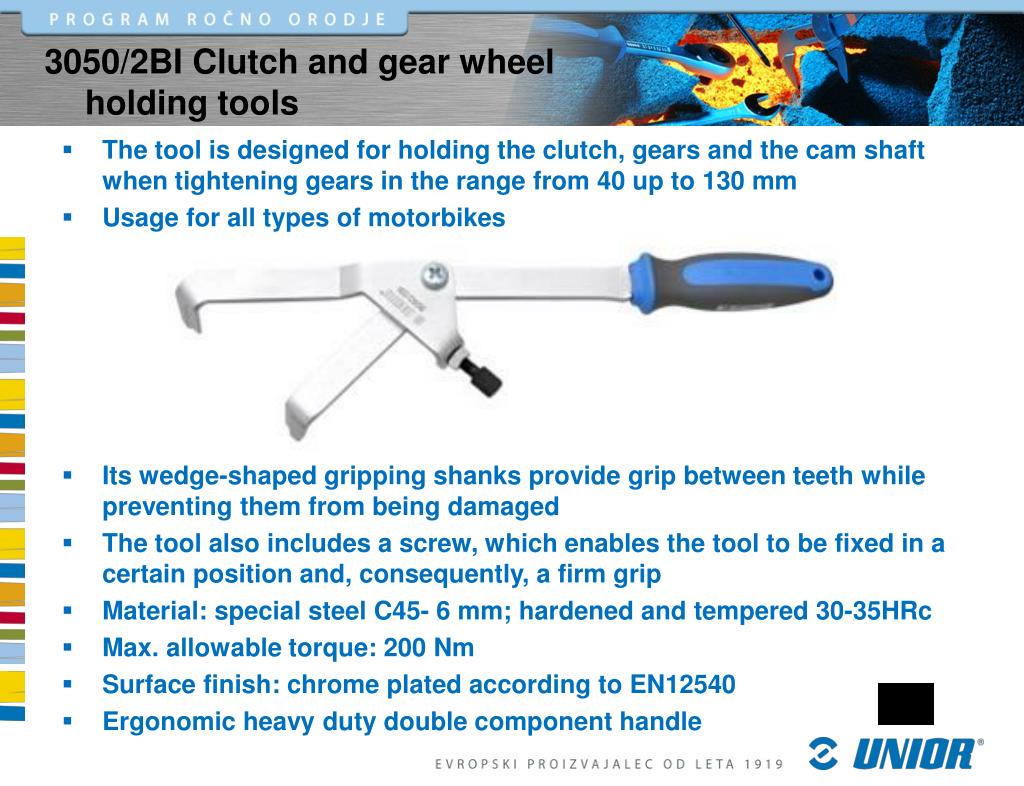

  2. 3050/2BI Clutch and gear wheel holding tools The tool is designed for holding the clutch, gears and the cam shaft when tightening gears in the range from 40 up to 130mm Usageforalltypesofmotorbikes Its wedge-shaped gripping shanks provide grip between teeth while preventing them from being damaged The tool also includes a screw, which enables the tool to be fixed in a certain position and, consequently, a firm grip Material: specialsteel C45- 6 mm; hardenedandtempered 30-35HRc Max. allowabletorque: 200 Nm Surface finish: chrome plated according to EN12540 Ergonomic heavy duty double component handle

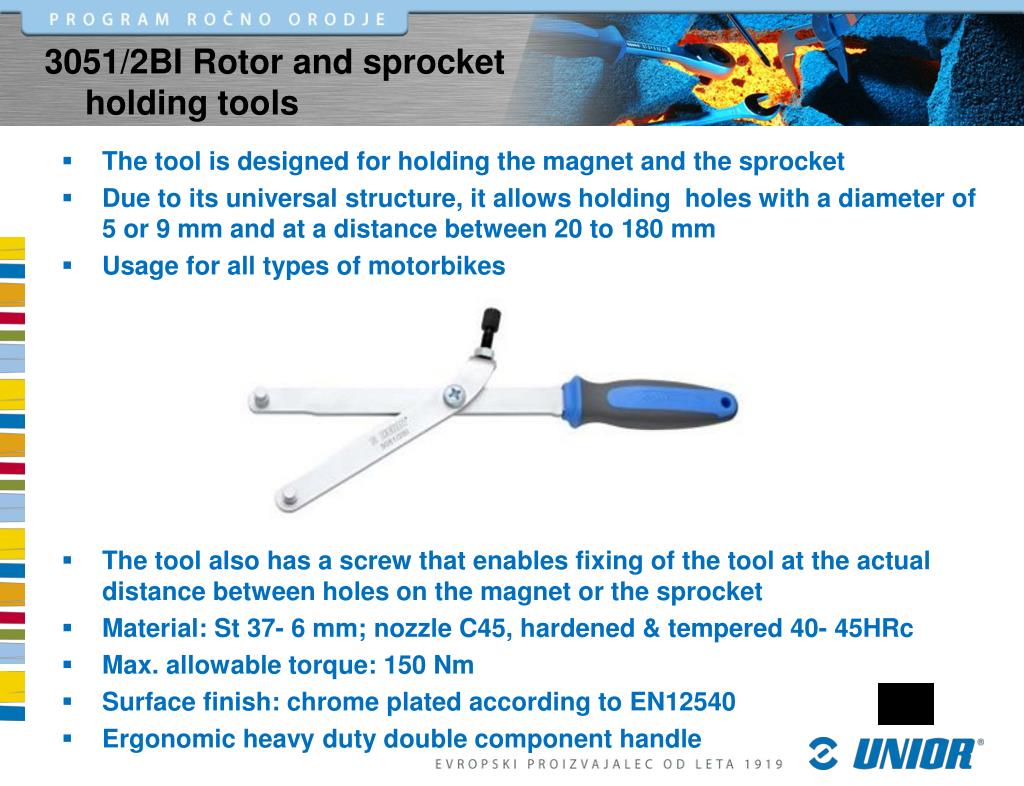

  3. 3051/2BI Rotor and sprocket holding tools The tool is designed for holding the magnet and the sprocket Due to its universal structure, it allows holding holes with a diameter of 5 or 9 mm and at a distance between 20 to 180 mm Usageforalltypesofmotorbikes The tool also has a screw that enables fixing of the tool at the actual distance between holes on the magnet or the sprocket Material: St 37- 6 mm; nozzle C45, hardened & tempered 40- 45HRc Max. allowabletorque: 150 Nm Surface finish: chrome plated according to EN12540 Ergonomic heavy duty double component handle

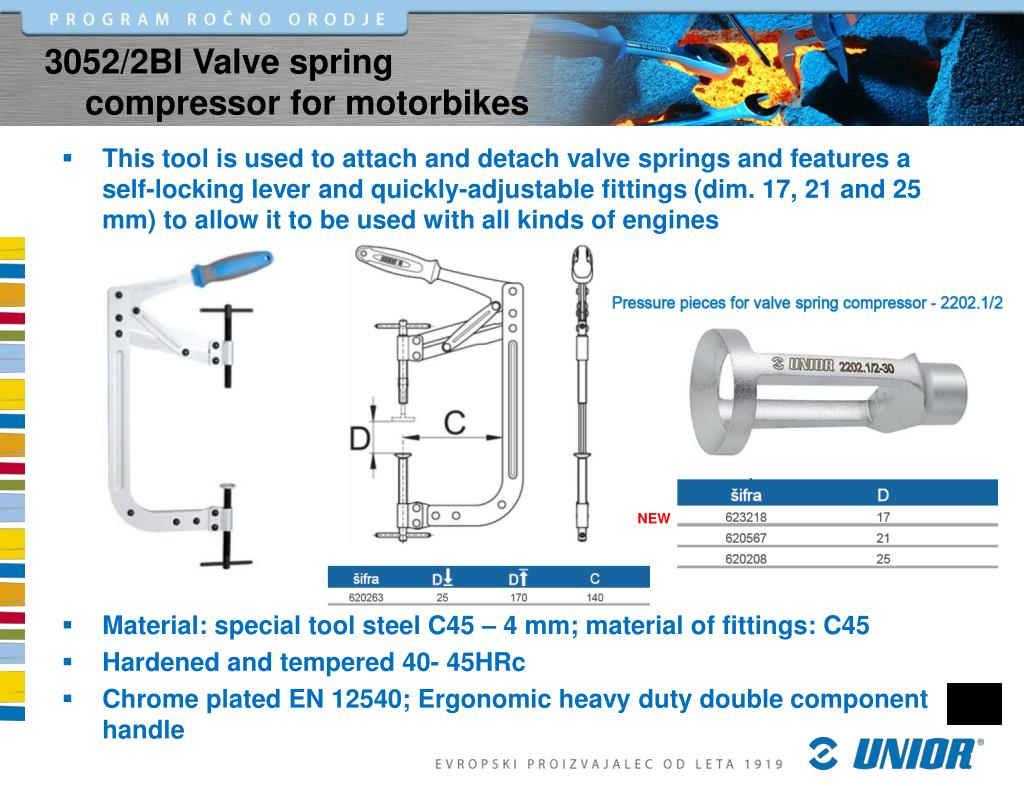

  4. 3052/2BI Valve spring compressor for motorbikes This tool is used to attach and detach valve springs and features a self-locking lever and quickly-adjustable fittings (dim. 17, 21 and 25 mm) to allow it to be used with all kinds of engines NEW Material: specialtoolsteel C45 – 4 mm; material offittings: C45 Hardenedandtempered 40- 45HRc Chrome plated EN 12540; Ergonomic heavy duty double component handle

  5. 3055/4A,B Flywheel puller with external thread Allows flywheel removal without pulling motor from hull The tool has different sizes of external thread, thus enabling coverage of the majority of motor types that have a magnet with an internal thread: M10x1 M14x1,5 M16x1,5 M16x1,5 M18x1,5 M18x1,5 M20x1,5 M24x1 M22x1,5 M27x1L 3055/4A 3055/4B On each axis, there is an attachment for an open-end wrench that makes the removal of the magnet easier Material: special tool steel C45; hardenedandtempered40- 45HRc Surface finish: blacken to standard DIN 50938

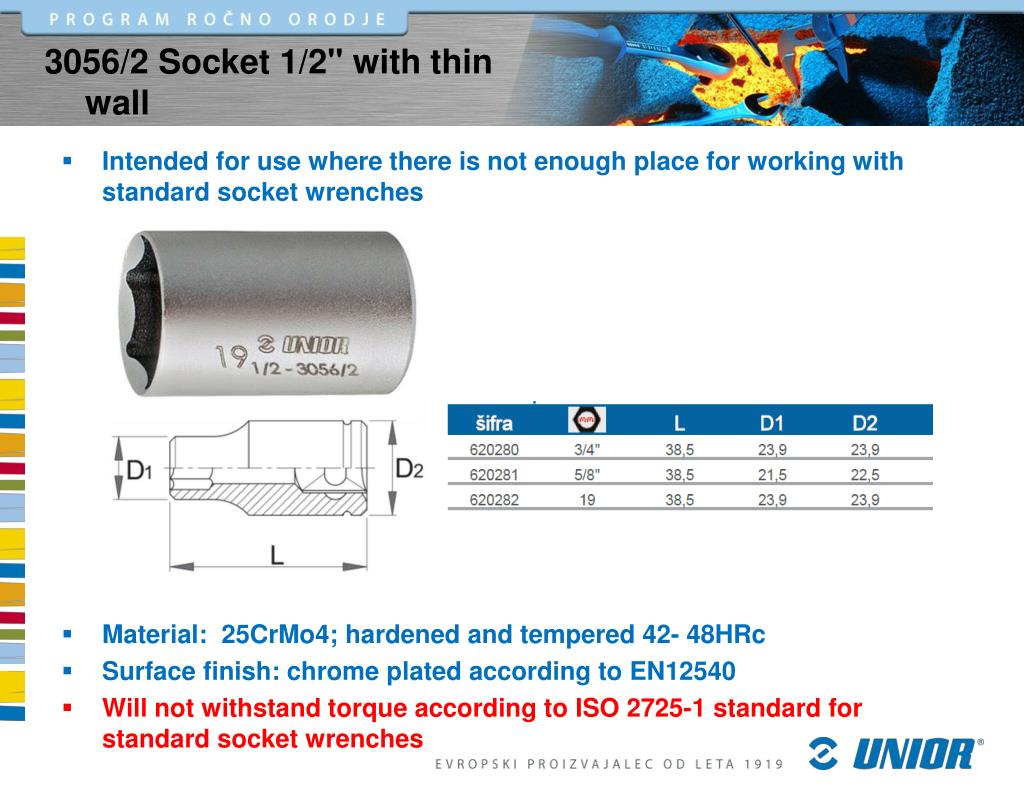

  6. 3056/2 Socket 1/2" with thin wall Intended for use where there is not enough place for working with standard socket wrenches Material: 25CrMo4; hardenedandtempered42- 48HRc Surface finish: chrome plated according to EN12540 Will not withstand torque according to ISO 2725-1 standard for standard socket wrenches

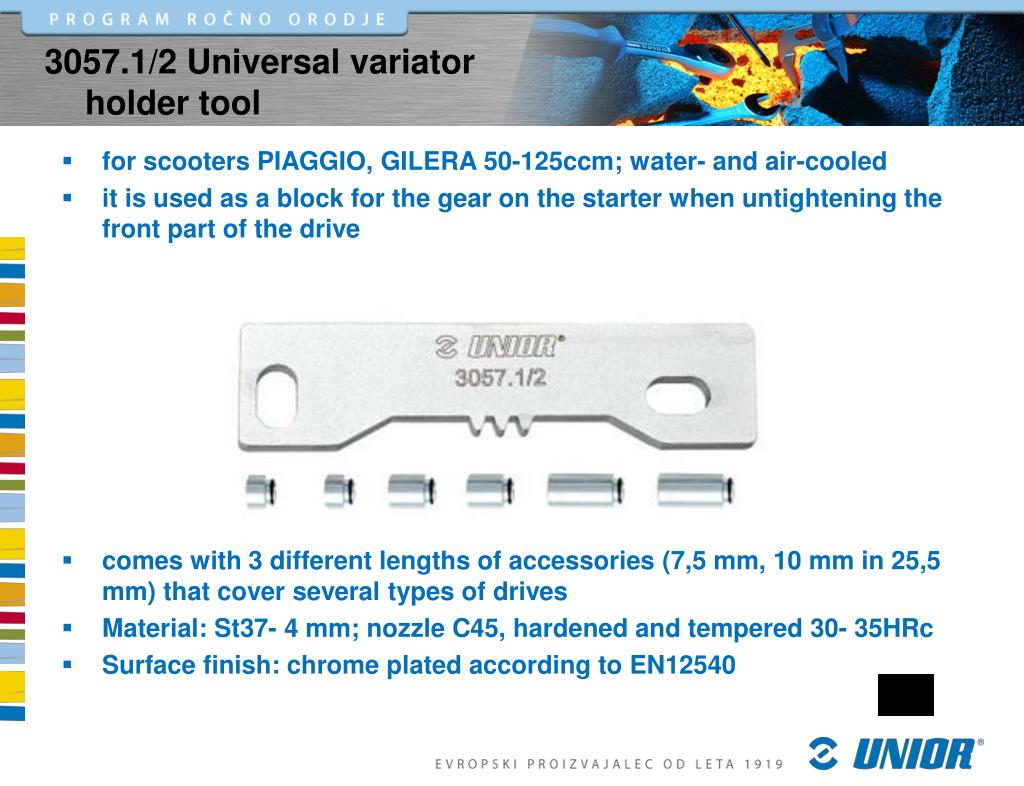

  7. 3057.1/2 Universalvariatorholdertool for scooters PIAGGIO, GILERA 50-125ccm; water- and air-cooled it is used as a block for the gear on the starter when untightening the front part of the drive comes with 3 different lengths of accessories (7,5 mm, 10 mm in 25,5 mm) that cover several types of drives Material: St37- 4 mm; nozzle C45, hardenedandtempered30- 35HRc Surface finish: chrome plated according to EN12540

  8. 3057/2 Variator and clutch drive holder tool with ring wrench For scooters PIAGGIO, GILERA 50-125ccm; water- and air-cooled Toolhas a triplefunction: it is used as a block for the gear on the starter when untightening the front part of the drive accessories for holding the pot on the back part of the drive for untightening thenut Wrench S34/S38 for untightening the inside nut of the back part of the drive comes with 3 different lengths of accessories (7,5 mm, 10 mm in 25,5 mm) that cover several types of drives Material: St37- 4 mm; nozzle C45, hardenedandtempered30- 35HRc Surface finish: chrome plated according to EN12540

  9. 3058/2 Spark plug socket 3/8" with thin wall Intended for use where there is not enough space for working with standard wrenches for replacing spark plugs Drop forged, material: 25CrMo4; hardenedandtempered42- 48HRc Surface finish: chrome plated according to EN12540

  10. 3059 Valvesealremoval set formotorbikes Enables the removal of valve seals without removing the head of the motor the accessories covers the following dimensions of spark plugs:M10x1, M12x1.25, M14x1.25 and M18x1.5 accessories Ø8 mm, Ø13 mm and Ø16 mm for removing pins accessories Ø12 mm in Ø14 mm for assembling seals

  11. 3059 Valvesealremoval set formotorbikes Accessories Ø5 mm in Ø9 mm for assembling pins

  12. 3200/2BI Chain breaker, press and riveting tool for motorbike Chain breaker, press and riveting tool for REGINA, DID and RK chainswithgraduation: 415, 420, 428, 520, 525, 530, 532

  13. 3200/2BI Chain breaker, press and riveting tool for motorbike

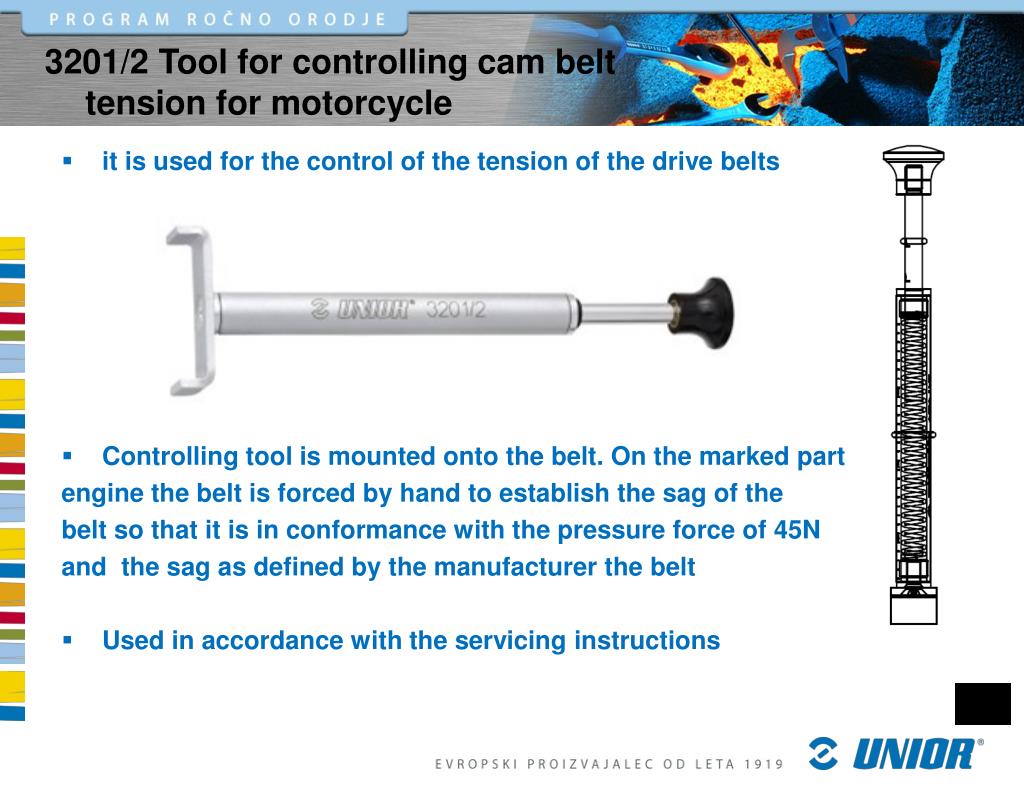

  14. 3201/2 Tool for controlling cam belt tension for motorcycle it is used for the control of the tension of the drive belts Controlling tool is mounted onto the belt. On the marked part of the engine the belt is forced by hand to establish the sag of the belt so that it is in conformance with the pressure force of45N and the sag as defined by the manufacturer thebelt Used in accordance with the servicing instructions

  15. 3301/2 Spokewrenchformotorcycle The spoke wrench is used for tightening spoke nipples Material: specialtoolsteel 31CrV3, thickness6 mm Hardenedandtempered: 40- 45HRc Surface finish: chrome plated according to EN12540

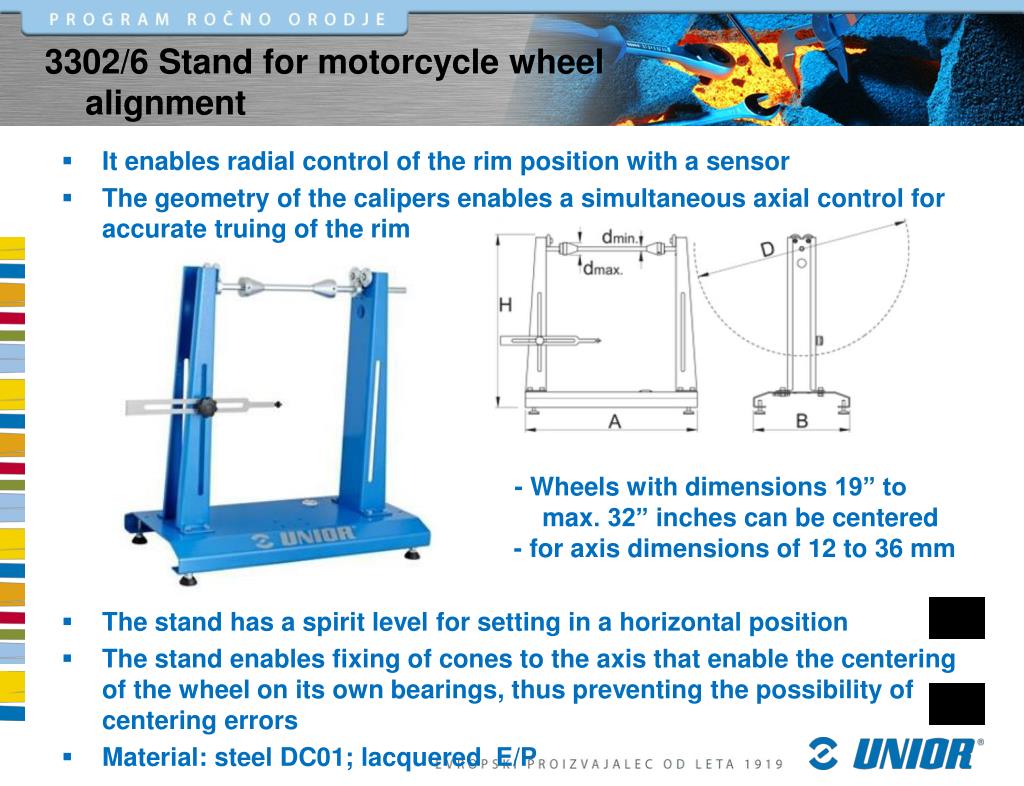

  16. 3302/6 Stand for motorcycle wheel alignment It enables radial control of the rim position with a sensor The geometry of the calipers enables a simultaneous axial control for accurate truing of the rim - Wheels with dimensions 19” to max. 32” inches can be centered - for axis dimensions of 12 to 36 mm The stand has a spirit level for setting in a horizontal position The stand enables fixing of cones to the axis that enable the centering of the wheel on its own bearings, thus preventing the possibility of centering errors Material: steel DC01; lacquered E/P

  17. 3303/2 Discspreaderformotorcycle The tool is used for compressing brake pistons when replacing brake pads Is useful for compressing single, double and tripple brake pistons For compressing double or triple brake pistons, we leave the used brake pads in the brake housing. This will prevent one of the pistons being pushed from the housing. Material: specialtoolsteelC45; hardenedandtempered 35- 40HRc Surface finish: chrome plated according to EN12540

  18. 3305/2 Holding toolforcartridge rod formotorbikes This tool is used to holding the cartridge rod Useful for most types of motorcycles Material: specialtoolsteelC45, 2 mm Surface finish: chrome plated according to EN12540

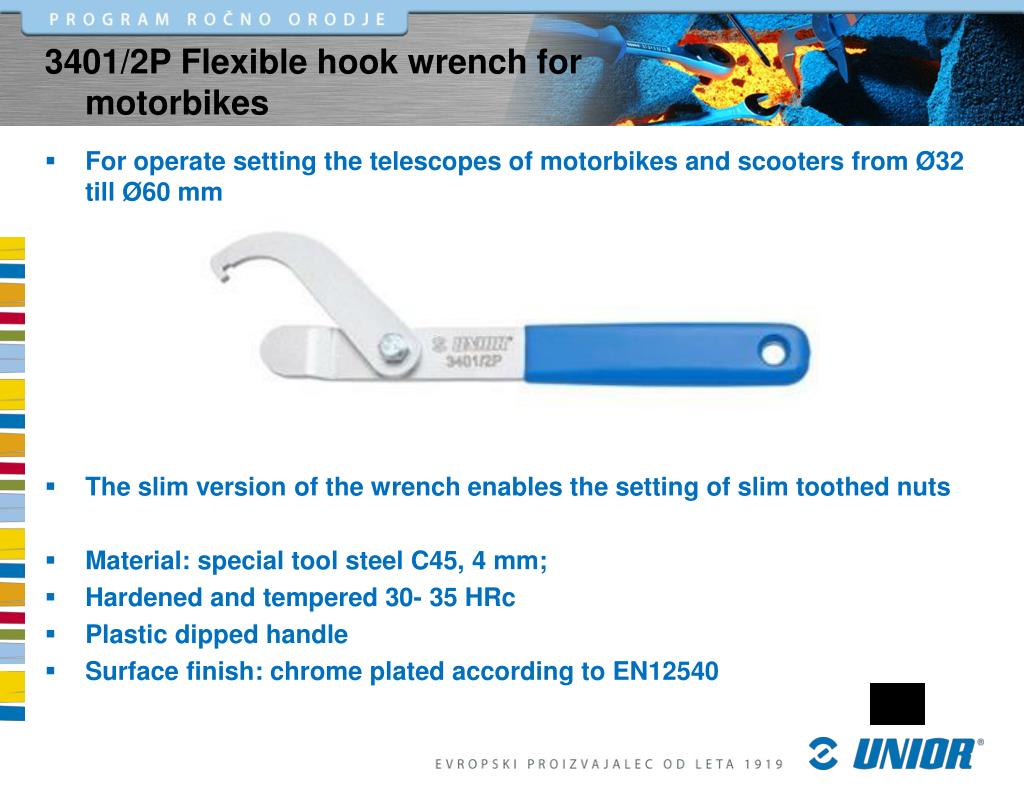

  19. 3401/2P Flexible hook wrench for motorbikes For operate setting the telescopes of motorbikes and scootersfrom Ø32 till Ø60 mm The slim version of the wrench enables the setting of slim toothed nuts Material: specialtoolsteel C45, 4 mm; Hardenedandtempered30- 35 HRc Plasticdippedhandle Surface finish: chrome plated according to EN12540

  20. 3600/2BI Springhook Tool is used for assembling and disassembling springs (spring for support legs, seat and reservoir, by exhaust systems, as assistance in assembling the chain of the cam shaft, etc) Material: specialtoolsteel C45; Hardenedandtempered: 45- 50HRc Surface finish: chrome plated according to EN12540 Ergonomic heavy duty double component handle

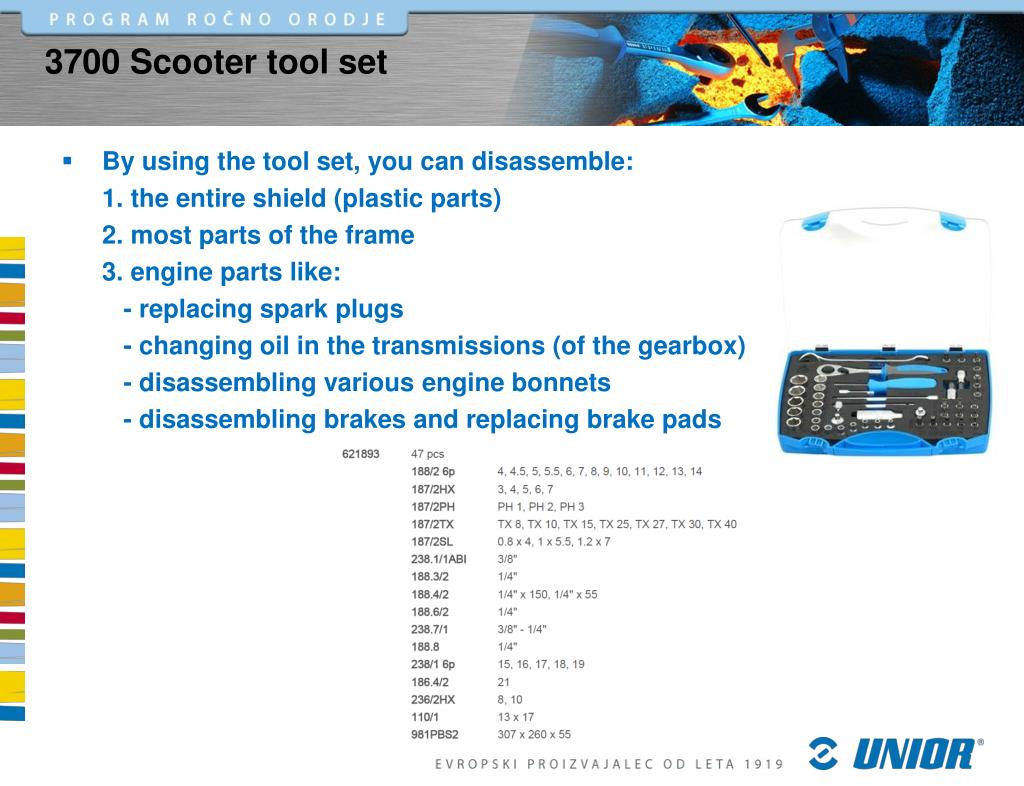

  21. 3700 Scootertool set By using the tool set, you can disassemble: 1. the entire shield (plastic parts) 2. most parts of the frame 3. engineparts like: - replacingsparkplugs - changing oil in the transmissions (of the gearbox) - disassemblingvariousenginebonnets - disassembling brakes and replacing brake pads

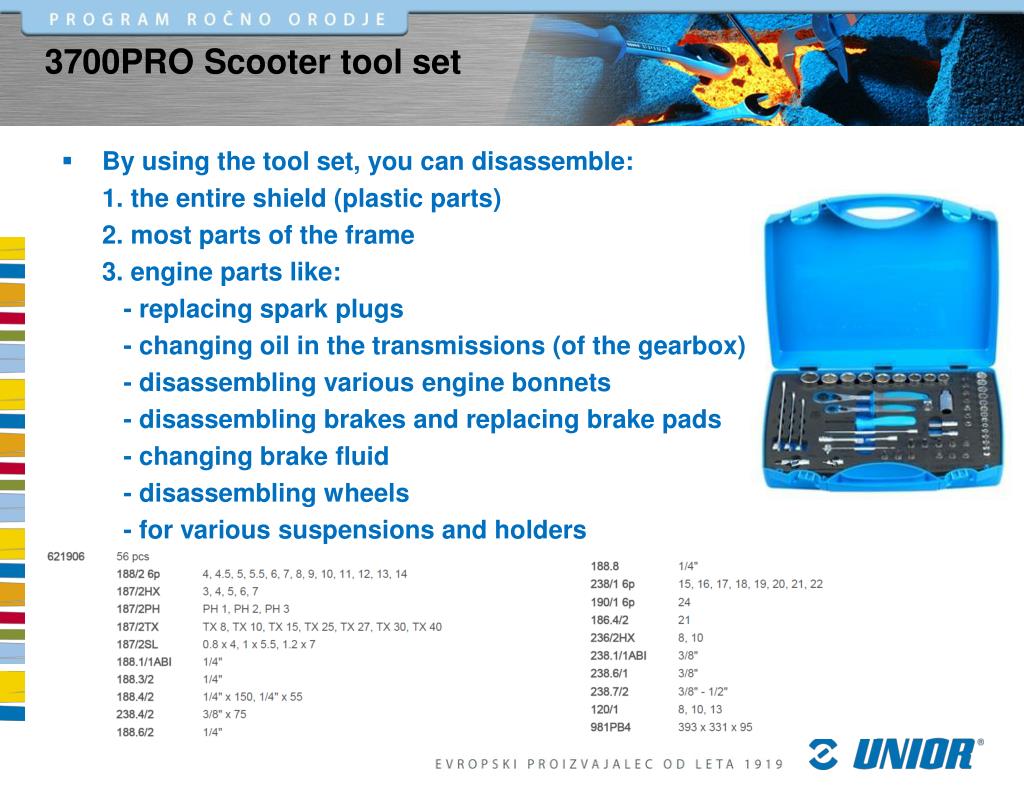

  22. 3700PRO Scootertool set By using the tool set, you can disassemble: 1. the entire shield (plastic parts) 2. most parts of the frame 3. engineparts like: - replacingsparkplugs - changing oil in the transmissions (of the gearbox) - disassemblingvariousenginebonnets - disassembling brakes and replacing brake pads - changing brake fluid - disassemblingwheels -for various suspensions and holders

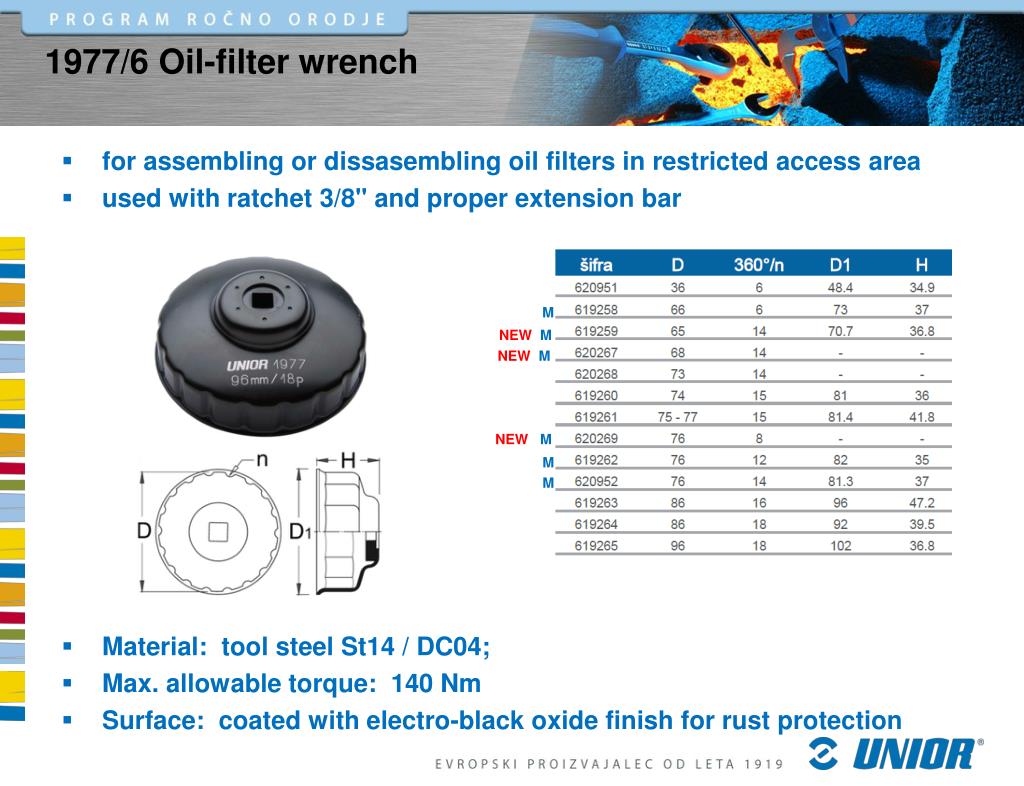

  23. 1977/6 Oil-filter wrench forassembling or dissasemblingoilfilters in restrictedaccessarea used with ratchet 3/8" and proper extension bar M • NEW M • NEW M NEW M M M Material: toolsteelSt14 / DC04; Max. allowabletorque: 140 Nm Surface: coated with electro-black oxide finish for rust protection

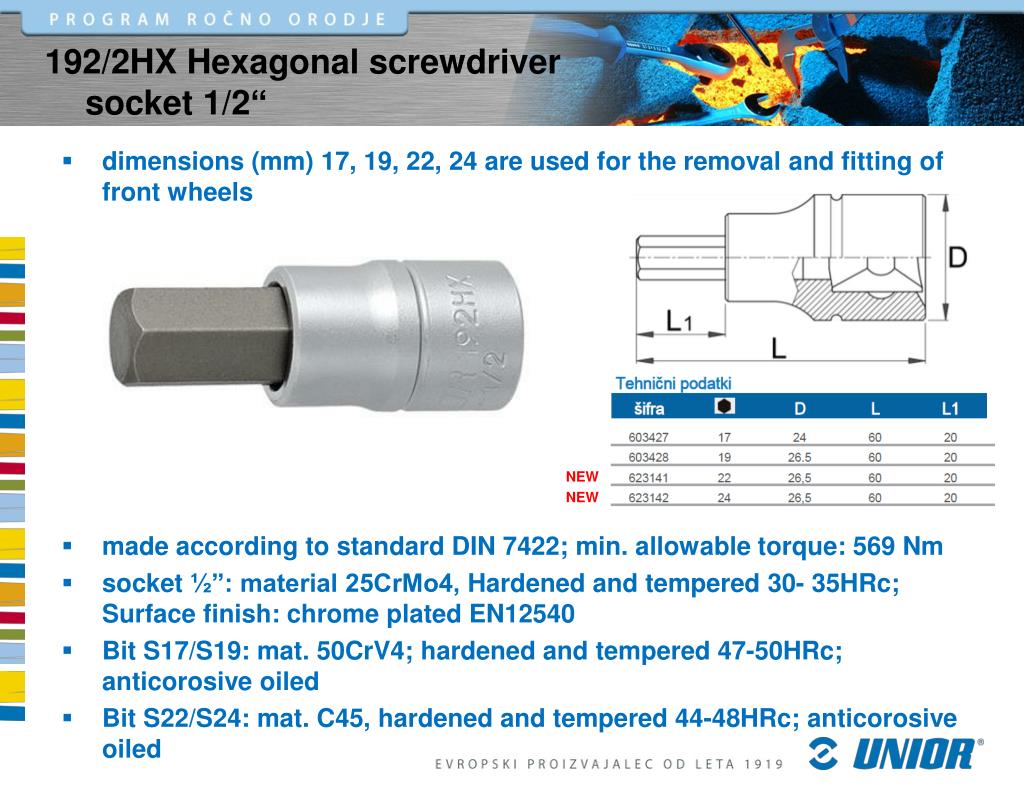

  24. 192/2HX Hexagonalscrewdriversocket 1/2“ dimensions (mm) 17,19,22, 24 are used for the removal and fitting of front wheels NEW NEW made according to standard DIN 7422; min. allowabletorque: 569 Nm socket ½”: material 25CrMo4, Hardenedandtempered 30- 35HRc; Surface finish: chrome plated EN12540 Bit S17/S19: mat. 50CrV4; hardenedandtempered47-50HRc; anticorosive oiled Bit S22/S24: mat. C45, hardenedandtempered44-48HRc; anticorosive oiled

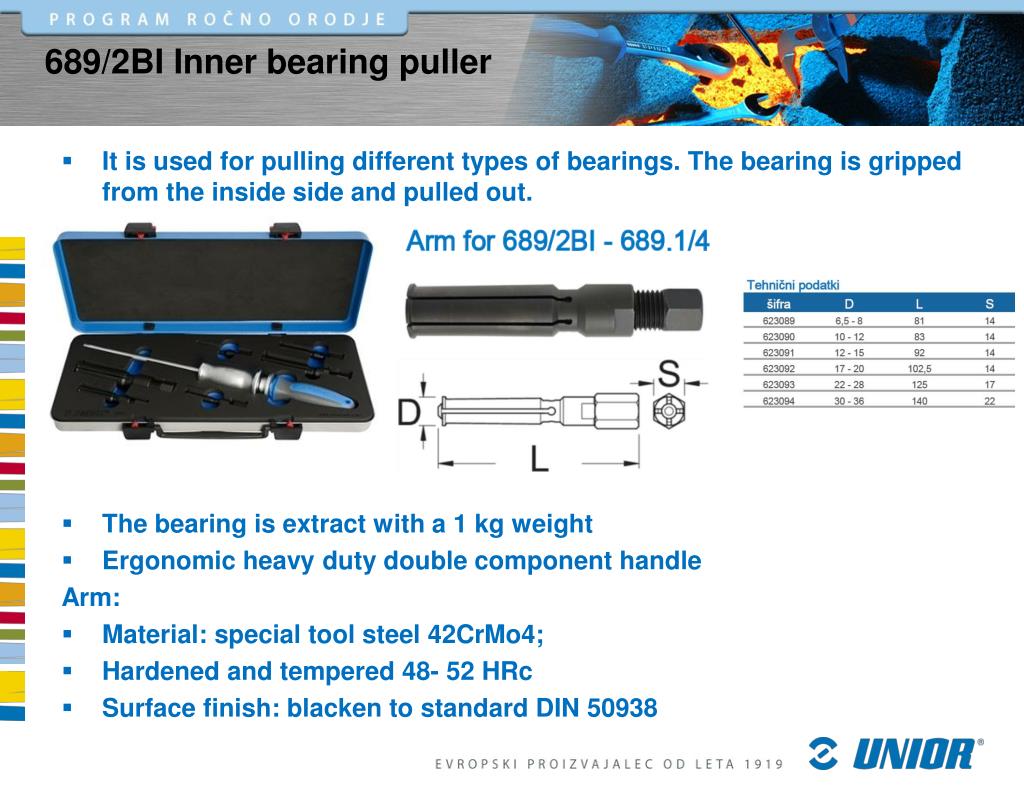

  25. 689/2BI Innerbearingpuller It is used for pulling different types of bearings.The bearing is gripped from the inside side and pulled out. The bearing is extract with a 1 kg weight Ergonomic heavy duty double component handle Arm: Material: specialtoolsteel42CrMo4; Hardenedandtempered 48- 52 HRc Surface finish: blacken to standard DIN 50938
