  1. Compilation of XSLT into Dataflow Graphs for Web Service Composition Peter Kelly Paul Coddington Andrew Wendelborn

  2. Web Service Composition • Composition programs invoke operations on multiple web services to build “higher level” functionality • Complex application logic implemented within individual services, not composition program • Languages available designed specifically for this purpose • Examples: BPEL, SCUFL

  3. Why XSLT? • Designed to deal natively with XML data • Compatibility with WSDL type system (XML Schema) - no “impedance mismatch” • Functional language - can be automatically parallelised • Easier to use and more powerful than other WS composition languages • Particularly for writing application logic • Existing, standardized, popular language

  4. Distributed XSLT processing We are targeting two types of distribution: Within the program • Automatically parallelising the code • Executing different function calls, loop iterations, etc. across different processors or machines Outside of the program • Invoking multiple web service operations asynchronously and in parallel

  5. Why distributed processing? • Better performance • Parallelism enables different CPUs or machines to cooperate on the program • Reduces execution time • Benefit of similar nature to that of MPI, OpenMP • Distribution through WS composition • Enables parallelism using existing services • Division of responsibility - parts of your program leverage others’ servers

  6. Execution Model • Based on the dataflow concept • Program represented as a directed acyclic graph • Nodes represent operations, edges represent the flow of data between them • Each node can be a built-in operation, user-defined function, or web service operation

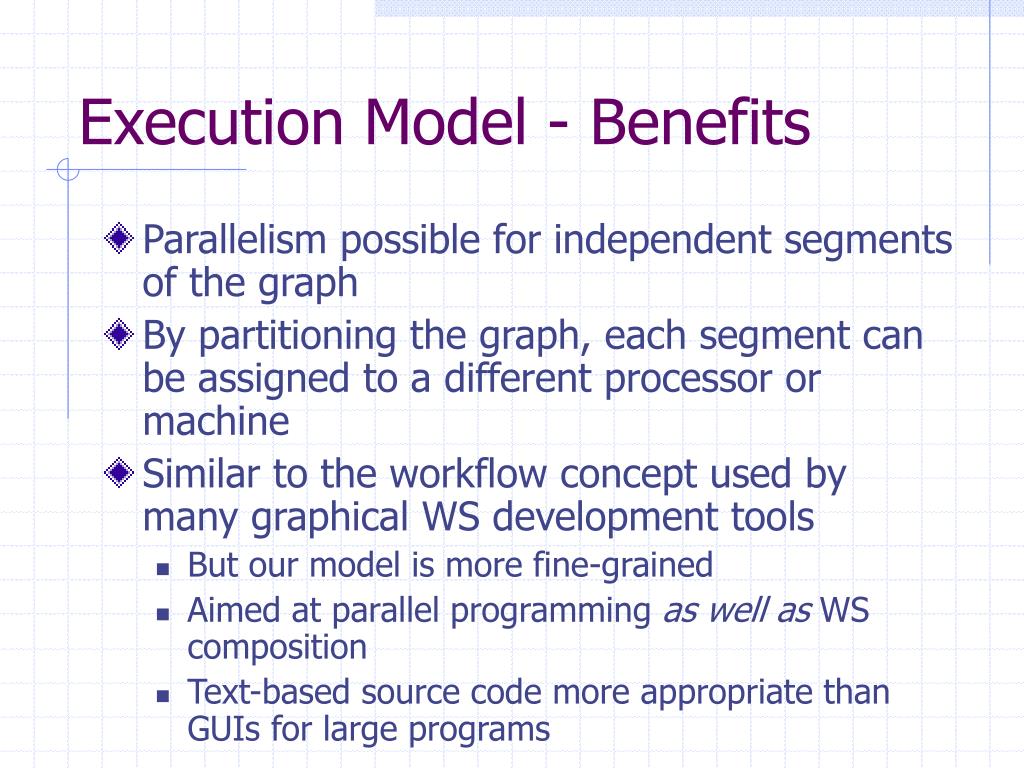

  7. Execution Model - Benefits • Parallelism possible for independent segments of the graph • By partitioning the graph, each segment can be assigned to a different processor or machine • Similar to the workflow concept used by many graphical WS development tools • But our model is more fine-grained • Aimed at parallel programming as well as WS composition • Text-based source code more appropriate than GUIs for large programs

  8. Execution Model • Each XSLT program represented as a collection of graphs • A graph corresponds to a piece of code that could be executed more than once • e.g. functions, templates, loop bodies • These graphs are generated during the compilation phase

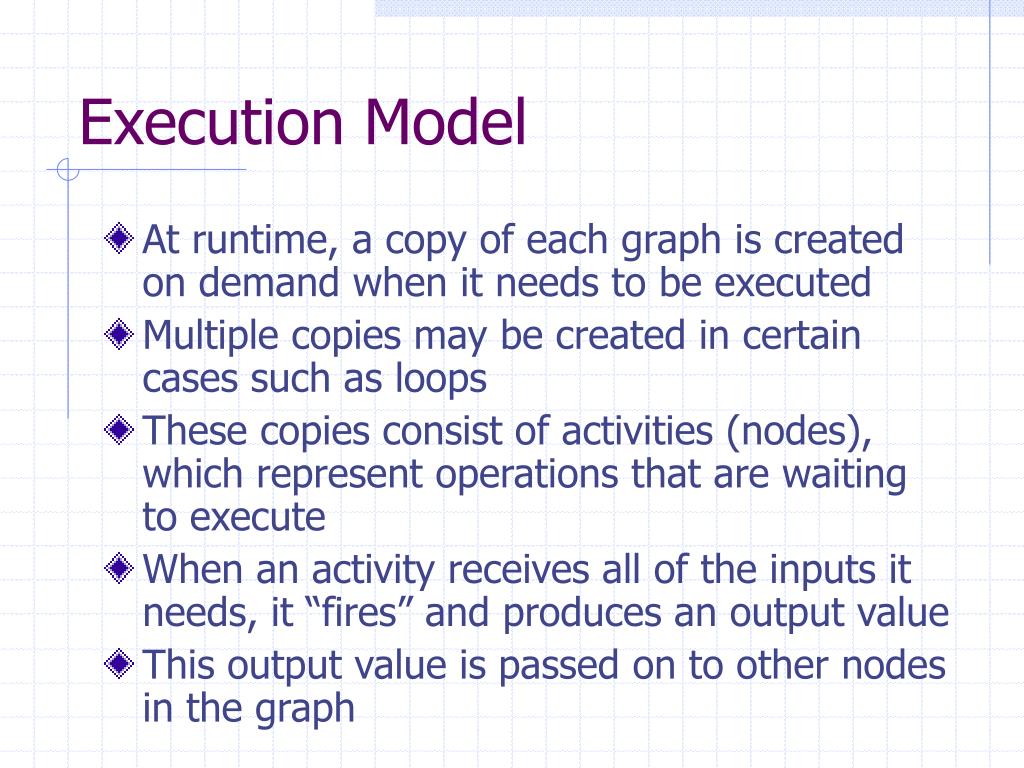

  9. Execution Model • At runtime, a copy of each graph is created on demand when it needs to be executed • Multiple copies may be created in certain cases such as loops • These copies consist of activities (nodes), which represent operations that are waiting to execute • When an activity receives all of the inputs it needs, it “fires” and produces an output value • This output value is passed on to other nodes in the graph

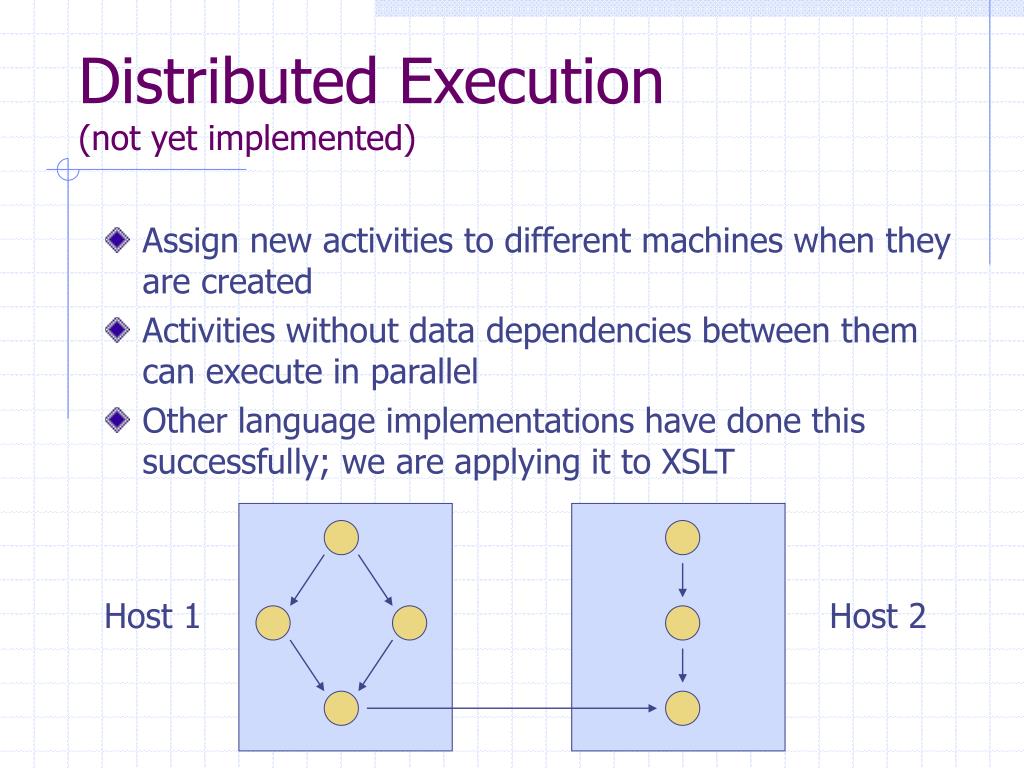

  10. Distributed Execution(not yet implemented) • Assign new activities to different machines when they are created • Activities without data dependencies between them can execute in parallel • Other language implementations have done this successfully; we are applying it to XSLT Host 1 Host 2

  11. Compilation Process • Constants c c

  12. Compilation Process • Binary operators - +, *, =, < etc. left DUP op right left op right

  13. Compilation Process • Conditionals - xsl:if, xsl:chose, XPath if condition true branch DUP SPLIT MERGE false branch if (condition) then true branch else false branch

  14. Compilation Process • Loops - xsl:for-each MAP g items body Sub-graph g <xsl:for-each select=“items”>body</xsl:for-each>

  15. Current Progress • Prototype implementation • Parsing/verification of XSLT code • Compilation to dataflow graphs • Sequential interpreter

  16. Future Work • Distributed execution • Activity scheduling/distribution • Instruction clustering • Lazy evaluation • Streaming processing • Formal definition of compilation process • JIT compilation • Performance analysis and optimisation

  17. Conclusion • XSLT is a suitable language for web service composition • Dataflow model permits parallel execution of functional code • Increasing popularity of web services & XML necessitates more powerful and easy to use tools • Especially for web service composition • Our compiler demonstrates the viability of dataflow as an approach to executing XSLT
