  1. 16.317Microprocessor Systems Design I Instructor: Dr. Michael Geiger Fall 2013 Lecture 29: PIC instruction set (continued)

  2. Lecture outline • Announcements/reminders • HW 6 due 11/25 • Today’s lecture: More PIC instructions Microprocessors I: Lecture 29

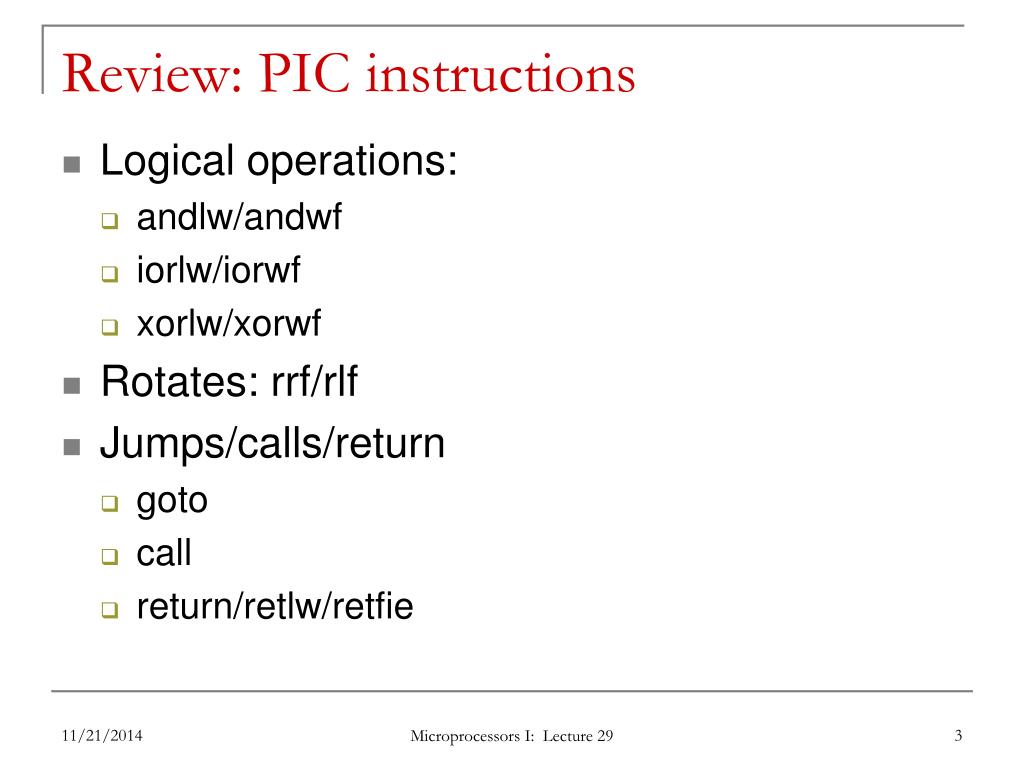

  3. Review: PIC instructions • Logical operations: • andlw/andwf • iorlw/iorwf • xorlw/xorwf • Rotates: rrf/rlf • Jumps/calls/return • goto • call • return/retlw/retfie Microprocessors I: Lecture 29

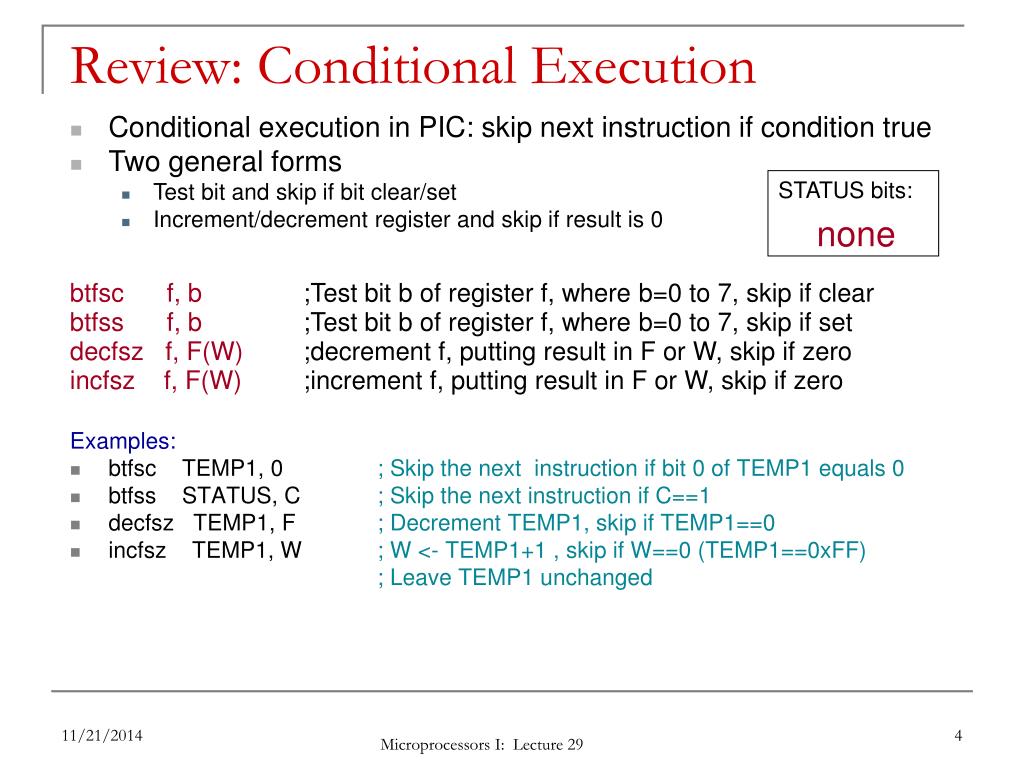

  4. Review: Conditional Execution • Conditional execution in PIC: skip next instruction if condition true • Two general forms • Test bit and skip if bit clear/set • Increment/decrement register and skip if result is 0 STATUS bits: none Examples: • btfsc TEMP1, 0 ; Skip the next instruction if bit 0 of TEMP1 equals 0 • btfss STATUS, C ; Skip the next instruction if C==1 • decfsz TEMP1, F ; Decrement TEMP1, skip if TEMP1==0 • incfsz TEMP1, W ; W <- TEMP1+1 , skip if W==0 (TEMP1==0xFF) ; Leave TEMP1 unchanged btfsc f, b ;Test bit b of register f, where b=0 to 7, skip if clear btfss f, b ;Test bit b of register f, where b=0 to 7, skip if set decfsz f, F(W) ;decrement f, putting result in F or W, skip if zero incfsz f, F(W) ;increment f, putting result in F or W, skip if zero Microprocessors I: Lecture 29

  5. Example • Show the values of all changed registers after each of the following sequences • What high-level operation does each perform? (a) movf a, W sublw 0xA btfsc STATUS, Z goto L1 incf b, W goto L2 L1 decf b, W L2 movwf a (b)movf NUM2, W subwf NUM1, W btfss STATUS, C gotoBL movf NUM1, W goto Done BL movf NUM2, W Done movwf MIN Microprocessors I: Lecture 29

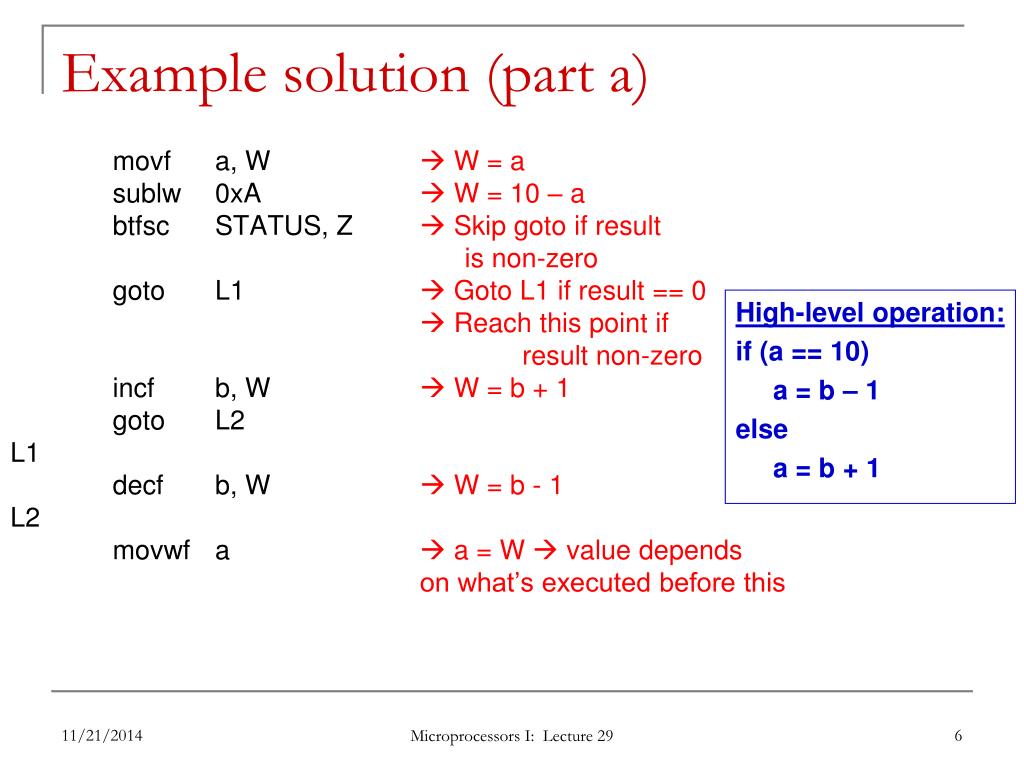

  6. Example solution (part a) movf a, W  W = a sublw0xA  W = 10 – a btfsc STATUS, Z  Skip goto if result is non-zero gotoL1  Goto L1 if result == 0  Reach this point if result non-zero incf b, W  W = b + 1 gotoL2 L1 decf b, W  W = b - 1 L2 movwfa  a = W  value depends on what’s executed before this High-level operation: if (a == 10) a = b – 1 else a = b + 1 Microprocessors I: Lecture 29

  7. Example solution (part b) movf NUM2, W  W = NUM2 subwf NUM1, W  W = NUM1 – W = NUM1 – NUM2 btfss STATUS, C  Carry indicates “above”  if set, NUM1 < NUM2 goto BL movf NUM1, W  if (NUM1 < NUM2) W = NUM1 gotoDone  Skip “below” section BL movf NUM2, W  if (NUM1 >= NUM2) W = NUM2 Done movwfMIN High-level operation: if (NUM1 < NUM2) MIN = NUM1 else MIN = NUM2 Microprocessors I: Lecture 29

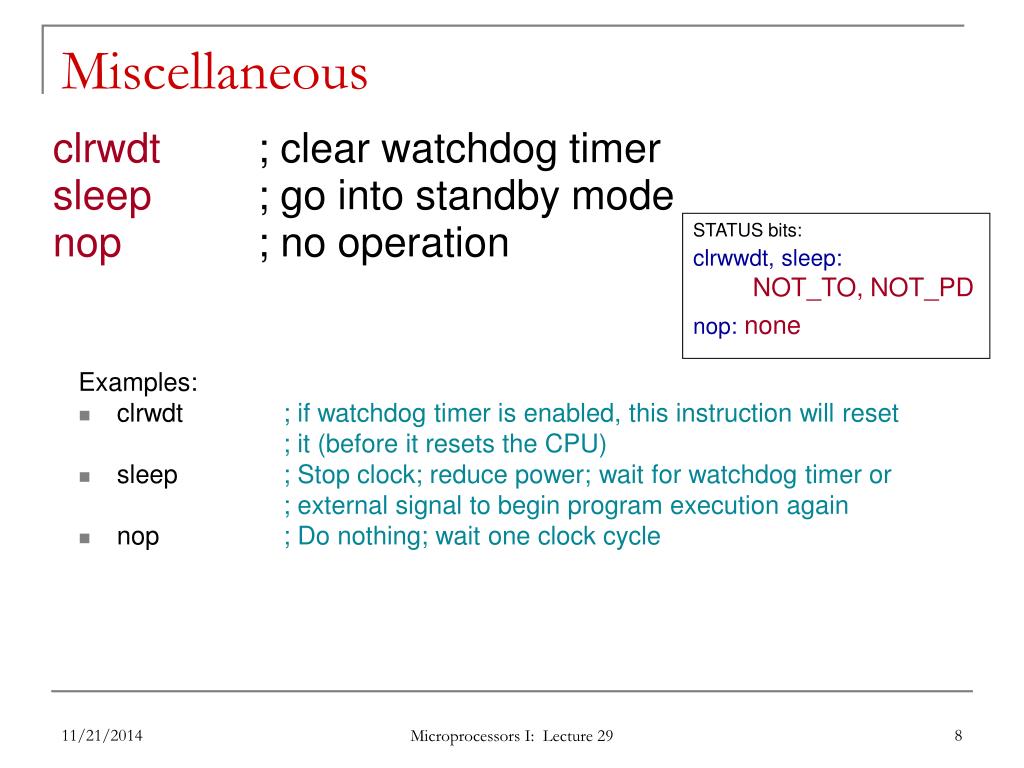

  8. Miscellaneous clrwdt ; clear watchdog timer sleep ; go into standby mode nop ; no operation Examples: • clrwdt ; if watchdog timer is enabled, this instruction will reset ; it (before it resets the CPU) • sleep ; Stop clock; reduce power; wait for watchdog timer or ; external signal to begin program execution again • nop ; Do nothing; wait one clock cycle STATUS bits: clrwwdt, sleep: NOT_TO, NOT_PD nop: none Microprocessors I: Lecture 29

  9. Working with multiple registers • Can’t do simple data transfer or operation on two registers • Usually must involve working register • Examples: x86  PIC (assume PIC registers defined with same names as x86 registers) • MOV AL, BL movf BL, W movwf AL • ADD AL, BL movf BL, W addwf AL, F Microprocessors I: Lecture 29

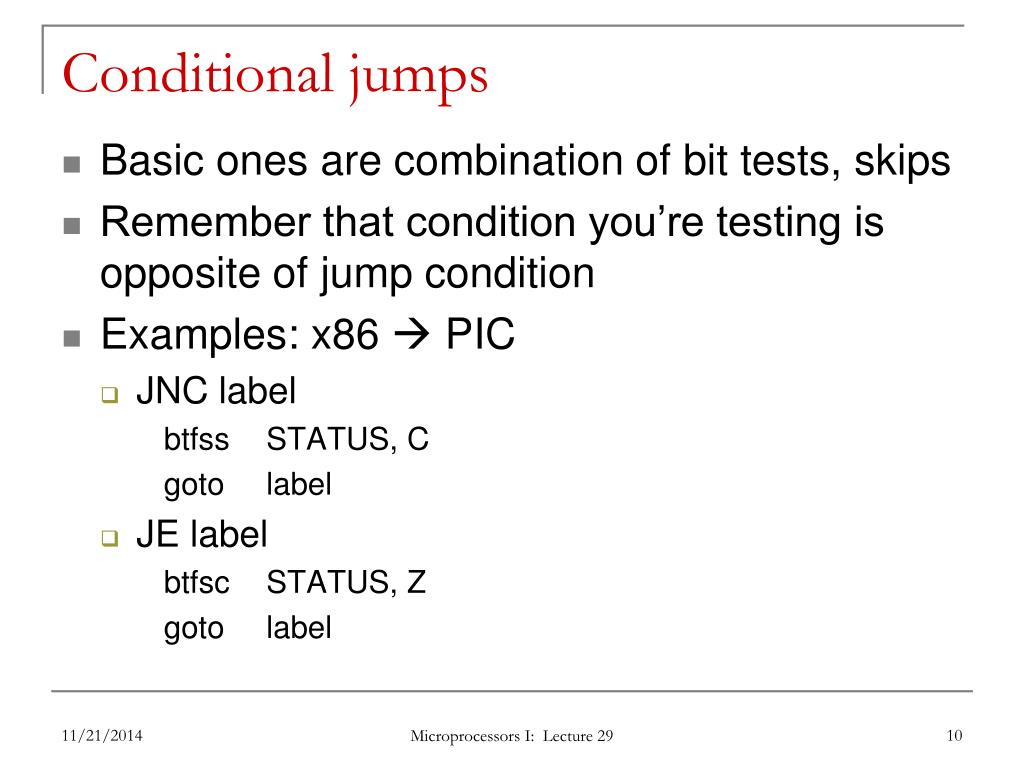

  10. Conditional jumps • Basic ones are combination of bit tests, skips • Remember that condition you’re testing is opposite of jump condition • Examples: x86  PIC • JNC label btfss STATUS, C goto label • JE label btfsc STATUS, Z goto label Microprocessors I: Lecture 29

  11. Conditional jumps (cont.) • To evaluate other conditions, may want to use subtraction in place of compare • CMP X, Y turns into: movf Y, W subwf X, W • Possible results (unsigned comparison only): • X > Y  Z = 0, C = 1 • X == Y  Z = 1, C = 1 • X<Y  Z = 0, C = 0 • More complex conditions • X <= Y  Z == C • X != Y  Z = 0 • X >= Y  C = 1 Microprocessors I: Lecture 29

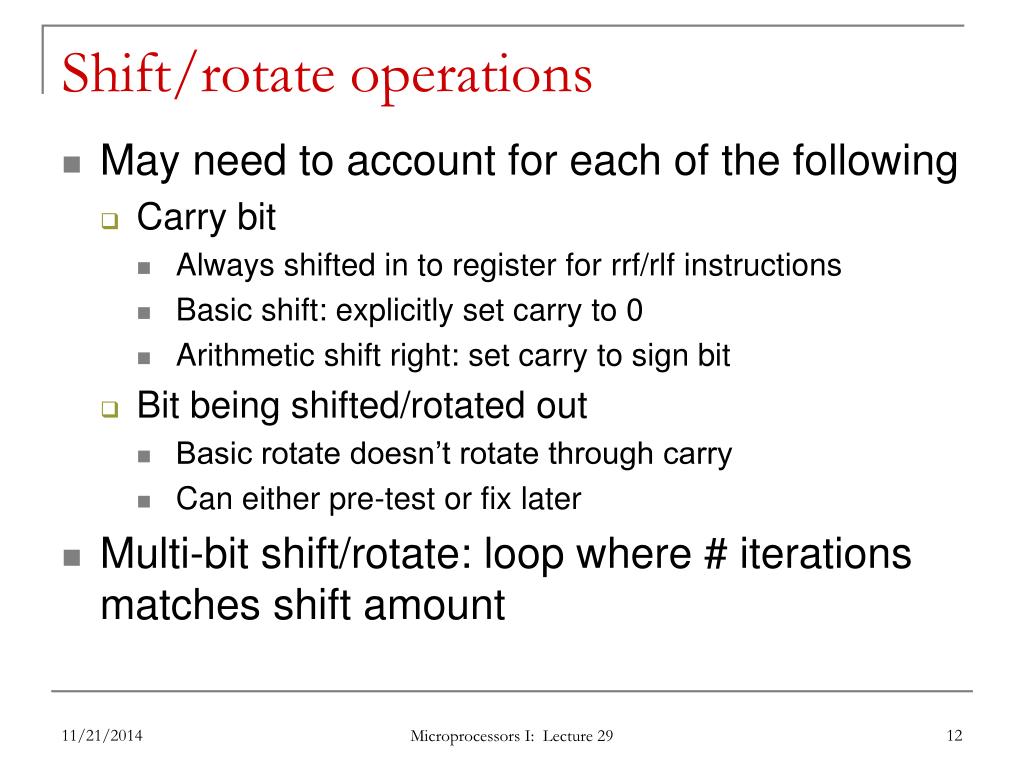

  12. Shift/rotate operations • May need to account for each of the following • Carry bit • Always shifted in to register for rrf/rlf instructions • Basic shift: explicitly set carry to 0 • Arithmetic shift right: set carry to sign bit • Bit being shifted/rotated out • Basic rotate doesn’t rotate through carry • Can either pre-test or fix later • Multi-bit shift/rotate: loop where # iterations matches shift amount Microprocessors I: Lecture 29

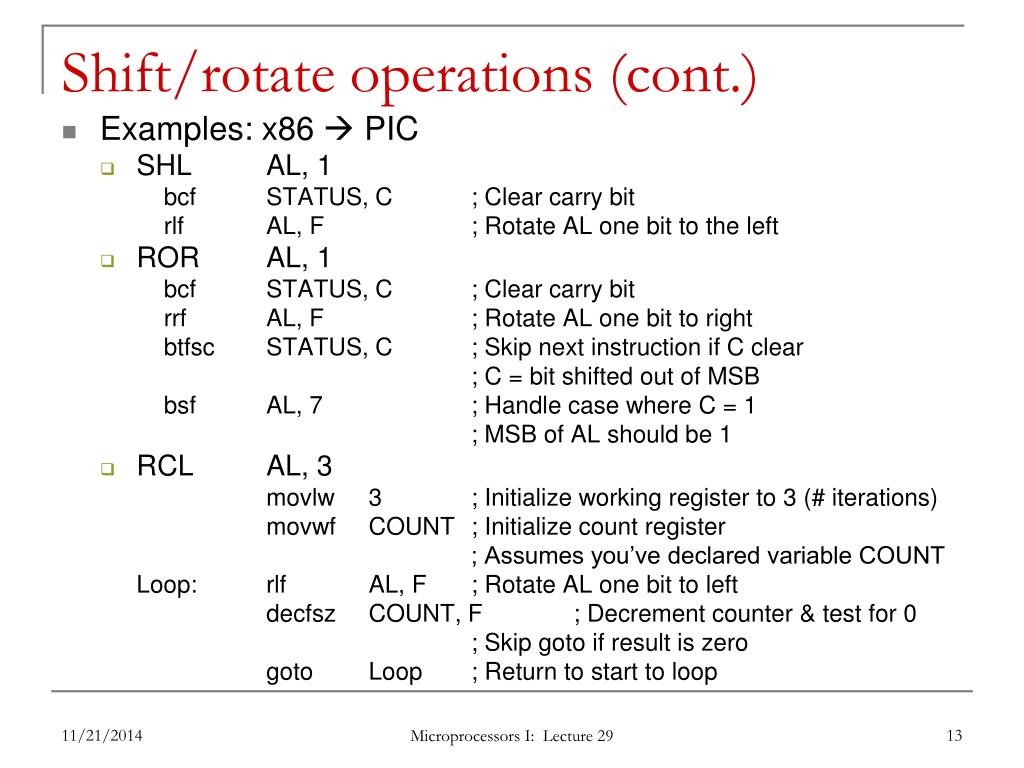

  13. Shift/rotate operations (cont.) • Examples: x86  PIC • SHL AL, 1 bcf STATUS, C ; Clear carry bit rlf AL, F ; Rotate AL one bit to the left • ROR AL, 1 bcf STATUS, C ; Clear carry bit rrf AL, F ; Rotate AL one bit to right btfsc STATUS, C ; Skip next instruction if C clear ; C = bit shifted out of MSB bsf AL, 7 ; Handle case where C = 1 ; MSB of AL should be 1 • RCL AL, 3 movlw 3 ; Initialize working register to 3 (# iterations) movwf COUNT ; Initialize count register ; Assumes you’ve declared variable COUNT Loop: rlf AL, F ; Rotate AL one bit to left decfsz COUNT, F ; Decrement counter & test for 0 ; Skip goto if result is zero goto Loop ; Return to start to loop Microprocessors I: Lecture 29

  14. Examples • Translate these x86 operations to PIC code • Assume that there are registers defined for each x86 register (e.g. AL, AH, BL, BH, etc.) • OR AL, BL • SUB BL, AL • JNZ label • JL label • SAR AL, 1 • ROL AL, 5 Microprocessors I: Lecture 29

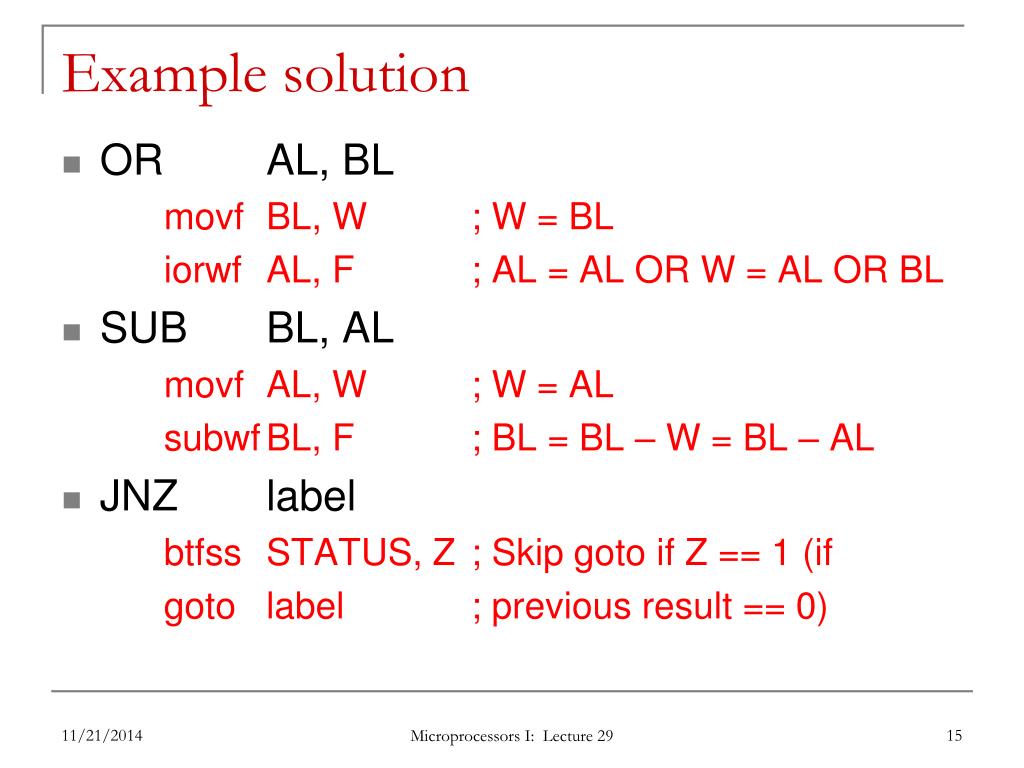

  15. Example solution • OR AL, BL movf BL, W ; W = BL iorwf AL, F ; AL = AL OR W = AL OR BL • SUB BL, AL movf AL, W ; W = AL subwf BL, F ; BL = BL – W = BL – AL • JNZ label btfss STATUS, Z ; Skip goto if Z == 1 (if goto label ; previous result == 0) Microprocessors I: Lecture 29

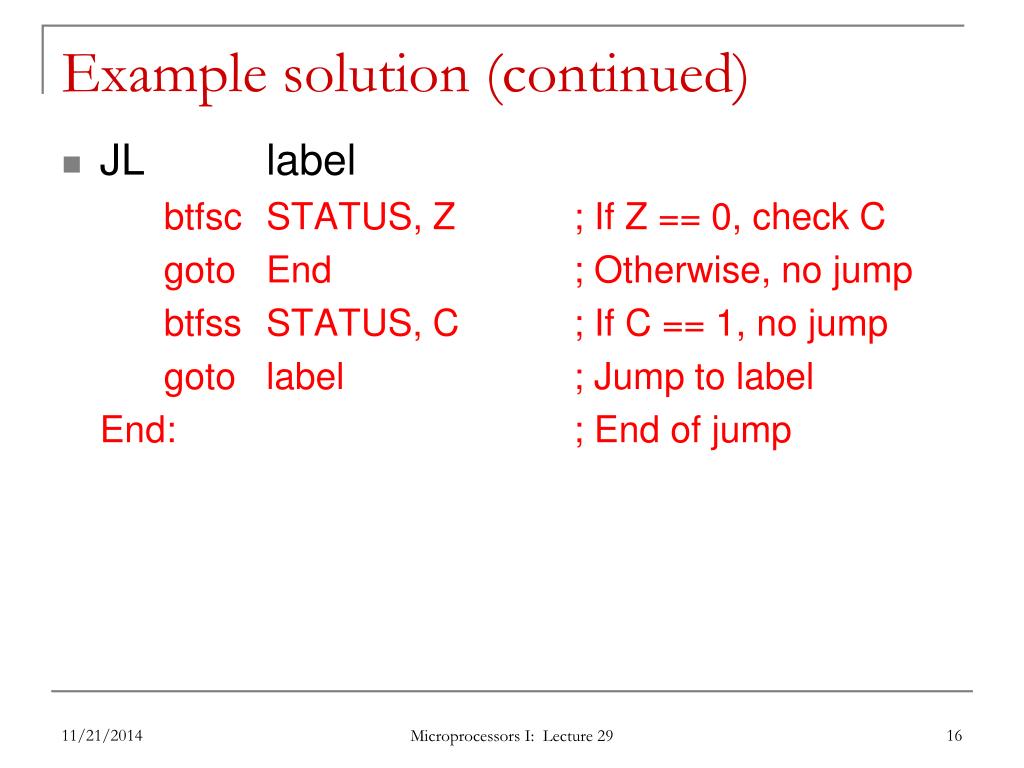

  16. Example solution (continued) • JL label btfsc STATUS, Z ; If Z == 0, check C goto End ; Otherwise, no jump btfss STATUS, C ; If C == 1, no jump goto label ; Jump to label End: ; End of jump Microprocessors I: Lecture 29

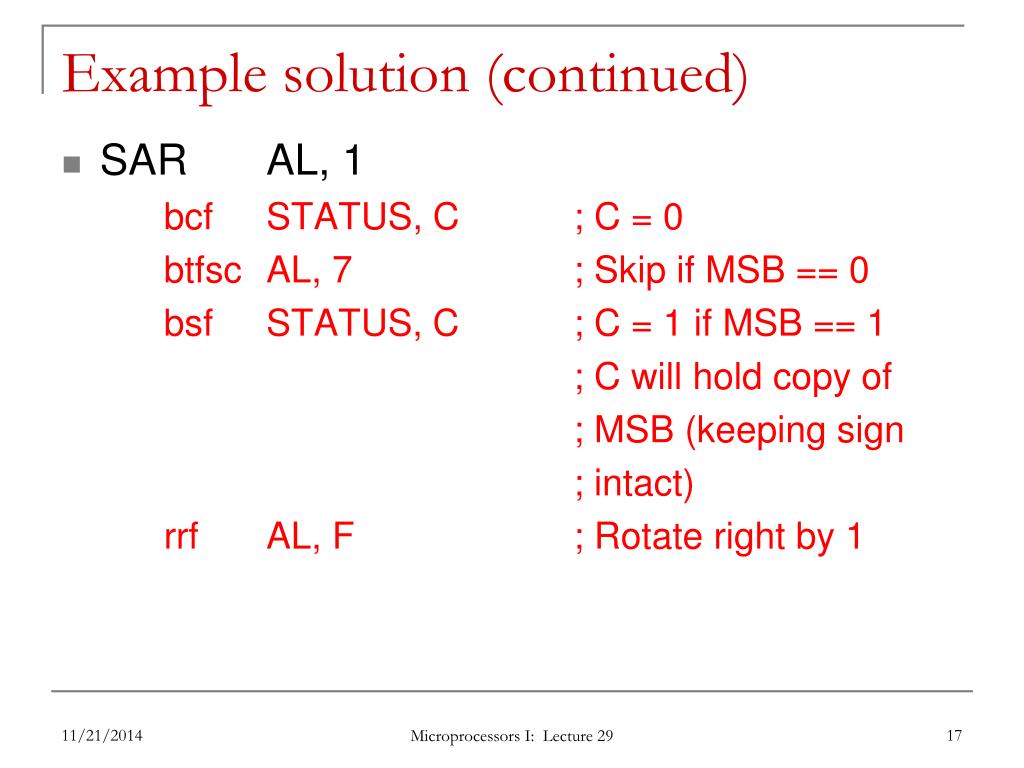

  17. Example solution (continued) • SAR AL, 1 bcf STATUS, C ; C = 0 btfsc AL, 7 ; Skip if MSB == 0 bsf STATUS, C ; C = 1 if MSB == 1 ; C will hold copy of ; MSB (keeping sign ; intact) rrf AL, F ; Rotate right by 1 Microprocessors I: Lecture 29

  18. Example solution (continued) • ROL AL, 5 movlw 5 ; W = 5 movwf COUNT ; COUNT = W = 5 L:bcf STATUS, C ; C = 0 btfsc AL, 7 ; Skip if MSB == 0 bsf STATUS, C ; C = 1 if MSB == 1 ; C will hold copy of ; MSB (bit rotated into ; LSB) rlf AL, F ; Rotate left by 1 decfsz COUNT ; If COUNT == 0, don’t ; restart loop goto L Microprocessors I: Lecture 29

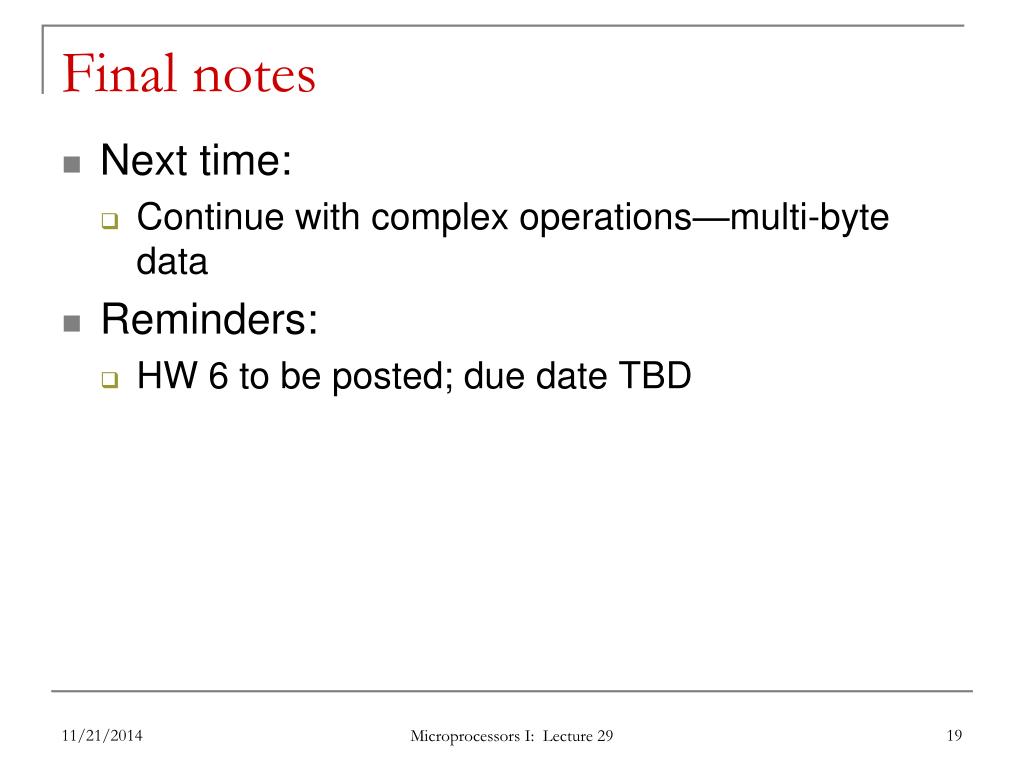

  19. Final notes • Next time: • Continue with complex operations—multi-byte data • Reminders: • HW 6 to be posted; due date TBD Microprocessors I: Lecture 29
