Double Pendulum

Double Pendulum. Double Pendulum. The double pendulum is a conservative system. Two degrees of freedom The exact Lagrangian can be written without approximation. l. q. m. l. f. m. Make substitutions: Divide by mgl t  t ( g / l ) 1/2. Find conjugate momenta as angular momenta.

sadah
Télécharger la présentation

Double Pendulum

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Double Pendulum

  2. Double Pendulum • The double pendulum is a conservative system. • Two degrees of freedom • The exact Lagrangian can be written without approximation. l q m l f m

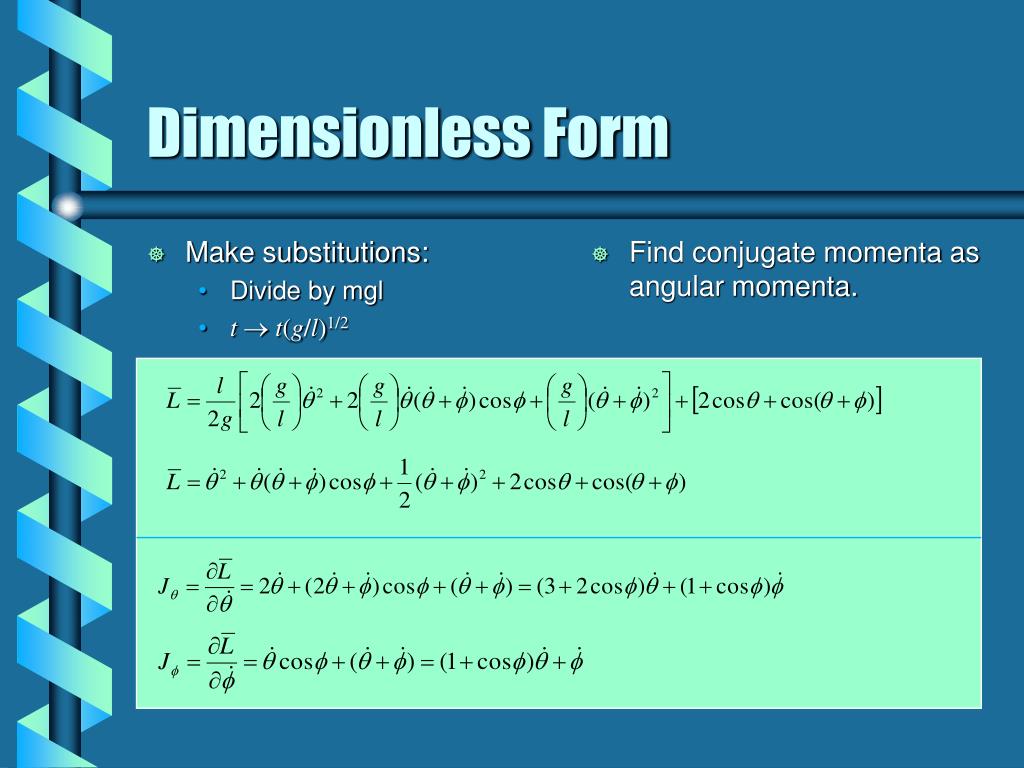

  3. Make substitutions: Divide by mgl tt(g/l)1/2 Find conjugate momenta as angular momenta. Dimensionless Form

  4. Make substitutions: Divide by mgl tt(g/l)1/2 Find conjugate momenta as angular momenta. Hamilton’s Equations

  5. Small Angle Approximation • For small angles the Lagrangian simplifies. • The energy is E = -3. • The mode frequencies can be found from the matrix form. • The winding number W is irrational.

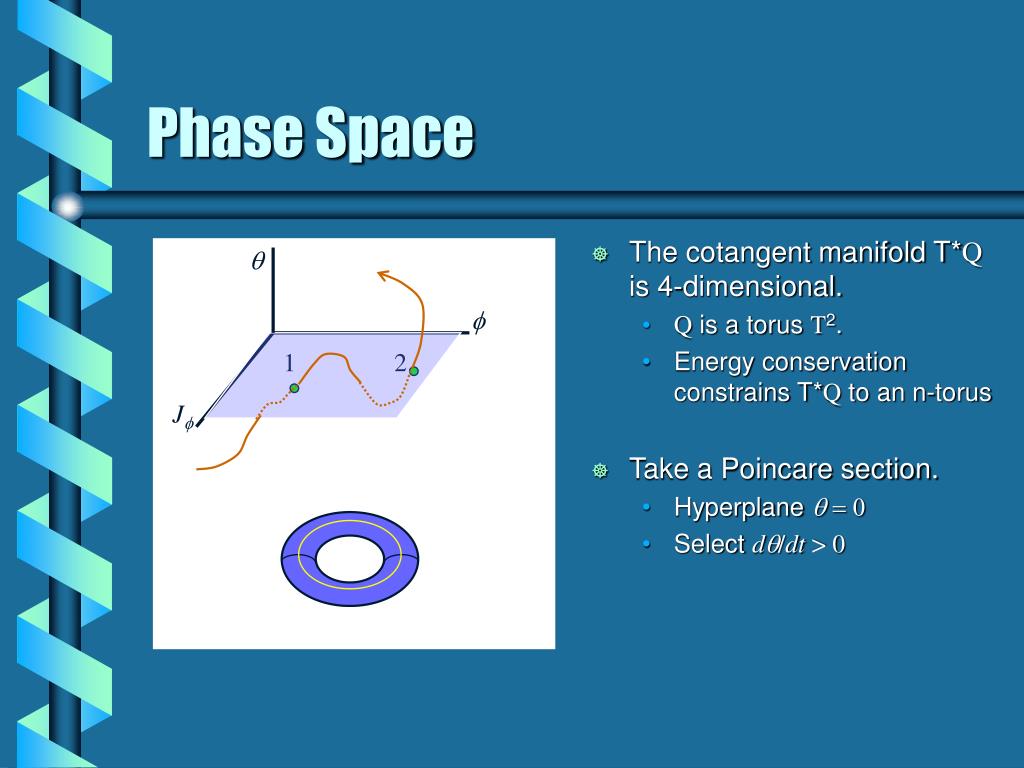

  6. Phase Space • The cotangent manifold T*Q is 4-dimensional. • Q is a torus T2. • Energy conservation constrains T*Q to an n-torus • Take a Poincare section. • Hyperplane q= 0 • Select dq/dt > 0 q f 1 2 Jf

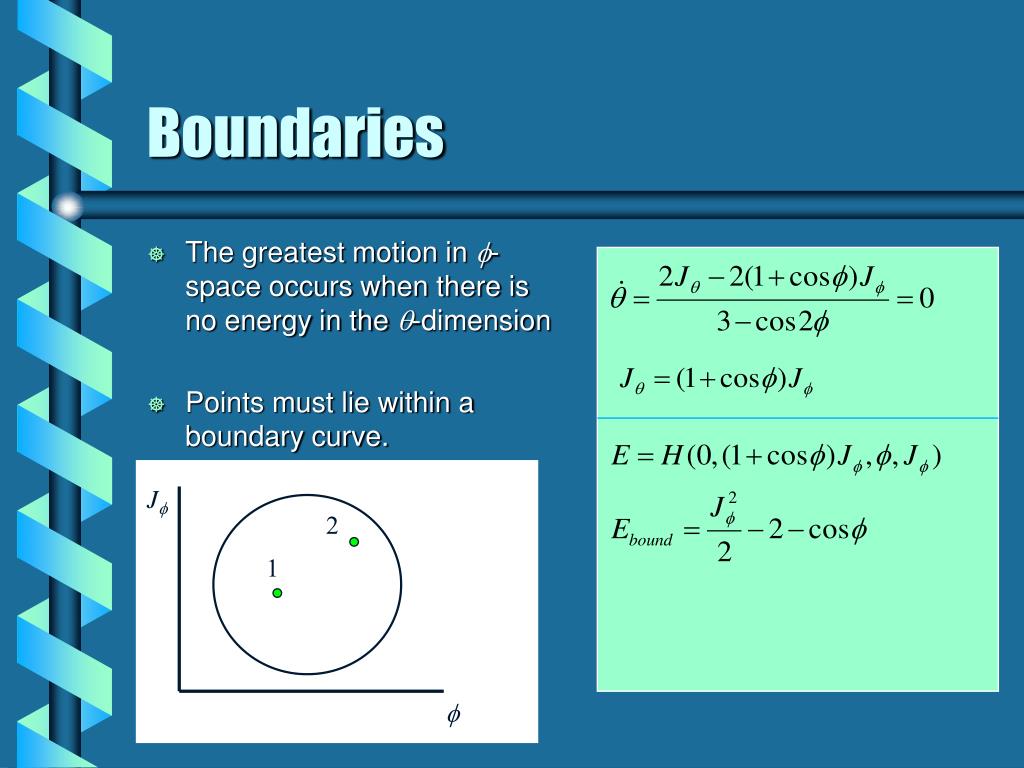

  7. Boundaries • The greatest motion in f-space occurs when there is no energy in the q-dimension • Points must lie within a boundary curve. Jf 2 1 f

  8. Fixed Points • For small angle deflections there should be two fixed points. • Correspond to normal modes Jf 2 1 f

  9. Invariant Tori • An orbit on the Poincare section corresponds to a torus. • The motion does not leave the torus. • Motion is “invariant” • Orbits correspond to different energies. • Mixture of normal modes Jf f next
