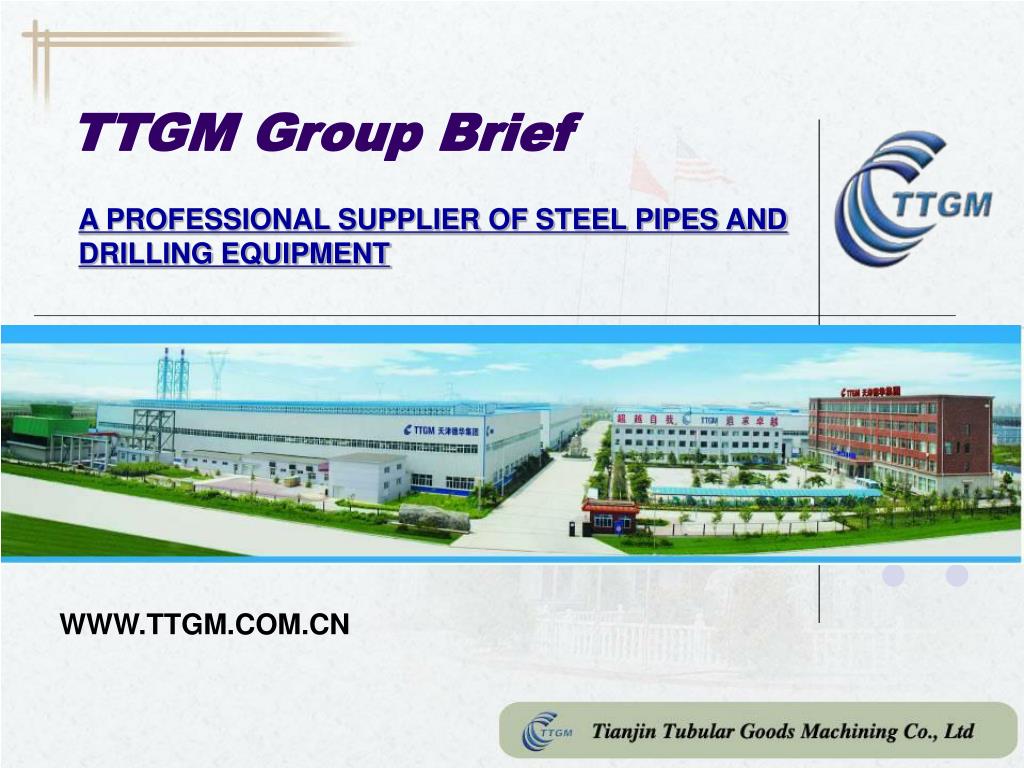

  1. TTGM Group Brief A PROFESSIONAL SUPPLIER OF STEEL PIPES AND DRILLING EQUIPMENT WWW.TTGM.COM.CN

  2. OUTLINE Company Introduction Production Introduction Customer Evaluation Contact

  3. COMPANY INTRODUCTION • TTGM is an integrated company (6 affiliated companies in China and 3 are located in overseas) with 15 years’ experience producing the Oil pipe,drilling Tool, well head device, Oil production equipment and even Chemical with group’s total SALE’S REVENUE OF 1 billion US dollars per year. • The sales volume of TTGM for overseas markets consists about 50 % of total annual production. And the clients for supply of our products are highly experienced in drilling and they include the well-know international ones from Canada, USA, Algeria, Sudan, CIS, Middle East.

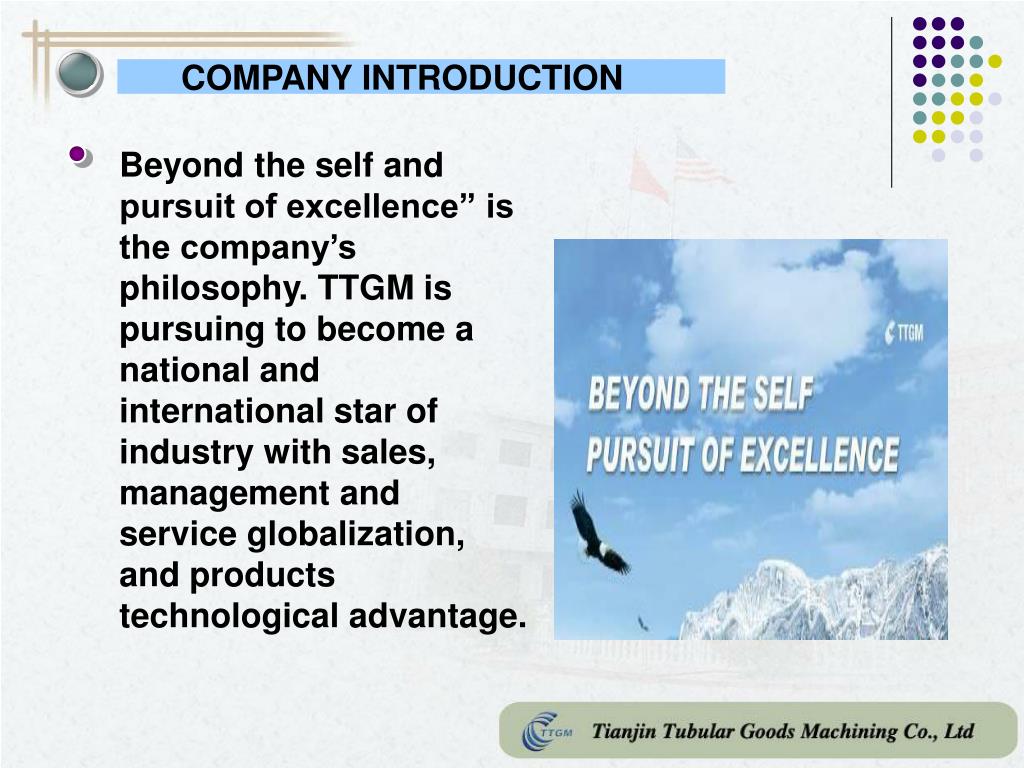

  4. COMPANY INTRODUCTION Beyond the self and pursuit of excellence” is the company’s philosophy. TTGM is pursuing to become a national and international star of industry with sales, management and service globalization, and products technological advantage.

  5. OIL Pipes CASING ,TUBING, DRILL PIPES, DRILL COLLARS WELDED PIPE SUCKER ROD DRILLING EQUIPMENT

  6. TTGM GROUP CASING, TUBING AND DRILL PIPES WWW.TTGM.COM.CN

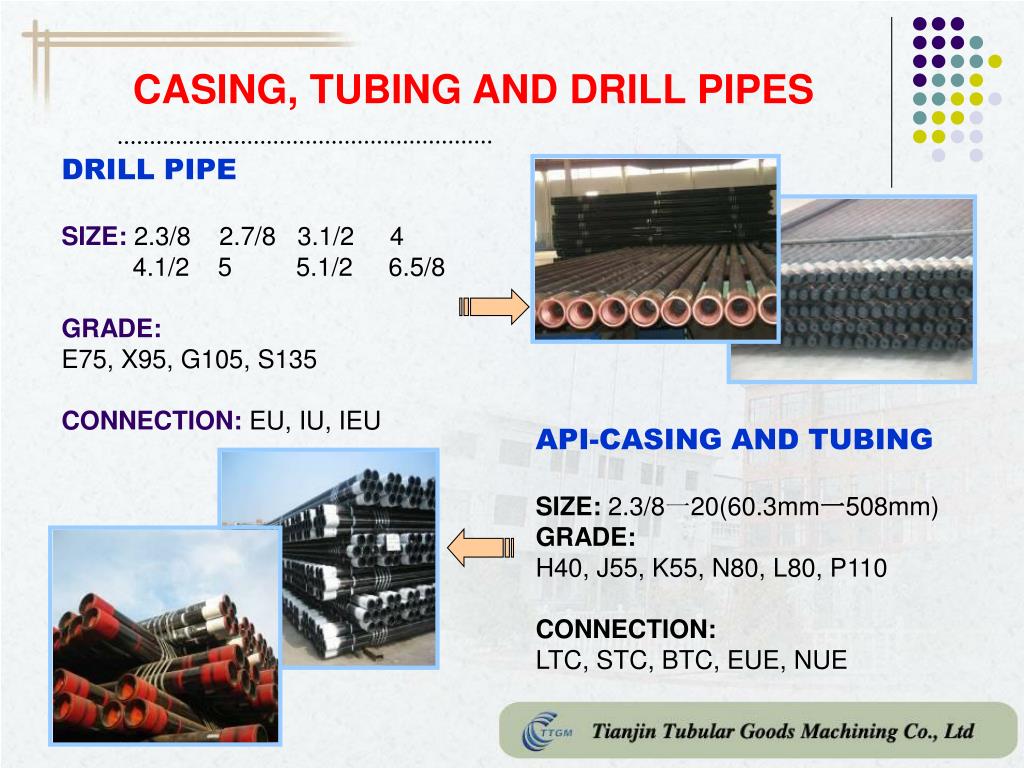

  7. API-CASING AND TUBING SIZE: 2.3/8一20(60.3mm一508mm) GRADE: H40, J55, K55, N80, L80, P110 CONNECTION: LTC, STC, BTC, EUE, NUE CASING, TUBING AND DRILL PIPES DRILL PIPE SIZE: 2.3/8 2.7/8 3.1/2 4 4.1/2 5 5.1/2 6.5/8 GRADE: E75, X95, G105, S135 CONNECTION: EU, IU, IEU

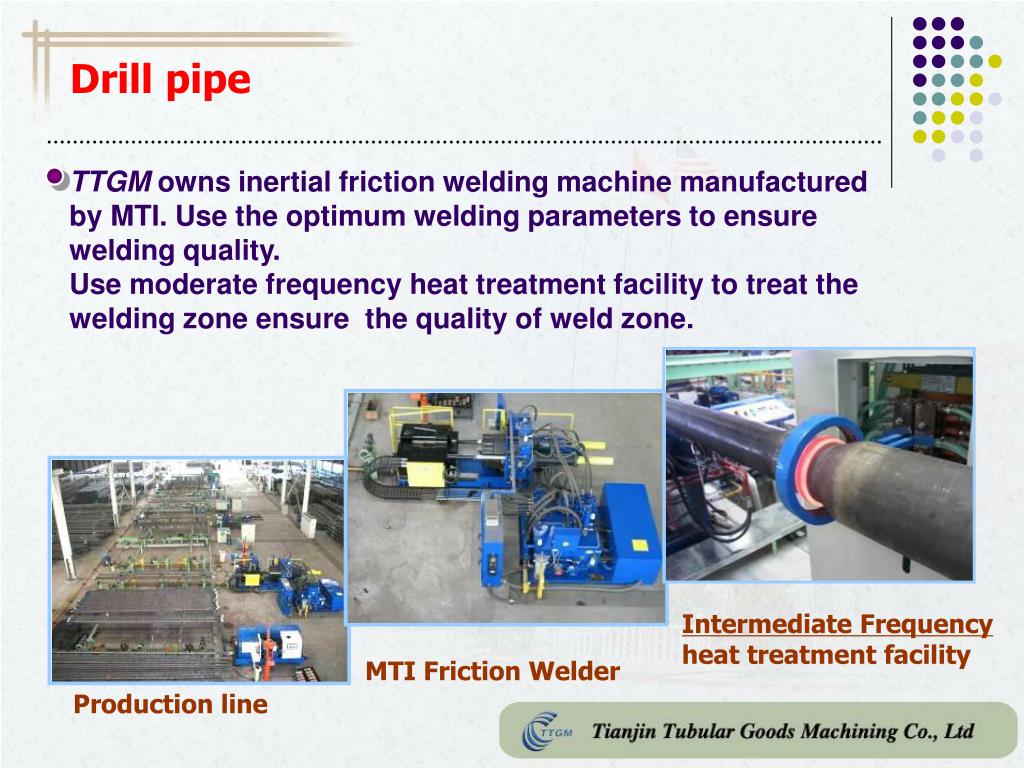

  8. Drill pipe TTGM owns inertial friction welding machine manufactured by MTI. Use the optimum welding parameters to ensure welding quality. Use moderate frequency heat treatment facility to treat the welding zone ensure the quality of weld zone. Intermediate Frequency heat treatment facility MTI Friction Welder Production line

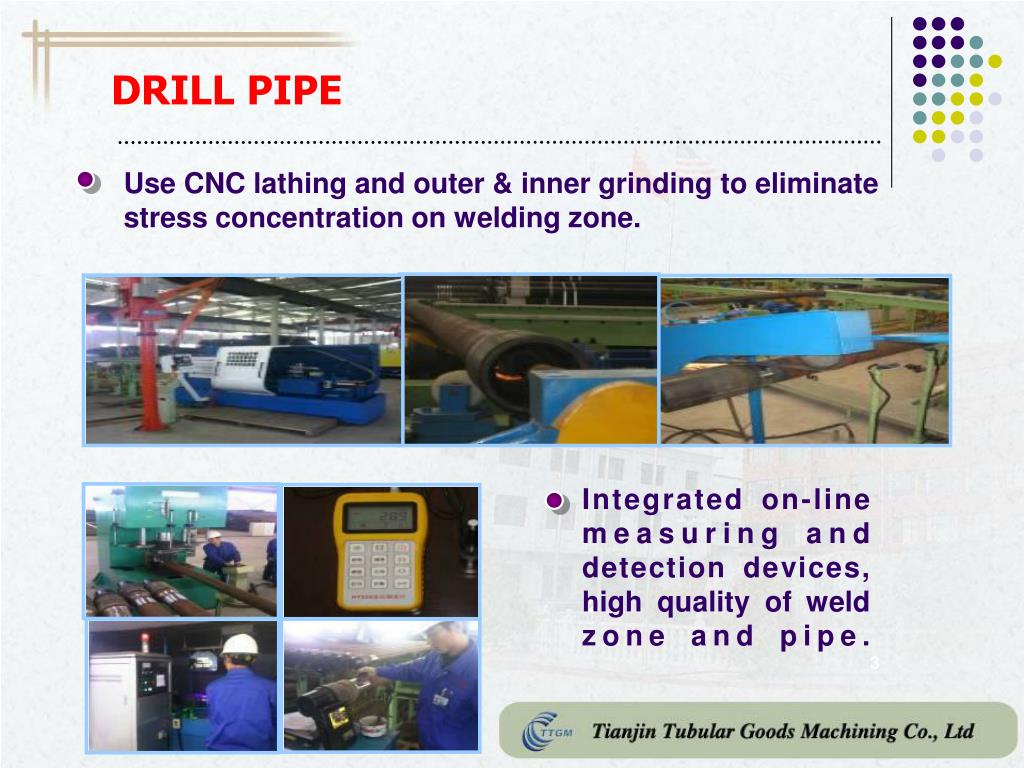

  9. DRILL PIPE Use CNC lathing and outer & inner grinding to eliminate stress concentration on welding zone. Integrated on-line measuring and detection devices, high quality of weld zone and pipe. 1 2 3

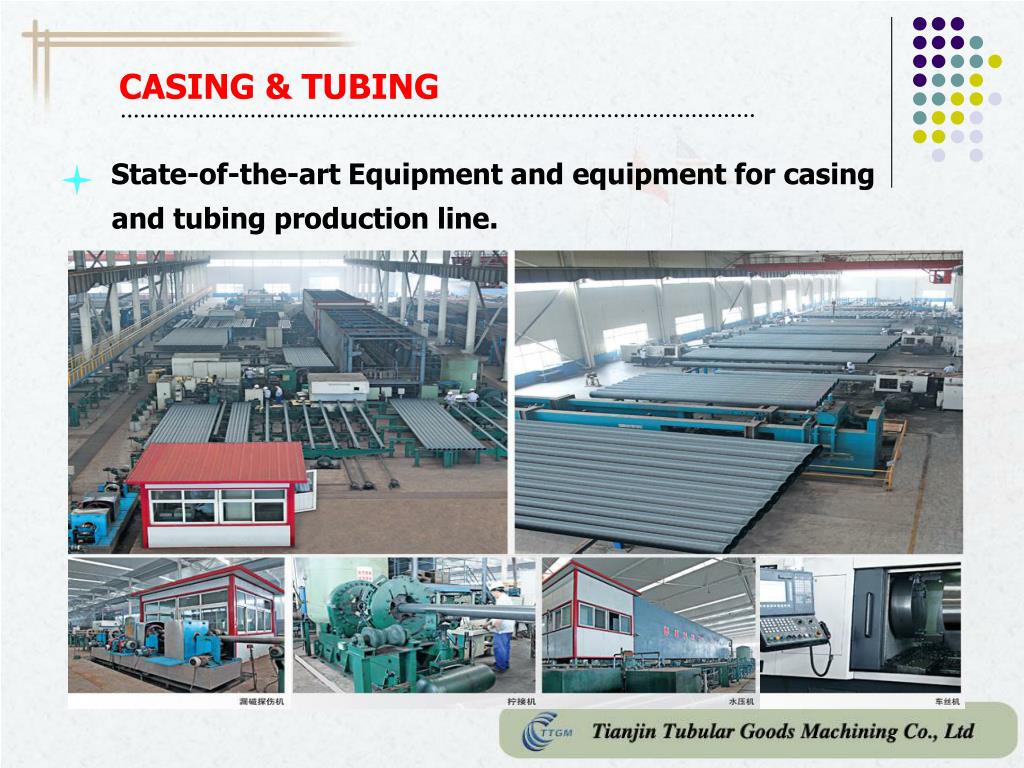

  10. CASING & TUBING State-of-the-art Equipment and equipment for casing and tubing production line.

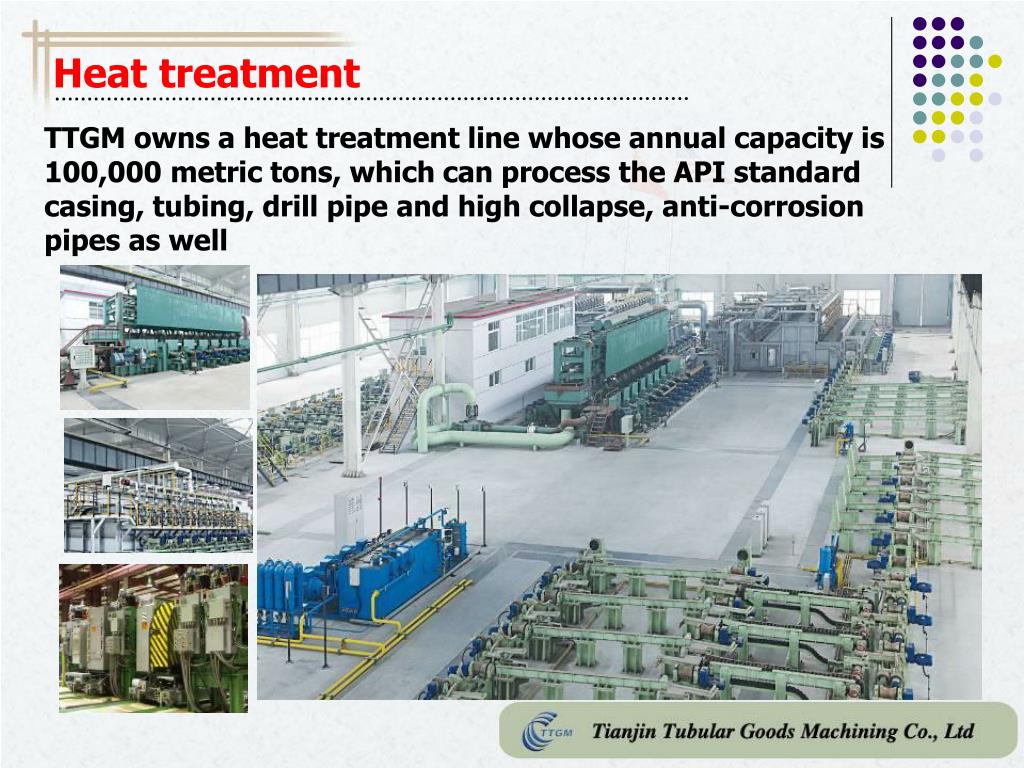

  11. Heat treatment TTGM owns a heat treatment line whose annual capacity is 100,000 metric tons, which can process the API standard casing, tubing, drill pipe and high collapse, anti-corrosion pipes as well

  12. Certificates for casing, tubing and drill pipe

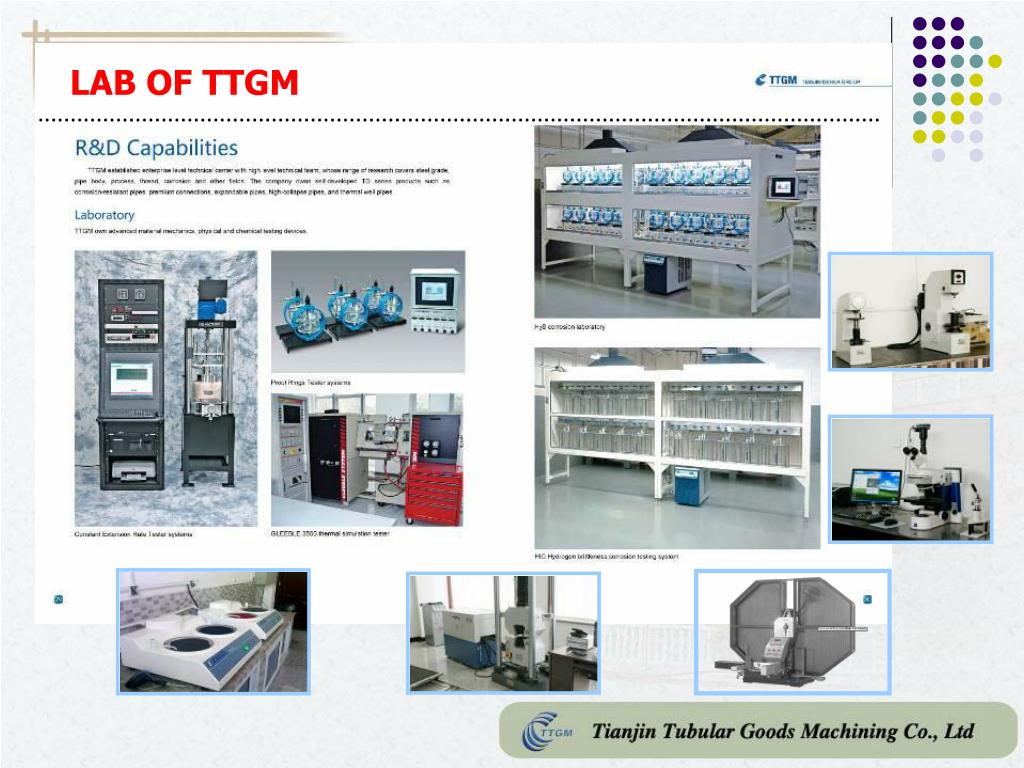

  13. LAB OF TTGM

  14. RESEARCH & DEVELOPMENT OF CASING AND TUBING NON-API standard casing & tubing

  15. PREMIUM THREAD CONNECTIONS (NEW PRODUCT)

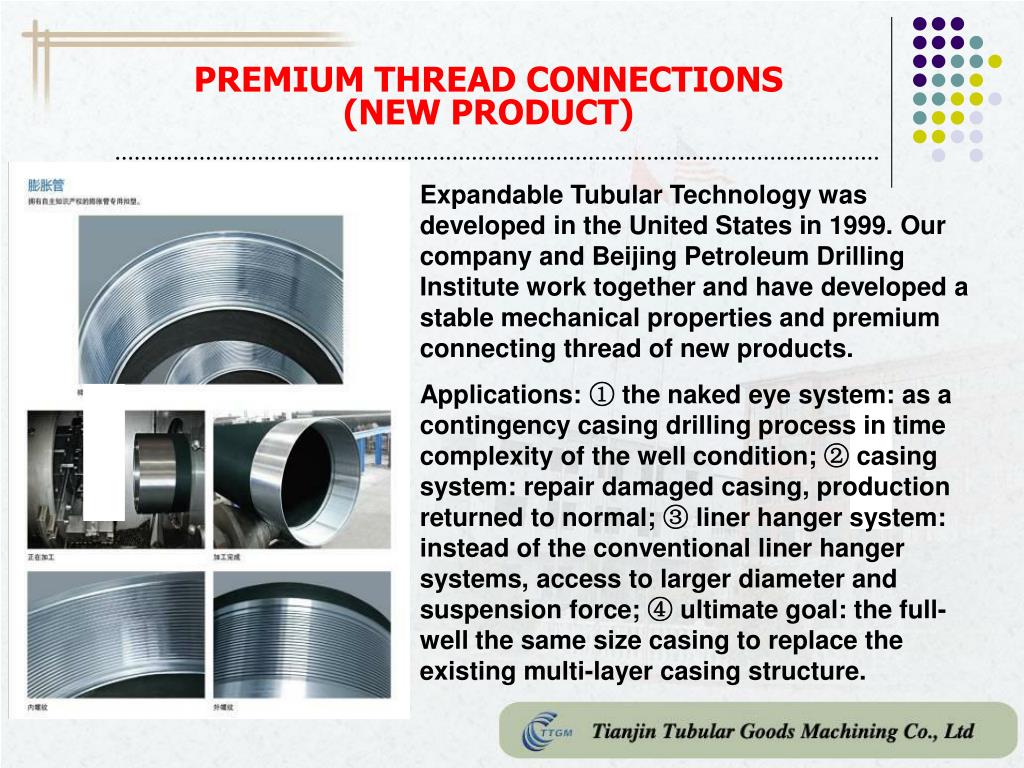

  16. PREMIUM THREAD CONNECTIONS (NEW PRODUCT) Expandable Tubular Technology was developed in the United States in 1999. Our company and Beijing Petroleum Drilling Institute work together and have developed a stable mechanical properties and premium connecting thread of new products. Applications: ① the naked eye system: as a contingency casing drilling process in time complexity of the well condition; ② casing system: repair damaged casing, production returned to normal; ③ liner hanger system: instead of the conventional liner hanger systems, access to larger diameter and suspension force; ④ ultimate goal: the full-well the same size casing to replace the existing multi-layer casing structure.

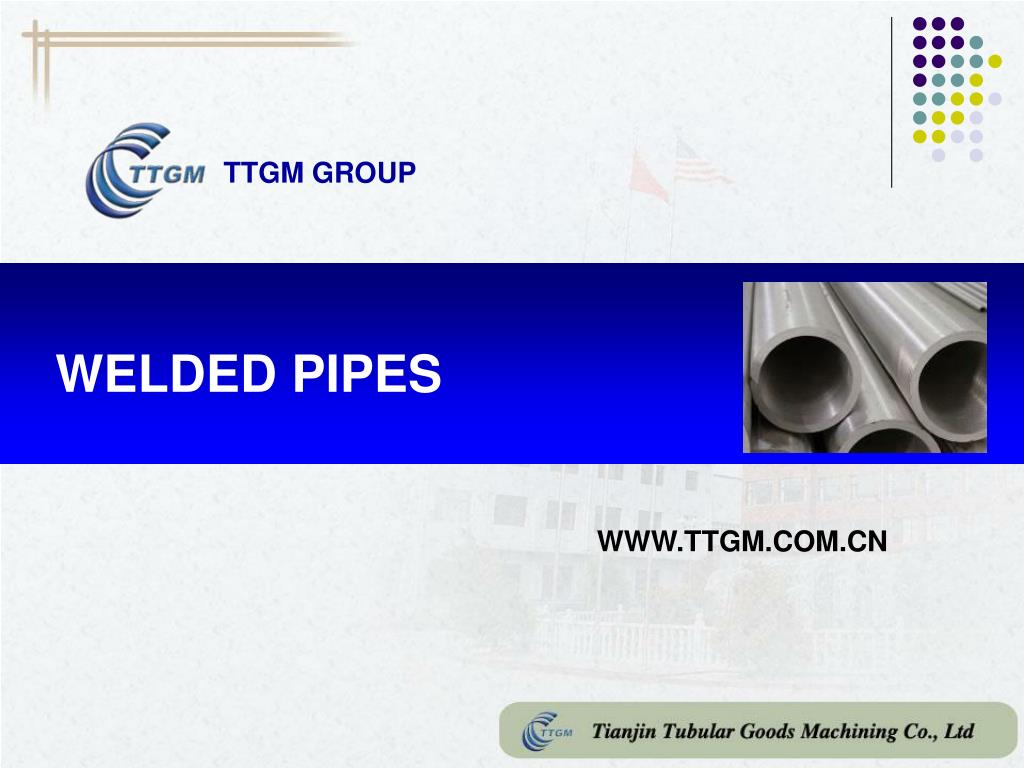

  17. TTGM GROUP WELDED PIPES WWW.TTGM.COM.CN

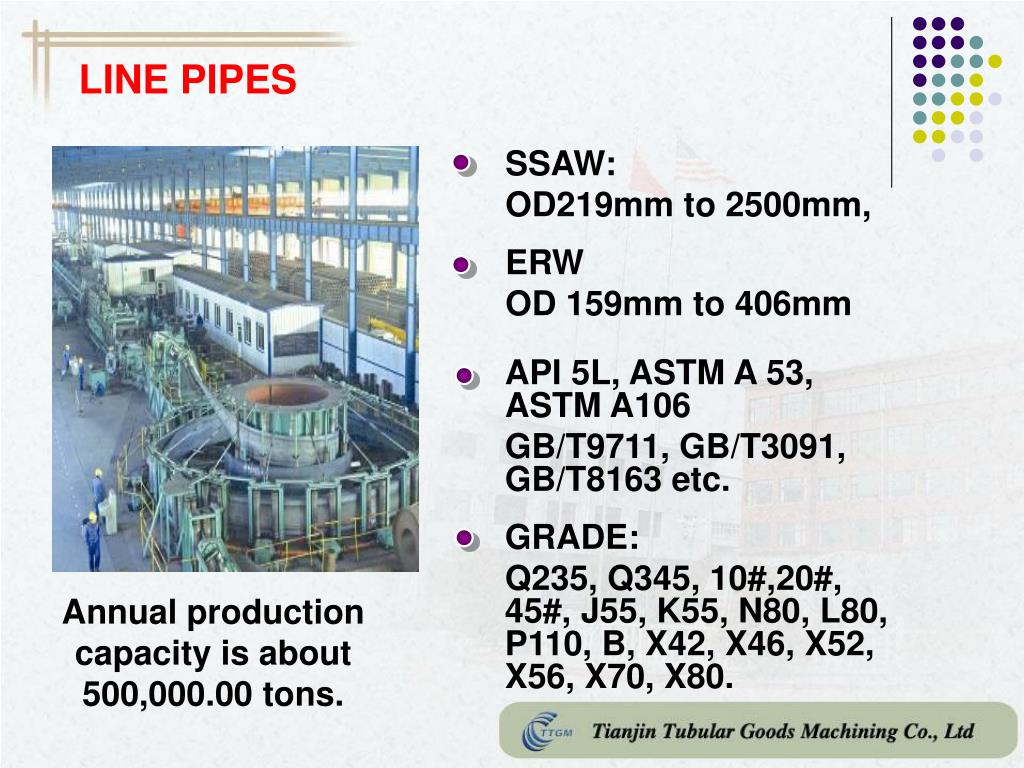

  18. LINE PIPES Our company now holds one φ140-φ406mm middle straight seam steel pipe production line and four production lines ofφ219-φ2500 double-side spiral submerged arc welding pipes. The annual production capacity is of 380,000 tons of different specifications and the annual output amounts to RMB1.2 billion.

  19. LINE PIPES SSAW: OD219mm to 2500mm, ERW OD 159mm to 406mm API 5L, ASTM A 53, ASTM A106 GB/T9711, GB/T3091, GB/T8163 etc. GRADE: Q235, Q345, 10#,20#, 45#, J55, K55, N80, L80, P110, B, X42, X46, X52, X56, X70, X80. Annual production capacity is about 500,000.00 tons.

  20. LINE PIPES

  21. TTGM GROUP SUCKER ROD WWW.TTGM.COM.CN

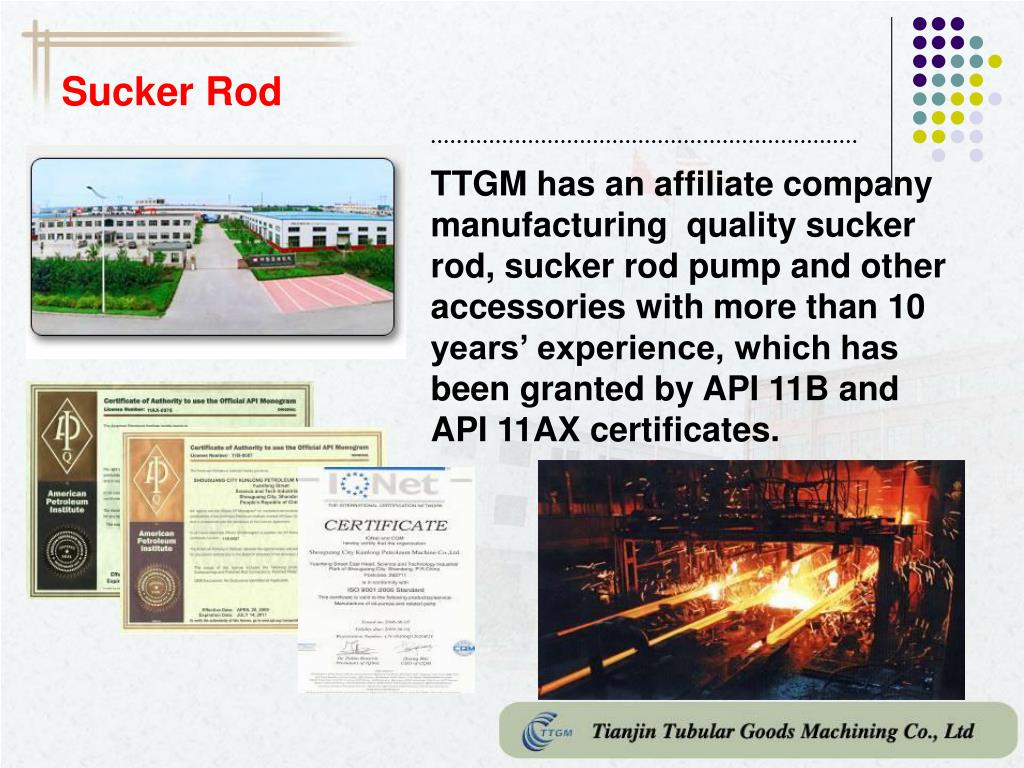

  22. Sucker Rod TTGM has an affiliate company manufacturing quality sucker rod, sucker rod pump and other accessories with more than 10 years’ experience, which has been granted by API 11B and API 11AX certificates.

  23. SALES NET WORK OF PIPES

  24. TTGM GROUP DRILLING EQUIPMENT WWW.TTGM.COM.CN

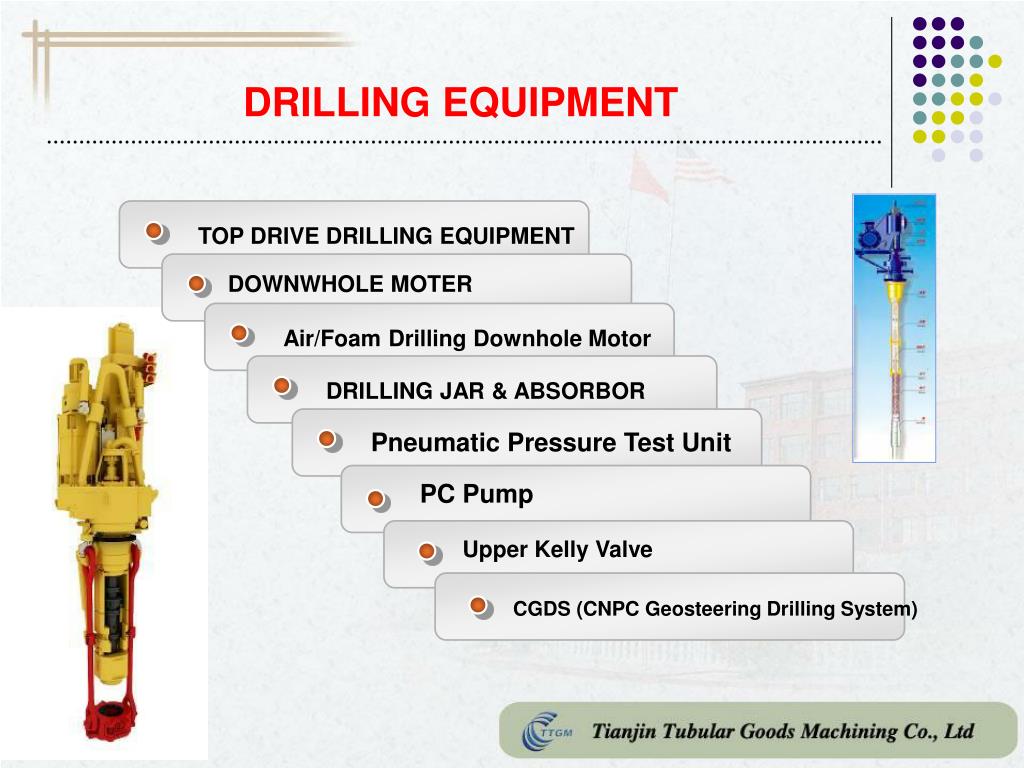

  25. DRILLING EQUIPMENT TOP DRIVE DRILLING EQUIPMENT DOWNWHOLE MOTER Air/Foam Drilling Downhole Motor DRILLING JAR & ABSORBOR Pneumatic Pressure Test Unit PC Pump Upper Kelly Valve CGDS (CNPC Geosteering Drilling System)

  26. Production Ability

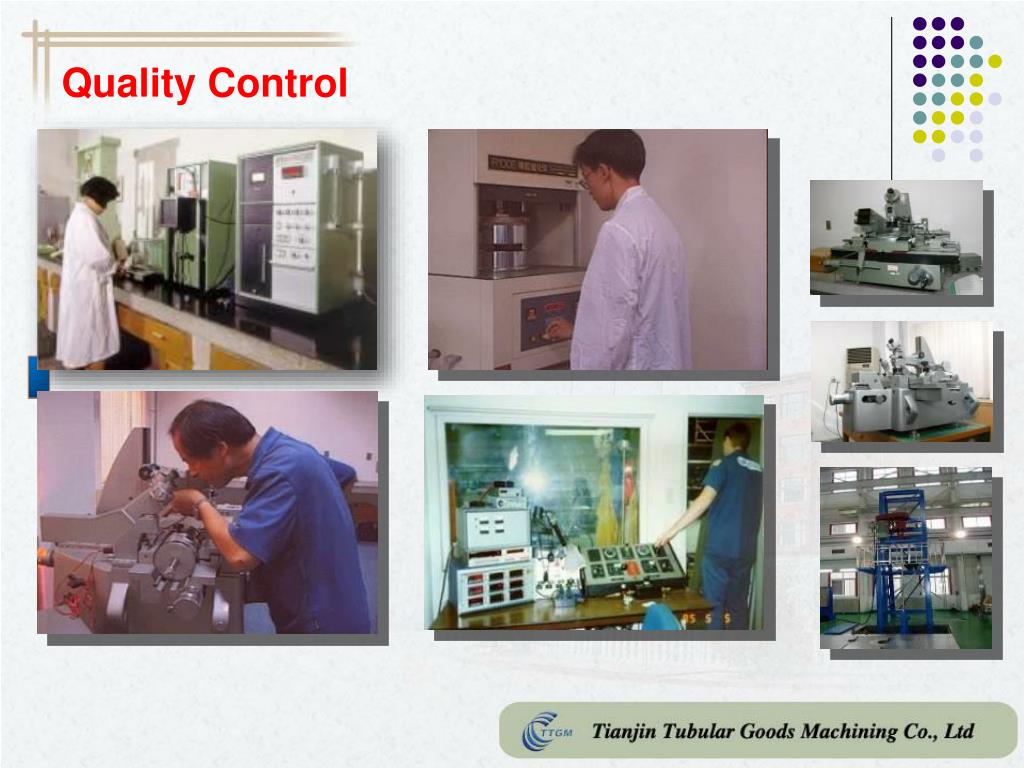

  27. Quality Control

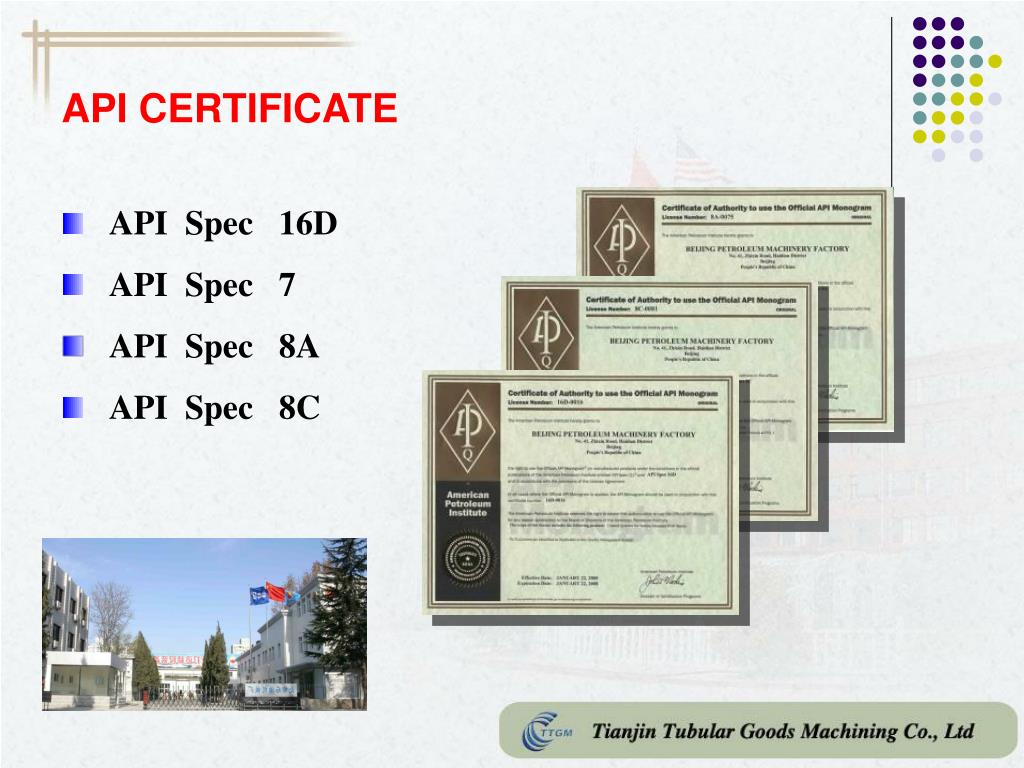

  28. API CERTIFICATE • API Spec 16D • API Spec 7 • API Spec 8A • API Spec8C

  29. 18 innovations were patented during last 5 years • Top Drive Drilling Equipment • A kind of Drilling Jar with Latch Mechanism • Multi-position Bi-directional Float Tongs of TDDE • A Kind of Shock Absorber • Upper Kelly Valve • A kind of sliding type rotary tongs for TDDE • Air Drilling Jar • Air Drilling Shock Absorber • A kind of Drive Shaft • A kind of Universal Joint Assembly • ……

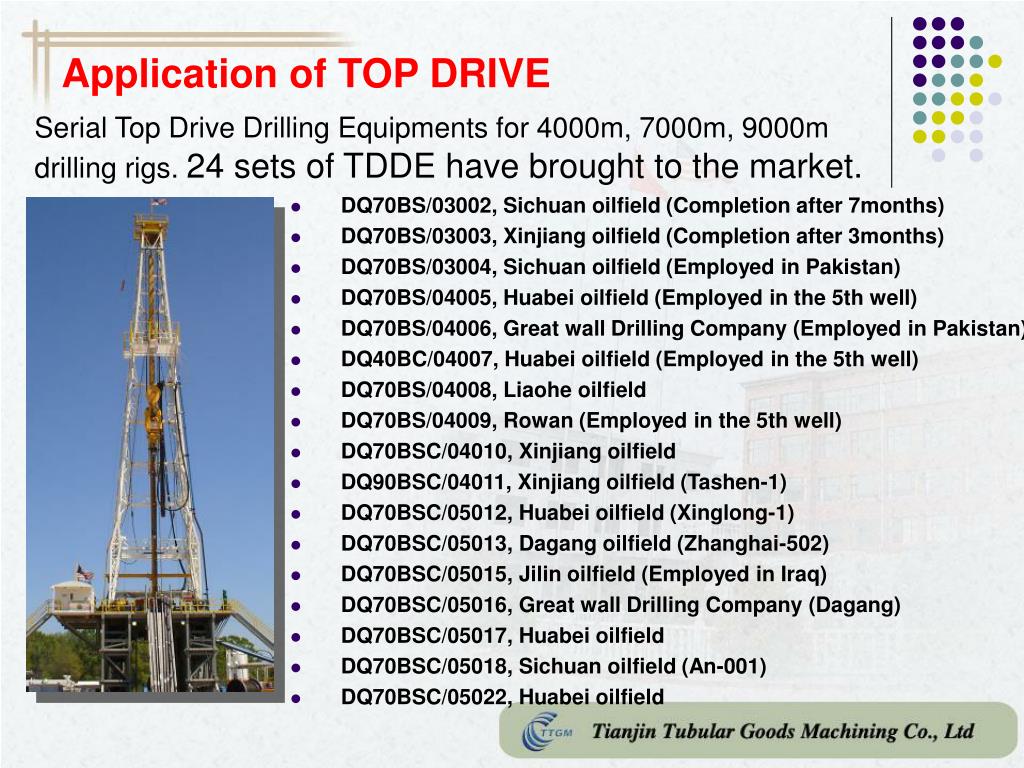

  30. Application of TOP DRIVE Serial Top Drive Drilling Equipments for 4000m, 7000m, 9000m drilling rigs. 24 sets of TDDE have brought to the market. • DQ70BS/03002, Sichuan oilfield (Completion after 7months) • DQ70BS/03003, Xinjiang oilfield (Completion after 3months) • DQ70BS/03004, Sichuan oilfield (Employed in Pakistan) • DQ70BS/04005, Huabei oilfield (Employed in the 5th well) • DQ70BS/04006, Great wall Drilling Company (Employed in Pakistan) • DQ40BC/04007, Huabei oilfield (Employed in the 5th well) • DQ70BS/04008, Liaohe oilfield • DQ70BS/04009, Rowan (Employed in the 5th well) • DQ70BSC/04010, Xinjiang oilfield • DQ90BSC/04011, Xinjiang oilfield (Tashen-1) • DQ70BSC/05012, Huabei oilfield (Xinglong-1) • DQ70BSC/05013, Dagang oilfield (Zhanghai-502) • DQ70BSC/05015, Jilin oilfield (Employed in Iraq) • DQ70BSC/05016, Great wall Drilling Company (Dagang) • DQ70BSC/05017, Huabei oilfield • DQ70BSC/05018, Sichuan oilfield (An-001) • DQ70BSC/05022, Huabei oilfield

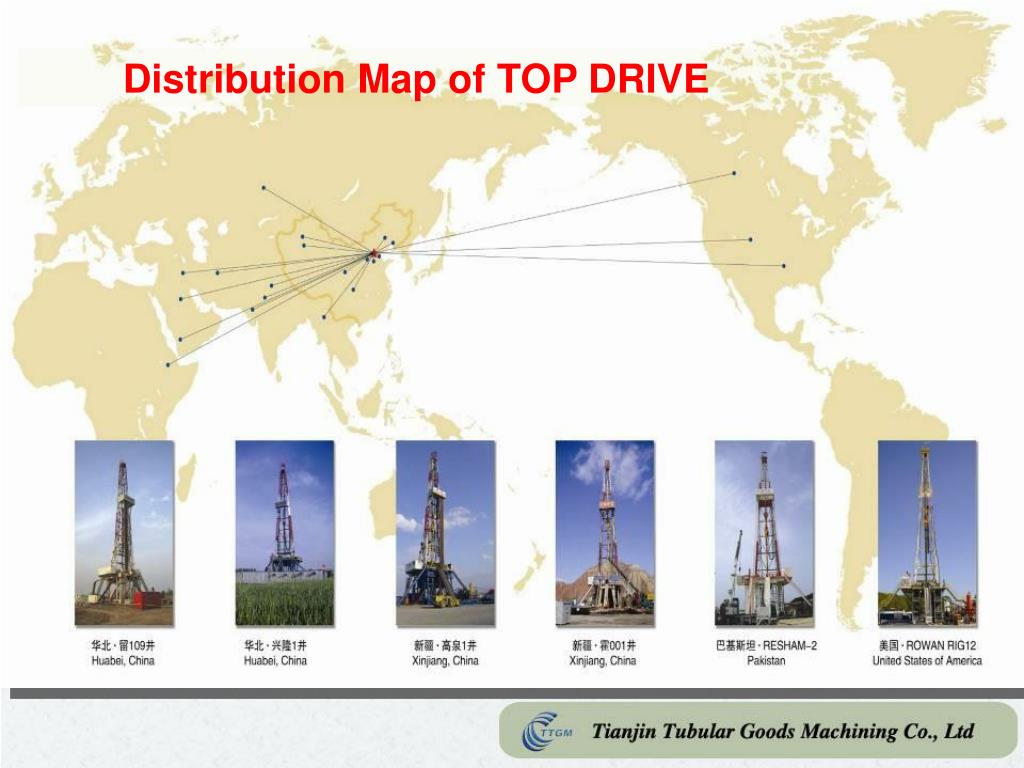

  31. Distribution Map of TOP DRIVE

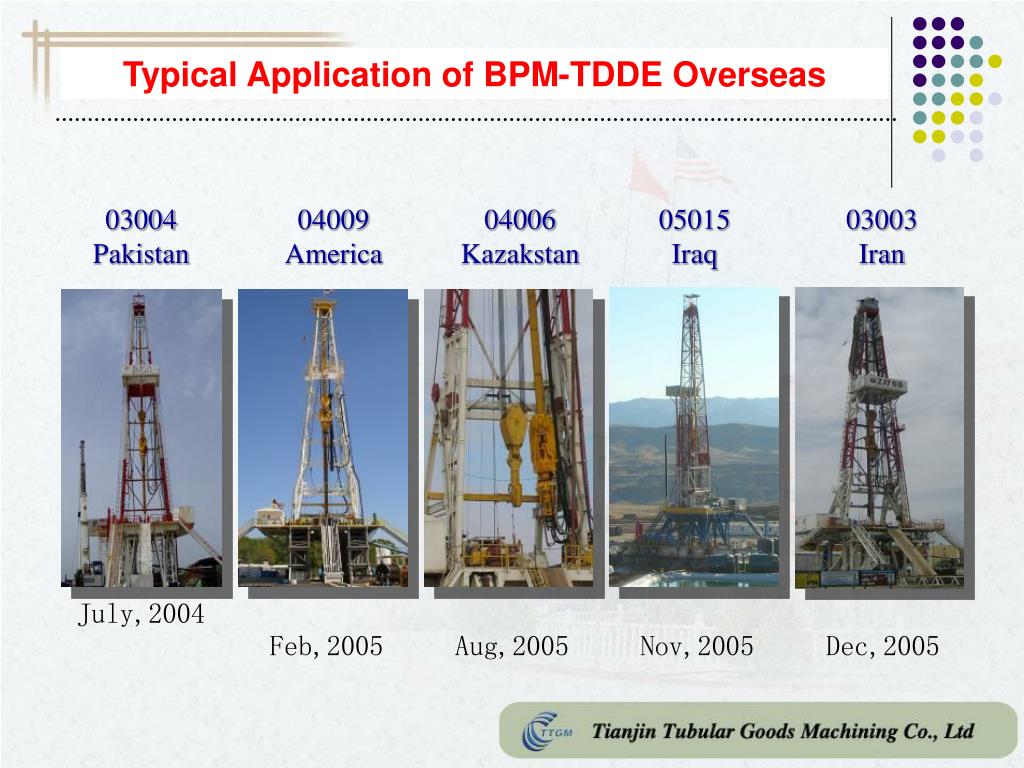

  32. Typical Application of BPM-TDDE Overseas 03004 Pakistan 04009 America 04006 Kazakstan 05015 Iraq 03003 Iran July,2004 Feb,2005 Aug,2005 Nov,2005 Dec,2005

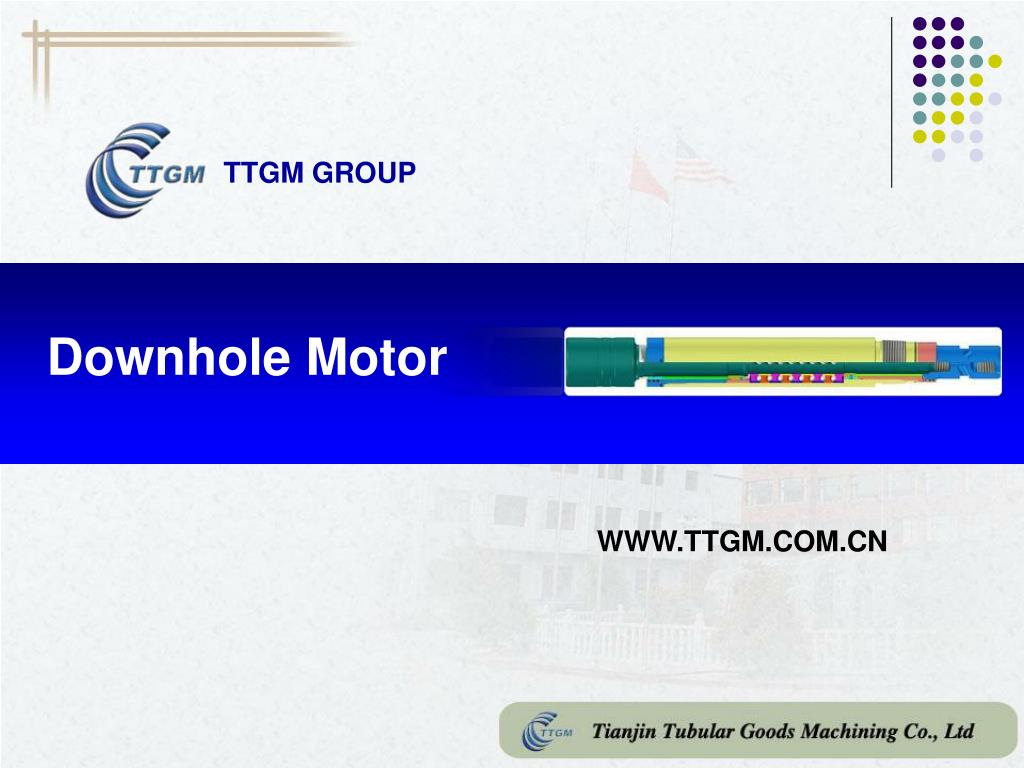

  33. TTGM GROUP Downhole Motor WWW.TTGM.COM.CN

  34. Short Downhole Motor Common Downhole Motor Extended Downhole Motor Downhole motor TTGM can provide all sizes of downhole motor, from O.D. 2 3/8″(60mm) to 9 5/8″(244mm), including single bent, double bent, adjustable bent housing with all kinds of stabilizers. • Single bent Normal DHM • Adjustable bent housing DHM • Air/Foam Drilling DHM • Extended DHM

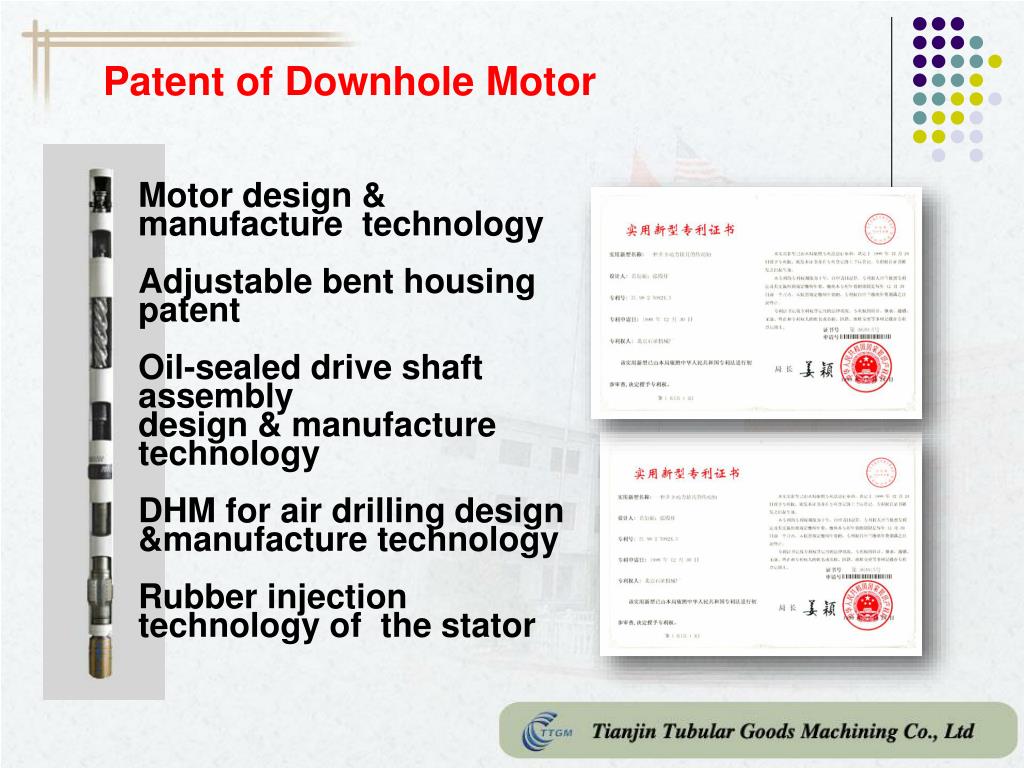

  35. Patent of Downhole Motor Motor design & manufacture technology Adjustable bent housing patent Oil-sealed drive shaft assembly design & manufacture technology DHM for air drilling design &manufacture technology Rubber injection technology of the stator

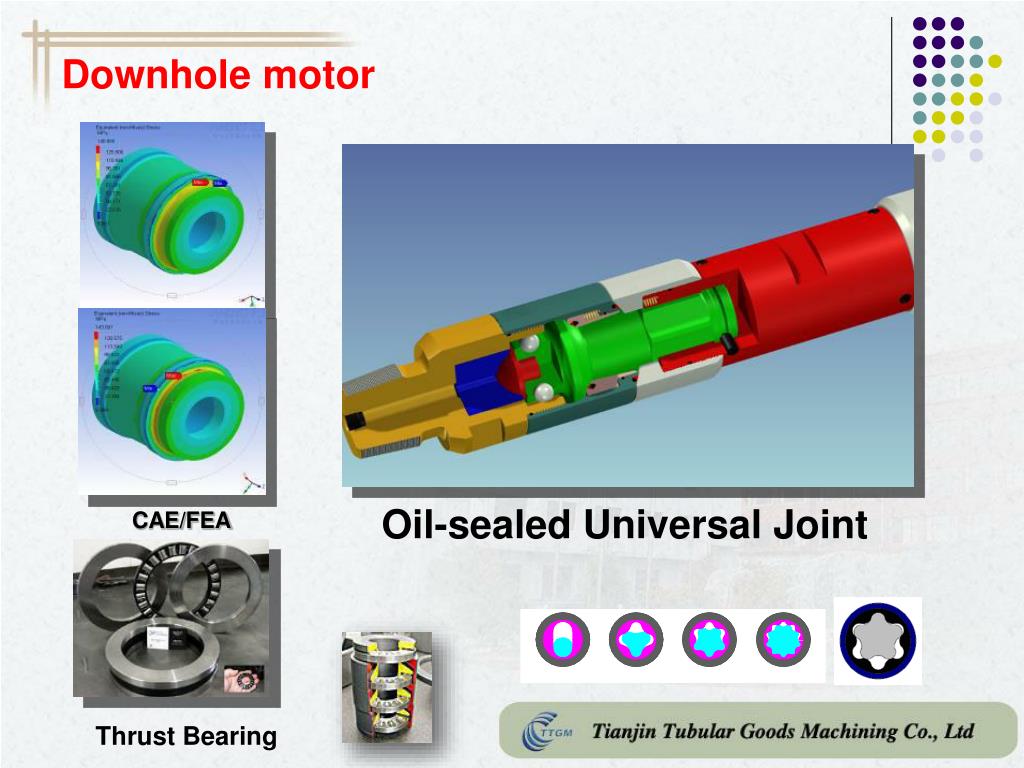

  36. Downhole motor Oil-sealed Universal Joint CAE/FEA Thrust Bearing

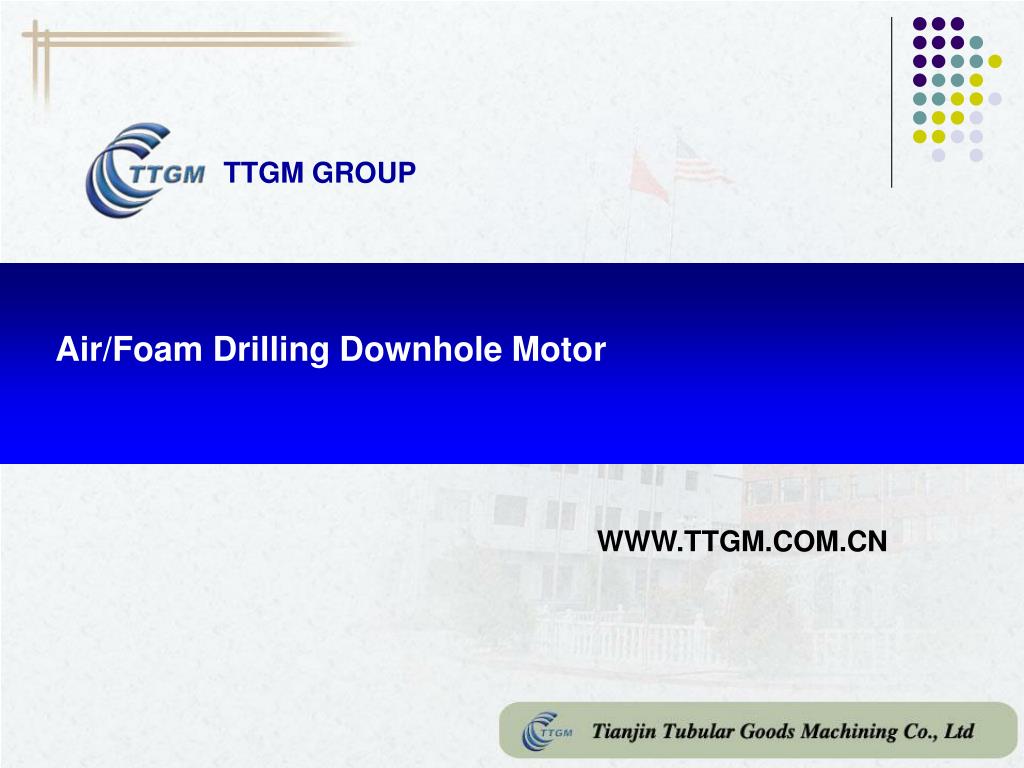

  37. TTGM GROUP Air/Foam Drilling Downhole Motor WWW.TTGM.COM.CN

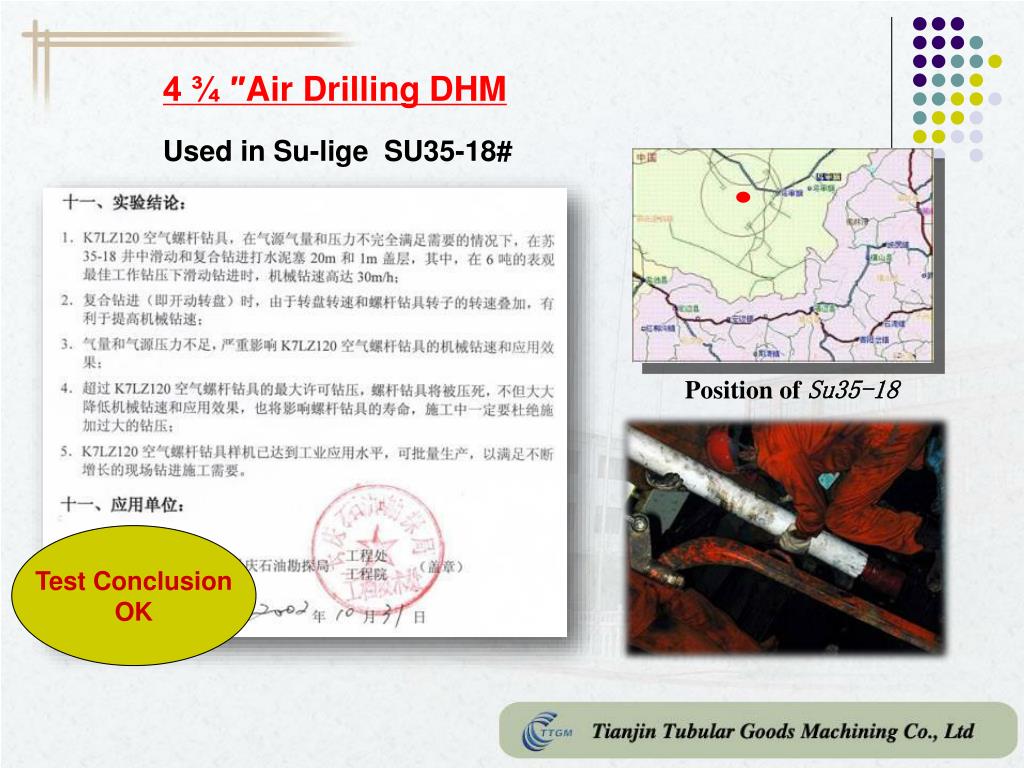

  38. Position of Su35-18 4 ¾ ″Air Drilling DHM Used in Su-lige SU35-18# Test Conclusion OK

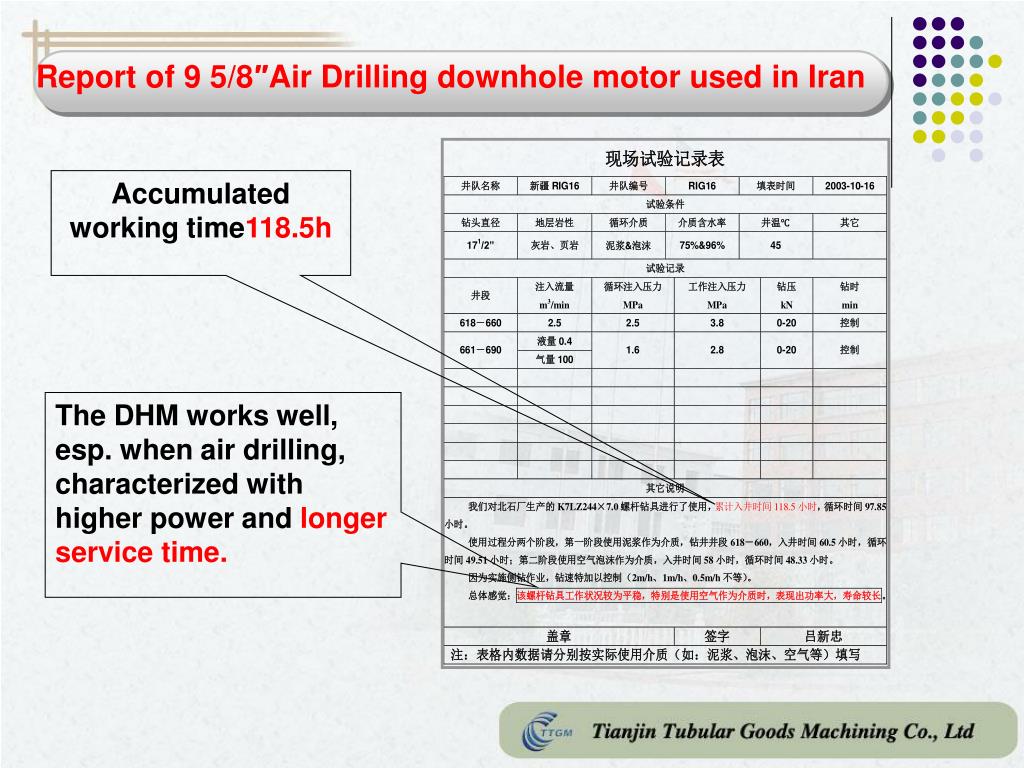

  39. Report of 9 5/8″Air Drilling downhole motor used in Iran Accumulated working time118.5h The DHM works well, esp. when air drilling, characterized with higher power and longer service time.

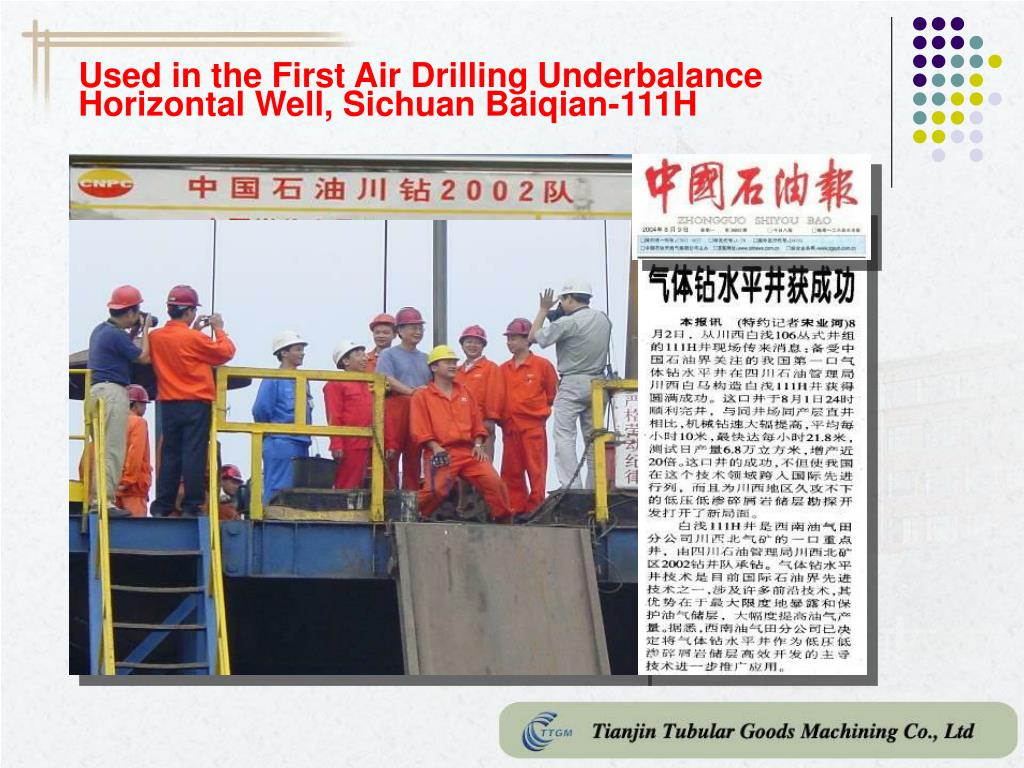

  40. Used in the First Air Drilling Underbalance Horizontal Well, Sichuan Baiqian-111H

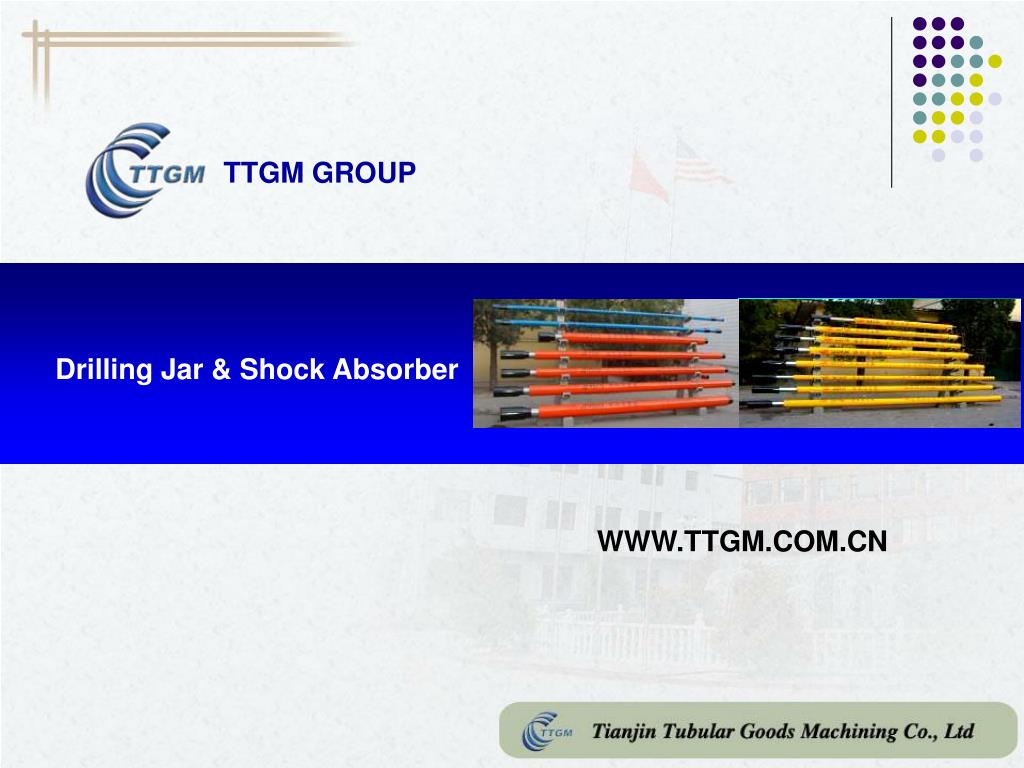

  41. TTGM GROUP Drilling Jar & Shock Absorber WWW.TTGM.COM.CN

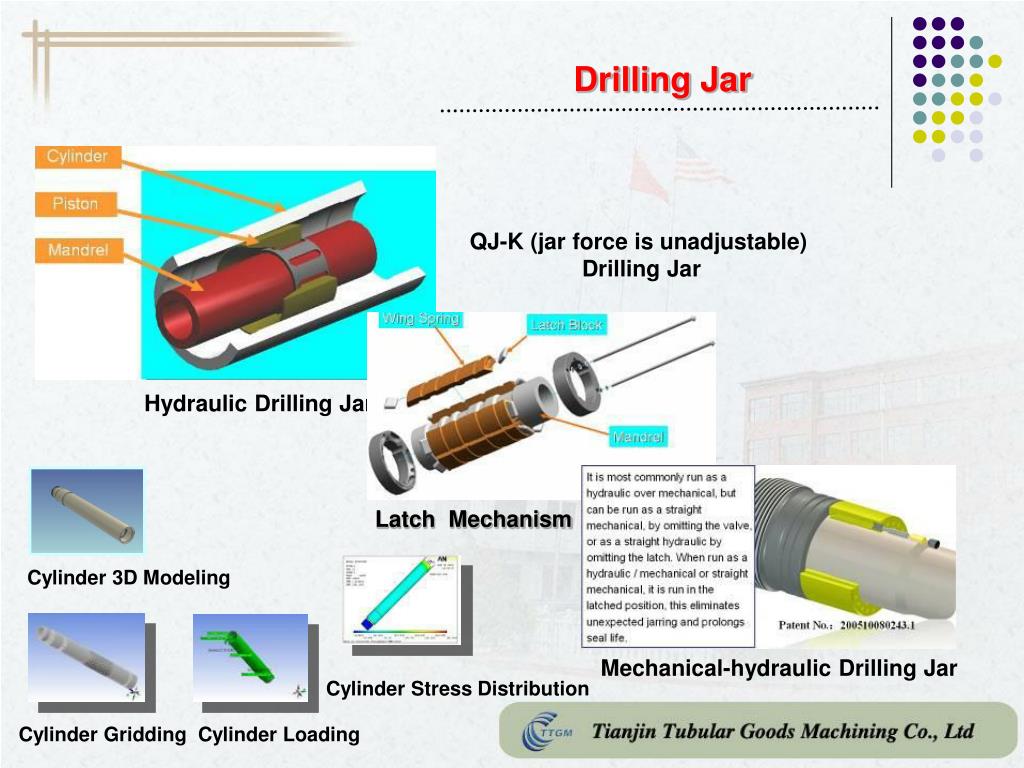

  42. QJ-K (jar force is unadjustable) Drilling Jar Drilling Jar Hydraulic Drilling Jar Latch Mechanism Cylinder 3D Modeling Mechanical-hydraulic Drilling Jar Cylinder Stress Distribution Cylinder Gridding Cylinder Loading

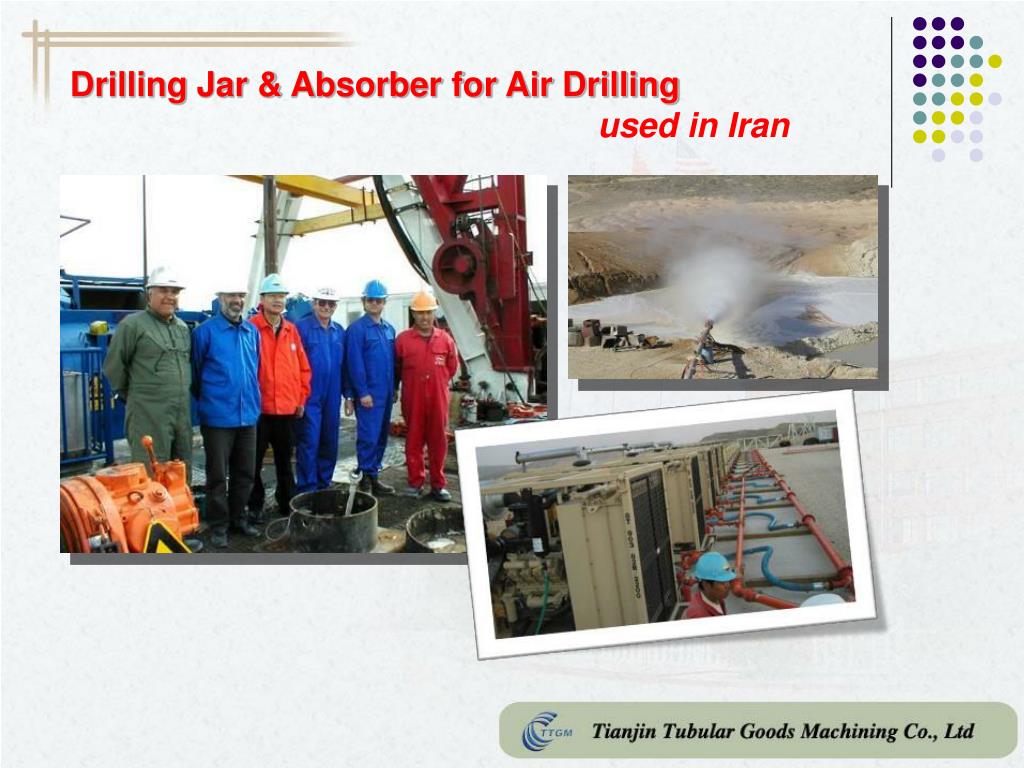

  43. Drilling Jar & Absorber for Air Drilling usedin Iran

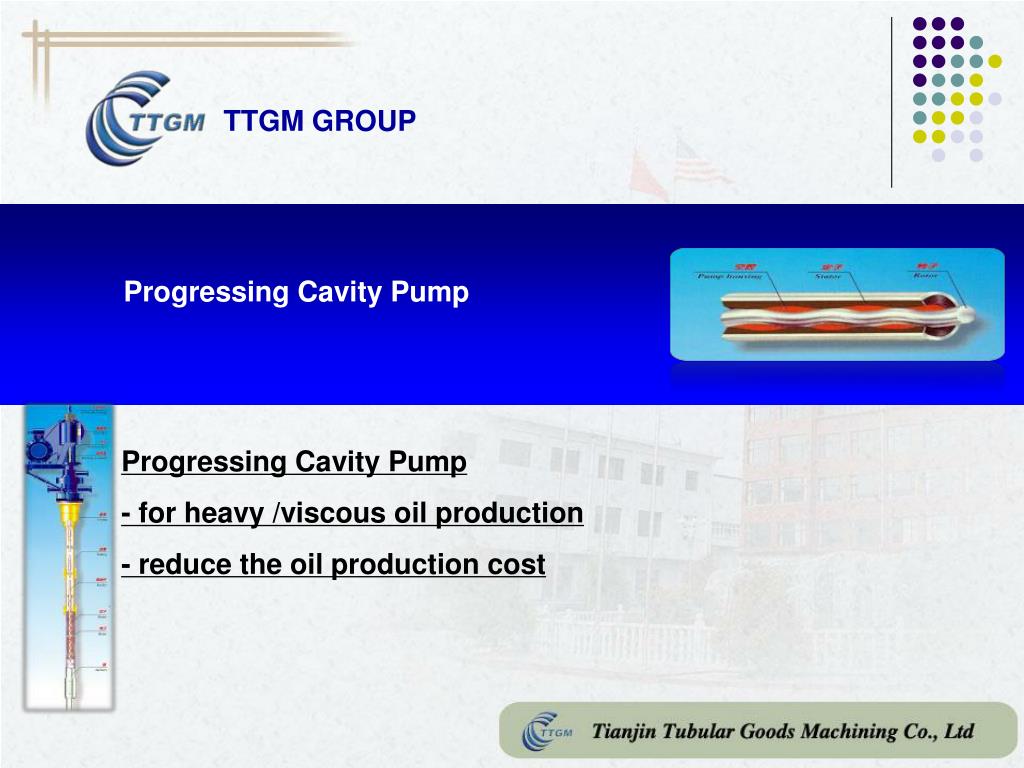

  44. TTGM GROUP Progressing Cavity Pump Progressing Cavity Pump - for heavy /viscous oil production - reduce the oil production cost

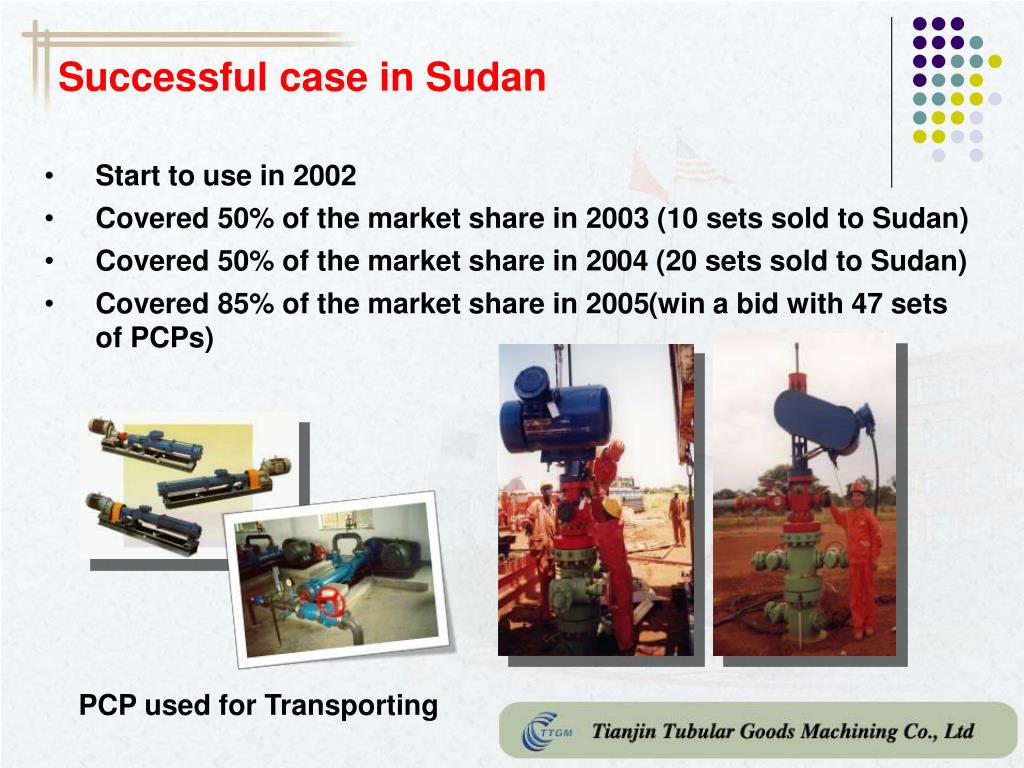

  45. Successful case in Sudan • Start to use in 2002 • Covered 50% of the market share in 2003 (10 sets sold to Sudan) • Covered 50% of the market share in 2004 (20 sets sold to Sudan) • Covered 85% of the market share in 2005(win a bid with 47 sets of PCPs) PCP used for Transporting

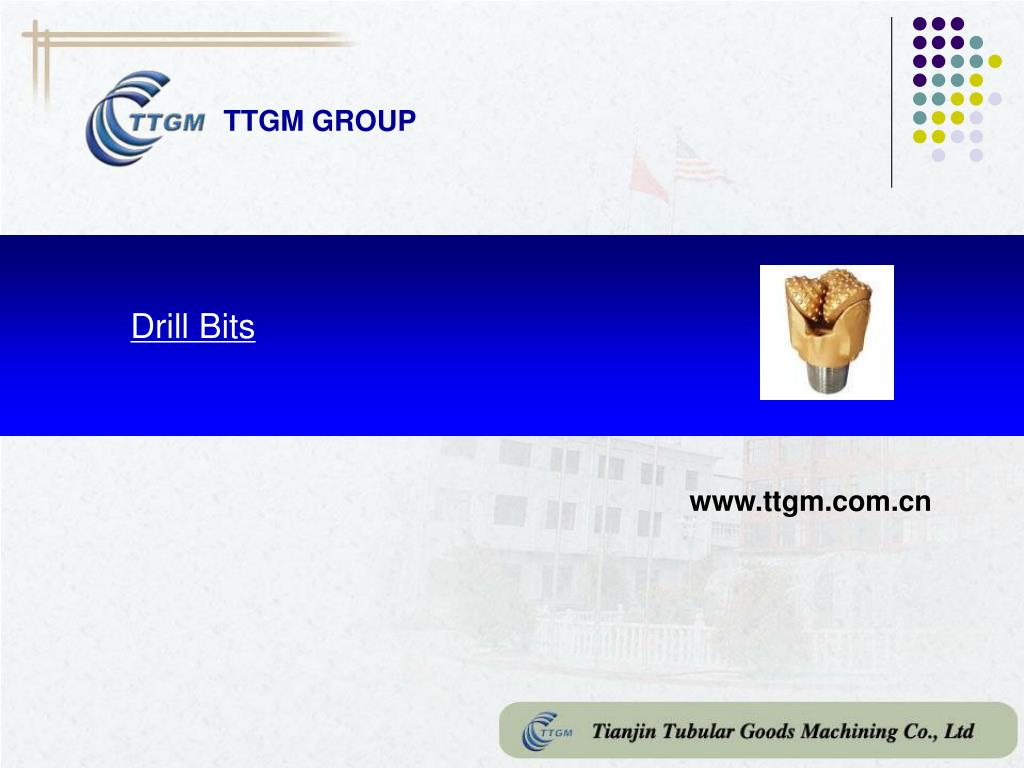

  46. TTGM GROUP Drill Bits www.ttgm.com.cn

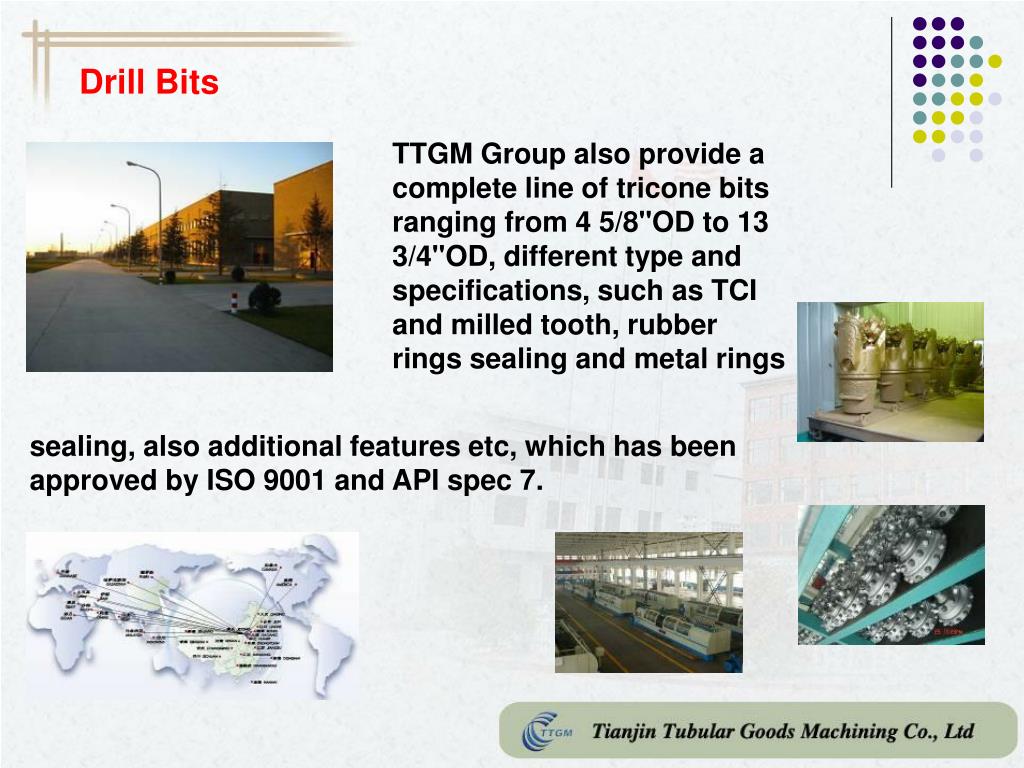

  47. Drill Bits TTGM Group also provide a complete line of tricone bits ranging from 4 5/8"OD to 13 3/4"OD, different type and specifications, such as TCI and milled tooth, rubber rings sealing and metal rings sealing, also additional features etc, which has been approved by ISO 9001 and API spec 7.

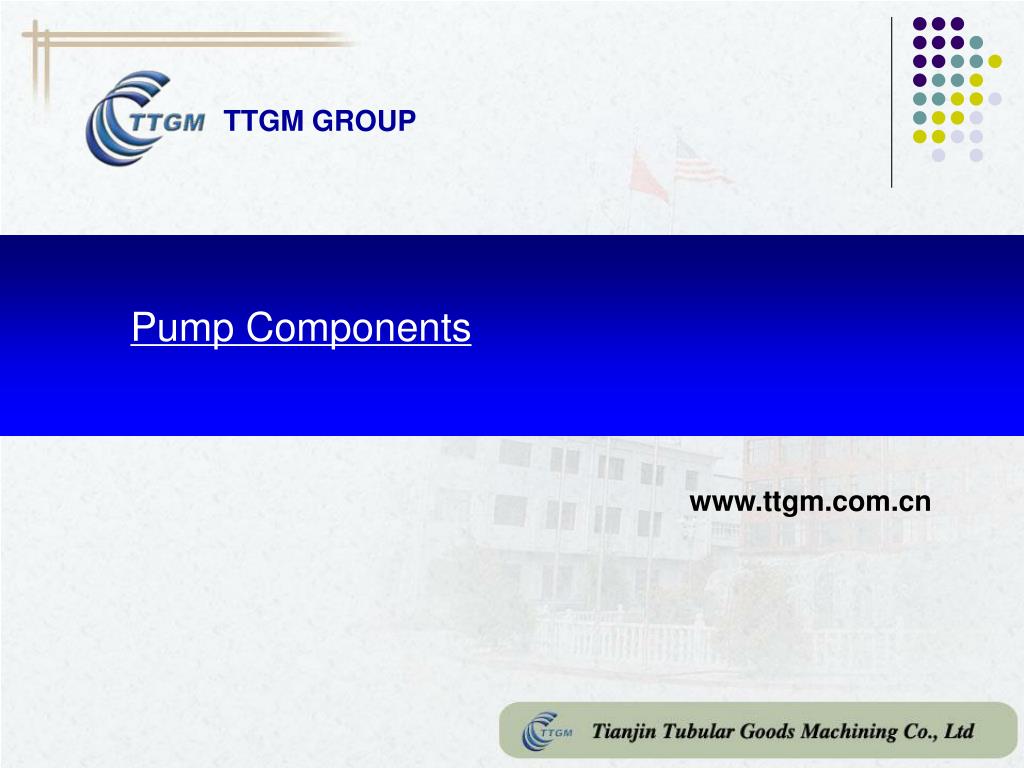

  48. TTGM GROUP Pump Components www.ttgm.com.cn

  49. Certificates and Range of Products

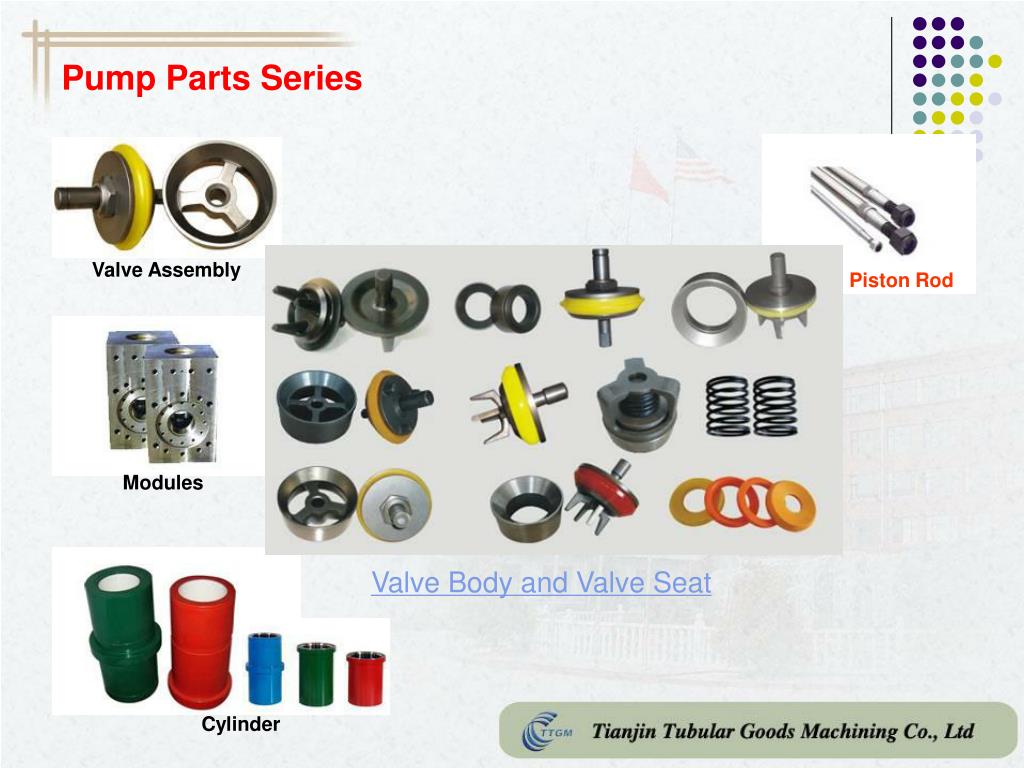

  50. Pump Parts Series Valve Assembly Piston Rod Modules Valve Body and Valve Seat Cylinder
