  1. Surface Vibrational SpectroscopyProf. Melissa A. HinesDept. of Chemistry

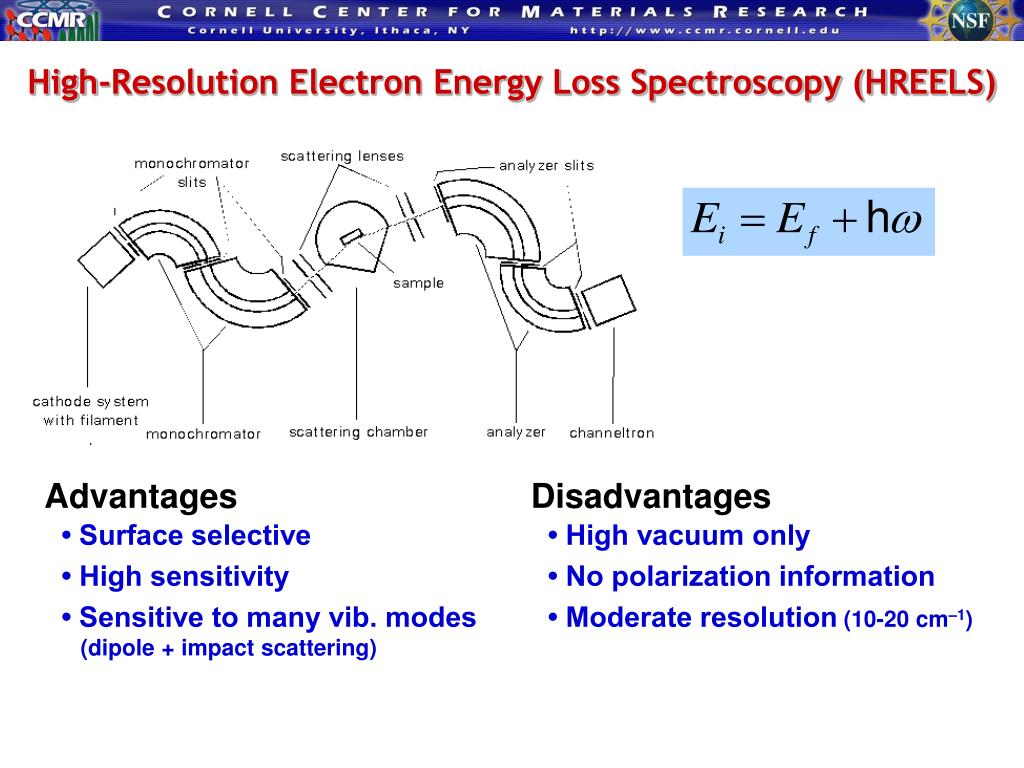

  2. High-Resolution Electron Energy Loss Spectroscopy (HREELS) Advantages Disadvantages • Surface selective • High sensitivity • Sensitive to many vib. modes (dipole + impact scattering) • High vacuum only • No polarization information • Moderate resolution (10-20 cm–1)

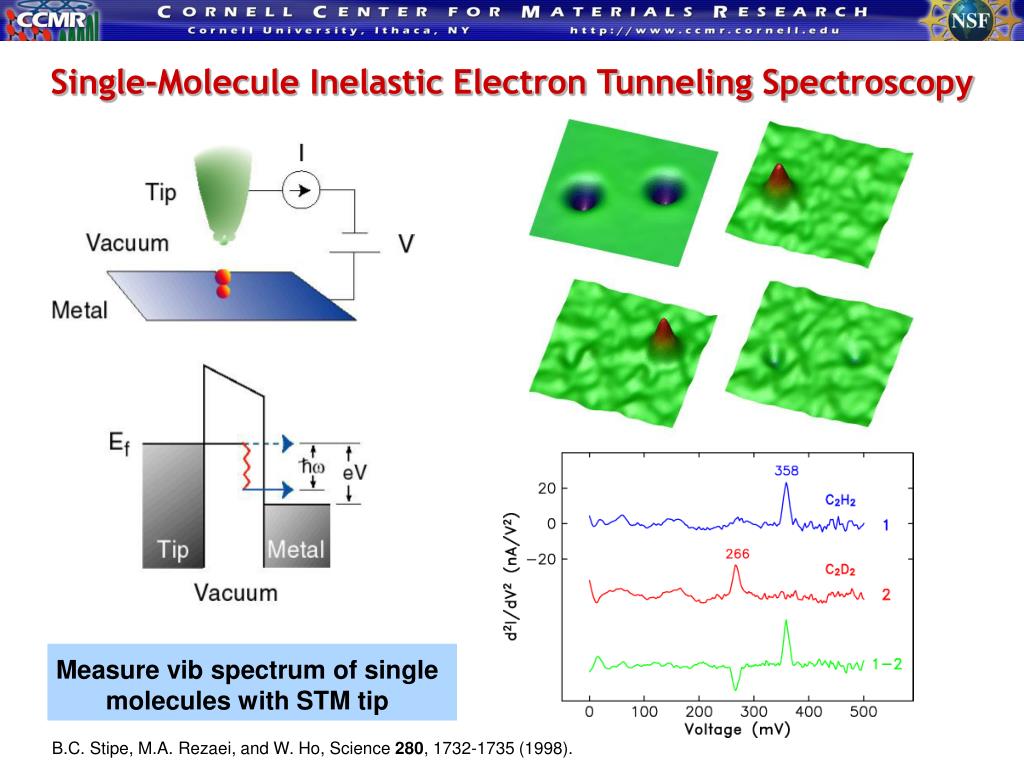

  3. Single-Molecule Inelastic Electron Tunneling Spectroscopy Measure vib spectrum of single molecules with STM tip B.C. Stipe, M.A. Rezaei, and W. Ho, Science 280, 1732-1735 (1998).

  4. Single-Molecule Inelastic Electron Tunneling Spectroscopy Advantages • Everything you ever wanted to know about molecule! Disadvantages • Requires very stable low-temperature STM • Not widely applicable Measure vib spectrum of single molecules with STM tip B.C. Stipe, M.A. Rezaei, and W. Ho, Science 280, 1732-1735 (1998).

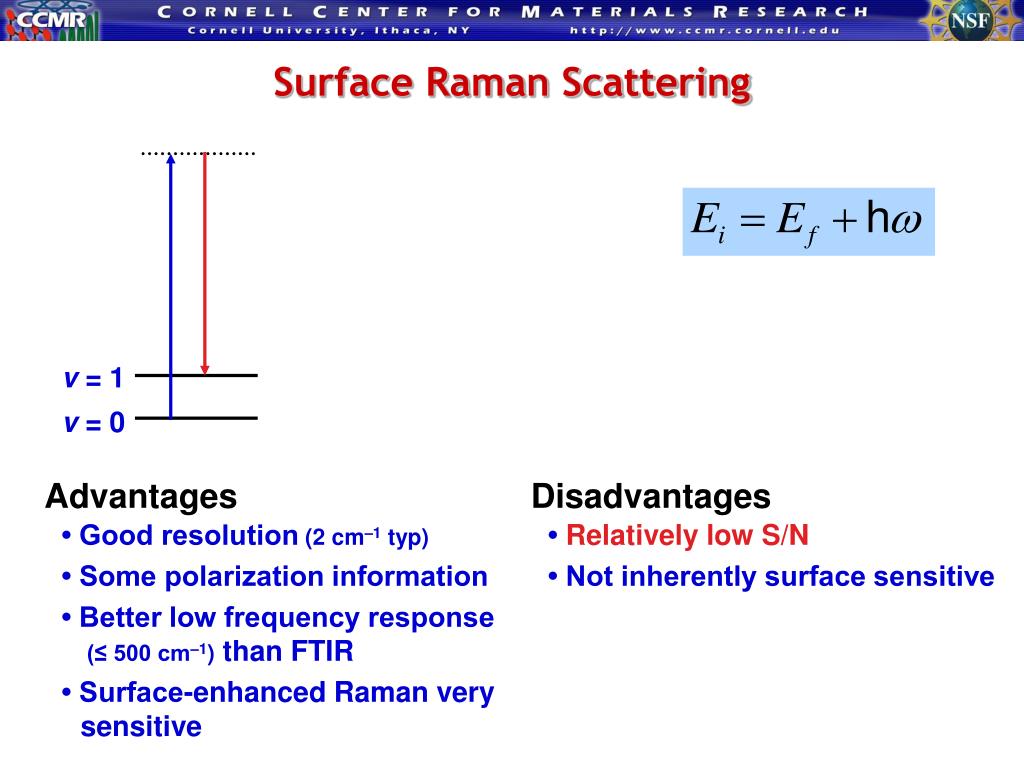

  5. Surface Raman Scattering v = 1 v = 0 Advantages Disadvantages • Good resolution (2 cm–1 typ) • Some polarization information • Better low frequency response (≤ 500 cm–1) than FTIR • Surface-enhanced Raman very sensitive • Relatively low S/N • Not inherently surface sensitive

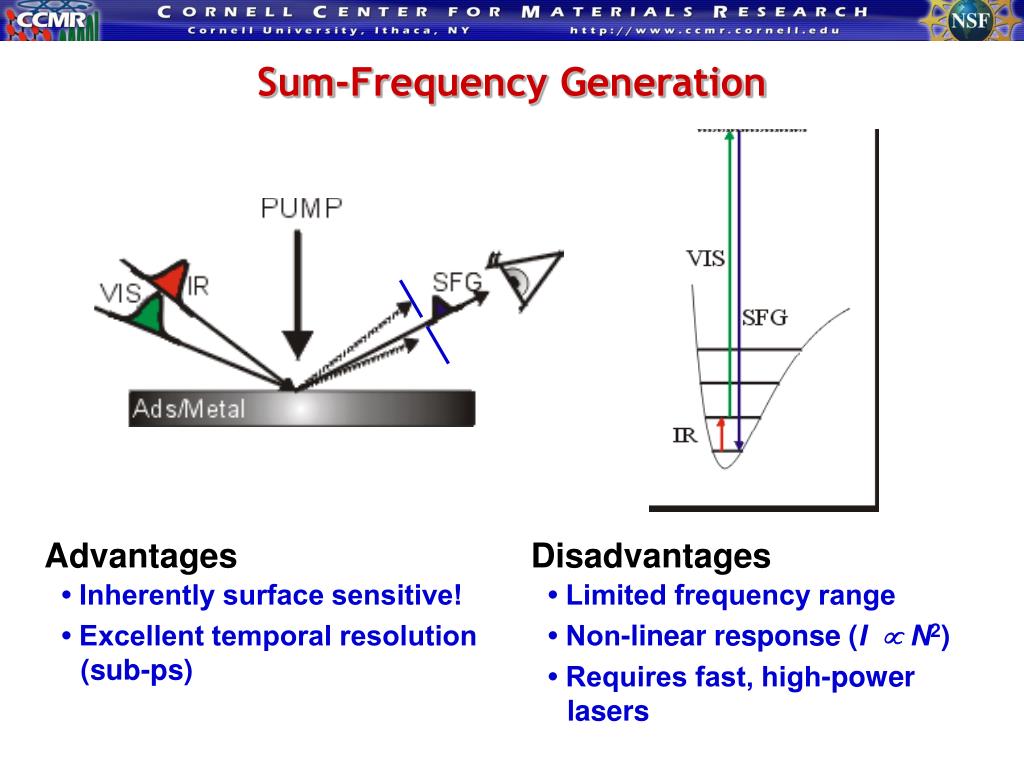

  6. Sum-Frequency Generation Advantages Disadvantages • Inherently surface sensitive! • Excellent temporal resolution(sub-ps) • Limited frequency range • Non-linear response (I  N2) • Requires fast, high-power lasers

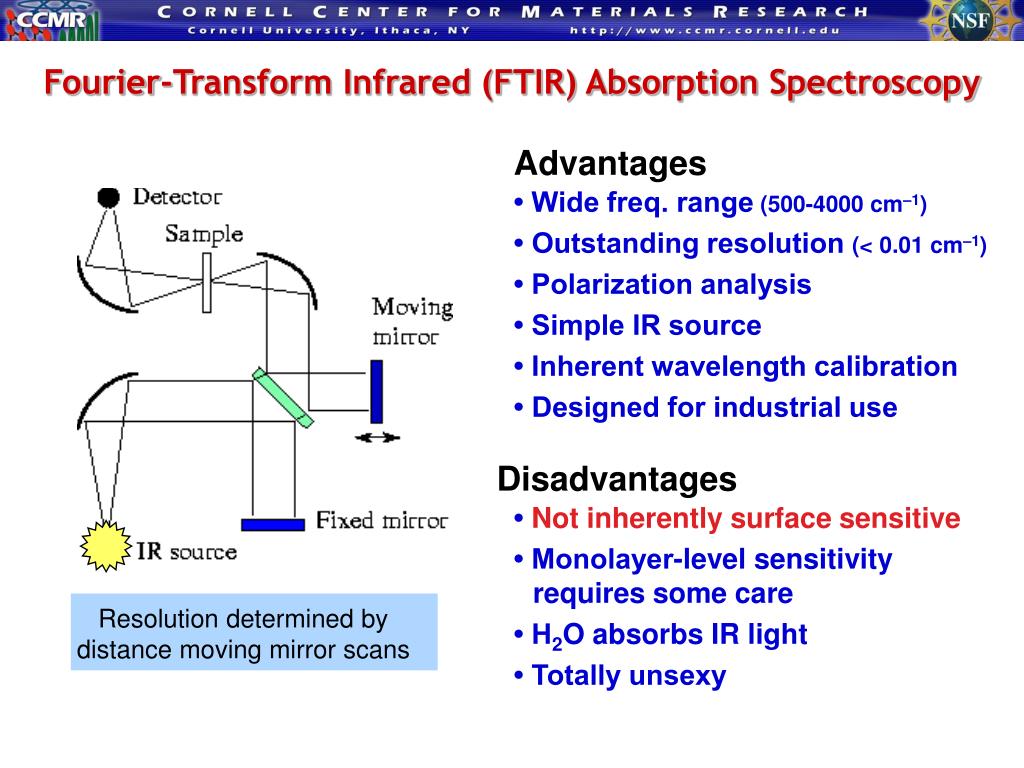

  7. Fourier-Transform Infrared (FTIR) Absorption Spectroscopy Advantages • Wide freq. range (500-4000 cm–1) • Outstanding resolution (< 0.01 cm–1) • Polarization analysis • Simple IR source • Inherent wavelength calibration • Designed for industrial use Disadvantages • Not inherently surface sensitive • Monolayer-level sensitivity requires some care • H2O absorbs IR light • Totally unsexy Resolution determined by distance moving mirror scans

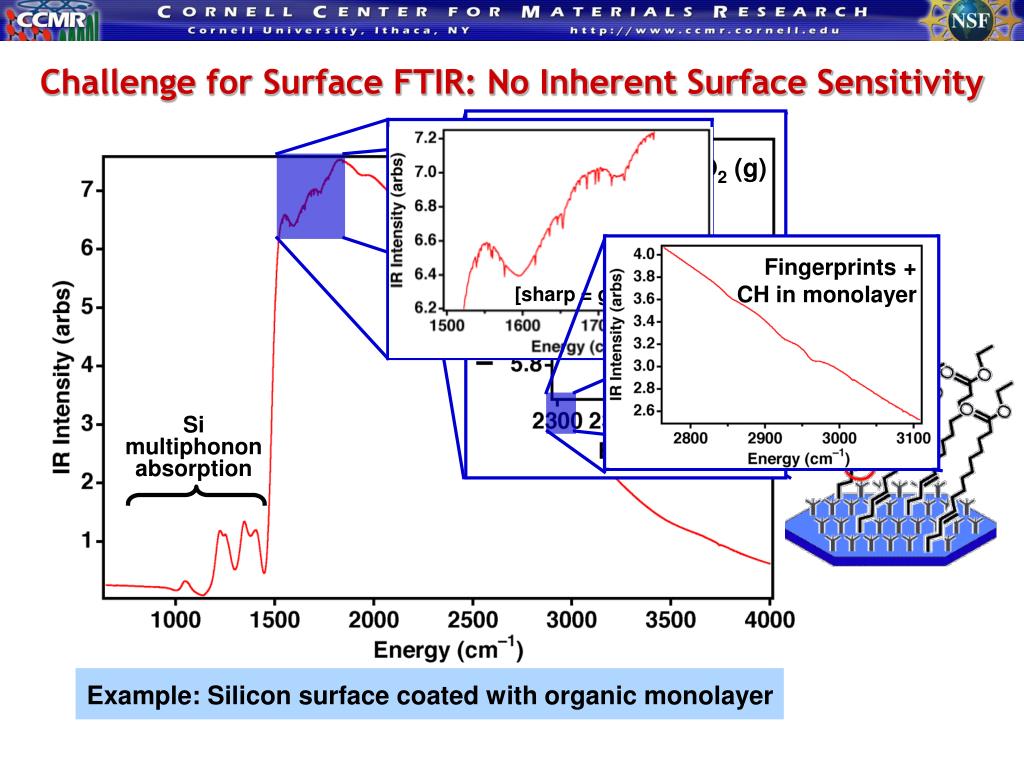

  8. CO2 (g) Blackbodyspectrum (IR source) Fingerprints +CH in monolayer Simultiphononabsorption H2O (g) [sharp = gas phase] Example: Silicon surface coated with organic monolayer Challenge for Surface FTIR: No Inherent Surface Sensitivity
