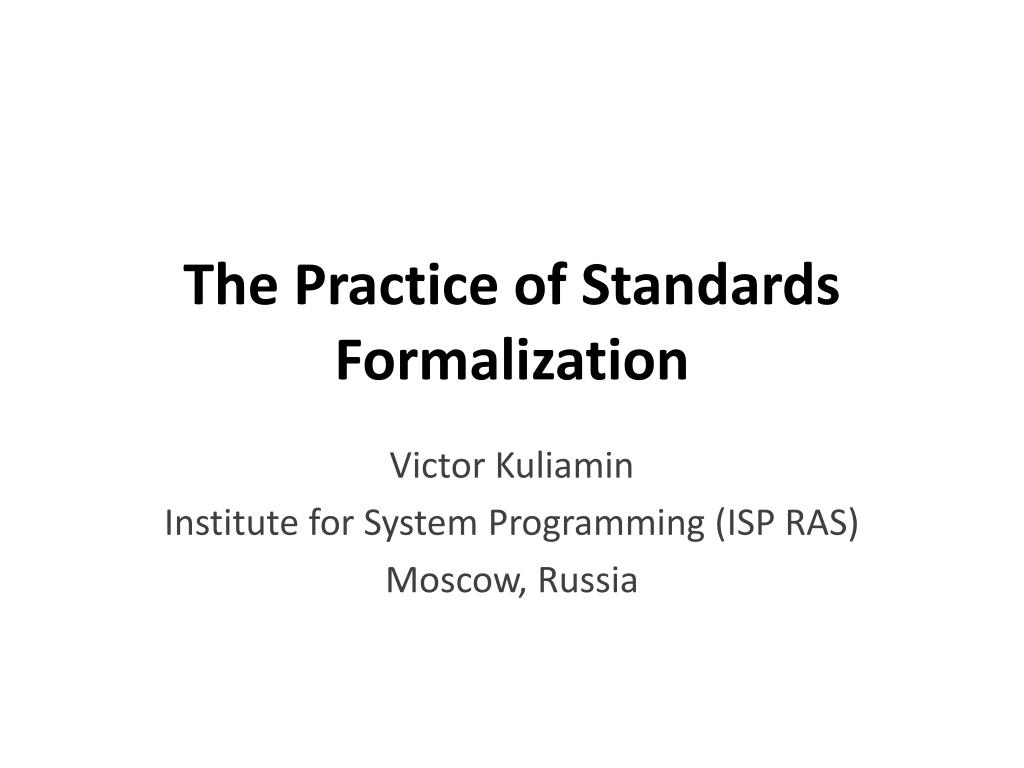

  1. The Practice of Standards Formalization Victor Kuliamin Institute for System Programming (ISP RAS) Moscow, Russia

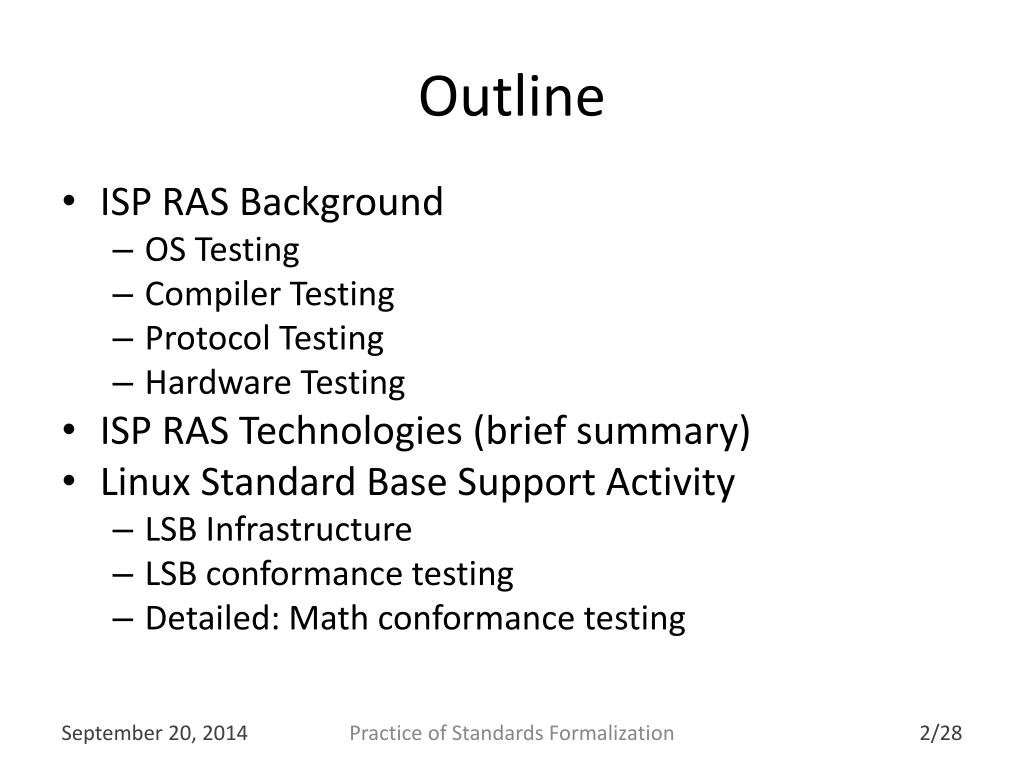

  2. Outline • ISP RAS Background • OS Testing • Compiler Testing • Protocol Testing • Hardware Testing • ISP RAS Technologies (brief summary) • Linux Standard Base Support Activity • LSB Infrastructure • LSB conformance testing • Detailed: Math conformance testing Practice of Standards Formalization

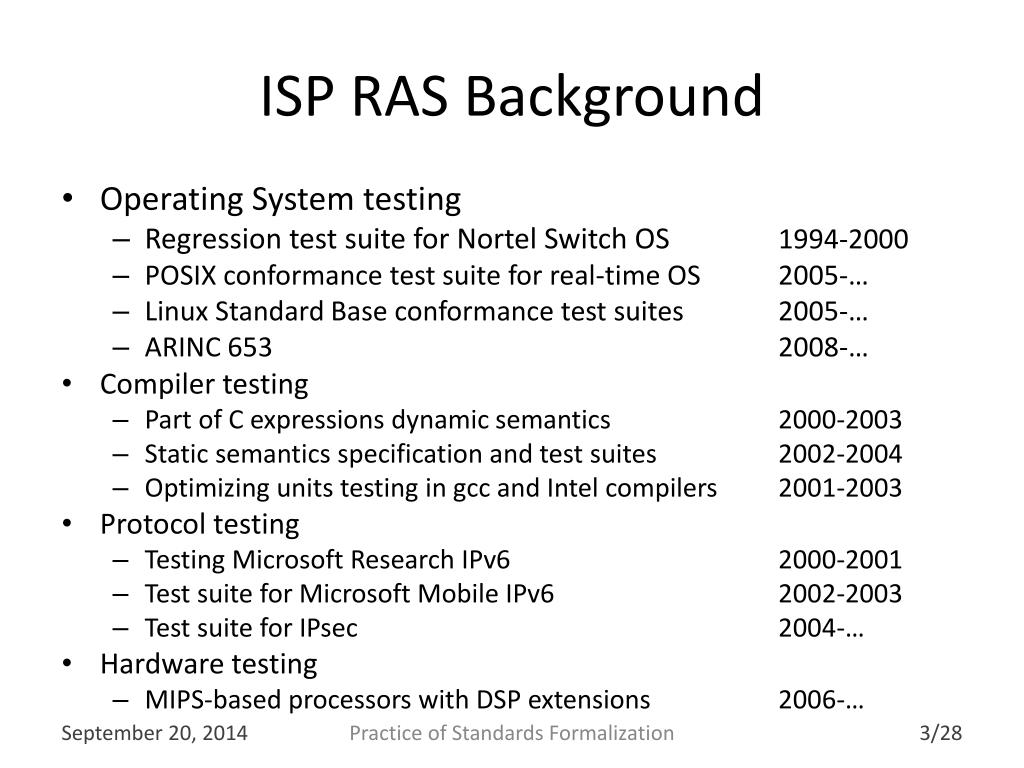

  3. ISP RAS Background • Operating System testing • Regression test suite for Nortel Switch OS 1994-2000 • POSIX conformance test suite for real-time OS 2005-… • Linux Standard Base conformance test suites 2005-… • ARINC 653 2008-… • Compiler testing • Part of C expressions dynamic semantics 2000-2003 • Static semantics specification and test suites 2002-2004 • Optimizing units testing in gcc and Intel compilers 2001-2003 • Protocol testing • Testing Microsoft Research IPv6 2000-2001 • Test suite for Microsoft Mobile IPv6 2002-2003 • Test suite for IPsec 2004-… • Hardware testing • MIPS-based processors with DSP extensions 2006-… Practice of Standards Formalization

  4. ISP RAS Technologies • Model based testing • KVEST (1996) • RSL specifications • Protel target language • UniTESK (2001) • Specifications in extensions of target languages(C – 2001, Java – 2001, C# – 2003) • Concurrency testing extension (2001) • Compiler front-end testing support (2004) • Hardware testing support (2006) • Combinational test generation (2007) • Math extension (2007) • Static analysis Practice of Standards Formalization

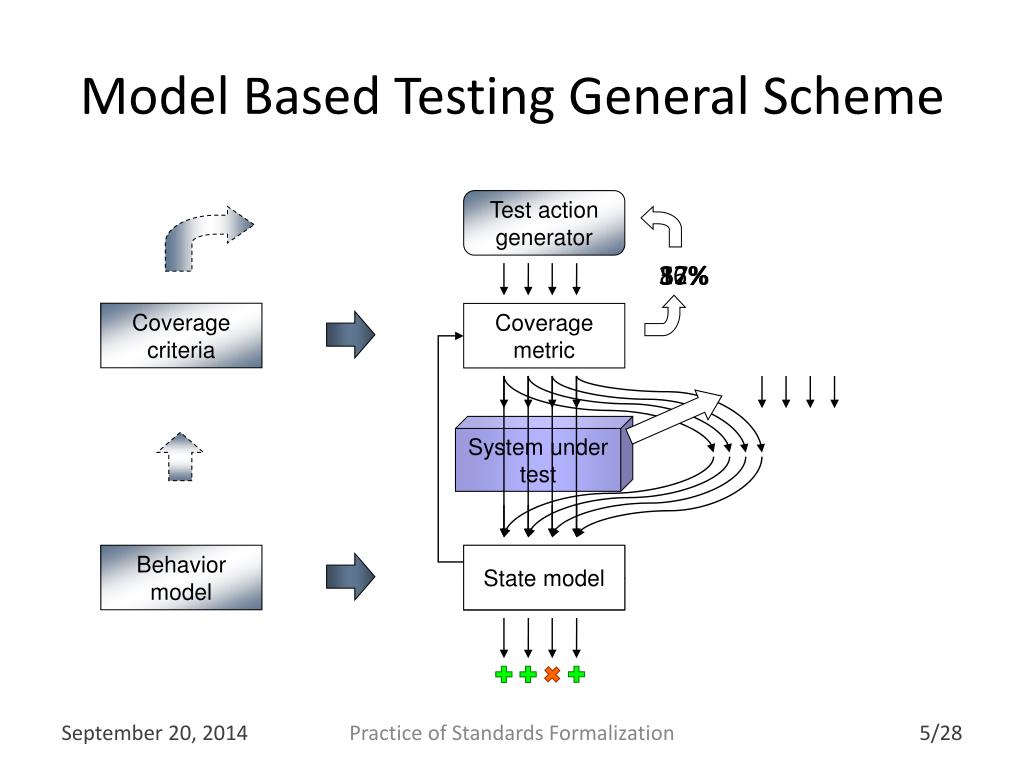

  5. Model Based Testing General Scheme Test action generator 12% 36% 87% 57% Coverage criteria Coverage metric System under test Behavior model State model State model Oracle Practice of Standards Formalization

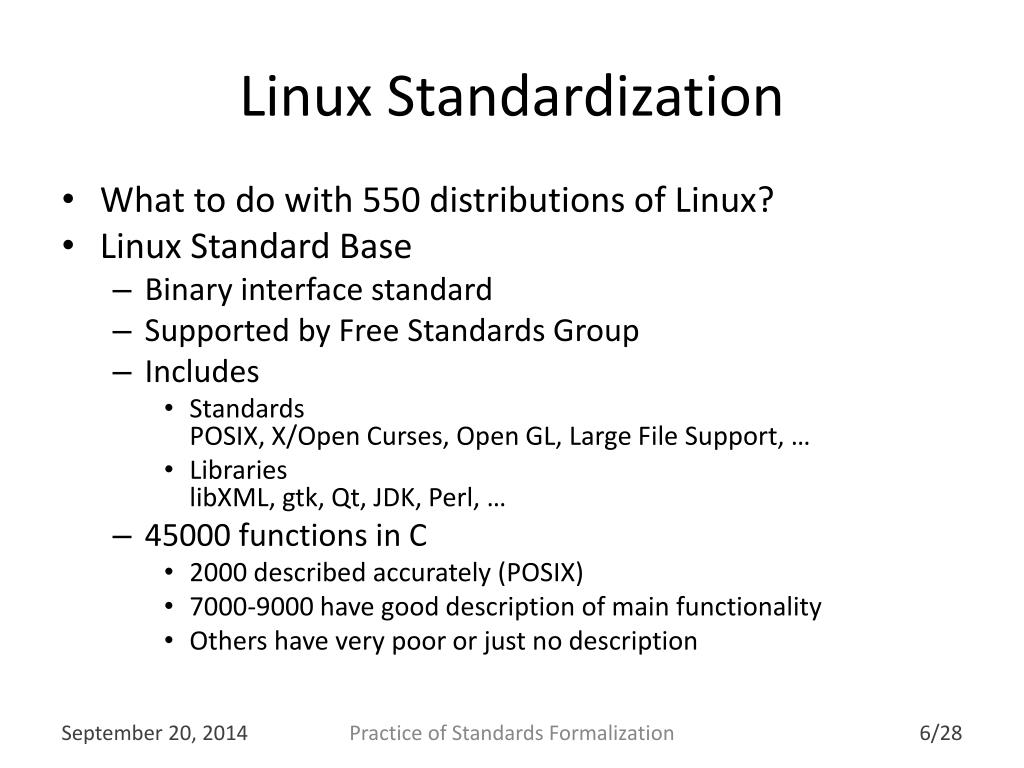

  6. Linux Standardization • What to do with 550 distributions of Linux? • Linux Standard Base • Binary interface standard • Supported by Free Standards Group • Includes • StandardsPOSIX, X/Open Curses, Open GL, Large File Support, … • LibrarieslibXML, gtk, Qt, JDK, Perl, … • 45000 functions in C • 2000 described accurately (POSIX) • 7000-9000 have good description of main functionality • Others have very poor or just no description Practice of Standards Formalization

  7. ISP RAS Activity for LSB Support • LSB Infrastructure development • DB of distributions, libraries, profiles, operations, etc. • Conformance checking and certification of distributions • Static analysis tools • Test suites • Conformance checking of applications • Monitoring tools • Test suites • LSB evolution support • Analysis DB and information system • Linux driver verification Practice of Standards Formalization

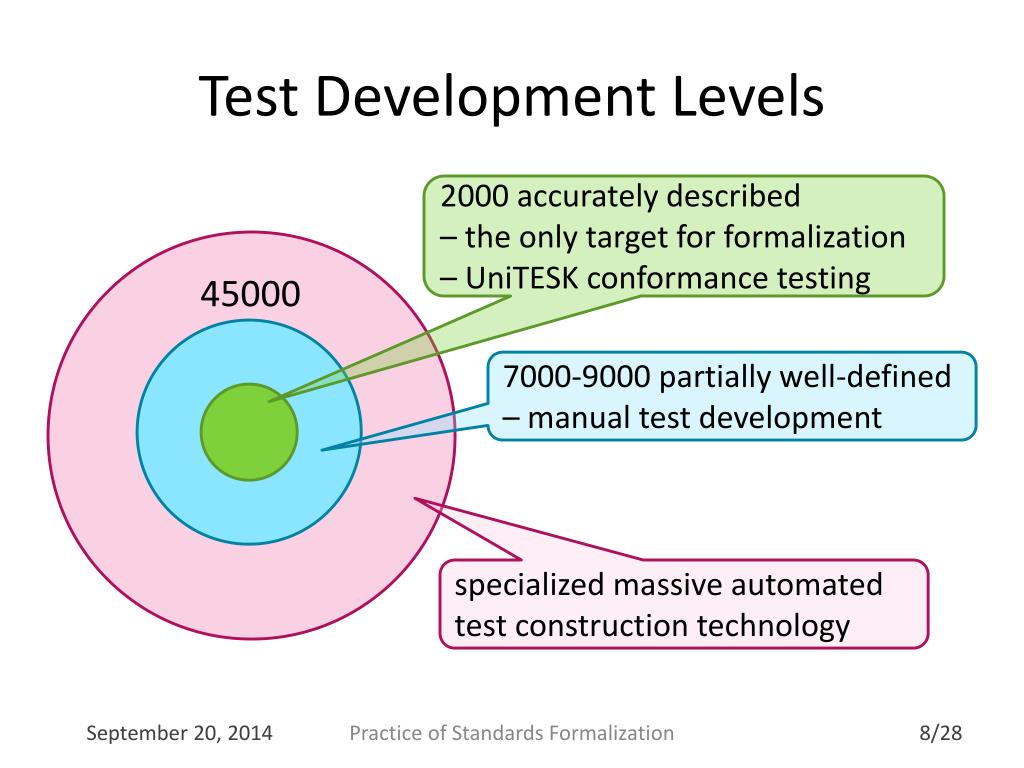

  8. Test Development Levels 2000 accurately described – the only target for formalization – UniTESK conformance testing 45000 7000-9000 partially well-defined – manual test development specialized massive automated test construction technology Practice of Standards Formalization

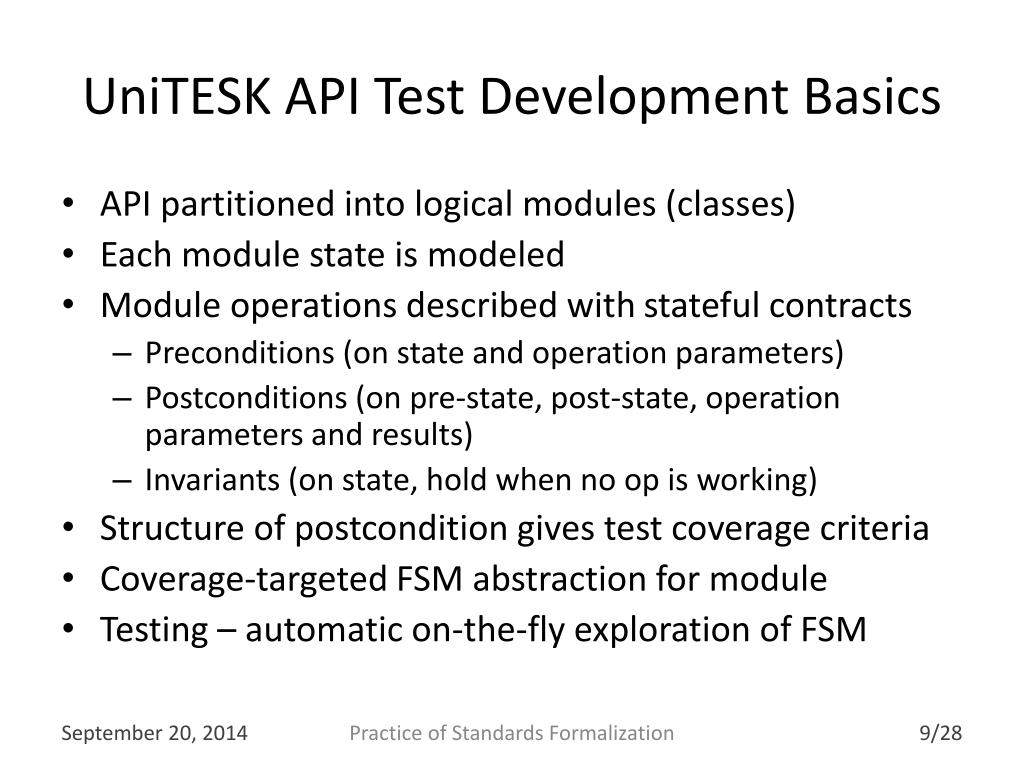

  9. UniTESK API Test Development Basics • API partitioned into logical modules (classes) • Each module state is modeled • Module operations described with stateful contracts • Preconditions (on state and operation parameters) • Postconditions (on pre-state, post-state, operation parameters and results) • Invariants (on state, hold when no op is working) • Structure of postcondition gives test coverage criteria • Coverage-targeted FSM abstraction for module • Testing – automatic on-the-fly exploration of FSM Practice of Standards Formalization

  10. Math Library Standards • IEEE 754 (Floating-point arithmetics)FP numbers, basic operations • ISO 9899 (C language and libraries)56 real + 16 complex functions • IEEE 1003.1 (POSIX)63 real + 22 complex functions • ISO 10697.1-3 (Language independent arithmetics)Elementary real and complex functions Practice of Standards Formalization

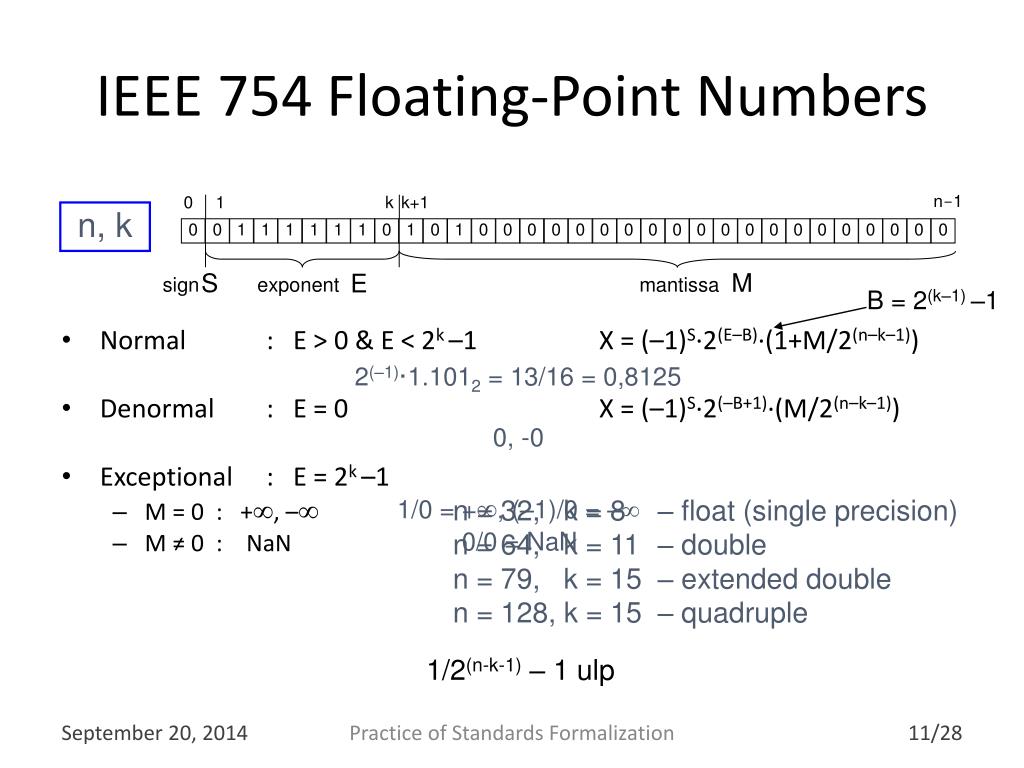

  11. IEEE 754 Floating-Point Numbers • Normal : E> 0 & E < 2k –1 X = (–1)S·2(E–B)·(1+M/2(n–k–1)) • Denormal : E = 0 X = (–1)S·2(–B+1)·(M/2(n–k–1)) • Exceptional : E = 2k –1 • M = 0 : +, – • M ≠ 0 : NaN 0 1 k k+1 n-1 n, k 0 0 1 1 1 1 1 1 0 1 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 M S E sign exponent mantissa B = 2(k–1) –1 2(–1)·1.1012 = 13/16 = 0,8125 0, -0 1/0 = +, (–1)/0 = – n = 32, k = 8 – float (single precision) n = 64, k = 11 – double n = 79, k = 15 – extended double n = 128, k = 15 – quadruple 0/0 = NaN 1/2(n-k-1) – 1 ulp Practice of Standards Formalization

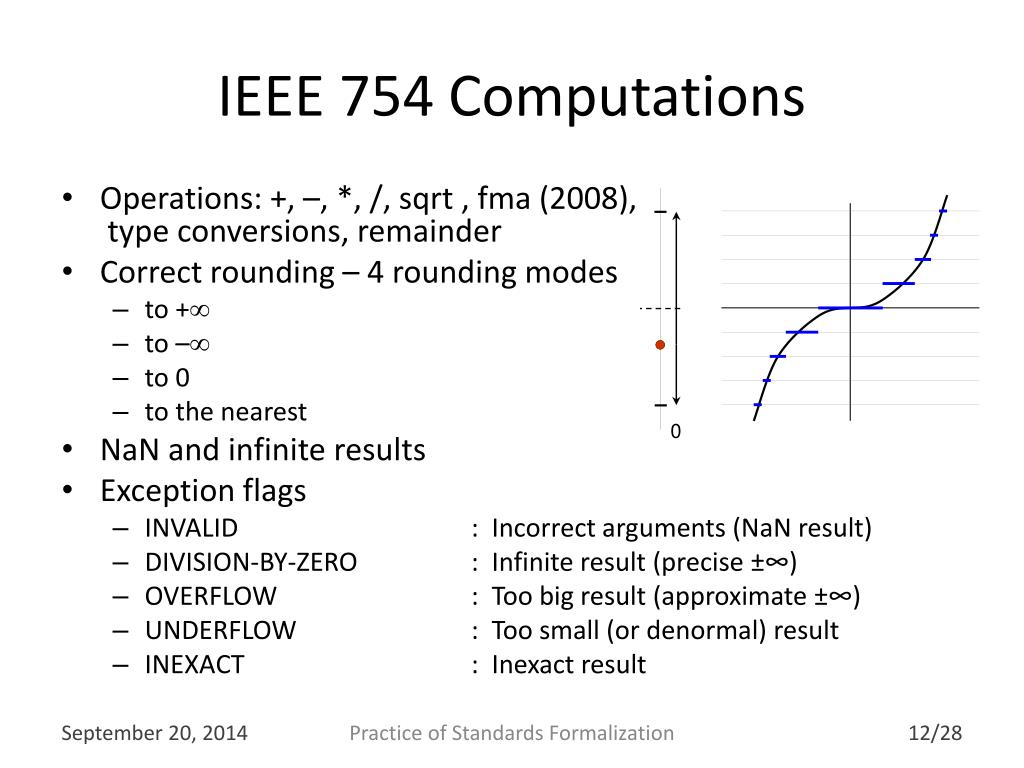

  12. IEEE 754 Computations • Operations: +, –, *, /, sqrt , fma (2008), type conversions, remainder • Correct rounding – 4 rounding modes • to + • to – • to 0 • to the nearest • NaN and infinite results • Exception flags • INVALID : Incorrect arguments (NaN result) • DIVISION-BY-ZERO : Infinite result (precise ±∞) • OVERFLOW : Too big result (approximate ±∞) • UNDERFLOW : Too small (or denormal) result • INEXACT : Inexact result 0 Practice of Standards Formalization

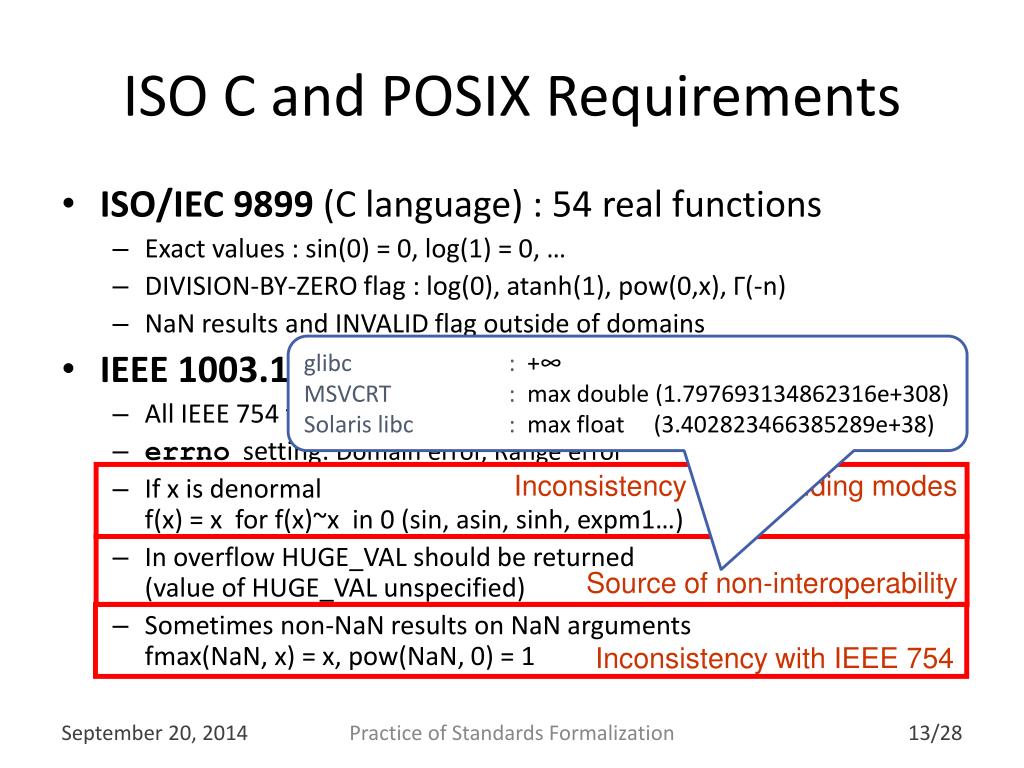

  13. ISO C and POSIX Requirements • ISO/IEC 9899 (C language) : 54 real functions • Exact values : sin(0) = 0, log(1) = 0, … • DIVISION-BY-ZERO flag : log(0), atanh(1), pow(0,x), Г(-n) • NaN results and INVALID flag outside of domains • IEEE 1003.1 (POSIX) : 63 real + 22 complex • All IEEE 754 flags (except for INEXACT) for real functions • errno setting: Domain error, Range error • If x is denormalf(x) = x for f(x)~x in 0 (sin, asin, sinh, expm1…) • In overflow HUGE_VAL should be returned(value of HUGE_VAL unspecified) • Sometimes non-NaN results on NaN argumentsfmax(NaN, x) = x, pow(NaN, 0) = 1 glibc : +∞ MSVCRT : max double (1.797693134862316e+308) Solaris libc : max float (3.402823466385289e+38) Inconsistency with rounding modes Source of non-interoperability Inconsistency with IEEE 754 Practice of Standards Formalization

  14. Example of POSIX Requirements NAMEsin, sinf, sinl - sine function SYNOPSIS#include <math.h> double sin(double x); float sinf(float x); long double sinl(long double x); DESCRIPTION These functions shall compute the sine of their argument x, measured in radians. An application wishing to check for error situations should set errno to zero and call feclearexcept(FE_ALL_EXCEPT) before calling these functions. On return, if errno is non-zero or fetestexcept(FE_INVALID | FE_DIVBYZERO | FE_OVERFLOW | FE_UNDERFLOW) is non-zero, an error has occurred. RETURN VALUE Upon successful completion, these functions shall return the sine of x. If x is NaN, a NaN shall be returned. If x is ±0, x shall be returned. If x is subnormal, a range error may occur and x should be returned. If x is ±Inf, a domain error shall occur, and either a NaN (if supported), or an implementation-defined value shall be returned. ERRORS These functions shall fail if: Domain Error The x argument is ±Inf. If the integer expression (math_errhandling & MATH_ERRNO) is non-zero, then errno shall be set to [EDOM]. If the integer expression (math_errhandling & MATH_ERREXCEPT) is non-zero, then the invalid floating-point exception shall be raised. These functions may fail if: Range Error The value of x is subnormal If the integer expression (math_errhandling & MATH_ERRNO) is non-zero, then errno shall be set to [ERANGE]. If the integer expression (math_errhandling & MATH_ERREXCEPT) is non-zero, then the underflow floating-point exception shall be raised. Practice of Standards Formalization

  15. ISO 10697 Requirements • Real and complex elementary functions (no erf, gamma, j0, y1, … ) • Only symmetric rounding modes (no rounding to + or to –) • Preservation of sign • Preservation of monotonicity • Inaccuracy0.5-2.0 ulp • Evenness and oddity • Exact values :cosh(0) = 1, log(1) = 0, … • Asymptotics near 0 : cos(x) ~ 1, sin(x) ~ x, … • Relations : expm1 <= exp, cosh >= sinh, atan <= ↓(π/2 ) , … for sin, cos, tan – small arguments only Practice of Standards Formalization

  16. Summary of Requirements • Domain boundaries and poles (+ flags) • Exact values, limits and asymptotics • Preservation of sign and monotonicity • SymmetriesEvenness, periodicity, others: Г(1+x) = x·Г(x) • Relations and range boundaries • Precision Correct rounding(according to mode) • Computational accuracy • Interoperability and portability of libraries and applications • Feasible – ~ia64 (Intel), crlibm (INRIA) Practice of Standards Formalization

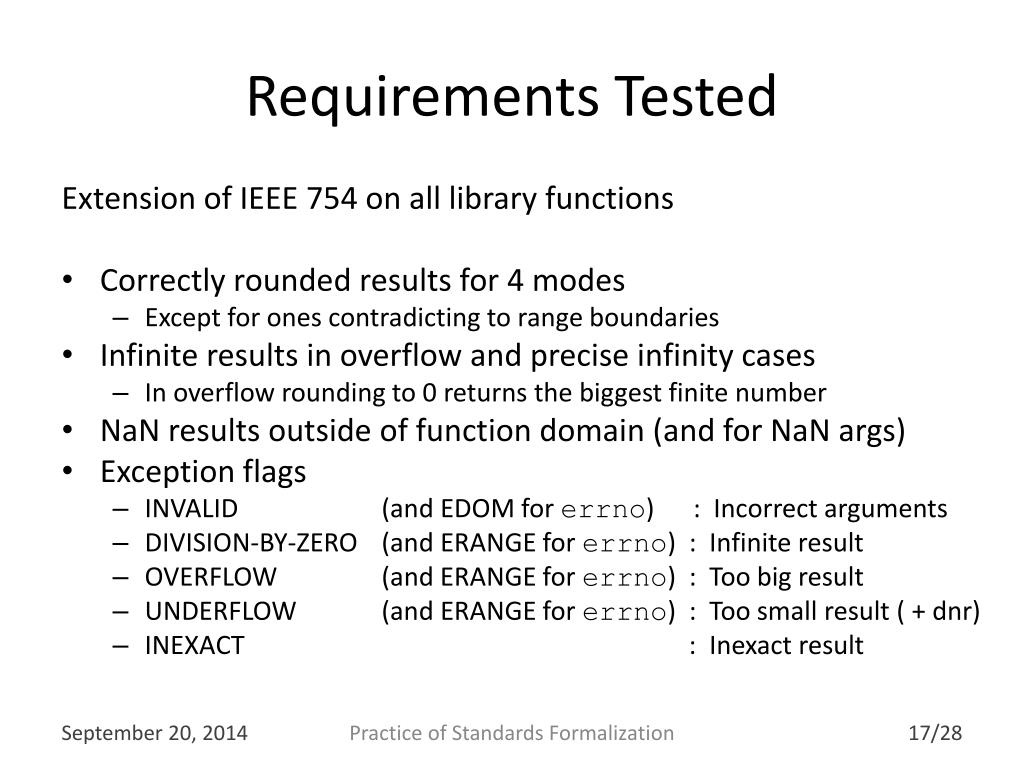

  17. Requirements Tested Extension of IEEE 754 on all library functions • Correctly rounded results for 4 modes • Except for ones contradicting to range boundaries • Infinite results in overflow and precise infinity cases • In overflow rounding to 0 returns the biggest finite number • NaN results outside of function domain (and for NaN args) • Exception flags • INVALID (and EDOM for errno) : Incorrect arguments • DIVISION-BY-ZERO (and ERANGE for errno) : Infinite result • OVERFLOW (and ERANGE for errno) : Too big result • UNDERFLOW (and ERANGE for errno) : Too small result ( + dnr) • INEXACT : Inexact result Practice of Standards Formalization

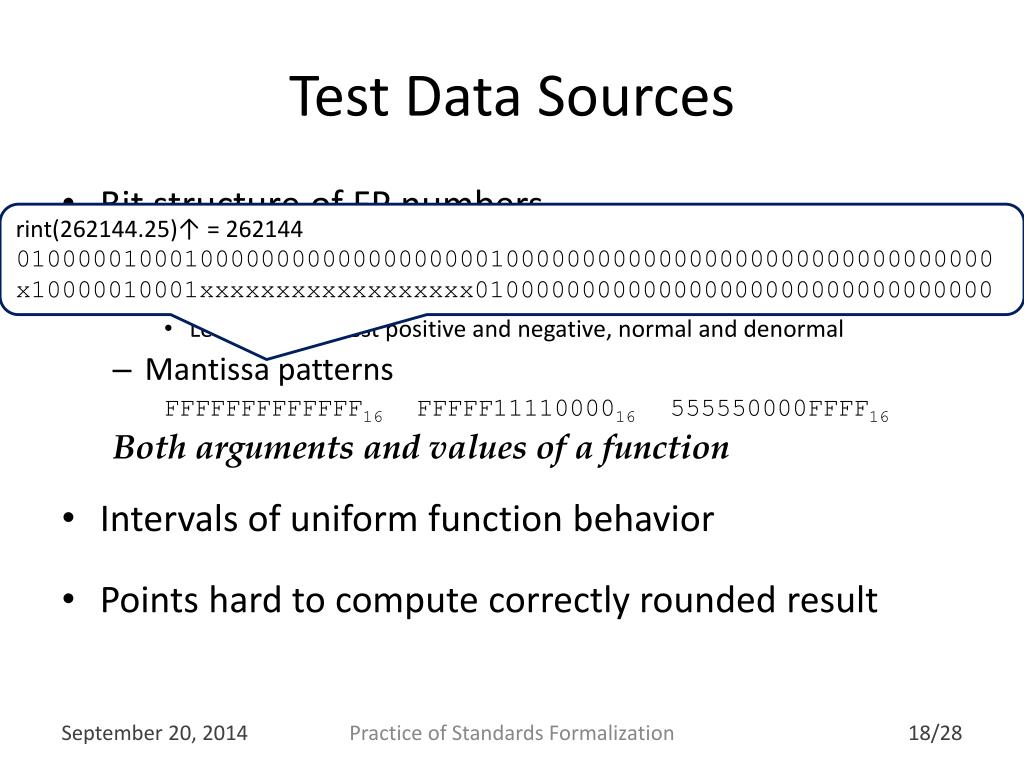

  18. Test Data Sources • Bit structure of FP numbers • Boundaries • 0, -0, +, -,NaN • Least and greatest positive and negative, normal and denormal • Mantissa patterns FFFFFFFFFFFFF16 FFFFF1111000016555550000FFFF16 Both arguments and values of a function • Intervals of uniform function behavior • Points hard to compute correctly rounded result rint(262144.25)↑ = 262144 0100000100010000000000000000000100000000000000000000000000000000 x10000010001xxxxxxxxxxxxxxxxxx0100000000000000000000000000000000 Practice of Standards Formalization

  19. Intervals and Boundaries • Neighbourhoods of 0, ±∞ • Poles and overflow points • Zeroes and extremes • Tangents and asymtotics – horizontal and diagonal max 0 Practice of Standards Formalization

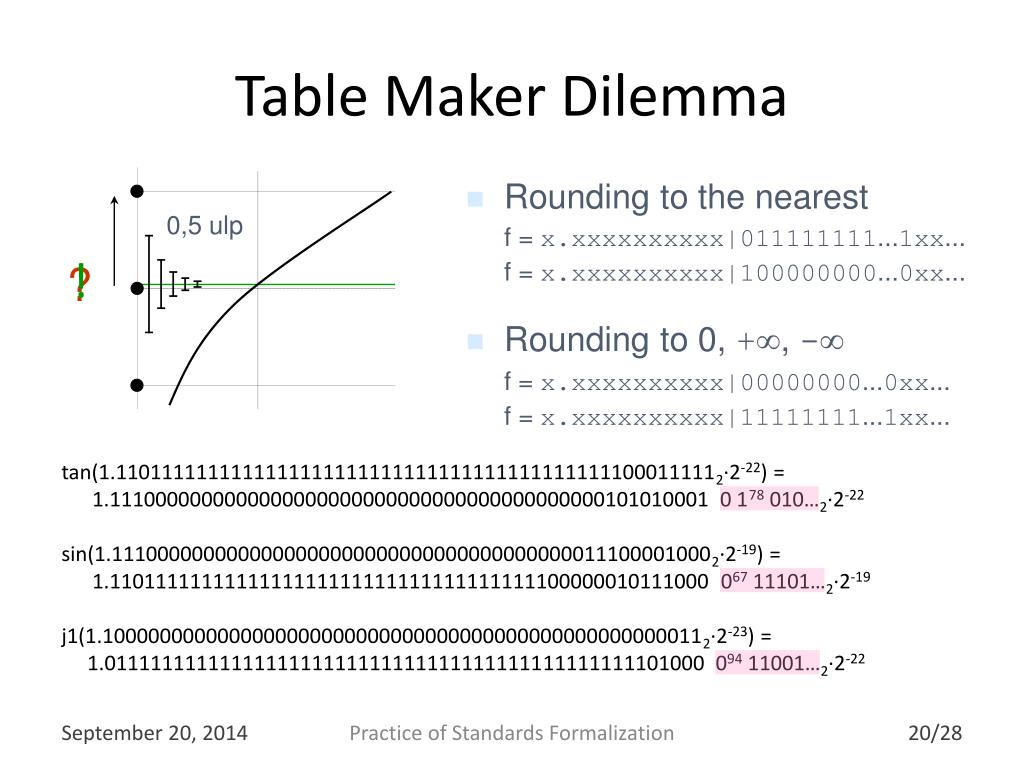

  20. Table Maker Dilemma • Rounding to the nearest f = x.xxxxxxxxxx|011111111...1xx... f = x.xxxxxxxxxx|100000000...0xx... • Rounding to 0, +, - f = x.xxxxxxxxxx|00000000...0xx... f = x.xxxxxxxxxx|11111111...1xx... tan(1.11011111111111111111111111111111111111111111000111112·2-22) = 1.1110000000000000000000000000000000000000000101010001 0 178 010…2·2-22 sin(1.11100000000000000000000000000000000000000111000010002·2-19) = 1.110111111111111111111111111111111111110000001011100006711101…2·2-19 j1(1.10000000000000000000000000000000000000000000000000112·2-23) = 1.011111111111111111111111111111111111111111111110100009411001…2·2-22 0,5 ulp ! ? Practice of Standards Formalization

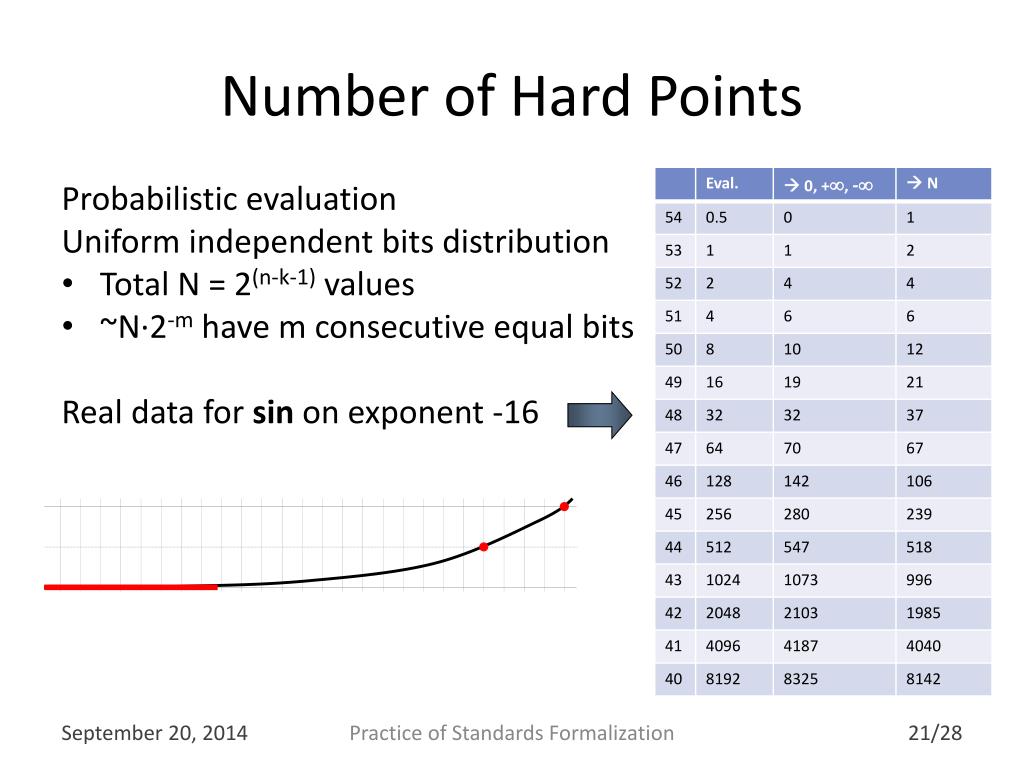

  21. Number of Hard Points Probabilistic evaluation Uniform independent bits distribution • Total N = 2(n-k-1) values • ~N·2-m havem consecutive equal bits Real data forsin on exponent -16 Practice of Standards Formalization

  22. Hard Points Calculation Feasible only for single precision numbers • Exhaustive search • Continued fractions(Kahan, 1983) • Dyadic method (Tang, 1989; Kahan, 1994) • Reduced search (Lefevre, 1997) • Lattice reduction (Gonnet, 2002; Stehle, Lefevre, Zimmermann, 2003) • Integer secants method (2007) X ≈ N·π; X = M·2m; 2(n – k – 1) <= M < 2(n – k)  π ≈ (2m·M)/N sqrt(N·2m) ≈ M + ½; 2(n-k-1) <= M, N < 2(n-k)  2(m+2)·N = (2·M + 1)2 – j  (2·M + 1)2 = j (mod 2(m+2)) F(x) = f(x) – a·x – b = c1x2 + c2x3 + c3x4 + … F(x) = c1(G(x) )2, G(x) = x + d1x2 + d2x3 +… G(x) = y  x = H(y), H is the reversed series xm = H(sqrt(m/c12z))  F(xm) – a·xm – b = m/2z 3386417804515981120643892082331156599120239393299838035242121518428537554064774221620930267583474709602068045686026362989271814411863708499869721322715946622634302011697632972907922558892710830616034038541342154669787134871905353772776431251615694251273653 · π/2 = 1.0110101011000101101100100110001011001010000111111110 1857 011…2·2849 sin(1.01101010110001011011001001100010110010100001111111112·2849) = 1.11111111111111111111111111111111111111111111111111 1690110…2·2-1 j = 15 sqrt(1.00100101011001010110010111001010110111001011111101002) = 1.0001001000001111100110011001111010011001001101110100 0 150 000…2 2–z Practice of Standards Formalization

  23. Test Suite Composition • Hard points • double • Some hard points with ≥ 48 additional bits can be found in crlibm testshttp://lipforge.ens-lyon.fr/projects/crlibm • Calculated (some) hard points with ≥ 40 additional bitsforsqrt, cbrt,sin, asin, cos, acos, tan, atan, sinh, asinh, cosh, tanh, atanh, exp, log, exp2, expm1, log1p, erf, erfc, j0, j1 • float (single precision) • All hard points with ≥ 17 additional bitsforsqrt,cbrt, exp, sin, cos • extended double • All with ≥ 53 additional bits forsqrt, some for sin, exp • Test suites developed • double : 58 real variable POSIX functions • Correct values calculated by Maple and MPFR Practice of Standards Formalization

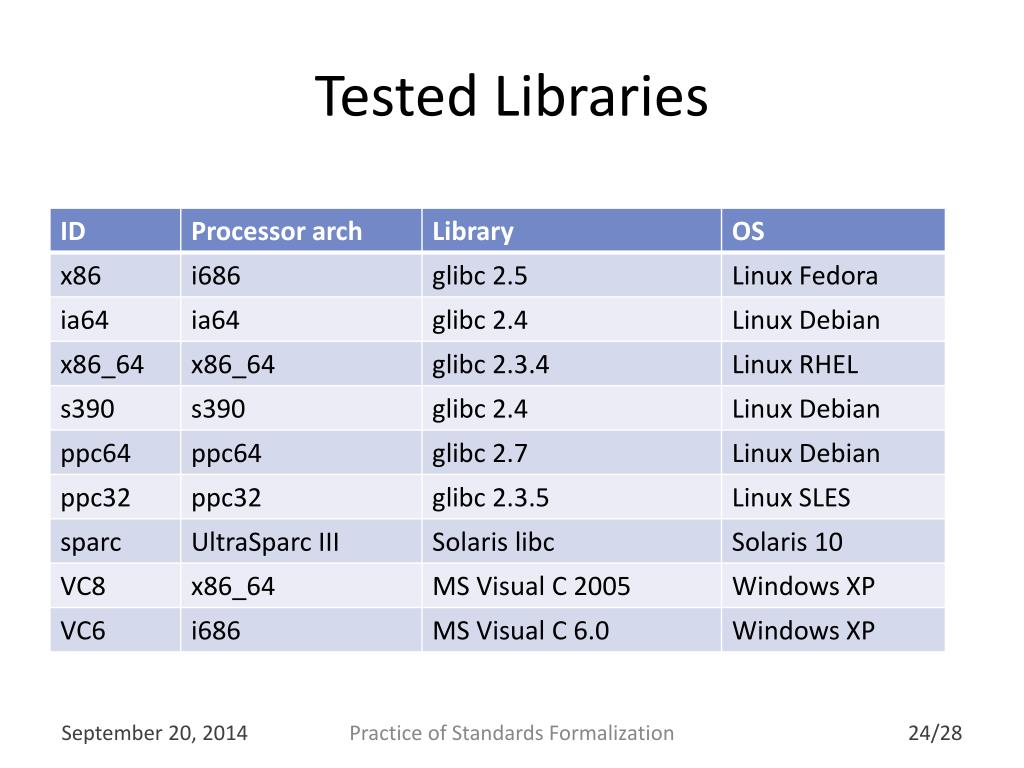

  24. Tested Libraries Practice of Standards Formalization

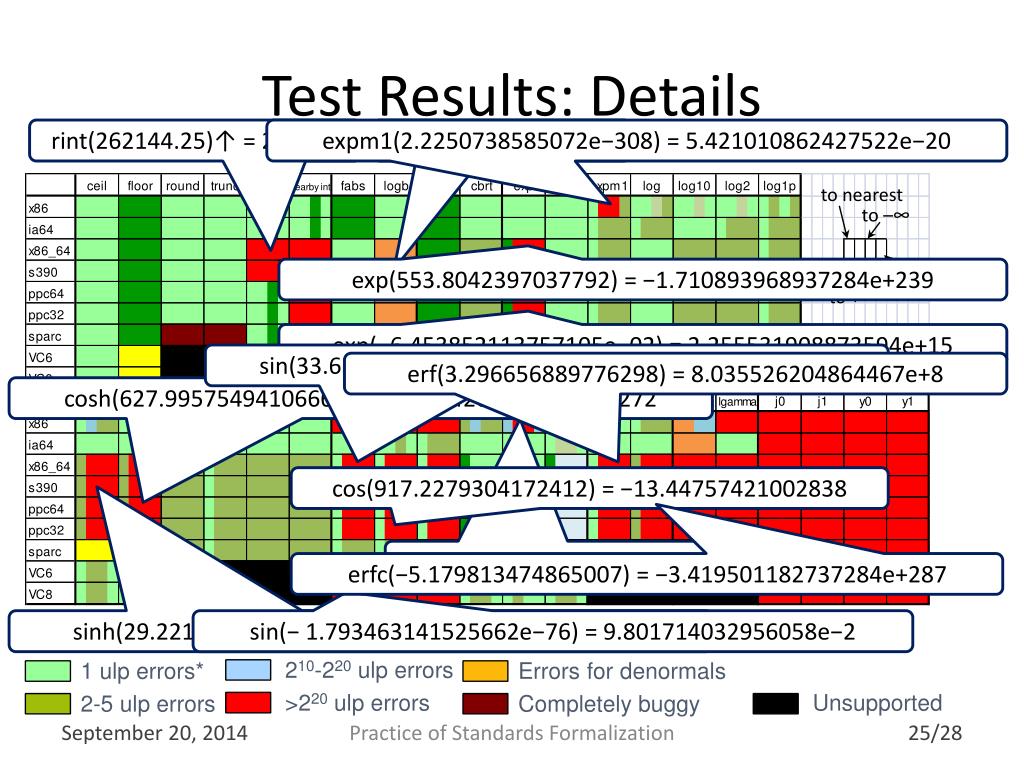

  25. Test Results: Details rint(262144.25)↑ = 262144 expm1(2.2250738585072e−308) = 5.421010862427522e−20 logb(2−1074) = −1022 to nearest to –∞ exp(553.8042397037792) = −1.710893968937284e+239 to 0 to +∞ exp(−6.453852113757105e−02) = 2.255531908873594e+15 sin(33.63133354799544) = 7.99995094799809616e+22 erf(3.296656889776298) = 8.035526204864467e+8 cosh(627.9957549410666) = −1.453242606709252e+272 cos(917.2279304172412) = −13.44757421002838 acos(−1.0) = −3.141592653589794 erfc(−5.179813474865007) = −3.419501182737284e+287 sinh(29.22104351584205) = −1.139998423128585e+12 sin(− 1.793463141525662e−76) = 9.801714032956058e−2 Exact 6-210 ulp errors Errors in exceptional cases 210-220 ulp errors 1 ulp errors* Errors for denormals >220 ulp errors Unsupported 2-5 ulp errors Completely buggy Practice of Standards Formalization

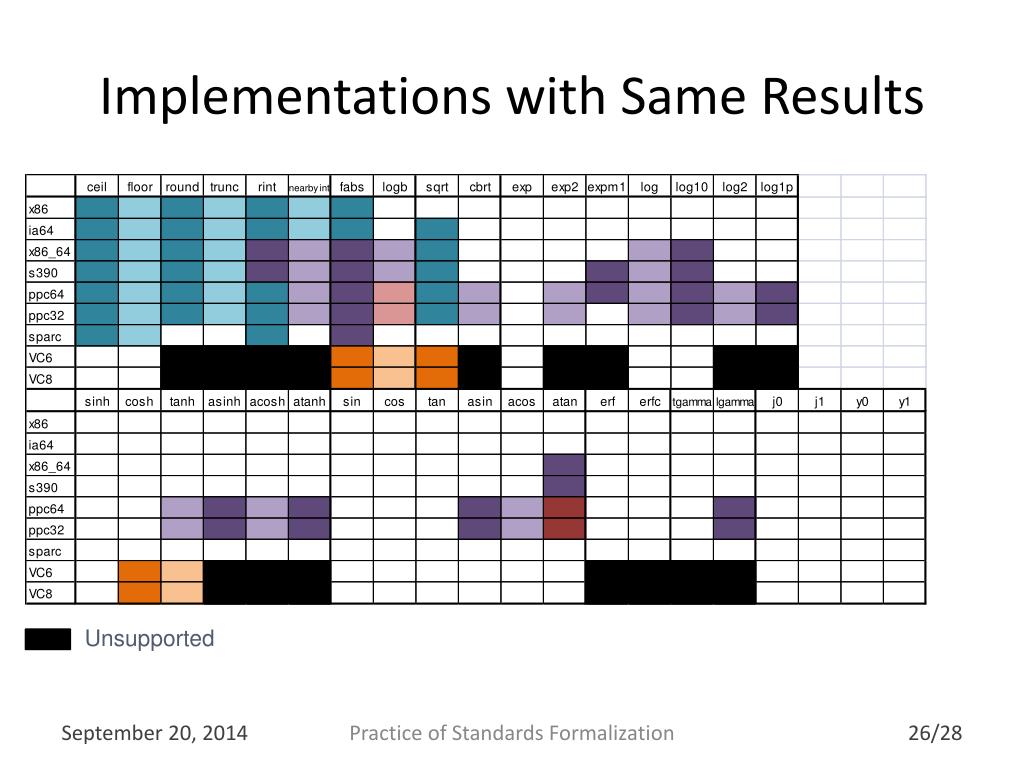

  26. Implementations with Same Results Unsupported Practice of Standards Formalization

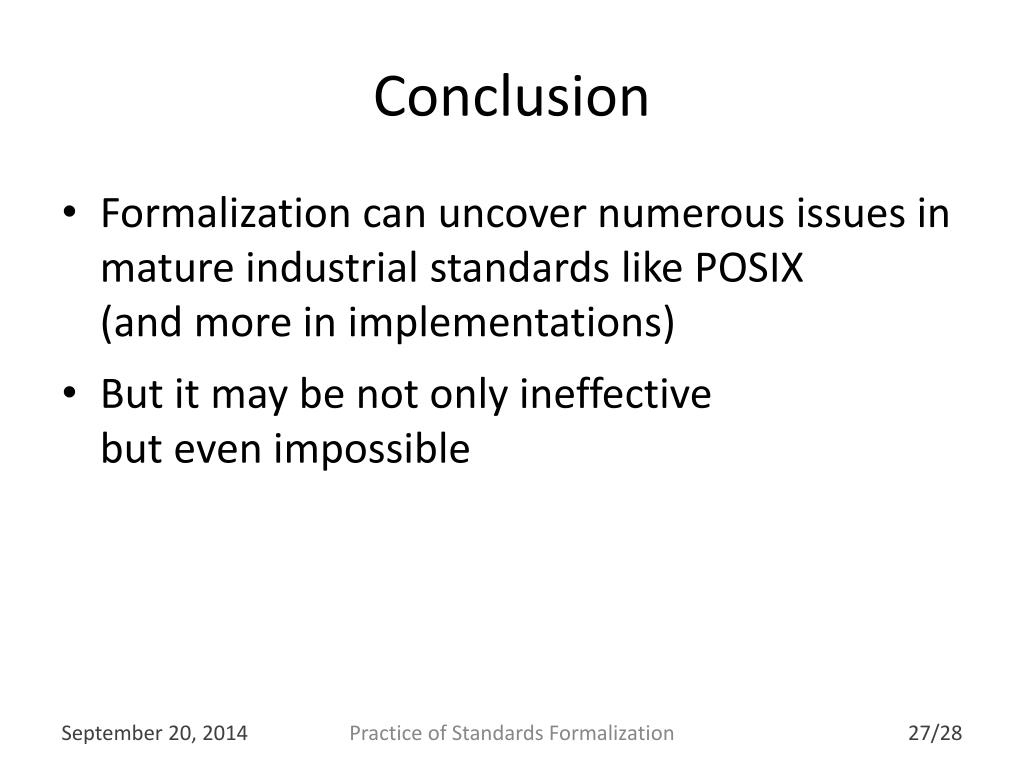

  27. Conclusion • Formalization can uncover numerous issues in mature industrial standards like POSIX (and more in implementations) • But it may be not only ineffective but even impossible Practice of Standards Formalization

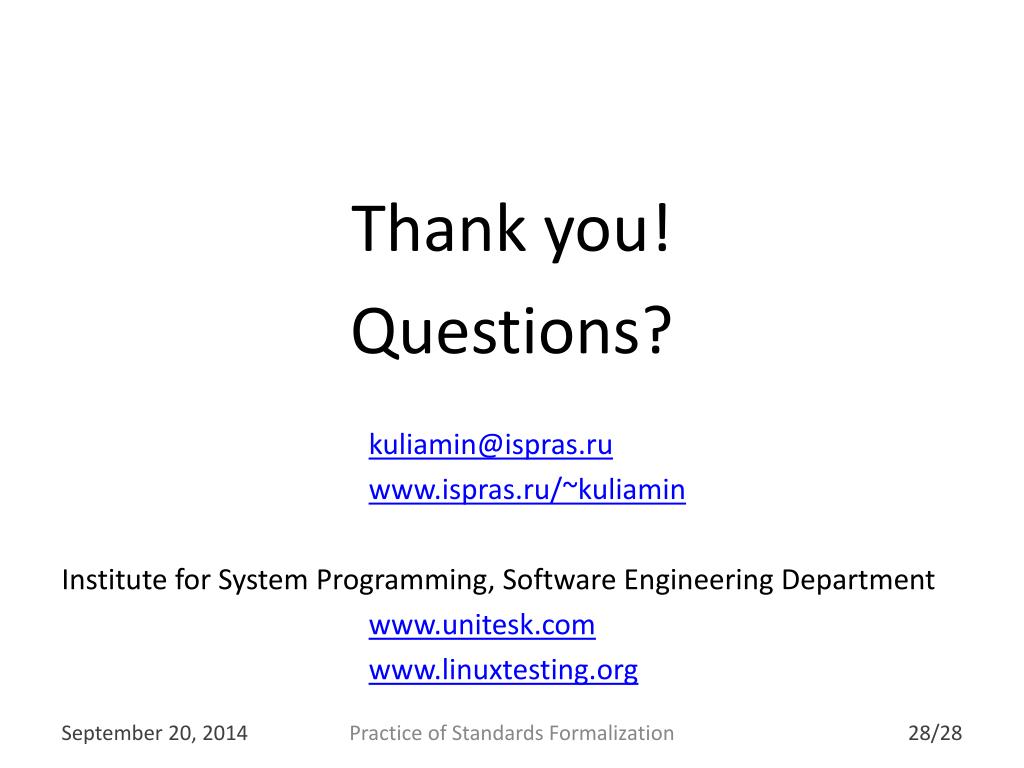

  28. Thank you! Questions? kuliamin@ispras.ru www.ispras.ru/~kuliamin Institute for System Programming, Software Engineering Department www.unitesk.com www.linuxtesting.org Practice of Standards Formalization
