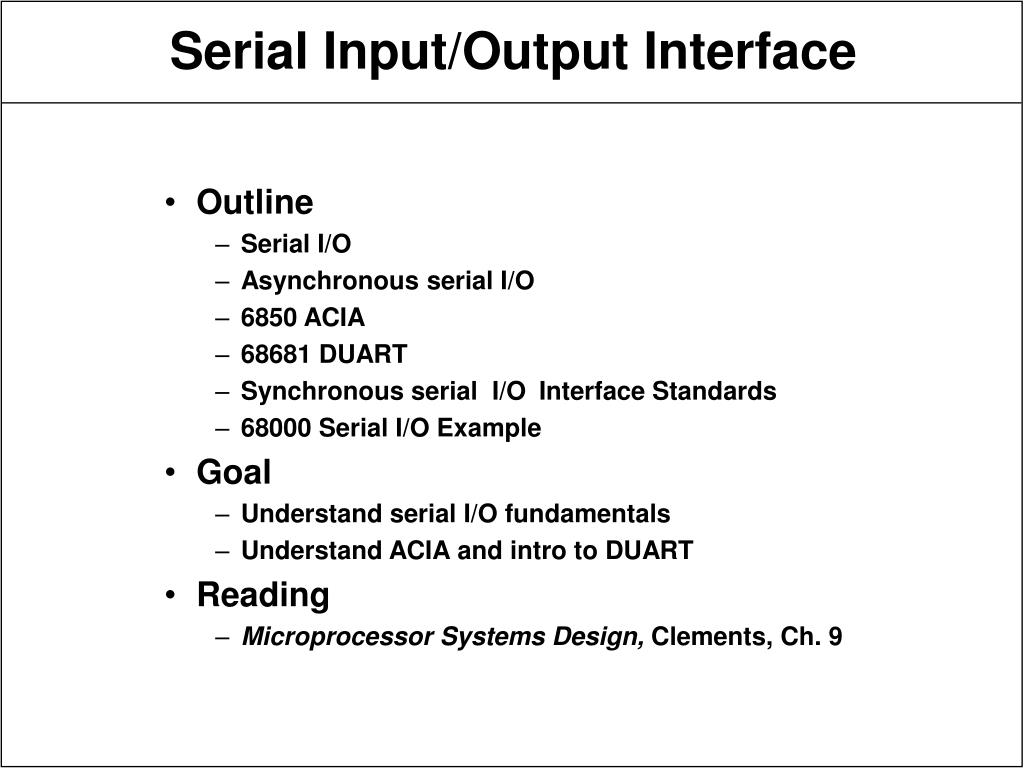

  1. Outline Serial I/O Asynchronous serial I/O 6850 ACIA 68681 DUART Synchronous serial I/OInterface Standards 68000 Serial I/O Example Goal Understand serial I/O fundamentals Understand ACIA and intro to DUART Reading Microprocessor Systems Design, Clements, Ch. 9 Serial Input/Output Interface

  2. Serial data transmission serial - bit at a time cheap, simple, easy to use asynchronous or synchronous full or half-duplex transmission medium - twisted pair, IR, fiber, etc. Serial interface parallel-to-series, series-to-parallel adaptor line drivers plugs and sockets Application connect CPU to remote peripheral examples CRT temperature sensor Serial I/O

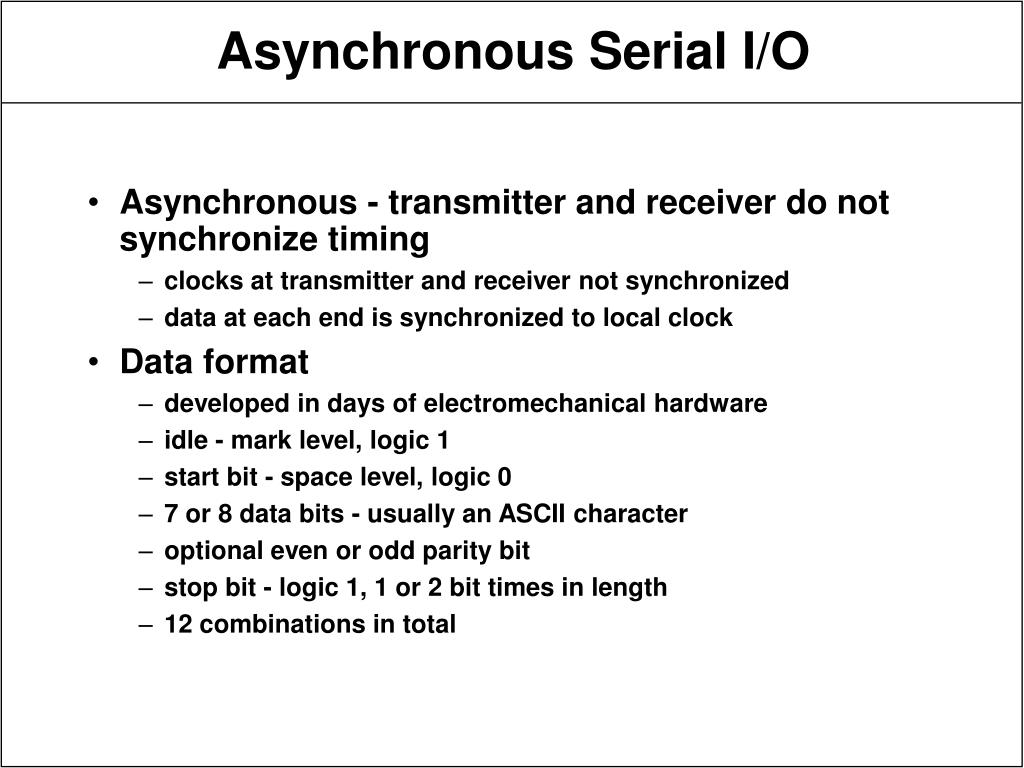

  3. Asynchronous - transmitter and receiver do not synchronize timing clocks at transmitter and receiver not synchronized data at each end is synchronized to local clock Data format developed in days of electromechanical hardware idle - mark level, logic 1 start bit - space level, logic 0 7 or 8 data bits - usually an ASCII character optional even or odd parity bit stop bit - logic 1, 1 or 2 bit times in length 12 combinations in total Asynchronous Serial I/O

  4. Bit time = T Receiver waits for start bit falling edge triggers local clock Samples next N bits at their centers using local clock, compute T/2 Clock precision < T/2 error in 9-11 bits between transmitter and receiver clocks < 5% error - trivial with crystal oscillators Data Timing

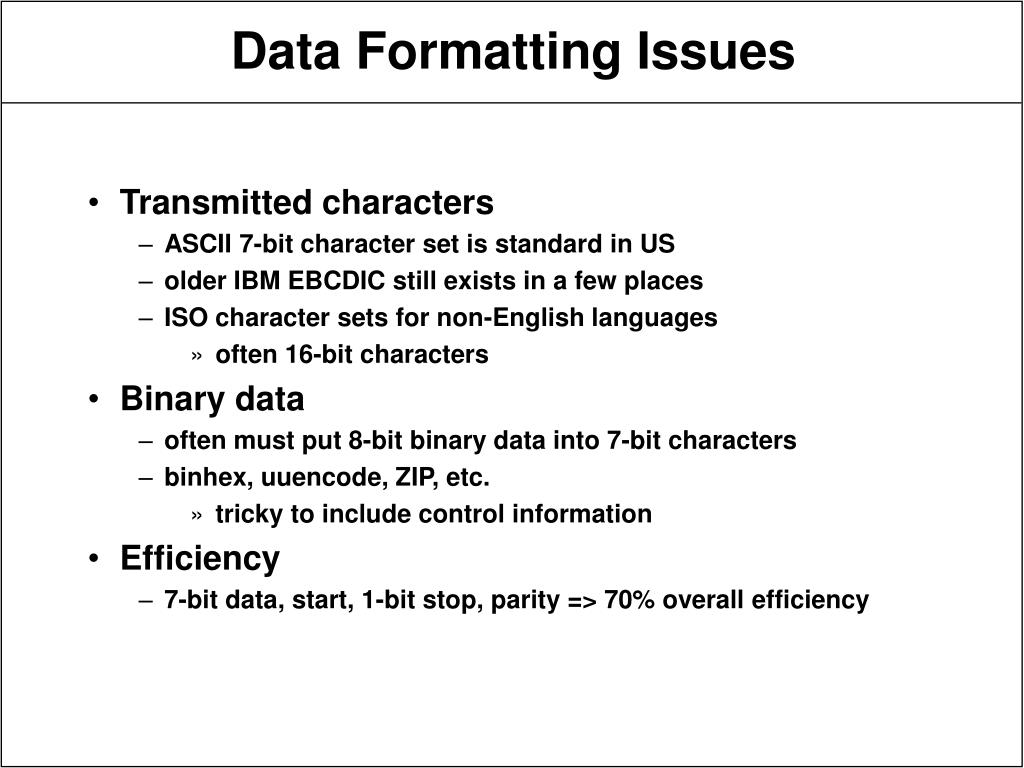

  5. Transmitted characters ASCII 7-bit character set is standard in US older IBM EBCDIC still exists in a few places ISO character sets for non-English languages often 16-bit characters Binary data often must put 8-bit binary data into 7-bit characters binhex, uuencode, ZIP, etc. tricky to include control information Efficiency 7-bit data, start, 1-bit stop, parity => 70% overall efficiency Data Formatting Issues

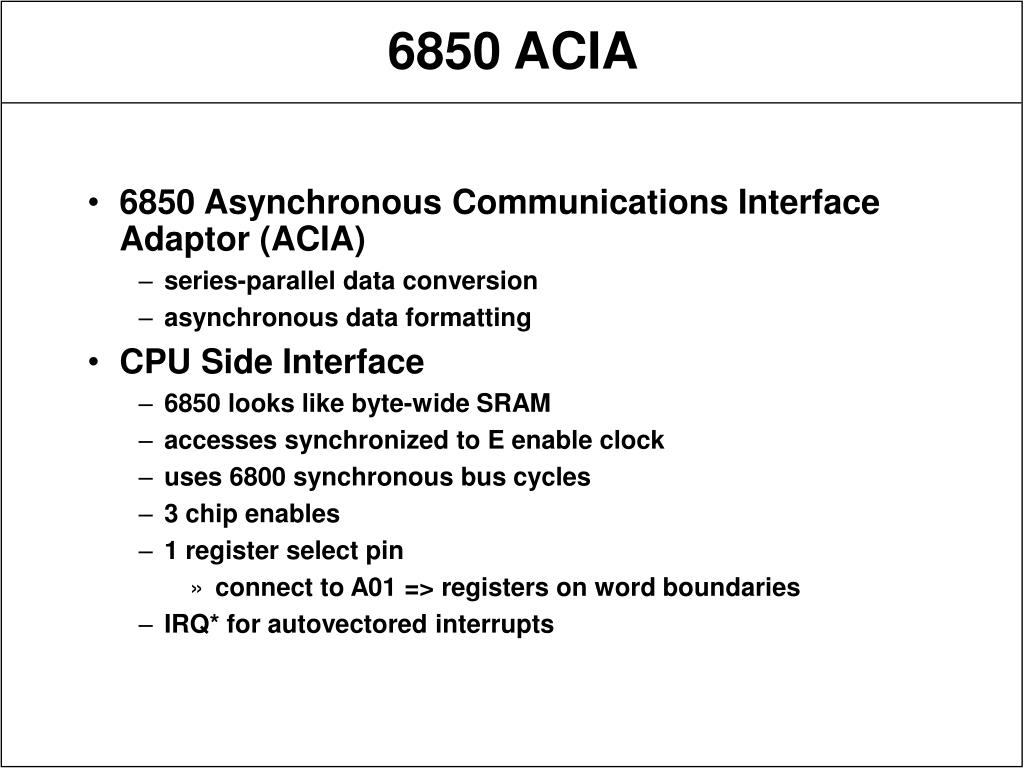

  6. 6850 Asynchronous Communications Interface Adaptor (ACIA) series-parallel data conversion asynchronous data formatting CPU Side Interface 6850 looks like byte-wide SRAM accesses synchronized to E enable clock uses 6800 synchronous bus cycles 3 chip enables 1 register select pin connect to A01 => registers on word boundaries IRQ* for autovectored interrupts 6850 ACIA

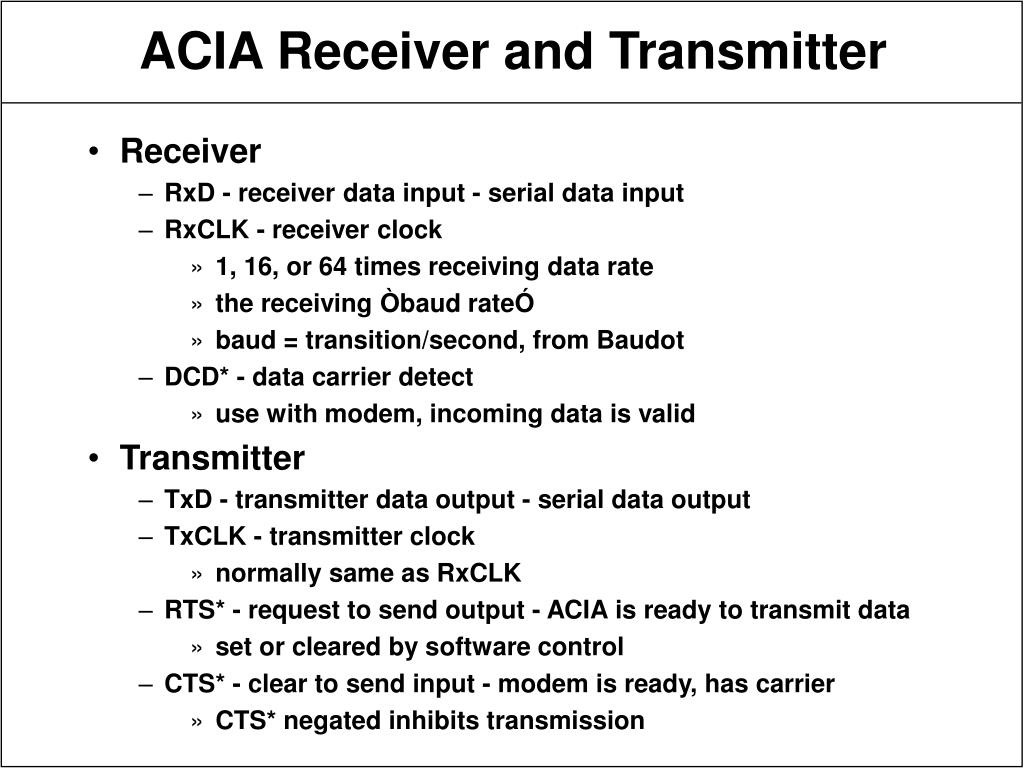

  7. Receiver RxD - receiver data input - serial data input RxCLK - receiver clock 1, 16, or 64 times receiving data rate the receiving Òbaud rateÓ baud = transition/second, from Baudot DCD* - data carrier detect use with modem, incoming data is valid Transmitter TxD - transmitter data output - serial data output TxCLK - transmitter clock normally same as RxCLK RTS* - request to send output - ACIA is ready to transmit data set or cleared by software control CTS* - clear to send input - modem is ready, has carrier CTS* negated inhibits transmission ACIA Receiver and Transmitter

  8. 6850 registers control, status, transmit data, receive data accessed by RS and R/~W pins transmit and control are write only note, if RS = A01, use LDS*, register address is odd Transmit data register (TDR) write data to transmit Receive data register (RDR) read received data 6850 ACIA Operation

  9. Control register (CR) define ACIA operating mode CR1-CR0 - ratio between clock and data rate 11 = chip reset CR4-CR2 - 7/8 bits, even/odd/no parity, 1/2 stop bits CR6-CR5 - RTS* state, interrupt enable interrupt when TDR empty, unless CTS* high 11 - transmit break - logic 0 continuously usually causes interrupt at receiver CR7 - enable receiver interrupt when RDR full also enables interrupt on overrun and DCD* high 6850 Operation (cont.)

  10. Status register (SR) transmit and receive status SR0 - receiver data register full if CR7 set, also set SR7 IRQ bit cleared on data read, reset, or DCD* high SR1 - transmitter data register empty cleared on write, reset, CTS* high if CR7 set, also set SR7 IRQ bit SR2 - data carrier detect set if DCD* high, also set SR7 remain set if DCD* goes low, clear on SR and data read SR3 - clear to send value of CTS* input SR4 - framing error set if missing stop bit, cleared otherwise overwritten by each character 6850 Operation (cont.)

  11. Status register SR5 - receiver overrun set if RDR overwritten by next character before read by CPU, when last bit of next character read cleared by RDR read or reset SR6 - parity error set when parity error in incoming character cleared when character read SR7 - interrupt request set when (SR0 or SR1 or SR2) and CR7 set IRQ* asserted clared by RDR read, TDR write, reset 6850 Operation (cont.)

  12. Minimal system no use of RTS*, CTS*, DCD*, no interrupts only look at SR0-SR1 ACIAC EQU $E0001 CR/SR addr ACIAD EQU ACIAC+2 TDR/RDR addr RDRF EQU 0 RDR full TDRE EQU 1 TDR empty INITIALIZE MOVE.B #$F3,ACIAC Reset ACIA MOVE.B #$19,ACIAC No IRQ, RTS* low, 8-bit data even parity,1 stop bit,16x ck RTS INPUT BTST.B #RDRF,ACIAC Test receiver status BEQ INPUT Poll until has data MOVE.B ACIAD,D0 Put data in D0 RTS OUTPUT BTST.B #RDRF,ACIAC Test transmitter status BEQ OUTPUT Poll until read for data MOVE.B D0,ACIAD Transmit the data RTS Using the 6850 ACIA

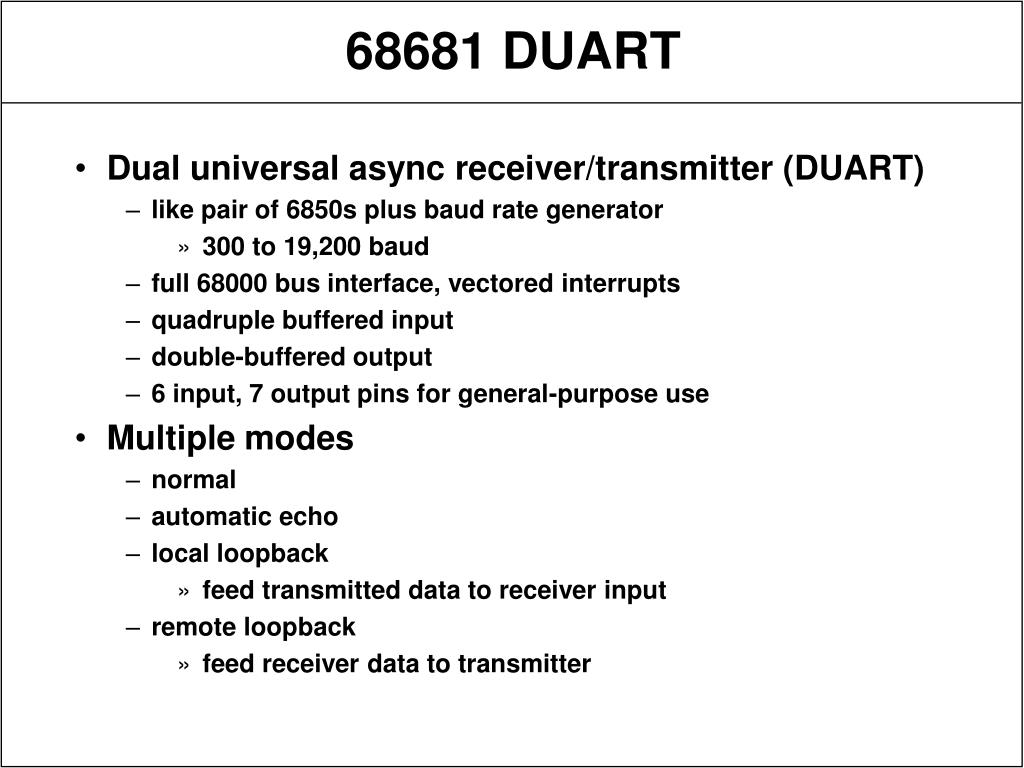

  13. Dual universal async receiver/transmitter (DUART) like pair of 6850s plus baud rate generator 300 to 19,200 baud full 68000 bus interface, vectored interrupts quadruple buffered input double-buffered output 6 input, 7 output pins for general-purpose use Multiple modes normal automatic echo local loopback feed transmitted data to receiver input remote loopback feed receiver data to transmitter 68681 DUART

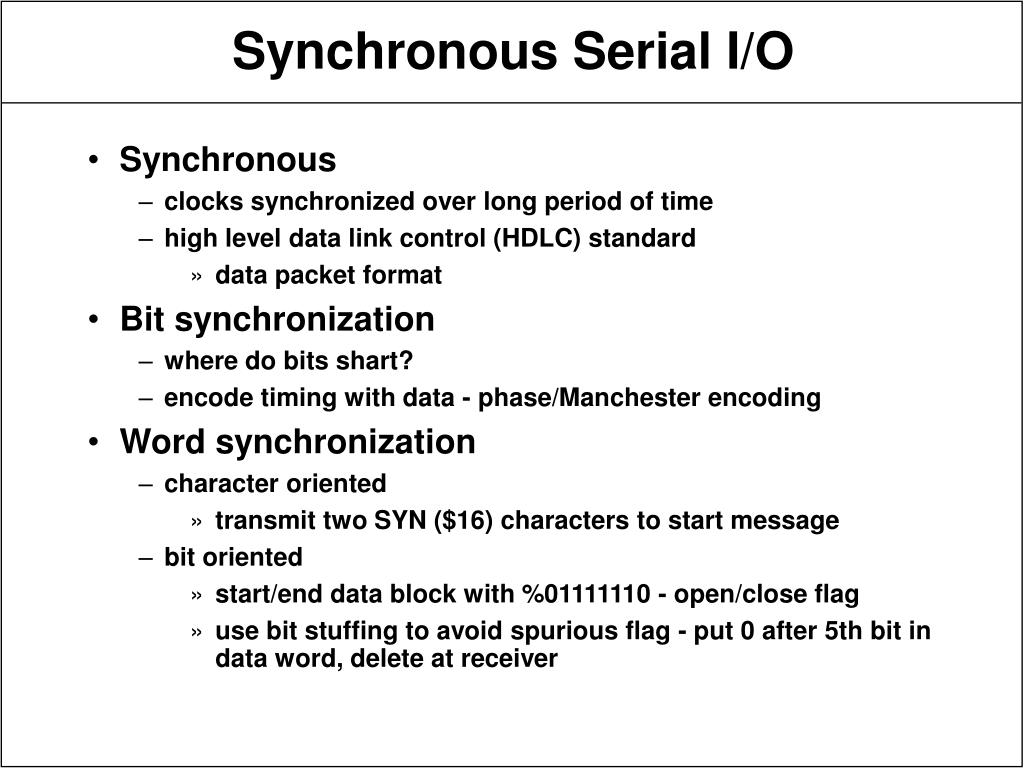

  14. Synchronous clocks synchronized over long period of time high level data link control (HDLC) standard data packet format Bit synchronization where do bits shart? encode timing with data - phase/Manchester encoding Word synchronization character oriented transmit two SYN ($16) characters to start message bit oriented start/end data block with %01111110 - open/close flag use bit stuffing to avoid spurious flag - put 0 after 5th bit in data word, delete at receiver Synchronous Serial I/O

  15. Need standards for “plug compatibility” RS-232C/D connect data terminal and communications equipment electrical and mechanical interface usually only a subset of pinouts implemented standard interface chips - line drivers RS-423 update to RS-232, higher speed, longer cable length RS-422 differential wire pairs, higher speed, longer cables Serial Interface Standards

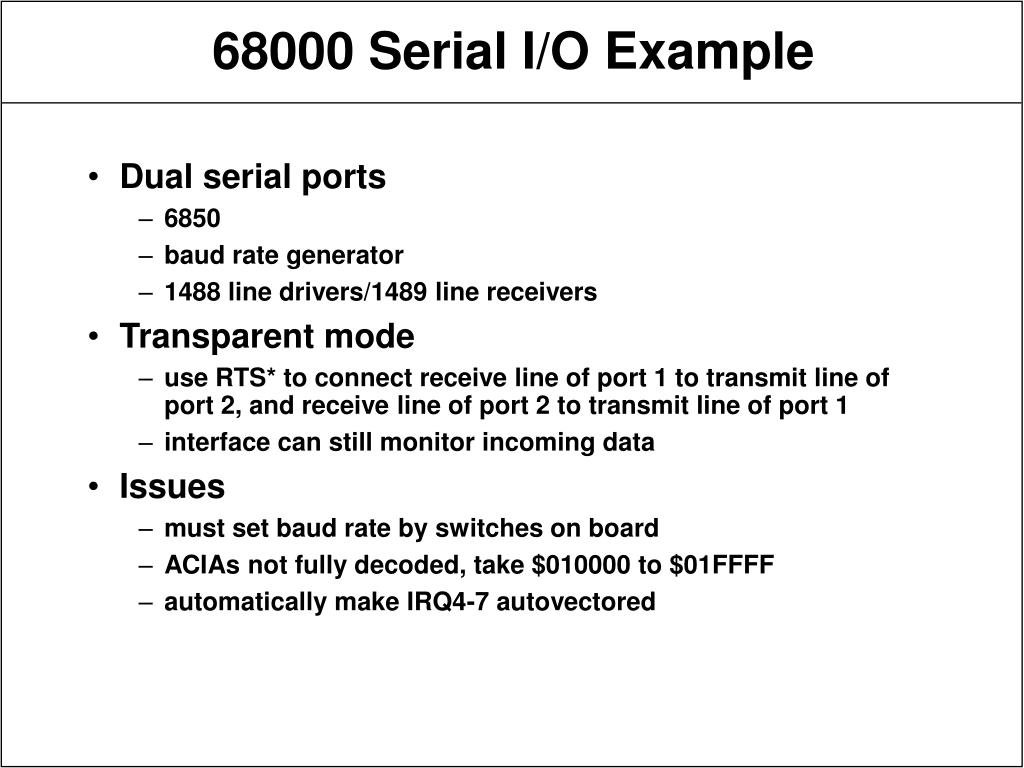

  16. Dual serial ports 6850 baud rate generator 1488 line drivers/1489 line receivers Transparent mode use RTS* to connect receive line of port 1 to transmit line of port 2, and receive line of port 2 to transmit line of port 1 interface can still monitor incoming data Issues must set baud rate by switches on board ACIAs not fully decoded, take $010000 to $01FFFF automatically make IRQ4-7 autovectored 68000 Serial I/O Example
