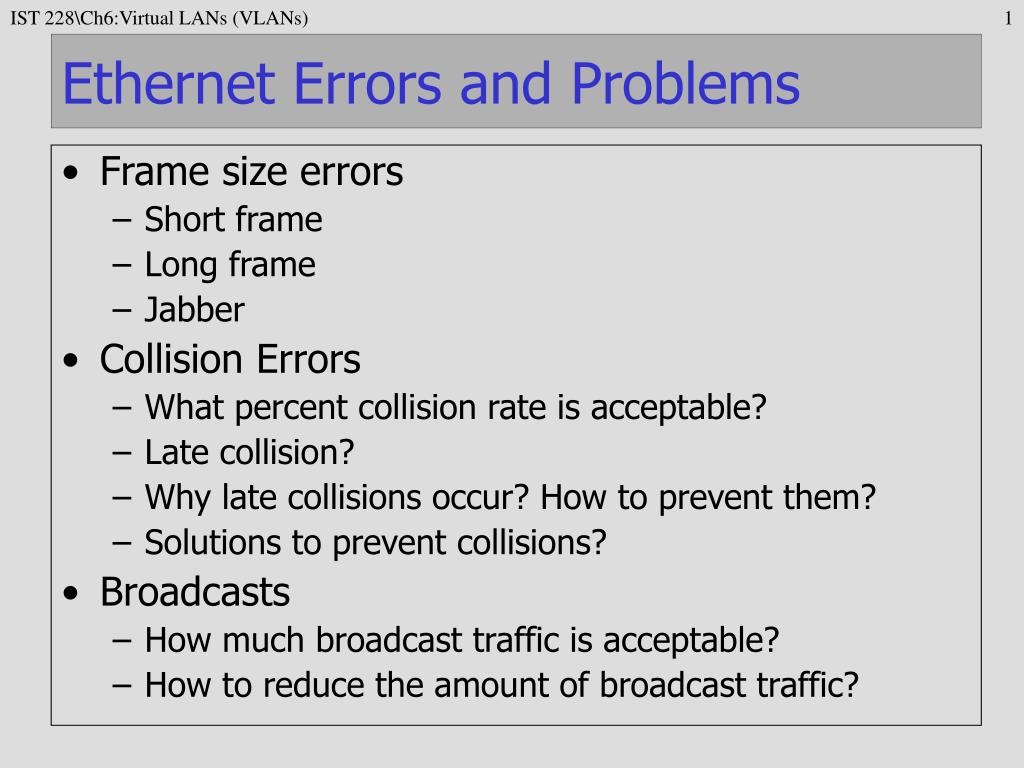

  1. Ethernet Errors and Problems • Frame size errors • Short frame • Long frame • Jabber • Collision Errors • What percent collision rate is acceptable? • Late collision? • Why late collisions occur? How to prevent them? • Solutions to prevent collisions? • Broadcasts • How much broadcast traffic is acceptable? • How to reduce the amount of broadcast traffic?

  2. Ethernet Security Problems • By default, all users can see all network devices located on a physical LAN. • Anyone can observe all network traffic by plugging a network analyzer into a hub.

  3. Solution(s)? • Securing Switch Ports • limiting device connections 1900s2(config)#mac-address-table permanent <MAC Address> e0/7 • limiting communication 1900s2(config)#mac-address-table restricted static <MAC Address> e0/6 e0/12 • limiting the number of devices 1900s2(config)#interface e/10 1900s2(config-if)#port secure max-mac-count 5

  4. Solution(s)? • Switching Methods • Cut-Through • Store-and-Forward Switches • Fragment-Free Switching • Adaptive Cut-Through 1900s2(config)#switching-mode store-and-forward

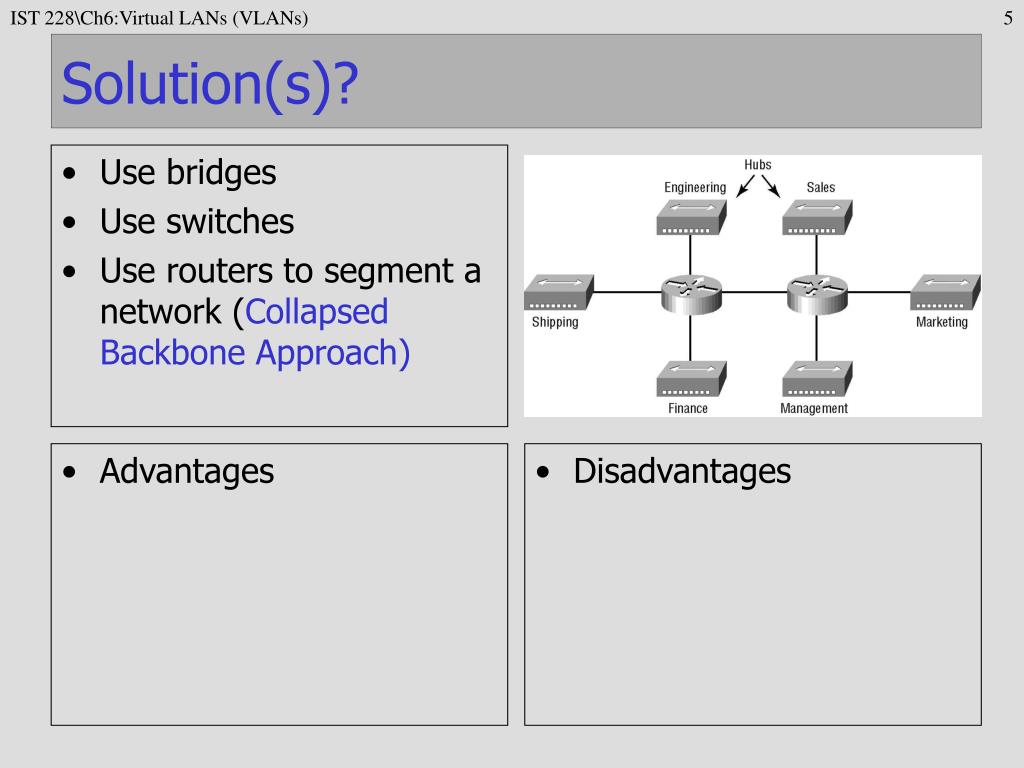

  5. Solution(s)? Use bridges Use switches Use routers to segment a network (Collapsed Backbone Approach) Advantages Disadvantages

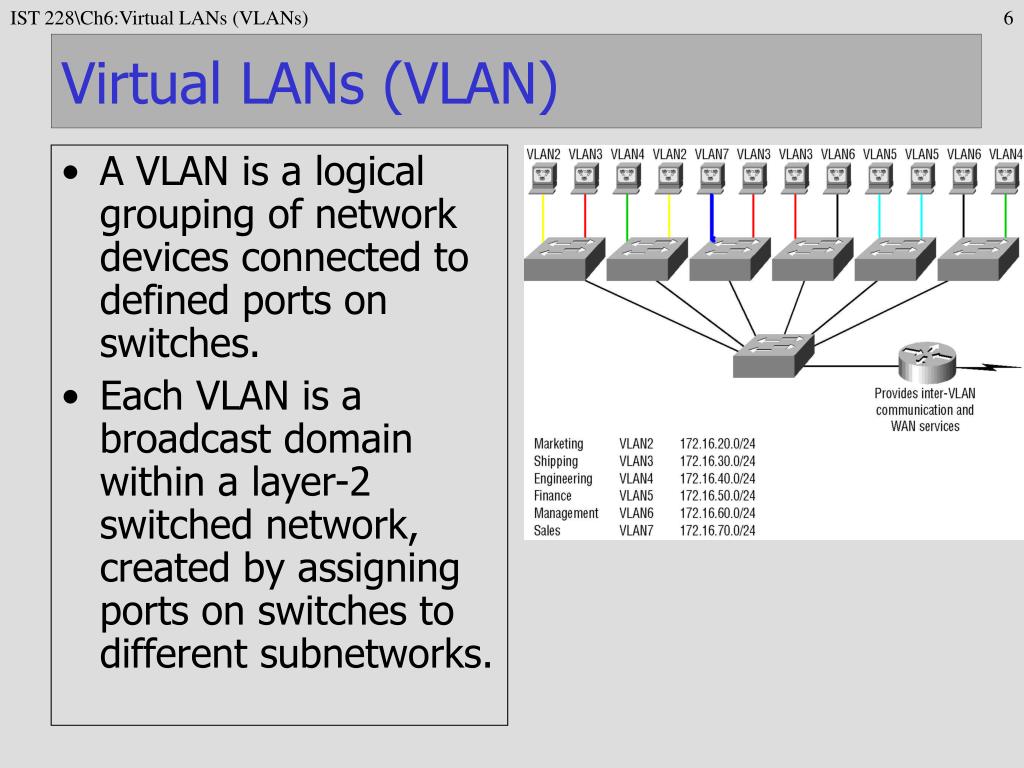

  6. Virtual LANs (VLAN) • A VLAN is a logical grouping of network devices connected to defined ports on switches. • Each VLAN is a broadcast domain within a layer-2 switched network, created by assigning ports on switches to different subnetworks.

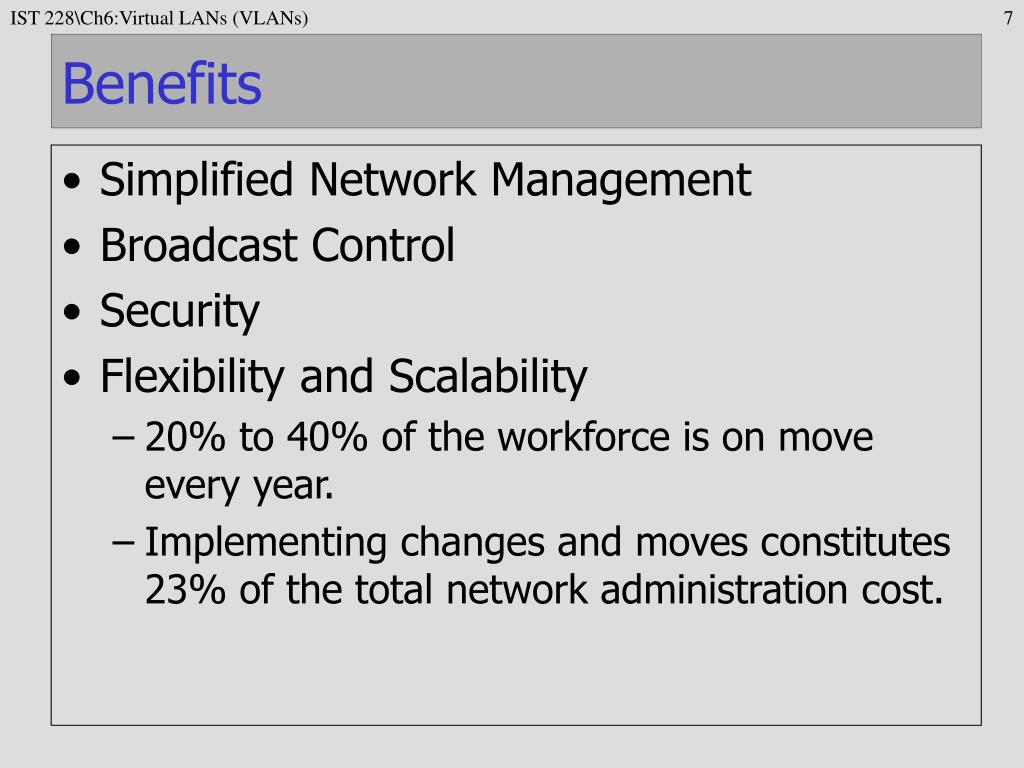

  7. Benefits • Simplified Network Management • Broadcast Control • Security • Flexibility and Scalability • 20% to 40% of the workforce is on move every year. • Implementing changes and moves constitutes 23% of the total network administration cost.

  8. VLAN Membership • Static VLANs • the most secure • Dynamic VLANs • use an intelligent software to assign ports.

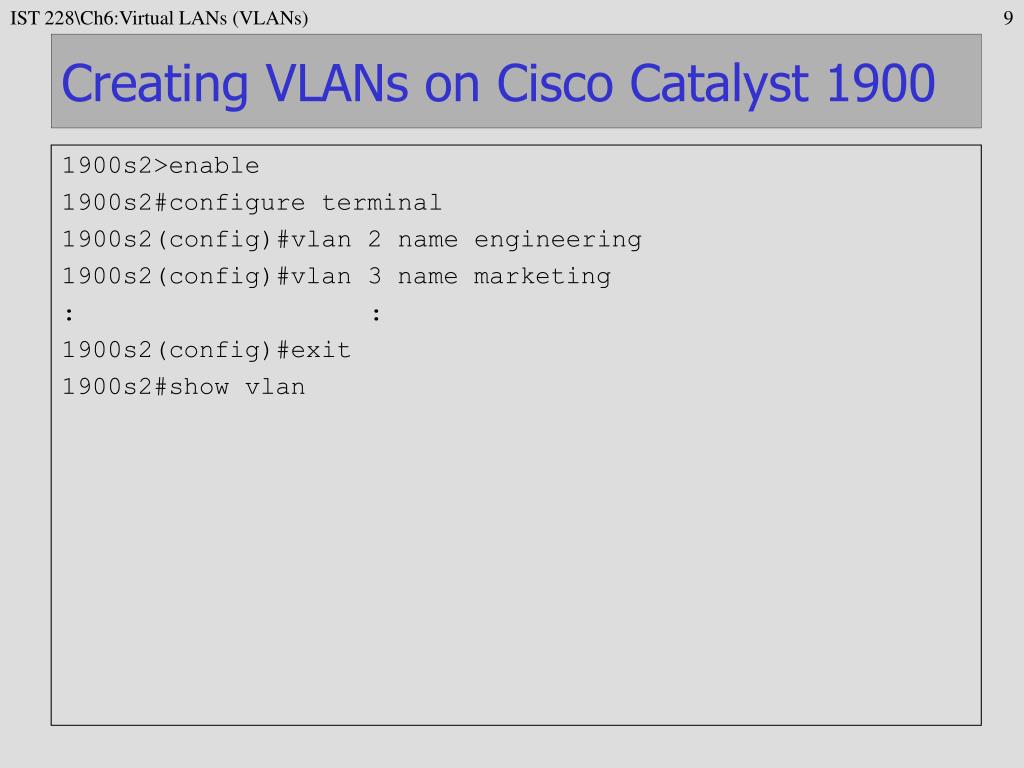

  9. Creating VLANs on Cisco Catalyst 1900 1900s2>enable 1900s2#configure terminal 1900s2(config)#vlan 2 name engineering 1900s2(config)#vlan 3 name marketing : : 1900s2(config)#exit 1900s2#show vlan

  10. Assigning Ports to VLANs 1900s2(config)#interface e0/2 1900s2(config)#vlan-membership static 2 1900s2(config)#exit 1900s2(config)#interface e0/3 1900s2(config)#vlan-membership static 2 1900s2(config)#exit : : 1900s2#show vlan Use the show vlan [#] command to gather information about a specific vlan.

  11. Link Types and Configuration • Access Links • A device attached to an access link is unaware of a VLAN membership. • Access-link devices cannot communicate with devices outside their VLAN unless... • Trunk links • Switch-to-switch, switch-to-server, or switch-to-router 100- or 1000Mbps links that can carry traffic from multiple VLANs. • Five different states you can set for a trunk link: • Auto • Desirable • Nonegotiate • Off • On

  12. Trunk Links

  13. Configuration of Trunk links 1900s2#configure terminal 1900s2(config)#interface f0/26 1900s2(config-if)#trunk on By default, all VLANs are enabled to be routed over this newly configured trunk link. 1900s2(config-if)#no trunk-vlan 2 You cleared VLAN 7 from the trunk. 1900s2#show trunk a allowed-vlans

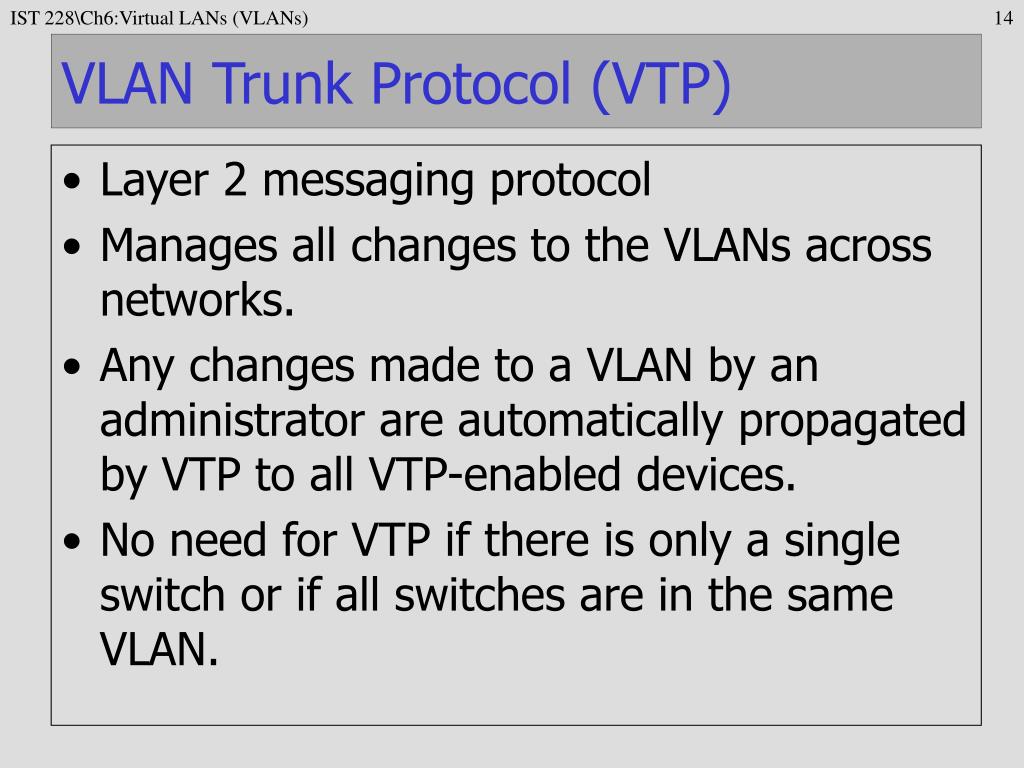

  14. VLAN Trunk Protocol (VTP) • Layer 2 messaging protocol • Manages all changes to the VLANs across networks. • Any changes made to a VLAN by an administrator are automatically propagated by VTP to all VTP-enabled devices. • No need for VTP if there is only a single switch or if all switches are in the same VLAN.

  15. Using VTP • VTP devices are organized into domains. • Each domain must have at least one VTP server. • Each switch can only be in one domain. 1900s2(config)#VTP domain <domain name> • Three different modes • Server • Client • Transparent 1900s2(config)#VTP client • VTP Pruning: Reduces the number of VTP updates that traverse a link. By default, VTP pruning is disabled on all switches. 1900s2(config)#vtp pruning enable 1900s2(config)#delete vtp

  16. Nonswitching Hubs and VLANs • Considerations to keep in mind when implementing hubs on a network that employs VLANs: • If you insert a hub into a port on a switch and then connect several devices to the hub, all the system attached to that hub will be in the same VLAN • If you must move a single workstation that is attached to a hub with several workstations, you will have to physically attach the device to another hub or switch ports in order to change its VLAN assignment • The more hosts attached at individual switch ports, the greater the microsegmentation and flexibility the VLAN can offer

  17. Routers and VLANs • Routers are used with VLANs • to communicate each other • to increase security

  18. VLAN Identification • Inter-Switch Link (ISL) • IEEE 802.1Q • LAN emulation • 802.10 (FDDI)
