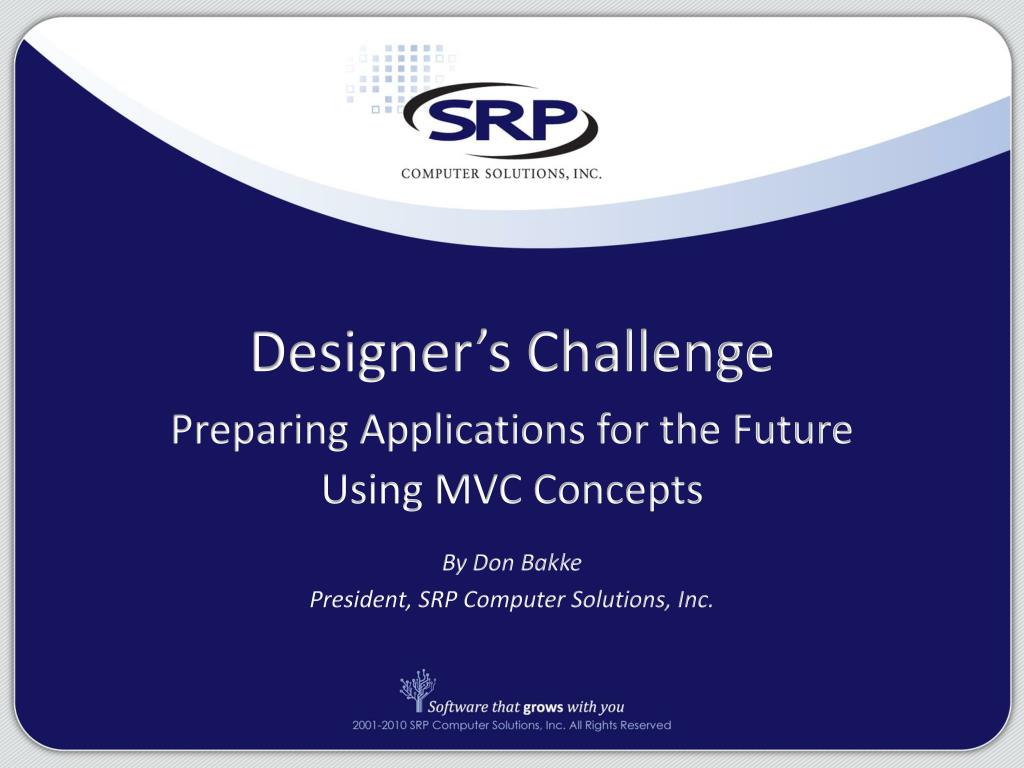

  1. Designer’s Challenge Preparing Applications for the Future Using MVC Concepts By Don Bakke President, SRP Computer Solutions, Inc.

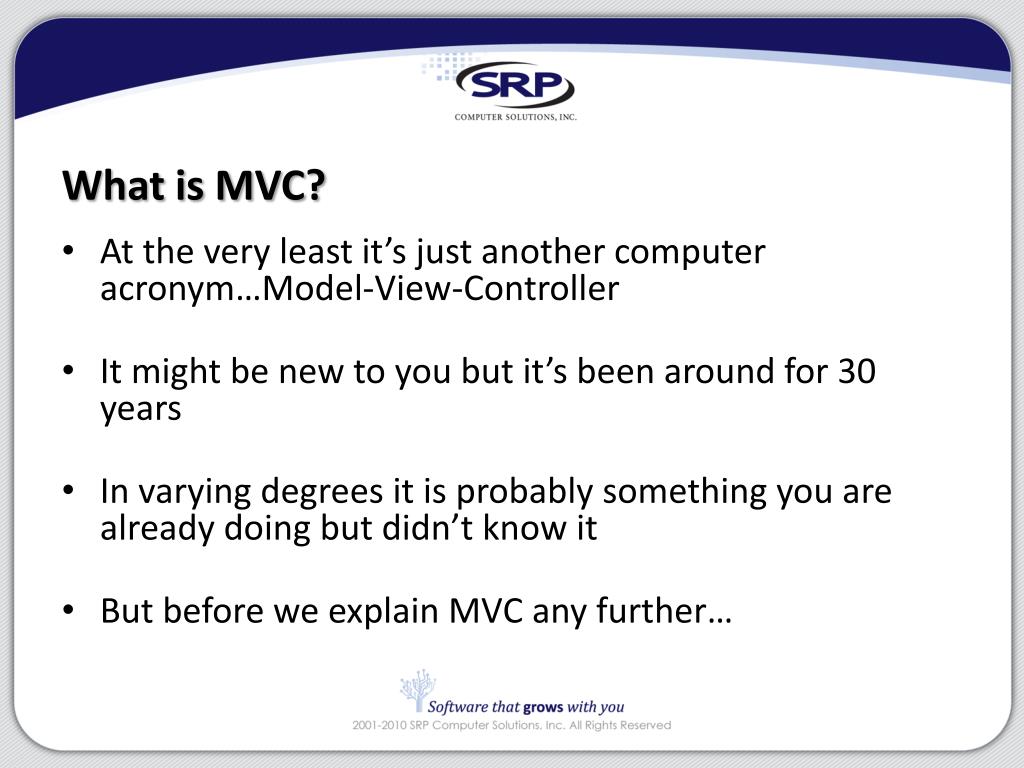

  2. What is MVC? • At the very least it’s just another computer acronym…Model-View-Controller • It might be new to you but it’s been around for 30 years • In varying degrees it is probably something you are already doing but didn’t know it • But before we explain MVC any further…

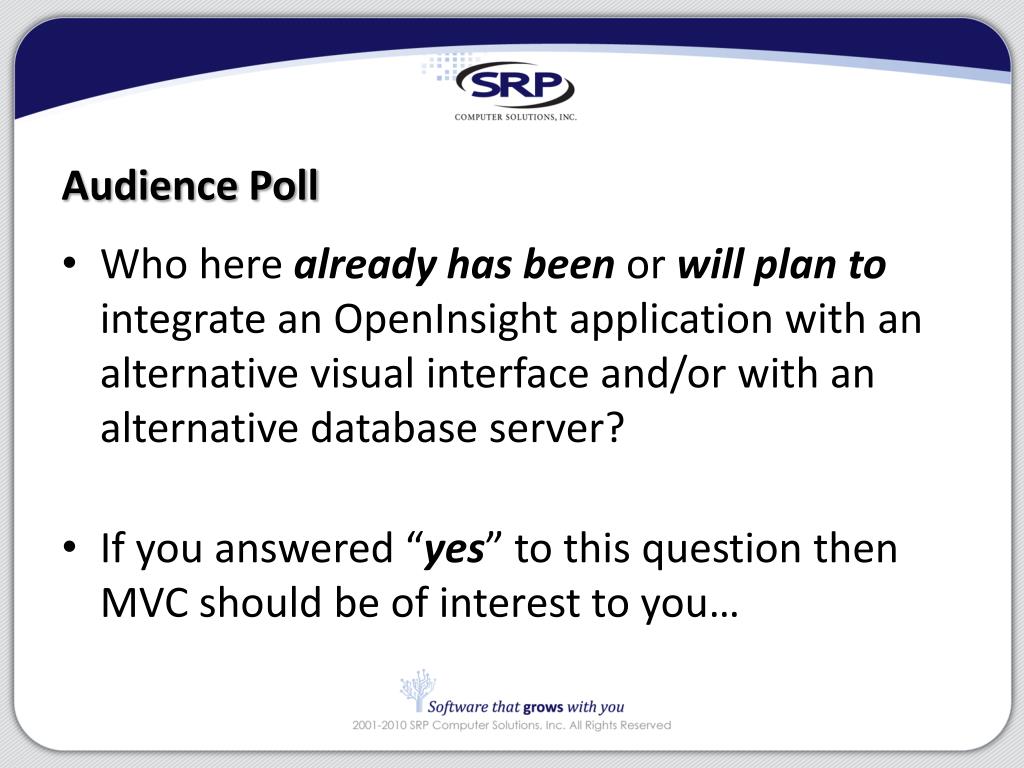

  3. Audience Poll • Who here already has been or will plan to integrate an OpenInsight application with an alternative visual interface and/or with an alternative database server? • If you answered “yes” to this question then MVC should be of interest to you…

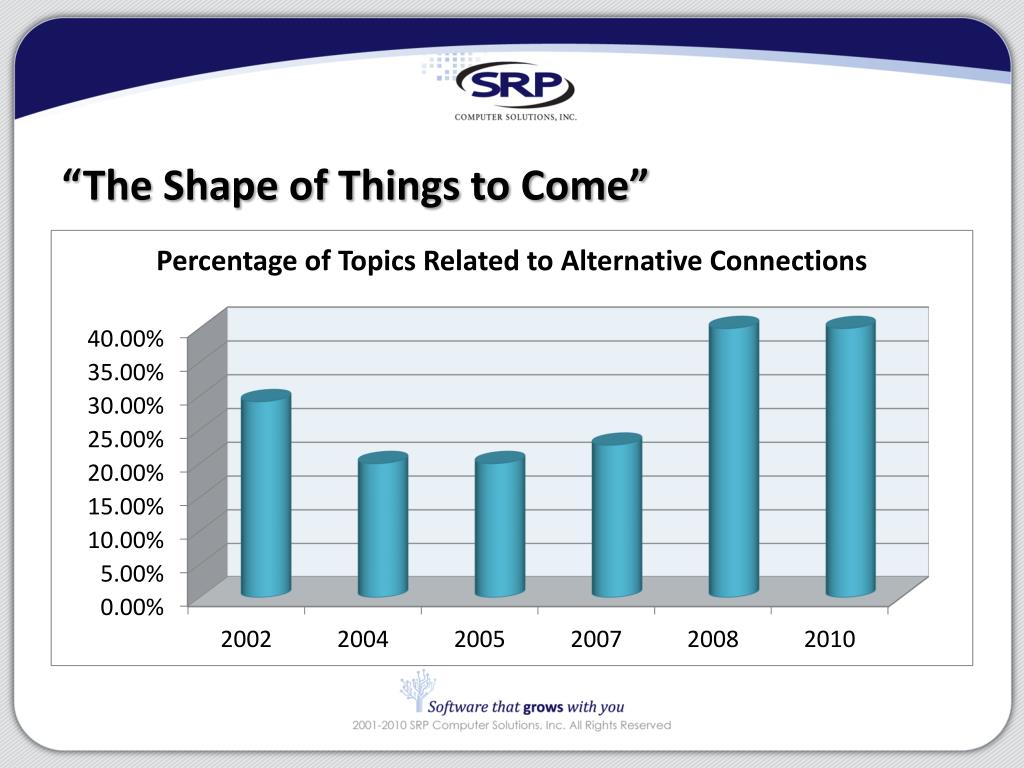

  4. “The Shape of Things to Come”

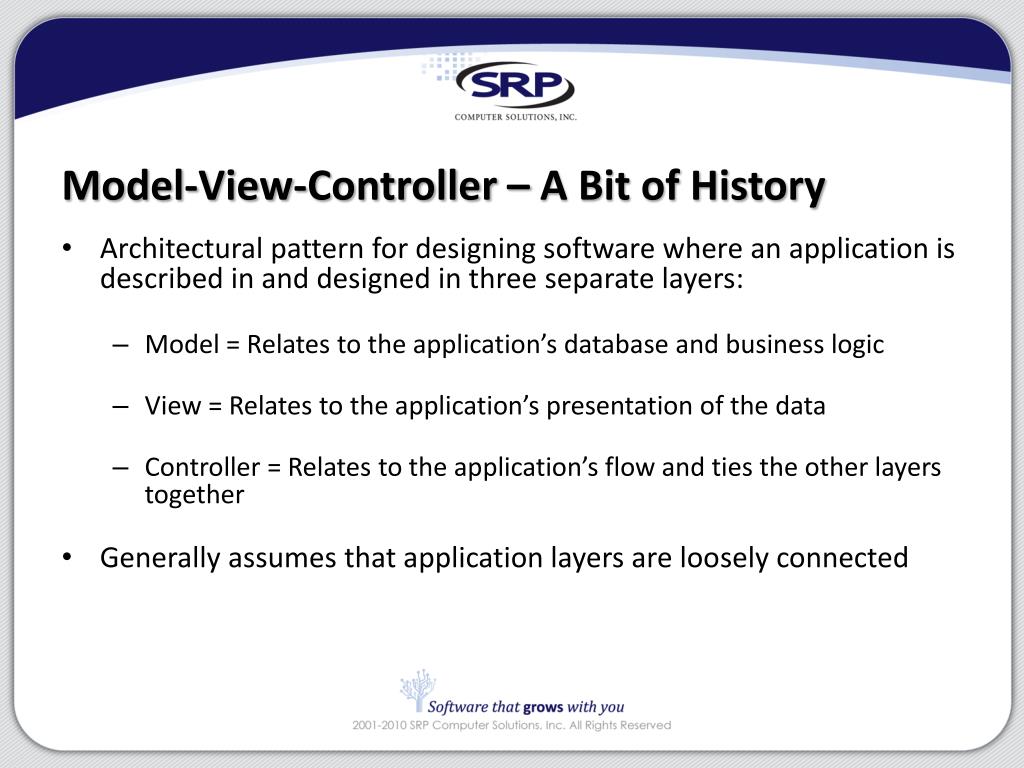

  5. Model-View-Controller – A Bit of History • Architectural pattern for designing software where an application is described in and designed in three separate layers: • Model = Relates to the application’s database and business logic • View = Relates to the application’s presentation of the data • Controller = Relates to the application’s flow and ties the other layers together • Generally assumes that application layers are loosely connected

  6. Model-View-Controller – A Bit of History • Coined in the late 70’s and made popular in the early 80’s with Smalltalk • Developed with Object Oriented technology in mind • Early versions assumed dumb clients • Spin-off versions include Model-View-Presenter, Model-View-Template, and Model-View-ViewModel

  7. Who Needs to Know MVC? • Anyone who needs to substitute or allow for alternative layers with minimal code rewrite • Presentation layer - WPF, Flex, HTML, iPhone, webOS • Data layer - SQL, U2, AmazonS3, Google App Engine (e.g. Cloud resources – Tom Wilson) • Leverage existing resources – Tom Wilson • Anyone who wants easier code management and documentation • Anyone who develops with teams who are focused on a specific layer of the application

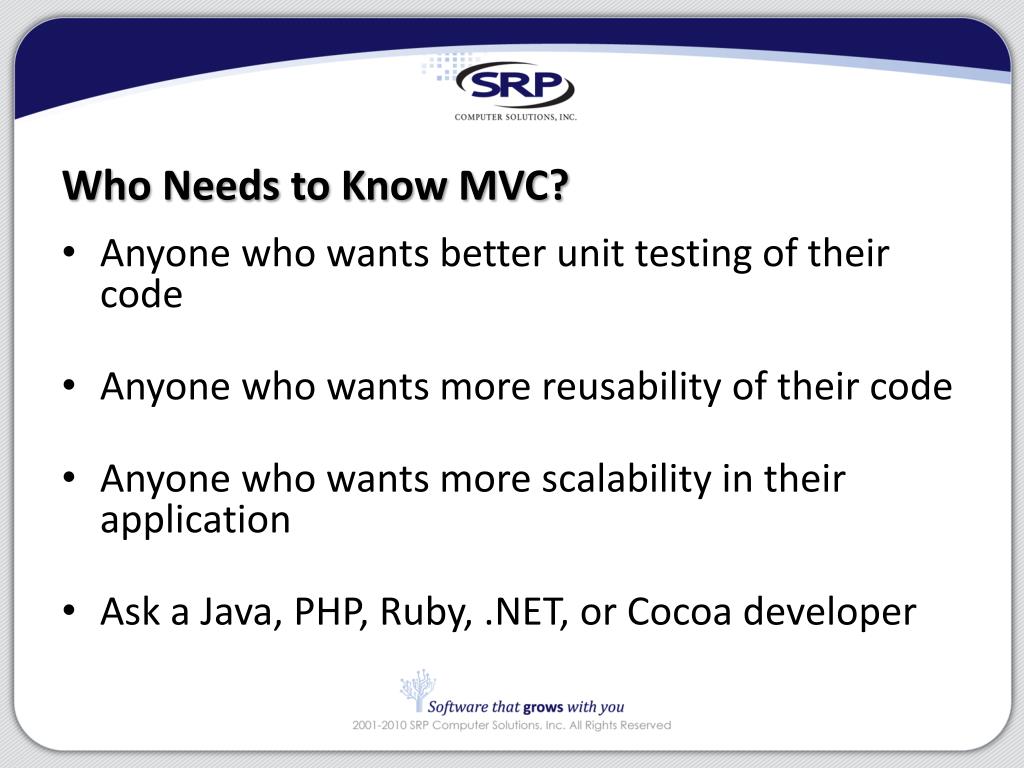

  8. Who Needs to Know MVC? • Anyone who wants better unit testing of their code • Anyone who wants more reusability of their code • Anyone who wants more scalability in their application • Ask a Java, PHP, Ruby, .NET, or Cocoa developer

  9. Who Doesn’t Need to Know MVC? • Anyone who prefers a ‘git-r-done’ approach • Anyone who never intends to work outside of OpenInsight

  10. Model-View-Controller – A Closer Look • Disclaimers • I am not an MVC purist or expert • Much of what I am presenting is a “work-in-progress” effort • While MVC philosophy is always the same, pundits will differ on how to apply it

  11. Model-View-Controller – A Closer Look • Separation of Concerns (Layers) • Model • View • Controller API Events Requests Notifications API Results Responses Notifications • View • Model • Controller • Presents Data to User • Handles Event Processing • Receivers User Inputs • Calls Appropriate Resources • Handles Data • Handles Business Logic

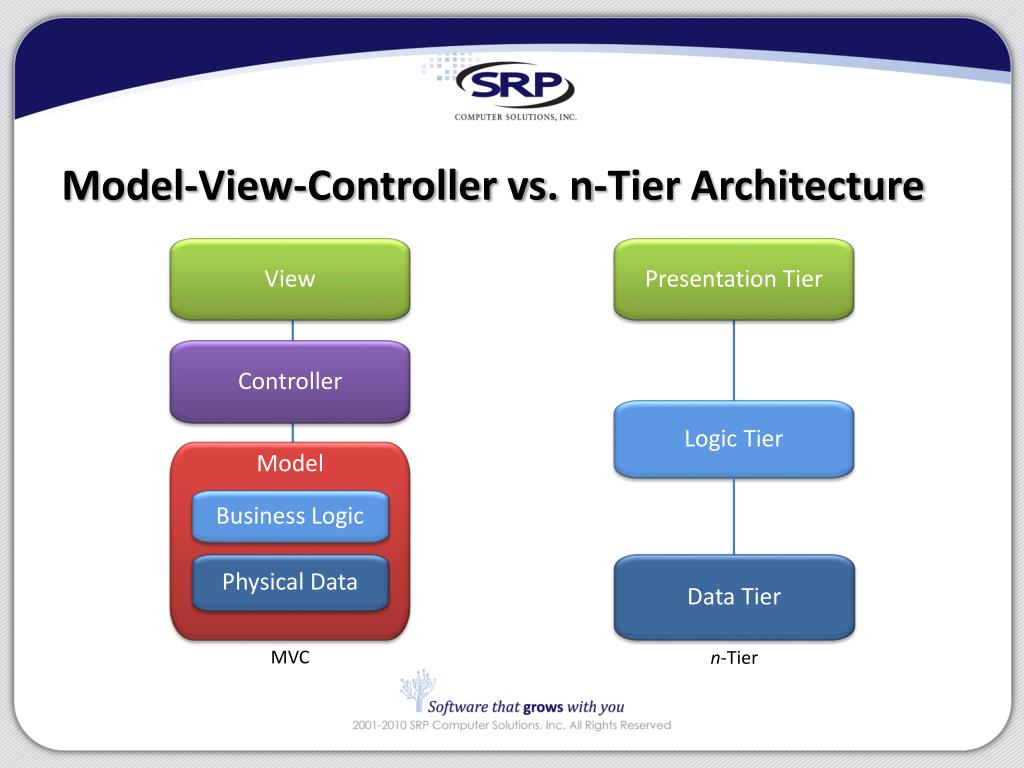

  12. Model-View-Controller vs. n-Tier Architecture • View • Presentation Tier • Controller • Logic Tier • Model • Business Logic • Physical Data • Data Tier MVC n-Tier

  13. PROOF OF CONCEPT – CART APPLICATION

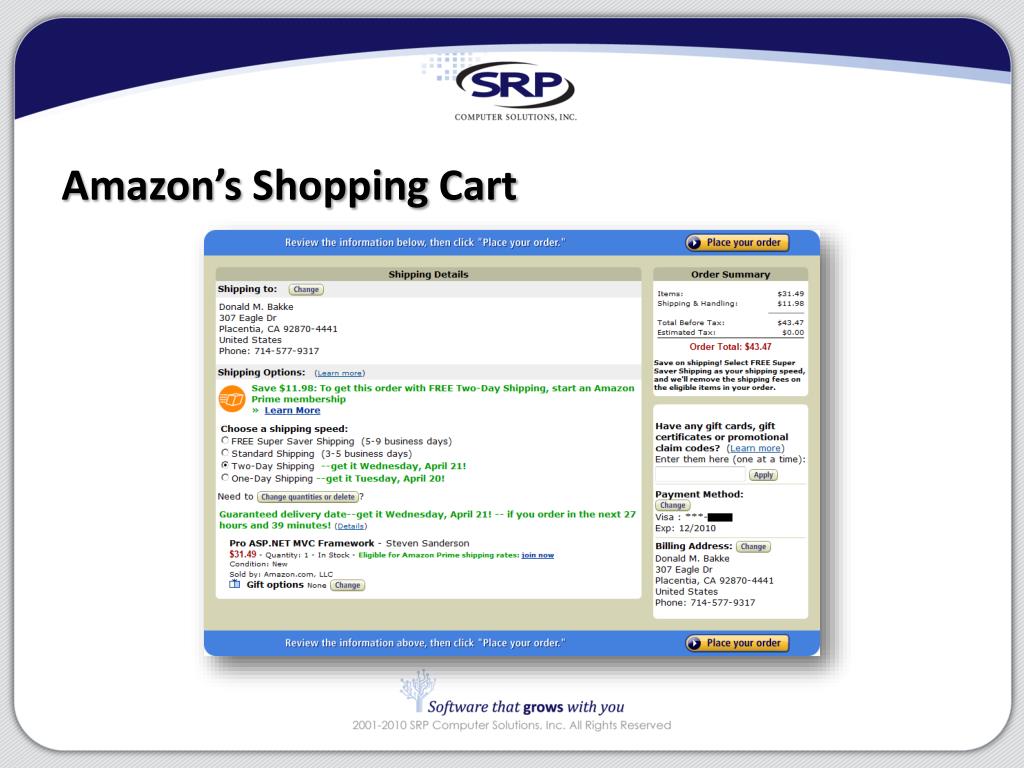

  14. Amazon’s Shopping Cart

  15. AREV

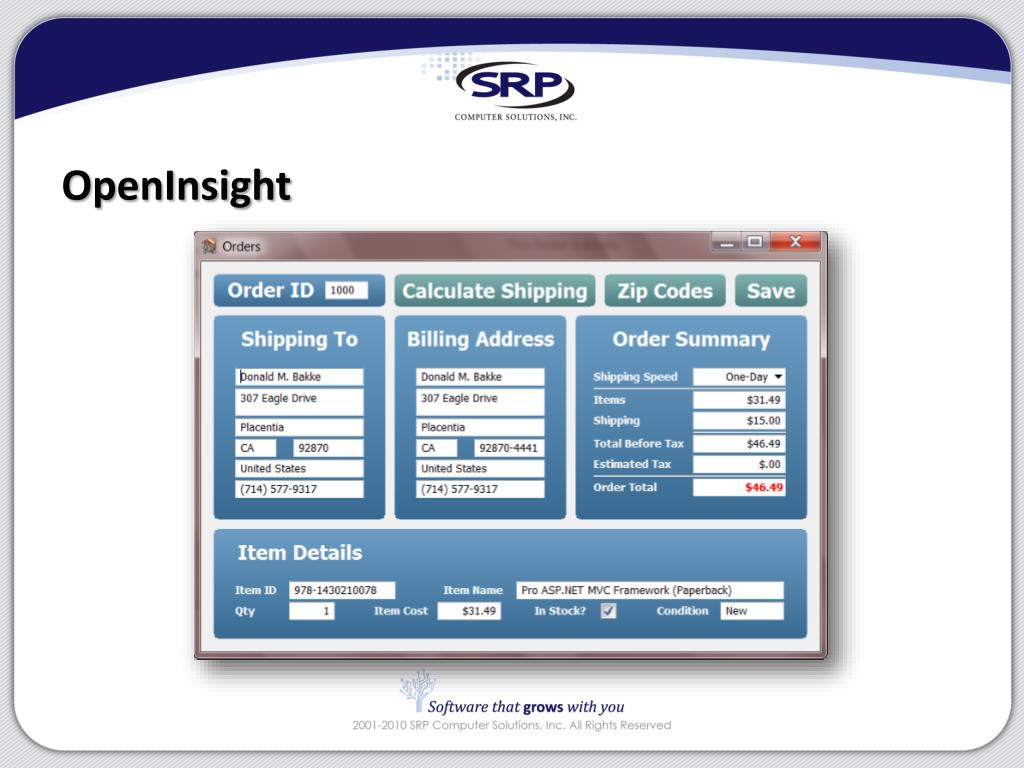

  16. OpenInsight

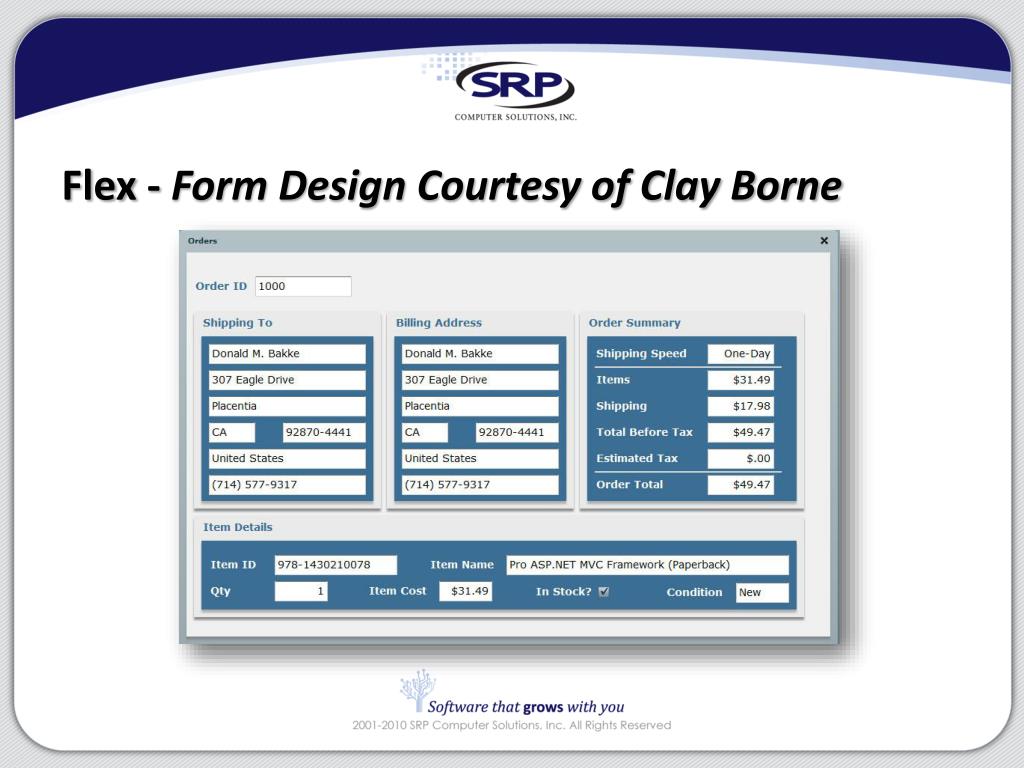

  17. Flex - Form Design Courtesy of Clay Borne

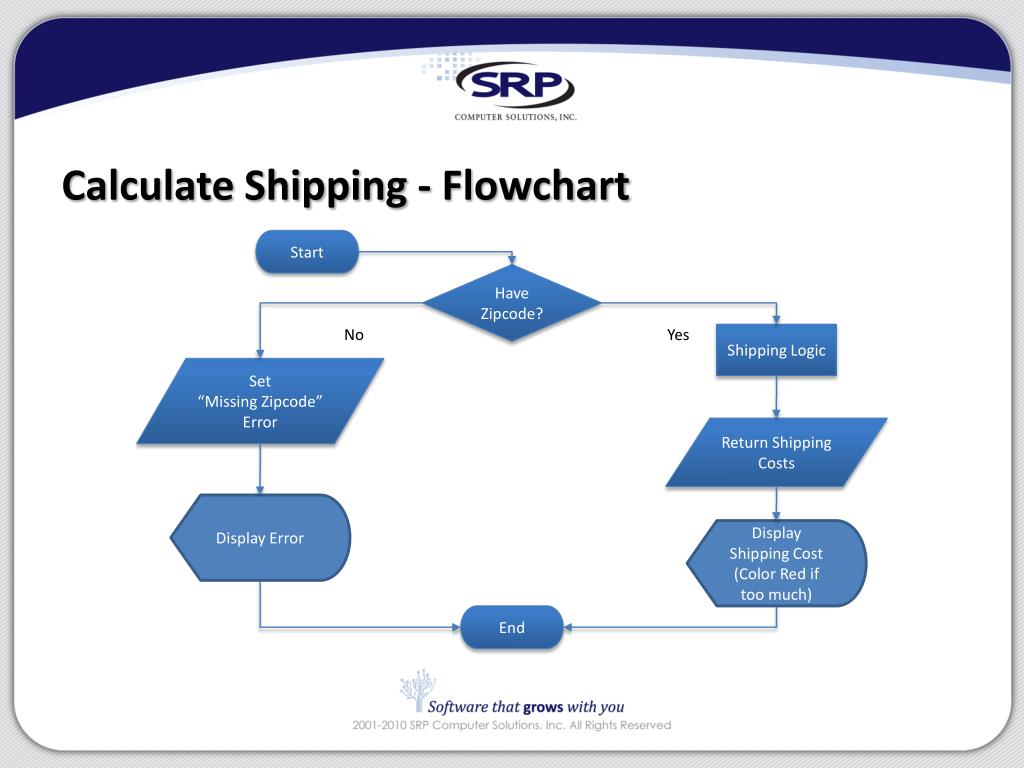

  18. Calculate Shipping - Flowchart Start Have Zipcode? No Yes Shipping Logic Set “Missing Zipcode” Error Return Shipping Costs Display Error Display Shipping Cost (Color Red if too much) End

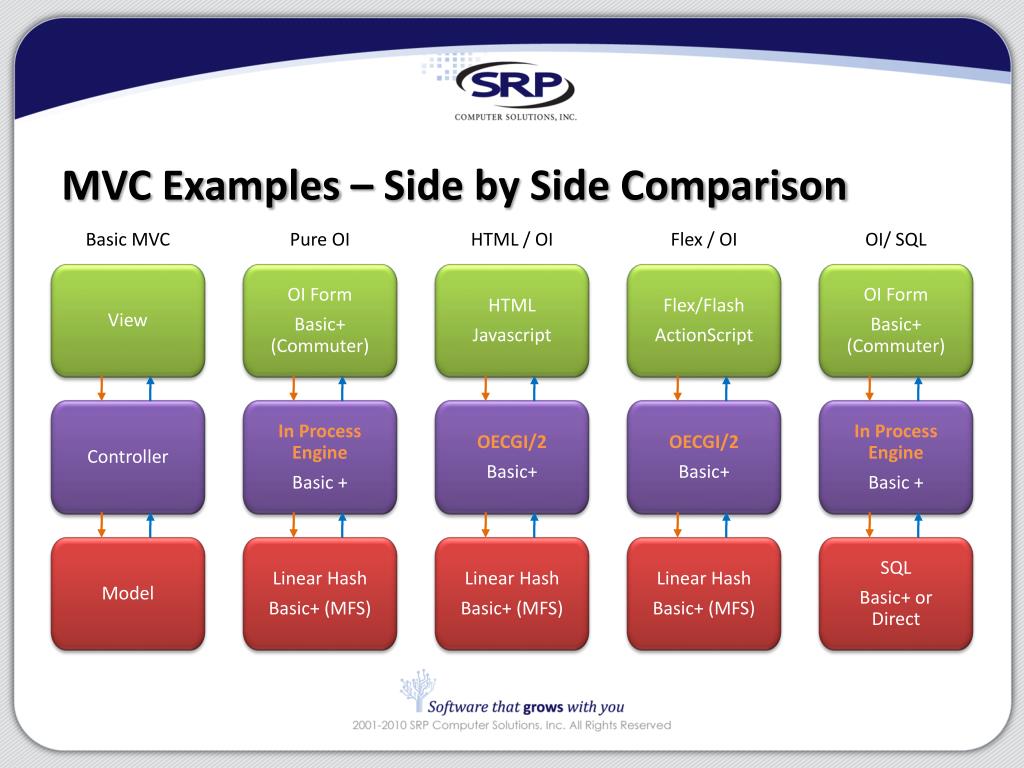

  19. MVC Examples – Side by Side Comparison Flex / OI HTML / OI OI/ SQL Basic MVC Pure OI • View • HTML • Javascript • Flex/Flash • ActionScript • OI Form • Basic+ (Commuter) • OI Form • Basic+ (Commuter) • In Process Engine • Basic + • OECGI/2 • Basic+ • Controller • In Process Engine • Basic + • OECGI/2 • Basic+ • Linear Hash • Basic+ (MFS) • Linear Hash • Basic+ (MFS) • Linear Hash • Basic+ (MFS) • SQL • Basic+ or Direct • Model

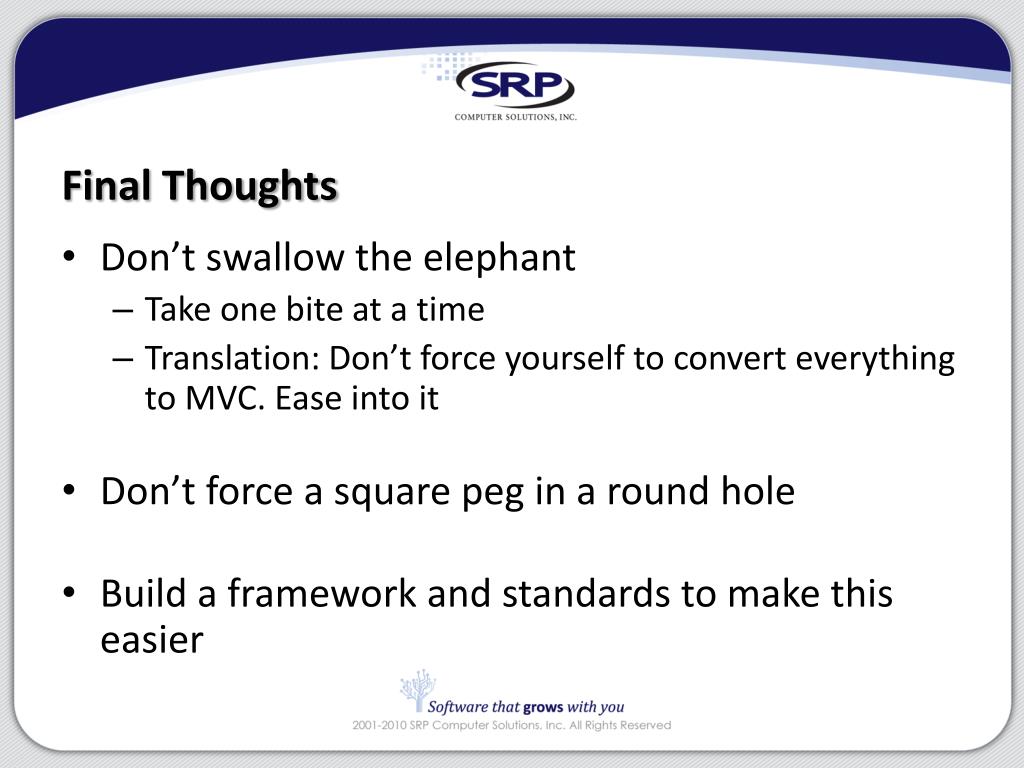

  20. Final Thoughts • Don’t swallow the elephant • Take one bite at a time • Translation: Don’t force yourself to convert everything to MVC. Ease into it • Don’t force a square peg in a round hole • Build a framework and standards to make this easier

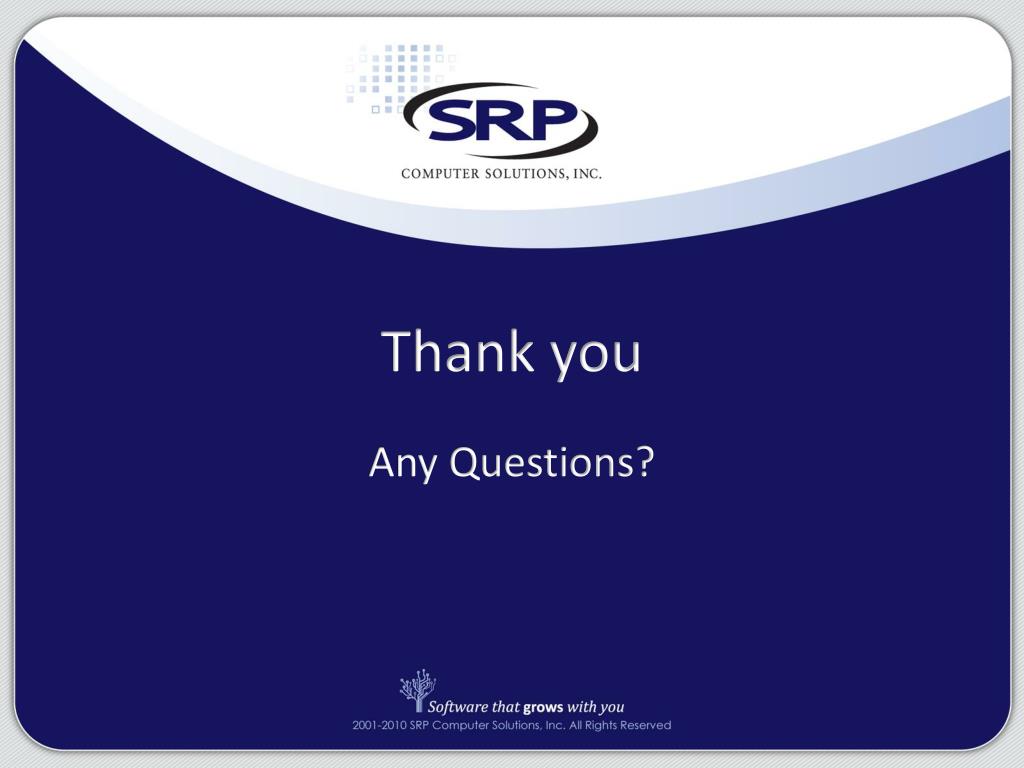

  21. Thank you Any Questions?
