Reliability Analysis

Reliability Analysis. Solomon Westerman, PM Week 5, 2/12/09. Mission reliability expected to increase with total system mass . Translunar 97.6%. Lunar Descent/Locomotion 93.8%. Reliability. Earth->LEO 94.1% – 99.2%. Phase Reliability. Launch vehicle (Dnepr) Launch vehicle (Delta II).

sasha
Télécharger la présentation

Reliability Analysis

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Reliability Analysis Solomon Westerman, PM Week 5, 2/12/09 [Solomon Westerman] [PM] 1

  2. Mission reliability expected to increase with total system mass Translunar 97.6% Lunar Descent/Locomotion 93.8% Reliability Earth->LEO 94.1% – 99.2% Phase Reliability • Launch vehicle (Dnepr) • Launch vehicle (Delta II) • Solar array • EP Propulsion • Battery • Antenna • Processor • LD Propulsion • Structure • Mechanical • Propulsion • Antenna New system failure modes Carry-through Reliability Dnepr Reliability Delta II Reliability Recommend Modify Launch Vehicle reliability calculation model Modify >90% reliability requirement [Solomon Westerman] [PM] 2

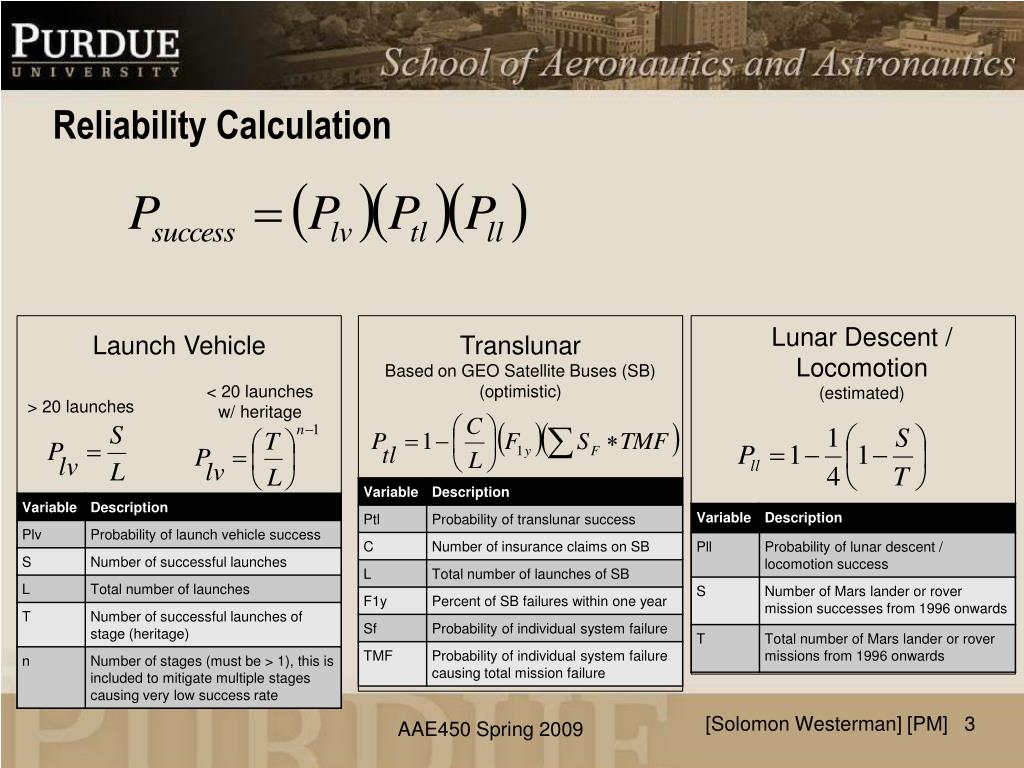

  3. Reliability Calculation Lunar Descent / Locomotion (estimated) Launch Vehicle Translunar Based on GEO Satellite Buses (SB) (optimistic) < 20 launches w/ heritage > 20 launches [Solomon Westerman] [PM] 3

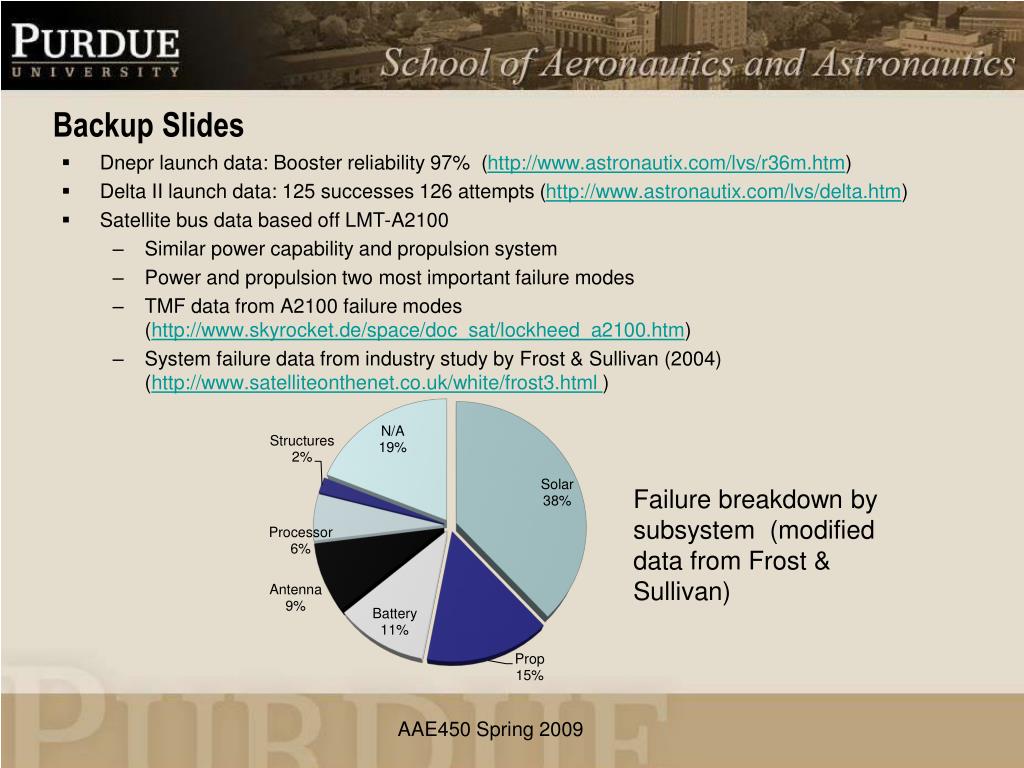

  4. Backup Slides Failure breakdown by subsystem (modified data from Frost & Sullivan) • Dnepr launch data: Booster reliability 97% (http://www.astronautix.com/lvs/r36m.htm) • Delta II launch data: 125 successes 126 attempts (http://www.astronautix.com/lvs/delta.htm) • Satellite bus data based off LMT-A2100 • Similar power capability and propulsion system • Power and propulsion two most important failure modes • TMF data from A2100 failure modes (http://www.skyrocket.de/space/doc_sat/lockheed_a2100.htm) • System failure data from industry study by Frost & Sullivan (2004) (http://www.satelliteonthenet.co.uk/white/frost3.html )

  5. Backup Slides (II) • Lunar Descent / Locomotion success based on recent (1996+) US Mars lander / rover successes. • Mars Pathfinder (1996-1997) Success • Mars Polar Lander (1999) Failure • Spirit (2003) Success • Opportunity (2003) Success • A factor of 1/4 is to reduce the percentage of failure to 1/4 that of Mars missions. • Low sample size for lander / rover on Mars • Lunar missions less complex (no atmosphere, lower orbital velocities to mitigate) • Success/Total ratio for Mars missions is based on total mission success – not just descent/locomotion. The rest of the mission success has already been computed for the Lunar mission.

  6. Backup Slides (III)Translunar Reliability Calculation
