■ SPECIFICATION

2.19M HD-SDI Standard Camera. HD SDI MINIATURE CAMERA. 3.7mm Megapixel Lens built-in. Powerful HD-SDI Image Processing. ST-601HD. ■ SPECIFICATION. ■ LENS · 3.7mm Megapixel Fixed Lens. ■ FEATURES · 1 /3” 2.19M SONY CMOS Sensor · High Resolution 1100 TV Lines

satin
Télécharger la présentation

■ SPECIFICATION

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

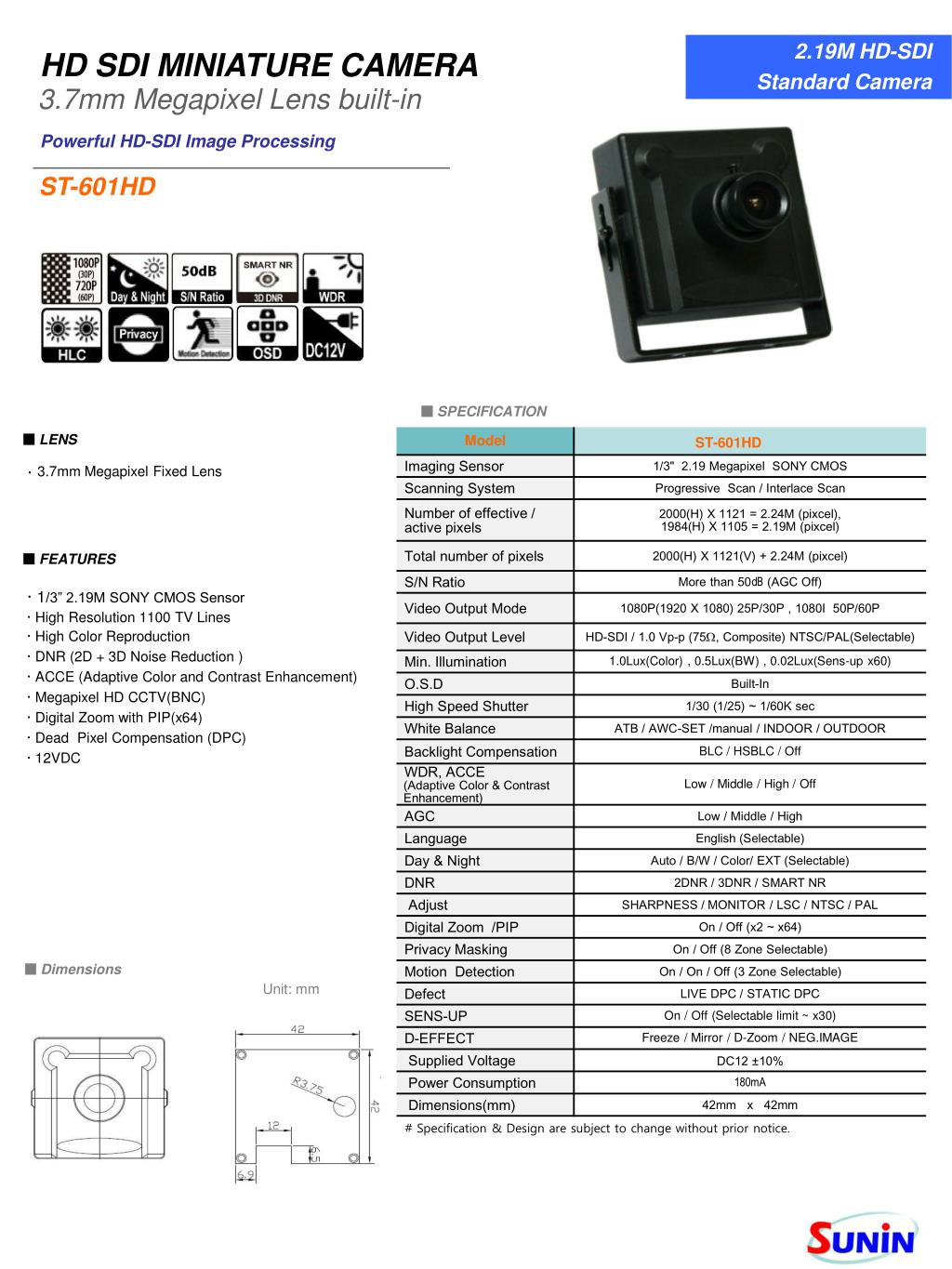

  1. 2.19M HD-SDI Standard Camera HD SDI MINIATURE CAMERA 3.7mm Megapixel Lens built-in Powerful HD-SDI Image Processing ST-601HD ■ SPECIFICATION ■ LENS · 3.7mm Megapixel Fixed Lens ■ FEATURES · 1/3” 2.19M SONY CMOS Sensor · High Resolution 1100 TV Lines · High Color Reproduction · DNR (2D + 3D Noise Reduction ) · ACCE (Adaptive Color and Contrast Enhancement) · Megapixel HD CCTV(BNC) · Digital Zoom with PIP(x64) · Dead Pixel Compensation (DPC) · 12VDC ■ Dimensions Unit: mm # Specification & Design are subject to change without prior notice.
