1. Token Bit Manager for the CMS Pixel Readout Edward Bartz Rutgers University TBM for Phase I Upgrade Pixel Detector 5 December 2013

2. L1 Trigger Clock TBM TBM Header -Trailer Output + CLK L1 Token Out Token In ROC ROC ROC 160Mb/s Output Data Functions of the TBM • Distribute to Pixel Readout Chip’s (ROC) • L1 triggers • Clock • Register Programming • Controls readout through token pass • Write a Header and Trailer • Header/Trailer ID • Local Event Number • Status Information • Stack triggers awaiting token pass • 32 event deep • No readout after 16 deep

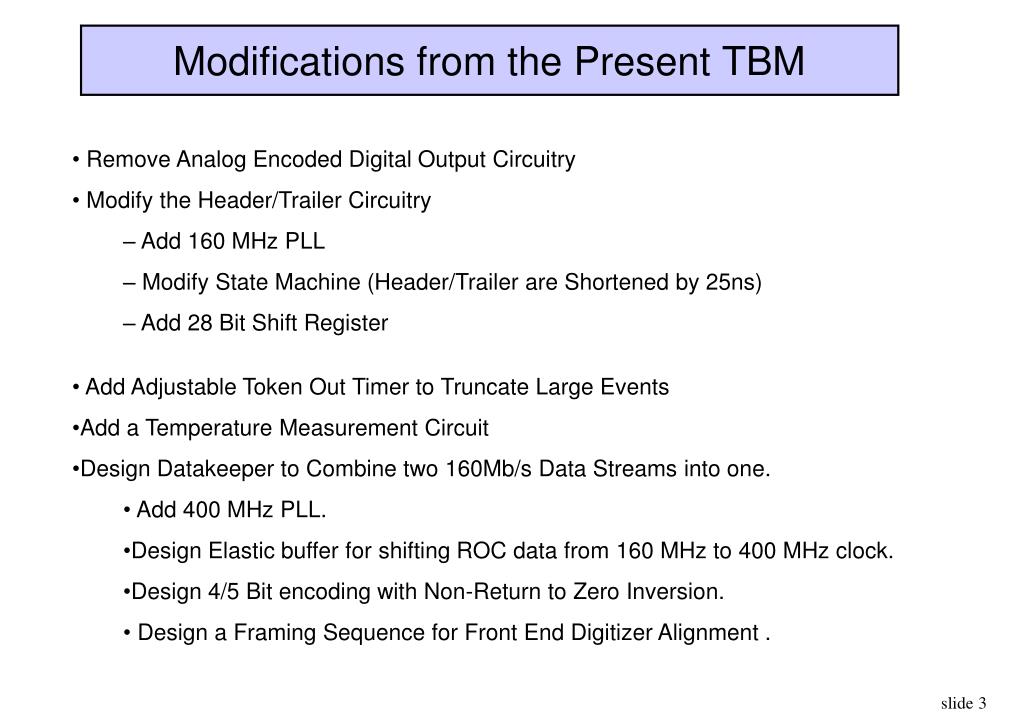

3. Modifications from the Present TBM • Remove Analog Encoded Digital Output Circuitry • Modify the Header/Trailer Circuitry • Add 160 MHz PLL • Modify State Machine (Header/Trailer are Shortened by 25ns) • Add 28 Bit Shift Register • Add Adjustable Token Out Timer to Truncate Large Events • Add a Temperature Measurement Circuit • Design Datakeeper to Combine two 160Mb/s Data Streams into one. • Add 400 MHz PLL. • Design Elastic buffer for shifting ROC data from 160 MHz to 400 MHz clock. • Design 4/5 Bit encoding with Non-Return to Zero Inversion. • Design a Framing Sequence for Front End Digitizer Alignment .

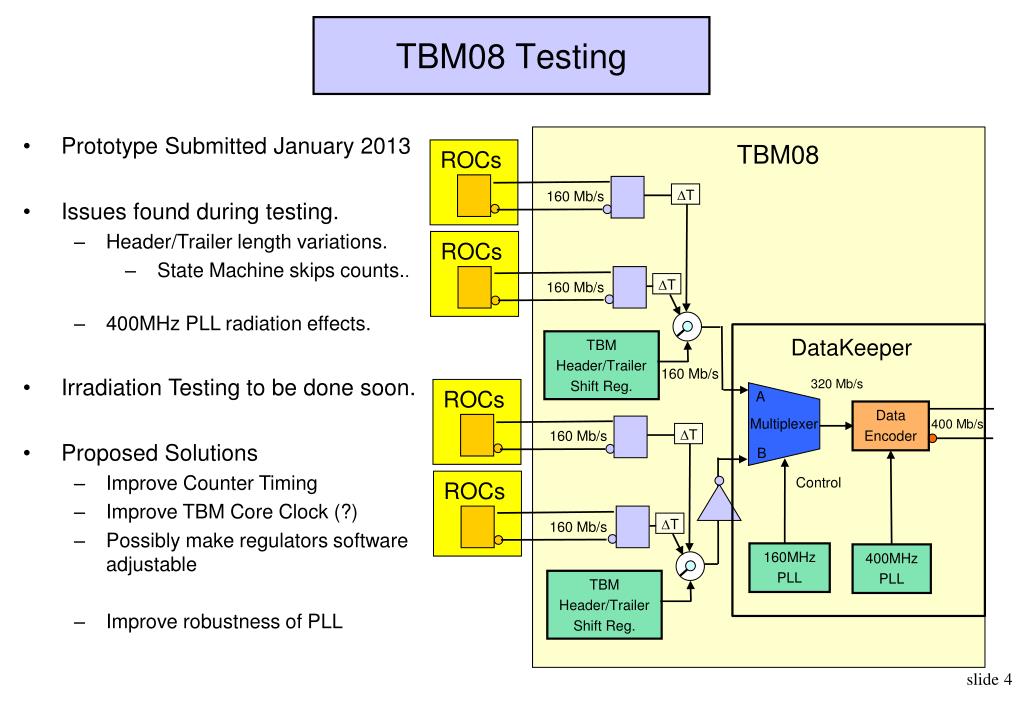

4. ROCs ROCs ROCs ROCs TBM08 Testing • Prototype Submitted January 2013 • Issues found during testing. • Header/Trailer length variations. • State Machine skips counts.. • 400MHz PLL radiation effects. • Irradiation Testing to be done soon. • Proposed Solutions • Improve Counter Timing • Improve TBM Core Clock (?) • Possibly make regulators software adjustable • Improve robustness of PLL TBM08 DT DT DT DT 160 Mb/s 160 Mb/s 160 Mb/s 160 Mb/s DataKeeper TBM Header/Trailer Shift Reg. TBM Header/Trailer Shift Reg. 160 Mb/s 320 Mb/s A Multiplexer Data Encoder 400 Mb/s B Control 160MHz PLL 400MHz PLL

5. ROCs ROCs ROCs ROCs TBM09 TBM09 (Modified TBM08) 160 Mb/s 160 Mb/s 320 Mb/s 320 Mb/s A A Multiplexer Multiplexer Data Encoder Data Encoder 400 Mb/s 400 Mb/s B B 160MHz PLL 400MHz PLL 160 Mb/s 160 Mb/s TBM Header/Trailer Shift Reg. TBM Header/Trailer Shift Reg.

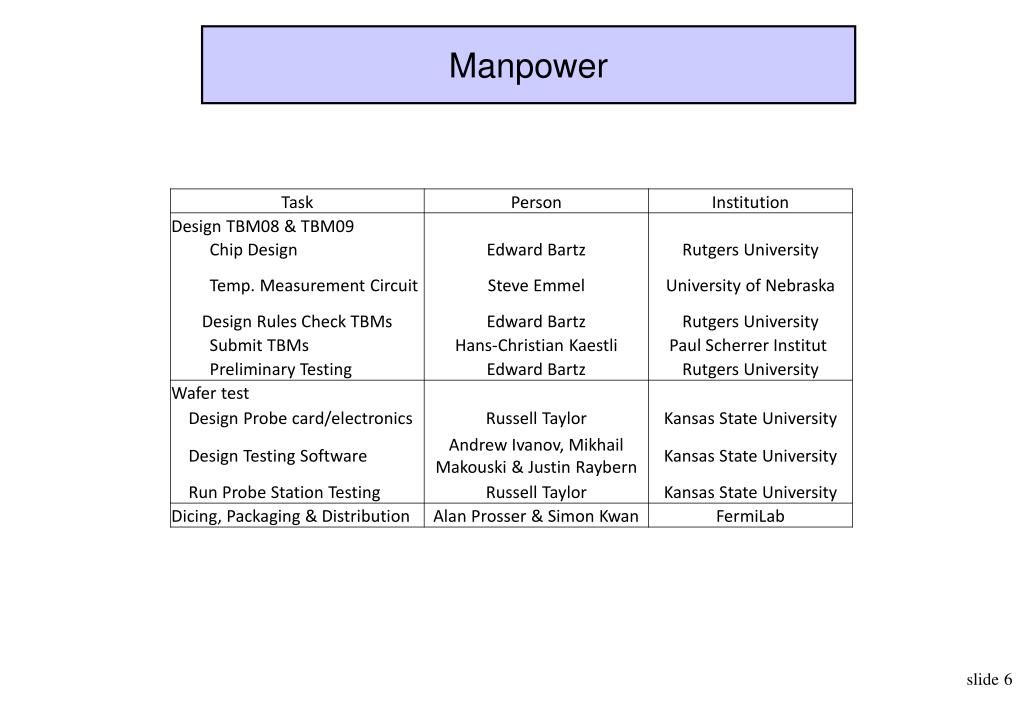

6. Manpower

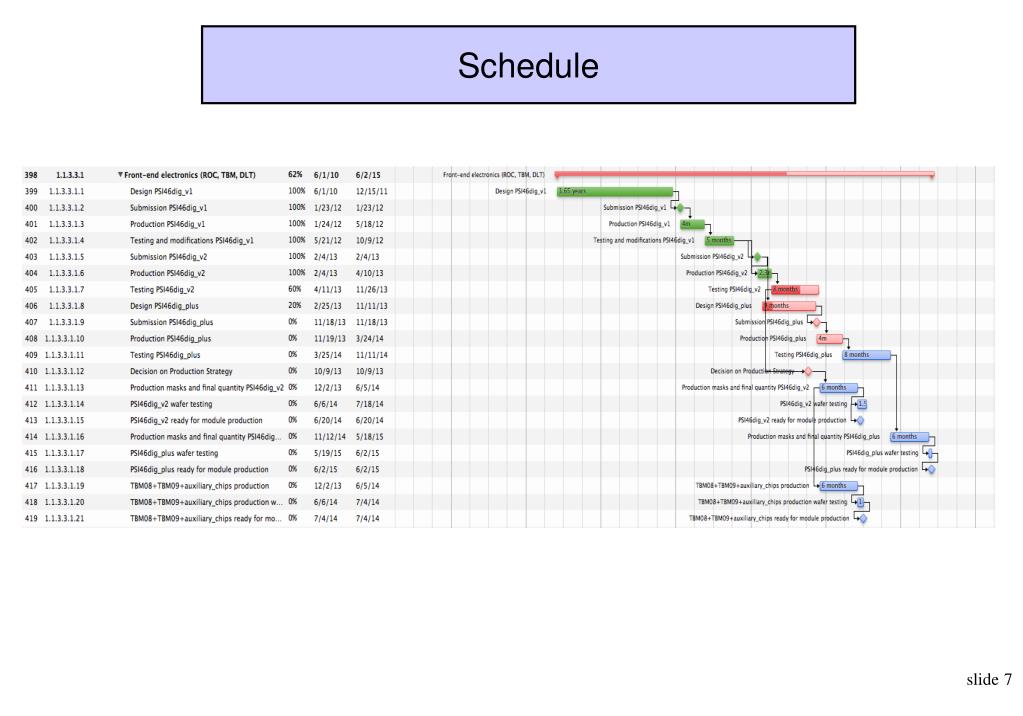

7. Schedule

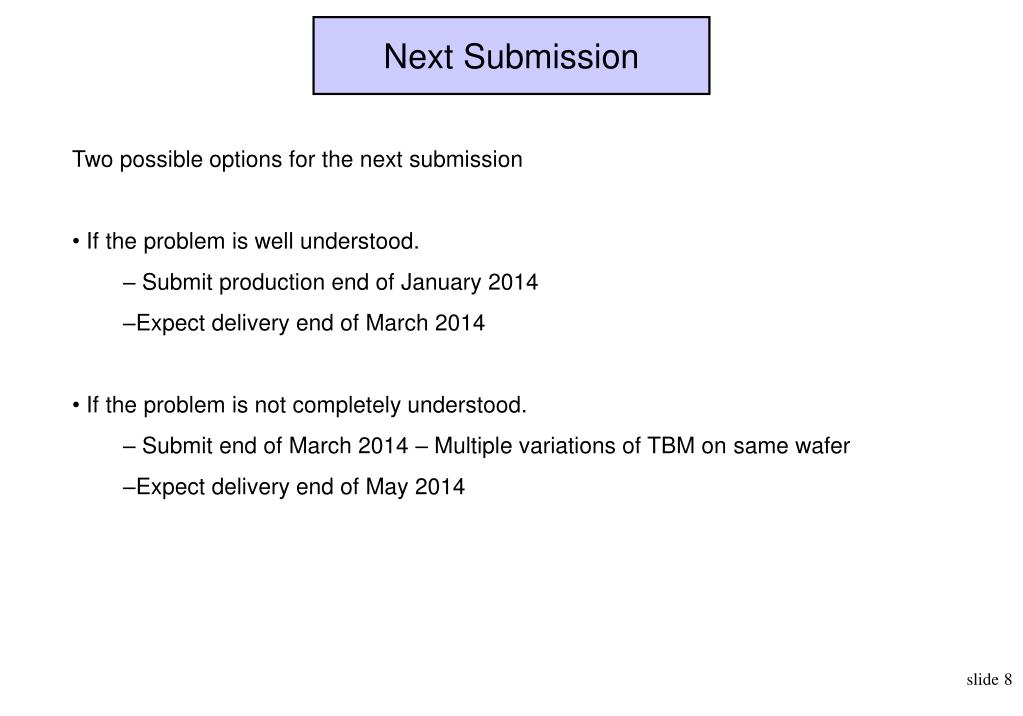

8. Next Submission • Two possible options for the next submission • If the problem is well understood. • Submit production end of January 2014 • Expect delivery end of March 2014 • If the problem is not completely understood. • Submit end of March 2014 – Multiple variations of TBM on same wafer • Expect delivery end of May 2014

9. Extra Slides

10. Effects of Logic Voltage Lowering TBM07a supply voltage to 1.5v does NOT cause the chip to misbehave.

11. TBM Voltage Regulators TBM08 Core Cap Core Periphery Regulator PLLs a Core Core Regulator Hub b Core DataKeeper Mixer

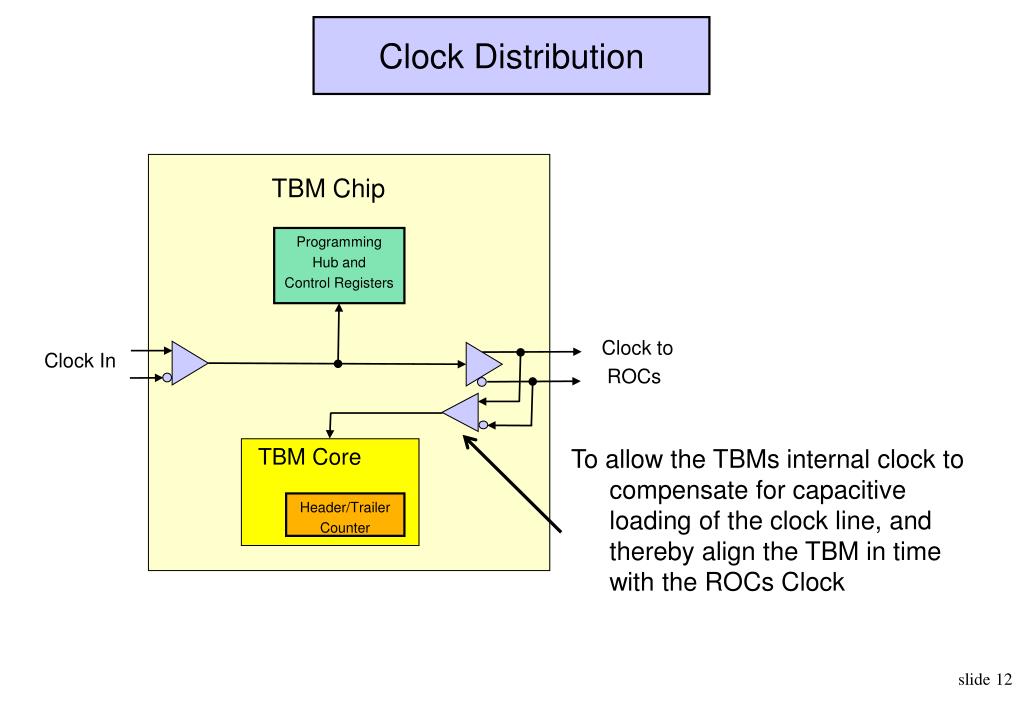

12. Clock Distribution Programming Hub and Control Registers TBM Chip Clock to ROCs Clock In TBM Core Header/Trailer Counter To allow the TBMs internal clock to compensate for capacitive loading of the clock line, and thereby align the TBM in time with the ROCs Clock

13. Results • Lowering just the core voltage on the TBM07a, causes it to misbehave exactly like the TBM08. • Lowering the just the periphery voltage of the TBM08 causes it to BEHAVE CORRECTLY. • This misbehavior is not effected by clock duty cycle (40/60 to 60/40). • This misbehavior is not effected by clock frequency (19MHz – 52MHz). • Conclusion – This problem is not completely a timing problem, but is caused by the difference between the two regulator output voltages. • 400MHz PLL • Maximum Frequency 460MHz (46MHz in clock) • Minimum Core voltage for 400MHz Locking – 1.92v

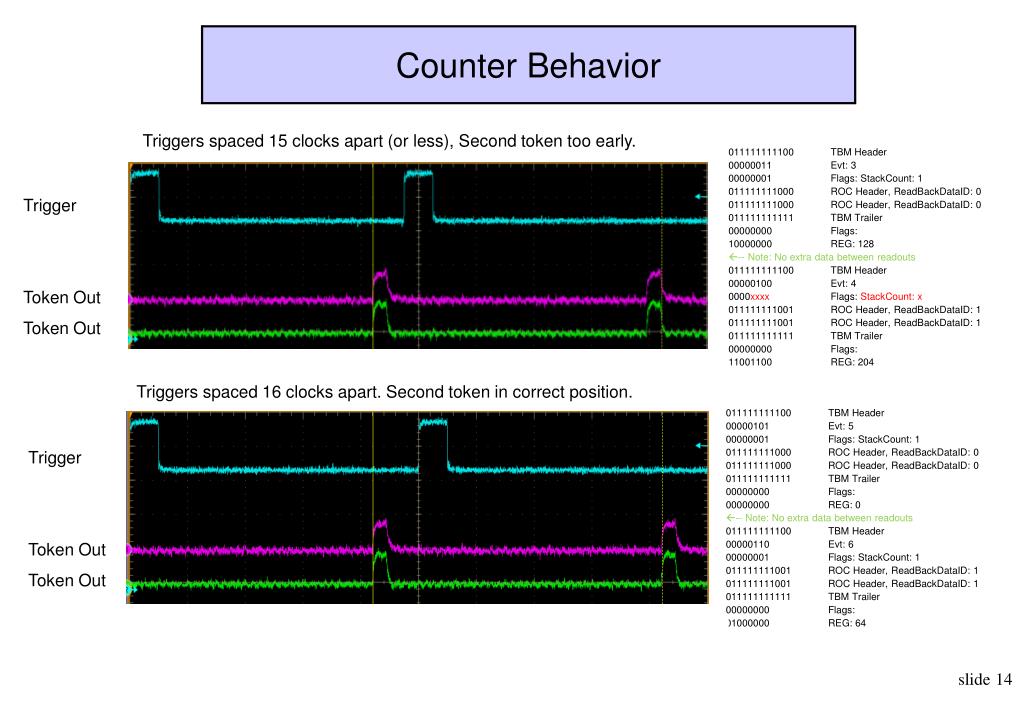

14. Counter Behavior Triggers spaced 15 clocks apart (or less), Second token too early. 011111111100 TBM Header 00000011 Evt: 3 00000001 Flags: StackCount: 1 011111111000 ROC Header, ReadBackDataID: 0 011111111000 ROC Header, ReadBackDataID: 0 011111111111 TBM Trailer 00000000 Flags: 10000000 REG: 128 -- Note: No extra data between readouts 011111111100 TBM Header 00000100 Evt: 4 0000xxxx Flags: StackCount: x 011111111001 ROC Header, ReadBackDataID: 1 011111111001 ROC Header, ReadBackDataID: 1 011111111111 TBM Trailer 00000000 Flags: 11001100 REG: 204 Trigger Token Out Token Out Triggers spaced 16 clocks apart. Second token in correct position. 011111111100 TBM Header 00000101Evt: 5 00000001 Flags: StackCount: 1 011111111000 ROC Header, ReadBackDataID: 0 011111111000 ROC Header, ReadBackDataID: 0 011111111111 TBM Trailer 00000000 Flags: 00000000REG: 0 -- Note: No extra data between readouts 011111111100 TBM Header 00000110Evt: 6 00000001 Flags: StackCount: 1 011111111001 ROC Header, ReadBackDataID: 1 011111111001 ROC Header, ReadBackDataID: 1 011111111111 TBM Trailer 00000000 Flags: 01000000 REG: 64 Trigger Token Out Token Out

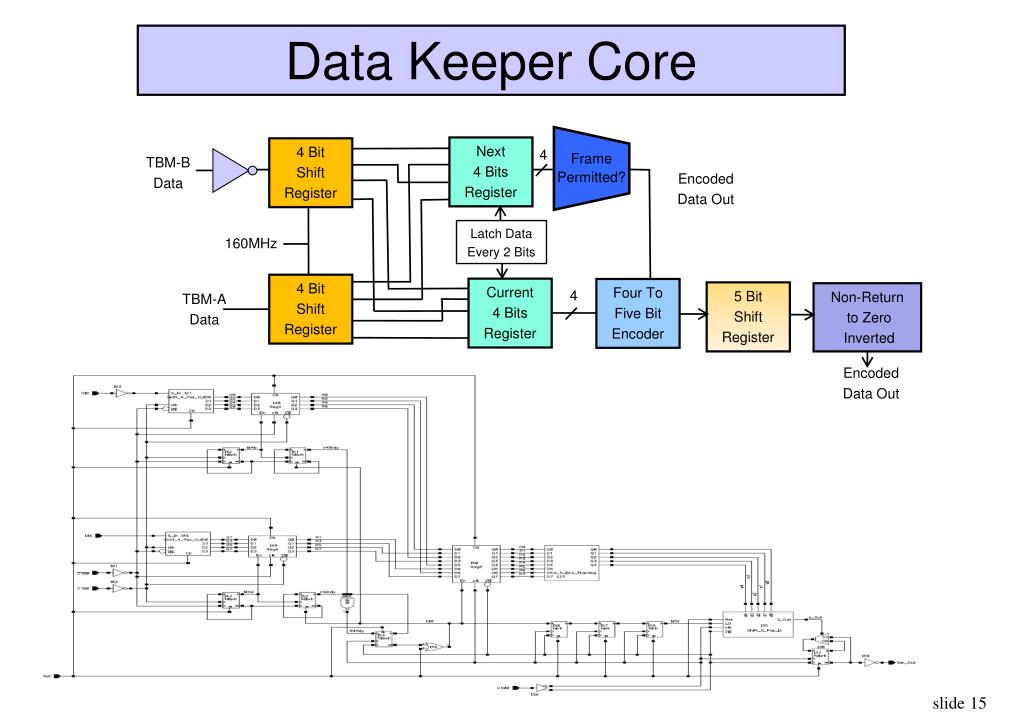

15. Data Keeper Core Frame Permitted? Next 4 Bits Register 4 Bit Shift Register 4 TBM-B Data Encoded Data Out Latch Data Every 2 Bits 160MHz 4 Bit Shift Register Current 4 Bits Register Four To Five Bit Encoder 4 5 Bit Shift Register Non-Return to Zero Inverted TBM-A Data Encoded Data Out

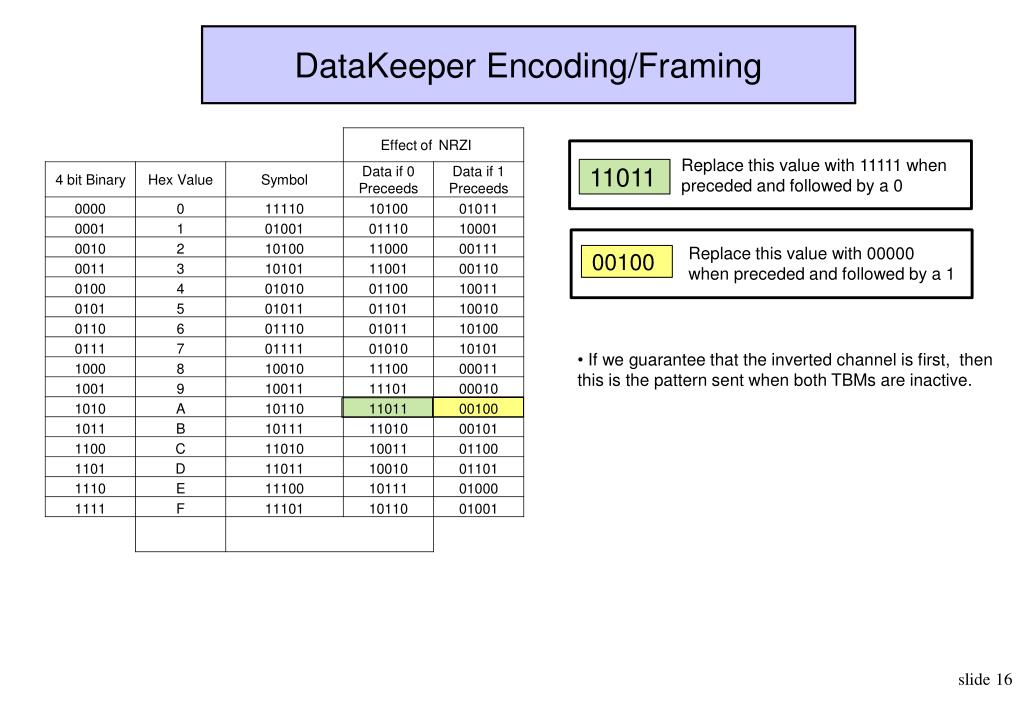

16. DataKeeper Encoding/Framing Replace this value with 11111 when preceded and followed by a 0 11011 Replace this value with 00000 when preceded and followed by a 1 00100 • If we guarantee that the inverted channel is first, then this is the pattern sent when both TBMs are inactive.

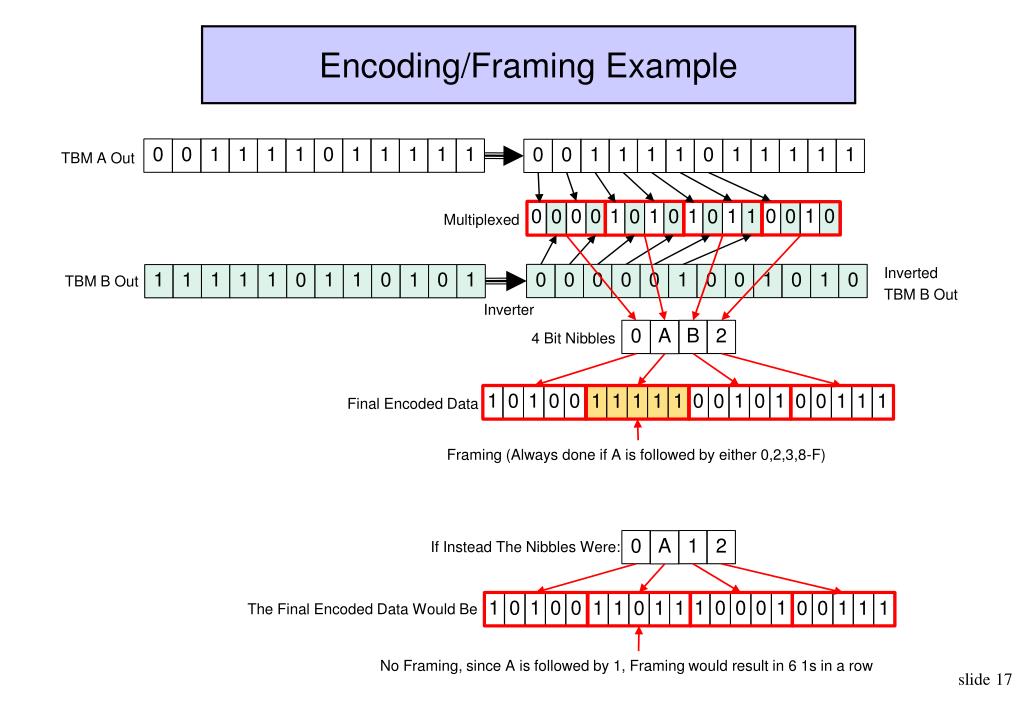

17. Encoding/Framing Example 0 1 1 1 0 1 1 1 1 0 1 1 Multiplexed 0 1 1 1 0 1 1 1 1 0 1 1 TBM A Out Inverted TBM B Out 0 1 0 0 0 0 0 1 1 0 1 1 1 0 0 0 Inverter 4 Bit Nibbles TBM B Out 0 1 1 0 1 0 0 1 0 1 0 1 1 1 1 0 0 0 0 1 1 0 0 1 Final Encoded Data 0 0 B 1 2 2 A A Framing (Always done if A is followed by either 0,2,3,8-F) 1 0 1 1 0 1 0 1 1 0 1 1 1 0 1 1 1 1 0 1 0 0 1 0 1 1 1 1 1 0 0 1 0 0 1 0 1 0 0 0 If Instead The Nibbles Were: The Final Encoded Data Would Be No Framing, since A is followed by 1, Framing would result in 6 1s in a row
