Chapter 6: Quadrilaterals

Chapter 6: Quadrilaterals. In this chapter we will study the characteristics and properties of 6 different kinds of quadrilaterals: Parallelograms Trapezoids Rectangles Rhombi Squares Kites

seda
Télécharger la présentation

Chapter 6: Quadrilaterals

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

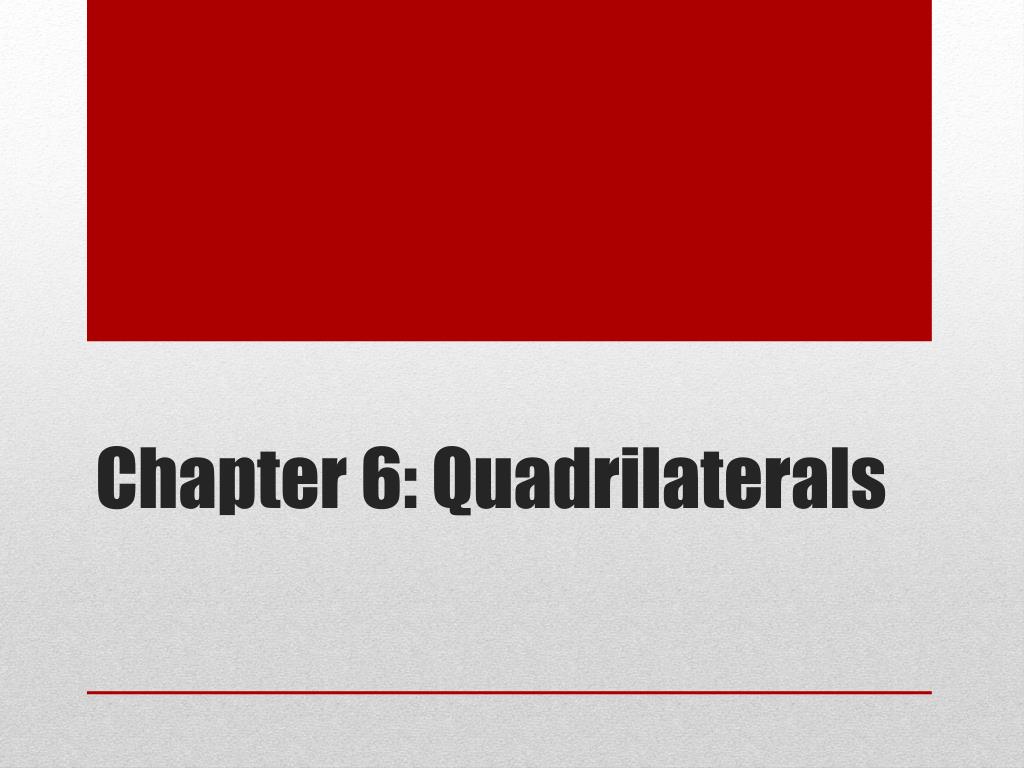

  1. Chapter 6: Quadrilaterals

  2. In this chapter we will study the characteristics and properties of 6 different kinds of quadrilaterals: • Parallelograms • Trapezoids • Rectangles • Rhombi • Squares • Kites We will explore the essential characteristics of each of these shapes and use these characteristics to solve problems MA.912.G.3.1/ MA.912.G.3.3 / MA.912.G.3.4 Chapter 6: Quadrilerals

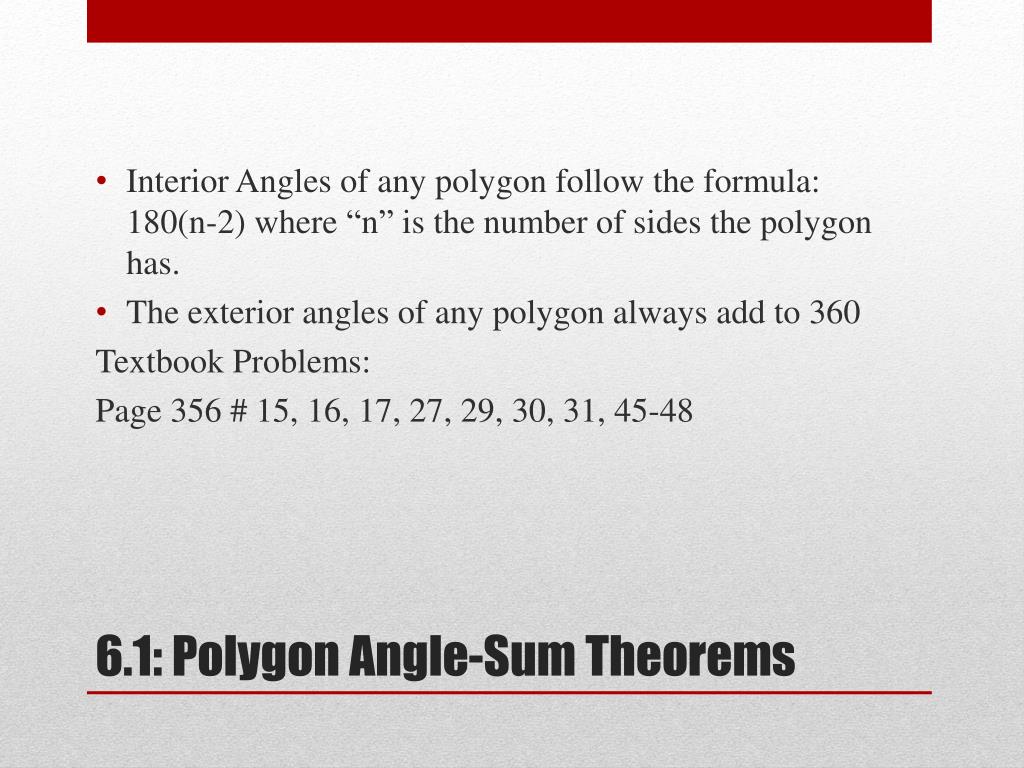

  3. Interior Angles of any polygon follow the formula: 180(n-2) where “n” is the number of sides the polygon has. • The exterior angles of any polygon always add to 360 Textbook Problems: Page 356 # 15, 16, 17, 27, 29, 30, 31, 45-48 6.1: Polygon Angle-Sum Theorems

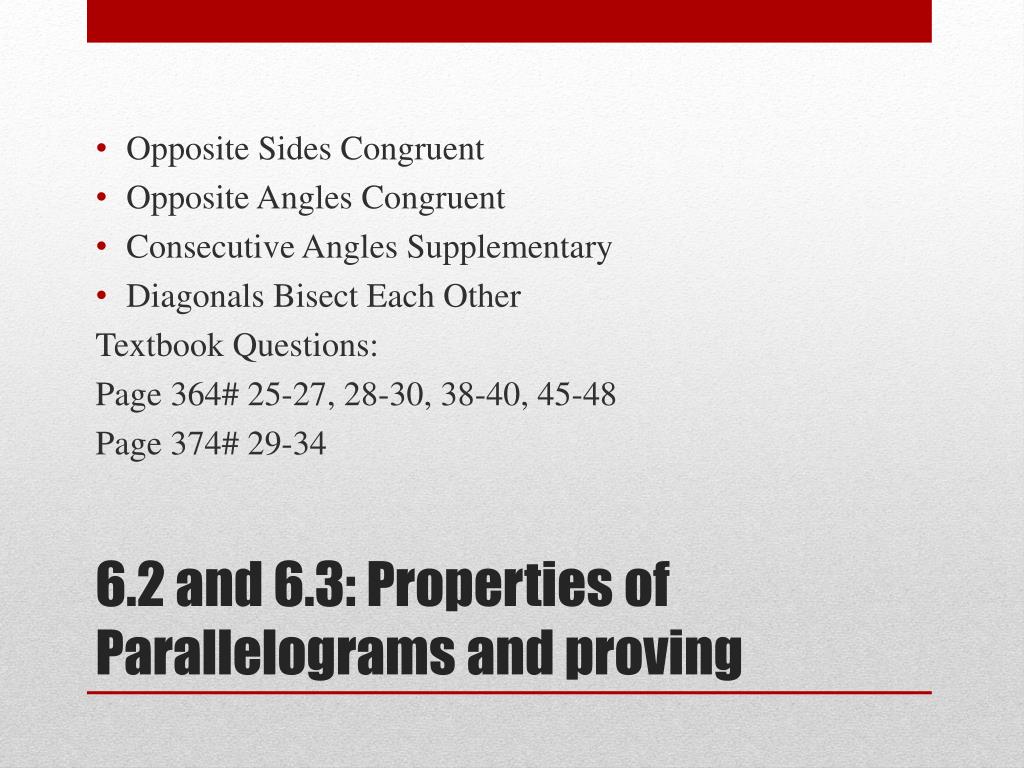

  4. Opposite Sides Congruent • Opposite Angles Congruent • Consecutive Angles Supplementary • Diagonals Bisect Each Other Textbook Questions: Page 364# 25-27, 28-30, 38-40, 45-48 Page 374# 29-34 6.2 and 6.3: Properties of Parallelograms and proving

  5. Rhombus: a parallelogram with 4 congruent sides, perpendicular diagonals, diagonals bisect opposite angles • Rectangle: a parallelogram with 4 right angles and congruent diagonals • Square: a parallelogram with 4 congruent sides and 4 right angles, perpendicular diagonals, diagonals bisect opposite angles Textbook Questions: Page 382#55-61 Page388#32-34, 36-43 6.4 and 6.5: Rhombuses, Rectangles and Squares

  6. Trapezoid has 2 bases and 2 legs. If the legs are equal then the trapezoid is an isosceles trapezoid • The Midsegment of a trapezoid is parallel to and in between the bases. It follows the formula MS= ½(b1+b2) • Isosceles Trapezoid: 2 equal legs, equal diagonals • Kite: 2 pairs of = sides, diagonals are perpendicular Textbook Copy Chart Page 393 Page 394 #29-36, 67-70 Page 412#38-40 diagonals bisect opposite angles 6.6 and 6.7: Trapezoids and Kites

  7. http://teams.lacoe.edu/documentation/classrooms/amy/geometry/3-4/activities/quad_quest/quad_quest.htmlhttp://teams.lacoe.edu/documentation/classrooms/amy/geometry/3-4/activities/quad_quest/quad_quest.html Chapter 6 Review
