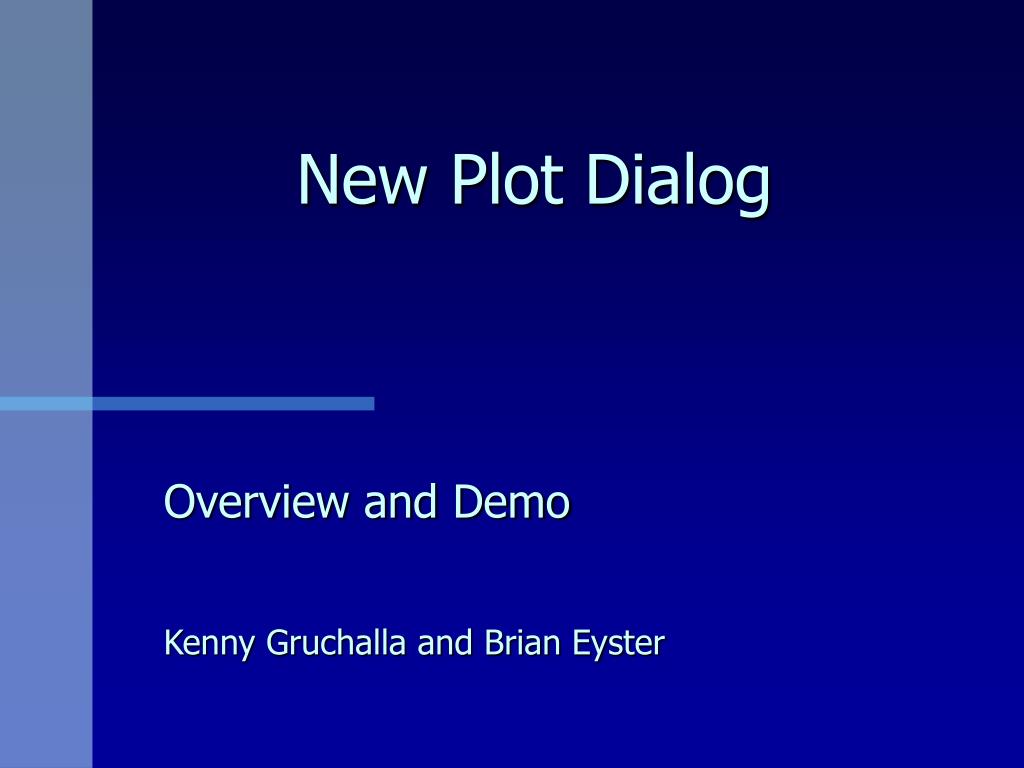

  1. New Plot Dialog Overview and Demo Kenny Gruchalla and Brian Eyster

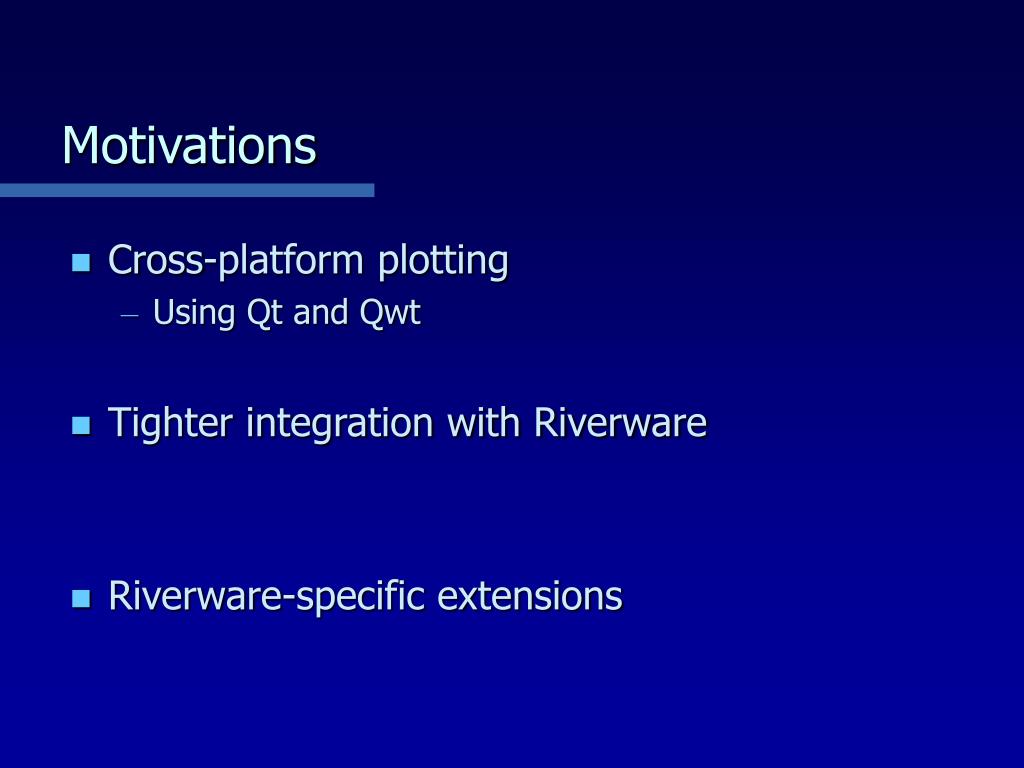

  2. Motivations • Cross-platform plotting • Using Qt and Qwt • Tighter integration with Riverware • Riverware-specific extensions

  3. New Functionality • Better interface for adding slots • Save plot configuration in model file • Marker curves • User preferences • Image export

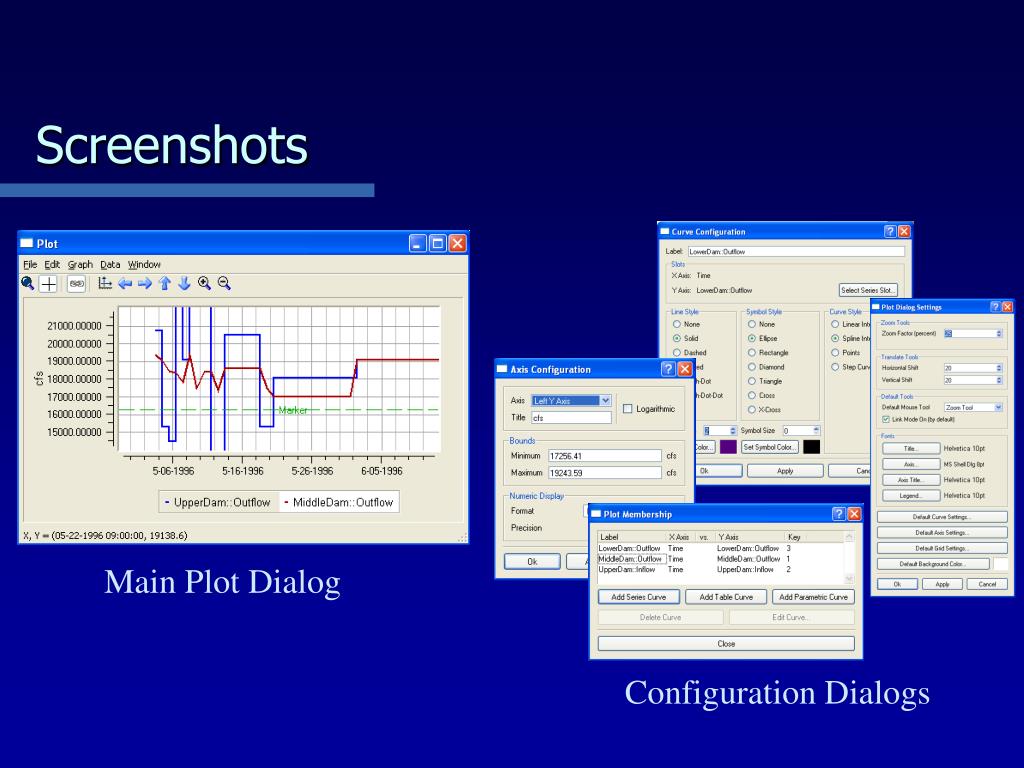

  4. Screenshots Main Plot Dialog Configuration Dialogs

  5. Demo • Creating a new plot • Slot membership • Configuring the plot • Markers • Manipulating the plot • Multiple plots per page • Loading and saving • Global preferences • Printing and exporting images • Using the old output manager dialog
