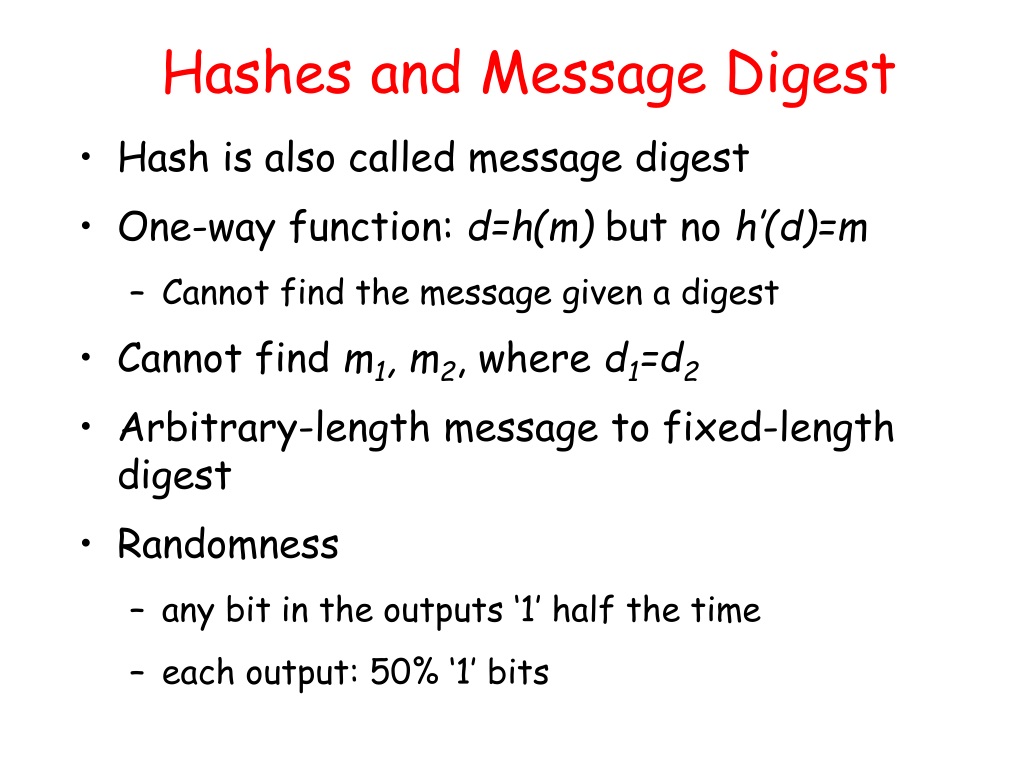

  1. Hashes and Message Digest • Hash is also called message digest • One-way function: d=h(m) but no h’(d)=m • Cannot find the message given a digest • Cannot find m1, m2, where d1=d2 • Arbitrary-length message to fixed-length digest • Randomness • any bit in the outputs ‘1’ half the time • each output: 50% ‘1’ bits

  2. Birthday Problem • How many people do you need so that the probability of having two of them share the same birthday is > 50% ? • Random sample of n birthdays (input) taken from k (365, output) • kn total number of possibilities • (k)n=k(k-1)…(k-n+1) possibilities without duplicate birthday • Probability of no repetition: • p = (k)n/kn 1 - n(n-1)/2k • For k=366, minimum n = 23 • n(n-1)/2 pairs, each pair has a probability 1/k of having the same output • n(n-1)/2k > 50%  n>k1/2

  3. How Many Bits for Hash? • m bits, takes 2m/2 to find two with the same hash • 64 bits, takes 232 messages to search (doable) • Need at least 128 bits

  4. Using Hash for Authentication • Alice to Bob: challenge rA • Bob to Alice: MD(KAB|rA) • Bob to Alice: rB • Alice to Bob: MD(KAB|rB) • Only need to compare MD results

  5. Using Hash to Encrypt • One-time pad with KAB • Compute bit streams using MD, and K • b1=MD(KAB), bi=MD(KAB|bi-1), … •  with message blocks • Add a random 64 bit number (aka IV) b1=MD(KAB|IV), bi=MD(KAB|bi-1), …

  6. General Structure of Secure Hash Code • Iterative compression function • Each f is collision-resistant, so is the resulting hashing

  7. MD5: Message Digest Version 5 input Message Output 128 bits Digest • Until recently the most widely used hash algorithm • in recent times have both brute-force & cryptanalytic concerns • Specified as Internet standard RFC1321

  8. MD5 Overview

  9. MD5 Overview • Pad message so its length is 448 mod 512 • Append a 64-bit original length value to message • Initialise 4-word (128-bit) MD buffer (A,B,C,D) • Process message in 16-word (512-bit) blocks: • Using 4 rounds of 128 bit operations on message block & buffer • Add output to buffer input to form new buffer value • Output hash value is the final buffer value

  10. Padding Twist • Given original message M, add padding bits “10*” such that resulting length is 64 bits less than a multiple of 512 bits. • Append (original length in bits mod 264), represented in 64 bits to the padded message • Final message is chopped 512 bits a block

  11. MD5 Process • As many stages as the number of 512-bit blocks in the final padded message • Digest: 4 32-bit words: MD=A|B|C|D • Every message block contains 16 32-bit words: m0|m1|m2…|m15 • Digest MD0 initialized to: A=01234567,B=89abcdef,C=fedcba98, D=76543210 • Every stage consists of 4 passes/rounds over the message block, each modifying MD • Each block 4 rounds, each round 16 passes

  12. Processing of Block mi - 4 Passes mi MDi ABCD=fF(ABCD,mi,T[1..16]) A C D B ABCD=fG(ABCD,mi,T[17..32]) ABCD=fH(ABCD,mi,T[33..48]) ABCD=fI(ABCD,mi,T[49..64]) + + + + MD i+1

  13. Each Block Has 4 Rounds and 64 Steps Each step t (0 <= t <= 63): • Input: • mt – a 32-bit word from the message With different shift every round • Tt – int(232 * abs(sin(i))), 0<i<65 Provided a randomized set of 32-bit patterns, which eliminate any regularities in the input data • ABCD: current MD • Output: • ABCD: new MD

  14. MD5 Compression Function

  15. Secure Hash Algorithm • Developed by NIST, specified in the Secure Hash Standard (SHS, FIPS Pub 180), 1993 • SHA is specified as the hash algorithm in the Digital Signature Standard (DSS), NIST

  16. General Logic • Input message must be < 264 bits • not really a problem • Message is processed in 512-bit blocks sequentially • Message digest is 160 bits • SHA design is similar to MD5, but a lot stronger

  17. Basic Steps Step1: Padding Step2: Appending length as 64 bit unsigned Step3: Initialize MD buffer 5 32-bit words Store in big endian format, most significant bit in low address A|B|C|D|E A = 67452301 B = efcdab89 C = 98badcfe D = 10325476 E = c3d2e1f0

  18. Basic Steps... Step 4: the 80-step processing of 512-bit blocks – 4 rounds, 20 steps each. Each step t (0 <= t <= 79): • Input: • Wt – a 32-bit word from the message • Kt – a constant. • ABCDE: current MD. • Output: • ABCDE: new MD.

  19. SHA-1 verses MD5 • Brute force attack is harder (160 vs 128 bits for MD5) • Not vulnerable to any known cryptanalytic attacks (compared to MD4/5) • A little slower than MD5 (80 vs 64 steps) • Both work well on a 32-bit architecture • Both designed as simple and compact for implementation

  20. Revised Secure Hash Standard • NIST have issued a revision FIPS 180-2 • adds 3 additional hash algorithms • SHA-256, SHA-384, SHA-512 • designed for compatibility with increased security provided by the AES cipher • structure & detail is similar to SHA-1 • hence analysis should be similar

  21. Outline • User authentication • Password authentication, salt • Challenge-Response • Biometrics • Token-based authentication • Authentication in distributed systems (multi service providers/domains) • Single sign-on, Microsoft Passport • Trusted Intermediaries

  22. Password authentication • Basic idea • User has a secret password • System checks password to authenticate user • Issues • How is password stored? • How does system check password? • How easy is it to guess a password? • Difficult to keep password file secret, so best if it is hard to guess password even if you have the password file

  23. Basic password scheme Password file User kiwifruit exrygbzyf kgnosfix ggjoklbsz … … hash function

  24. Basic password scheme • Hash function h : strings  strings • Given h(password), hard to find password • No known algorithm better than trial and error • User password stored as h(password) • When user enters password • System computes h(password) • Compares with entry in password file • No passwords stored on disk

  25. Unix password system • Hash function is 25xDES • 25 rounds of DES-variant encryptions • Password file is publicly readable • Other information in password file … • Any user can try “dictionary attack” • User looks at password file • Computes hash(word) for every word in dictionary • “Salt” makes dictionary attack harder R.H. Morris and K. Thompson, Password security: a case history, Communications of the ACM, November 1979

  26. Salt • Password line walt:fURfuu4.4hY0U:129:129:Belgers:/home/walt:/bin/csh Compare Salt Input Key Constant, A 64-bit block of 0 Ciphertext 25x DES Plaintext When password is set, salt is chosen randomly 12-bit salt slows dictionary attack by factor of 212

  27. Dictionary Attack – some numbers • Typical password dictionary • 1,000,000 entries of common passwords • people's names, common pet names, and ordinary words. • Suppose you generate and analyze 10 guesses per second • This may be reasonable for a web site; offline is much faster • Dictionary attack in at most 100,000 seconds = 28 hours, or 14 hours on average • If passwords were random • Assume six-character password • Upper- and lowercase letters, digits, 32 punctuation characters • 689,869,781,056 password combinations. • Exhaustive search requires 1,093 years on average

  28. Challenge-response Authentication Goal: Bob wants Alice to “prove” her identity to him Protocol ap1.0:Alice says “I am Alice” “I am Alice” Failure scenario??

  29. Authentication Goal: Bob wants Alice to “prove” her identity to him Protocol ap1.0:Alice says “I am Alice” in a network, Bob can not “see” Alice, so Trudy simply declares herself to be Alice “I am Alice”

  30. Alice’s IP address “I am Alice” Authentication: another try Protocol ap2.0:Alice says “I am Alice” in an IP packet containing her source IP address Failure scenario??

  31. Alice’s IP address “I am Alice” Authentication: another try Protocol ap2.0:Alice says “I am Alice” in an IP packet containing her source IP address Trudy can create a packet “spoofing” Alice’s address

  32. Alice’s password Alice’s IP addr “I’m Alice” Alice’s IP addr OK Authentication: another try Protocol ap3.0:Alice says “I am Alice” and sends her secret password to “prove” it. Failure scenario??

  33. Alice’s password Alice’s IP addr “I’m Alice” Alice’s IP addr OK Authentication: another try Protocol ap3.0:Alice says “I am Alice” and sends her secret password to “prove” it. Alice’s password Alice’s IP addr “I’m Alice” playback attack: Trudy records Alice’s packet and later plays it back to Bob

  34. encrypted password Alice’s IP addr “I’m Alice” Alice’s IP addr OK Authentication: yet another try Protocol ap3.1:Alice says “I am Alice” and sends her encryptedsecret password to “prove” it. Failure scenario??

  35. encrypted password Alice’s IP addr “I’m Alice” Alice’s IP addr OK Authentication: another try Protocol ap3.1:Alice says “I am Alice” and sends her encrypted secret password to “prove” it. encryppted password Alice’s IP addr “I’m Alice” record and playback still works!

  36. K (R) A-B Authentication: yet another try Goal:avoid playback attack Nonce:number (R) used only once –in-a-lifetime ap4.0:to prove Alice “live”, Bob sends Alice nonce, R. Alice must return R, encrypted with shared secret key “I am Alice” R Alice is live, and only Alice knows key to encrypt nonce, so it must be Alice! Failures, drawbacks?

  37. - K (R) A + K A - - + (K (R)) = R K (K (R)) = R A A A Authentication: ap5.0 ap4.0 doesn’t protect against server database reading • can we authenticate using public key techniques? ap5.0: use nonce, public key cryptography “I am Alice” Bob computes R and knows only Alice could have the private key, that encrypted R such that

  38. Biometrics • Use a person’s physical characteristics • fingerprint, voice, face, keyboard timing, … • Advantages • Cannot be disclosed, lost, forgotten • Disadvantages • Cost, installation, maintenance • Reliability of comparison algorithms • False positive: Allow access to unauthorized person • False negative: Disallow access to authorized person • Privacy? • If forged, how do you revoke?

  39. Biometrics • Common uses • Specialized situations, physical security • Combine • Multiple biometrics • Biometric and PIN • Biometric and token

  40. Token-based authenticationSmart Card • With embedded CPU and memory • Various forms • PIN protected memory card • Enter PIN to get the password • Cryptographic challenge/response cards • A cryptographic key in memory • Computer create a random challenge • Enter PIN to encrypt/decrypt the challenge w/ the card

  41. Some complications Initial data shared with server Need to set this up securely Shared database for many sites Clock skew Smart Card Example Initial data Time Challenge Time function

  42. Outline • User authentication • Password authentication, salt • Challenge-Response • Biometrics • Token-based authentication • Authentication in distributed systems • Single sign-on, Microsoft Passport • Trusted Intermediaries

  43. Single sign-on systems e.g. Securant, Netegrity, Oblix LAN Rules Database user name, password, other auth Authentication Application Server • Advantages • User signs on once • No need for authentication at multiple sites, applications • Can set central authorization policy for the enterprise

  44. Microsoft Passport • Launched 1999 • Claim > 200 million accounts in 2002 • Over 3.5 billion authentications each month • Log in to many websites using one account • Used by MS services Hotmail, MSN Messenger or MSN subscriptions; also Radio Shack, etc. • Hotmail or MSN users automatically have Microsoft Passport accounts set up • Passport may continue to evolve; bugs have been uncovered

  45. Four parts of Passport account • Passport Unique Identifier (PUID) • Assigned to the user when he or she sets up the account • User profile, required to set up account • Phone number or Hotmail or MSN.com e-mail address • Also name, ZIP code, state, or country, … • Credential information • E-mail address or phone number • Minimum six-character password or PIN • Four-digit security key, used for a second level of authentication on sites requiring stronger sign-in credentials • Wallet • Passport-based application at passport.com domain • E-commerce sites with Express Purchase function use wallet information rather than prompt the user to type in data

  46. Passport log-in

  47. Symmetric key problem: How do two entities establish shared secret key over network? Solution: trusted key distribution center (KDC) acting as intermediary between entities Public key problem: When Alice obtains Bob’s public key (from web site, e-mail, diskette), how does she know it is Bob’s public key, not Trudy’s? Solution: trusted certification authority (CA) Trusted Intermediaries

  48. KB-KDC KX-KDC KY-KDC KZ-KDC KP-KDC KB-KDC KA-KDC KA-KDC KP-KDC Key Distribution Center (KDC) • Alice, Bob need shared symmetric key. • KDC: server shares different secret key with each registered user (many users) • Alice, Bob know own symmetric keys, KA-KDC KB-KDC , for communicating with KDC. KDC

  49. Key Distribution Center (KDC) Q: How does KDC allow Bob, Alice to determine shared symmetric secret key to communicate with each other? KDC generates R1 KA-KDC(A,B) KA-KDC(R1, KB-KDC(A,R1) ) Alice knows R1 Bob knows to use R1 to communicate with Alice KB-KDC(A,R1) Alice and Bob communicate: using R1 as session key for shared symmetric encryption

  50. + + digital signature (encrypt) K K B B K CA Certification Authorities • Certification authority (CA): binds public key to particular entity, E. • E (person, router) registers its public key with CA. • E provides “proof of identity” to CA. • CA creates certificate binding E to its public key. • certificate containing E’s public key digitally signed by CA – CA says “this is E’s public key” Bob’s public key CA private key certificate for Bob’s public key, signed by CA - Bob’s identifying information
