  1. Visibility in Games Harald Riegler

  2. Visibility in Games • What do we need it for? • Increase of rendering speed by removing unseen scene data from the rendering pipeline as early as possible • Reduction of data transfers to the graphics hardware • Current games would not be possible without visibility calculations

  3. Visibility methods • 2 very different categories: • Visibility from a region (Portals, PVS) • (Quake, Unreal, Severance and co.) • Visibility from a point (Z-Buffer, BFC,...) • Racing games, outdoor scenes, sports games etc. • We will focus on Point-Visibility here

  4. Traditional methods • Traditionally used: • Back-Face culling • Z-Buffering • View frustum culling (Quad or Octtree) • New methods are slowly breaking into games

  5. New scientific methods • Image-space occlusion culling • Hierarchical Z-Buffering • Hierarchical Occlusion Maps • Object-space occlusion culling • Hierarchical View Frustum culling • Hierarchical Back-Face culling • More methods in the paper

  6. Hierarchical Z-Buffer • Z-Buffer is arranged in an image pyramid • Scene is partitioned in an oct-tree • Oct-tree nodes are tested against the Z-Pyramid where pixels have the same size • Visible nodes serve as input for the next frame • Relies on HW visibility query

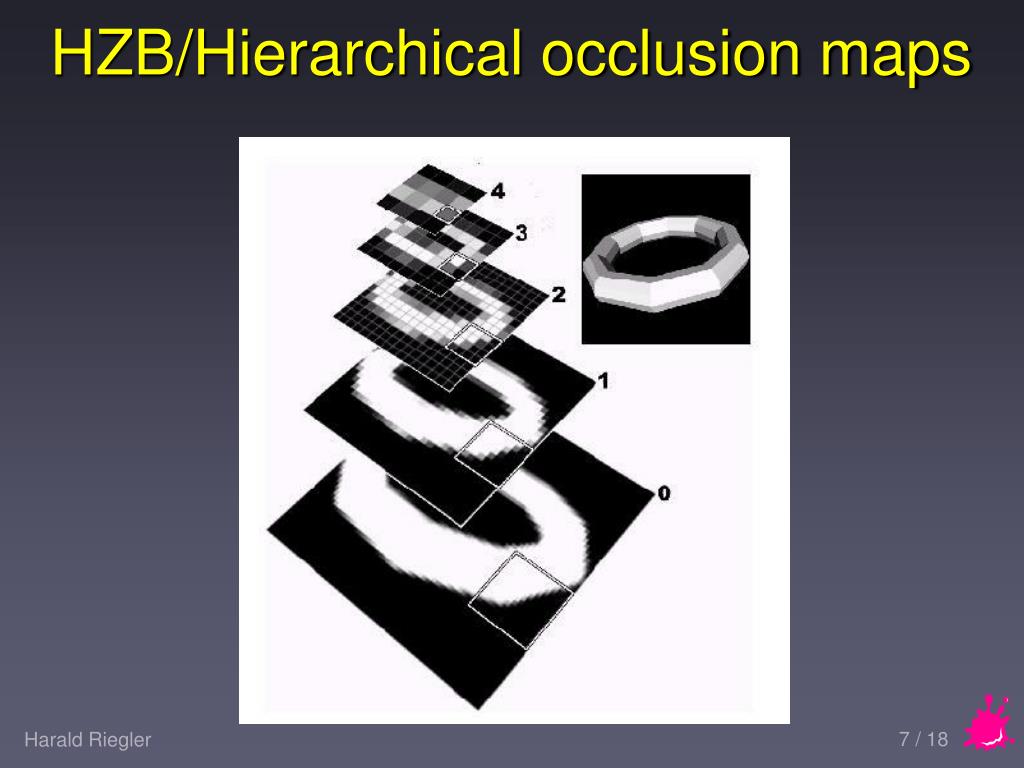

  7. HZB/Hierarchical occlusion maps

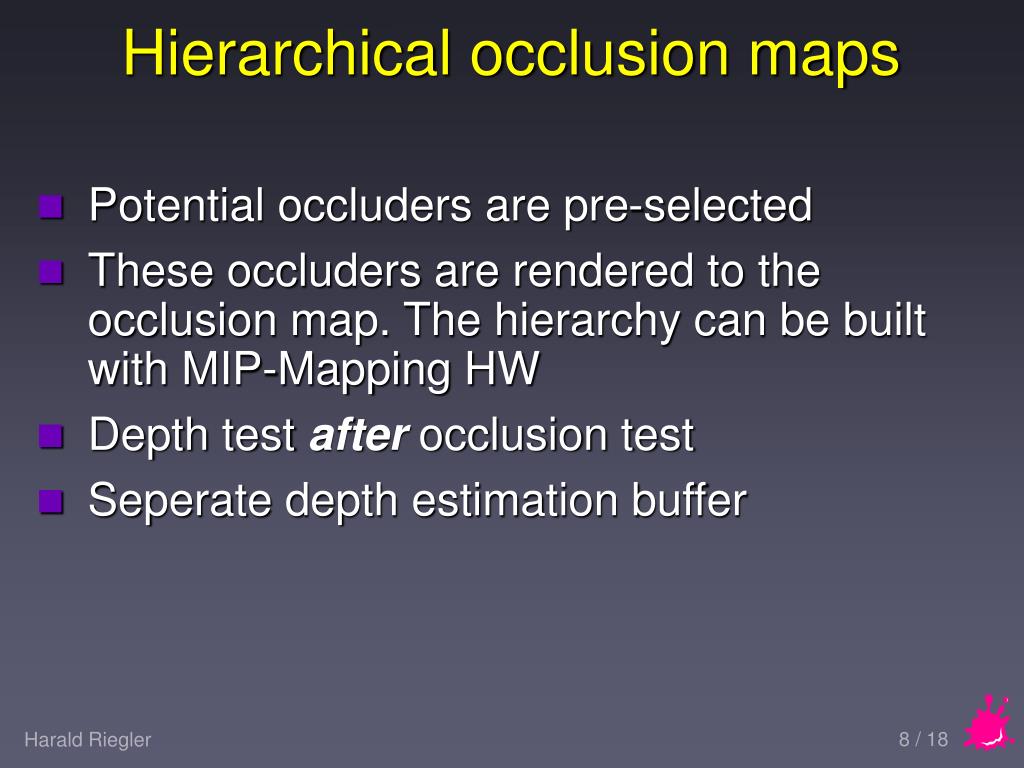

  8. Hierarchical occlusion maps • Potential occluders are pre-selected • These occluders are rendered to the occlusion map. The hierarchy can be built with MIP-Mapping HW • Depth test after occlusion test • Seperate depth estimation buffer

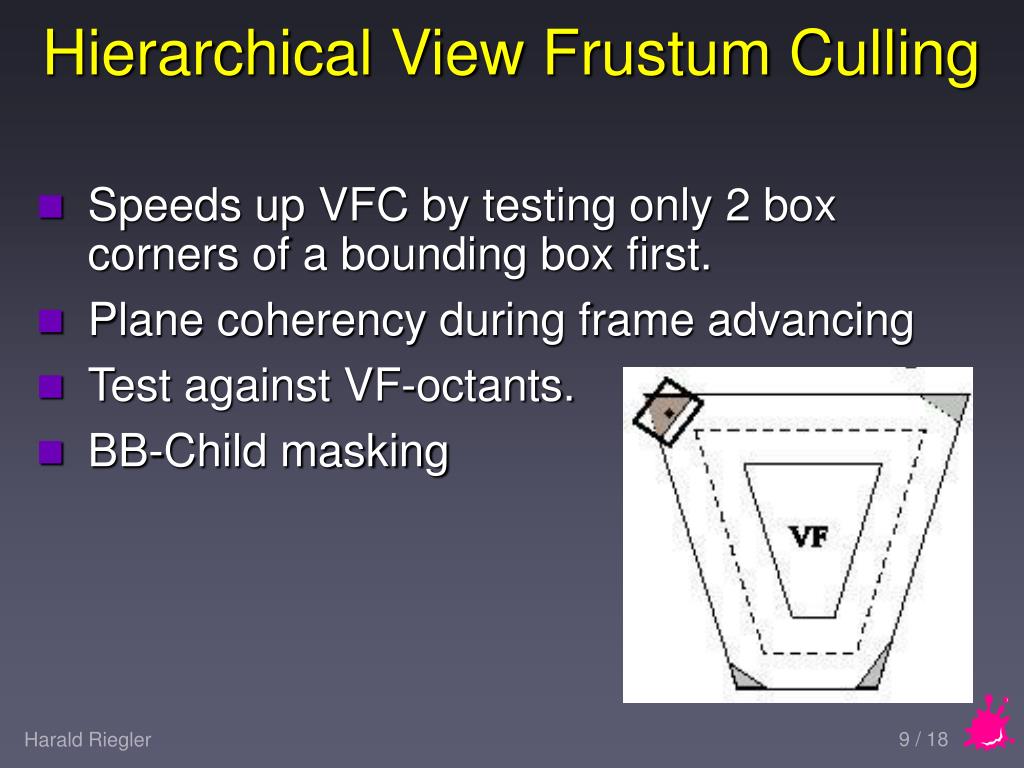

  9. Hierarchical View Frustum Culling • Speeds up VFC by testing only 2 box corners of a bounding box first. • Plane coherency during frame advancing • Test against VF-octants. • BB-Child masking

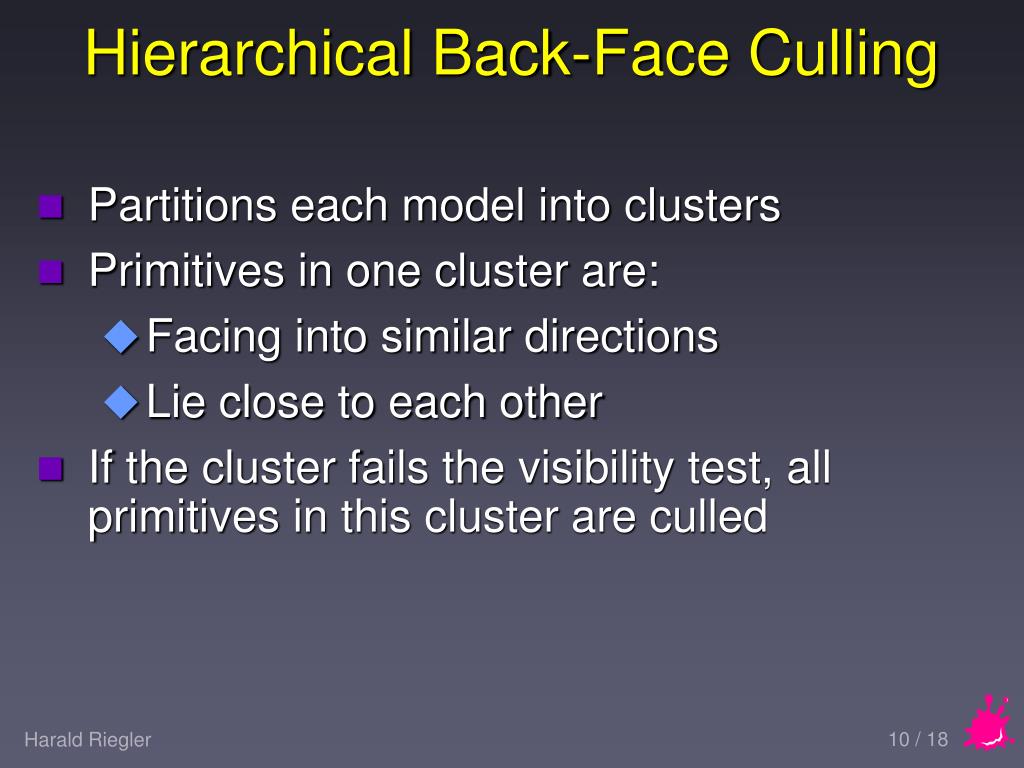

  10. Hierarchical Back-Face Culling • Partitions each model into clusters • Primitives in one cluster are: • Facing into similar directions • Lie close to each other • If the cluster fails the visibility test, all primitives in this cluster are culled

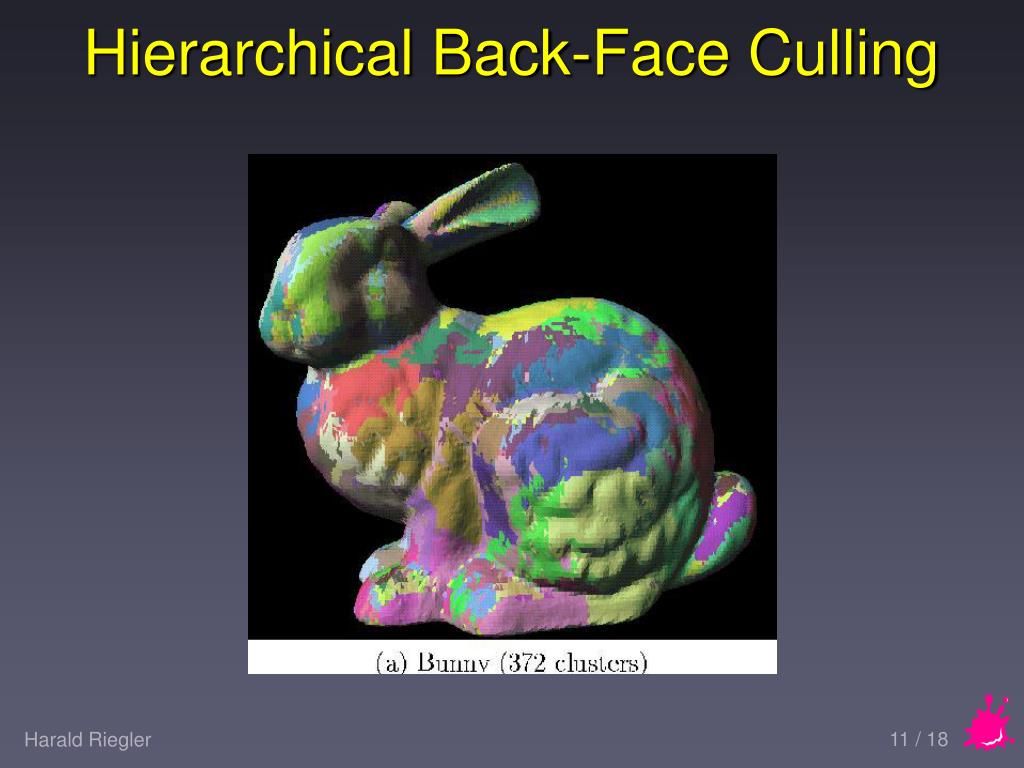

  11. Hierarchical Back-Face Culling

  12. The Real World (1) • Scientific approaches often too complicated • Science often uses models with hundreds of thousands of vertices, games don’t. (LOD) • Game developers “pick” ideas from different algorithms • Research has impact on hardware design!

  13. The Real World (2) • Parts of the HZB are used sometimes • Runtime-LOD is used as input for a simple HZB • VFC is almost always used. • HOM introduce too much overhead for games, and the z-buffer is there anyway • A simplified HBFC can be used

  14. The Real World (3) • PSX-One doesn’t even have a z-buffer • ATI’s Radeon has parts of a HZB (Called Hyper-Z) • GForce2 only has a z-buffer • GForce3 similar to Radeon, but supports HZB visibility query • Dreamcasts Power-VR2 works pretty different (Infinite planes)

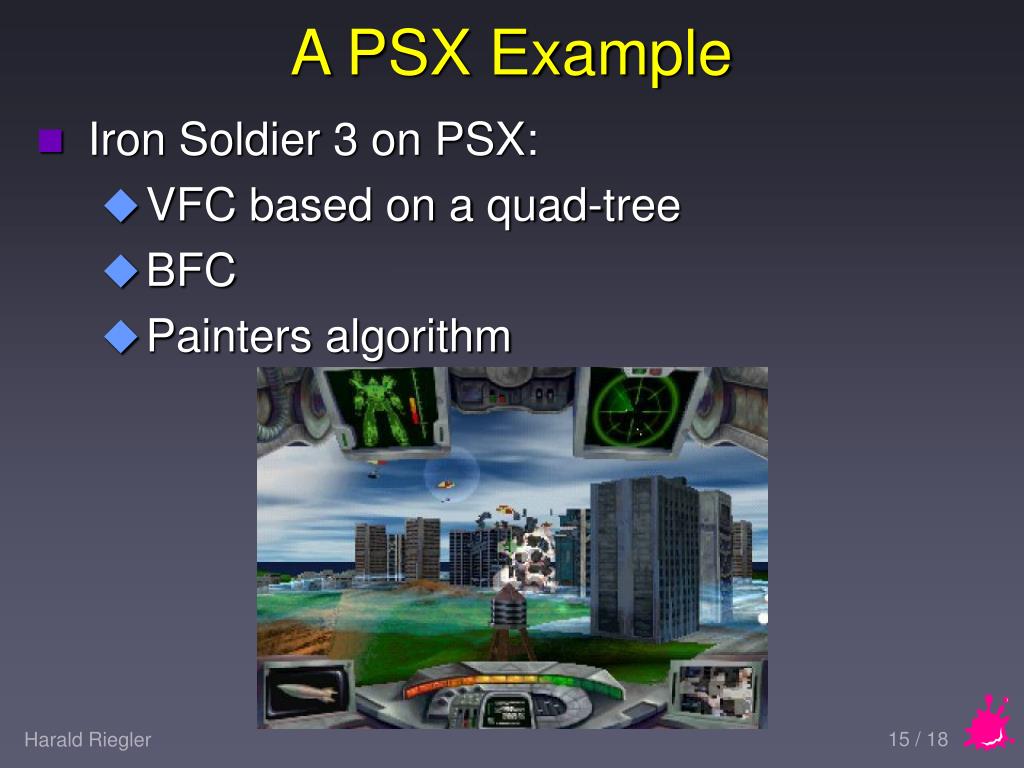

  15. A PSX Example • Iron Soldier 3 on PSX: • VFC based on a quad-tree • BFC • Painters algorithm

  16. Conclusions (1) • Visibility algorithms are used in many different applications • Occlusion culling • Shadow calculations • Radiosity • Volumetric lights • All these fields benefit from advances in visibility techniques

  17. Conclusion (2) • Occlusion culling will gain importance • More OC will be implemented in hardware • Discrepancies between science and gaming industry will alway exist due to different goals

  18. Hope you enjoyed the ride!
