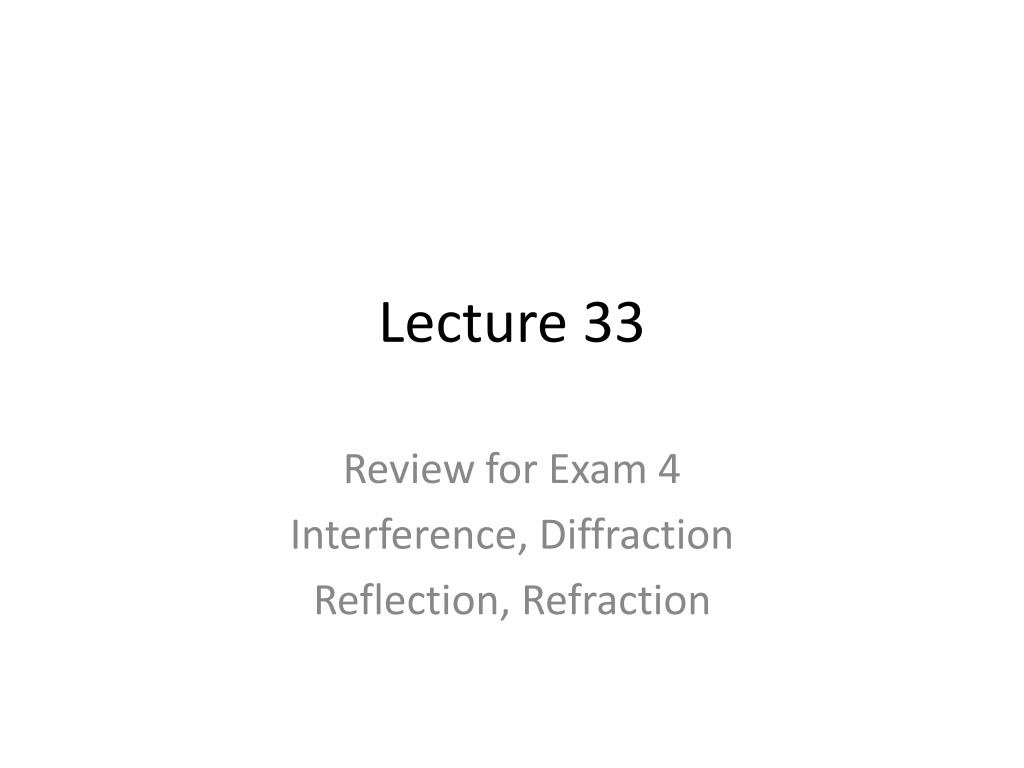

  1. Lecture 33 Review for Exam 4 Interference, Diffraction Reflection, Refraction

  2. An interference pattern from 2 slits is observed on a screen. If d is doubled • The interference pattern does not change • The fringe spacing doubles • The fringe spacing is halved • Need to know wavelength

  3. Diffraction grating problem • In order to determine the spacing d, of a diffraction grating (often called the grating constant), I shown a HeNe laser (λ=633nm) through the grating. On a screen 50cm away, I measured the distance between the central, m=0 bright fringe and the m=1 bright fringe and found the distance to be 9.65 cm. • What is the d?

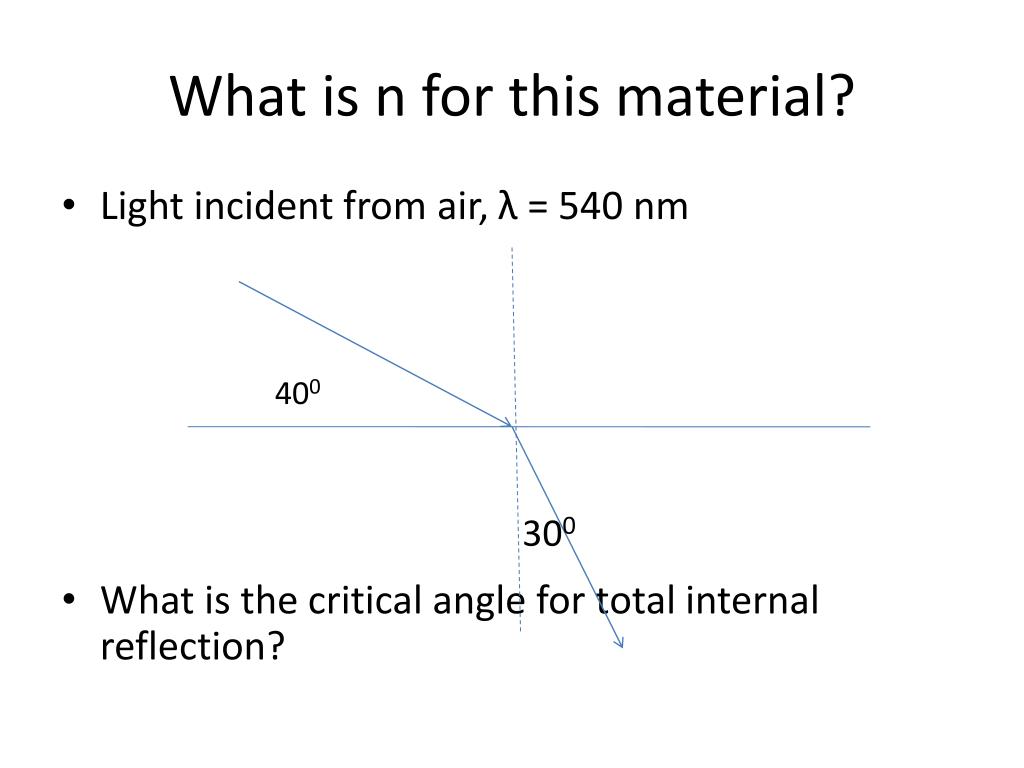

  4. What is n for this material? • Light incident from air, λ = 540 nm • What is the critical angle for total internal reflection? 400 300

  5. The interference pattern from 2 slits is observed. As λ is increased • The fringe spacing increases • The fringe spacing decreases • Does not change • Need to know λ • Need more information

  6. Question • What is the difference between diffuse and specular reflection? • What is θOUT ? AIR 350 n=1.63 θOUT AIR

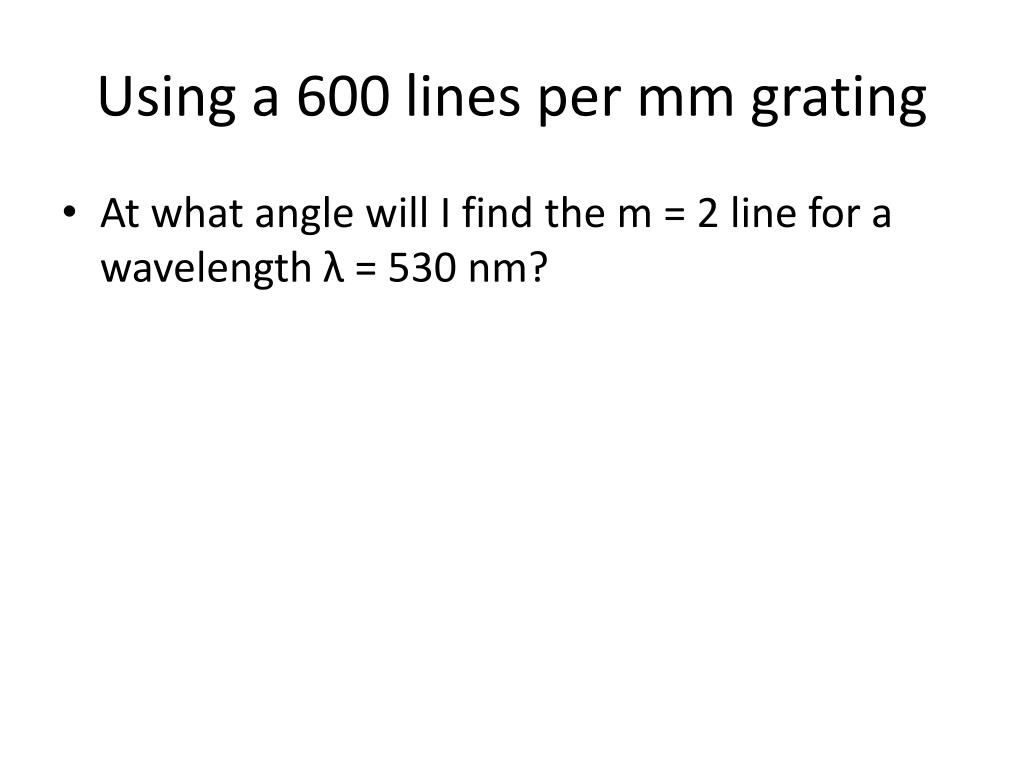

  7. Using a 600 lines per mm grating • At what angle will I find the m = 2 line for a wavelength λ = 530 nm?
