  1. Master’s Defense Chaitanya Bandi Dept. of ECE, Auburn University Fully configurable hierarchical transaction level verifier for functional verification Project Advisor: Dr.Vishwani D. Agrawal Committee Members: Dr.Victor P. Nelson, Dr. Fa F. Dai Dept. of ECE, Auburn University Chaitanya: MEE Project Defense

  2. Outline • Problem Statement • NAND Flash Memory Design • Regression Testing • Transaction Level Verification • Microcode Regression • Comparison at a glance • Controllable comparison • Results and Future Work Chaitanya: MEE Project Defense

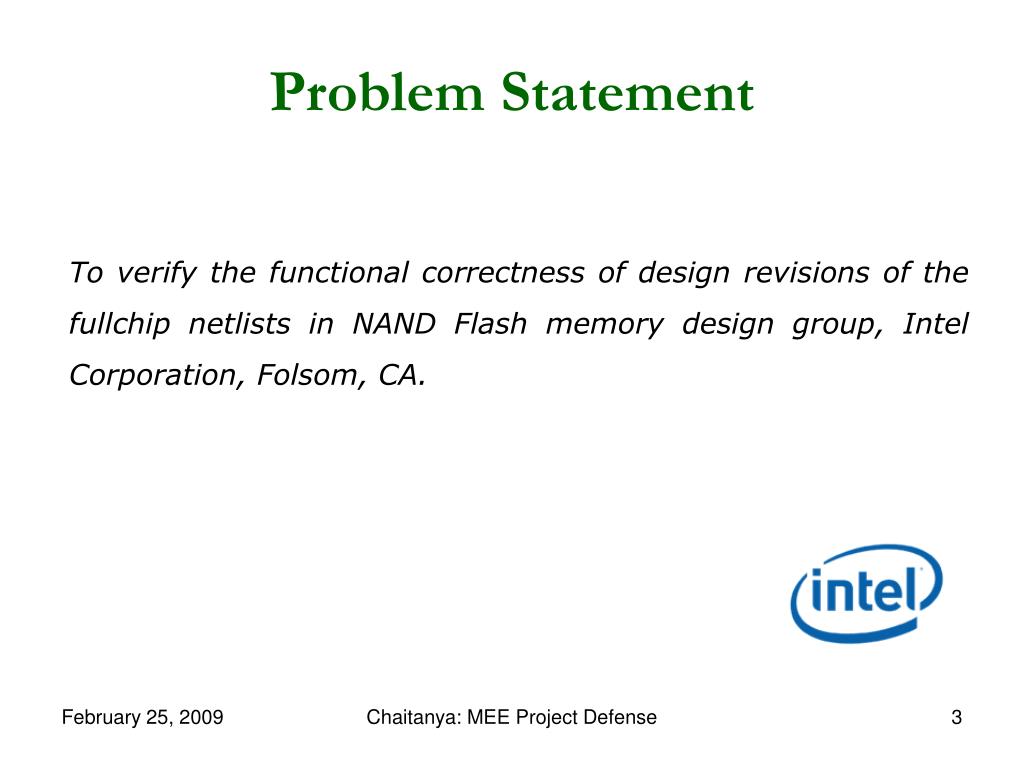

  3. Problem Statement To verify the functional correctness of design revisions of the fullchip netlists in NAND Flash memory design group, Intel Corporation, Folsom, CA. Chaitanya: MEE Project Defense

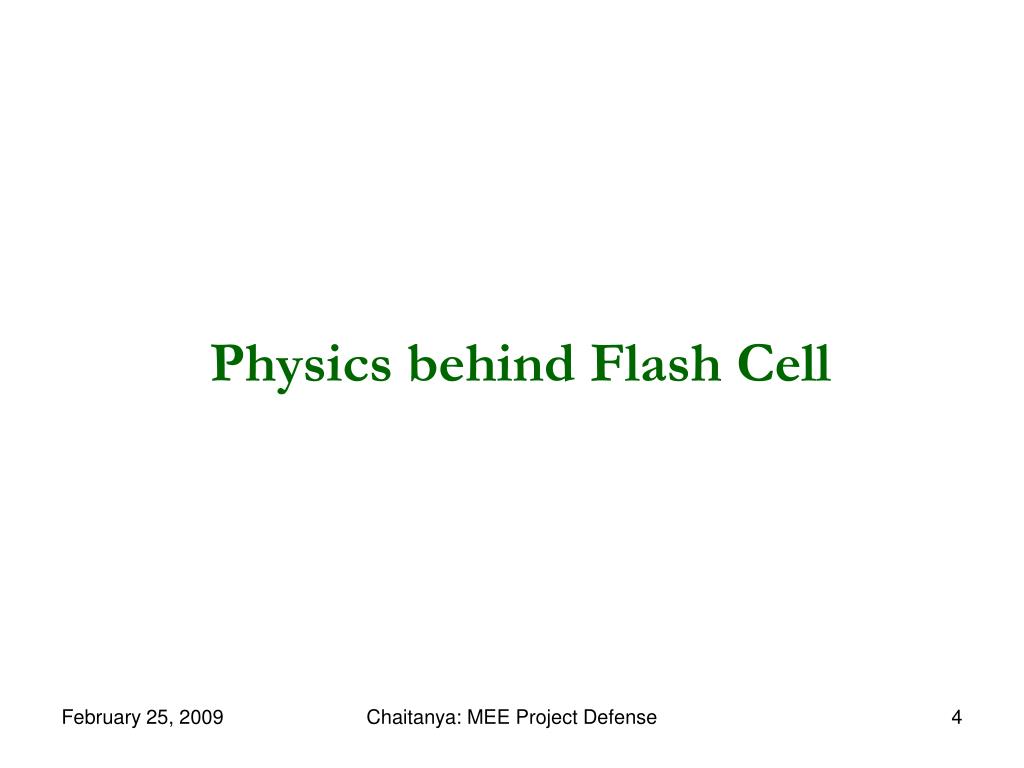

  4. Physics behind Flash Cell Chaitanya: MEE Project Defense

  5. Flash Transistor Structure FG CG Chaitanya: MEE Project Defense

  6. Threshold Voltage Modulation • The threshold voltage, Vthof a transistor is the gate voltage required to invert the channel and allow the conduction of electrons from the source to drain. • Information is stored in and erased from the flash cell by adding or removing electrons from the floating gate. • The voltage Vth can be modulated by adding or removing electrons from the floating gate. Chaitanya: MEE Project Defense

  7. Erased Cell Vs Programmed Cell a) Erased cell b) Programmed cell A flash cell can exist in one of the two states, erased or programmed. Chaitanya: MEE Project Defense

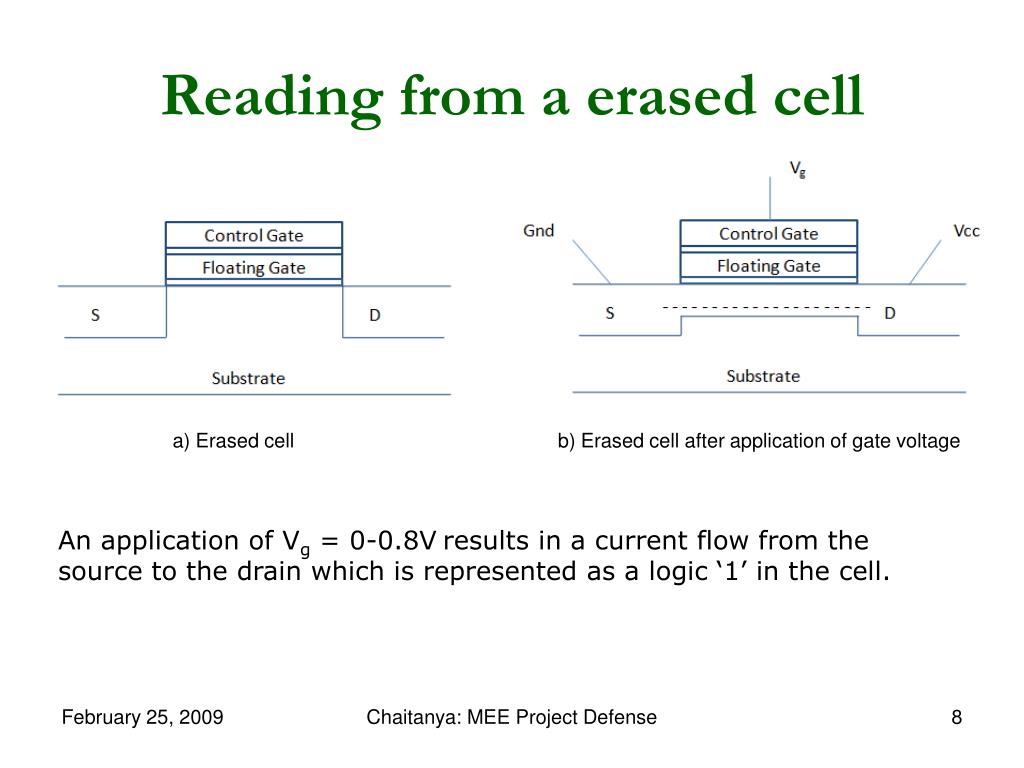

  8. Reading from a erased cell a) Erased cell b) Erased cell after application of gate voltage An application of Vg = 0-0.8Vresults in a current flow from the source to the drain which is represented as a logic ‘1’ in the cell. Chaitanya: MEE Project Defense

  9. Reading from a programmed cell a) Programmed cell b) Programmed cell after application of gate voltage • An application of Vg = 0-0.8V does not result in a current flow from the source to the drain which is represented as a logic ‘0’ in the cell. • The threshold voltage required in this case is greater than the actual Vth of the device because of the presence of electrons on the floating gate. • This change in the required threshold voltage is due to the principle of Threshold Voltage modulation. Chaitanya: MEE Project Defense

  10. Tunneling • Tunneling is referred to as the phenomenon where electrons can tunnel through an oxide layer. • This is achieved in the presence of a huge potential difference applied across the oxide. Chaitanya: MEE Project Defense

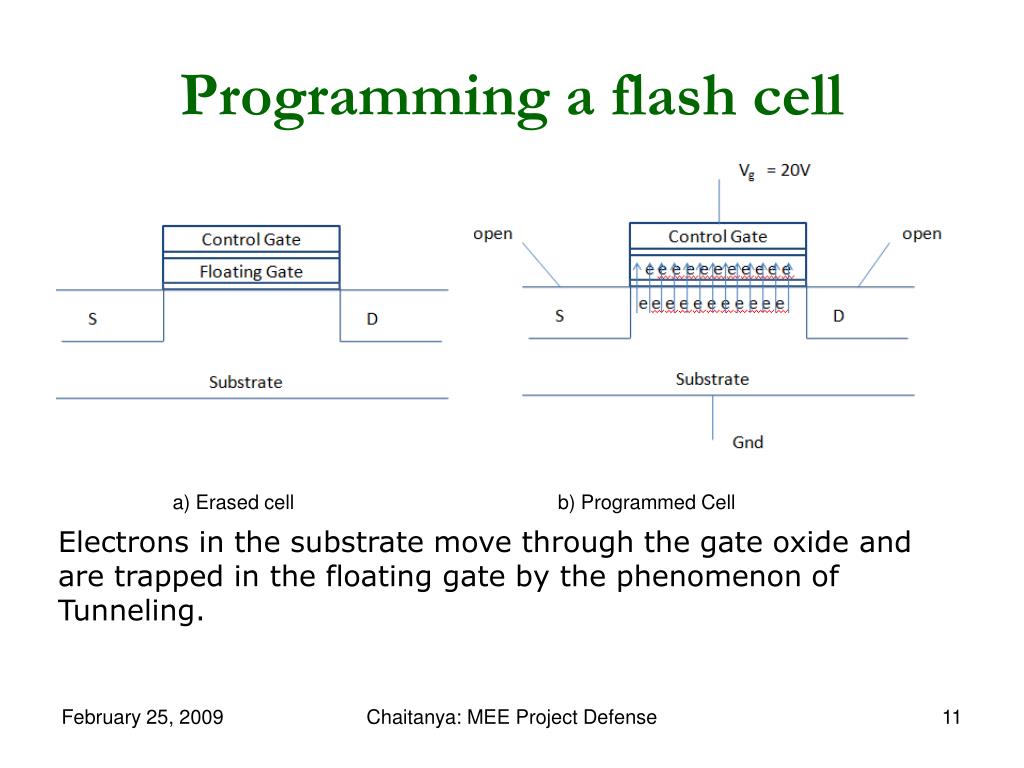

  11. Programming a flash cell a) Erased cell b) Programmed Cell Electrons in the substrate move through the gate oxide and are trapped in the floating gate by the phenomenon of Tunneling. Chaitanya: MEE Project Defense

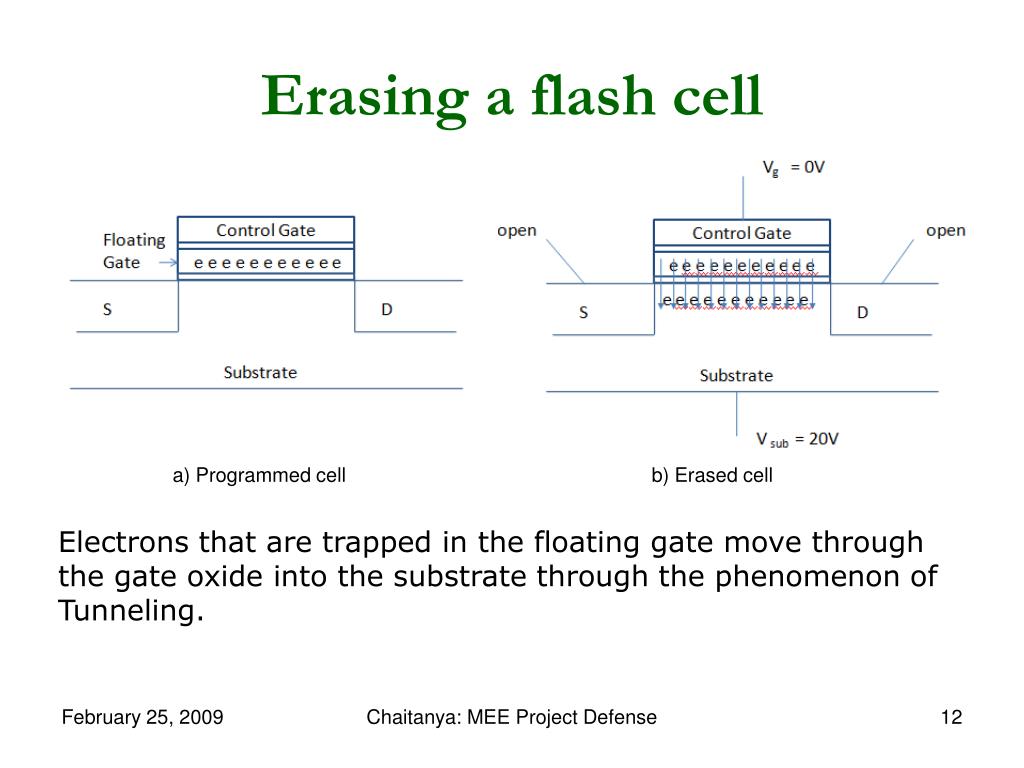

  12. Erasing a flash cell a) Programmed cell b) Erased cell Electrons that are trapped in the floating gate move through the gate oxide into the substrate through the phenomenon of Tunneling. Chaitanya: MEE Project Defense

  13. Why NAND Flash • NAND Flash Array Architecture makes its cell size almost half compared to a NOR cell. Chaitanya: MEE Project Defense

  14. Intel’s new 34nm 32Gb NAND Flash chip Courtesy: http://www.intel.com/pressroom/archive/releases/20080529comp.htm

  15. Regression Testing • Testing a program after it has been modified. • Major component in the program maintenance phase. • Checks the correctness of the new logic, • Ensures the continuous working of the unmodified portions of a program, • Validates that the modified program as a whole functions correctly. Chaitanya: MEE Project Defense

  16. How is Regression Testing done? Stimulus Test Model Golden Model Response Response Comparison Chaitanya: MEE Project Defense

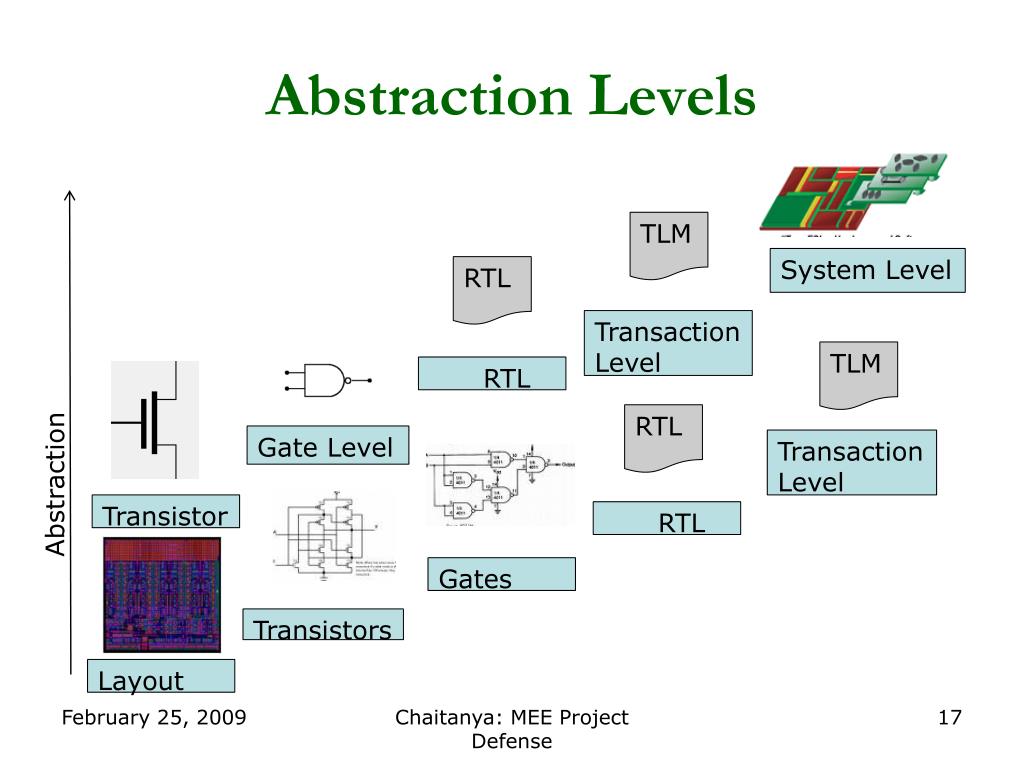

  17. Abstraction Levels Abstraction TLM System Level RTL Transaction Level TLM RTL RTL Gate Level Transaction Level Transistor RTL Gates Transistors Layout Chaitanya: MEE Project Defense

  18. Transaction Level Modeling • RTL is too low level of abstraction for system level design. • Reducing and encapsulating details of design into transactions allows the designer to get a quick perception of the whole design in terms of its functionality. Chaitanya: MEE Project Defense

  19. TLM Vs RTL • Details of communication among modules • Communication is done using Transactions • Details of implementation of modules • Implementation is at the signal level Chaitanya: MEE Project Defense

  20. Example • A transaction level model would represent a read or write protocol using a single function call, with an object representing the request and another object representing the response. • An RTL HDL model would represent such a read or write protocol as a series of signal assignments and signal read operations. Chaitanya: MEE Project Defense

  21. Benefits of TLM • Embedded Software Development • Functional Verification Chaitanya: MEE Project Defense

  22. Embedded Software Development • Hardware models upon which embedded software is to be tested are available earlier in the design cycle in the form of transactions. • Software development usually starts only after the hardware prototype is available. HW SW Co-design and Validation Chaitanya: MEE Project Defense

  23. Functional Verification • TLM models help the verification engineers to • Develop targeted tests that help in system verification as a whole. • Design hierarchical verification methodologies. Chaitanya: MEE Project Defense

  24. Functional Verification in systems with RTL-only design • Functional verification can still be done using hierarchical verification methodologies. • The verification environment must have an ability to extract transactions. Chaitanya: MEE Project Defense

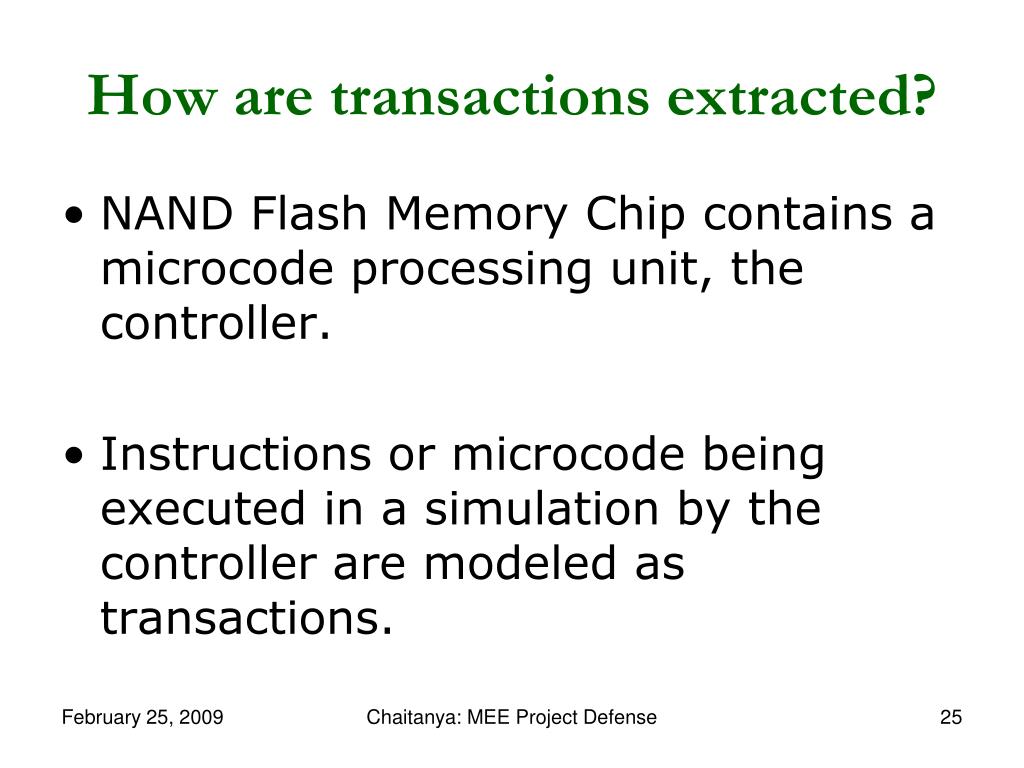

  25. How are transactions extracted? • NAND Flash Memory Chip contains a microcode processing unit, the controller. • Instructions or microcode being executed in a simulation by the controller are modeled as transactions. Chaitanya: MEE Project Defense

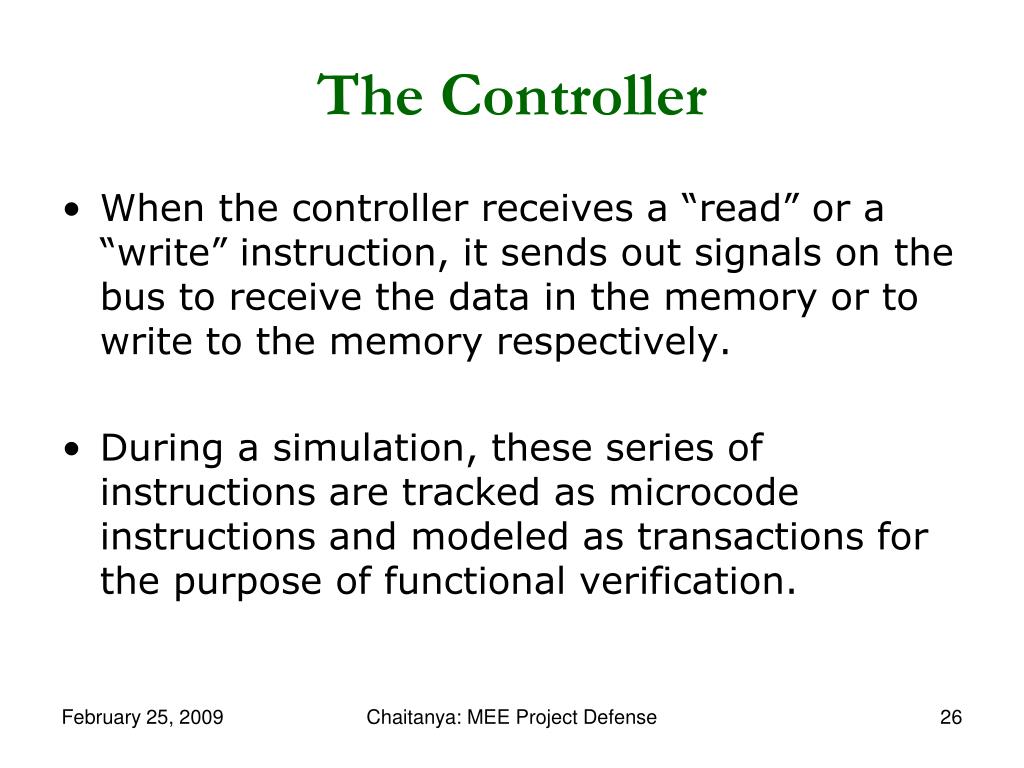

  26. The Controller • When the controller receives a “read” or a “write” instruction, it sends out signals on the bus to receive the data in the memory or to write to the memory respectively. • During a simulation, these series of instructions are tracked as microcode instructions and modeled as transactions for the purpose of functional verification. Chaitanya: MEE Project Defense

  27. Verification Environment • Verification environment currently in NAND Flash design group involves • A Step-by-step review of microcode in execution using the fullchip simulation information. • Waveform comparison of the golden and test simulation results. Chaitanya: MEE Project Defense

  28. Verification Environment Verifies the algorithm flow Manual review of microcode in execution Microcode Flow Verifies the signal flow Waveform Comparison Signals Chaitanya: MEE Project Defense

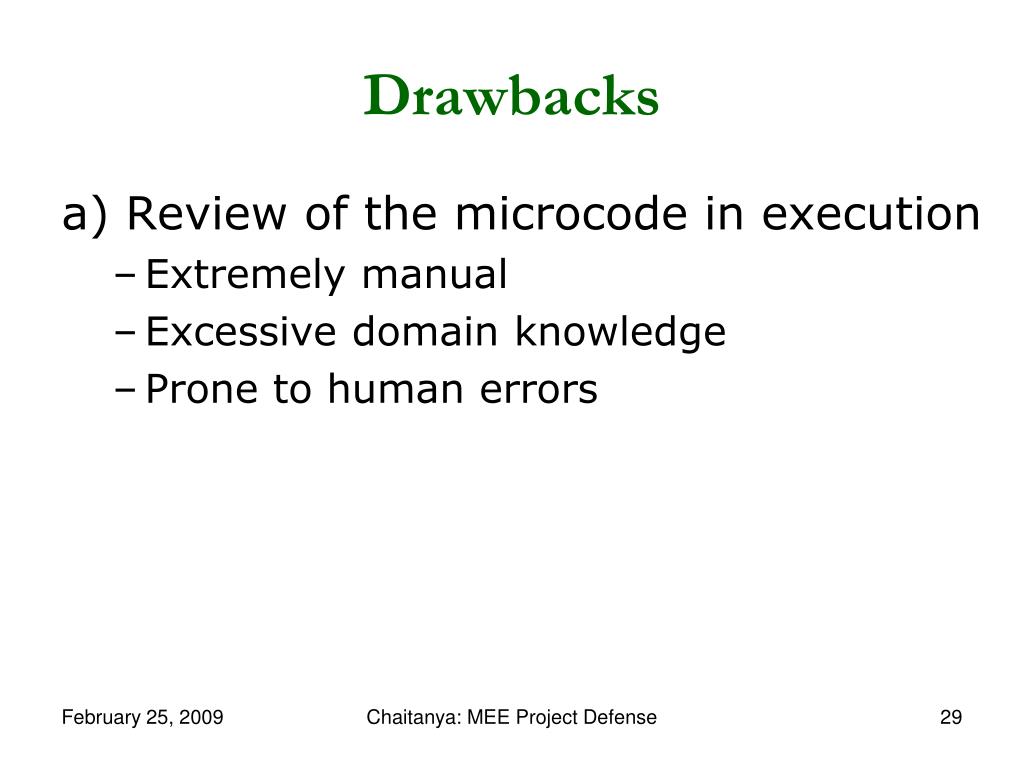

  29. Drawbacks a) Review of the microcode in execution • Extremely manual • Excessive domain knowledge • Prone to human errors Chaitanya: MEE Project Defense

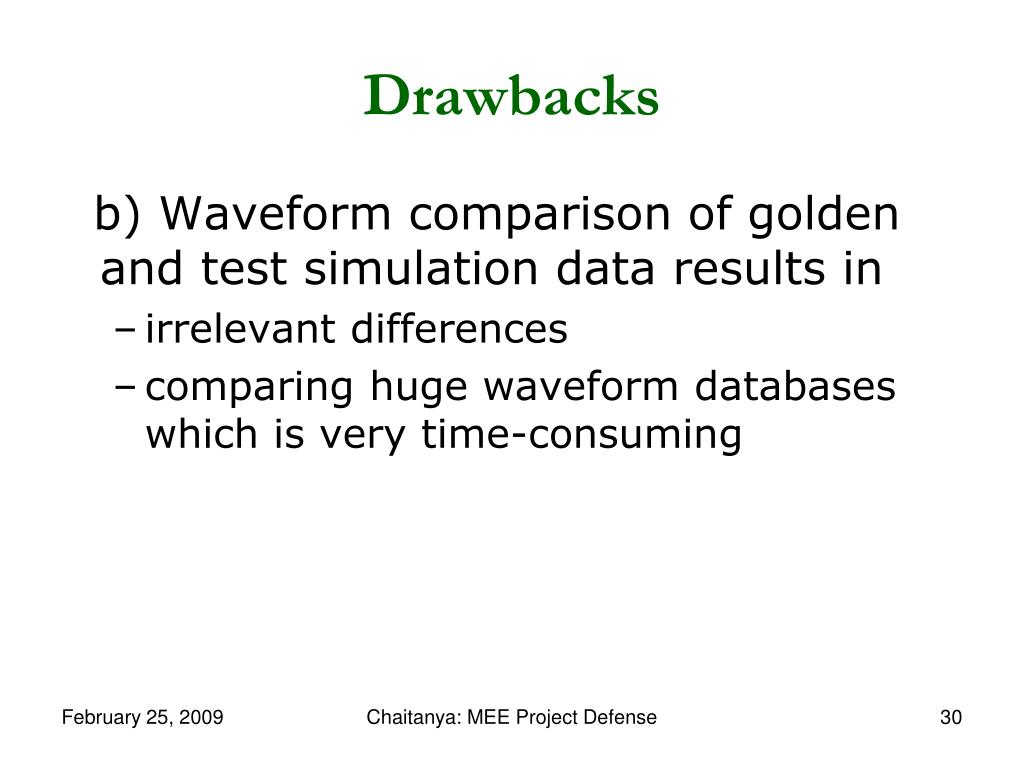

  30. Drawbacks b) Waveform comparison of golden and test simulation data results in • irrelevant differences • comparing huge waveform databases which is very time-consuming Chaitanya: MEE Project Defense

  31. Proposed Solution • A verification environment in which • Algorithm flow is checked automatically. • Controllable comparison of waveform database. • Algorithm details at the transaction level and signal details at the RTL are verified simultaneously. Chaitanya: MEE Project Defense

  32. Hierarchical Transaction Level Verifier Chaitanya: MEE Project Defense

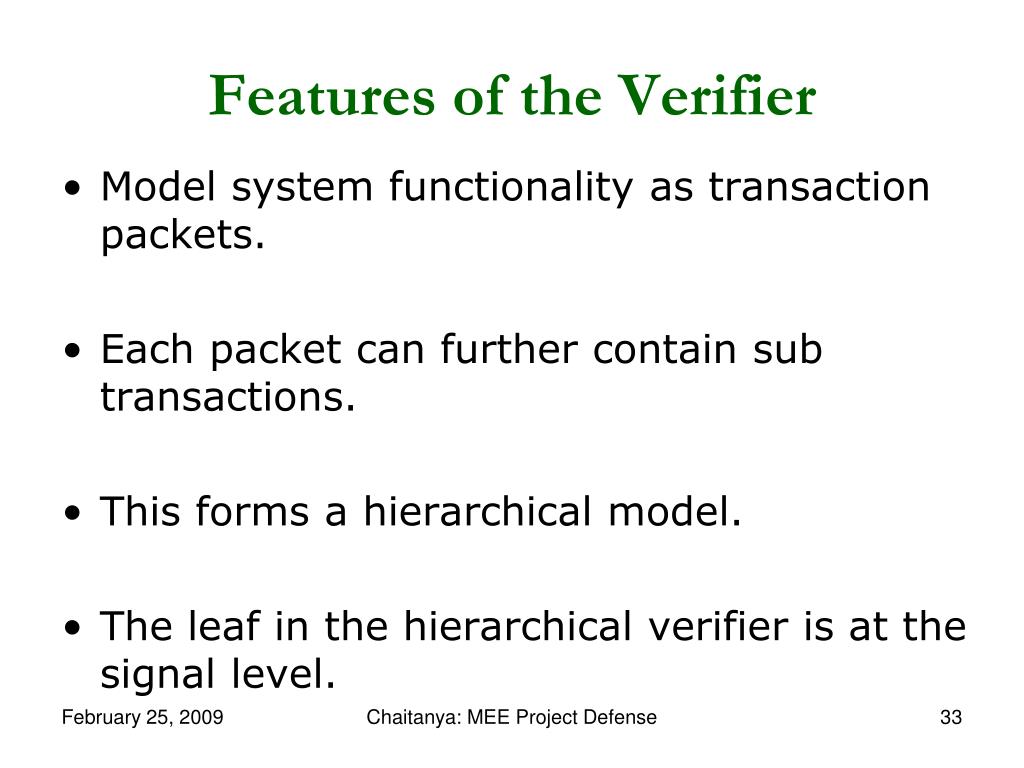

  33. Features of the Verifier • Model system functionality as transaction packets. • Each packet can further contain sub transactions. • This forms a hierarchical model. • The leaf in the hierarchical verifier is at the signal level. Chaitanya: MEE Project Defense

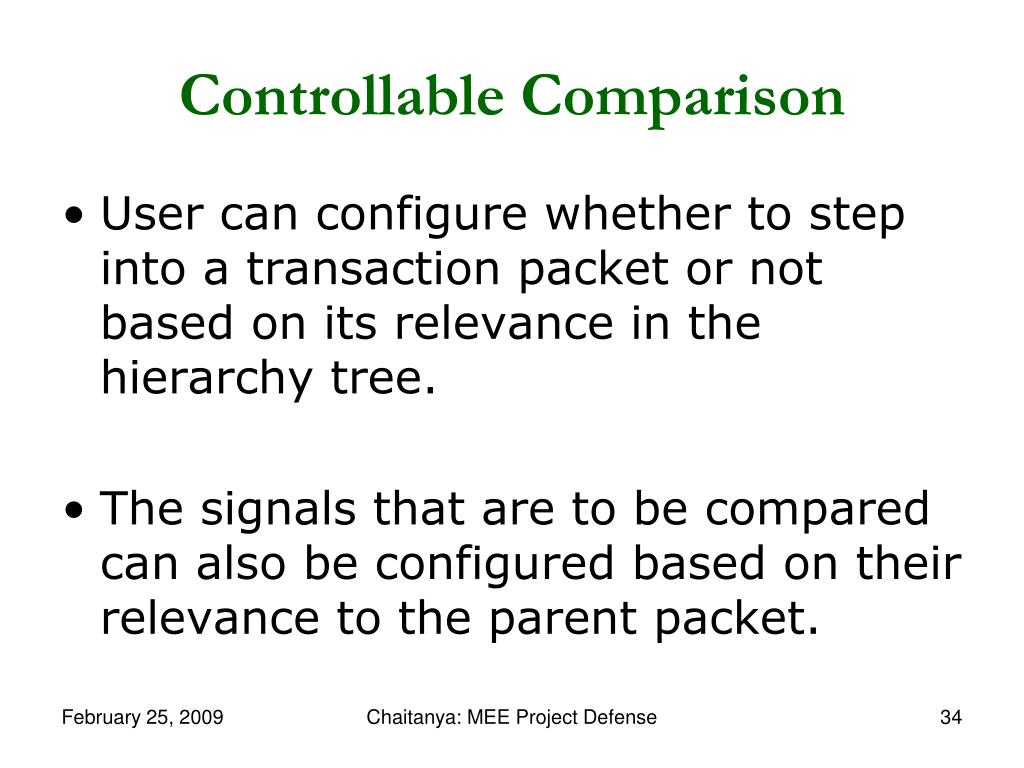

  34. Controllable Comparison • User can configure whether to step into a transaction packet or not based on its relevance in the hierarchy tree. • The signals that are to be compared can also be configured based on their relevance to the parent packet. Chaitanya: MEE Project Defense

  35. Microcode Regression • A set of stimulus is applied to the golden netlist and the test netlist. • Response is recorded as both microcode flow from the data in the log files and signal flow is determined from the waveform database. Chaitanya: MEE Project Defense

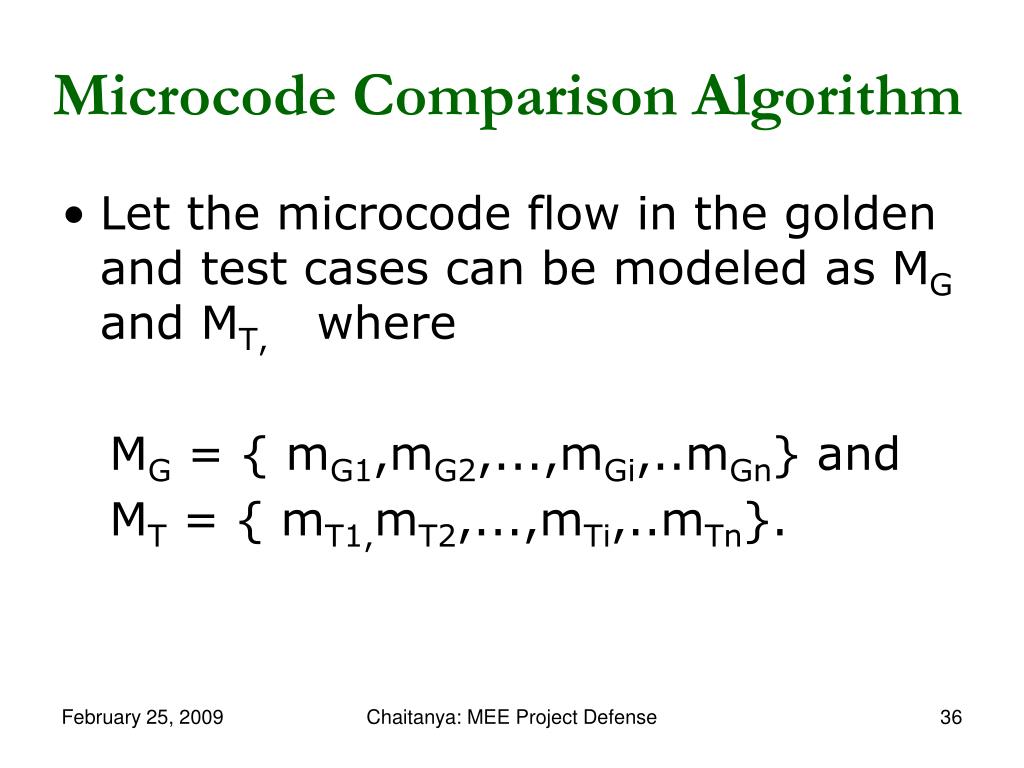

  36. Microcode Comparison Algorithm • Let the microcode flow in the golden and test cases can be modeled as MG and MT, where MG = { mG1,mG2,...,mGi,..mGn} and MT = { mT1,mT2,...,mTi,..mTn}. Chaitanya: MEE Project Defense

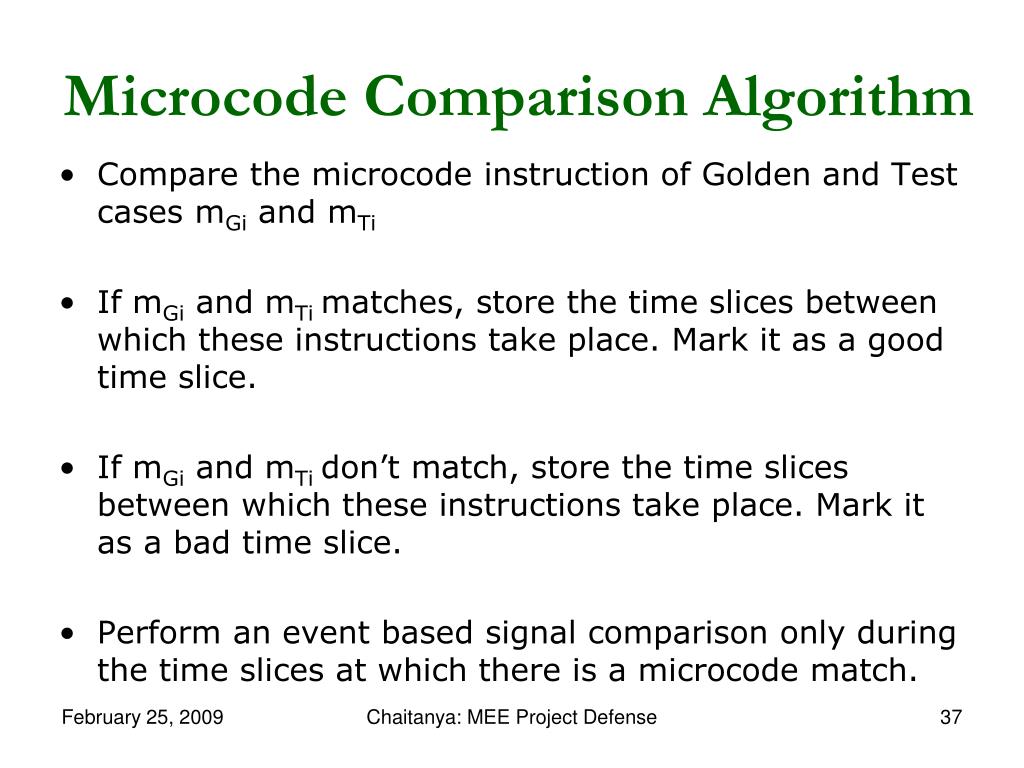

  37. Microcode Comparison Algorithm • Compare the microcode instruction of Golden and Test cases mGi and mTi • If mGi and mTi matches, store the time slices between which these instructions take place. Mark it as a good time slice. • If mGi and mTi don’t match, store the time slices between which these instructions take place. Mark it as a bad time slice. • Perform an event based signal comparison only during the time slices at which there is a microcode match. Chaitanya: MEE Project Defense

  38. Algorithm in execution Chaitanya: MEE Project Defense

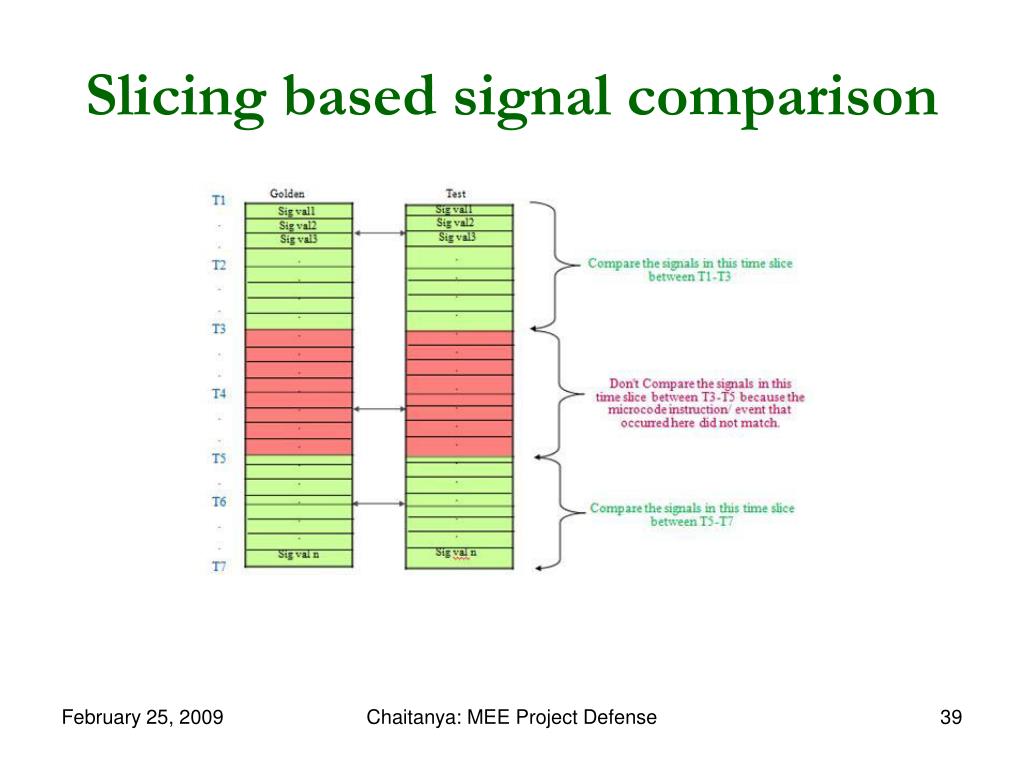

  39. Slicing based signal comparison Chaitanya: MEE Project Defense

  40. Microcode Comparison Algorithm Chaitanya: MEE Project Defense

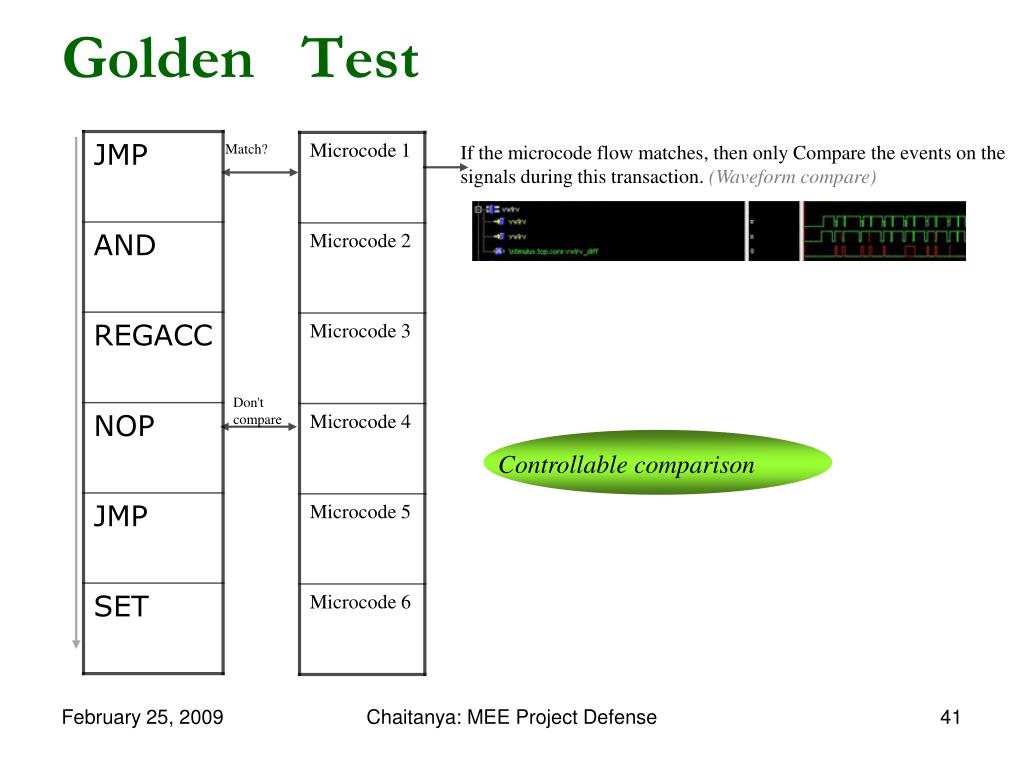

  41. Controllable comparison Golden Test If the microcode flow matches, then only Compare the events on the signals during this transaction. (Waveform compare) Match? Don't compare Chaitanya: MEE Project Defense

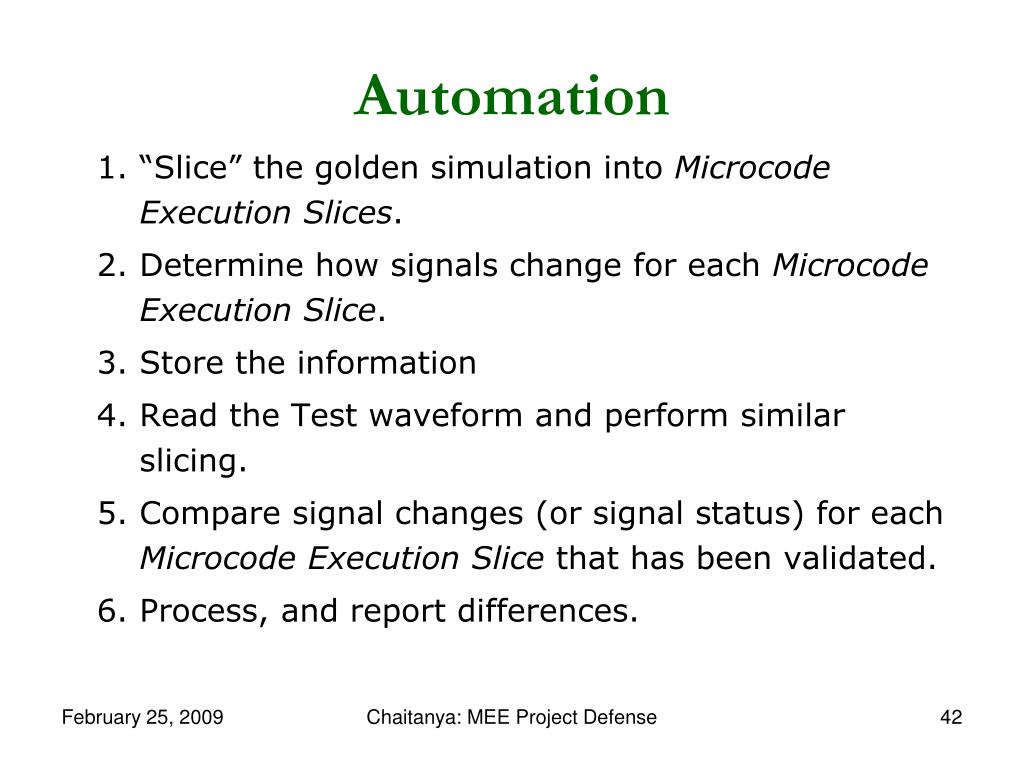

  42. Automation • “Slice” the golden simulation into Microcode Execution Slices. • Determine how signals change for each Microcode Execution Slice. • Store the information • Read the Test waveform and perform similar slicing. • Compare signal changes (or signal status) for each Microcode Execution Slice that has been validated. • Process, and report differences. Chaitanya: MEE Project Defense

  43. Results • Simulation is perfomed in Cadence NCVerilog simulator. • Microcode comparison is done using the Transaction-Level verifier in PERL scripting language. • Signals are compared using the EventCom, a waveform comparison tool that uses SimVisionTM database. Chaitanya: MEE Project Defense

  44. Conclusion • The entire process is automated and hence the turnaround time for validating each netlist revision is reduced from several days to several hours. • In the event of a mismatch in the simulation results, the verification engineer can identify which portions of the microcode flow is not being validated and take measures appropriately. Chaitanya: MEE Project Defense

  45. Future Work • In future, we can have additional features to have the capability of viewing the transactions in the waveforms. • This will enable the verification engineers to graphically visualize the transactions and signals simultaneously in the waveform window. Chaitanya: MEE Project Defense
