  1. Transforming Arbitrary Tables into F-Logic Frames with TARTAR AleksanderPivk, York Sure, Philipp Cimiano, MatjazGams, VladislavRajkovic, Rudi Studer Presented By Stephen Lynn

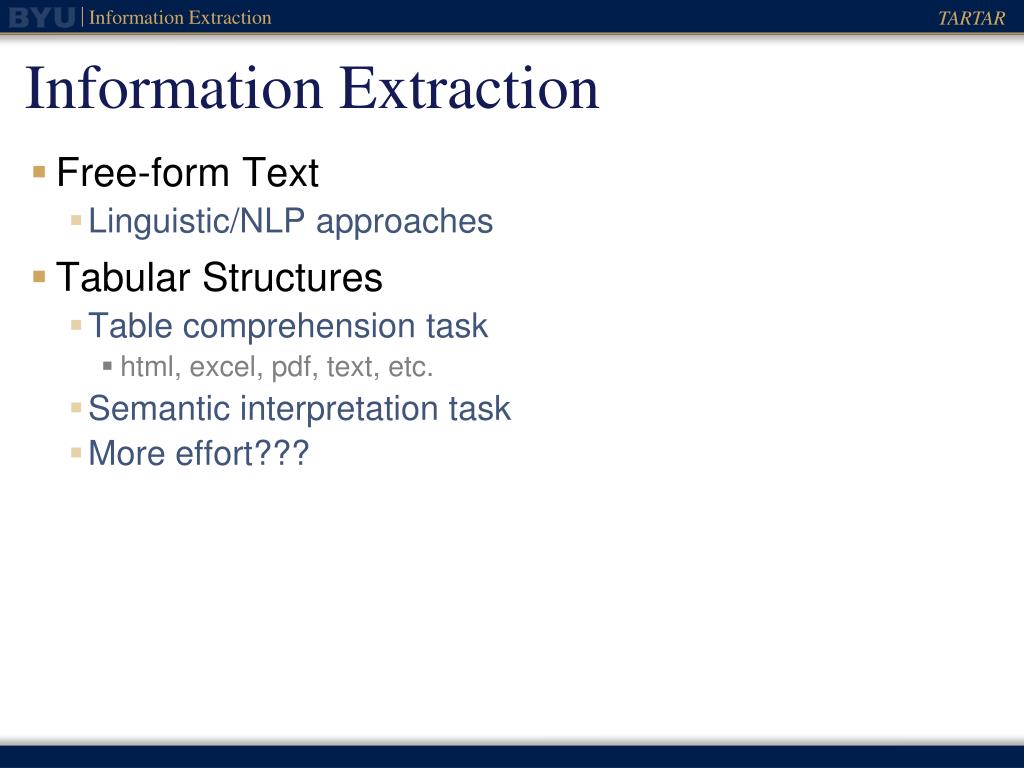

  2. Information Extraction • Free-form Text • Linguistic/NLP approaches • Tabular Structures • Table comprehension task • html, excel, pdf, text, etc. • Semantic interpretation task • More effort???

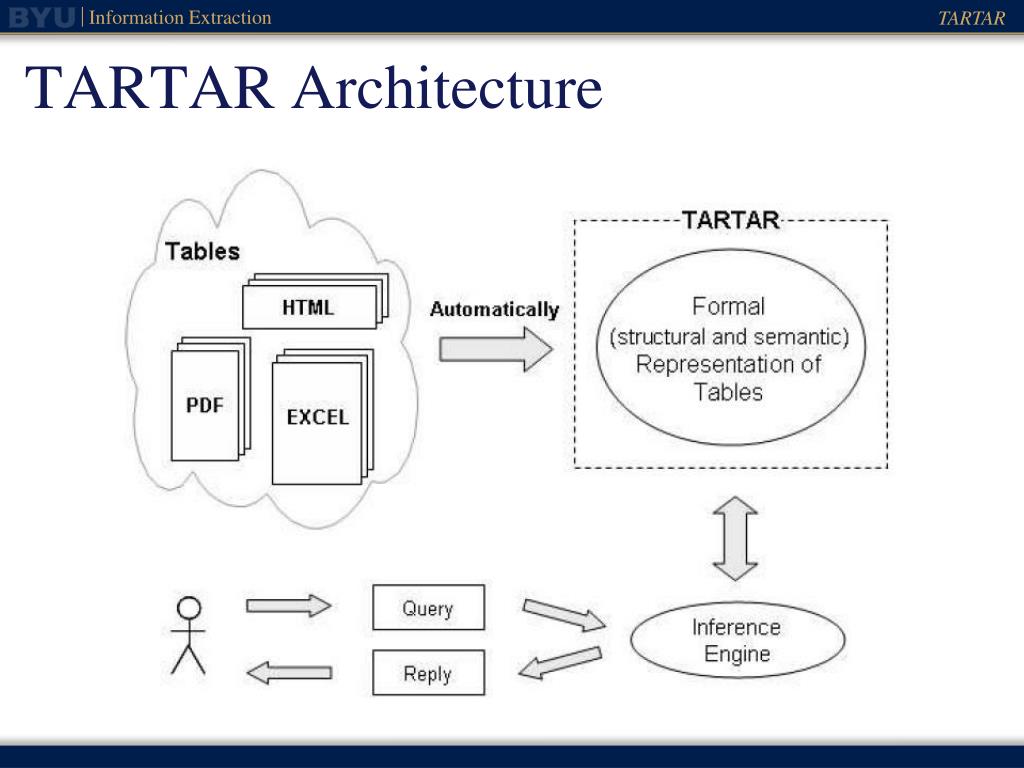

  3. TARTAR Architecture

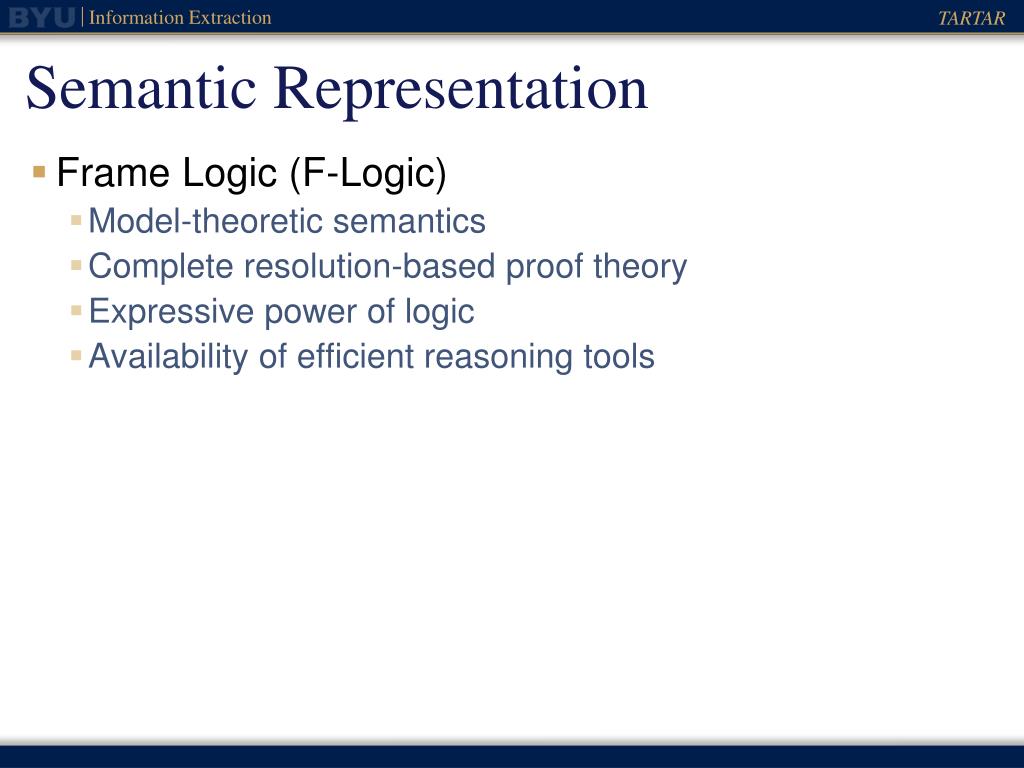

  4. Semantic Representation • Frame Logic (F-Logic) • Model-theoretic semantics • Complete resolution-based proof theory • Expressive power of logic • Availability of efficient reasoning tools

  5. F-Logic Frame

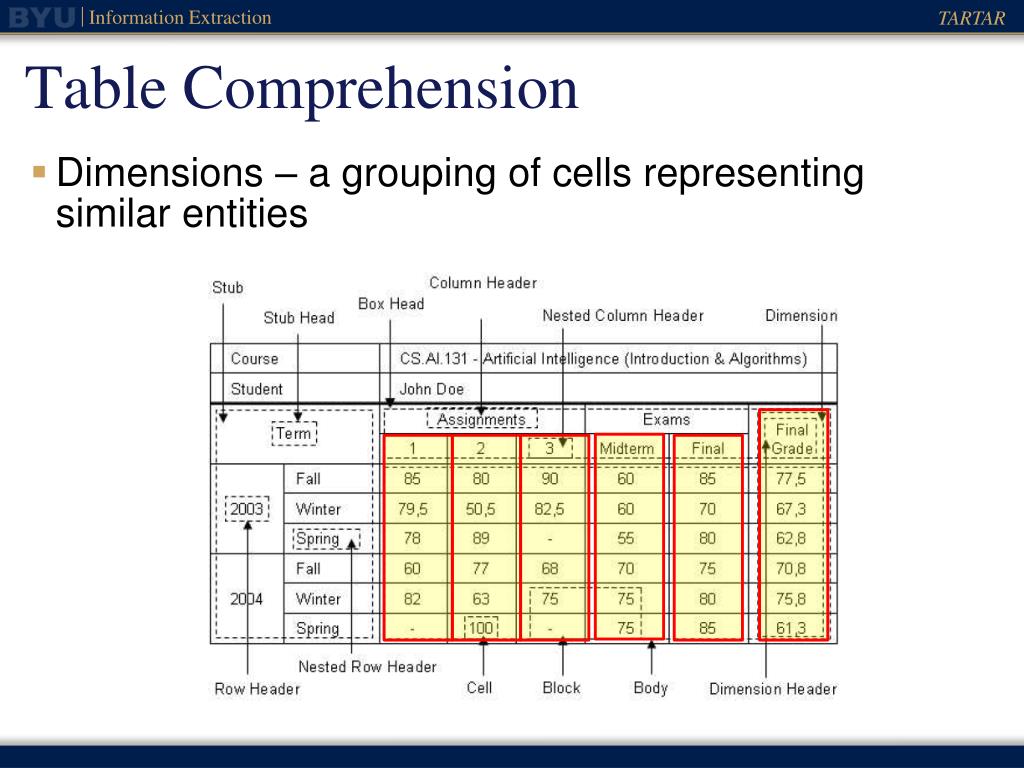

  6. Table Comprehension • Dimensions – a grouping of cells representing similar entities

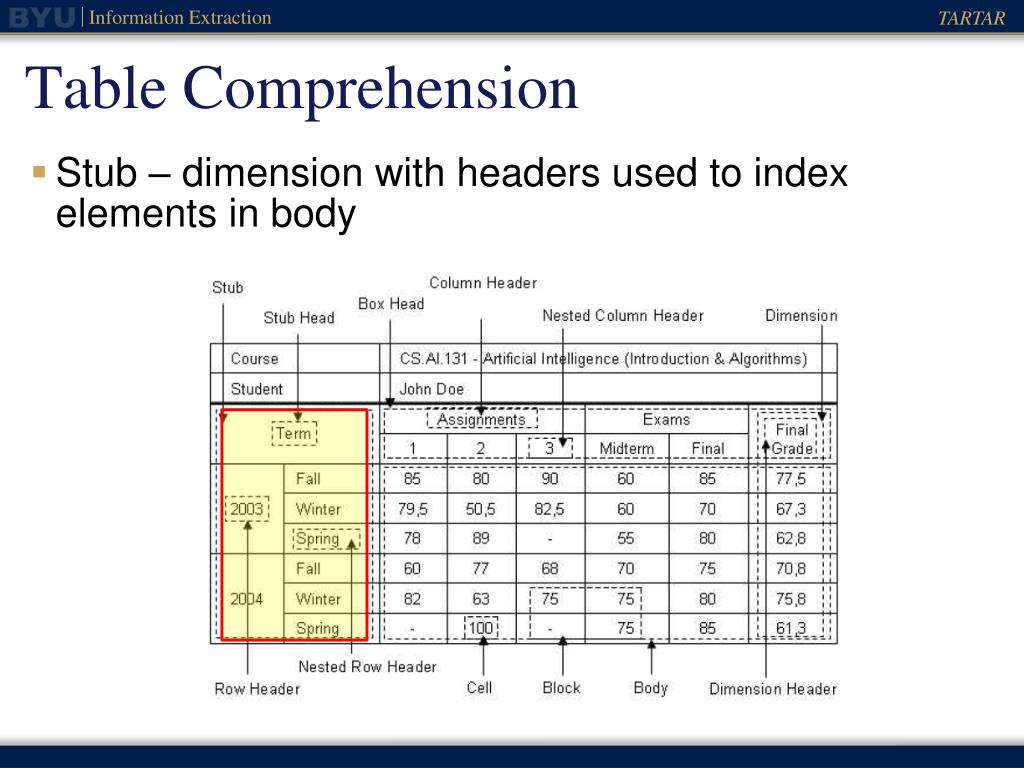

  7. Table Comprehension • Stub – dimension with headers used to index elements in body

  8. Table Comprehension • Box head – column headers (often nested)

  9. Table Comprehension • Body – data values

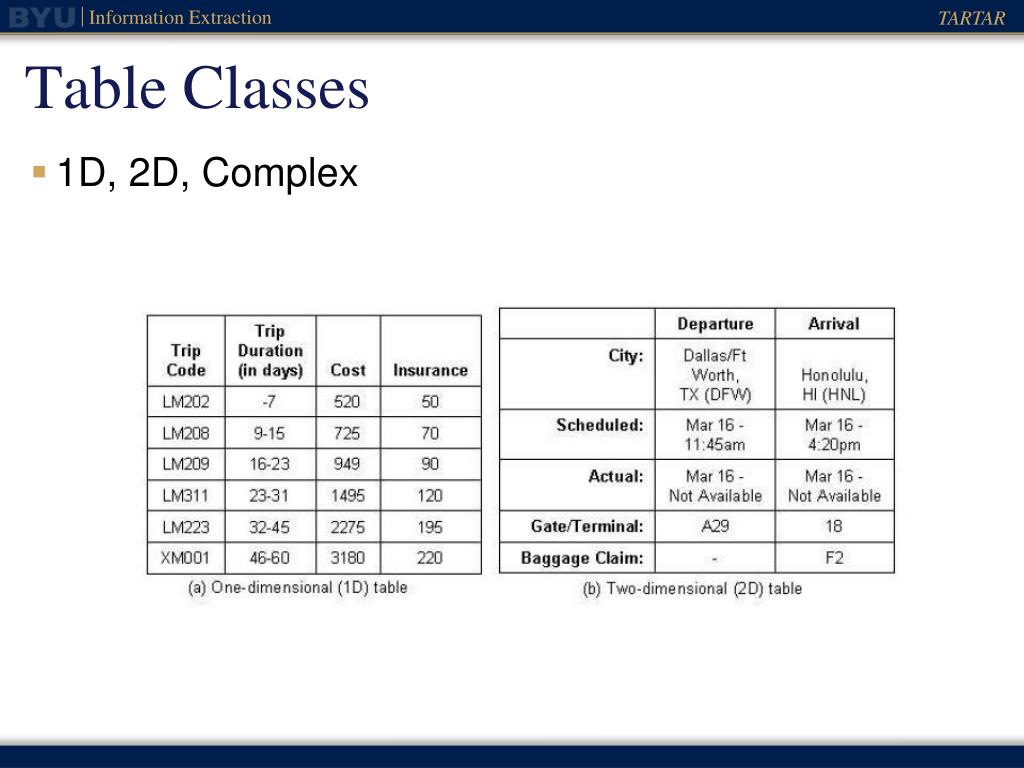

  10. Table Classes • 1D, 2D, Complex

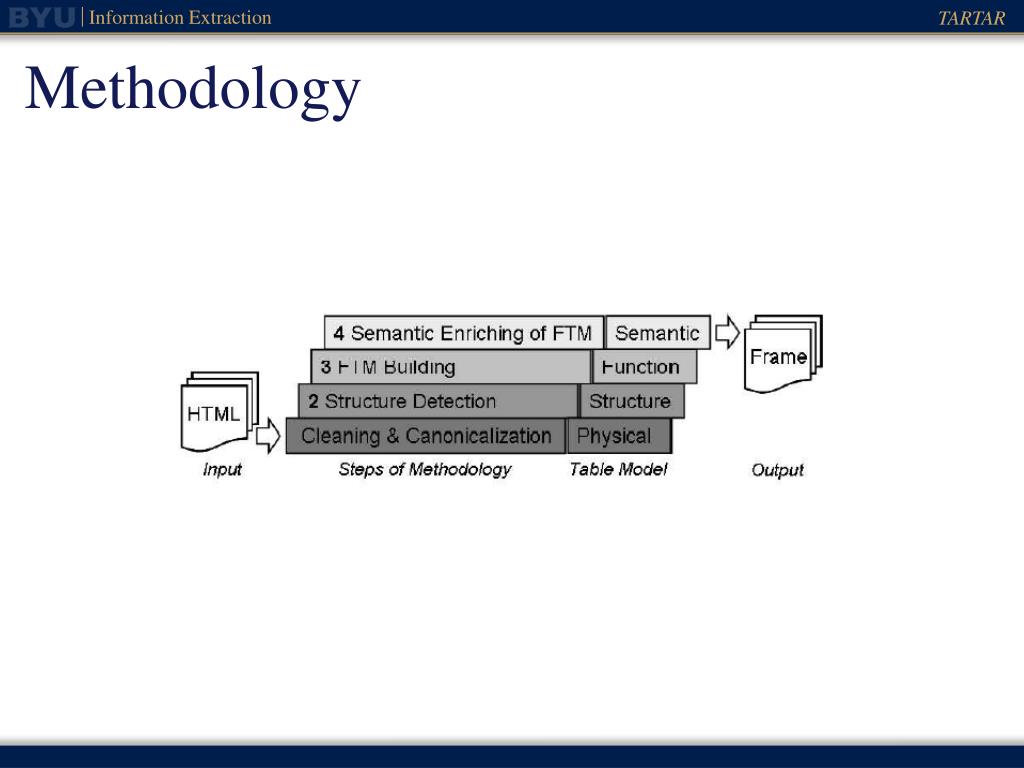

  11. Methodology

  12. Cleaning & Canonicalization • Clean DOM tree • CyberNeko HTML Parser • Rowspan/Colspan expansion

  13. Structure Detection • Token Type Hierarchy • Assign Functional Types and Probabilities

  14. Structure Detection • Detect Logical Table Orientation

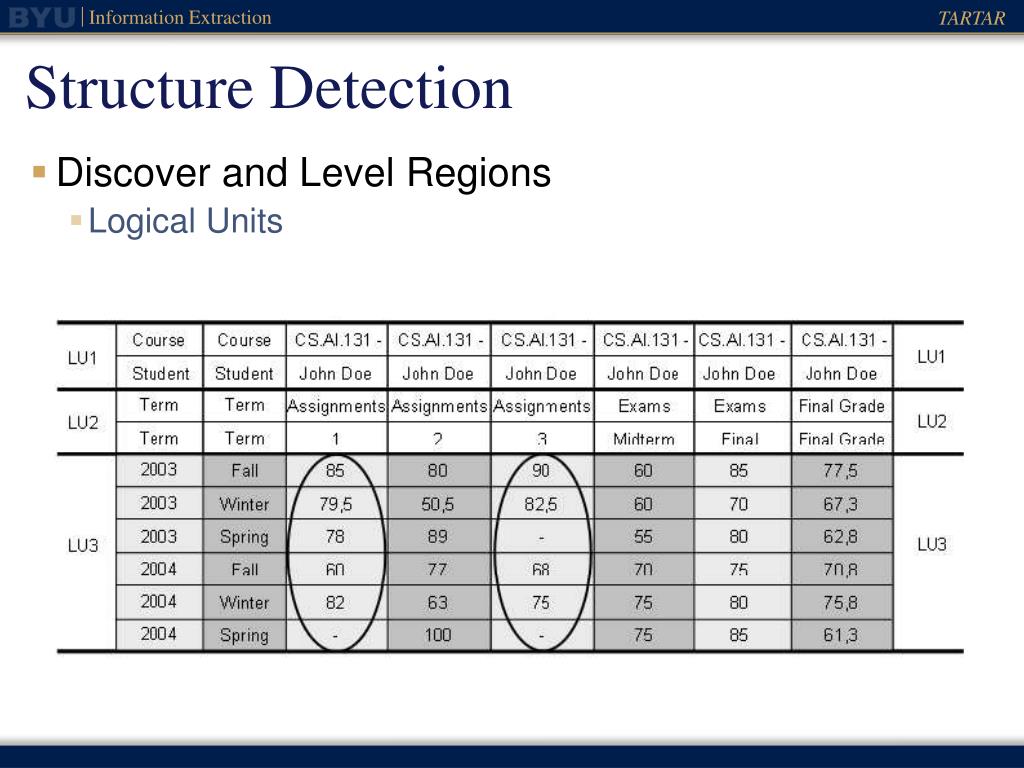

  15. Structure Detection • Discover and Level Regions • Logical Units

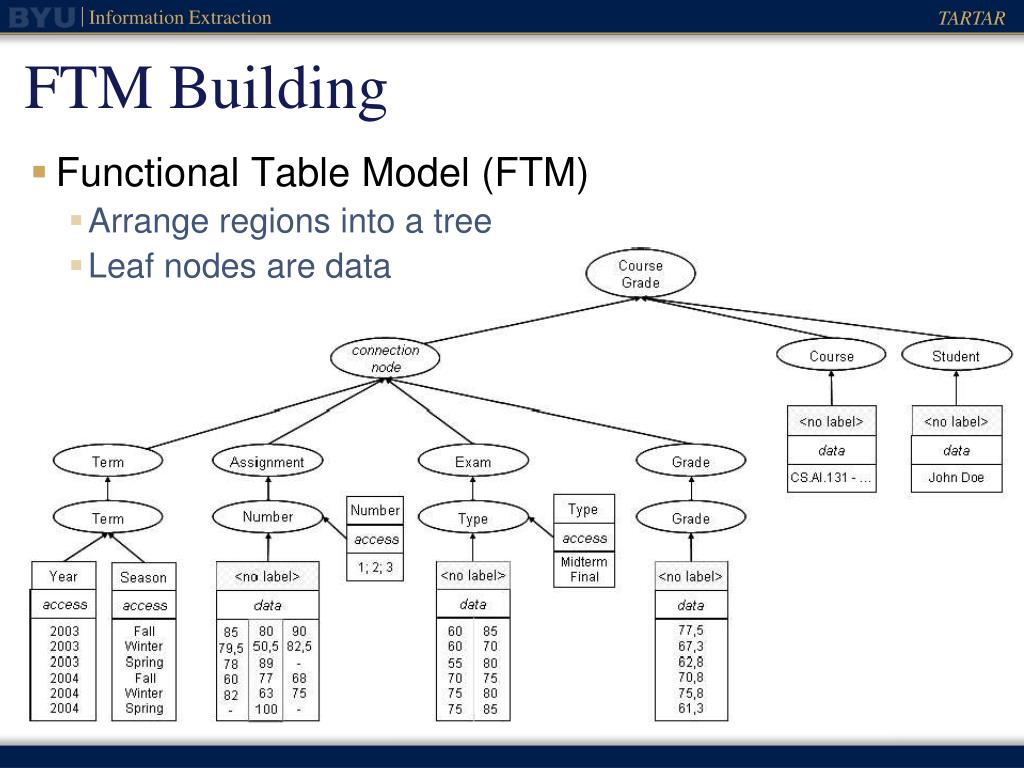

  16. FTM Building • Functional Table Model (FTM) • Arrange regions into a tree • Leaf nodes are data

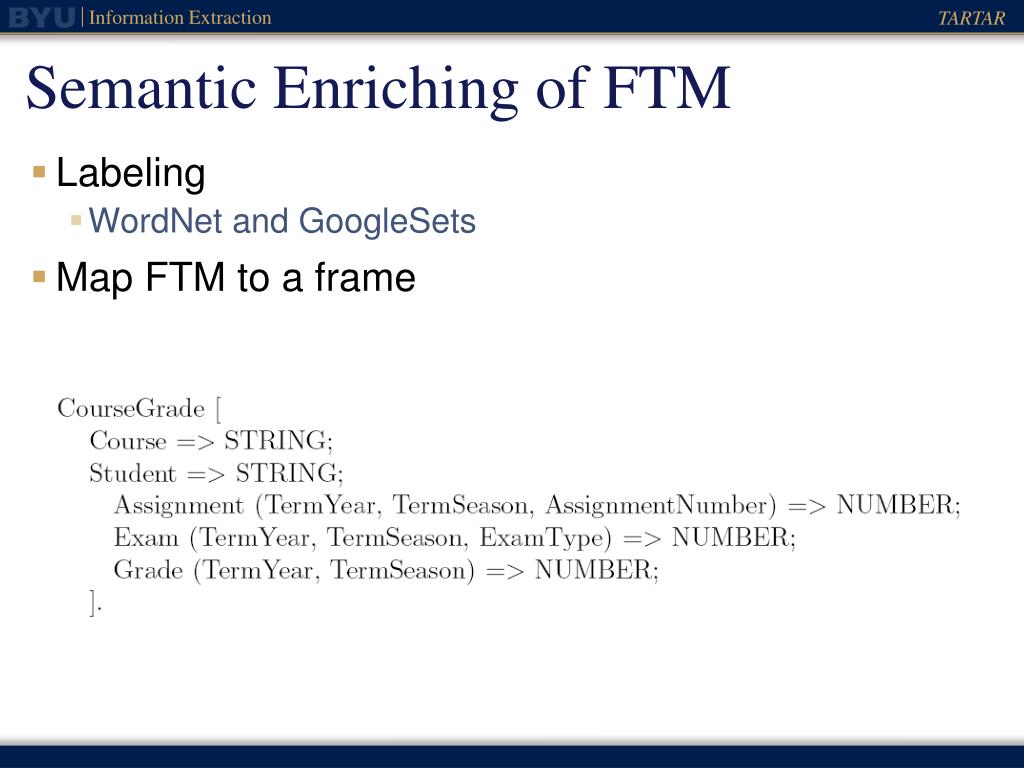

  17. Semantic Enriching of FTM • Labeling • WordNet and GoogleSets • Map FTM to a frame

  18. Evaluation • Crawl, extract, filter web tables • 135 tables • 85.4% success rate • Mostly problems with complex tables • Compare auto-generated frames with human generated frames • 14 people transformed 3 tables each • 21 total tables (each done twice) • Syntactic/Semantic correctness (Strict and Soft)

  19. Results Inter-annotator agreement System-annotator agreement

  20. Benefits • Fully automated knowledge formalization • Arbitrary tables • Independent of domain knowledge • Independent of document type • Explicit semantics of generated frames • Query answering over heterogeneous tables
