  1. ANF Detection Network Dave Foster dfoster@asascience.com Guy de Wardenergdewardener@asascience.com

  2. Resources • Confluence page: https://confluence.oceanobservatories.org/display/CIDev/ANF-SQLstream+Integration • ANF Detection Network code: https://github.com/daf/anf-detection-network

  3. Introduction / Goals • Using elastic processing (cloud computing) to operate on seismic data • Drive development and test ION (https://confluence.oceanobservatories.org/display/CIDev/Home) • Data from Array Network Facility (http://anf.ucsd.edu/) • Uses SQLstream (http://sqlstream.com/) for processing for real time processing

  4. (con’t) • Continuation of POC/Prototype (Aug 2009, https://confluence.oceanobservatories.org/display/CIDev/SQLstream+Prototype)

  5. Architecture

  6. (con’t) • ANF Application Controller • Part of four op units in a deployment • Listens for instrument announcements, partitions those instruments into AMQP queues, requests SQLstream worker op units be created • ANF Application Agent • Runs on SQLstream worker op unit • Manages SQLstream instances, communicates status with Application Controller

  7. AppAgent • Installs/configures SQLstream on demand from AppController • Allows us to use common base image • More than one SQLstream instance (listening to different queues) can be run on a worker op unit • Downsides: time spent transferring installer from S3, time spent installing SQLstream

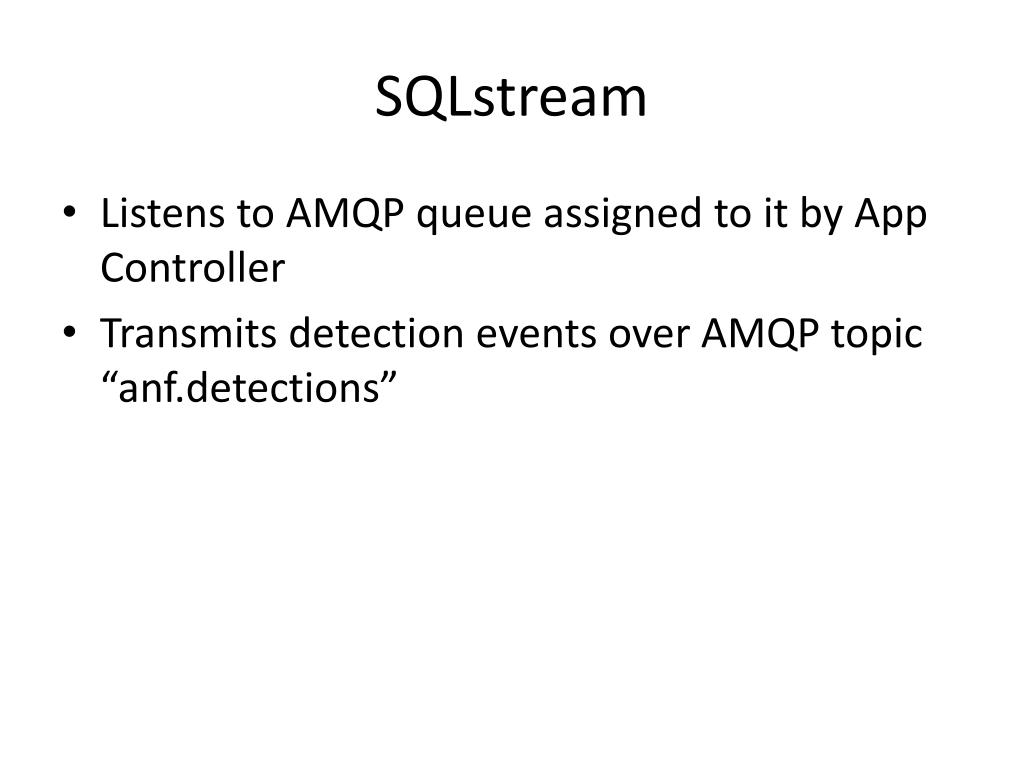

  8. SQLstream • Listens to AMQP queue assigned to it by App Controller • Transmits detection events over AMQP topic “anf.detections”

  9. Deployment • Uses CEI developed tools cloudinit.d, epumgmt • cloudinit.d: https://github.com/nimbusproject/cloudinit.d • epumgmt: https://github.com/nimbusproject/epumgmt • Actual startup commands: • cloudinitd boot launch-plans/anf/main.conf -n anf -v -v -f /tmp/anf.log • epumgmt.sh -a find-workers -n anf --wholerun • epumgmt.sh -a logfetch -n anf --wholerun

  10. Demo • Live system • 30 stations • Captured Data • 10 stations, showing events

  11. Metrics Instrument Announce ~ 7:20 startup

  12. (con’t) SQLstream running 4:58 36s 12.5s 44.47s 175.40s (2:55)

  13. Future Goals • Data Preservation • Detections, possibly input events • Service Hardening • Distributed, stateless processes • Replacement for instrument announcement • True load balancing • Need more metrics with live data

  14. (con’t) • Monitoring • Graphical dashboard showing SQLstream op units, queues/bindings, consumption rates
