  1. Michael Birsak and Michael Hanzl Institute of Computer Graphics and Algorithms Vienna University of Technology

  2. Outline • Motivation • Relatedwork • Game description • Implementation • Performance • Demo • Future Work • Conclusions M. Birsak, M. Hanzl

  3. Motivation • Developandrelease a 3D game • Google Android • OpenGL ES • Experiment withAndroid • NOT a computergraphicsdemo!!! M. Birsak, M. Hanzl

  4. Related Work • Many 2D games (tiles) • Basicallyno 3D game in Spring 2009 • Now: Some 3D gamesavailable • Android Knight (3D Chessgame) • Games fromOmniGSoft: • Super-G Stunt • Snow Rally City Stage • … M. Birsak, M. Hanzl

  5. Idea • Space Taxi forCommodore 64 (1984) • Space Taxi 2 (2004) • Someinofficialversions M. Birsak, M. Hanzl

  6. Game Overview • 3D, but discreteheightlevels • 7 levels + 7 bonuslevels • 3 lives & power • Transport passengers in 3 minutes • Score • Highscore M. Birsak, M. Hanzl

  7. Game Objects • Transporter • Passenger • Terrorist • Asteroid • Geyser Bullet • Packet • Banana M. Birsak, M. Hanzl

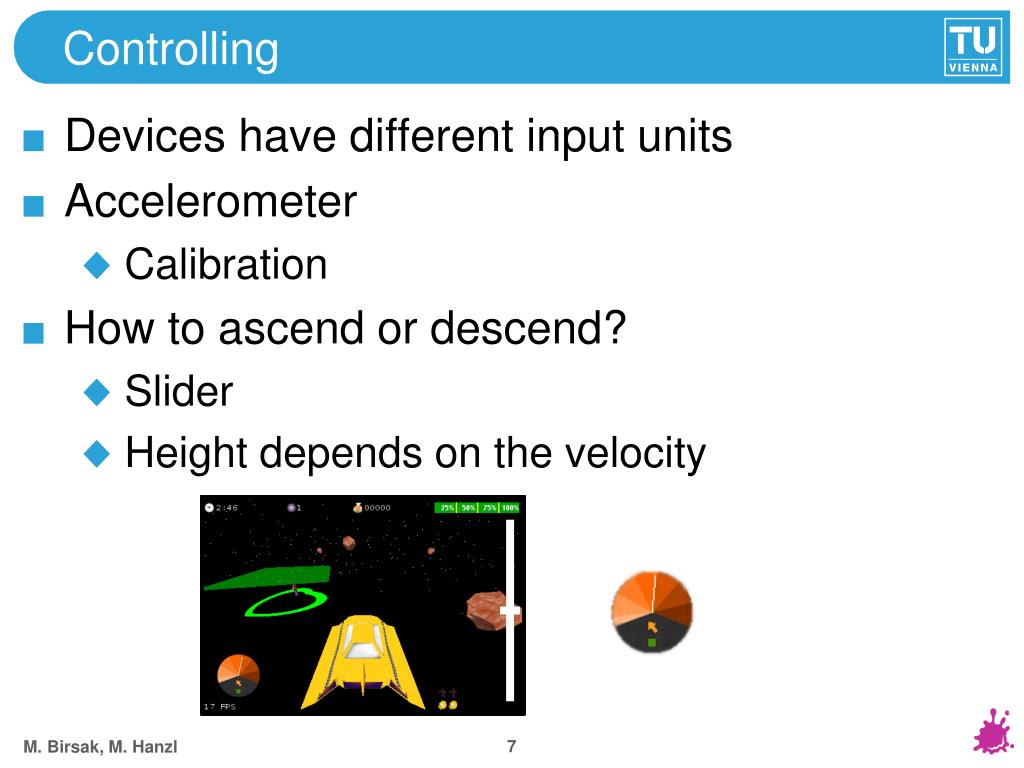

  8. Controlling • Devices have different inputunits • Accelerometer • Calibration • Howtoascendordescend? • Slider • Height depends on thevelocity M. Birsak, M. Hanzl

  9. ImplementationOverview • CollisionDetection • View FrustumCulling • Modelloader (obj) • LOD • Effects • Random levelgeneration • Ownmodels & images & sounds • Settings • Local & Online Highscore M. Birsak, M. Hanzl

  10. Highscore Features Online Highscore LocalHighscore Compareyourownresults Delete all entries • Competeagainstotherusers • Onlyoneentry per user • Registration required • Searchforyourownresult • View highscore on yourAndroiddevice • Detailedoverviewofthehighscoreentries • Overviewofyourresult after insert • Correcthandlingof time zones • Correcthandlingofties M. Birsak, M. Hanzl

  11. HighscoreImplementation • LocalHighscore • SQLite • Online Highscore • Insert / Login / Register: HTTP Post (HTTPS!) • Retrieve Data: HTTP / XML • Web-Server: PHP / MySQL Client Server HTTP Post Response Androiddevice Webserver M. Birsak, M. Hanzl

  12. Highscore Security • Avoid SQL-Injections • Check andconstraintheuserinput • PHP escapefunction • Password → SHA-512 Hash • Secure connection (HTTPS) • Check thehighscore • Special „password“ • Check constraints:s-pt:22-pt:48-pt:17-pt:10-le:1-ti:28-b-b-le:1001-pk-pp-d-d-d M. Birsak, M. Hanzl

  13. Lifecycle • Activitiescouldbeinterrupted • Activity not killed • Activitykilled • Screen orientationchange • Lessmemory • Save / restorestate • Do not block themainthread! • Avoidinjuries!!! M. Birsak, M. Hanzl

  14. Performance Issues • Geometry • Rasterizer • Creatingobjects expensive • GarbageCollector (~100 - 300ms) • ObjectOriented Design • Functioncalls: local, via interface, JNI • Loadingandparsing ASCII filesisslow M. Birsak, M. Hanzl

  15. Performance Solution • Reuse yourobjects→ Object Pool • Try toavoidgarbage • Concatenated Strings / Java built-in methods! • InvokeGarbageCollectormanually • Decreasethenumberofpolygonsto render • Usethedraw_textureextension • Use Java ObjectSerializationfor model loading • Write codethatis fast Reference: Chris Pruett: Writing Real Time Games ForAndroid, Google IO 09, May 2009 M. Birsak, M. Hanzl

  16. Performance • G1: 20 - 30 FPS • Emulator: 10 - 20 FPS (Dual Core 2x3Ghz) • Models: 18 - 508 / 372 triangles M. Birsak, M. Hanzl

  17. Demo M. Birsak, M. Hanzl

  18. Skills andBenefits • Controlling thegameis not easy! • Measuringdistances • Spatialimagination • Find strategiesveryquickly • Balance betweenspeedand score • Trust in luck • Work under stress M. Birsak, M. Hanzl

  19. Future work • Save thegame • Highscoresearch • Objects • Planets / suns • Spaceships (enemies) • Effects • LensFlare M. Birsak, M. Hanzl

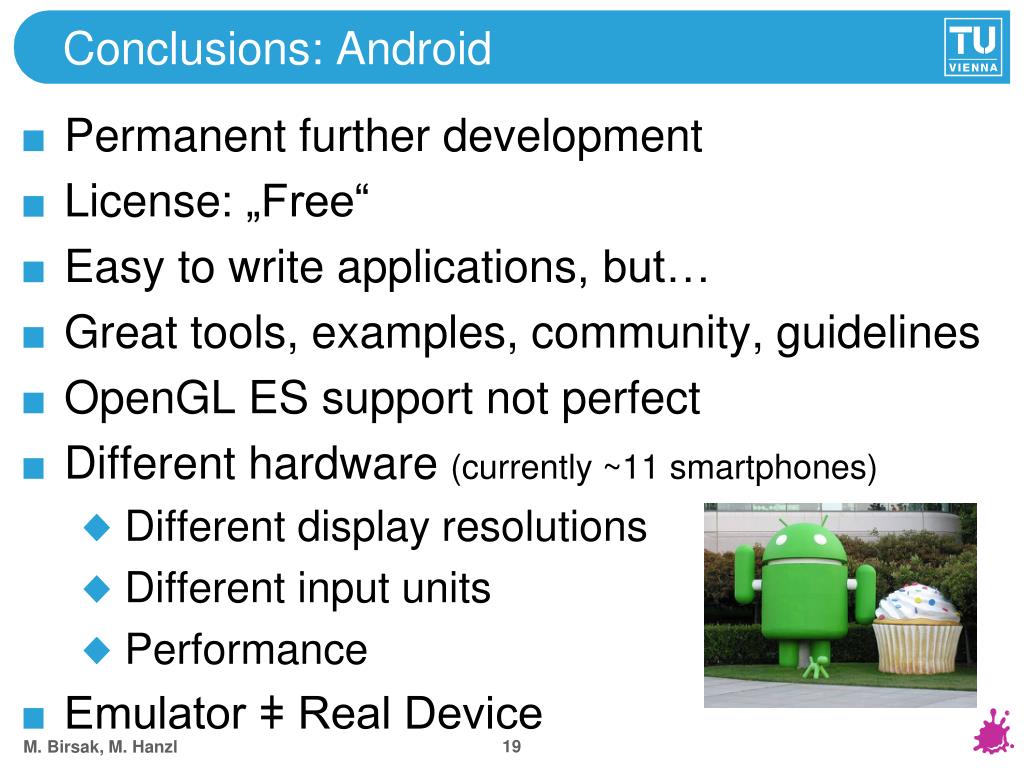

  20. Conclusions: Android • Permanent furtherdevelopment • License: „Free“ • Easy towriteapplications, but… • Great tools, examples, community, guidelines • OpenGL ES support not perfect • Different hardware(currently ~11 smartphones) • Different displayresolutions • Different inputunits • Performance • Emulator ǂ Real Device M. Birsak, M. Hanzl

  21. The END • Thankyouforyourattention • Special thanksto Peter Rautek & theinstitute • Are thereanyquestions? M. Birsak, M. Hanzl
