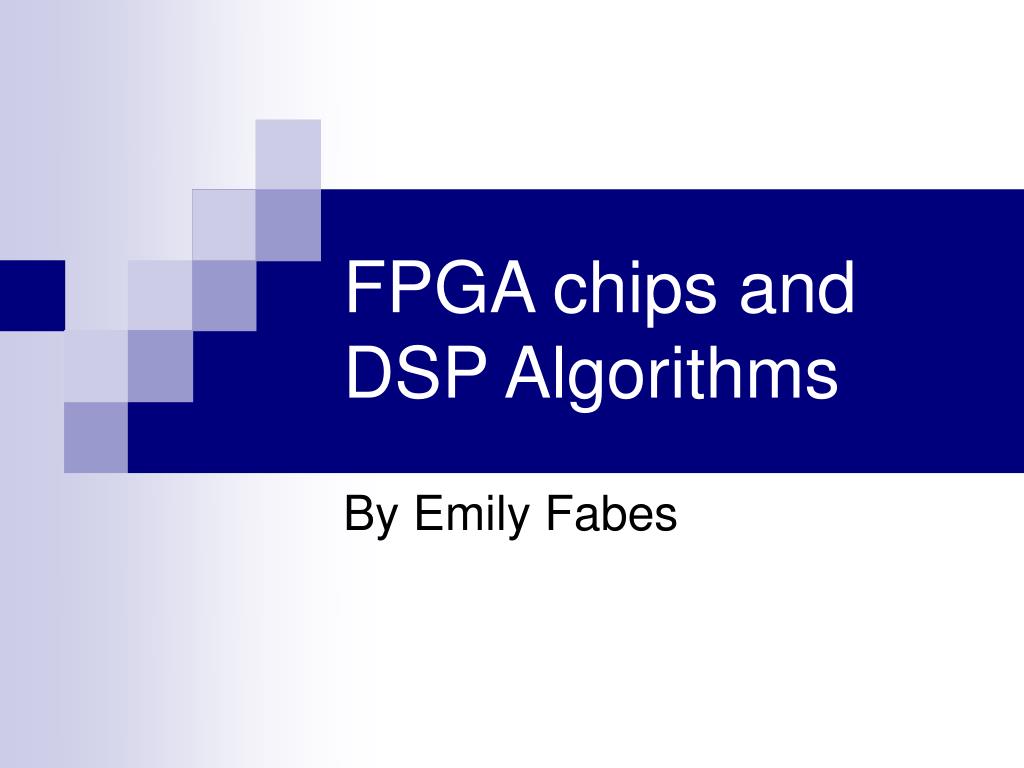

  1. FPGA chips and DSP Algorithms By Emily Fabes

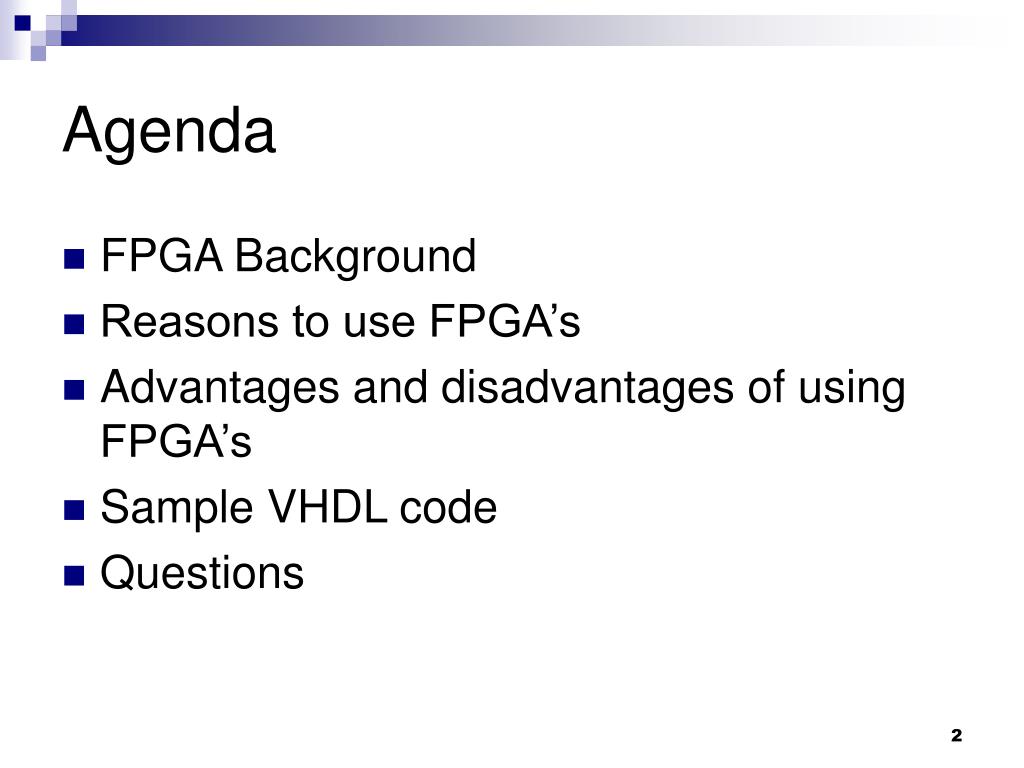

  2. Agenda • FPGA Background • Reasons to use FPGA’s • Advantages and disadvantages of using FPGA’s • Sample VHDL code • Questions

  3. FPGA Background Information • Field Programmable Gate Arrays • Made up of Logic Blocks, I/O Blocks and Programmable Interconnect

  4. Programming FPGA’s • Method #1 – Using a hardware description language (e.g.. VHDL) • High level design for FPGA’s • Routing and wiring done automatically • Method #2 – Using placing components manually using a schematic drawing tool • Low level design for FPGA’s

  5. Circuit Implementation • Combinational Logic • No dependence on previous input values • Ex. AND gate, OR gate, NOT gate • Sequential Logic • Has dependence on previous input values • Contains a flip-flop, which give “memory” to the circuit

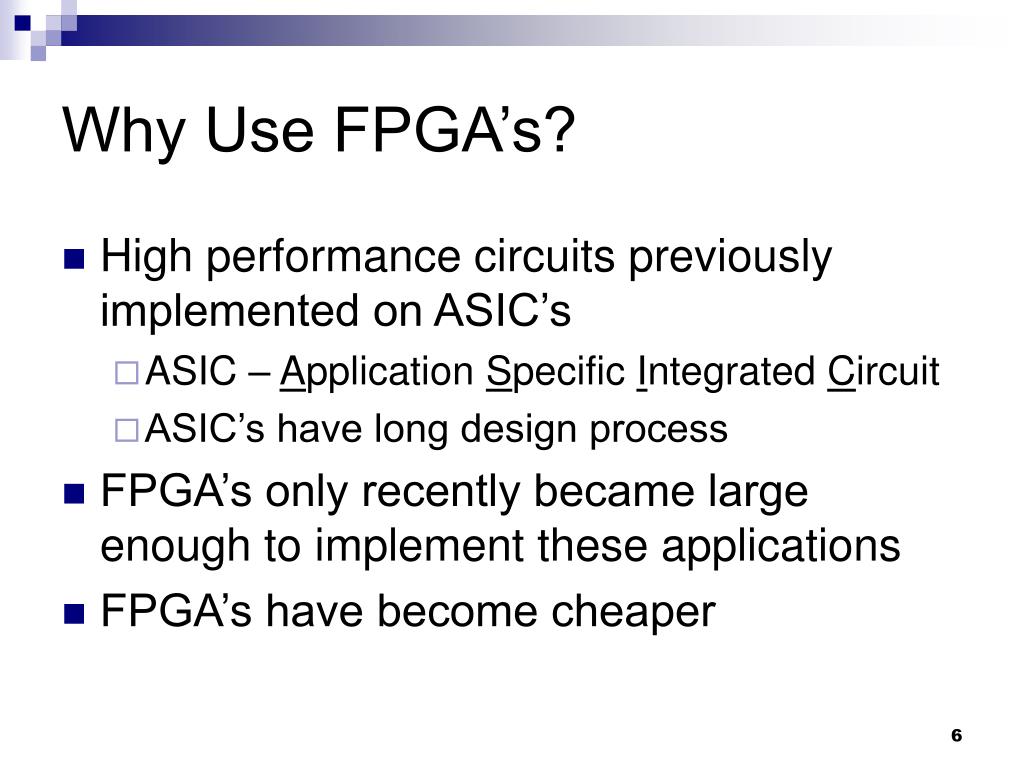

  6. Why Use FPGA’s? • High performance circuits previously implemented on ASIC’s • ASIC – Application Specific Integrated Circuit • ASIC’s have long design process • FPGA’s only recently became large enough to implement these applications • FPGA’s have become cheaper

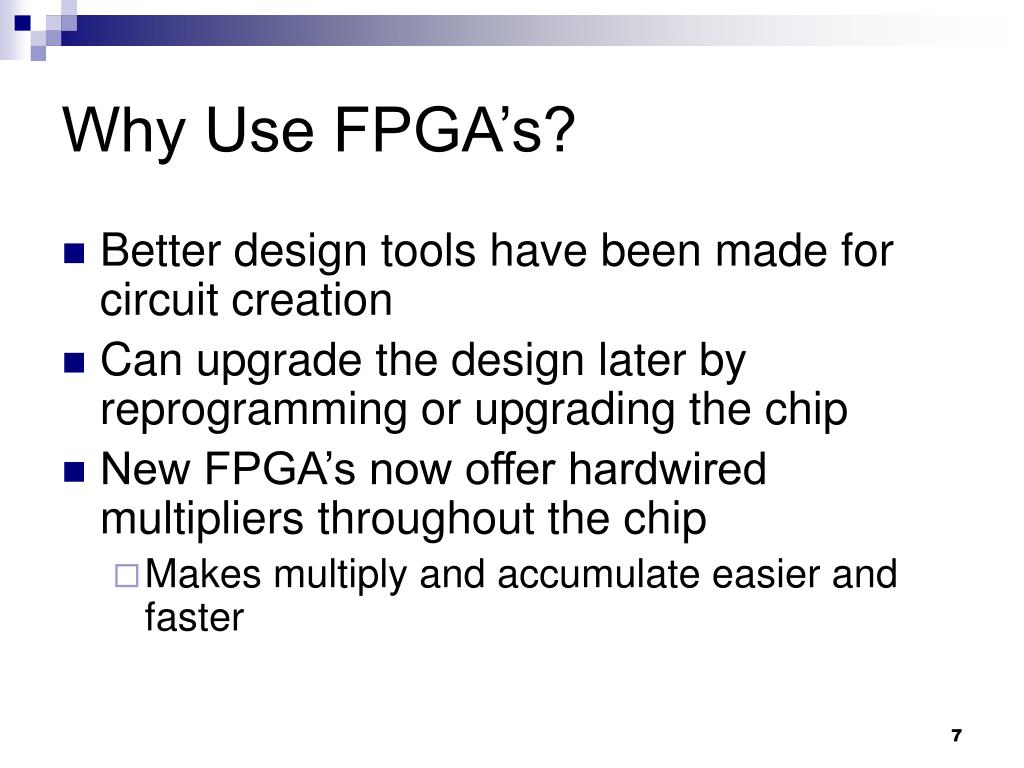

  7. Why Use FPGA’s? • Better design tools have been made for circuit creation • Can upgrade the design later by reprogramming or upgrading the chip • New FPGA’s now offer hardwired multipliers throughout the chip • Makes multiply and accumulate easier and faster

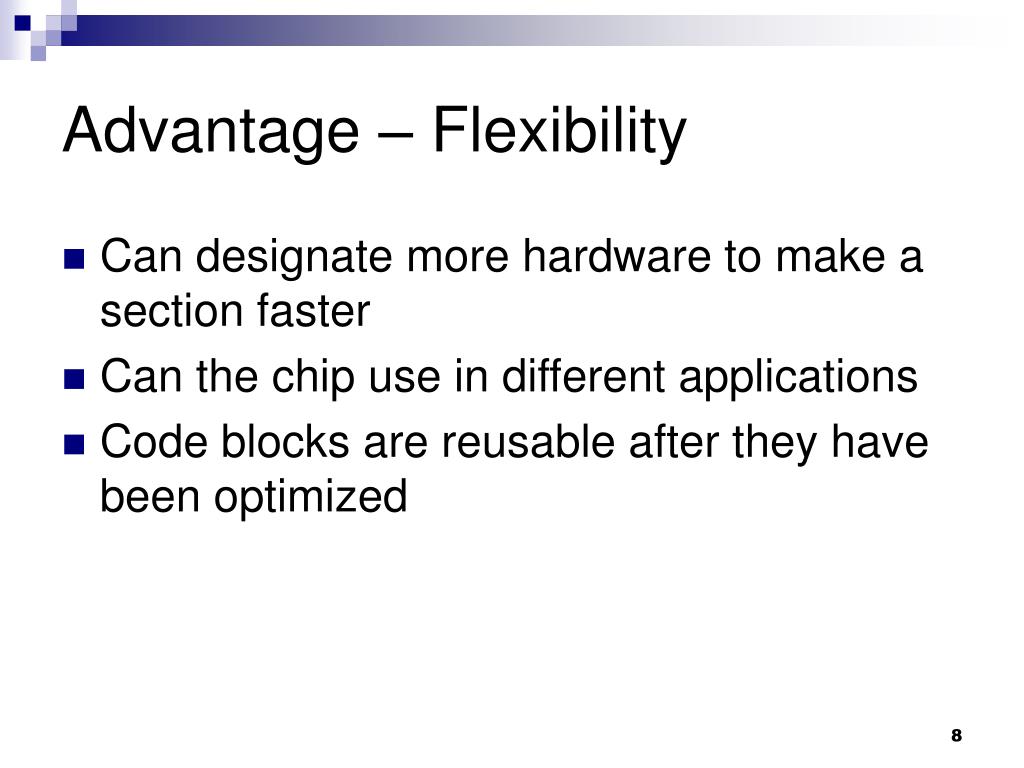

  8. Advantage – Flexibility • Can designate more hardware to make a section faster • Can the chip use in different applications • Code blocks are reusable after they have been optimized

  9. Advantage – Precision • Precision can easily be added to any point in a circuit • Example VHDL code • signal u_k : std_logic_vector(15 downto 0); • signal u_k_3 : std_logic_vector(17 downto 0); • Disadvantage – takes up resources

  10. Advantage – Shifting • Shifting by multiples of two is easy and efficient • Virtually no hardware cost, just wiring • Can implement multiplies as combinations of shifts and adds • 3 = 20 + 21

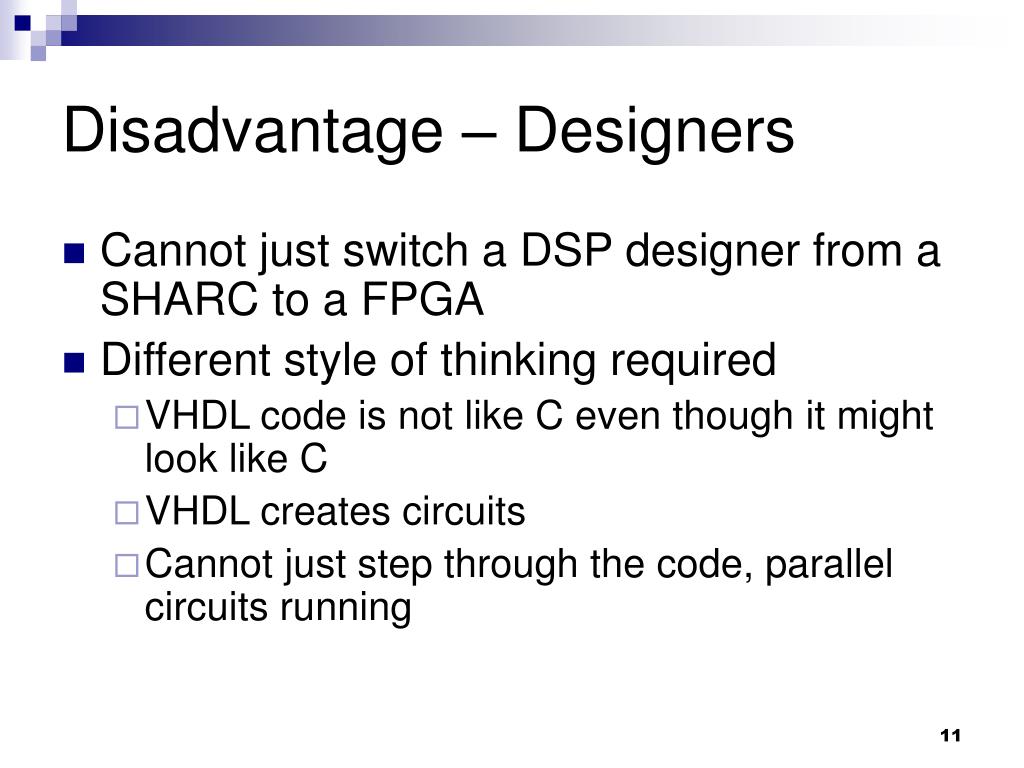

  11. Disadvantage – Designers • Cannot just switch a DSP designer from a SHARC to a FPGA • Different style of thinking required • VHDL code is not like C even though it might look like C • VHDL creates circuits • Cannot just step through the code, parallel circuits running

  12. Disadvantage – Timing • Make sure that when using sequential circuits that data is valid when you need it • Routing delays

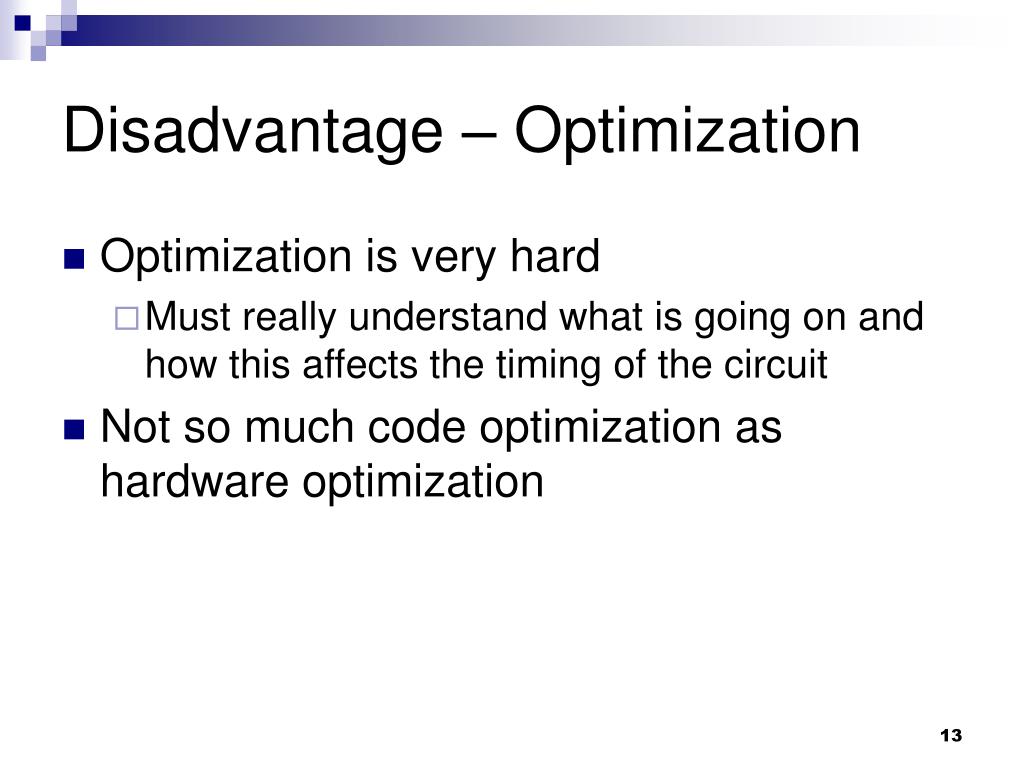

  13. Disadvantage – Optimization • Optimization is very hard • Must really understand what is going on and how this affects the timing of the circuit • Not so much code optimization as hardware optimization

  14. VHDL Code Example

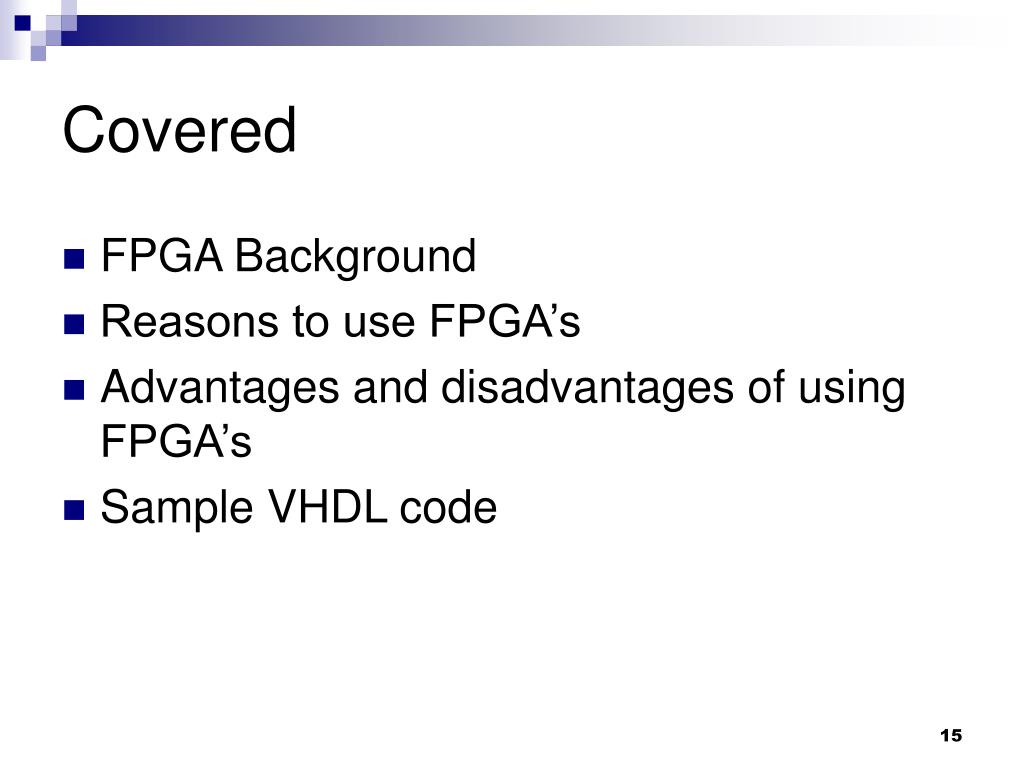

  15. Covered • FPGA Background • Reasons to use FPGA’s • Advantages and disadvantages of using FPGA’s • Sample VHDL code

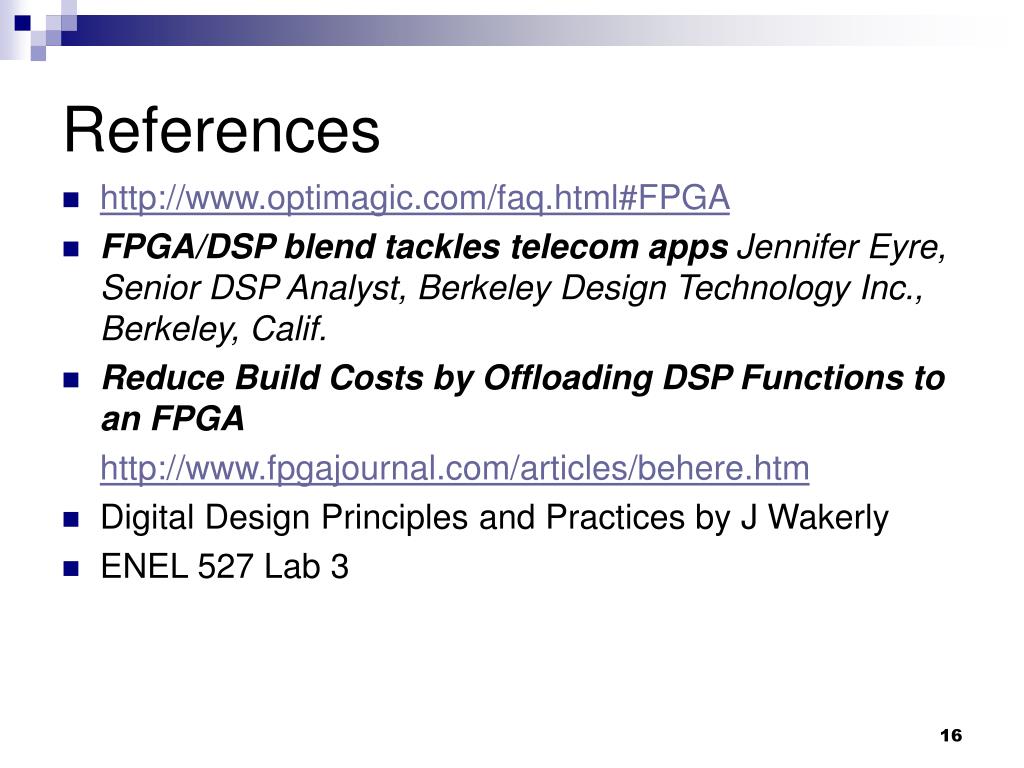

  16. References • http://www.optimagic.com/faq.html#FPGA • FPGA/DSP blend tackles telecom appsJennifer Eyre, Senior DSP Analyst, Berkeley Design Technology Inc., Berkeley, Calif. • Reduce Build Costs by Offloading DSP Functions to an FPGA http://www.fpgajournal.com/articles/behere.htm • Digital Design Principles and Practices by J Wakerly • ENEL 527 Lab 3

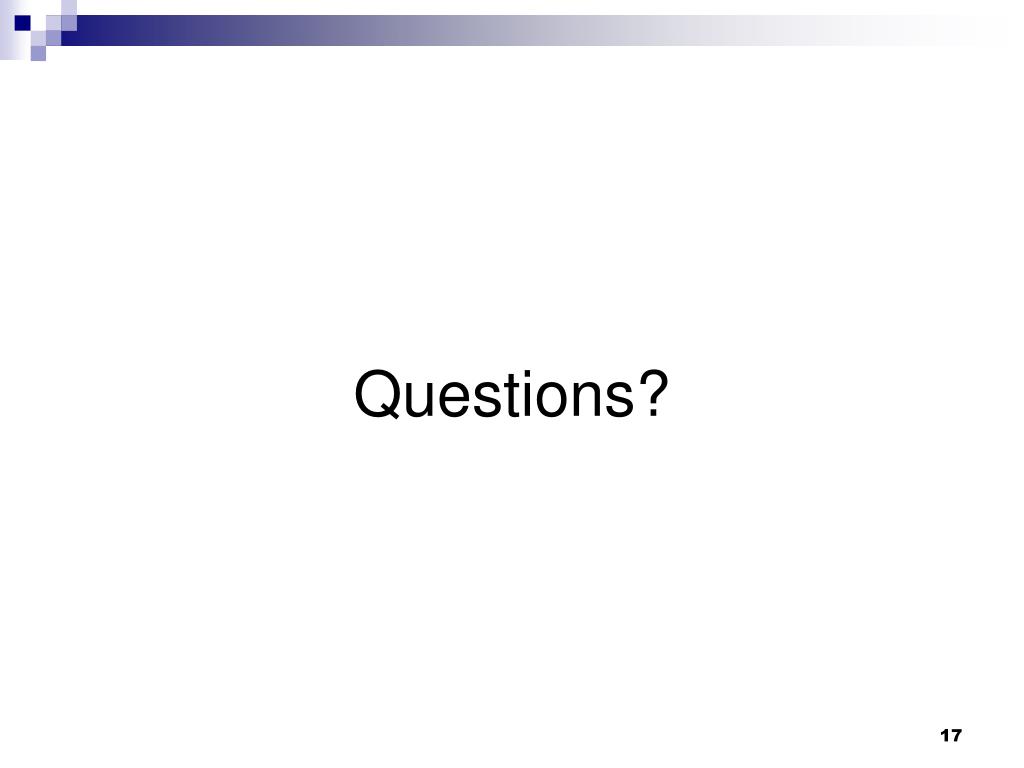

  17. Questions?
