  1. SSS BharatiVidyapeeth’s College of Engineering for Women, Pune- 43. Providing Multiple Initiator Support For FCoE. Under The Guidance Of Prof. Mrs.Pranoti Kale. By HarshadaKshirsagar. PoojaRamrakhyani. TejashreeVinode.

  2. Objectives And Purpose

  3. Objectives And Purpose.. Target Initiator Communication in FCoE Providing Multiple Initiator Support

  4. Introduction to SAN and FCoE SAN FC initiator target SAN network disks initiator SAN : Storage area network FC : Fibre Channel

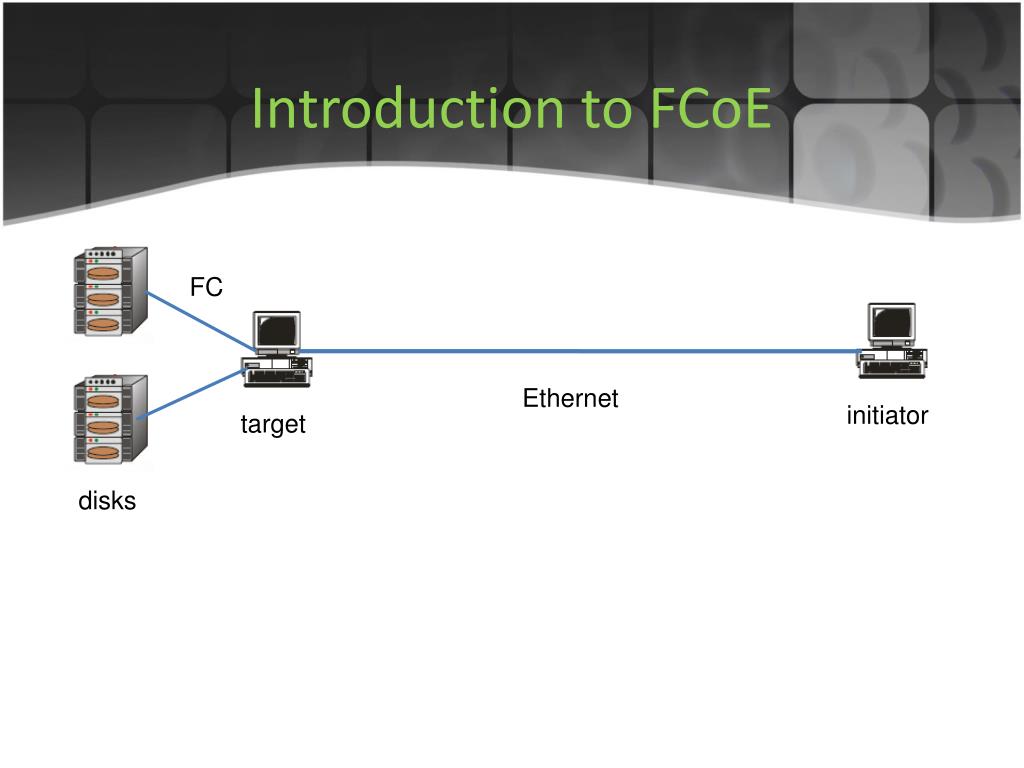

  5. Introduction to FCoE FC Ethernet initiator target disks

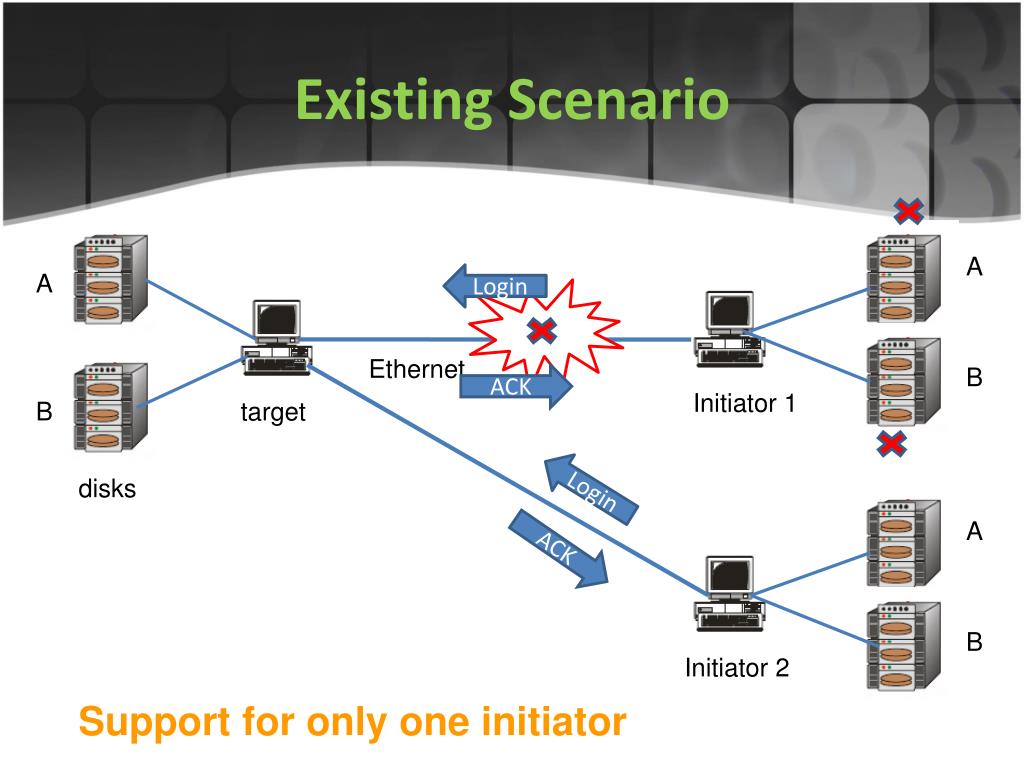

  6. Existing Scenario A A Login Ethernet B ACK Initiator 1 B target disks Login A ACK B Initiator 2 Support for only one initiator

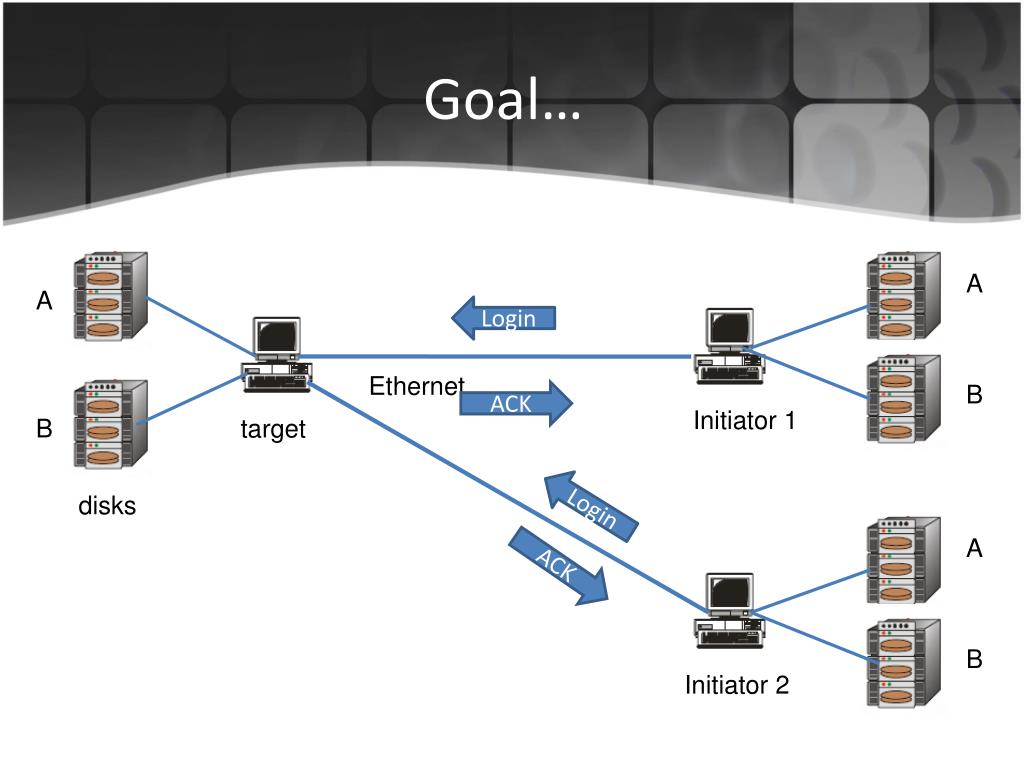

  7. Goal… A A Login Ethernet B ACK Initiator 1 B target disks Login A ACK B Initiator 2

  8. UML Diagrams

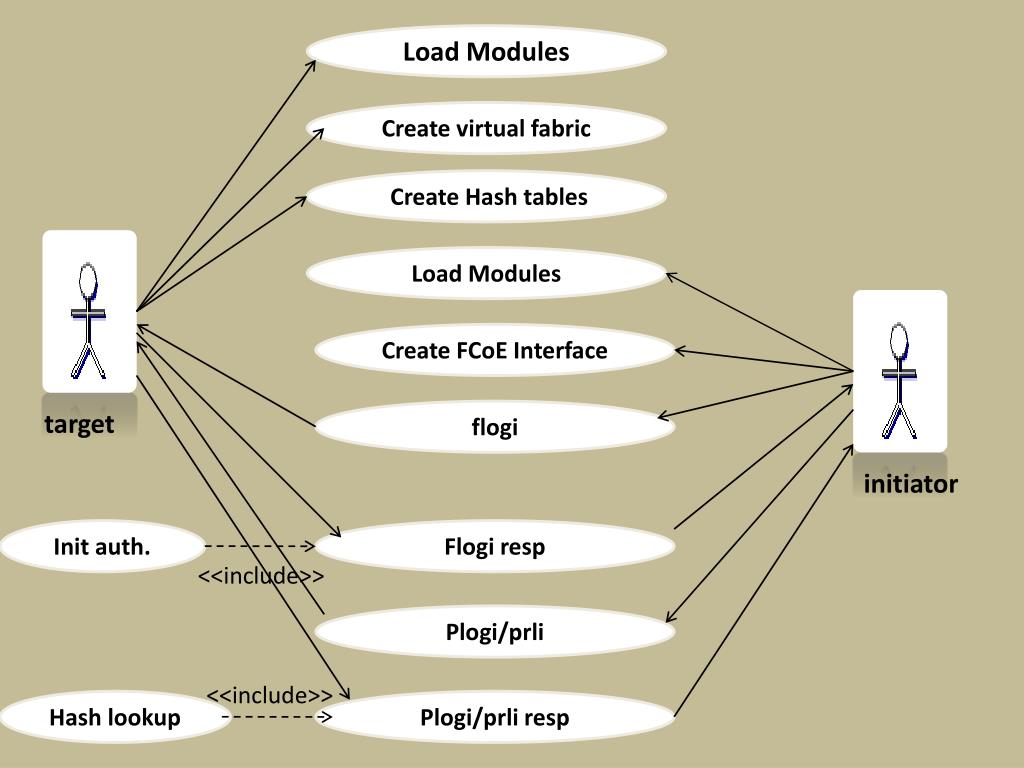

  9. Load Modules Create virtual fabric Create Hash tables Load Modules Create FCoE Interface target flogi initiator Init auth. Flogiresp <<include>> Plogi/prli <<include>> Hash lookup Plogi/prliresp

  10. Deployment Diagram

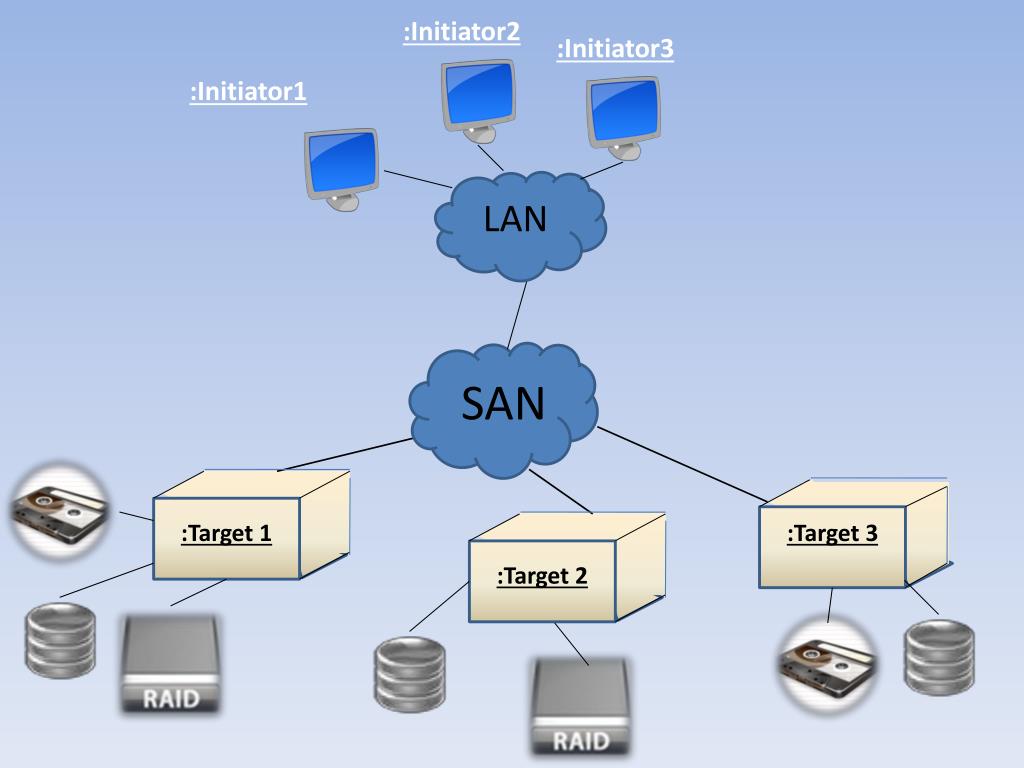

  11. :Initiator2 :Initiator3 LAN :Initiator1 SAN :Target 1 :Target 3 :Target 2

  12. TEST cASES

  13. TEST case 1.:The initiator must load FCoE module The initiator must load FCoE module It checks the authorization of the initiators and is a security measure. Entries of the initiator entry at the target side Only authorized initiators are to be sent accept response.

  14. TEST case 2.: All the initiators must be in login state All the initiators must be in login state It checks if the Luns are exported or not.. Luns entry at the /proc level All the LUNs must get exported to all the initiators

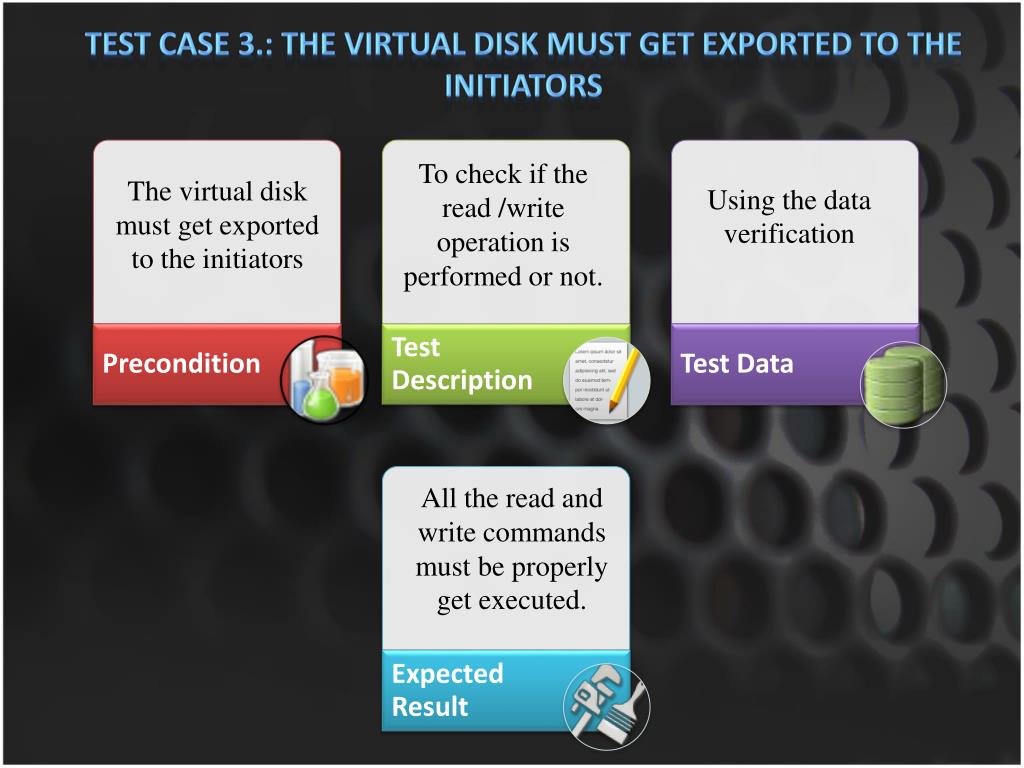

  15. TEST case 3.: The virtual disk must get exported to the initiators To check if the read /write operation is performed or not. The virtual disk must get exported to the initiators Using the data verification All the read and write commands must be properly get executed.

  16. Coding Part Covered.. Work In Progress

  17. Workstation Establishment

  18. Screen shots Work in progress…

  19. Kernel Modules Insertation

  20. Thank-you.
