  1. DISTRIBUTED FILE SYSTEMS Computer Engineering Department Distributed Systems Course Asst. Prof. Dr. AhmetSayar • Kocaeli University - Fall 2013

  2. File System Basics • File: named collection of logically related data • Unix file: an uninterpreted sequence of bytes • File system: • Provides a logical view of data and storage functions • User-friendly interface • Provides facility to create, modify, organize, and delete files • Provides sharing among users in a controlled manner • Provides protection

  3. Client-Server Architectures (1) • Remote access model – work done at server • Stateful server • Consistent sharing (+) • Server may be bottleneck (-) • Need for communication (-) • Upload download model • Stateless server • Simple functionality (+) • Moves files blocks need storage (-)

  4. System Structure: Server Type • Stateless server • No information is kept at server between client requests • All information needed to service a requests must be provided by the client with each request (what info?) • More tolerant to server crashes • Stateful server • Server maintains information about client accesses • Shorted request messages • Better performance • Idempotency easier • Consistency is easier to achieve

  5. NFS Architecture • Sun’s Network File System (NFS) – widely used distributed file system • Uses the virtual file system layer to handle local and remote files

  6. NFS Interface I

  7. NFS Interface II

  8. Communication • (a) Reading data from a file in NFS version 3. (b) Reading data using a compound procedure in version 4. • Both version use ONC’s RPC: one RPC per operation (v3), multiple operations in v4

  9. Naming: Mount Protocol • NFS uses mount protocol to access remote files. • Mount protocol establishes a local name for remote files • Users access remote files using local names; OS takes care of mapping

  10. Naming: Crossing Mount Points • NFS does not allow transitive mounts

  11. Automounting • Automounting: mount on demand

  12. Automounting • The problem with auto-mounting and its solution • Auto-mounter needs to handle all write and read to make the system transparent • Even for file systems that have been already mounted • This may incur a performance bottleneck • Solution: • Use auto-mounter only for mounting and unmounting • Mount directories in a special directory and use symbolic link

  13. File Sharing • If file sharing • Synchronizing • consistency • Performance • Necessary to determine the semantics of reading and writing precisely to avoid problems.

  14. Semantics of File Sharing I • On a single processor, when a read follows a write, the value returned by the read is the value just written.

  15. Semantics of File Sharing II • In a distributed system with caching, obsolete values may be returned.

  16. Semantics of File Sharing III • Four ways of dealing with the shared files in a distributed system • NFS implements session semantics • Can use remote access model for providing UNIX semantics (expensive) • Most implementations use local caches for performance and provide session semantics.

  17. Semantics of File Sharing IV • Unix Semantics • Can be achieved easily if there is only one file server and clients don’t cache it • All reads writes go directly to the server • Session Semantics • Most widely used • Follow remote access model (not upload download) • Make use of local cache by upload/download model • Immutable files • There is no way to open a file for writing • How to write then? • Transactions • To access a file or a group of files – begin_transaction x end_transaction • Run jobs indivisibly • If two or more transaction starts up at the same time, the system ensures final result is correct.

  18. File Locking • NFS supports file locking • Applications can use locks to ensure consistency • Locking was not part of NFS until version 3 • NFS v4 supports locking as part of the protocol (see above table)

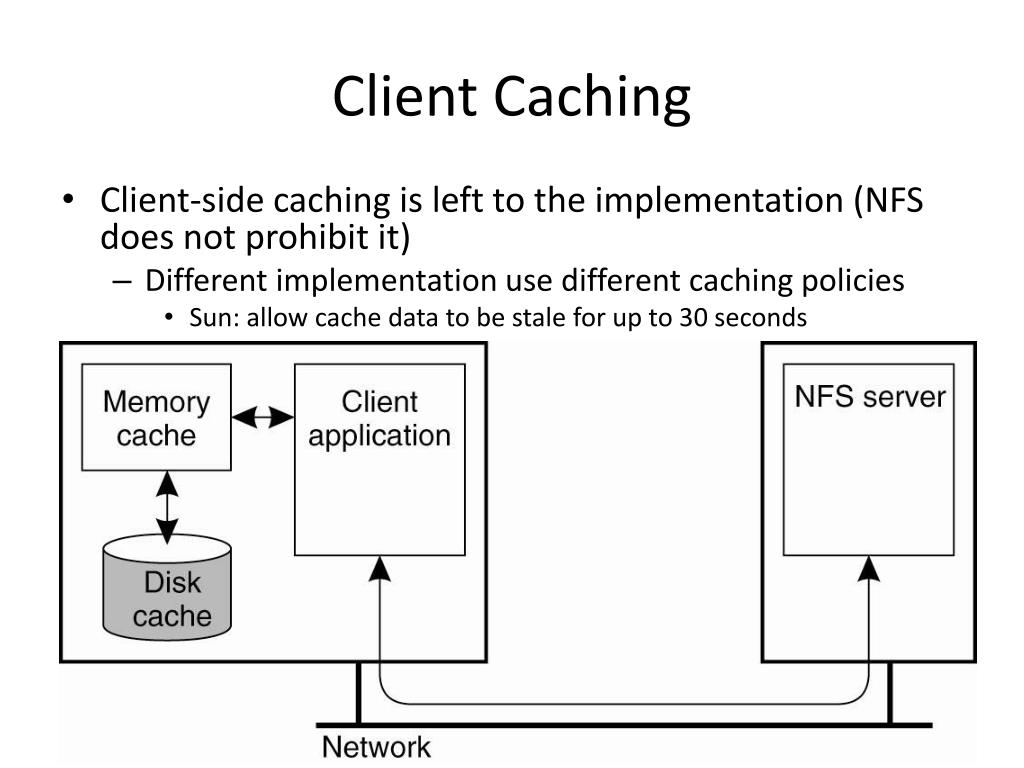

  19. Client Caching • Client-side caching is left to the implementation (NFS does not prohibit it) • Different implementation use different caching policies • Sun: allow cache data to be stale for up to 30 seconds

  20. Client Caching: Delegation • NFS V4 supports open delegation • Server delegates local open and close requests to the NFS client • Uses a callback mechanism to recall file delegation.

  21. RPC Failures • Three situations for handling retransmissions: use a duplicate request cache • The request is still in progress • The reply has just been returned • The reply has been some time ago, but was lost.

  22. AFS - CODA

  23. AFS Background • Andrew File System - ASF • Alternative to NFS • Originally a research project at CMU • Then, defunct commercial product from Transarc (IBM) - Public versions now available • Goal: Single namespace for global files (sound familiar? DNS? Web?) • Designed for wide-area file sharing and scalability • Example of stateful file system design • Server keeps track of clients accessing files • Uses callback-based invalidation • Eliminates need for timestamp checking, increases scalability • Complicates design

  24. CODA Overview • DFS designed for mobile clients • Offshoot of AFS designed for mobile clients • Nice model for mobile clients who are often disconnected • Use file cache to make disconnection transparent • At home, on the road, away from network connection • Coda supplements AFS file cache with user preferences • E.g., always keep this file in the cache • Supplement with system learning user behavior • How to keep cached copies on disjoint hosts consistent? • In mobile environment, simultaneous writes can be separated by hours/days/weeks

  25. Disconnected Operation • The state-transition diagram of a Coda client with respect to a volume. • Use hoarding to provide file access during disconnection • Prefetch all files that may be accessed and cache (hoard) locally • Emulating fact that you are connected to the file server. • Reintegration: Client and server file systems are synchronizing

  26. The RPC2 Subsystem in CODA • RPC2 is reliable RPC on top of UDP (unreliable) • Side effects comm. Ex. • In case of video transfer – isochronous communication – requires application spec protocol

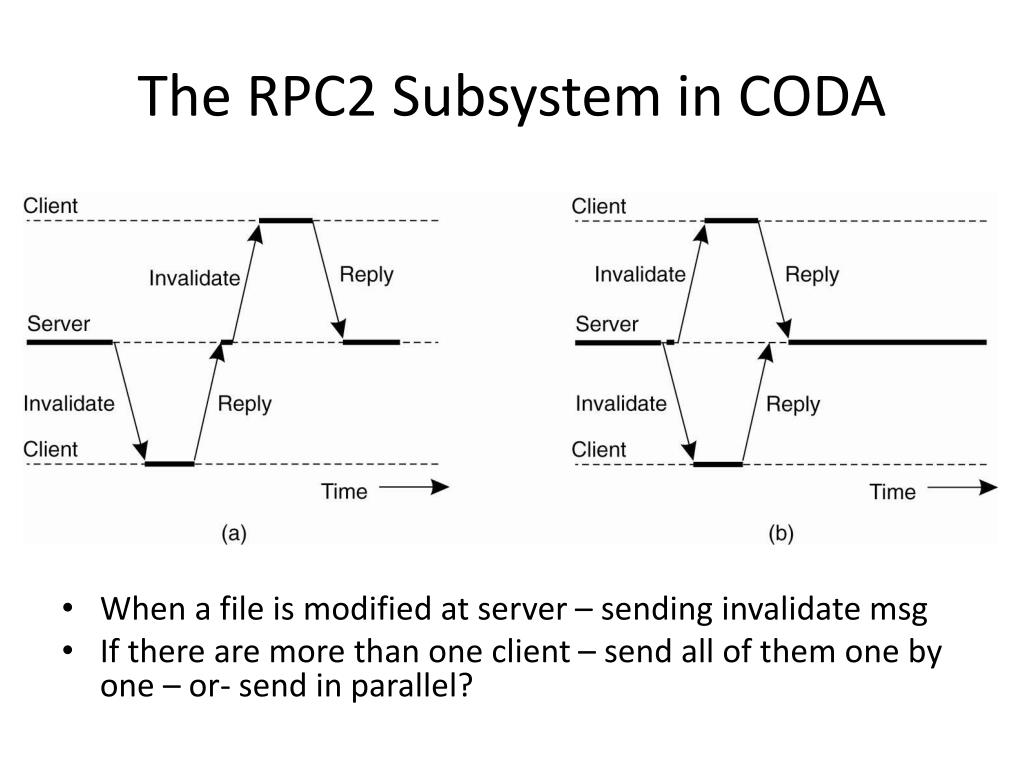

  27. The RPC2 Subsystem in CODA • When a file is modified at server – sending invalidate msg • If there are more than one client – send all of them one by one – or- send in parallel?

  28. xFS

  29. xFS Summary • Distributes data storage across disks using software RAID and log-based network striping • RAID == Redundant Array of Independent Disks • Dynamically distribute control processing across all servers on a per-file granularity • Utilizes serverless management scheme • Eliminates central server caching using cooperative caching • Harvest portions of client memory as a large, global file cache.

  30. RAID Overview • Basic idea: files are "striped" across multiple disks • Redundancy yields high data availability • Availability: service still provided to user, even if some components failed • Disks will still fail • Contents reconstructed from data redundantly stored in the array • Capacity penalty to store redundant info • Bandwidth penalty to update redundant info

  31. Problem in Striping Type Partitioning • If there is a failure (if any one disk fails) • Some parts of every file are lost • All of the data gets impacted • SOLUTION IS USING RAID • If any disk fails – through RAID data still becomes available • You can implement it in hardware or software

  32. Array Reliability • Reliability of N disks = Reliability of 1 Disk ÷ N • 50,000 Hours ÷ 70 disks = 700 hours • That is if one fails everything fails • Disk system MTTF: Drops from 6 years to 1 month! • Arrays (without redundancy) too unreliable to be useful!

  33. Redundant Arrays of Inexpensive DisksRAID 1: Disk Mirroring/Shadowing • There are a couple of alternatives – here is the easiest one • Each disk is fully duplicated onto its “mirror” • Very high availability can be achieved • Bandwidth sacrifice on write: • Logical write = two physical writes • Reads may be optimized • Most expensive solution: 100% capacity overhead

  34. Inspiration for RAID 5-RAID4- • Use parity for redundancy • D0 xor D1 xor D2 xor D3 = P • If any disk fails, then reconstruct block using parity: • E.g. D0 =D1 xor D2 xor D3 xor P • Raid 4: all parity blocks stored on the same disk • Small writes are still limited by parity disk • Parity disk becomes bottleneck

  35. Redundant Arrays of Inexpensive DisksRAID 5: High I/O Rate Interleaved Parity • Independent writes possible because of interleaved parity • Examples: write to D0 and D5 uses disk 0,1,3,4
