  1. The Package • Product System Simotec • Design Engineering • Software Solutions • Pre-fabrication & Tailored Components • Logistics & Project Management

  2. Adaptor AP Connection to AP 140/160 AP 170/200 AP 220/300

  3. Adaptor STA 100

  4. Adaptor STA 100 25mm

  5. FV 100 25mm Komplettes Set

  6. KIT Simotec 100 Small Number of Parts = Great Effect

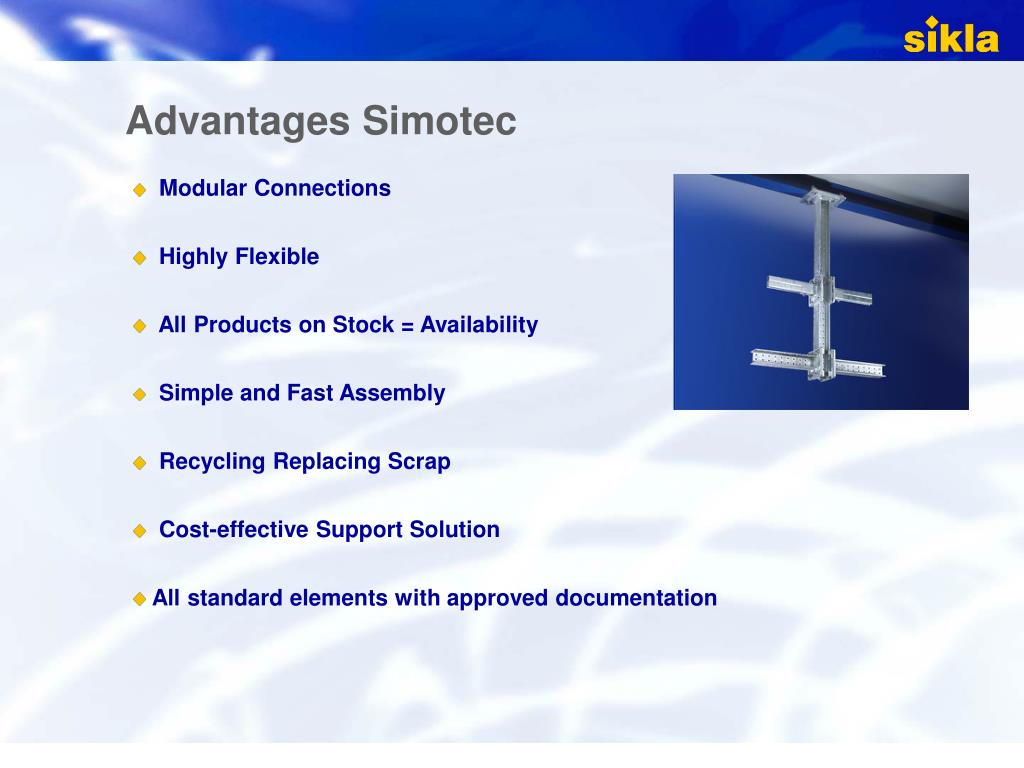

  7. Advantages Simotec • Modular Connections • Highly Flexible • All Products on Stock = Availability • Simple and Fast Assembly • Recycling Replacing Scrap • Cost-effective Support Solution • All standard elements with approved documentation

  8. Framo 80 - Compatibility Framo 80 is compatible with all Sikla Systems: • System 100 • System 120 • Channel 41

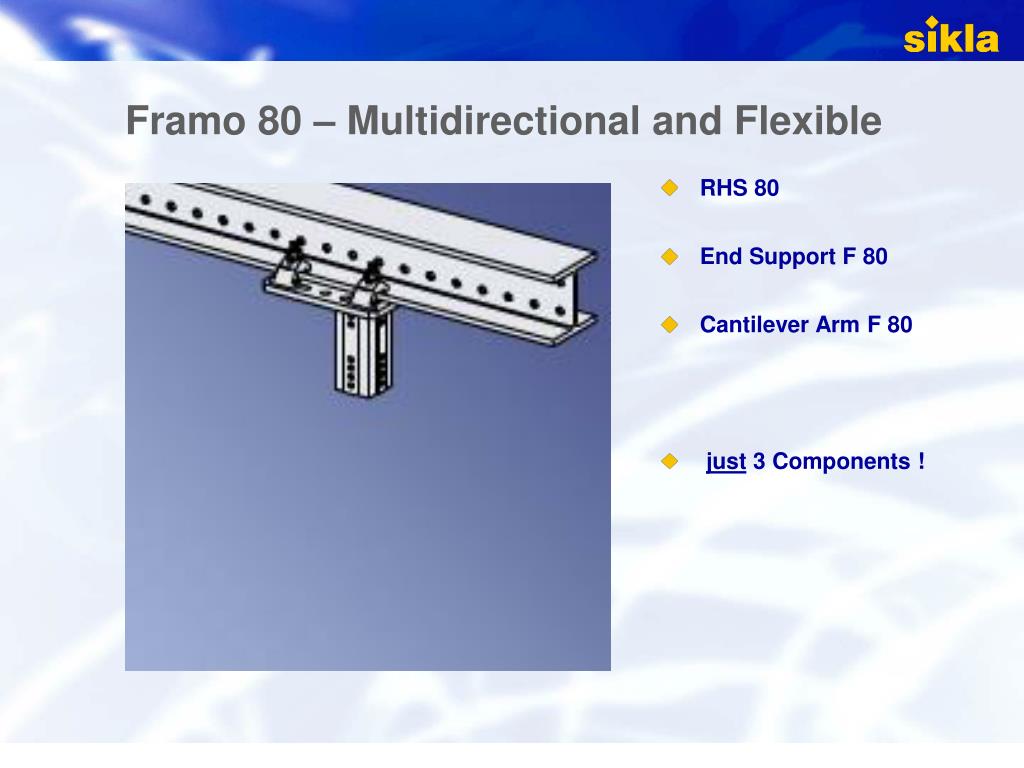

  9. Framo 80 – Multidirectional and Flexible • RHS 80 • End Support F 80 • Cantilever Arm F 80 • just 3 Components !

  10. Time-saving Bolting • Easy bolt assembly w/o need for nuts • Swarfless, cold-formed, internal thread • Self-locking, anti-vibration characteristics • Single type of bolt for all applications • Special locking-serration providing additional safety • Dacromet-coating for sustainable anti-corrosion protection

  11. Multidimensional Connections • Framo 80 does not require any nuts • Up to 4 connections at any one level • Compatible slot-pattern allows for stepless and form-locked connections

  12. Pipe Shoes Height-adjustable

  13. Framo 80 Applications Komplettes Set

  14. Software • Library AutoCAD, Microstation 2D, 3D • SimoPlan 3D (PDS, PDMS ) Cadenas

  15. References*Pharmaceutical * Chemical * Petrochemical * Shell
