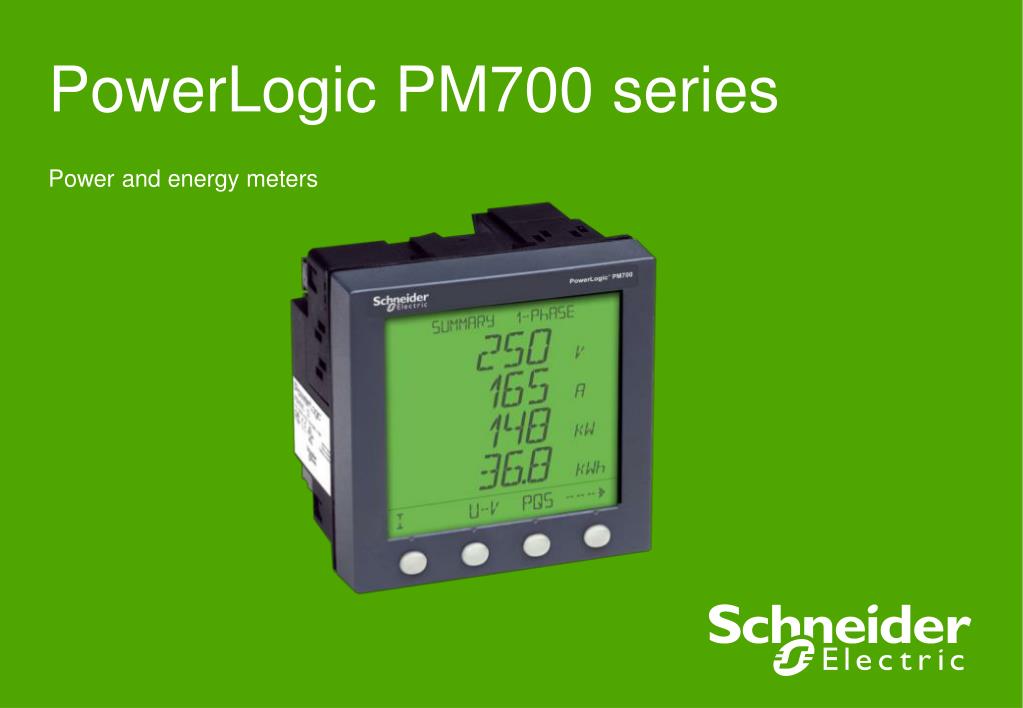

  1. PowerLogic PM700 series Power and energy meters

  2. A PowerLogic system can help you… • Improve energy efficiency and lower emissions • Maximise the use of power distribution networks and reduce per-unit energy costs • Improve overall power quality, reliability of equipment and processes

  3. PM700 series overview • The PM700 series of power meters are affordable, compact power and energy meters. • Apply on feeders where cost and installation space are important considerations. • Install into new equipment or retrofit into existing installations.

  4. Part of a complete solution • PM700 series power meters can be used for standalone panel instrumentation, or as a key component in a complete PowerLogic power monitoring and control solution that provides transparent access to all of your intelligent devices. Software- PowerLogic ION Enterprise - PowerLogic System Manager • PowerLogic PowerView • PowerLogic ION EEM Data Communications- EGX-100- EGX-400- Modems The PM710 and PM750 power meters’ have standard RS-485 Modbus communications, allowing you to view data in power monitoring software, or integrate data into Building Automation and SCADA systems. Intelligent Devices- Circuit monitors • Power meters • - ION meters - Low voltage breakers- Med voltage relays- Other Modbus devices Energy and power quality meters and monitors Other compatible devices Energy and power quality meters Other compatible devices

  5. Industries and applications Buildings Industry Energy & Infrastructure(includes utilities & critical power)

  6. Industries and applications -Energy savings Key applications: • Energy sub-billing • Electricity procurement optimisation • Power factor correction • Peak demand reduction • Energy cost recovery • Energy cost allocation (including bill auditing) • Substation automation (industrial)

  7. Industries and applications -Energy availability and reliability Key applications: • Alarming and event logging Harmonic filtering • Energy usage analysis • Energy asset optimisation (by building, floor, zone, PDU, or rack) • Power quality monitoring & reporting

  8. Industries and applications -Equipment optimisation • Balance loads plus reduce harmonics and other factors that cause heating and shorten equipment life • Maximise existing capacity to avoid unnecessary capital purchases by understanding loading and identifying spare capacity on existing equipment

  9. Four models satisfy a range of applications—from the PM700 for basic panel instrumentation, to the PM750 with standard RS-485 communications, I/O and alarming. Feature Summary IEC class 62053-22 05.S

  10. Large, easy-to-read display • Backlit LCD display • Anti-glare, scratch resistant • Displays four values simultaneously; view three phases and neutral • View summary screens and bar chart displays to see a snapshot of your system • Intuitive, self-guiding menus are easy to use without training The power meter’s large, backlit display is easy to read.

  11. External connections • Power supply • Voltage Inputs — 480 VAC L-L direct connect; eliminates the need for PTs in most LV Panels • Current inputs — rated at 15A, able to withstand overcurrents from CTs • I/Os • PM700P and PM750 • RS-485 2-wire Modus communications (PM710 and PM750 only) • Communicate to System Manager software • Integrate into BAS or SCADA systems • Download firmware updates to keep up-to-date with the latest features

  12. Compact design • 96 x 96 x 50mm (depth behind panel) • Shallow depth saves panel space • Flush panel mount with a 92 x 92mm cutout • International standard design • Retro-fit existing analog meters with 4” round cutouts — no mounting adapter required

  13. Designed with the panel builders/OEMs in mind • Single person installation • No tools required to mount the meter • Mounting resistance nibs hold meter until the mounting clips are snapped into place • Wide range control power supply • 100 – 415 Vac (5 vA); 125 – 250 Vdc (3 watts) • Reduces the number of models to order and stock

  14. Accurate energy and power measurement • Full complement of basic metered values including: • Voltage, per phase (L-L, L-N) and 3-phase average • Current, per phase and neutral, and 3-phase average • Energy, In and Out (kWh, kVARh, kVAh) • Power, per phase and 3-phase total (kW, kVA, kVAR) • Power Demand, present and peak (kWd, kVAd, kVARd) • Current Demand, per phase, present and peak • Frequency and Power factor (total) • THD, per phase (voltage and current) Metered values can be viewed on the power meter’s display, or on a remote PC using software.

  15. Accurate energy and power measurement (continued) • Minimum and maximum values with date/time stamps • Current and voltage, per phase • Power (total) • Power factor (total) • Frequency • THD, per phase (current and voltage)

  16. Digital inputs and outputs • PM700P • Two digital KY pulse outputs • One kWH pulse output • One kVARh pulse output

  17. Digital inputs and outputs (continued) • PM750 • 2 digital inputs • Use to monitor breaker status, or other status applications • Trigger alarms in response to a change in input status • 1 digital output configurable in one of three modes: • External—Controlled externally, for example by a programmable controller. • Alarm control—Controlled by the power meter in response to an alarm condition. When the alarm is active, the output is ON. • kWh Pulse—The meter generates a fixed-duration pulse output that represents kWh consumption. The PM750’s digital output can be configured in one of three modes.

  18. Customizable alarming (PM750) • Fifteen user-configurable alarms • Factory configured alarms are enabled on power-up • Alarms can be associated to I/O • Trigger alarms in response to a change in input status • Control an output in response to an alarm Alarms, stored in power meter memory and viewed in System Manager, provide early warning of potential problems.

  19. Easy to create a system... • With the addition of an Ethernet Gateway, the meter can communicate via the existing network • Create a simple system using a PM700 series power meter, EGX400, and a PC with web browser software. View: • Basic readings of amps, voltage, power and energy • Circuit summary • Load current summary • Demand current summary • Power and energy summaries • Alarm status and history • No special software to install PC with browser EGX400 gateway PM700

  20. For more information, visit powerlogic.com
