  1. Execution Replay for Multiprocessor Virtual Machines George W. Dunlap Dominic Lucchetti Michael A. Fetterman Peter M. Chen

  2. Big ideas • Detection and replay of memory races is possible on commodity hardware • Overhead high for some workloads • …but surprisingly low for other workloads

  3. Execution Replay CPU Interrupts Network Memory Keyboard, mouse Disk

  4. Uses of Execution Replay • Reconstructing state • Fault tolerance • Reconstructing execution • Debugging • Realistic trace generation • Both • Intrusion analysis

  5. Single-processor Replay • Basic principles well understood • Log all non-deterministic inputs • Timing of asynchronous events • Minimal overhead (Dunlap02) • 13% worst case • Log for months or years • Available commercially • VMWare: Record/Replay

  6. Replay for Multiprocessors • Memory races in multiprocessor VMs • The Ordering Requirement • The CREW Protocol • Implementing with page protections • Relation to the Ordering Requirement • Generating constrants from CREW events • DMA-capable devices and CREW • Performance

  7. The Multiprocessor Challenge • Interleaved reads and writes • Fine-grained non-determinism • Much more difficult • Existing solutions • Hardware modification • Software instrumentation • SMP-ReVirt • Hardware MMU to detect sharing

  8. Multiprocessor Replay P2 P1 P1 P2 n=5 n=3 Memory if (n<4)

  9. Ordering Memory Accesses • Preserving order will reproduce execution • a→b: “a happens-before b” • Ordering is transitive: a→b, b→c means a→c • Two instructions must be ordered if: • they both access the same memory, and • one of them is a write

  10. To guarantee a→d: a→d b→d a→c b→c Suppose we need b→c b→c is necessary a→d is redundant Constraints: Enforcing order P1 P2 a b overconstrained c d

  11. CREW Protocol • Each shared object in one of two states: • Concurrent-Read:all processors can read, none can write • Exclusive-Write: one processor (the owner) can read and write; others have no access

  12. CREW protocol, con’t • Enforced with hardware MMU • Read/write • Read-only • None • Change CREW states on demand • Fault, fixup, re-execute • CREW event • Increasing or reducing permission due to CREW state changes

  13. CREW Property • If two instructions on different processors: • access the same page, • and one of them is a write, • there will be a CREW event on each processor between them.

  14. Generating Constraints • State: Concurrent Read • All processors read-only • d*: CREW fault • New state: P2 Exclusive • r: privilege reduction • Read to None • i: privilege increase • Read to Read/write • Log timing of r and i • Constraint: • r → i P1 P2 a d* r i d

  15. Direct Memory Access • Device accesses memory directly • Logically another processor • Reads and writes need to be ordered • IOMMU: can’t fault/fixup/re-execute • Observation: Transaction model • Device: non-preemptible actor

  16. Prototype: SMP-ReVirt • Modified Xen hypervisor • Implement logging, CREW protocol • Details in paper

  17. Evaluation questions • What is the overhead? • What affects performance? • In paper • When might I want to use MP? • Log with 1, 2, or N cpus?

  18. Evaluation Workloads • SPLASH2 parallel application suite • FMM, LU, ocean, radix, water-spatial, radiosity • Kernel-build • Dbench

  19. Predicting results • Key changes in sharing attributes • 4096-byte sharing granularity • “Miss” is very expensive • SPLASH2 • Good: high spatial locality / low false sharing • Bad: random access patterns / high false sharing • The Linux kernel • Tuned to 16-byte cacheline • Involving the kernel may be expensive

  20. Single-processor Xen guests

  21. Log Growth Rate

  22. 2-processor Xen guests

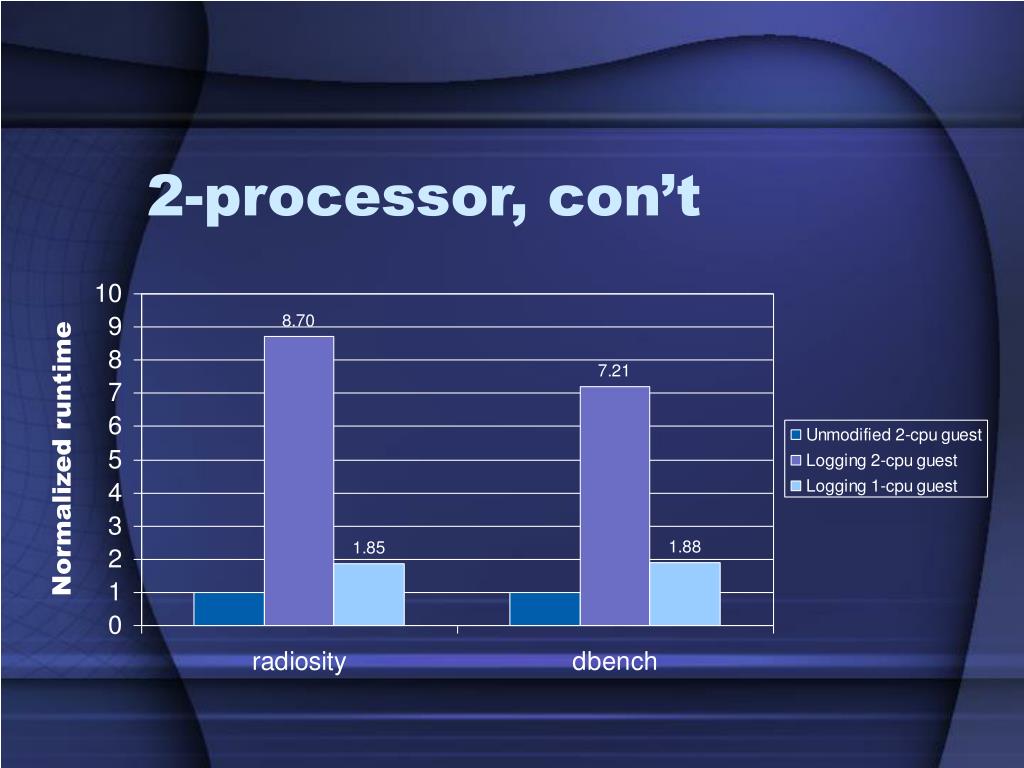

  23. 2-processor, con’t

  24. Log Growth Rate

  25. 4-processor Xen guests

  26. Recap • Memory races in multiprocessor VMs • The Ordering Requirement • The CREW Protocol • Implementing with page protections • Relation to the Ordering Requirement • Generating constrants from CREW events • DMA-capable devices and CREW • Performance

  27. Big ideas • Detection and replay of memory races is possible on commodity hardware • Overhead high for some workloads • …but surprisingly low for other workloads

  28. Questions
