1. Network Protocol for Online Games Michael Butler Jennifer Louie Jorge Pombar

2. The situation • Players can’t be trusted, some just like to cheat. • These cheaters have access to the encryption algorithm via the client executable version of the game. • Is very important to prevent cheating because otherwise it can ruin the game for thousand of players. • Ultimate goal is not make it 100% secure but really hard to cheat.

3. Packets • Client and servers use packets to communicate between them. • Packets have a header and a payload • The header contains administrative information. • The payload contains the actual data we want to communicate.

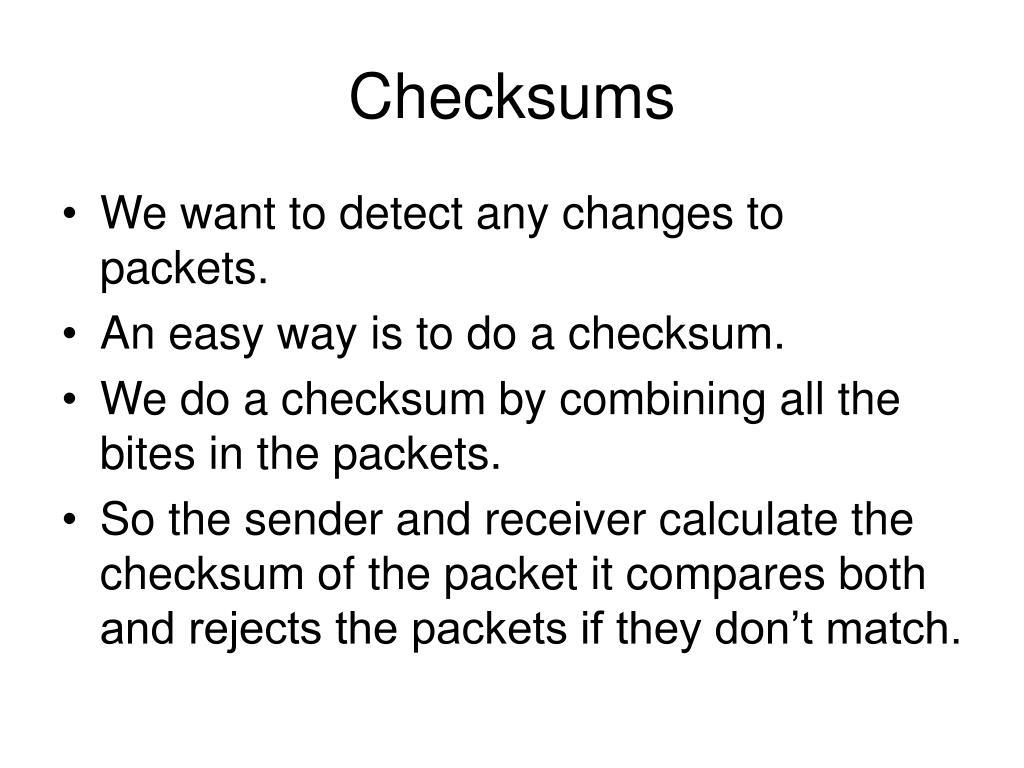

4. Checksums • We want to detect any changes to packets. • An easy way is to do a checksum. • We do a checksum by combining all the bites in the packets. • So the sender and receiver calculate the checksum of the packet it compares both and rejects the packets if they don’t match.

5. Packet replay • Is when an attacker saves a valid packet in order to send it multiple times. • This allows the cheater to perform game actions much faster than the game actually allows. • Best solution against packet replay is for each packet to have some state information. • This causes packets with identical payloads to have different bit patterns. • It could be as simple as a number that increments but to make it harder to cheaters a random number is better.

6. Packet tampering Prevention Problem: The meaning of packets can be determined based on their length regardless of encryption. This information can be used to figure out the packet protocol. Then a malicious user could attempt to filter, modify or craft packets. Solution 1: We pad the data with a random amount of junk bits. The number of random bits are determined by a synchronized state machine that both the client and the server have.

7. Packet tampering Prevention (cont.) Solution 2 We XOR the payload with a random number of bits. The random number is determined by a synchronized state machine that both client and server have. Both sender and receiver will perform this process in order to send and read the packet payload.

8. Final Remarks The hardest problem to address is that the client has the entire encryption algorithm, so it can always be reversed engineered. So our ultimate goal isn’t to make our game 100% secure but make it really hard for a player to cheat. We can follow these general guidelines to make it harder: • Remove all debugging information from any release to the public.

9. Final Remarks (cont.) • Don’t isolate encryption and decryption algorithms in their own functions. This makes it too easy to detect. Instead combine them with some of the network code. • Include good encryption in every client version of the game, even early betas.
