  1. ZEGO 150 Series Insulated Concrete Forms ICFsFrom ZEGO Pty Limited

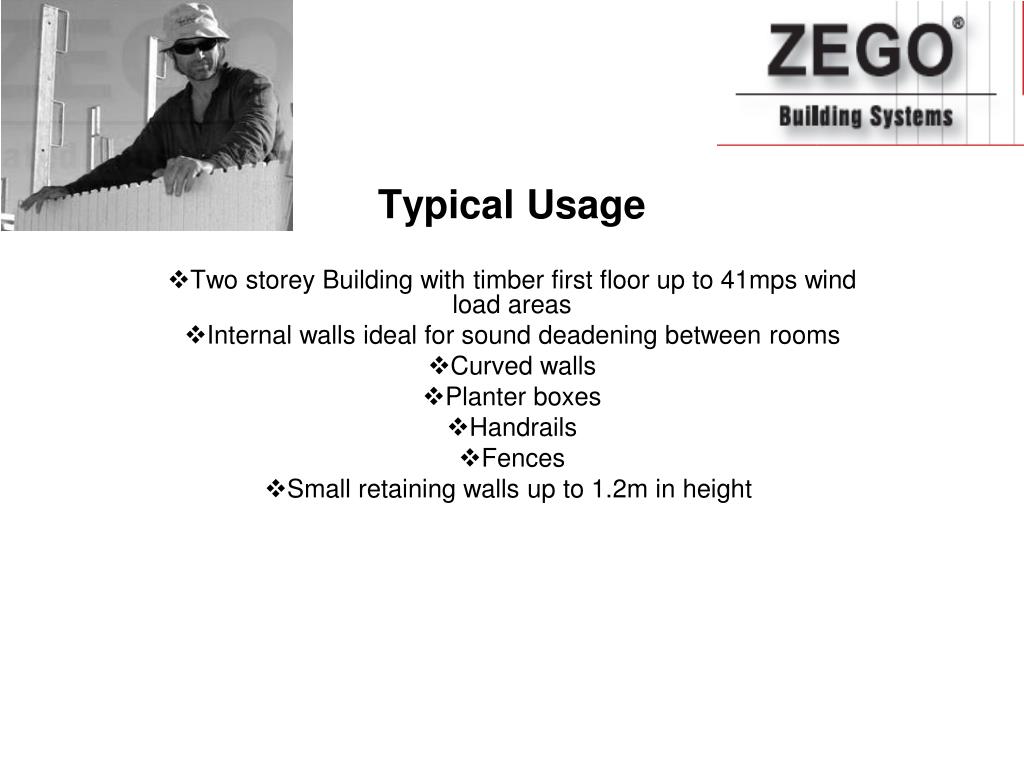

  2. Typical Usage Two storey Building with timber first floor up to 41mps wind load areas Internal walls ideal for sound deadening between rooms Curved walls Planter boxes Handrails Fences Small retaining walls up to 1.2m in height

  3. Benefits of ZEGO ZEGO uses only 100% Flame retardant EPS Effective height of 300mm is ideal for 2100mm door head heights Positive male and female interlock alleviating movement during assemble and the concrete pour Reinforcement Diamond support ribs allowing full encapsulation of the reinforcement steel 2400mm window head heights 2400mm, 2700mm, 3000mm etc ceiling heights Can be simply cut in 50mm increments left to right (can also be cut to the mm ) 50mm Interlock and Intersect Easier material handling Patented Dovetailed Groove to both internal and external surfaces for render and plasterboard support Closed end and open end forms for ease of construction Patented Wall Brace Scaffold system to hold wall plumb and provide platform to pour concrete from Termite, rodent and mildew resistant

  4. Effective size 143mm   Wide  300mm   High 1190mm Long 80mm Concrete Core

  5. Insulating Thickness 2 x 33mm = 66mm "R" 2       ZEGO EPS Foam is approximately 1.5"R" per 50mm of foam

  6. Concrete and Volume 80mm wide 0.0662 m3 / m2 15.1    m2 / m3

  7. Contact us ZEGO Pty Limited Head Office Ph 02 9651 2277 GPO Box 4774 Sydney New South Wales Australia http://www.zego.com.au/
