  1. Stereo Vision Project III By: Rob Gilliland Class: ECE563 Image Processing Due: 4/2/2007

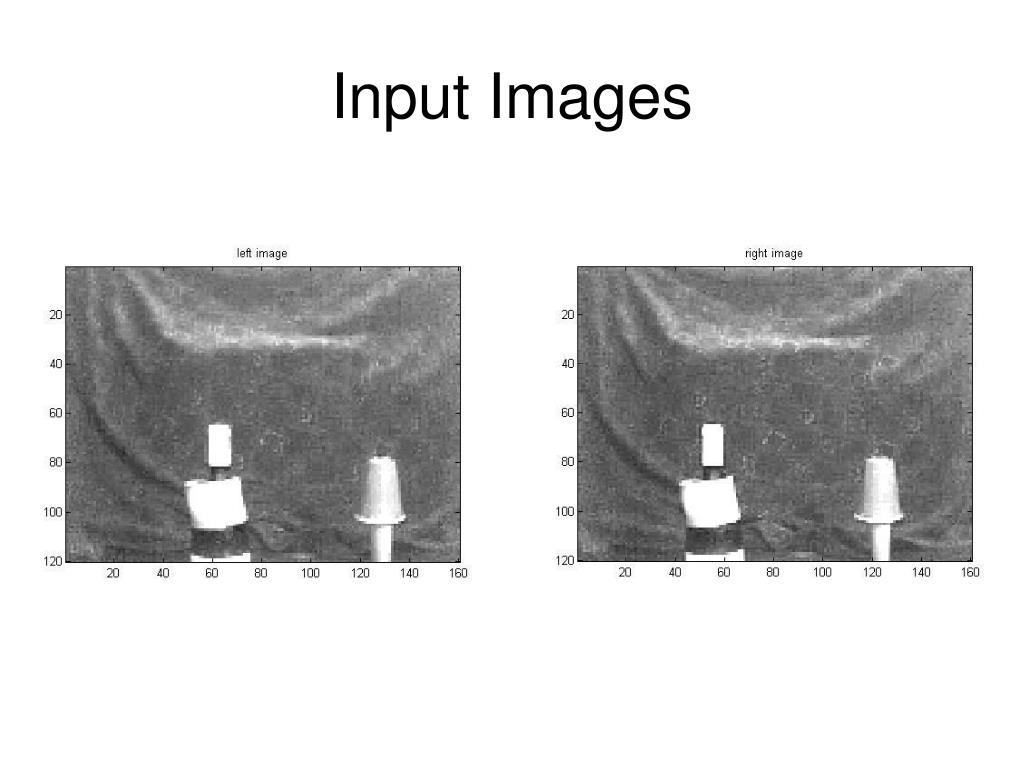

  2. Input Images

  3. Magnitude of the Motion Vector and Optical Flow Bmaoflow3 inputs: Block size = 11 max x = 10, max y = 1 Set up conditions: images were taken from a camera 10 cm apart wine bottle on left 72 cm from camera, cup on right 112 cm from camera

  4. Magnitude of the Motion Vector and Optical Flow Comments • Notice the magnitude to the motion vector is highest for the wine bottle as expected because it is the closest. • The cup on the right has the next highest magnitude of the motion vector. • The large amount of noise in the background is due to the blanket being imaged not having enough variation.

  5. Optical Flow Estimation • Optical Flow Estimation was done with the ‘bmaoflow3.m’ function which computes block matching optical flow estimation. • Block matching does an exhaustive search over one image with a block of pixels for each pixel in another image. • The minimum error in both the x and y direction is then recorded and can be used to estimate the depth of each pixel.
