Technical System Options

Technical System Options. Specify technical environment Confirm functionality of new system Analyse impact on organisation Provide cost/benefit analyses Provide a stop/go point e.g. Like Feasibility and Business System Options Often the basis for procurement

sonia-roy
Télécharger la présentation

Technical System Options

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

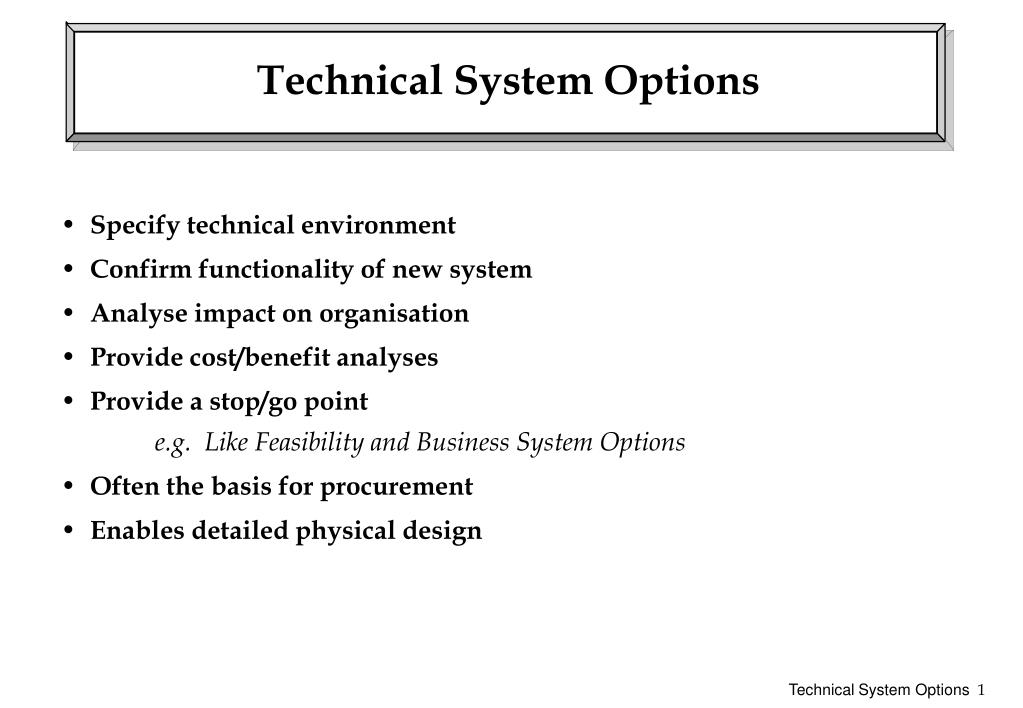

  1. Technical System Options • Specify technical environment • Confirm functionality of new system • Analyse impact on organisation • Provide cost/benefit analyses • Provide a stop/go point • e.g. Like Feasibility and Business System Options • Often the basis for procurement • Enables detailed physical design

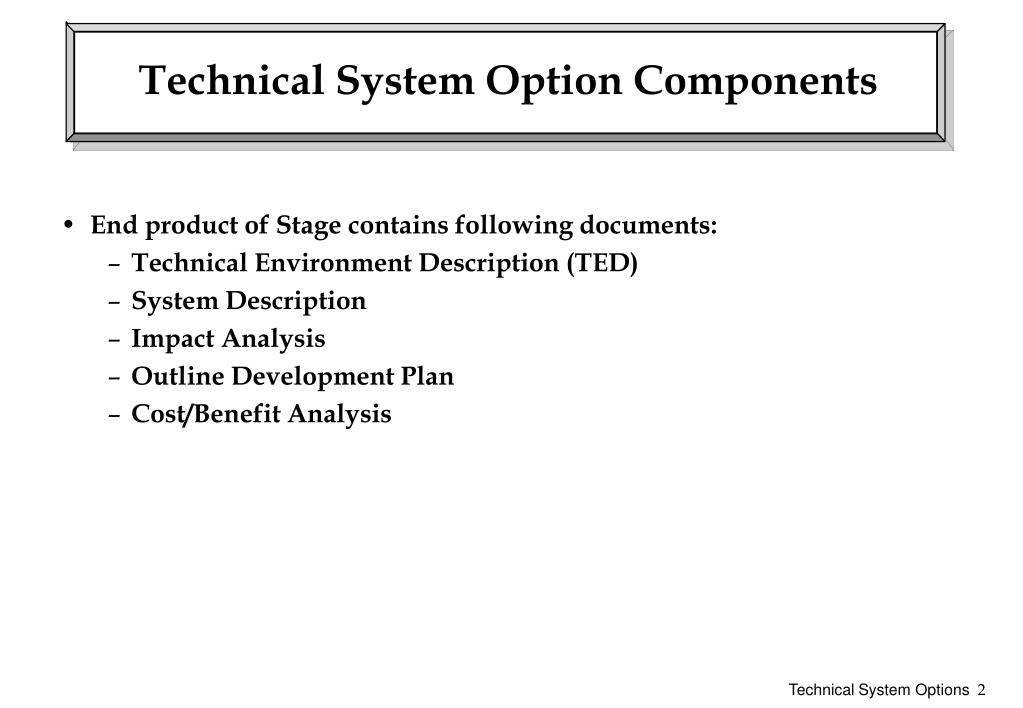

  2. Technical System Option Components • End product of Stage contains following documents: • Technical Environment Description (TED) • System Description • Impact Analysis • Outline Development Plan • Cost/Benefit Analysis

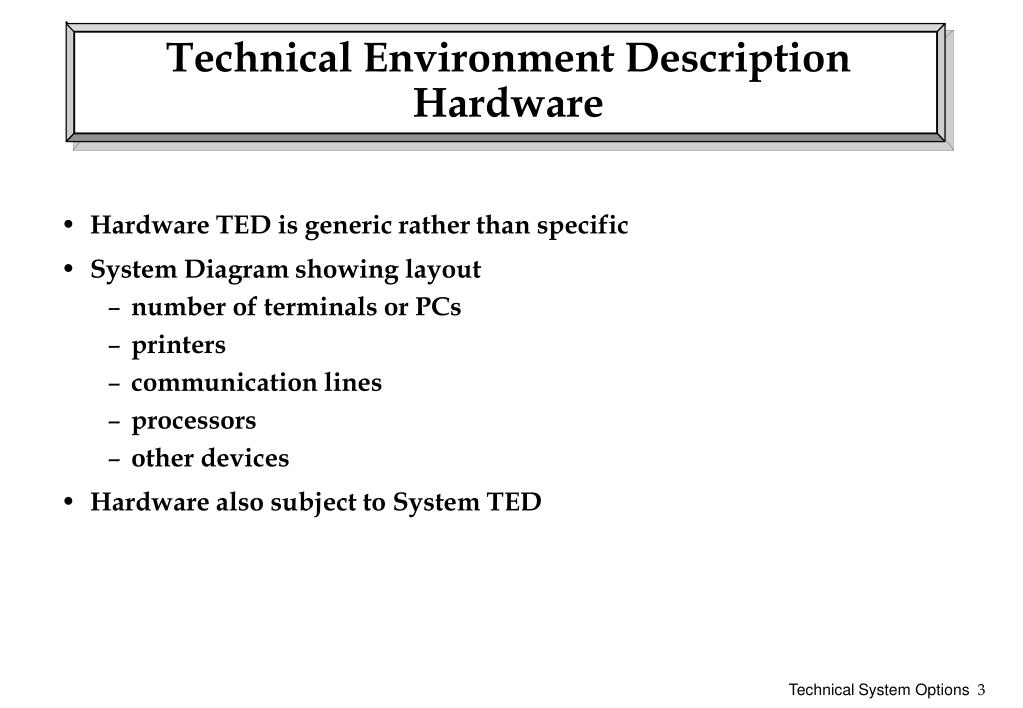

  3. Technical Environment DescriptionHardware • Hardware TED is generic rather than specific • System Diagram showing layout • number of terminals or PCs • printers • communication lines • processors • other devices • Hardware also subject to System TED

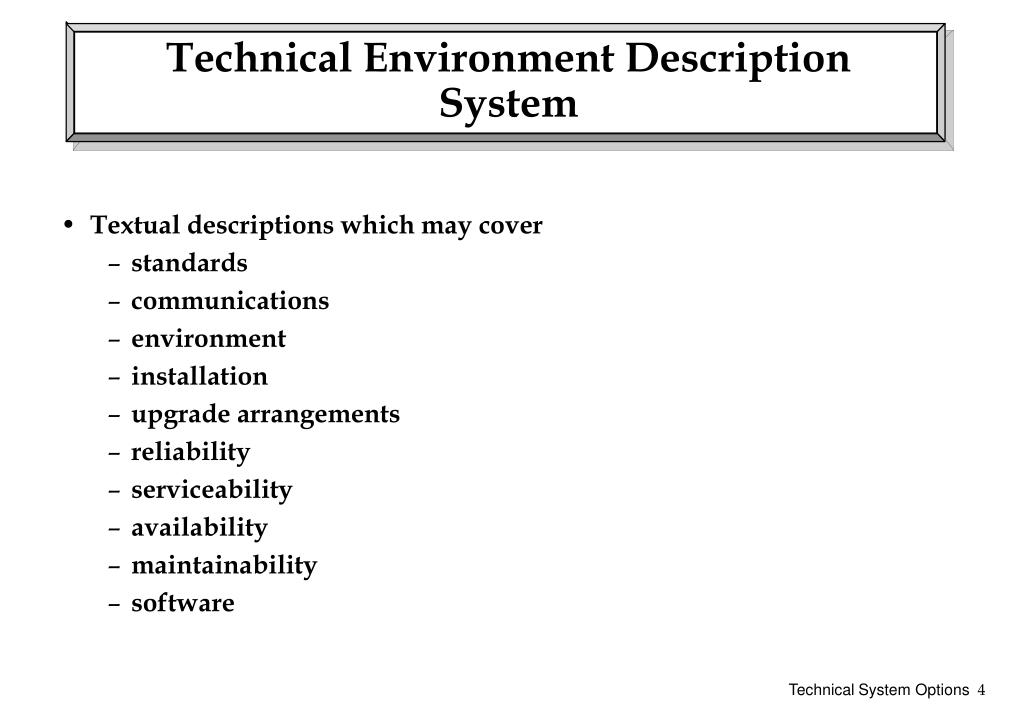

  4. Technical Environment DescriptionSystem • Textual descriptions which may cover • standards • communications • environment • installation • upgrade arrangements • reliability • serviceability • availability • maintainability • software

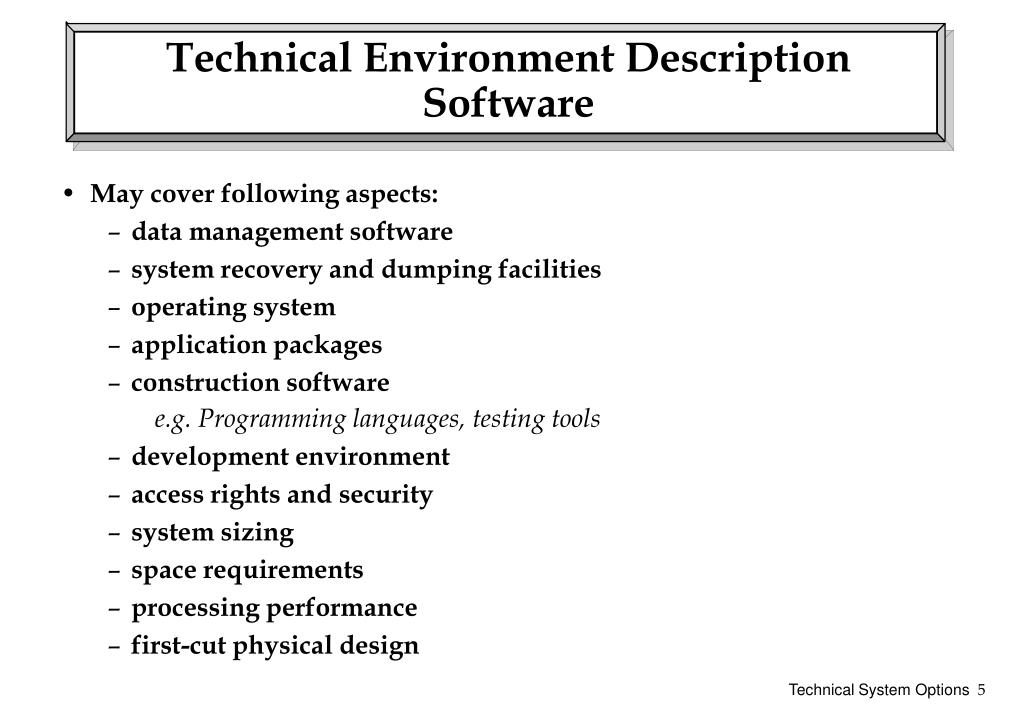

  5. Technical Environment DescriptionSoftware • May cover following aspects: • data management software • system recovery and dumping facilities • operating system • application packages • construction software • e.g. Programming languages, testing tools • development environment • access rights and security • system sizing • space requirements • processing performance • first-cut physical design

  6. System Description • Shows how option satisfies Requirements Specification • Supports major decisions taken in Business System Options • Includes alternative systems with trade-offs • Shows degree to which system requirements met • NB. It is also important to show which functions/facilities will not be provided • Includes • Required System Logical Data Model • Function Definitions • Requirements Catalogue (showing solutions based on the option)

  7. Impact Analysis • Explains effects on user environment • Should cover • organisation and staffing • changes in user operating procedures • implementation considerations such as conversion • savings • comparative advantages and disadvantages of alternative TSOs • Includes issues documented in following products: • Training Requirements Description • User Manuals Requirements Description • Testing Outline • Take-on Requirements Description

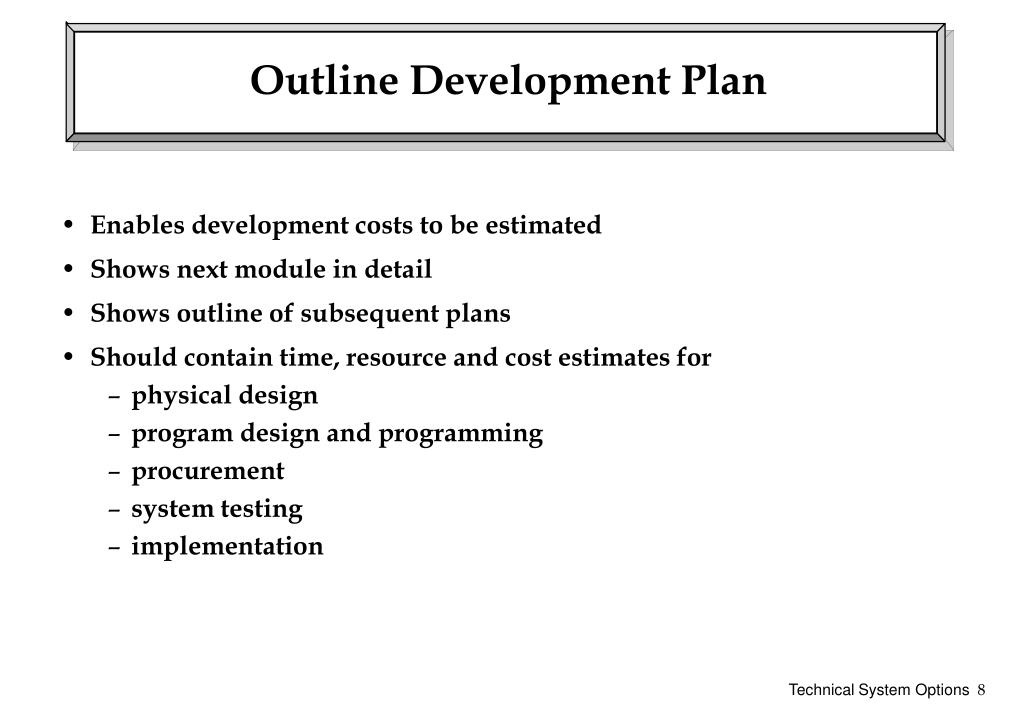

  8. Outline Development Plan • Enables development costs to be estimated • Shows next module in detail • Shows outline of subsequent plans • Should contain time, resource and cost estimates for • physical design • program design and programming • procurement • system testing • implementation

  9. Cost/Benefit Analysis • Most objective way to compare merits of options • Cost/Benefit Analysis should cover: • development costs • operating costs • tangible benefits and displaced costs • i.e. Current system costs eliminated by new system • cost containment • Intangible benefits • improved product quality • improved service to customers • greater job satisfaction for employees • improved management information

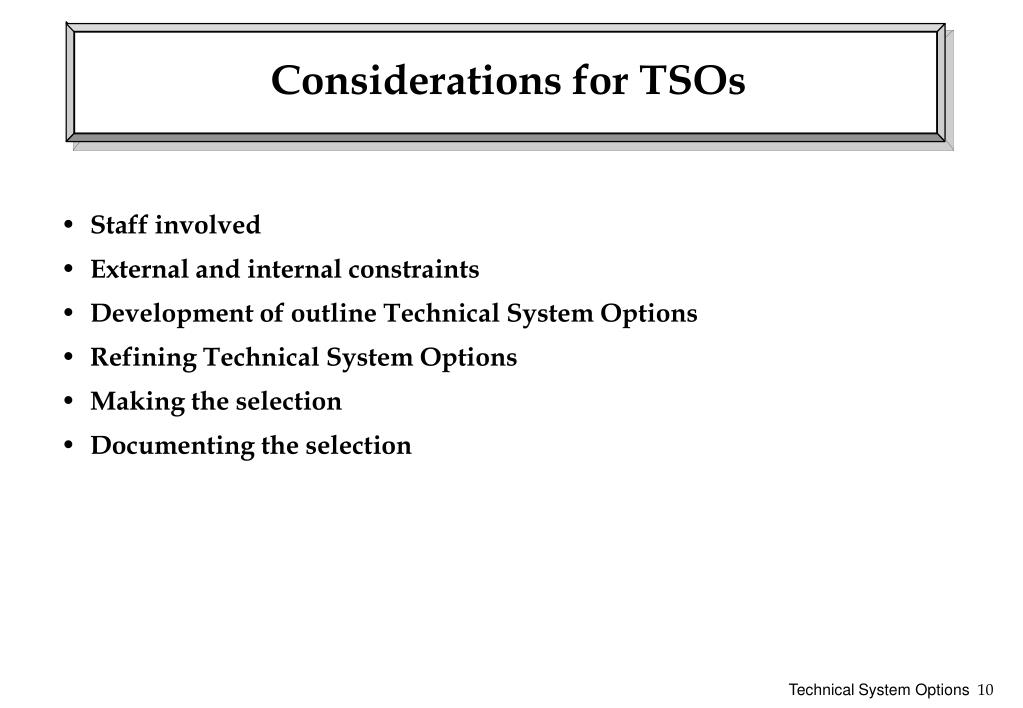

  10. Considerations for TSOs • Staff involved • External and internal constraints • Development of outline Technical System Options • Refining Technical System Options • Making the selection • Documenting the selection

  11. Staff Involved in Technical System Options • Project board • often assesses TSOs and makes selection • may terminate project if no suitable option found • Project Manager or Module Manager • finalises TSOs • finalises and presents TSOs • Analysts • research and document requirements • formulate TSOs for presentation

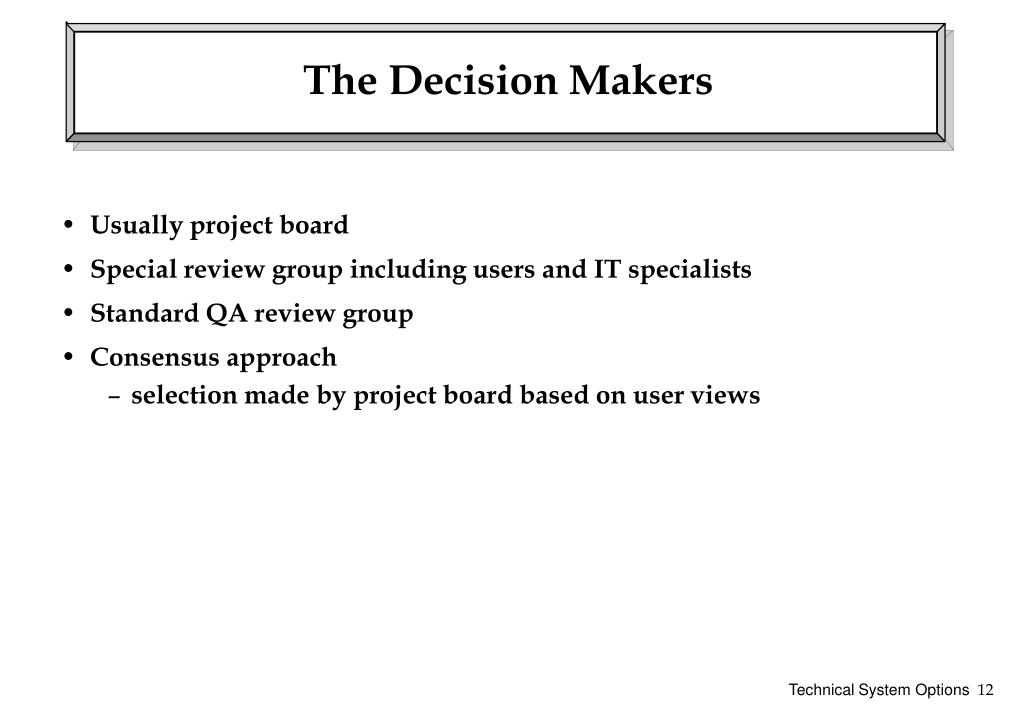

  12. The Decision Makers • Usually project board • Special review group including users and IT specialists • Standard QA review group • Consensus approach • selection made by project board based on user views

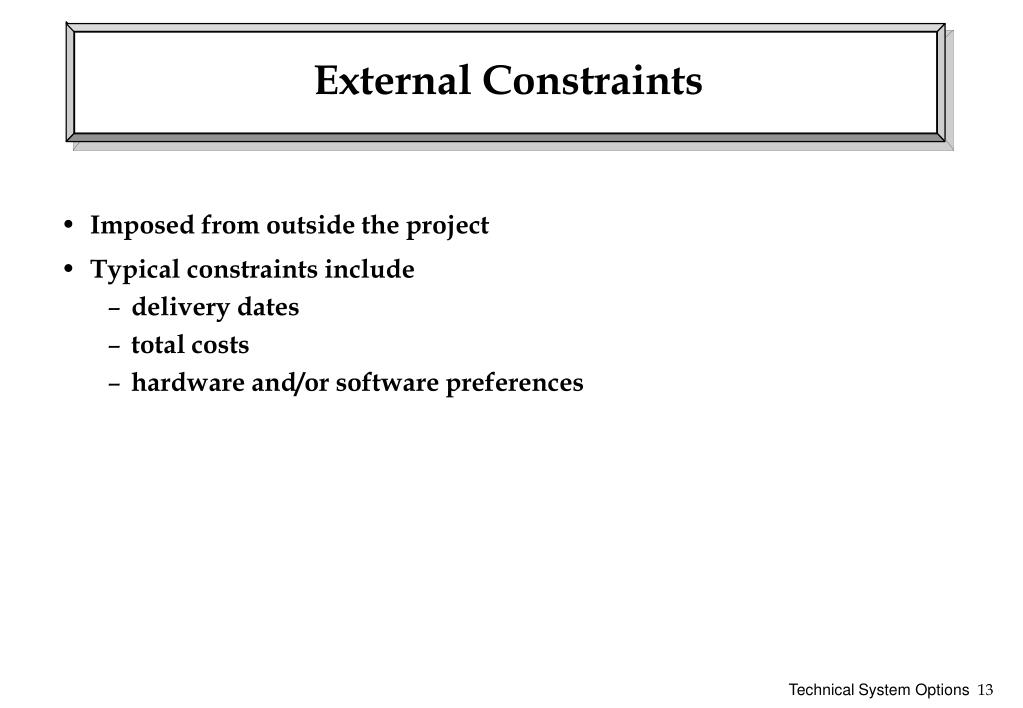

  13. External Constraints • Imposed from outside the project • Typical constraints include • delivery dates • total costs • hardware and/or software preferences

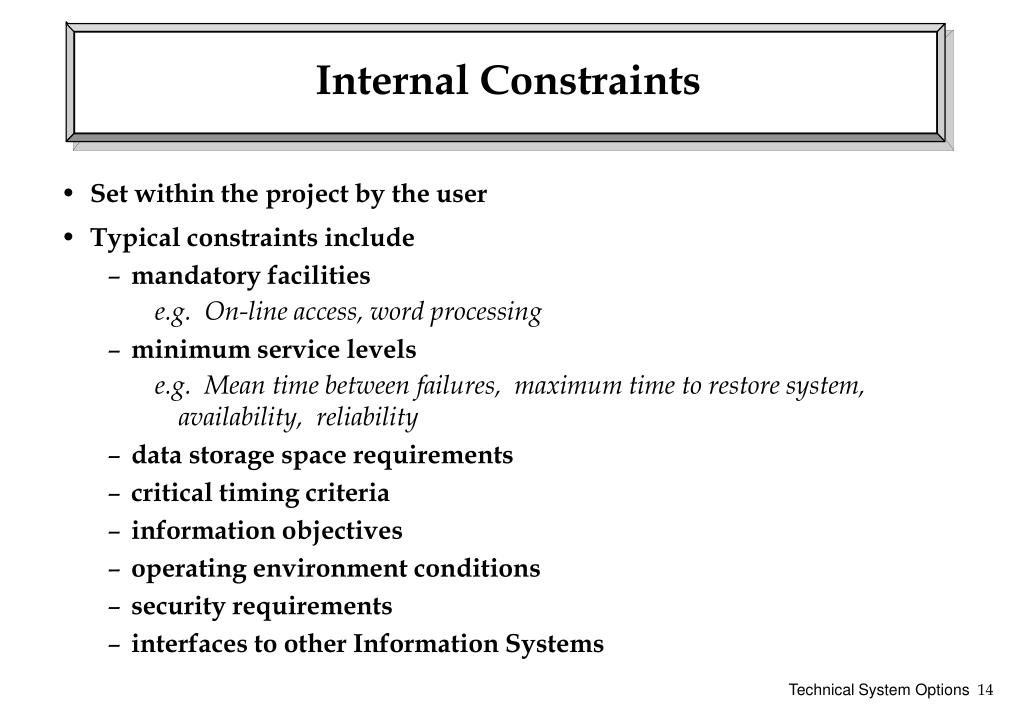

  14. Internal Constraints • Set within the project by the user • Typical constraints include • mandatory facilities • e.g. On-line access, word processing • minimum service levels • e.g. Mean time between failures, maximum time to restore system, availability, reliability • data storage space requirements • critical timing criteria • information objectives • operating environment conditions • security requirements • interfaces to other Information Systems

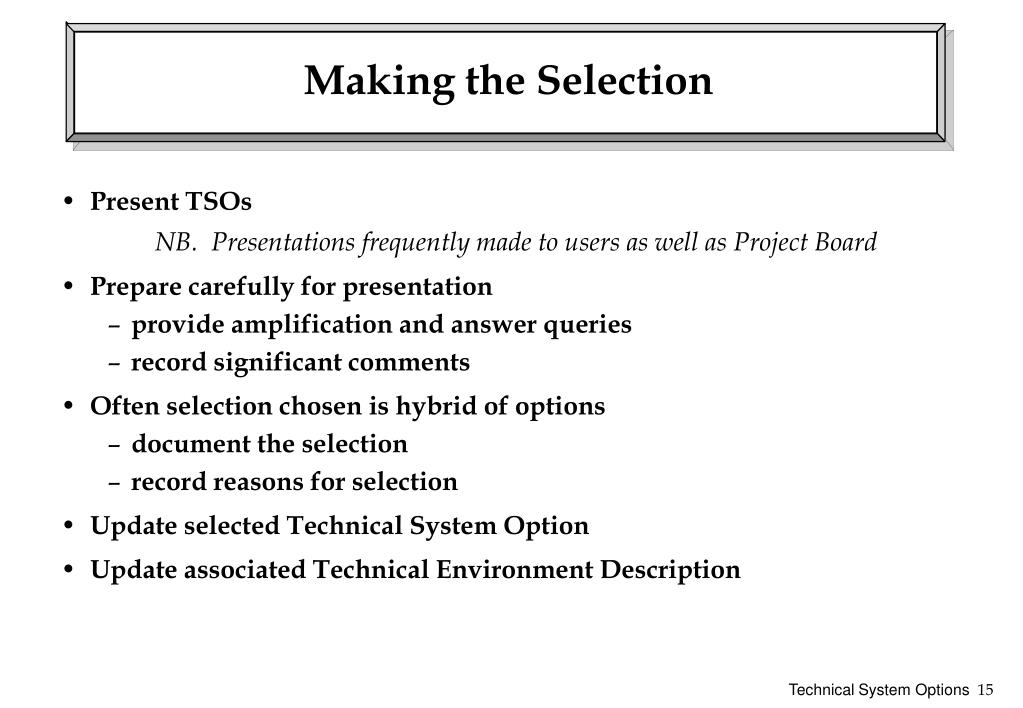

  15. Making the Selection • Present TSOs • NB. Presentations frequently made to users as well as Project Board • Prepare carefully for presentation • provide amplification and answer queries • record significant comments • Often selection chosen is hybrid of options • document the selection • record reasons for selection • Update selected Technical System Option • Update associated Technical Environment Description

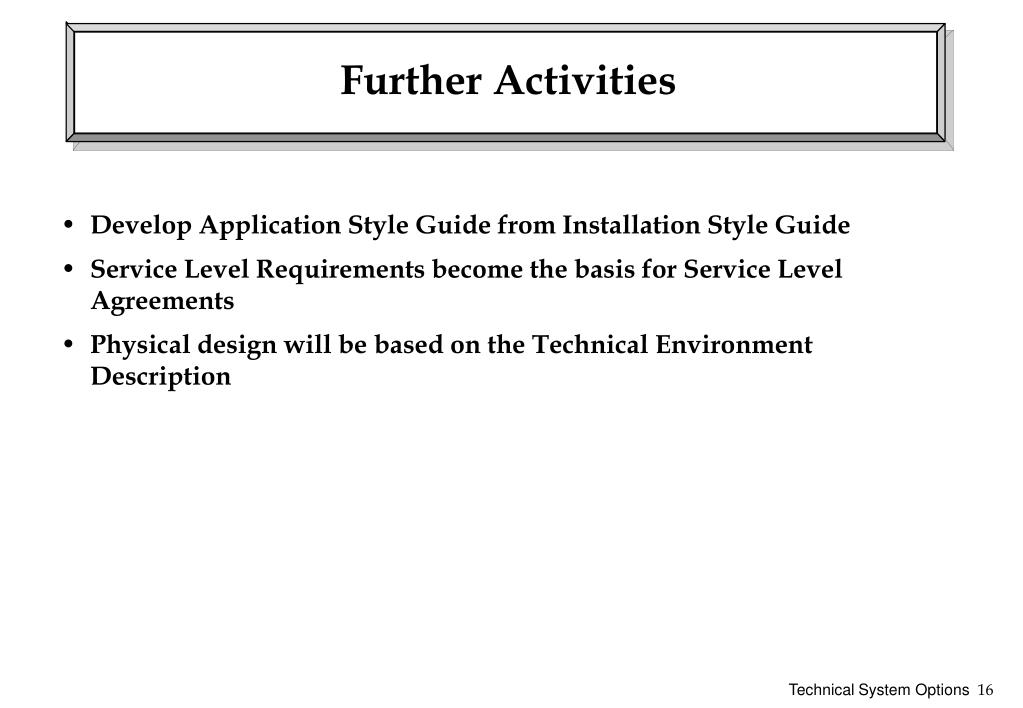

  16. Further Activities • Develop Application Style Guide from Installation Style Guide • Service Level Requirements become the basis for Service Level Agreements • Physical design will be based on the Technical Environment Description
