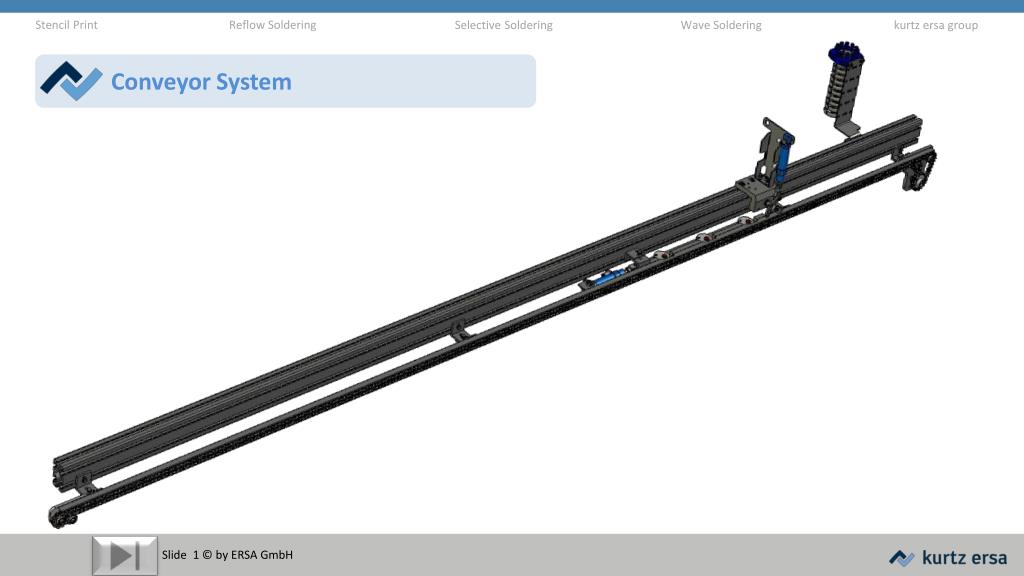

Conveyor System. Side Positioning Unit. Correct positioning of the PCB is instrumental for the soldering process Lateral fixation of the PCB for correct positioning in the fluxing / soldering area Maintenance free motors provide a jerk-free conveyance of the PCB. Width Adjustment.
