1 / 5

Variant:  Ser 364 

Discovery of CHGA Gly364Ser. Wild-type:  Gly 364 . Variant:  Ser 364 . S1. CHGA single nucleotide polymorphism Gly364Ser (G9559A). Analysis by a two-stage MALDI-TOF assay. Subject P3692 Ser/Ser (A/A) homozygote Subject T396 Gly/Ser (G/A) heterozygote Subject T397

spiro
Télécharger la présentation

Variant:  Ser 364 

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Discovery of CHGA Gly364Ser Wild-type: Gly364 Variant: Ser364 S1.

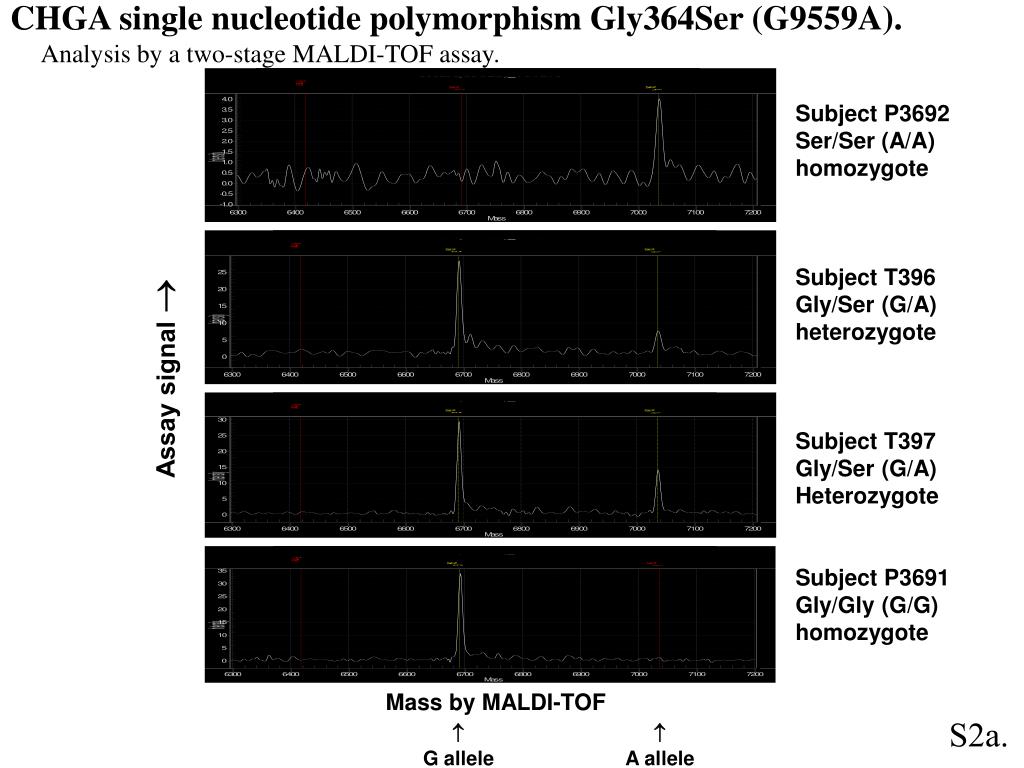

  2. CHGA single nucleotide polymorphism Gly364Ser (G9559A). Analysis by a two-stage MALDI-TOF assay. Subject P3692 Ser/Ser (A/A) homozygote Subject T396 Gly/Ser (G/A) heterozygote Subject T397 Gly/Ser (G/A) Heterozygote Subject P3691 Gly/Gly (G/G) homozygote Assay signal Mass by MALDI-TOF S2a.  G allele  A allele

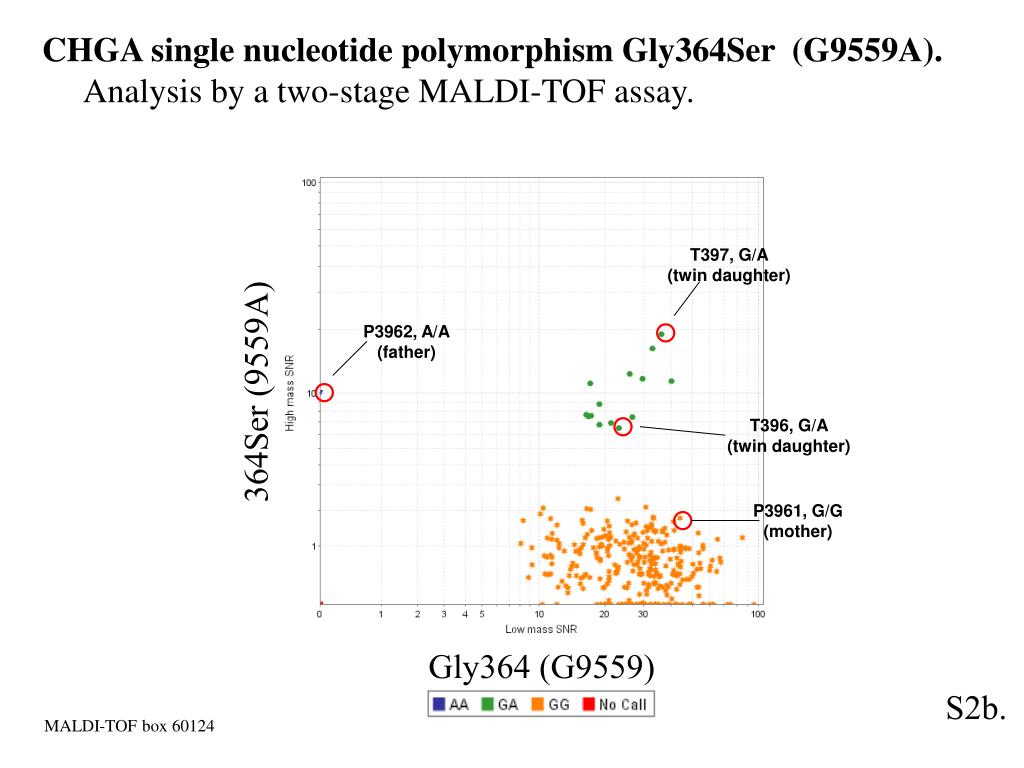

  3. CHGA single nucleotide polymorphism Gly364Ser (G9559A). Analysis by a two-stage MALDI-TOF assay. T397, G/A (twin daughter) P3962, A/A (father) 364Ser (9559A) T396, G/A (twin daughter) P3961, G/G (mother) Gly364 (G9559) S2b. MALDI-TOF box 60124

  4. S3a.

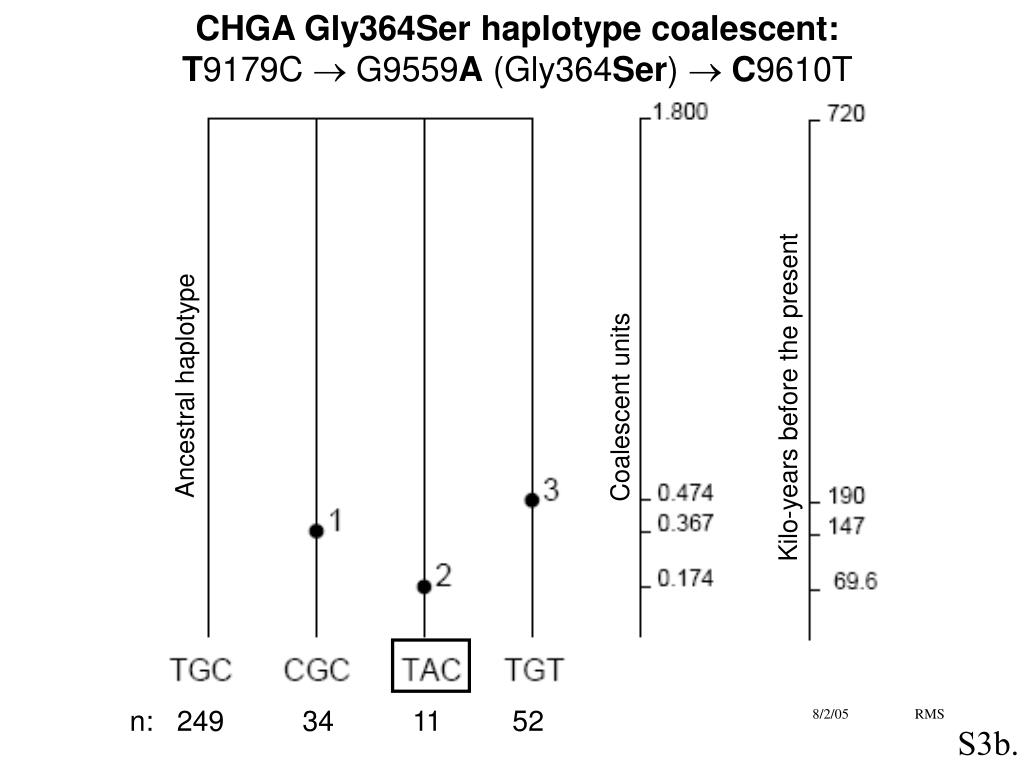

  5. CHGA Gly364Ser haplotype coalescent: T9179C  G9559A (Gly364Ser) C9610T Coalescent Units Ancestral haplotype Kilo-years before the present Coalescent units n: 249 34 11 52 8/2/05 RMS S3b.
