Presentation Transcript

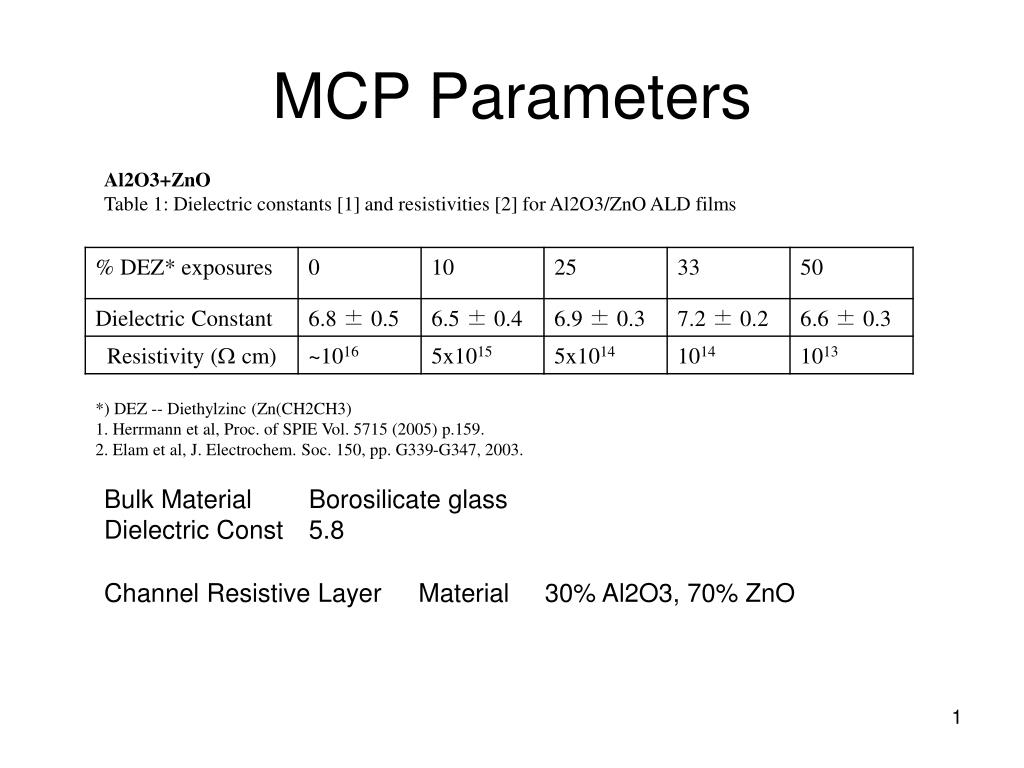

  1. MCP Parameters Al2O3+ZnO Table 1: Dielectric constants [1] and resistivities [2] for Al2O3/ZnO ALD films *) DEZ -- Diethylzinc (Zn(CH2CH3)1. Herrmann et al, Proc. of SPIE Vol. 5715 (2005) p.159. 2. Elam et al, J. Electrochem. Soc. 150, pp. G339-G347, 2003. Bulk Material Borosilicate glass Dielectric Const 5.8 Channel Resistive Layer Material 30% Al2O3, 70% ZnO

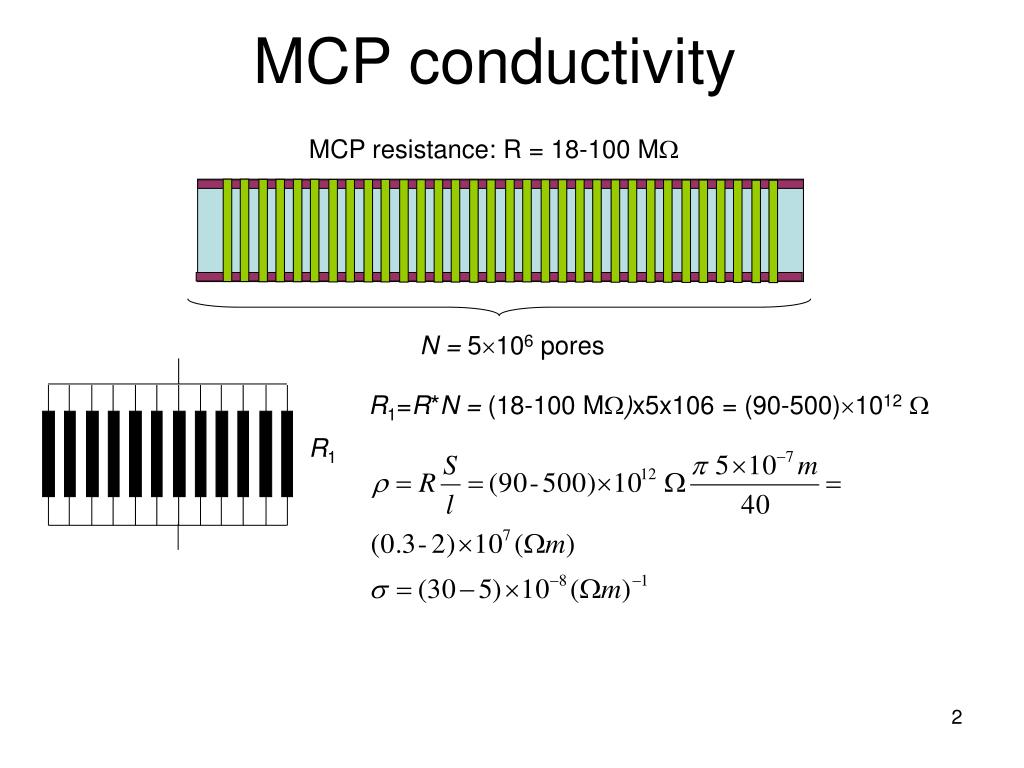

  2. MCP conductivity MCP resistance: R = 18-100 MW N = 5106 pores R1=R*N = (18-100MW)x5x106 = (90-500)1012W R1
