Presentation Transcript

  1. Group Project • Justin Hust • Ethan Petuchowski • Simon Doty • LISP Interpreter using JavaCC and jjTree • SQL Subquery in ReL

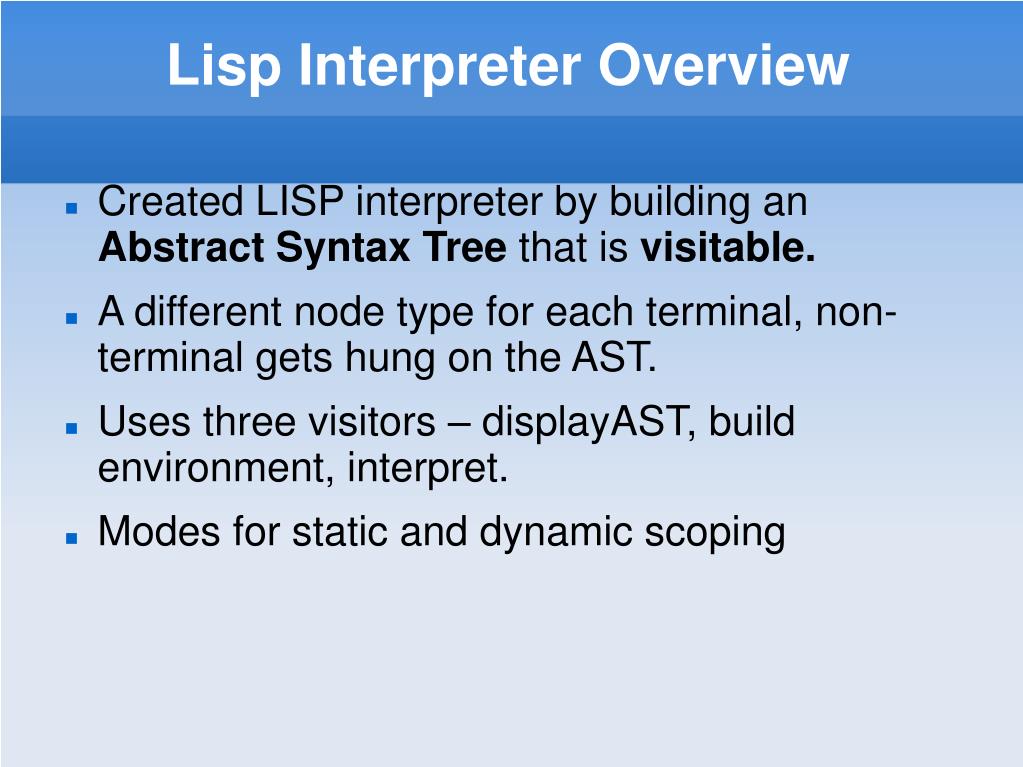

  2. Lisp Interpreter Overview • Created LISP interpreter by building an Abstract Syntax Tree that is visitable. • A different node type for each terminal, non-terminal gets hung on the AST. • Uses three visitors – displayAST, build environment, interpret. • Modes for static and dynamic scoping

  3. AST Nodes • ASTIdentifier x, y, f • ASTNum 1000, 3.14 • ASTArithExpr (+ 4 3) • ASTLambdaExpr (lambda (x) (+ x 3)) Function Application: • ASTFunctionExpr ((lambda (y) (+ y y)) 5) • ASTNamedFunctionApp (f 5)

  4. AST Print Visitor • Visitor for AST Printing • Displays abstract syntax for nodes

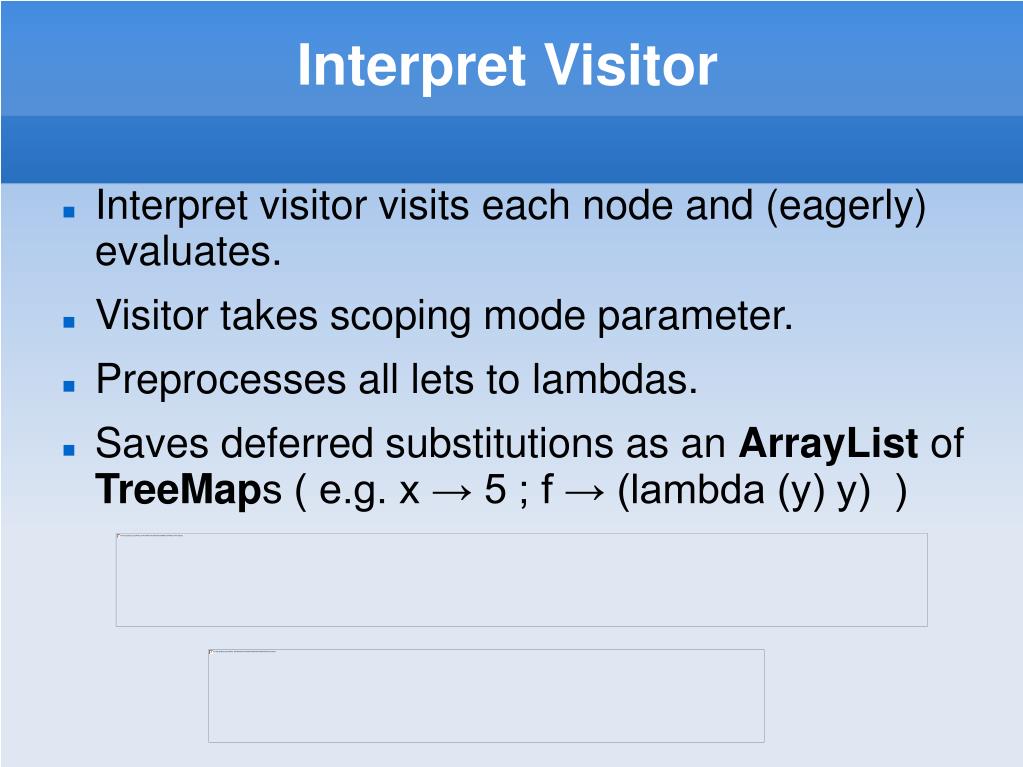

  5. Interpret Visitor • Interpret visitor visits each node and (eagerly) evaluates. • Visitor takes scoping mode parameter. • Preprocesses all lets to lambdas. • Saves deferred substitutions as an ArrayList of TreeMaps ( e.g. x → 5 ; f → (lambda (y) y) )

  6. Environment Visitor • Builds environment with FAE-like syntax.

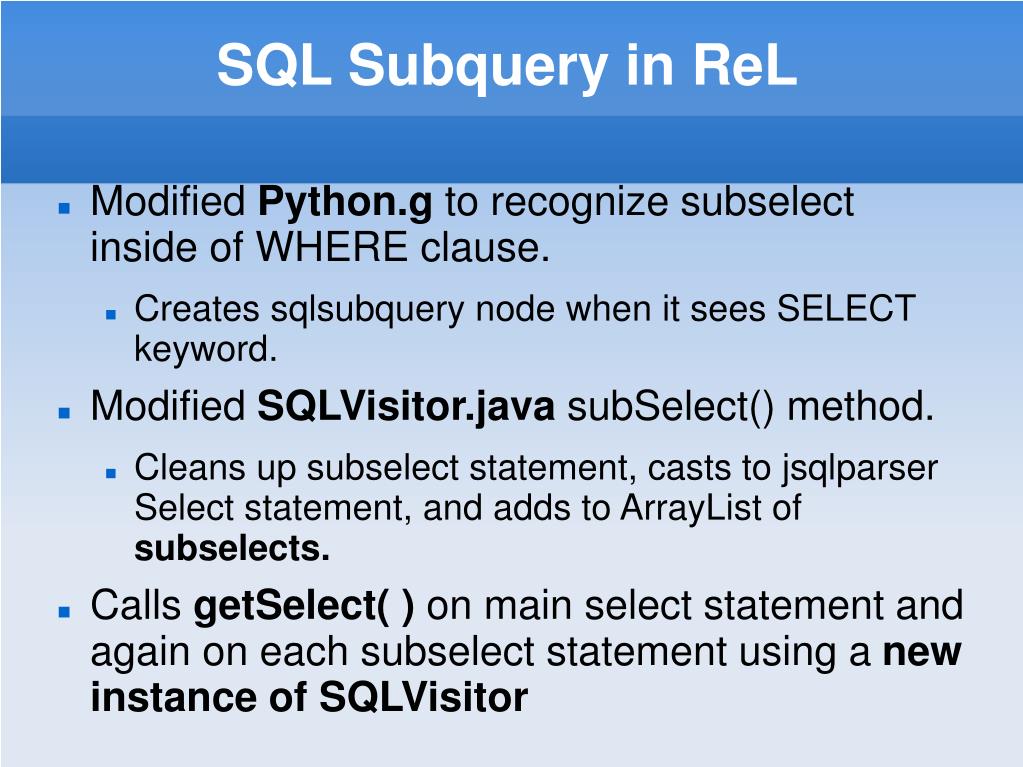

  7. SQL Subquery in ReL • Modified Python.g to recognize subselect inside of WHERE clause. • Creates sqlsubquery node when it sees SELECT keyword. • Modified SQLVisitor.java subSelect() method. • Cleans up subselect statement, casts to jsqlparser Select statement, and adds to ArrayList of subselects. • Calls getSelect( ) on main select statement and again on each subselect statement using a new instance of SQLVisitor

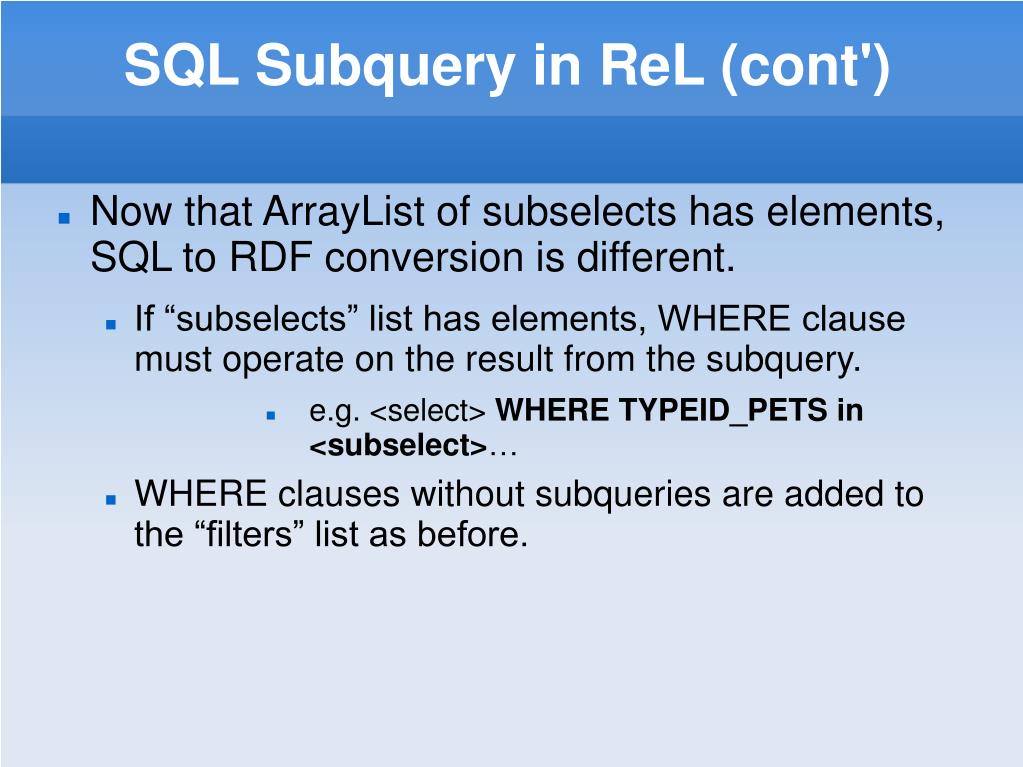

  8. SQL Subquery in ReL (cont') • Now that ArrayList of subselects has elements, SQL to RDF conversion is different. • If “subselects” list has elements, WHERE clause must operate on the result from the subquery. • e.g. <select> WHERE TYPEID_PETS in <subselect>… • WHERE clauses without subqueries are added to the “filters” list as before.
