Introduction to Waves and Sound

Introduction to Waves and Sound. Chapters 14 and 15. Periodic Motion. Motion that occurs in a regular cycle. Period – the time it takes to complete one cycle (T) Amplitude – the maximum distance the object moves from equilibrium

sugar
Télécharger la présentation

Introduction to Waves and Sound

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Introduction to Waves and Sound Chapters 14 and 15

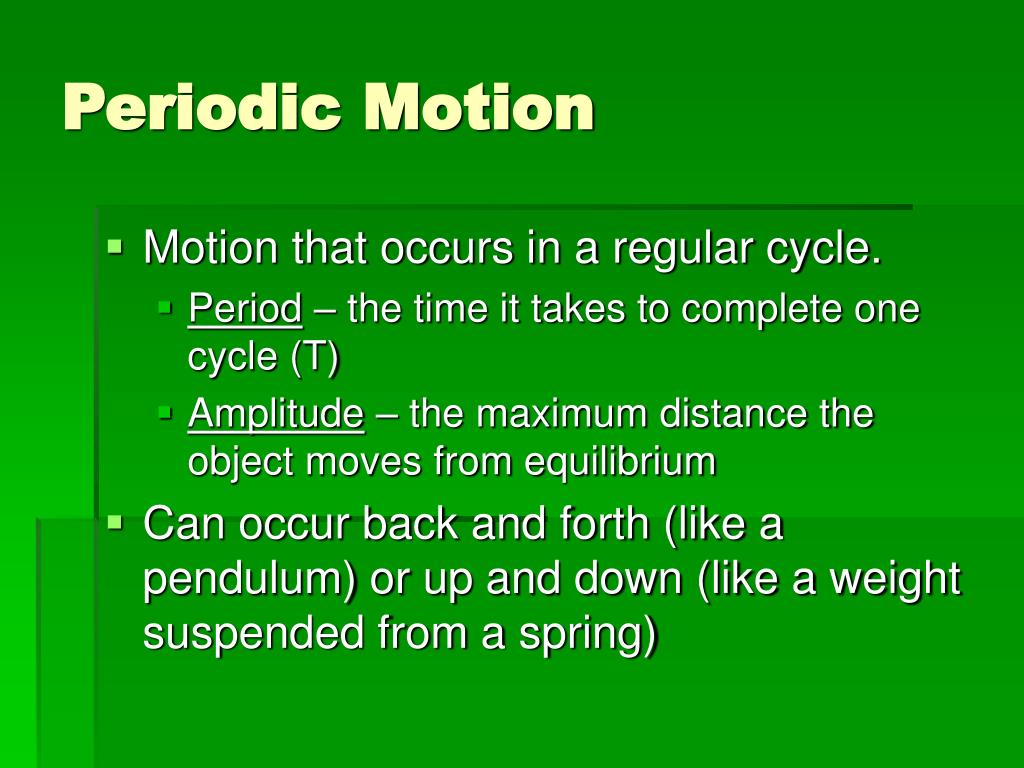

  2. Periodic Motion • Motion that occurs in a regular cycle. • Period – the time it takes to complete one cycle (T) • Amplitude – the maximum distance the object moves from equilibrium • Can occur back and forth (like a pendulum) or up and down (like a weight suspended from a spring)

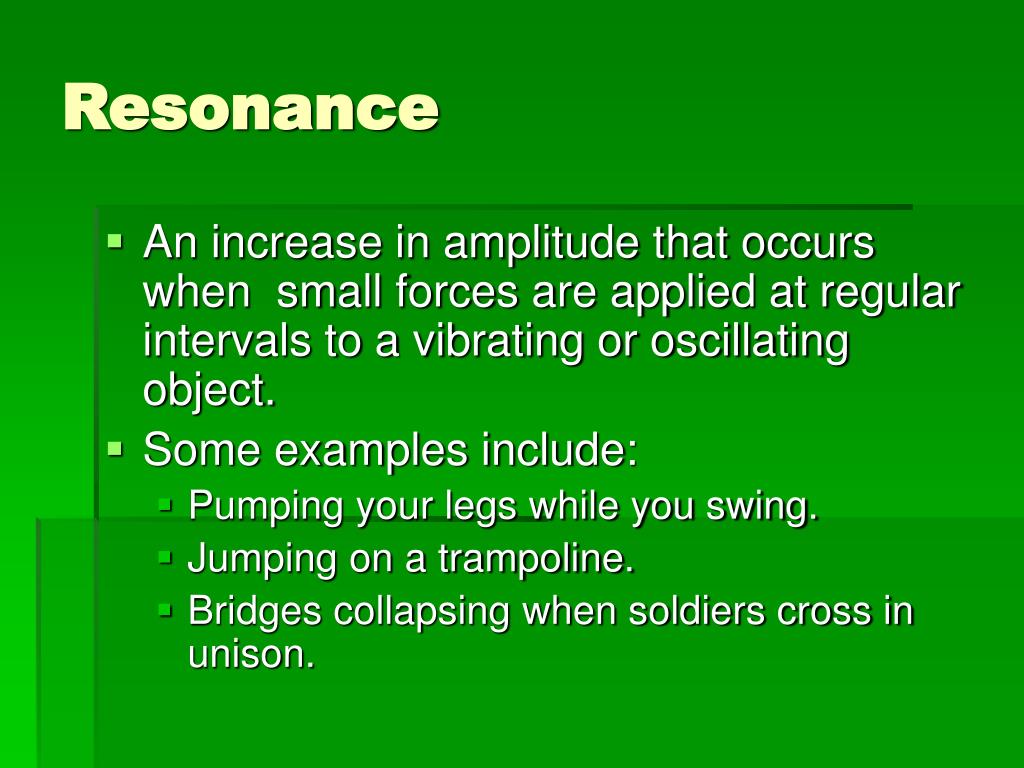

  3. Resonance • An increase in amplitude that occurs when small forces are applied at regular intervals to a vibrating or oscillating object. • Some examples include: • Pumping your legs while you swing. • Jumping on a trampoline. • Bridges collapsing when soldiers cross in unison.

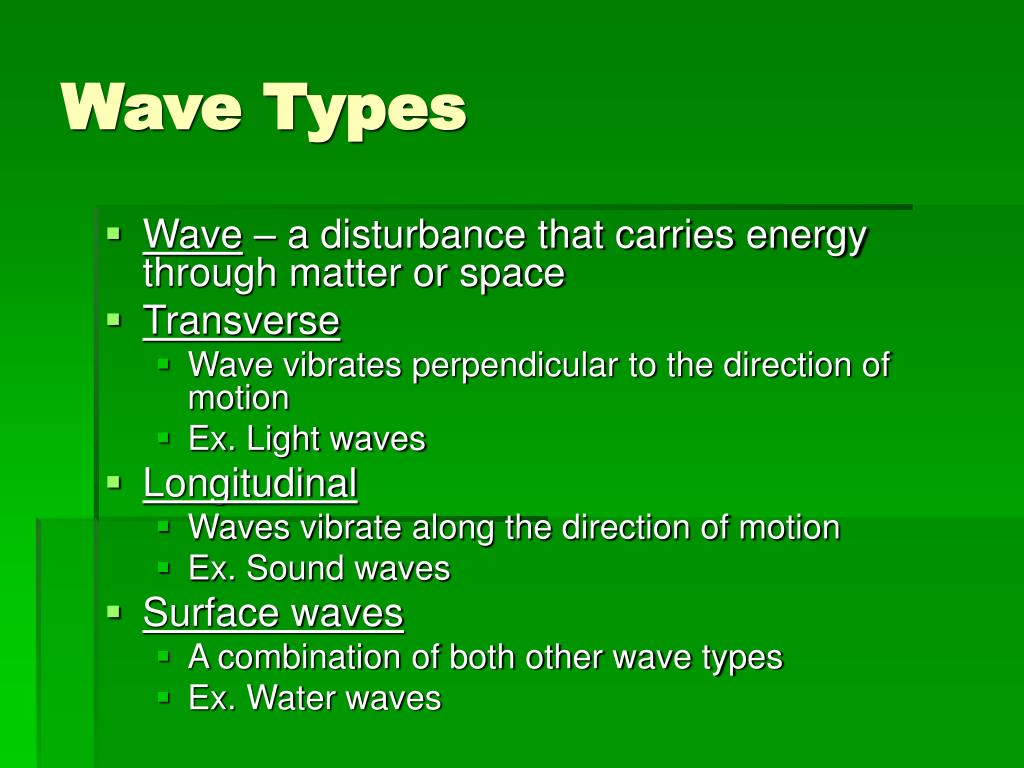

  4. Wave Types • Wave – a disturbance that carries energy through matter or space • Transverse • Wave vibrates perpendicular to the direction of motion • Ex. Light waves • Longitudinal • Waves vibrate along the direction of motion • Ex. Sound waves • Surface waves • A combination of both other wave types • Ex. Water waves

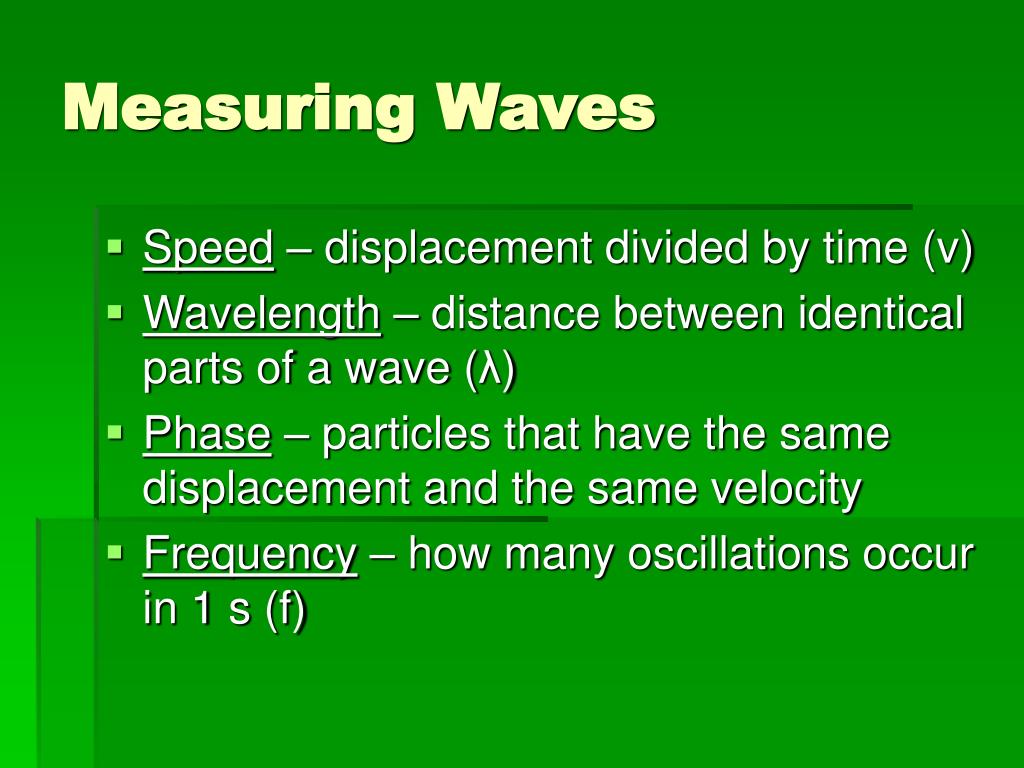

  5. Measuring Waves • Speed – displacement divided by time (v) • Wavelength – distance between identical parts of a wave (λ) • Phase – particles that have the same displacement and the same velocity • Frequency – how many oscillations occur in 1 s (f)

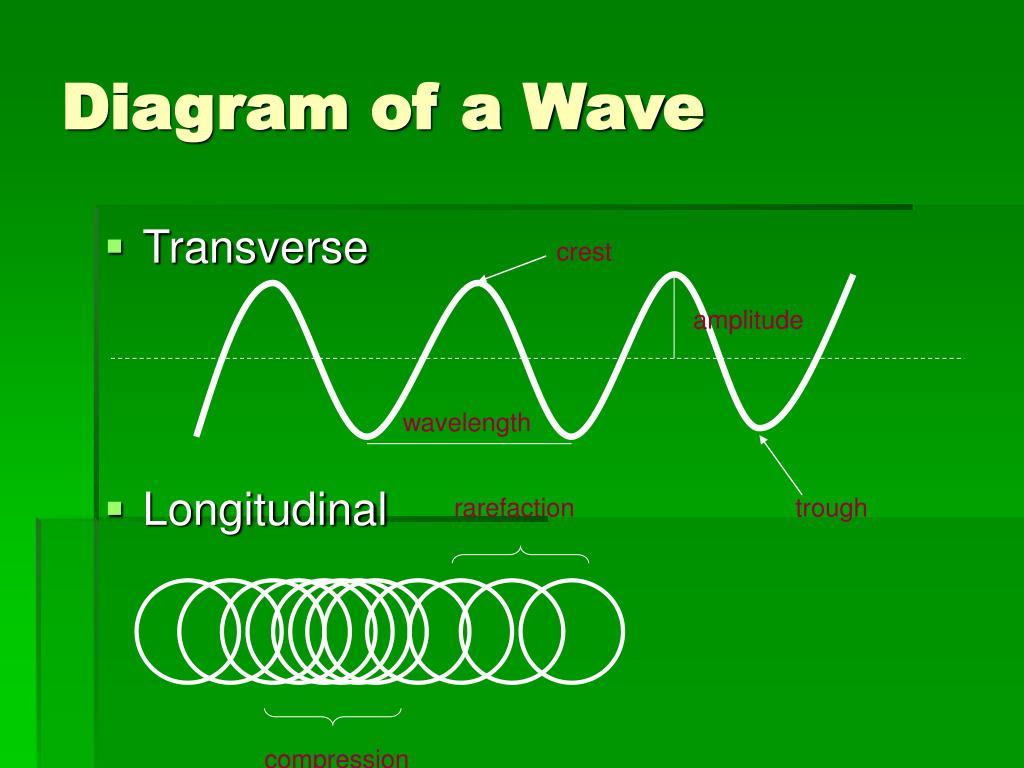

  6. Diagram of a Wave • Transverse • Longitudinal crest amplitude wavelength rarefaction trough compression

  7. Wave Behavior • Amplitude measures energy • 2 x the amplitude is 4x the energy • Medium affects speed: • Temperature • Depth • Tension • Density • When the medium changes, wave speed changes • This results in part of the wave being transmitted, and part being reflected back into the original medium • The reflected wave will be inverted if the new medium has a slower speed than the original

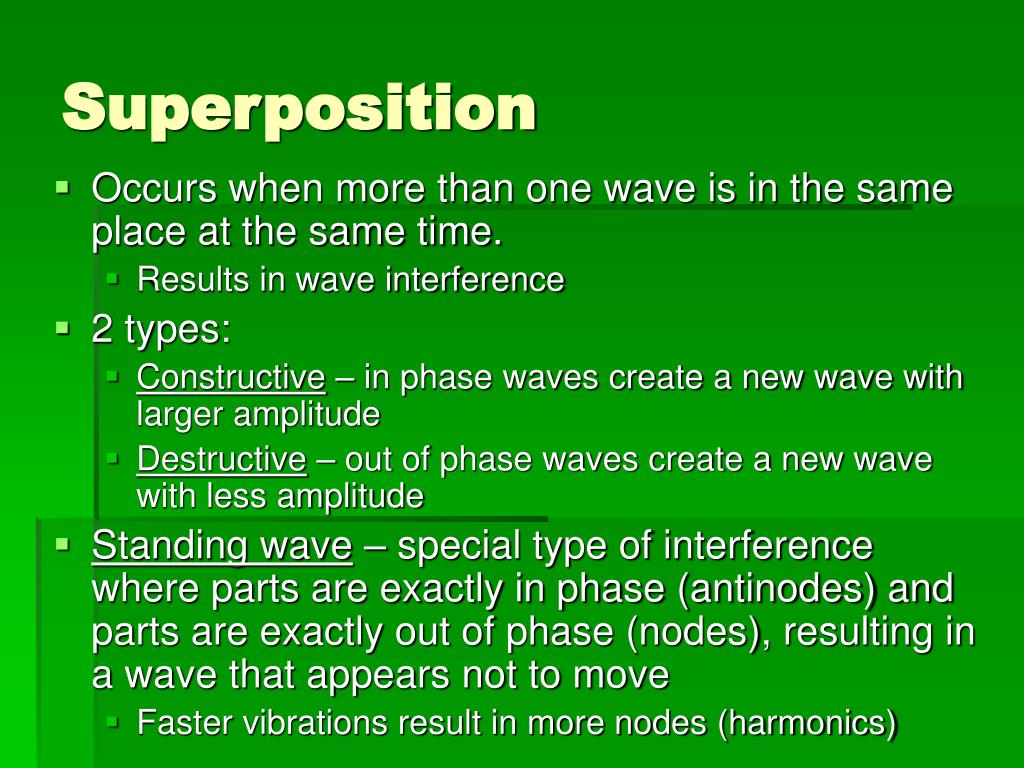

  8. Superposition • Occurs when more than one wave is in the same place at the same time. • Results in wave interference • 2 types: • Constructive – in phase waves create a new wave with larger amplitude • Destructive – out of phase waves create a new wave with less amplitude • Standing wave – special type of interference where parts are exactly in phase (antinodes) and parts are exactly out of phase (nodes), resulting in a wave that appears not to move • Faster vibrations result in more nodes (harmonics)

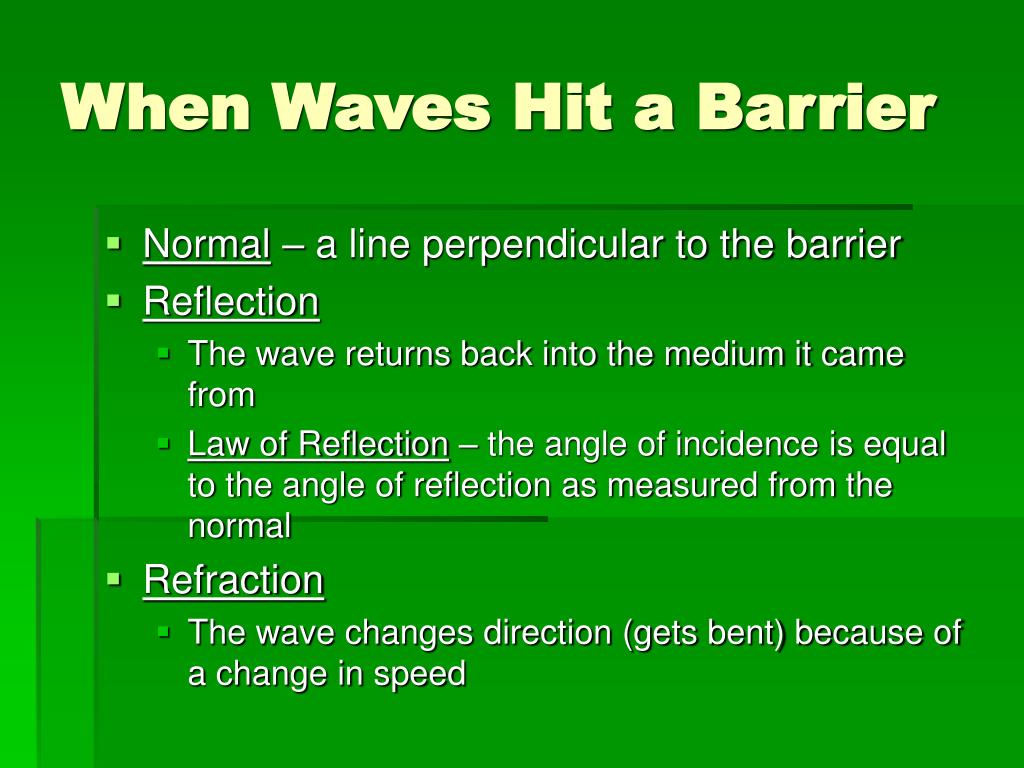

  9. When Waves Hit a Barrier • Normal – a line perpendicular to the barrier • Reflection • The wave returns back into the medium it came from • Law of Reflection – the angle of incidence is equal to the angle of reflection as measured from the normal • Refraction • The wave changes direction (gets bent) because of a change in speed

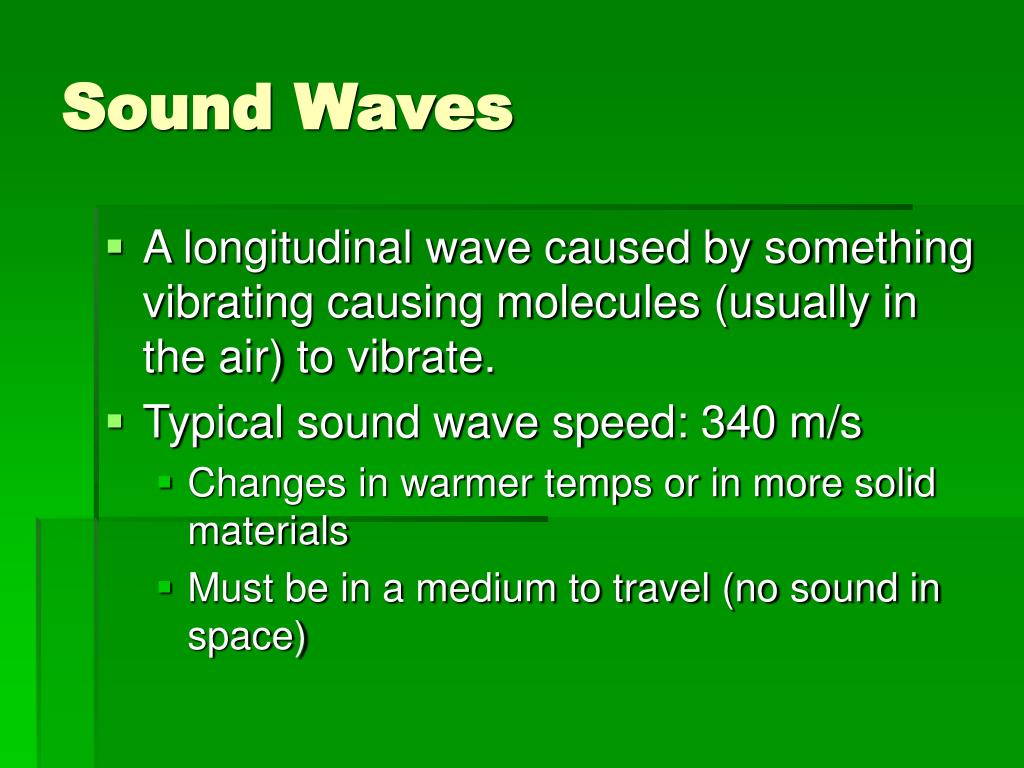

  10. Sound Waves • A longitudinal wave caused by something vibrating causing molecules (usually in the air) to vibrate. • Typical sound wave speed: 340 m/s • Changes in warmer temps or in more solid materials • Must be in a medium to travel (no sound in space)

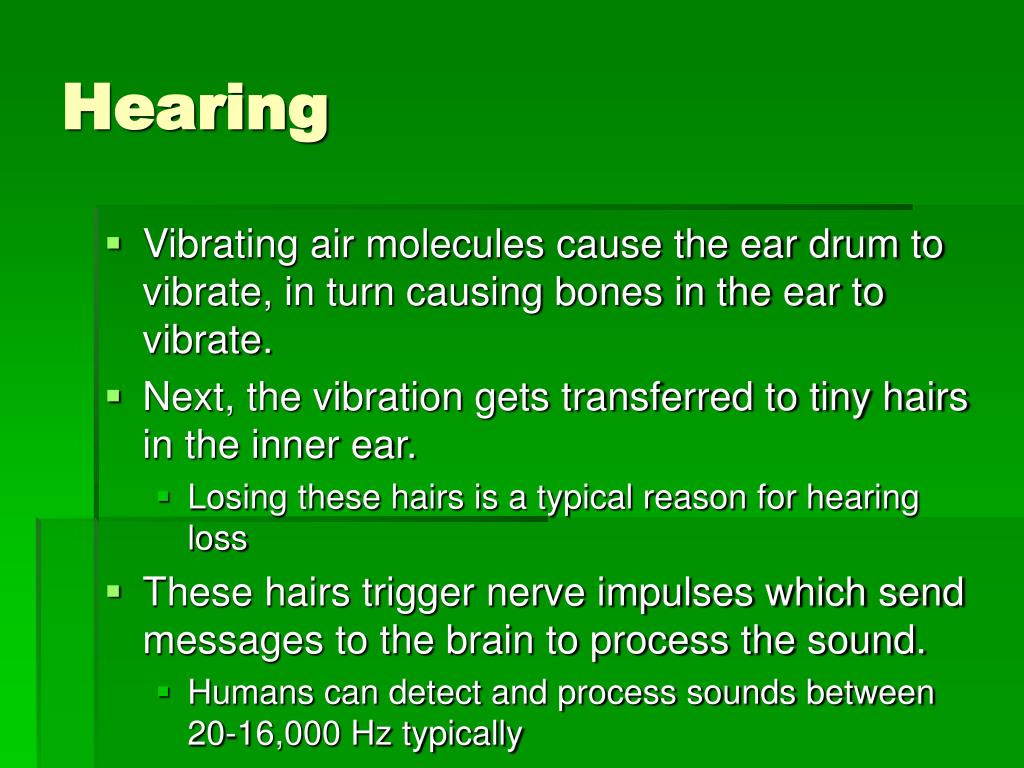

  11. Hearing • Vibrating air molecules cause the ear drum to vibrate, in turn causing bones in the ear to vibrate. • Next, the vibration gets transferred to tiny hairs in the inner ear. • Losing these hairs is a typical reason for hearing loss • These hairs trigger nerve impulses which send messages to the brain to process the sound. • Humans can detect and process sounds between 20-16,000 Hz typically

  12. Perception of Sound • Pitch – how high or low a sound is • Caused by the frequency of sound • Loudness – how strong a sound is • Caused mostly by the amplitude • Measured in decibels (dB) • 10 dB is barely audible to humans, 110 dB is the average rock concert • Long term exposure to sounds around 100 dB causes permanent hearing loss

  13. Doppler Effect • A change in a sound’s apparent frequency due to motion of the source or receiver. • Red shift – frequency decreases because the source is getting further away • Blue shift – frequency increases because the source is getting closer • The faster the motion, the more dramatic the effect • Used in animals (like bats and dolphins) and in medicine (like sonograms)

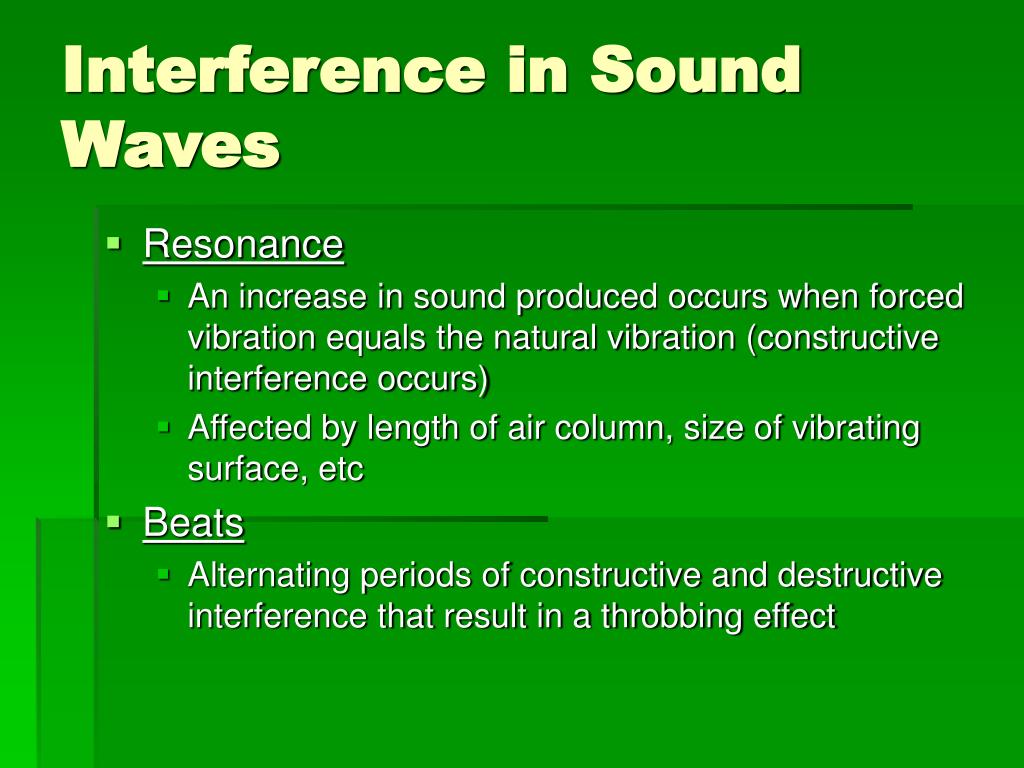

  14. Interference in Sound Waves • Resonance • An increase in sound produced occurs when forced vibration equals the natural vibration (constructive interference occurs) • Affected by length of air column, size of vibrating surface, etc • Beats • Alternating periods of constructive and destructive interference that result in a throbbing effect
