  1. Efficient Skyline Computation in MapReduce Kasper Mullesgaard, Jens LauritsPedersen, HuaLu Aalborg University Yongluan Zhou University of Southern Denmark

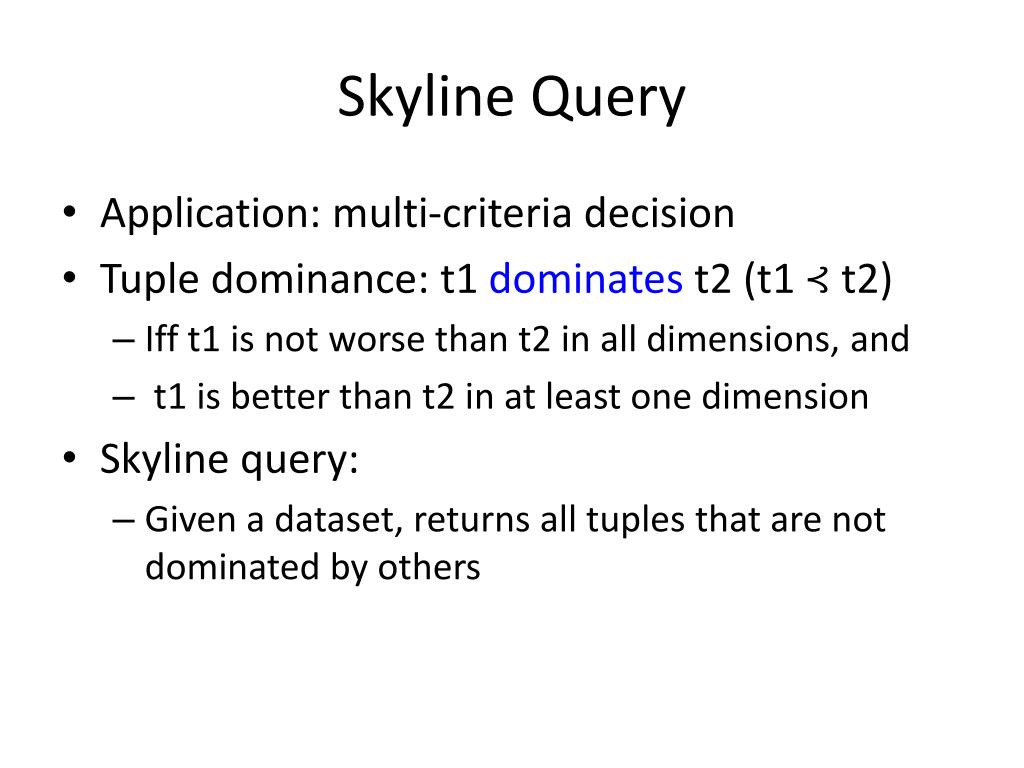

  2. Skyline Query • Application: multi-criteria decision • Tuple dominance: t1 dominates t2 (t1 ⊰ t2) • Iff t1 is not worse than t2 in all dimensions, and • t1 is better than t2 in at least one dimension • Skyline query: • Given a dataset, returns all tuples that are not dominated by others

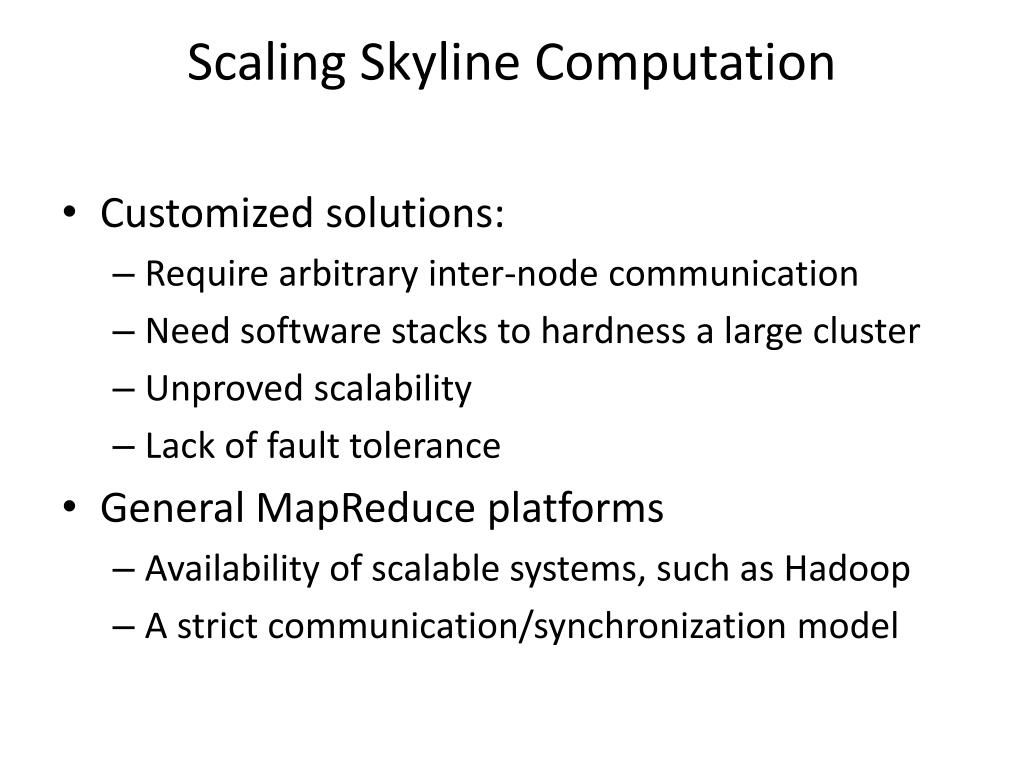

  3. Scaling Skyline Computation • Customized solutions: • Require arbitrary inter-node communication • Need software stacks to hardness a large cluster • Unproved scalability • Lack of fault tolerance • General MapReduce platforms • Availability of scalable systems, such as Hadoop • A strict communication/synchronization model

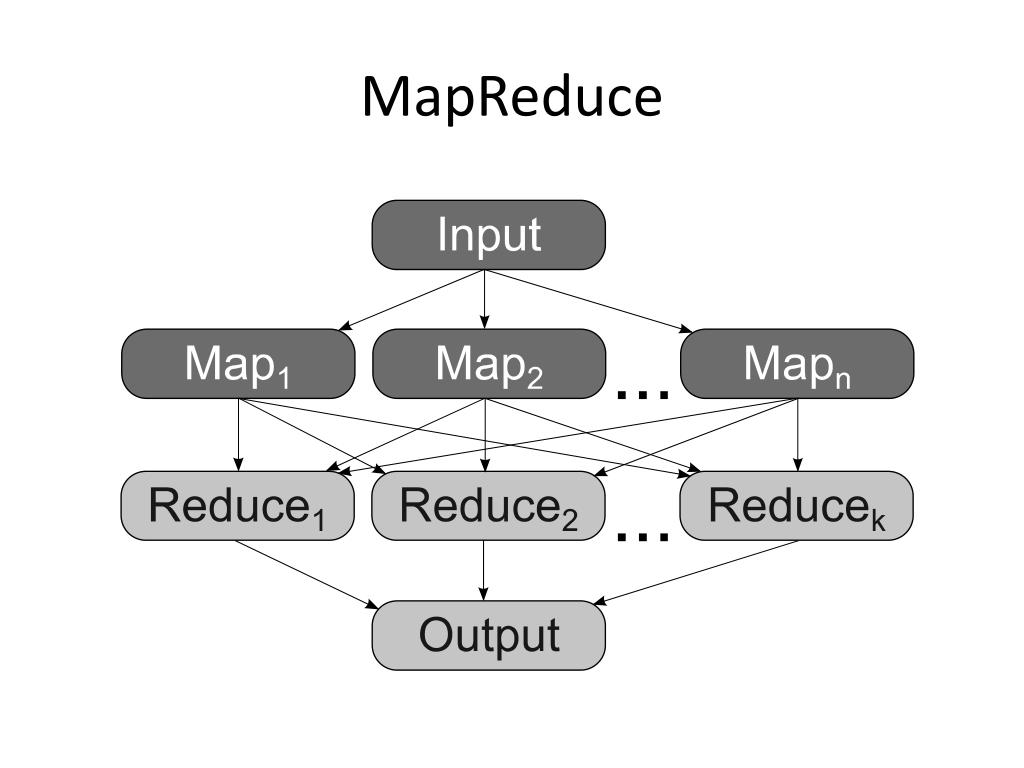

  4. MapReduce

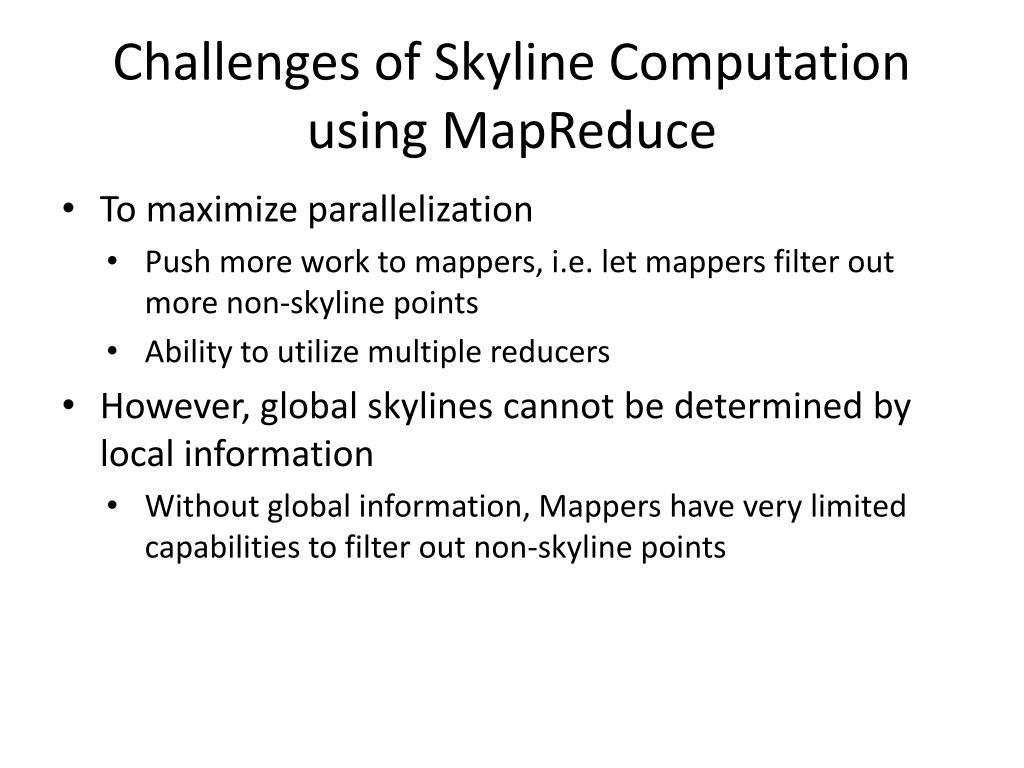

  5. Challenges of Skyline Computation using MapReduce • To maximize parallelization • Push more work to mappers, i.e. let mappers filter out more non-skyline points • Ability to utilize multiple reducers • However, global skylines cannot be determined by local information • Without global information, Mappers have very limited capabilities to filter out non-skyline points

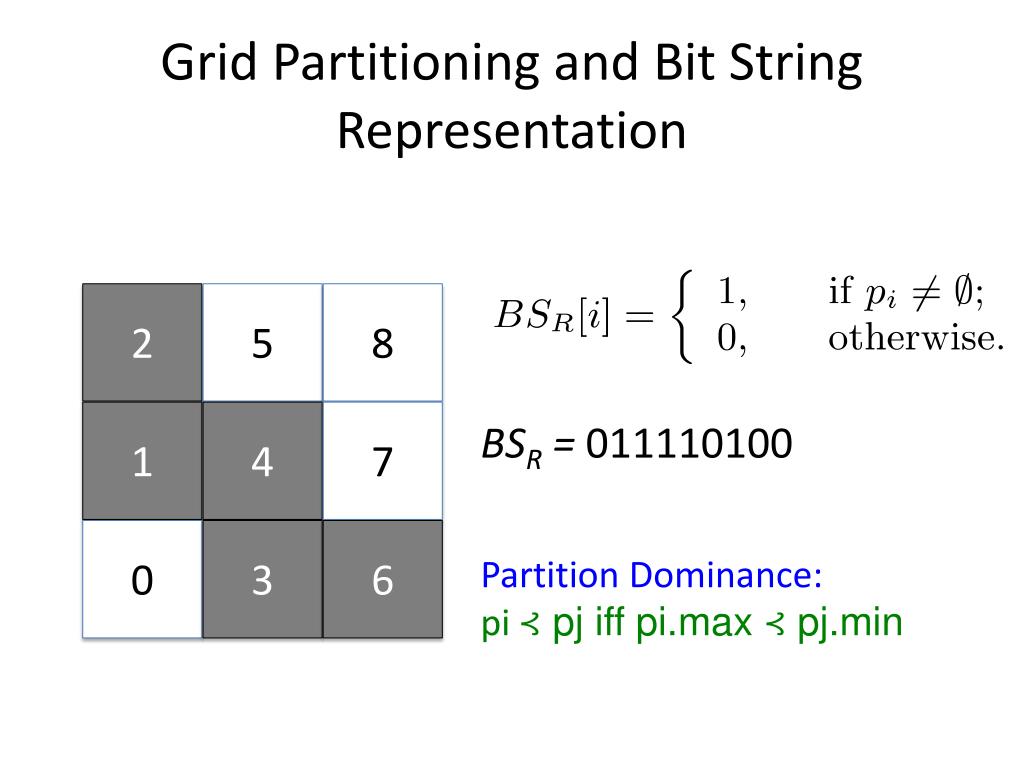

  6. Grid Partitioning and Bit String Representation 2 5 8 BSR = 011110100 1 4 7 Partition Dominance: pi ⊰ pjiffpi.max ⊰ pj.min 0 3 6

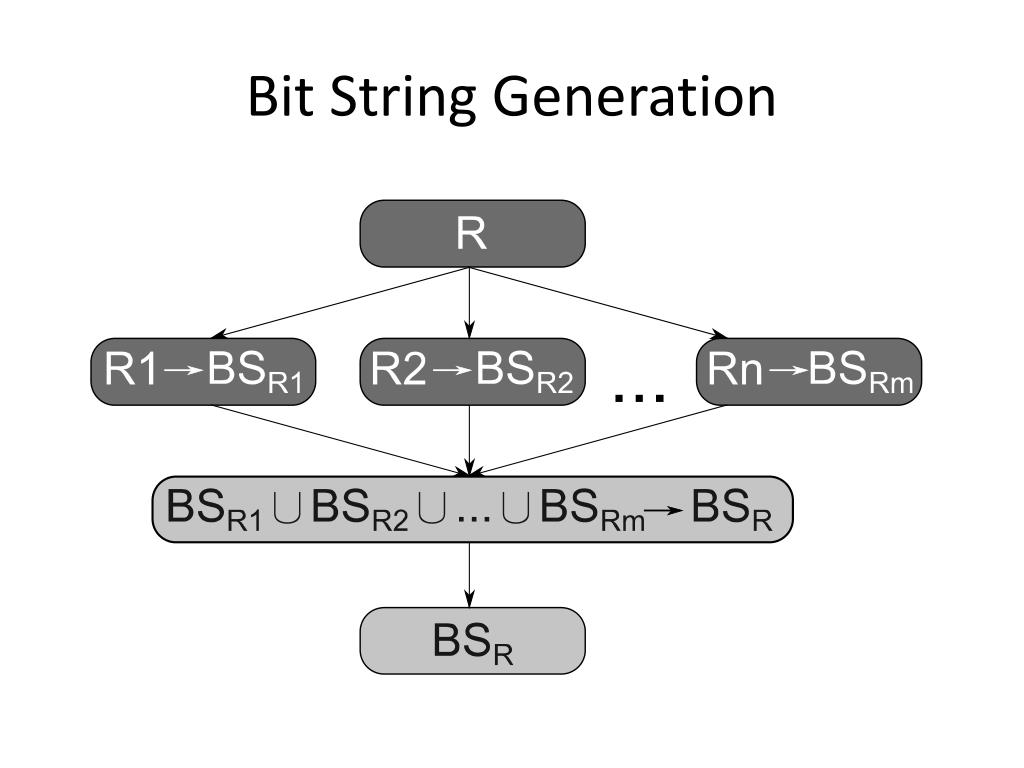

  7. Bit String Generation

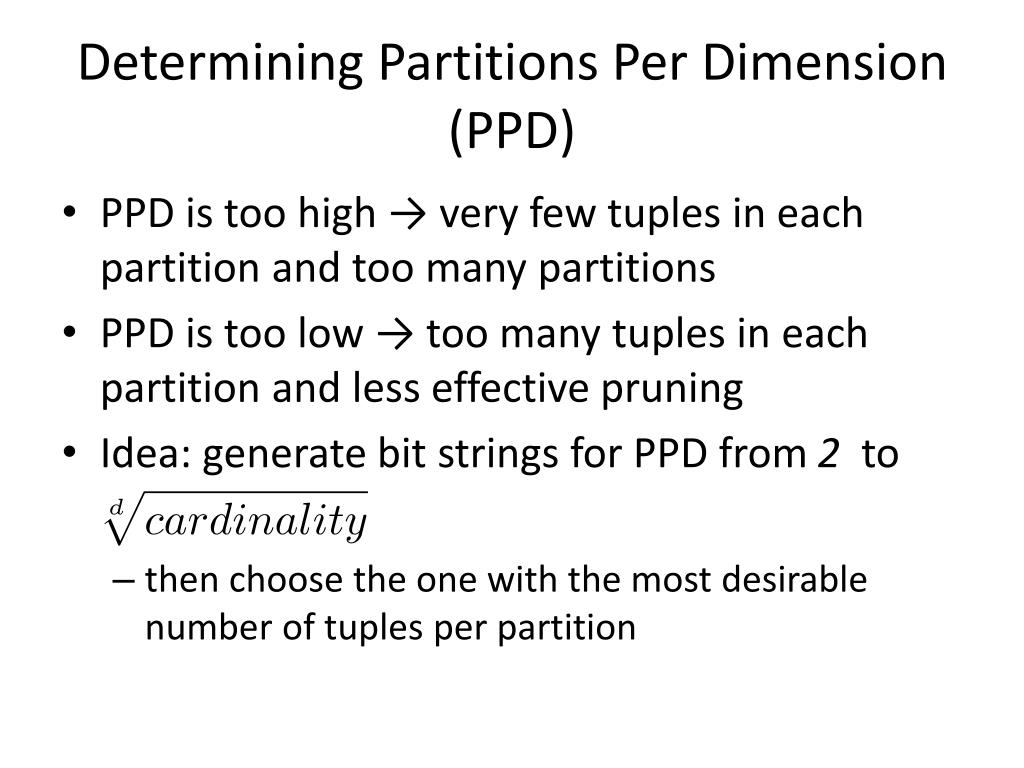

  8. Determining Partitions Per Dimension (PPD) • PPD is too high → very few tuples in each partition and too many partitions • PPD is too low → too many tuples in each partition and less effective pruning • Idea: generate bit strings for PPD from 2 to • then choose the one with the most desirable number of tuples per partition

  9. Single Reducer

  10. Multi-Reducer • The single reducer still performs significant work for detecting global skyline • limits the degree of parallelization • Idea: independent partition group • Anti-Dominating Region (ADR): • Independent Partition Group: A set of partitions Pi is an IPGiff holds • One reducer is responsible for each IPG.

  11. Multi-Reducer

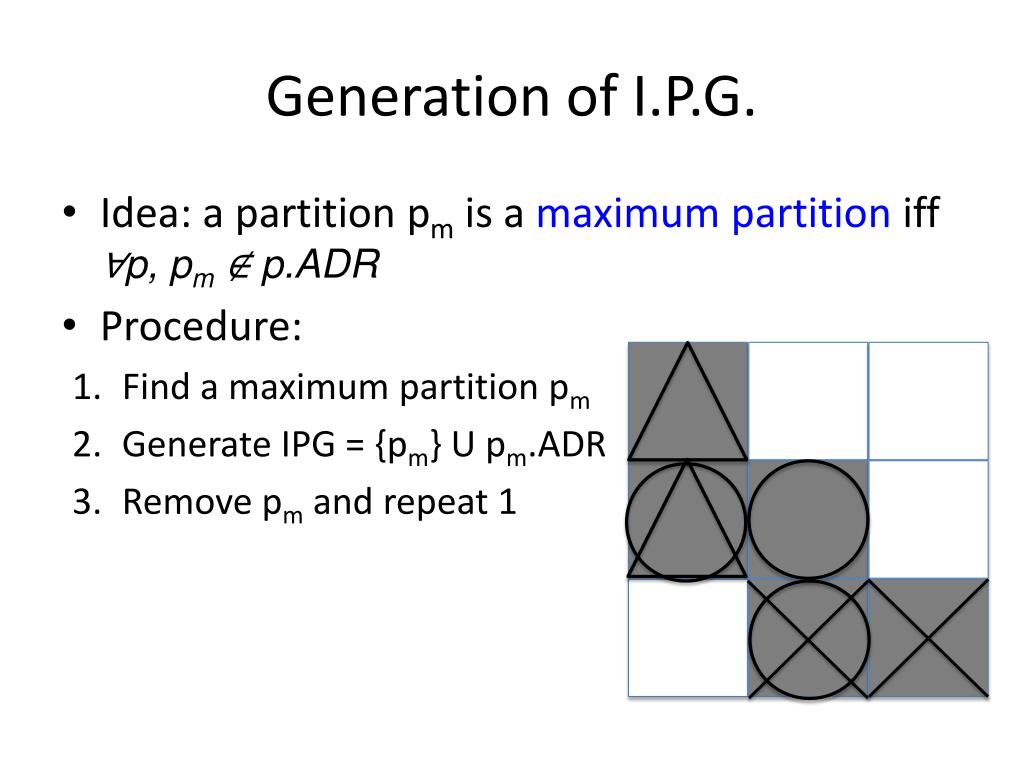

  12. Generation of I.P.G. • Idea: a partition pm is a maximum partition iff∀p, pm ∉ p.ADR • Procedure: • Find a maximum partition pm • Generate IPG = {pm} U pm.ADR • Remove pm and repeat 1

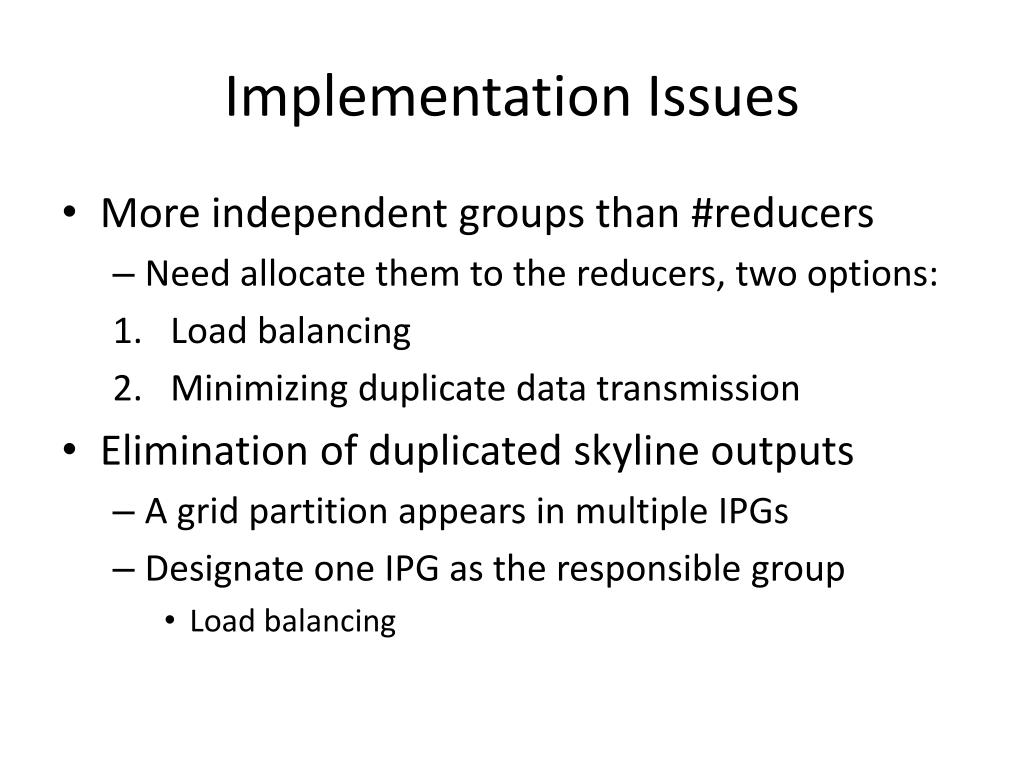

  13. Implementation Issues • More independent groups than #reducers • Need allocate them to the reducers, two options: • Load balancing • Minimizing duplicate data transmission • Elimination of duplicated skyline outputs • A grid partition appears in multiple IPGs • Designate one IPG as the responsible group • Load balancing

  14. Experimental Setup • 13 commodity machines • Datasets with independent and anti-correlated distribution • Comparisons: • MR-BNL • MR-Angle

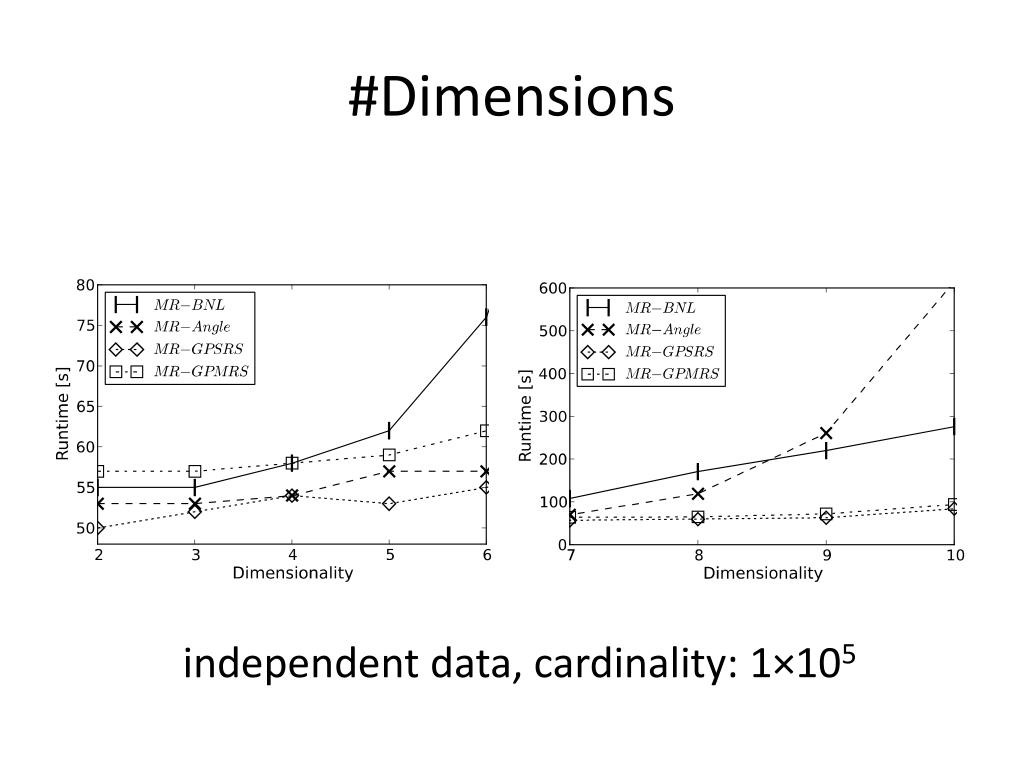

  15. #Dimensions independent data, cardinality: 1×105

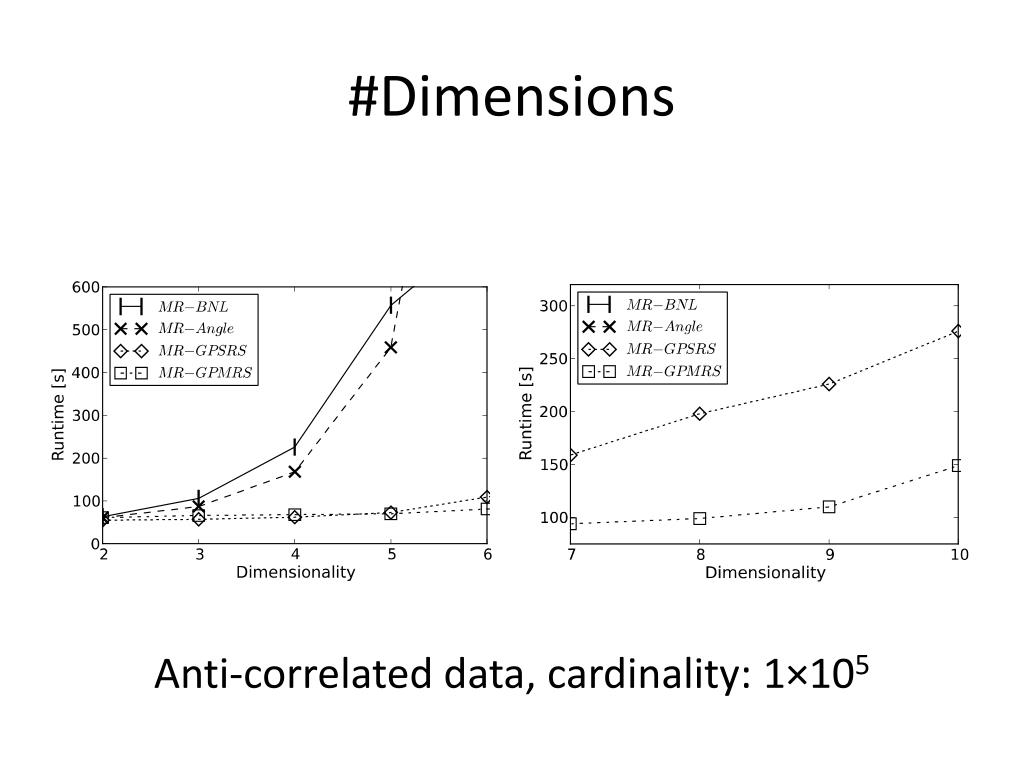

  16. #Dimensions Anti-correlated data, cardinality: 1×105

  17. Cardinality (independent data) Dimensions: 3 Dimensions: 8

  18. Cardinality (Anti-corr. data) Dimensions: 3 Dimensions: 8

  19. Number of Reducers

  20. Summary • Grid partitioning and bit strings • Choose an appropriate # partitioning • Exploit independent groups to enable multiple reducers • Good for cases with large # skylines • Merging independent groups • Eliminate duplicate outputs
