  1. SRB API By: Roman Olschanowsky roman2u@sdsc.edu

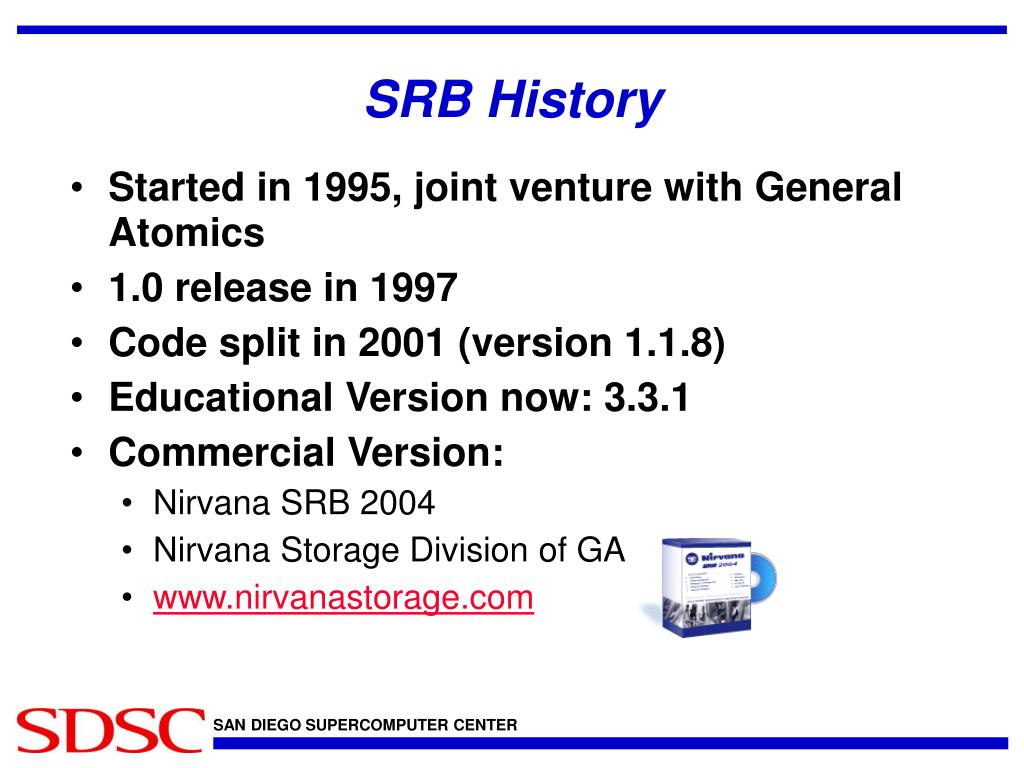

  2. SRB History • Started in 1995, joint venture with General Atomics • 1.0 release in 1997 • Code split in 2001 (version 1.1.8) • Educational Version now: 3.3.1 • Commercial Version: • Nirvana SRB 2004 • Nirvana Storage Division of GA • www.nirvanastorage.com

  3. Available API to theStorage Resource Broker • Jargon – Java API and GUI (with src) • C, C++ – C and C++ API (with src) • Python – Python wrapped C API (with src) • unixIO – unix like IO calls (with src) • Matrix – WSDL/SOAP (with src) • Perl – Perl wrapped C API (contrib) • srbio – changes all unix IO to srb (contrib) • Semplar – MPI-IO API (contrib)

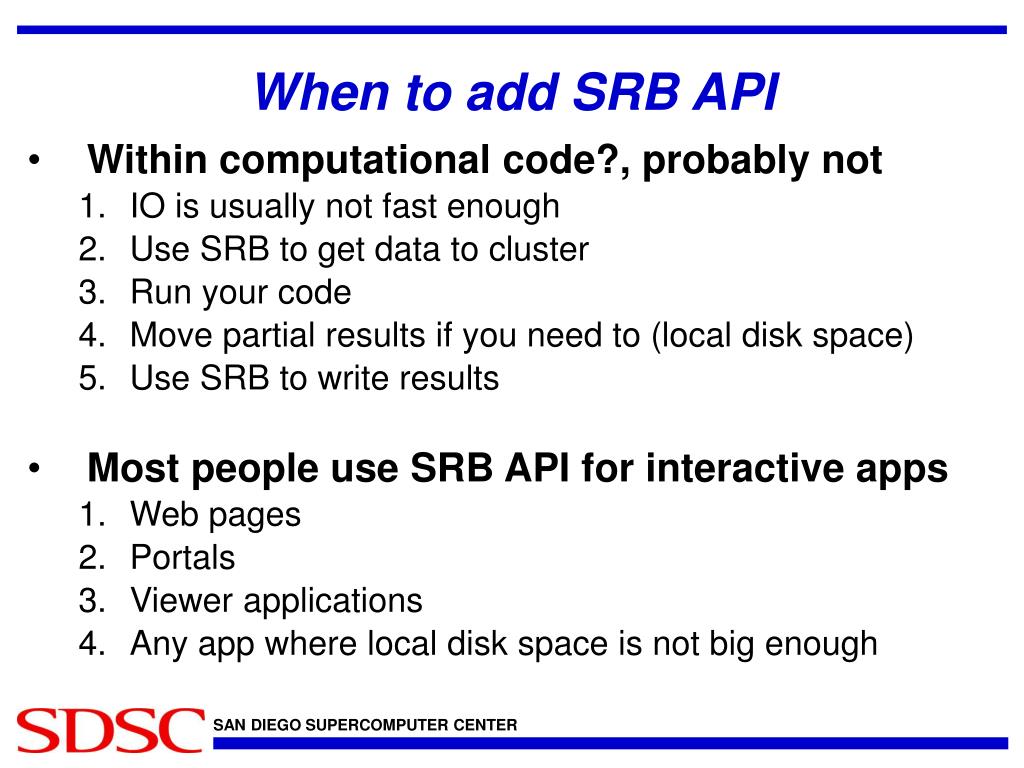

  4. When to add SRB API • Within computational code?, probably not • IO is usually not fast enough • Use SRB to get data to cluster • Run your code • Move partial results if you need to (local disk space) • Use SRB to write results • Most people use SRB API for interactive apps • Web pages • Portals • Viewer applications • Any app where local disk space is not big enough

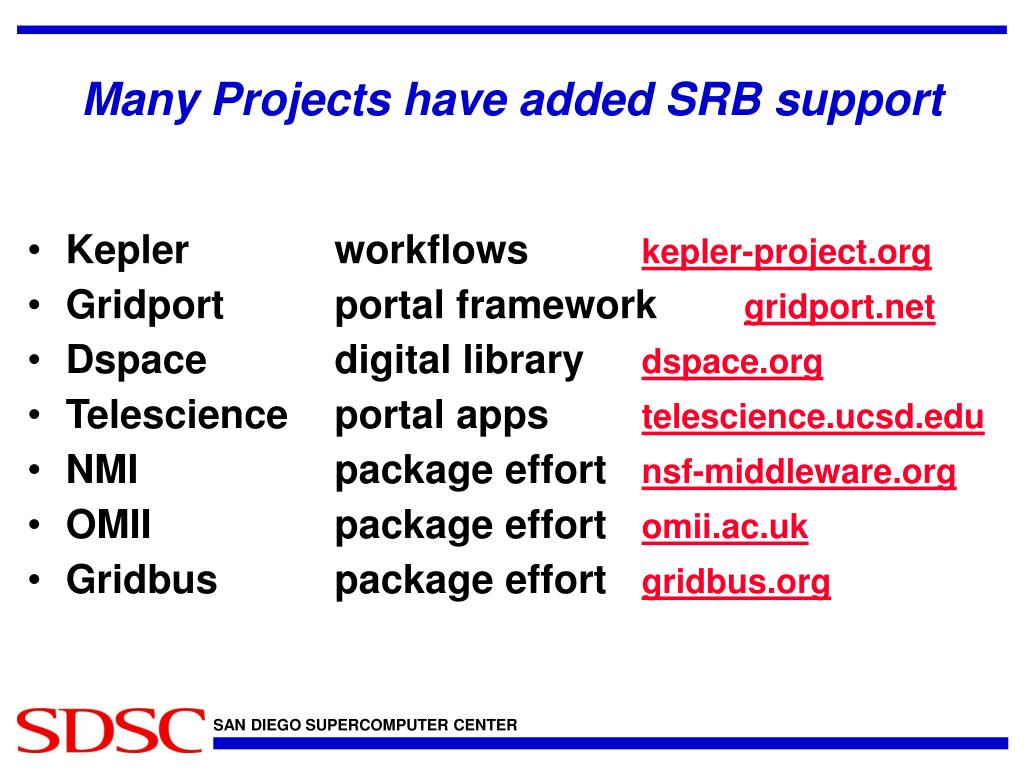

  5. Many Projects have added SRB support • Kepler workflows kepler-project.org • Gridport portal framework gridport.net • Dspace digital library dspace.org • Telescience portal apps telescience.ucsd.edu • NMI package effortnsf-middleware.org • OMII package effort omii.ac.uk • Gridbus package effort gridbus.org

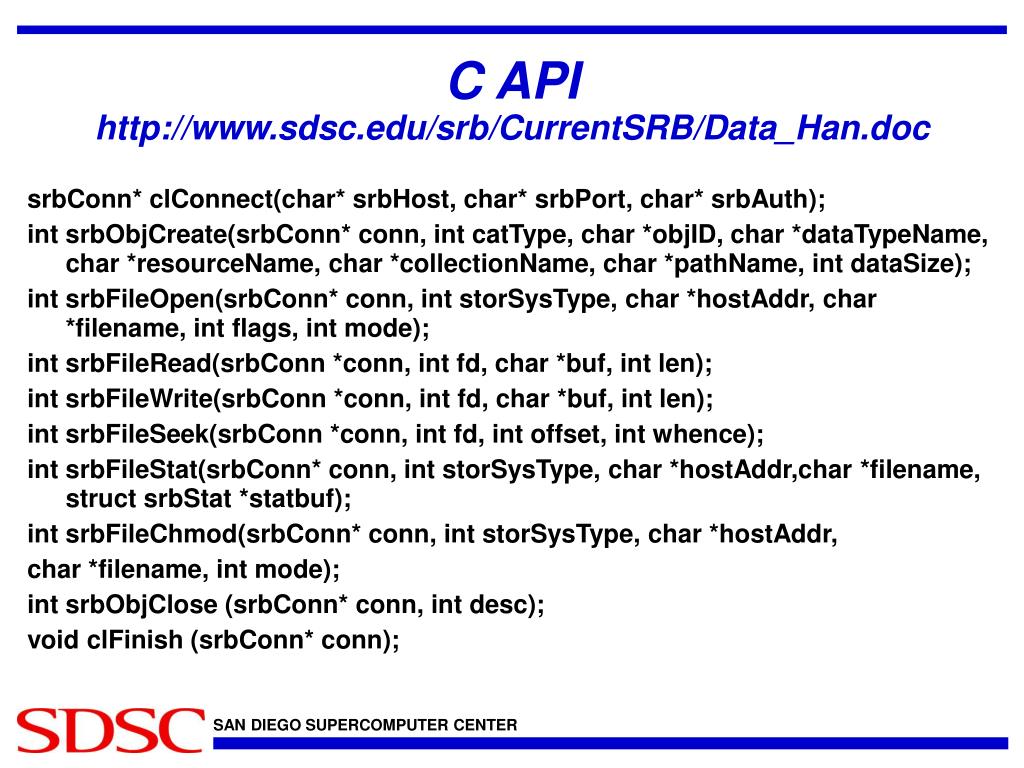

  6. C APIhttp://www.sdsc.edu/srb/CurrentSRB/Data_Han.doc srbConn* clConnect(char* srbHost, char* srbPort, char* srbAuth); int srbObjCreate(srbConn* conn, int catType, char *objID, char *dataTypeName, char *resourceName, char *collectionName, char *pathName, int dataSize); int srbFileOpen(srbConn* conn, int storSysType, char *hostAddr, char *filename, int flags, int mode); int srbFileRead(srbConn *conn, int fd, char *buf, int len); int srbFileWrite(srbConn *conn, int fd, char *buf, int len); int srbFileSeek(srbConn *conn, int fd, int offset, int whence); int srbFileStat(srbConn* conn, int storSysType, char *hostAddr,char *filename, struct srbStat *statbuf); int srbFileChmod(srbConn* conn, int storSysType, char *hostAddr, char *filename, int mode); int srbObjClose (srbConn* conn, int desc); void clFinish (srbConn* conn);

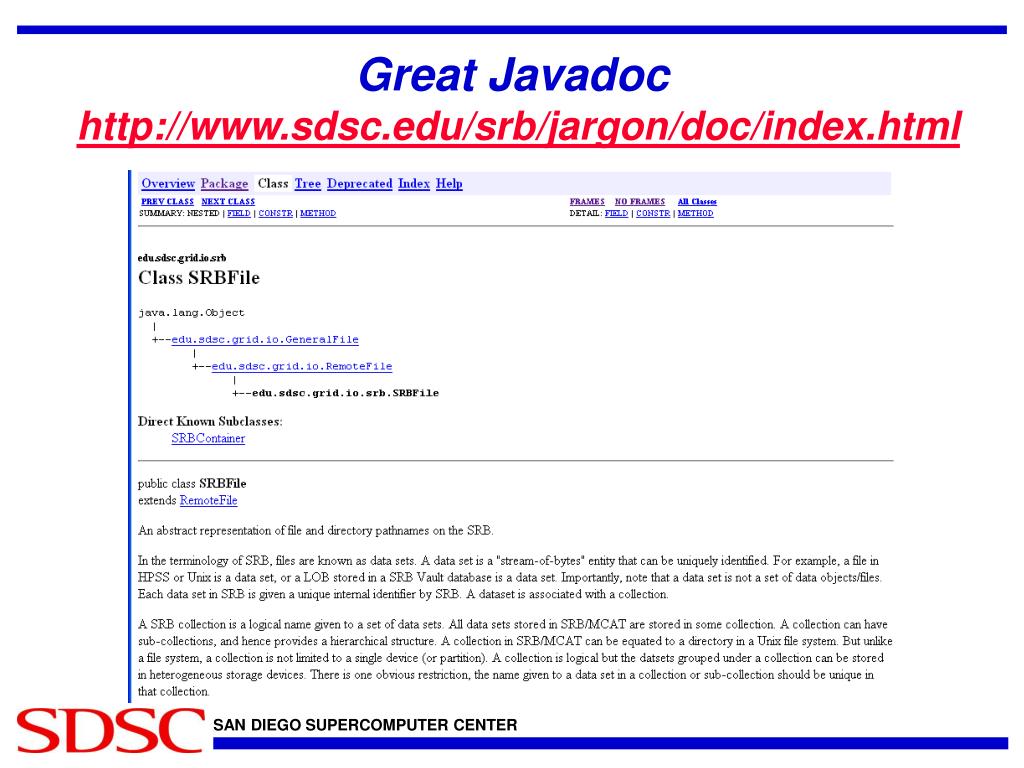

  7. Great Javadochttp://www.sdsc.edu/srb/jargon/doc/index.html

  8. Great Javadochttp://www.sdsc.edu/srb/jargon/doc/index.html

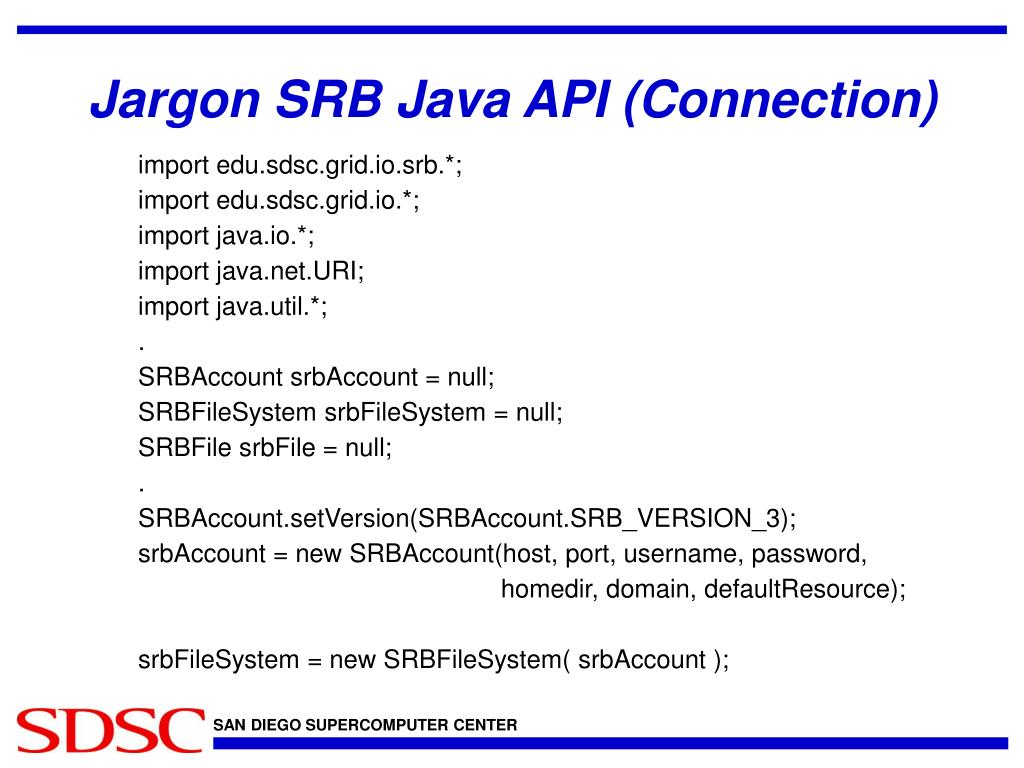

  9. Jargon SRB Java API (Connection) import edu.sdsc.grid.io.srb.*; import edu.sdsc.grid.io.*; import java.io.*; import java.net.URI; import java.util.*; . SRBAccount srbAccount = null; SRBFileSystem srbFileSystem = null; SRBFile srbFile = null; . SRBAccount.setVersion(SRBAccount.SRB_VERSION_3); srbAccount = new SRBAccount(host, port, username, password, homedir, domain, defaultResource); srbFileSystem = new SRBFileSystem( srbAccount );

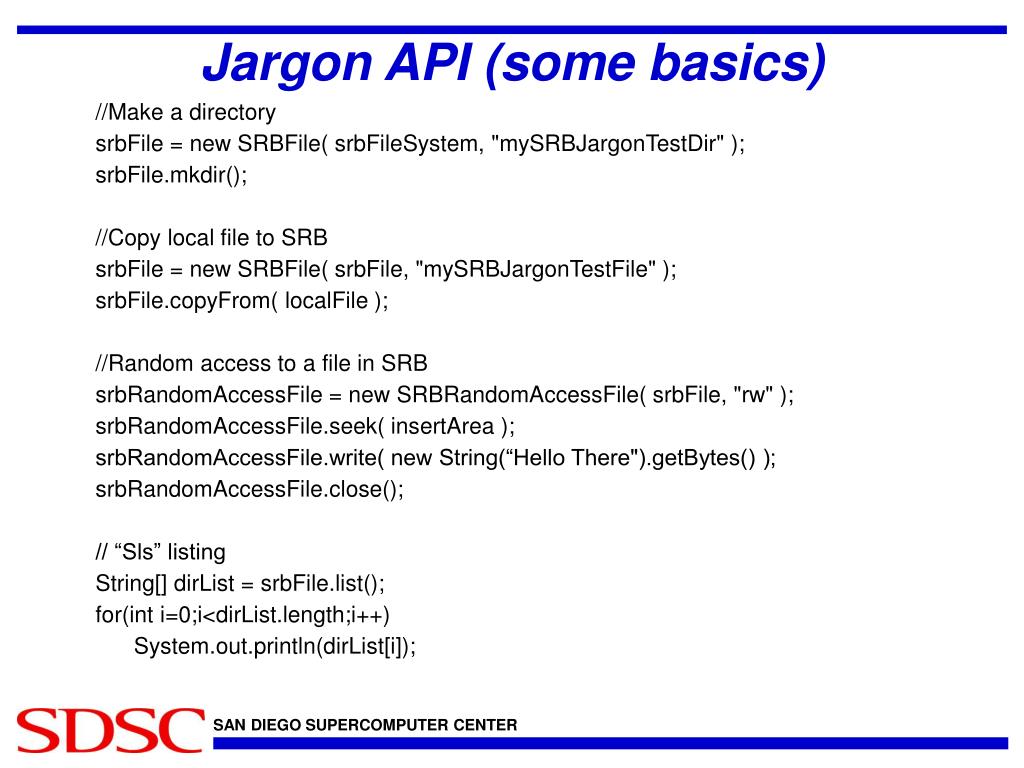

  10. Jargon API (some basics) //Make a directory srbFile = new SRBFile( srbFileSystem, "mySRBJargonTestDir" ); srbFile.mkdir(); //Copy local file to SRB srbFile = new SRBFile( srbFile, "mySRBJargonTestFile" ); srbFile.copyFrom( localFile ); //Random access to a file in SRB srbRandomAccessFile = new SRBRandomAccessFile( srbFile, "rw" ); srbRandomAccessFile.seek( insertArea ); srbRandomAccessFile.write( new String(“Hello There").getBytes() ); srbRandomAccessFile.close(); // “Sls” listing String[] dirList = srbFile.list(); for(int i=0;i<dirList.length;i++) System.out.println(dirList[i]);

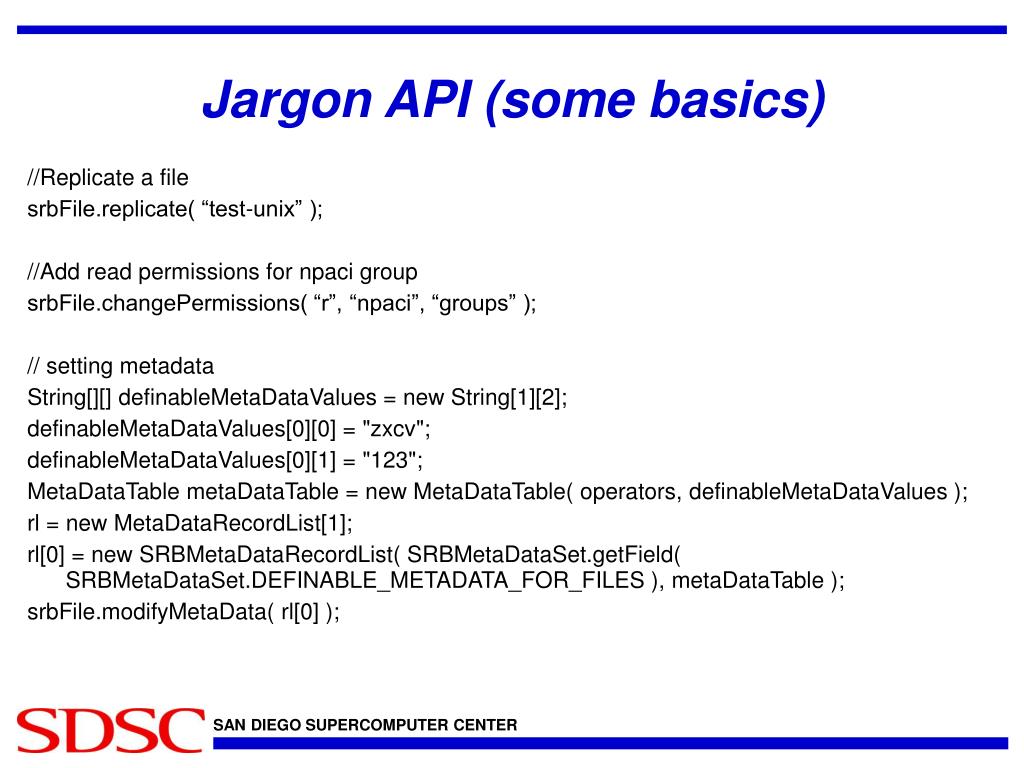

  11. Jargon API (some basics) //Replicate a file srbFile.replicate( “test-unix” ); //Add read permissions for npaci group srbFile.changePermissions( “r”, “npaci”, “groups” ); // setting metadata String[][] definableMetaDataValues = new String[1][2]; definableMetaDataValues[0][0] = "zxcv"; definableMetaDataValues[0][1] = "123"; MetaDataTable metaDataTable = new MetaDataTable( operators, definableMetaDataValues ); rl = new MetaDataRecordList[1]; rl[0] = new SRBMetaDataRecordList( SRBMetaDataSet.getField( SRBMetaDataSet.DEFINABLE_METADATA_FOR_FILES ), metaDataTable ); srbFile.modifyMetaData( rl[0] );

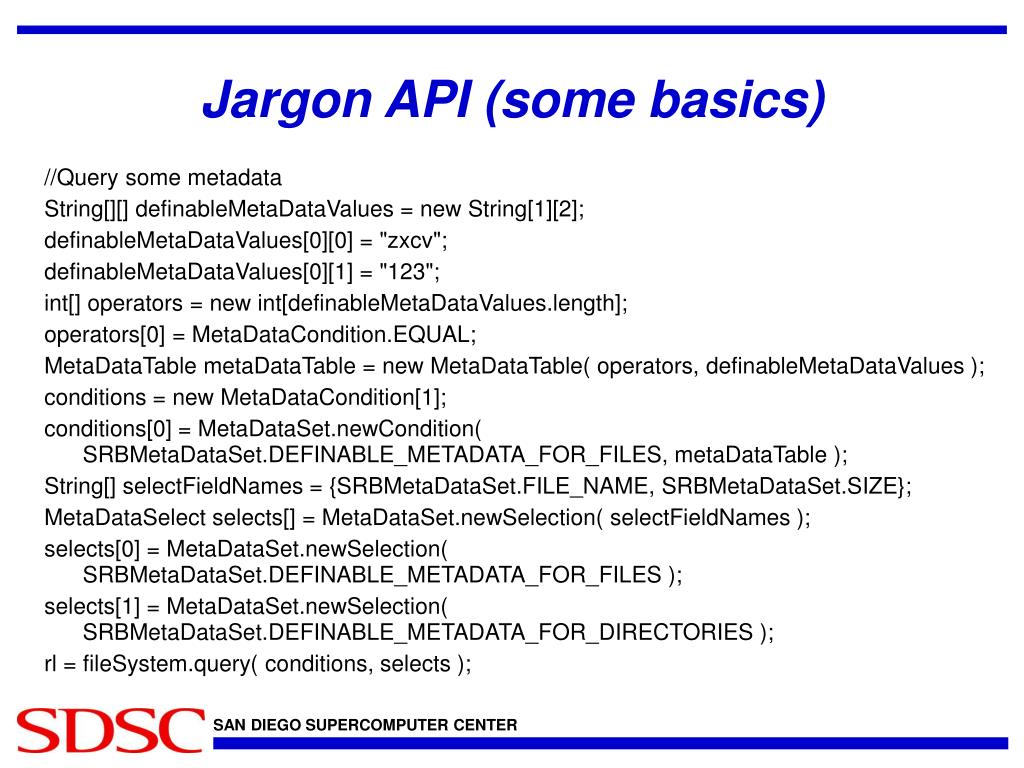

  12. Jargon API (some basics) //Query some metadata String[][] definableMetaDataValues = new String[1][2]; definableMetaDataValues[0][0] = "zxcv"; definableMetaDataValues[0][1] = "123"; int[] operators = new int[definableMetaDataValues.length]; operators[0] = MetaDataCondition.EQUAL; MetaDataTable metaDataTable = new MetaDataTable( operators, definableMetaDataValues ); conditions = new MetaDataCondition[1]; conditions[0] = MetaDataSet.newCondition( SRBMetaDataSet.DEFINABLE_METADATA_FOR_FILES, metaDataTable ); String[] selectFieldNames = {SRBMetaDataSet.FILE_NAME, SRBMetaDataSet.SIZE}; MetaDataSelect selects[] = MetaDataSet.newSelection( selectFieldNames ); selects[0] = MetaDataSet.newSelection( SRBMetaDataSet.DEFINABLE_METADATA_FOR_FILES ); selects[1] = MetaDataSet.newSelection( SRBMetaDataSet.DEFINABLE_METADATA_FOR_DIRECTORIES ); rl = fileSystem.query( conditions, selects );

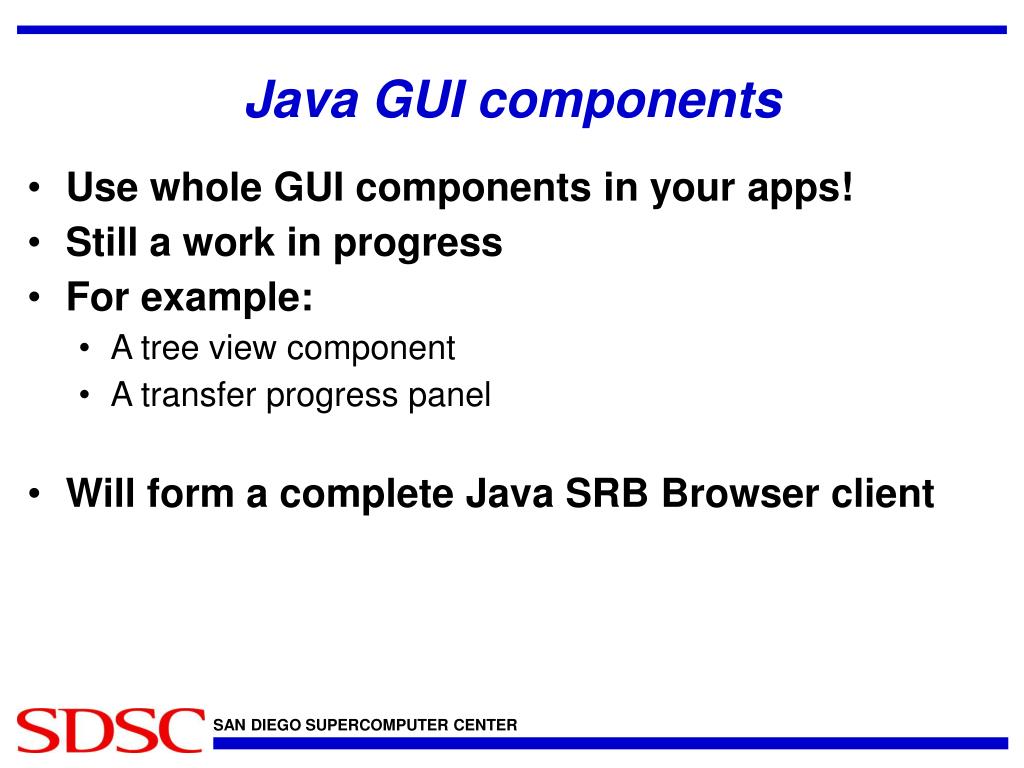

  13. Java GUI components • Use whole GUI components in your apps! • Still a work in progress • For example: • A tree view component • A transfer progress panel • Will form a complete Java SRB Browser client

  14. Thanks! SRB handles large data and provides the ability to share and collaborate on distributed heterogeneous resources. Questions? www.sdsc.edu/srb srb@sdsc.edu
