  1. Database Integrity DBMS Spring 2014 Sources: Security in Computing, Pfleeger and Pfleeger, Prentice Hall, 2003 Lecture Slides, CSE6243, MSU, Rayford B. Vaughn, 2005 http://www.postgresql.org/docs/9.0/static/ddl-constraints.html

  2. First, a followup from Tues • R(A, B, C, D, E) with FDs • AB -> C • C -> D • A -> E • What violations of 3nf are found? • How would you decompose this?

  3. Followup from Tues • R(A, B, C, D) with FDs • AB -> C • C -> D • D -> A • What are the possible keys to this relation? • What violations of 3nf are found? • How would you decompose this? Book, page 92, 3.3.5.1

  4. Traditional Security Concerns • Confidentiality • Integrity • Availability • Accountability

  5. Traditional Security Concerns • Confidentiality • Integrity • Availability • Accountability

  6. Integrity • DB integrity types • Physical Database Integrity • Data in Database is safe • Data can be reconstructed • Logical Database Integrity • Structure of Database is preserved • No inconsistency • Element Integrity • Correctness/accuracy of data is maintained

  7. Integrity Goals • Database integrity protection must achieve: • Internal consistency: database entries must obey prescribed rules; • External consistency: database entries are correct - combine checking data entered with auditing to check consistent state.

  8. Integrity Rules • Most rules are application specific, but two rules inherent to relational database model: • Entity integrity rule: • no component of primary key can accept nulls. • Referential integrity rule: • database must not contain unmatched foreign key values.

  9. Application Specific Integrity Checks • field checks: check that entries are valid elements of domain • consistency checks: check that entries in different relations do not conflict • scope checks: checks that query results are not computed for too small a sample (for specialized DB) • change logs: check that all changes are recorded with original and modified entry values

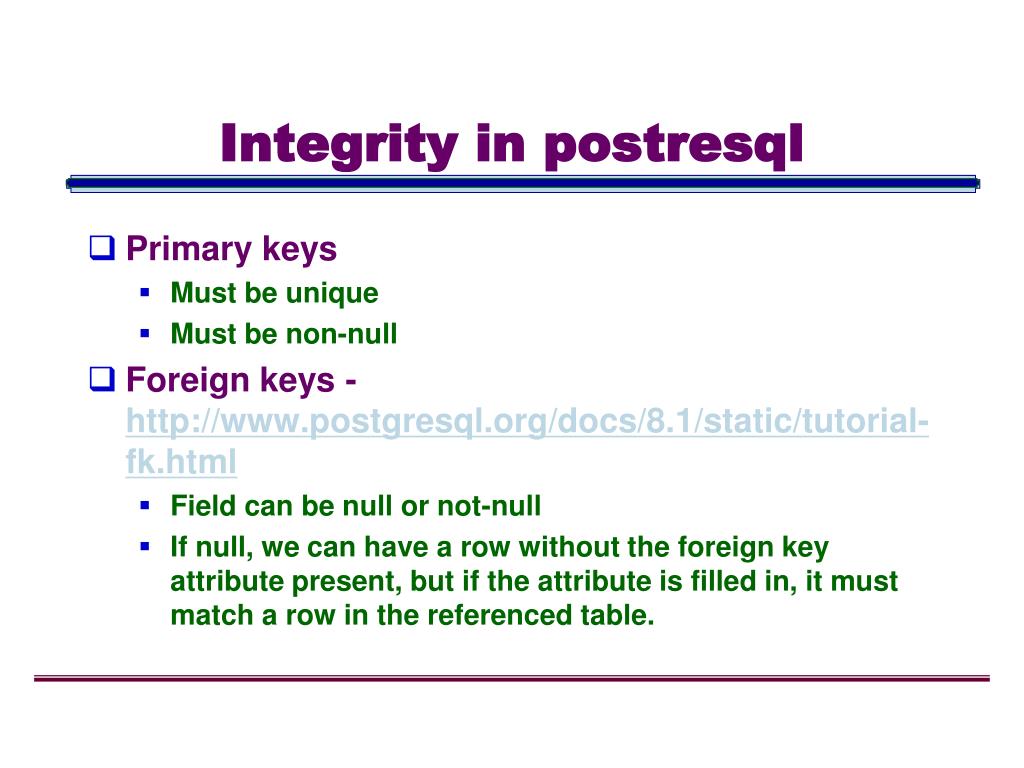

  10. Integrity in postresql • Primary keys • Must be unique • Must be non-null • Foreign keys - http://www.postgresql.org/docs/8.1/static/tutorial-fk.html • Field can be null or not-null • If null, we can have a row without the foreign key attribute present, but if the attribute is filled in, it must match a row in the referenced table.

  11. Thinking about foreign keys • If a Foreign Key references another table and the other table row is deleted, what should happen to the referencing row. • For example, dlangs references languages. What if we decide that a language really isn’t a language and so we remove it. ie. PigLatin. What should happen? • No Action / Restrict • On Delete Cascade • On Update Cascade (what happens if we change)

  12. Other constraints • “Table constraints” • Field contraints • Can be built into the CREATE TABLE OR • Can be added using the ALTER TABLE

  13. Other constraints • Null is assumed for a non-key attribute added to a table. • NOT NULL requires a value to be filled in. • SSN int NOT NULL, • UNIQUE requires that no other row can have the same value. • SSN int UNIQUE NOT NULL,

  14. Field vs Table levelfrom Postgresql reference CREATE TABLE products ( product_no integer UNIQUE, name text, price numeric ); CREATE TABLE products ( product_no integer, name text, price numeric, UNIQUE (product_no) ); CREATE TABLE example ( a integer, b integer, c integer, UNIQUE (a, c) );

  15. Check Constraints • Allow us to more finely define field values beyond the overall domain (data type) • For example, can a driver have a vehicle with -5 seats? Can a driver have a vehicle with 192 seats? What is the restriction to insure that we have a reasonable number. CREATE TABLE products ( product_no integer, name text, price numeric CHECK (price > 0) );

  16. Named constraints CREATE TABLE products ( product_no integer, name text, price numeric CONSTRAINT positive_price CHECK (price > 0) ); Table level CREATE TABLE products ( product_no integer, name text, price numeric CHECK (price > 0), discounted_price numeric CHECK (discounted_price > 0), CHECK (price > discounted_price) );

  17. Adding constraints • ALTER TABLE • Can add table level constraints.

  18. Default values CREATE TABLE distributors ( name varchar(40) DEFAULT 'Luso Films', did integer DEFAULT nextval('distributors_serial'), modtime timestamp DEFAULT current_timestamp );
