PopMedNet Architecture – Deployment Overview

PopMedNet Architecture – Deployment Overview. Investigator. Enhanced Investigator. Observer. System Administrator (Two Factor AuthN ). Internet. Data Administrators & Reviewers (Two Factor AuthN ). HTTPS, TLS. FISMA Compliant Data Center. Data Partner Organization. HTTPS, TLS.

suzuki
Télécharger la présentation

PopMedNet Architecture – Deployment Overview

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

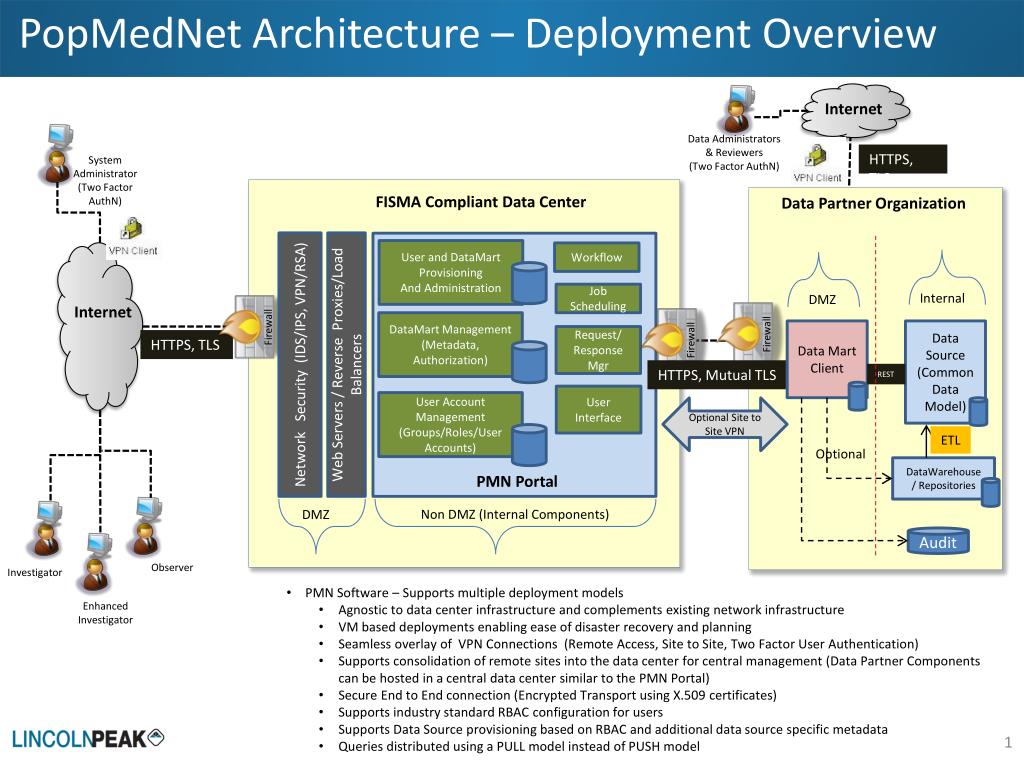

  1. PopMedNet Architecture – Deployment Overview Investigator Enhanced Investigator Observer System Administrator (Two Factor AuthN) Internet Data Administrators & Reviewers (Two Factor AuthN) HTTPS, TLS FISMA Compliant Data Center Data Partner Organization HTTPS, TLS Web Servers / Reverse Proxies/Load Balancers Network Security (IDS/IPS, VPN/RSA) User and DataMart Provisioning And Administration Workflow Firewall Job Scheduling Internal DMZ Internet DataMart Management (Metadata, Authorization) Data Source (Common Data Model) Data Mart Client Firewall Request/ Response Mgr Firewall HTTPS, Mutual TLS REST User Interface User Account Management (Groups/Roles/User Accounts) Optional Site to Site VPN ETL Optional DataWarehouse / Repositories PMN Portal Non DMZ (Internal Components) DMZ Audit • PMN Software – Supports multiple deployment models • Agnostic to data center infrastructure and complements existing network infrastructure • VM based deployments enabling ease of disaster recovery and planning • Seamless overlay of VPN Connections (Remote Access, Site to Site, Two Factor User Authentication) • Supports consolidation of remote sites into the data center for central management (Data Partner Components can be hosted in a central data center similar to the PMN Portal) • Secure End to End connection (Encrypted Transport using X.509 certificates) • Supports industry standard RBAC configuration for users • Supports Data Source provisioning based on RBAC and additional data source specific metadata • Queries distributed using a PULL model instead of PUSH model
