  1. Animating Rotations and Using Quaternions

  2. What We’ll Talk About • Animating Translation • Animating 2D Rotation • Euler Angle representation • 3D Angle problems • Quaternions • Animating with quaternions

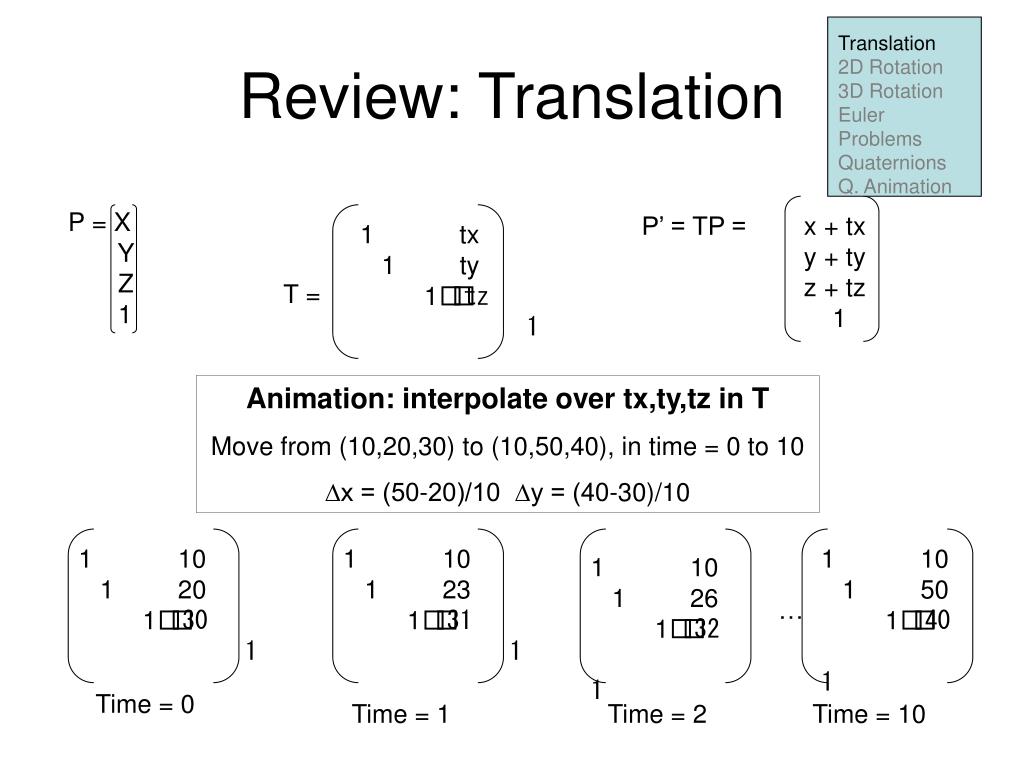

  3. Translation2D Rotation3D RotationEulerProblemsQuaternionsQ. Animation Review: Translation P = X Y Z 1 P’ = TP = x + txy + tyz + tz 1 1 tx 1 ty 1tz 1 T = Animation: interpolate over tx,ty,tz in T Move from (10,20,30) to (10,50,40), in time = 0 to 10 ∆x = (50-20)/10 ∆y = (40-30)/10 1 10 1 20 130 1 1 10 1 23 131 1 1 10 1 50 140 1 1 10 1 26 132 1 … Time = 0 Time = 1 Time = 2 Time = 10

  4. Review: 2D Rotation 2D Rotation3D RotationEulerProblemsQuaternionsQ. Animation cos Ө -sin Өsin Ө cos Ө 1 P’ = RP Ө R = Animating 2D Rotations Number of frames: 3∆R = (90-0)/3 = 30 cos 90 -sin 90sin 90 cos 90 1 cos 60 -sin 60sin 60 cos 60 1 cos 0 -sin 0sin 0 cos 0 1 cos 30 -sin 30sin 30 cos 30 1

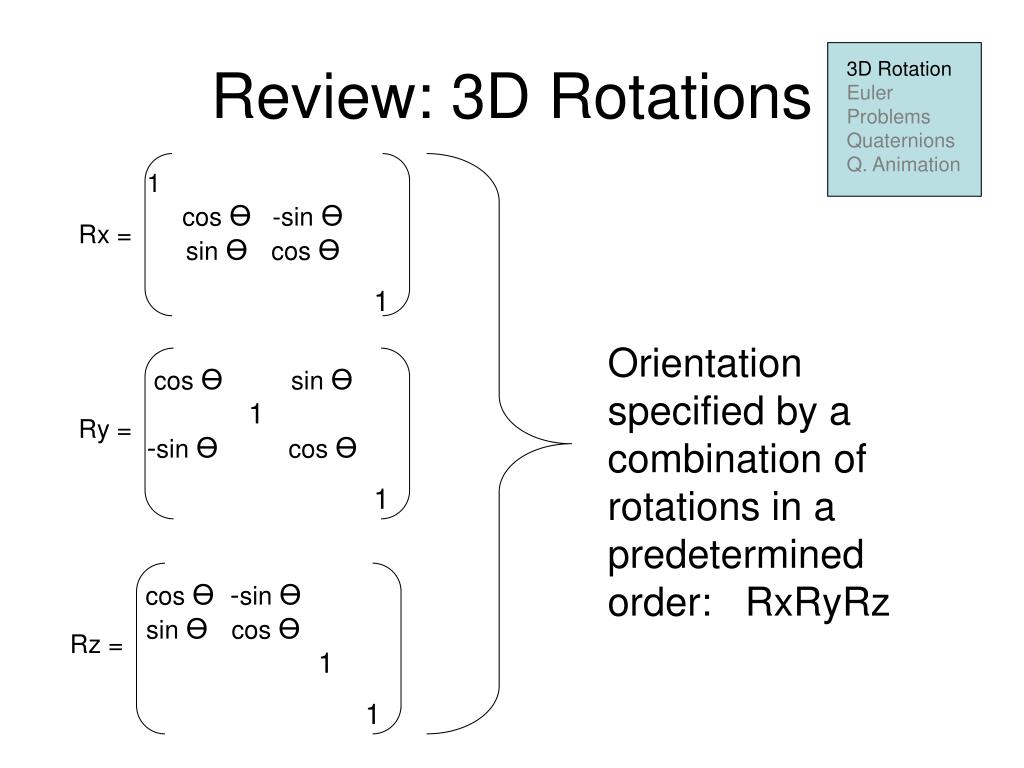

  5. Review: 3D Rotations 3D RotationEulerProblemsQuaternionsQ. Animation 1 cos Ө -sin Өsin Ө cos Ө 1 Rx = Orientation specified by a combination of rotations in a predetermined order: RxRyRz cos Ө sin Ө 1 -sin Ө cos Ө 1 Ry = cos Ө -sin Өsin Ө cos Ө 1 1 Rz =

  6. Euler Angles EulerQuaternionsQ. Animation • Euler’s Theorem: any orientation can be expressed as a single rotation about an axis • Can lead to Gimbal lock • Gives you the basic idea • Euler representation is good basis for calculating quaternions, which work well • Ideas: • Orientation represented by an angle and an (x,y,z) vector, e.g. (A1, Ө1) • Axes represent local coordinate system, not global • Rotation order is reverse of global, i.e. RzRyRx

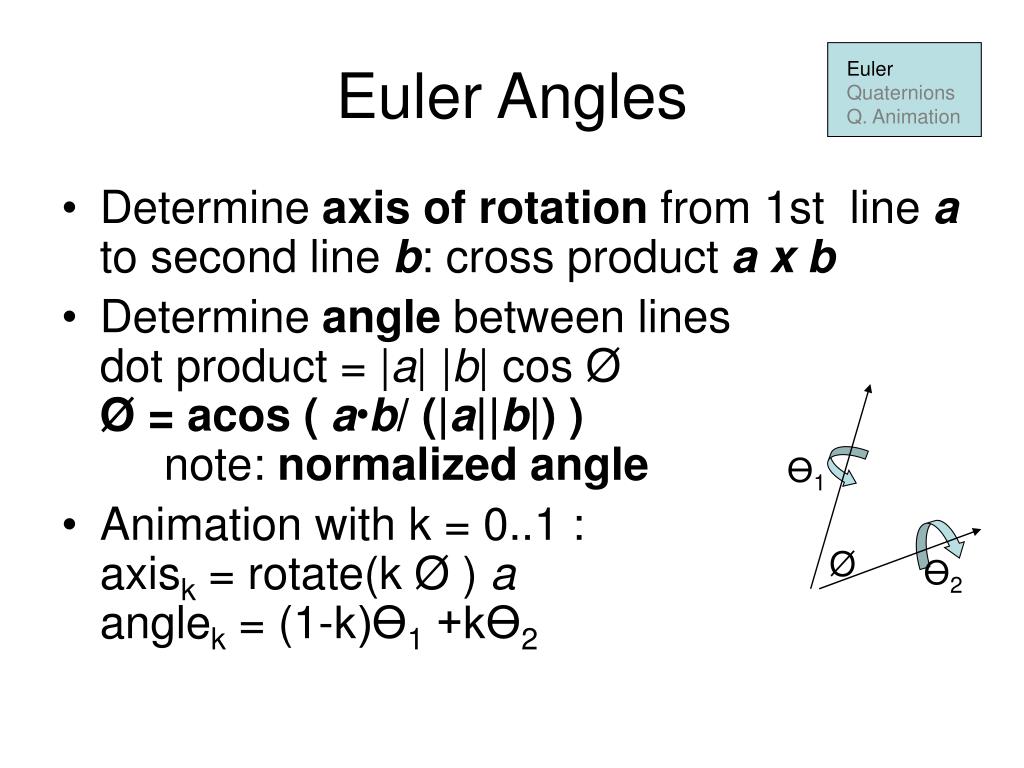

  7. Euler Angles EulerQuaternionsQ. Animation • Determine axis of rotation from 1st line a to second line b: cross product a x b • Determine angle between linesdot product = |a| |b| cos ØØ = acos ( a b/ (|a||b|) ) note: normalized angle • Animation with k = 0..1 :axisk = rotate(k Ø) a anglek = (1-k)Ө1 +kӨ2 Ө1 Ø Ө2

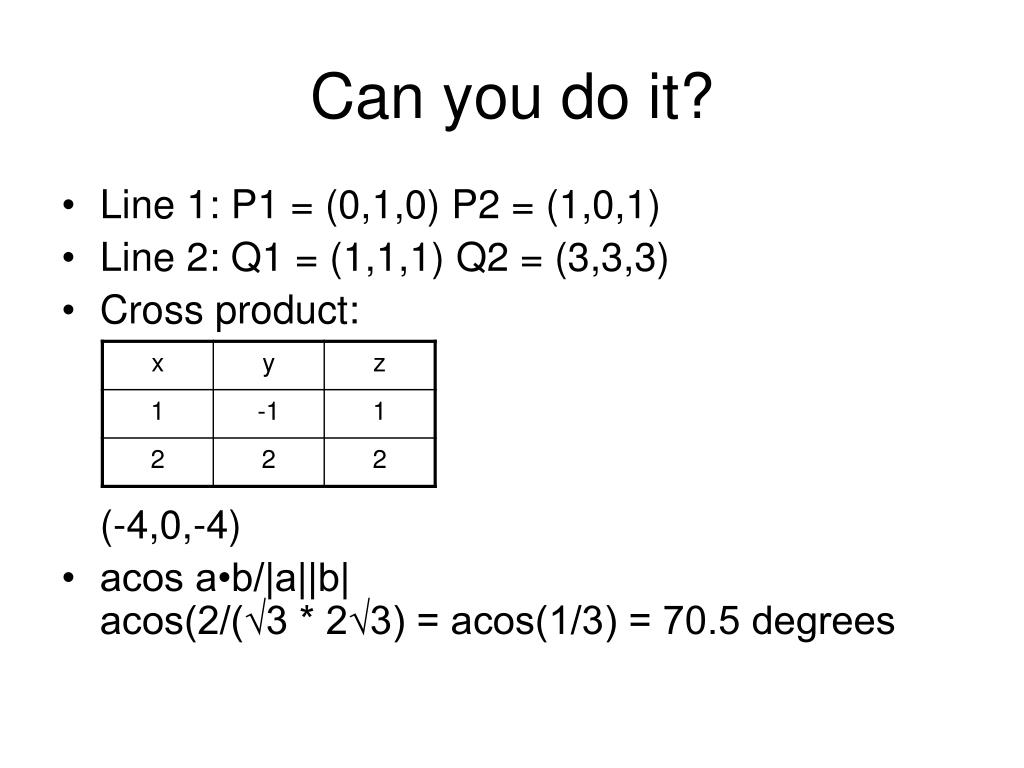

  8. Can you do it? • Line 1: P1 = (0,1,0) P2 = (1,0,1) • Line 2: Q1 = (1,1,1) Q2 = (3,3,3) • Cross product:(-4,0,-4) • acos a•b/|a||b| acos(2/(√3 * 2√3) = acos(1/3) = 70.5 degrees

  9. Motivation ProblemsEulerQuaternionsQ. Animation • We would like to represent 3D rotations about an arbitrary axis • We would like to be able to apply a series of arbitrary rotations and have it actually work.. • Direct interpolation of matrices leads to nonsense • Gimbal lock occurs when the axes of two of the threegimbals needed to compensate for rotations in 3D space are driven to the same direction, e.g. (0,90,0)

  10. What is a quaternion? QuaternionsQ. Animation • Alternative to Euler angles for specifying orientation • 4-tuple: use 3 numbers for axis of rotation + 1 for angle of rotation • Let q be a quaternion: q = s,v = s, vx, vy, vz = s + vxi + vyj + Vzk

  11. Quaternion algebra QuaternionsQ. Animation Quaternions are like complex numbers, with one normal component and 3 imaginary components, i,j,k. (a+bi)(c+di) = (ac-bd) +(cb-ad)i • i2 = j2 = k2 = -1 = i-j-k • ij = k = -ji jk = i = -kj ki = j = -ik • q1 + q2 = (s1 + s2, v1 + v2) • q1*q2 = q3if s1 = s2 = 0, then q3 = (v1•v2 ,v1 x v2)general: q3 = (s1s2- v1•v2, s1v2 +s2v1 + v1x v2 ) • q1•q2 = (s1s2 + v1•v2)

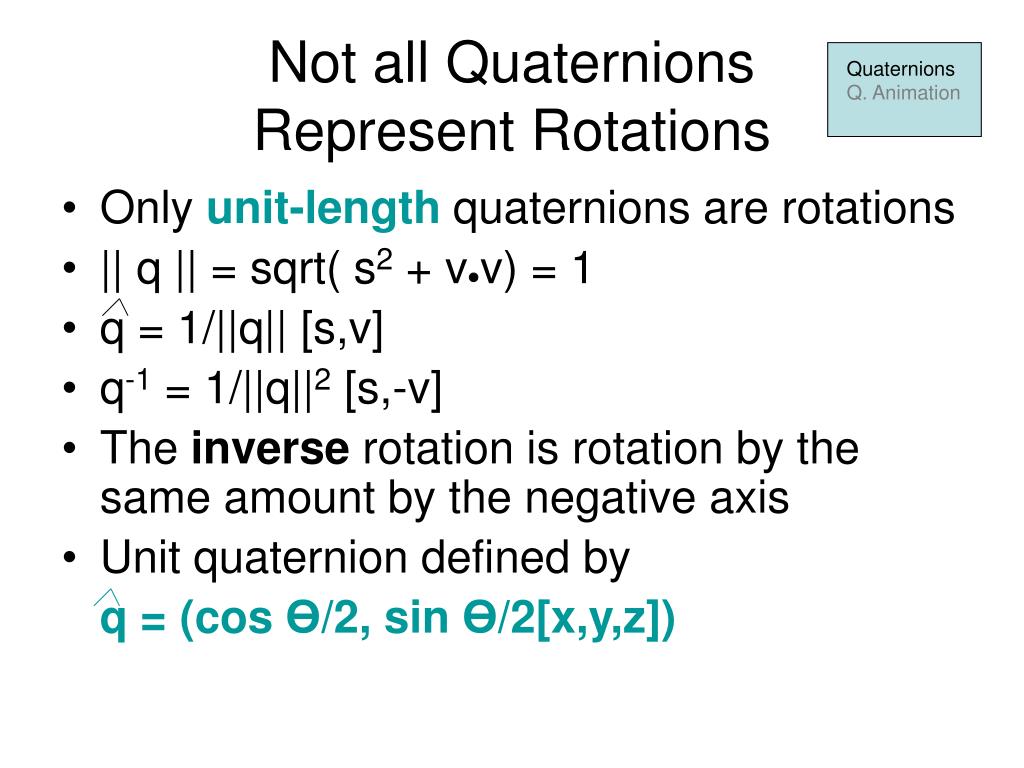

  12. Not all Quaternions Represent Rotations QuaternionsQ. Animation • Only unit-length quaternions are rotations • || q || = sqrt( s2 + v v) = 1 • q = 1/||q|| [s,v] • q-1 = 1/||q||2 [s,-v] • The inverse rotation is rotation by the same amount by the negative axis • Unit quaternion defined by q = (cos Ө/2, sin Ө/2[x,y,z])

  13. Suppose I had an Euler Rotation… • q = (cos Ө/2, sin Ө/2[x,y,z]) where Ө and (x,y,z) are the Euler angle and axis respectively • Normalize using quaternion normalization rules: q

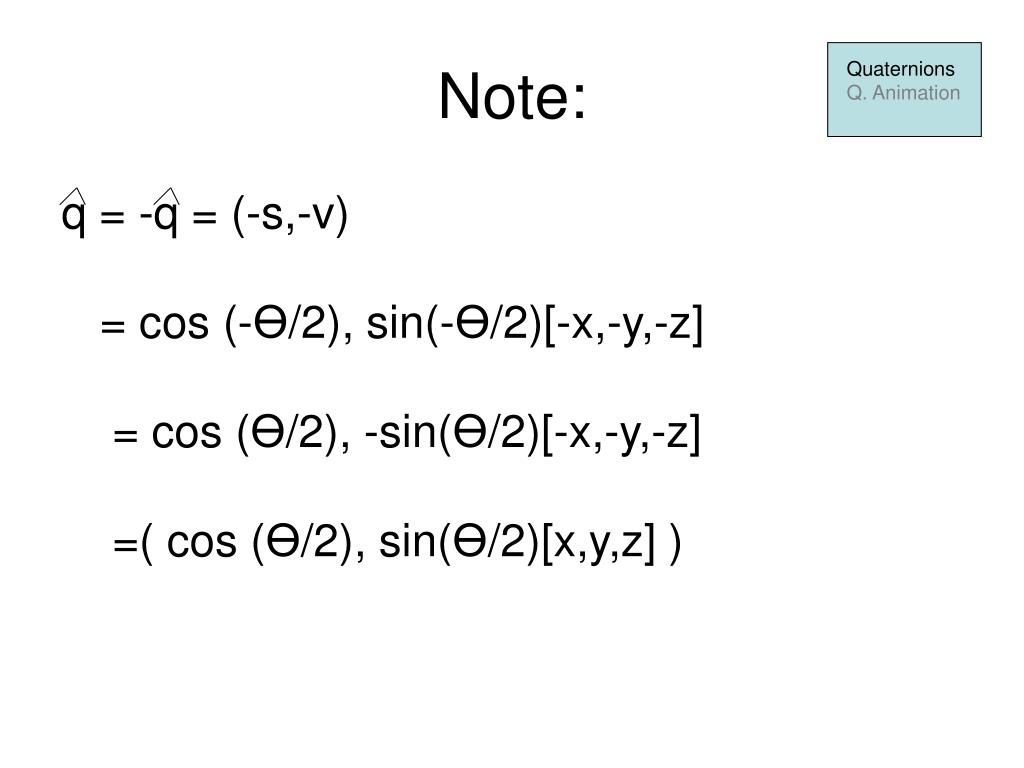

  14. Note: QuaternionsQ. Animation q = -q = (-s,-v)= cos (-Ө/2), sin(-Ө/2)[-x,-y,-z] = cos (Ө/2), -sin(Ө/2)[-x,-y,-z] =( cos (Ө/2), sin(Ө/2)[x,y,z] )

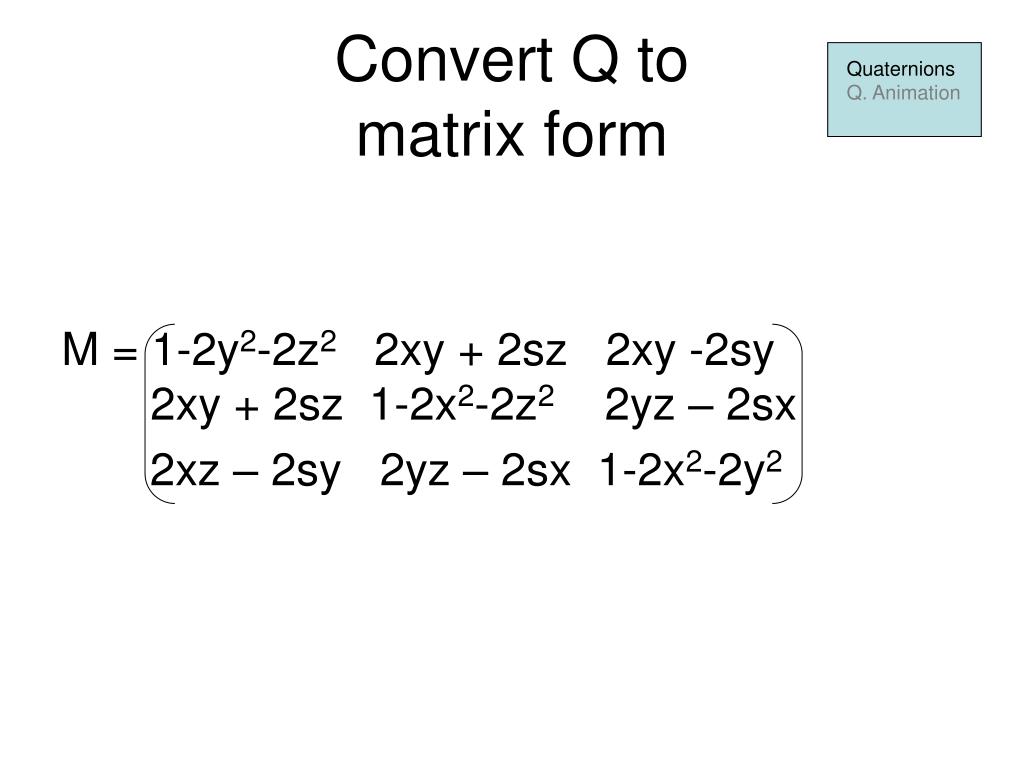

  15. Convert Q to matrix form QuaternionsQ. Animation M = 1-2y2-2z2 2xy + 2sz 2xy -2sy 2xy + 2sz 1-2x2-2z2 2yz – 2sx 2xz – 2sy 2yz – 2sx 1-2x2-2y2

  16. Rotating a point p by q QuaternionsQ. Animation • Rq(p) = q p qwhere q = [s,-v] (conjugate of q)where p = [0,(px, py, pz)]Rq(p) = [s,v][0,p][s,-v] =[0,(s2-v v)p + 2v(v p) +2s(v x p)]

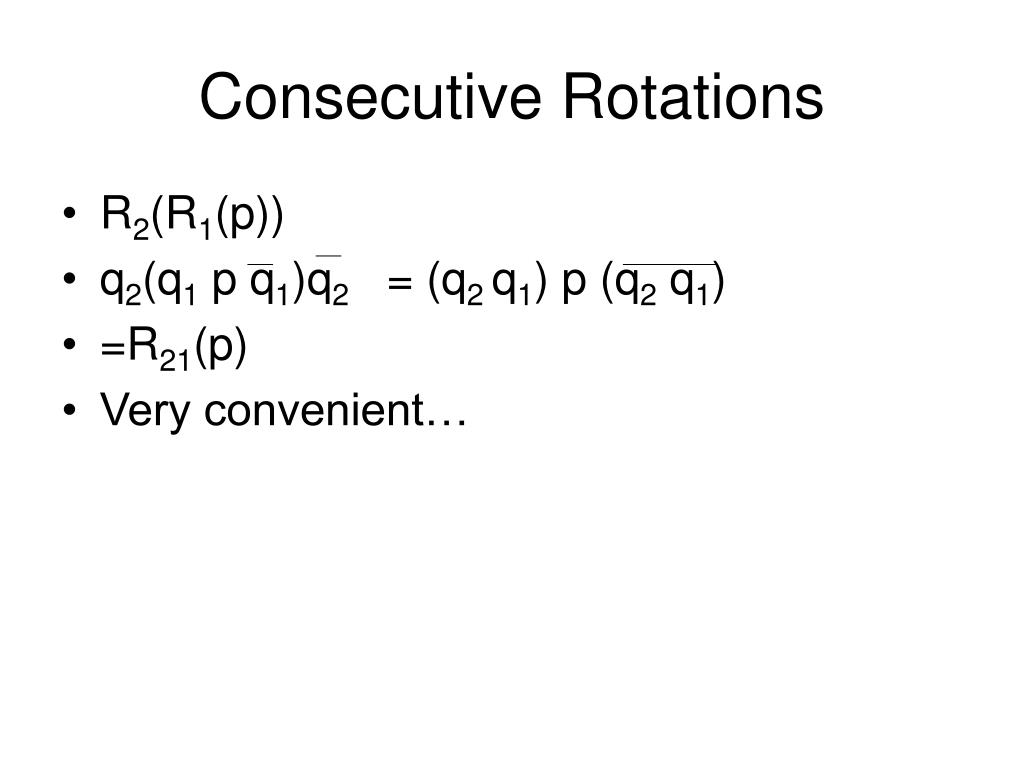

  17. Consecutive Rotations • R2(R1(p)) • q2(q1 p q1)q2 = (q2 q1) p (q2 q1) • =R21(p) • Very convenient…

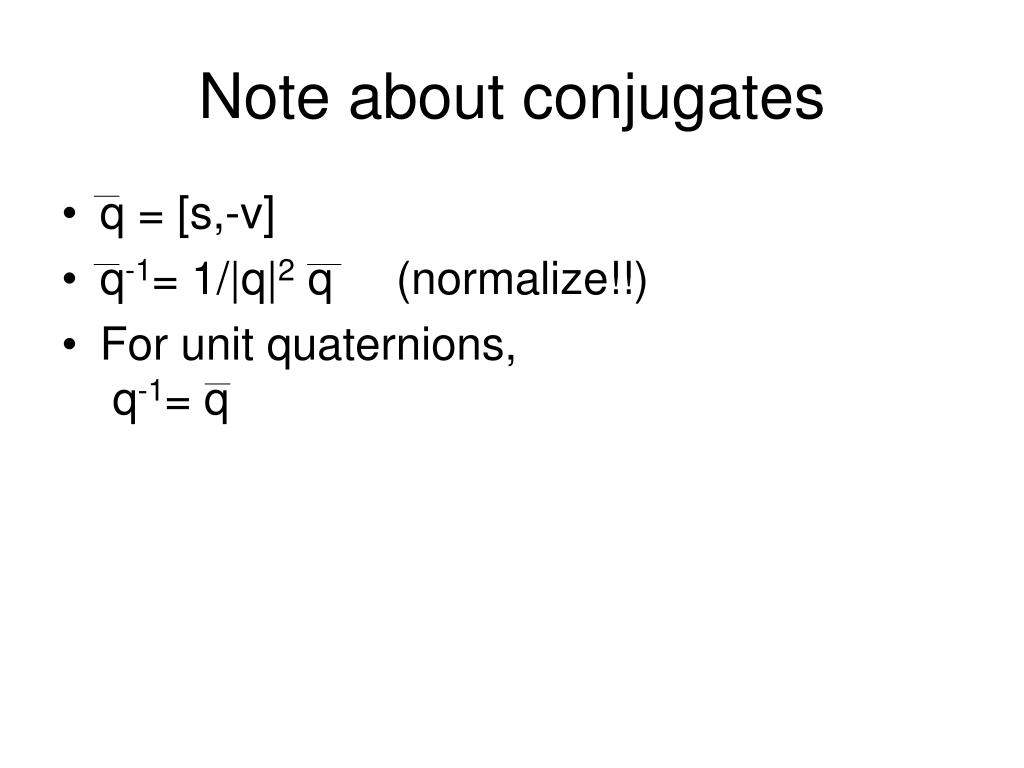

  18. Note about conjugates • q = [s,-v] • q-1= 1/|q|2 q (normalize!!) • For unit quaternions, q-1= q

  19. Animating Rotations Using Quaternions • How to find intermediate rotations? • Linear interpolation:lerp( q1, q2, u) = q1(1-u) + uq2 • Advantage: easier to find q’ vs. animating rotation matrix • Problem: will speed up in the midst of rotation q1 q: point on a 4D unit sphere Ө q2

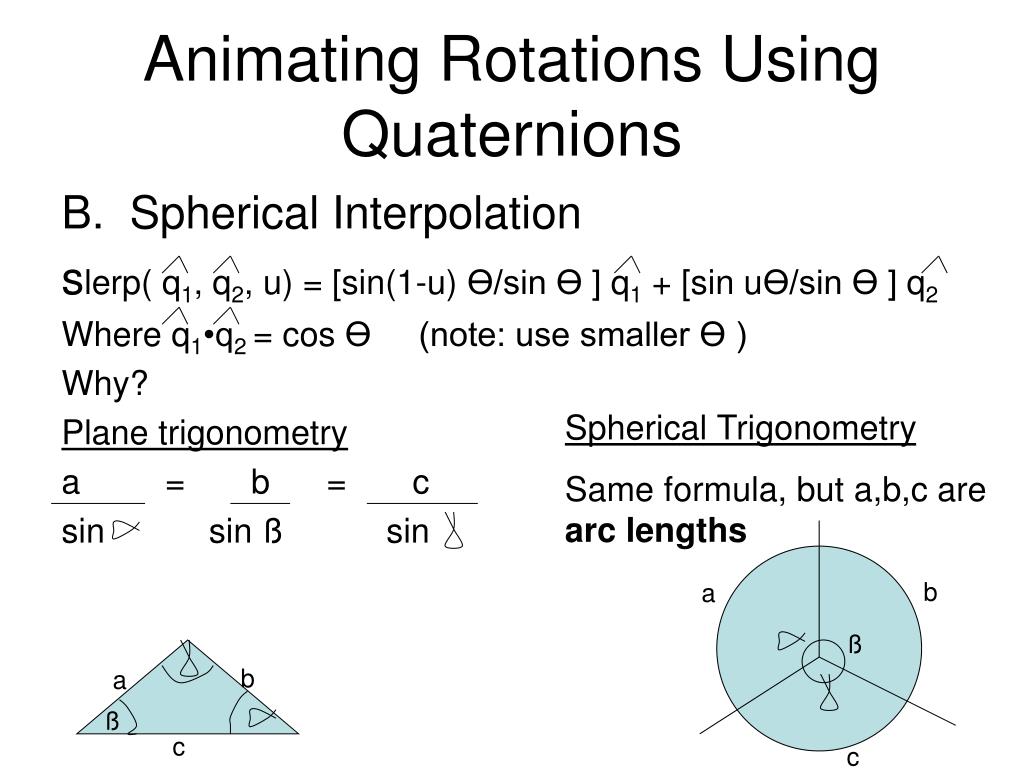

  20. Animating Rotations Using Quaternions • Spherical Interpolation slerp( q1, q2, u) = [sin(1-u) Ө/sin Ө ] q1 + [sin uӨ/sin Ө ] q2 Where q1•q2 = cos Ө (note: use smaller Ө ) Why? Plane trigonometry a = b = c sin sin ß sin Spherical Trigonometry Same formula, but a,b,c arearc lengths b a ß b a ß c c
