  1. DVR 3.0 Introduction V1.22010.08.25 To Secure the World with You!

  2. Product Family 2010 TD-2500FD 540TVL IP TC-562 Out door IP TC-563 Mega IP TC-621 TC-622 Dome IP TC-564 TD-2500HE/HD IP module TC-100 TD-2400MD TC-201 TC-301 Cell phone TD-44 TD-2300ME TD-44S TD-30 TD-2300SE TD-43 TD-31 TD-3300

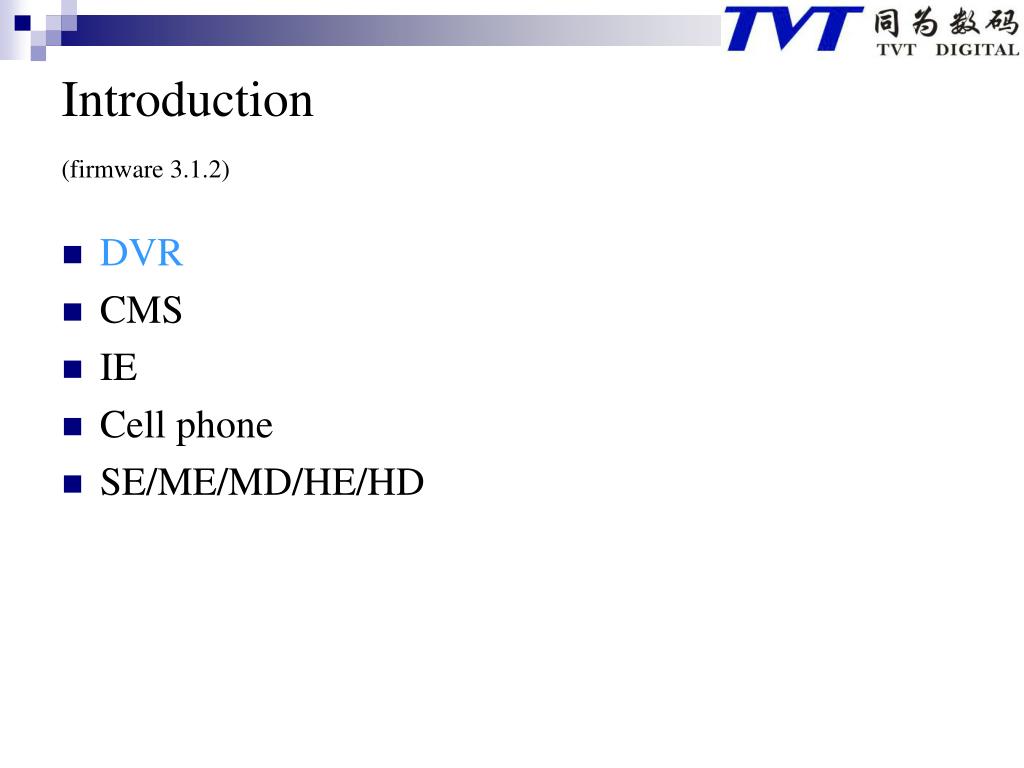

  3. Introduction(firmware 3.1.2) • DVR • CMS • IE • Cell phone • SE/ME/MD/HE/HD

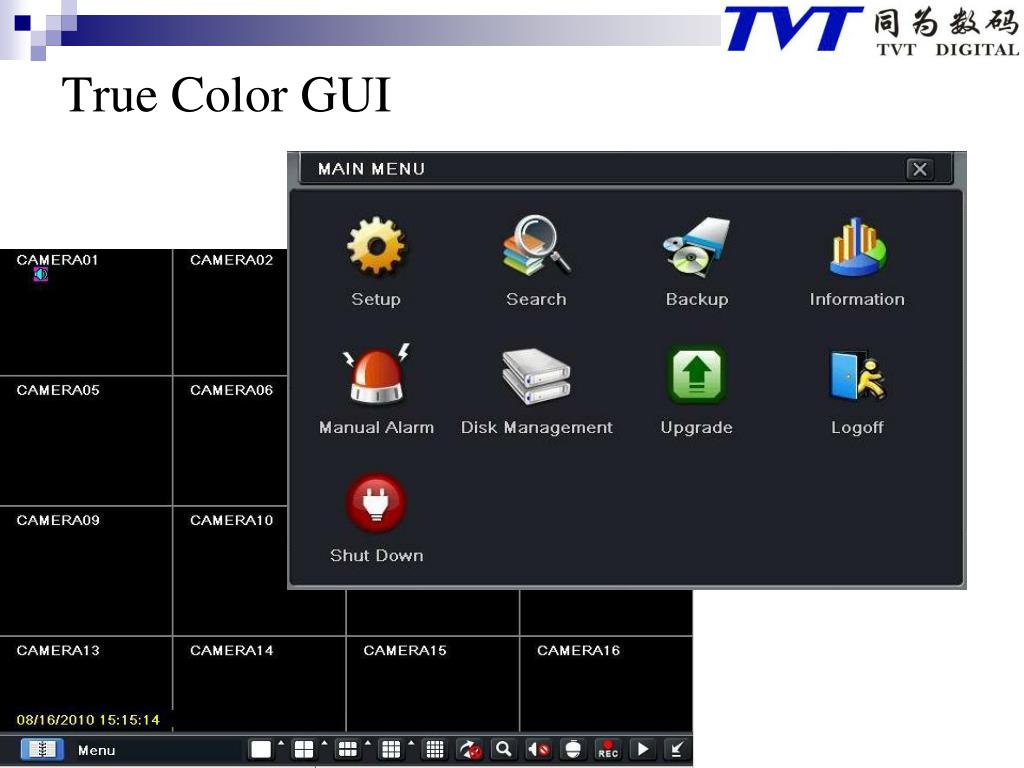

  4. True Color GUI

  5. Control Panel E-ZOOM Display mode Playback mode 4times zoom in immediate playback Right click mouse to call or hide control panel Display mode Auto dwell Easy PTZ: 1- control by mouse (1ch mode) 2- quick switch among channels 3- full function

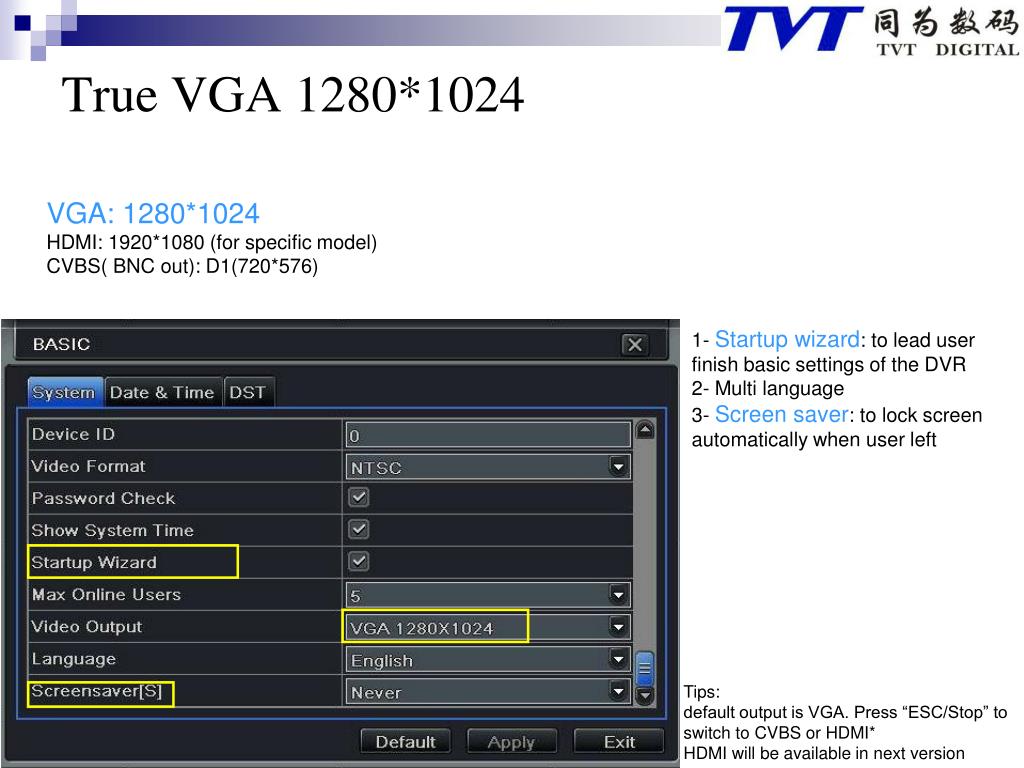

  6. True VGA 1280*1024 VGA: 1280*1024 HDMI: 1920*1080 (for specific model) CVBS( BNC out): D1(720*576) 1- Startup wizard: to lead user finish basic settings of the DVR 2- Multi language 3- Screen saver: to lock screen automatically when user left Tips: default output is VGA. Press “ESC/Stop” to switch to CVBS or HDMI* HDMI will be available in next version

  7. Live (Display) Programmable main out (auto dwell) 1- split mode 2- order of display 3- hide cameras 4- dwell interval Programmable spot out 1- order of display 2- hide cameras 3- dwell interval Privacy Mask 1- 3 masks per channel

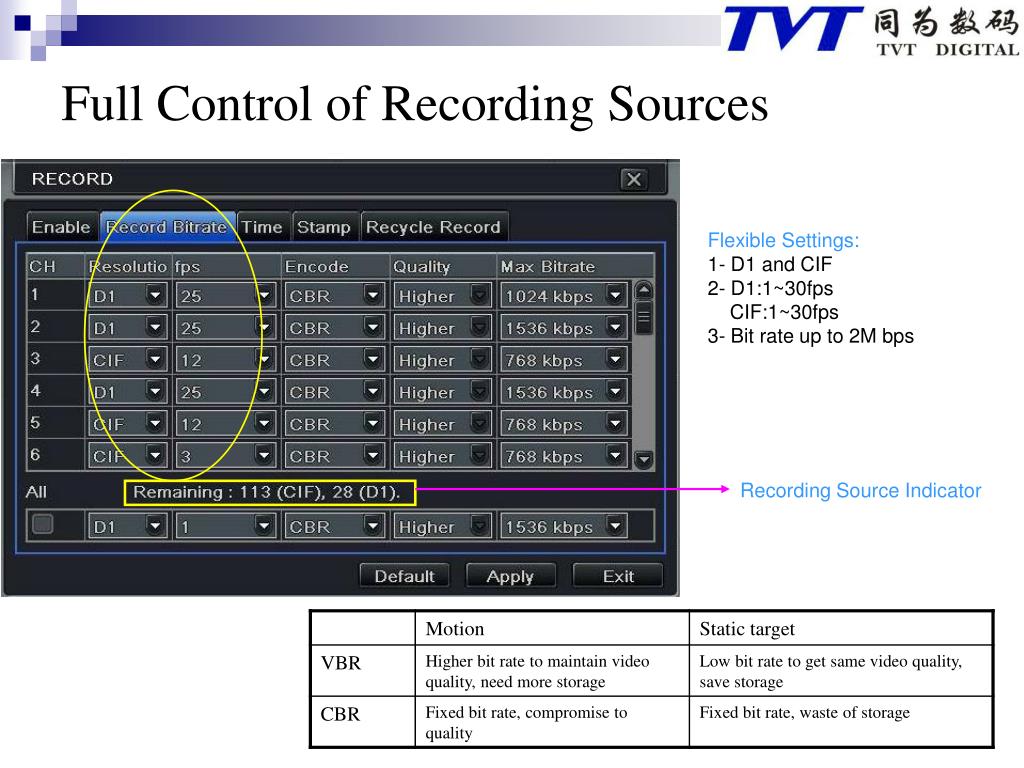

  8. Full Control of Recording Sources Flexible Settings: 1- D1 and CIF 2- D1:1~30fps CIF:1~30fps 3- Bit rate up to 2M bps Recording Source Indicator

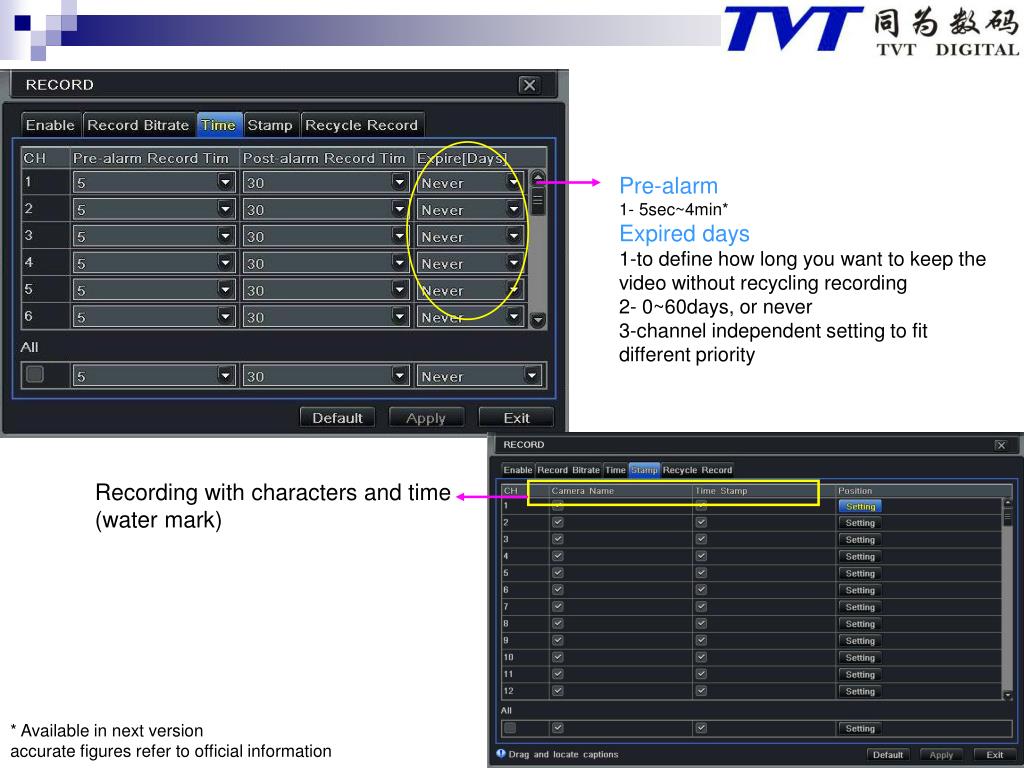

  9. Pre-alarm 1- 5sec~4min* Expired days 1-to define how long you want to keep the video without recycling recording 2- 0~60days, or never 3-channel independent setting to fit different priority Recording with characters and time (water mark) * Available in next versionaccurate figures refer to official information

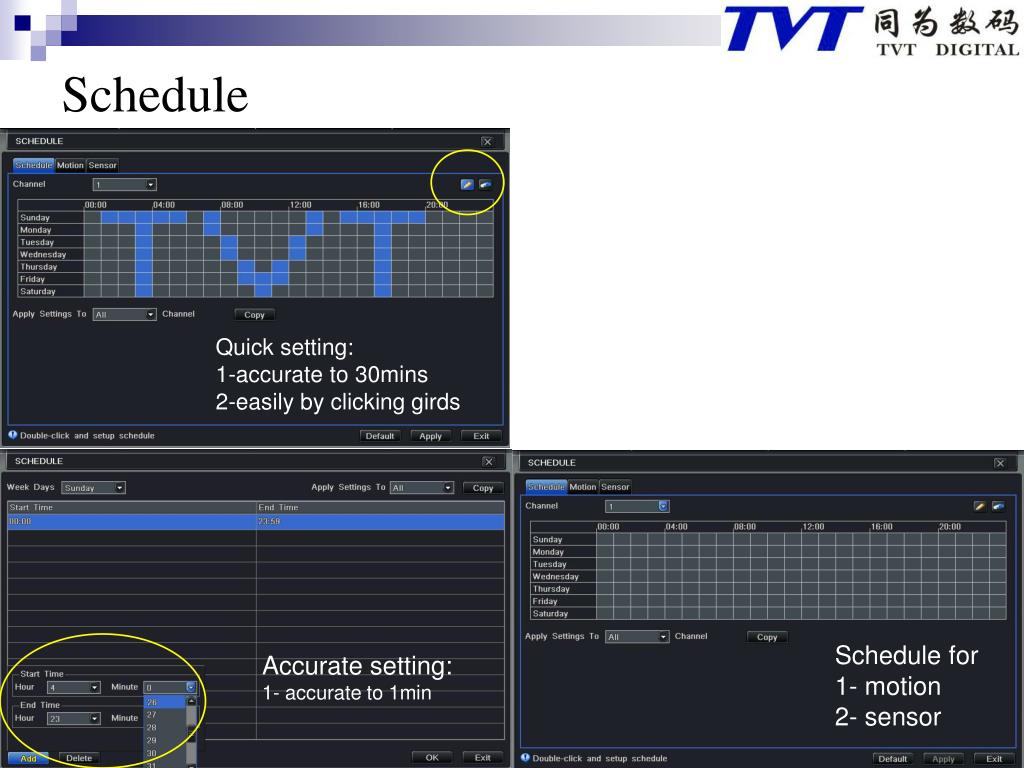

  10. Schedule Quick setting: 1-accurate to 30mins 2-easily by clicking girds Schedule for 1- motion 2- sensor Accurate setting: 1- accurate to 1min

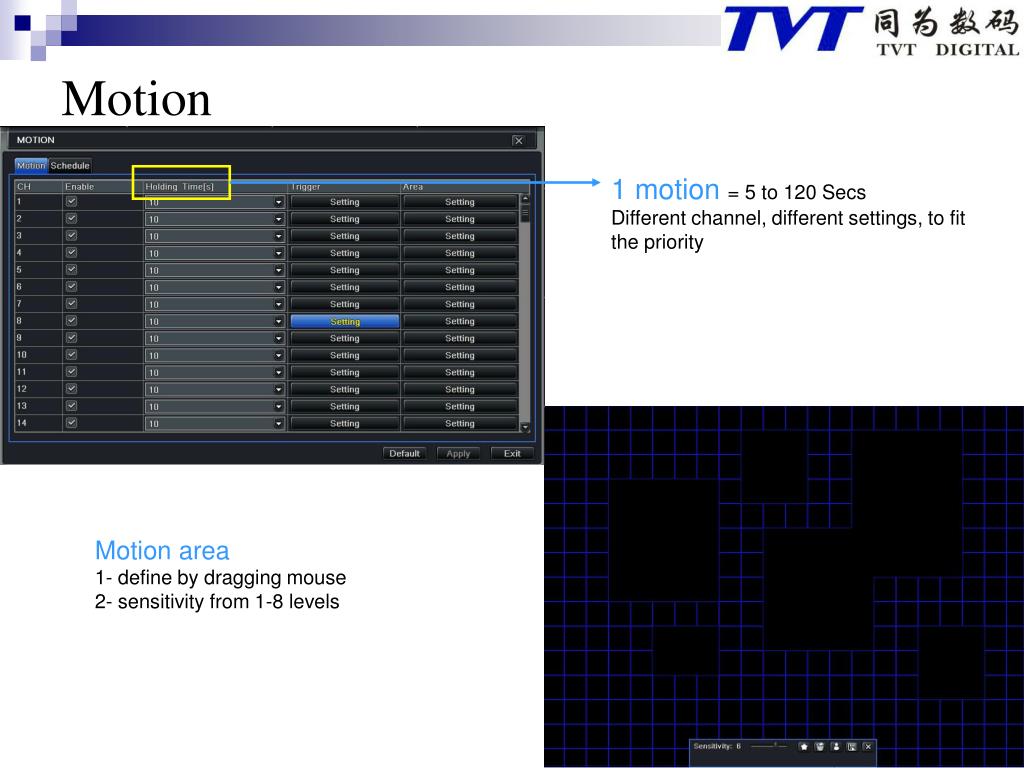

  11. Motion 1 motion = 5 to 120 Secs Different channel, different settings, to fit the priority Motion area 1- define by dragging mouse 2- sensitivity from 1-8 levels

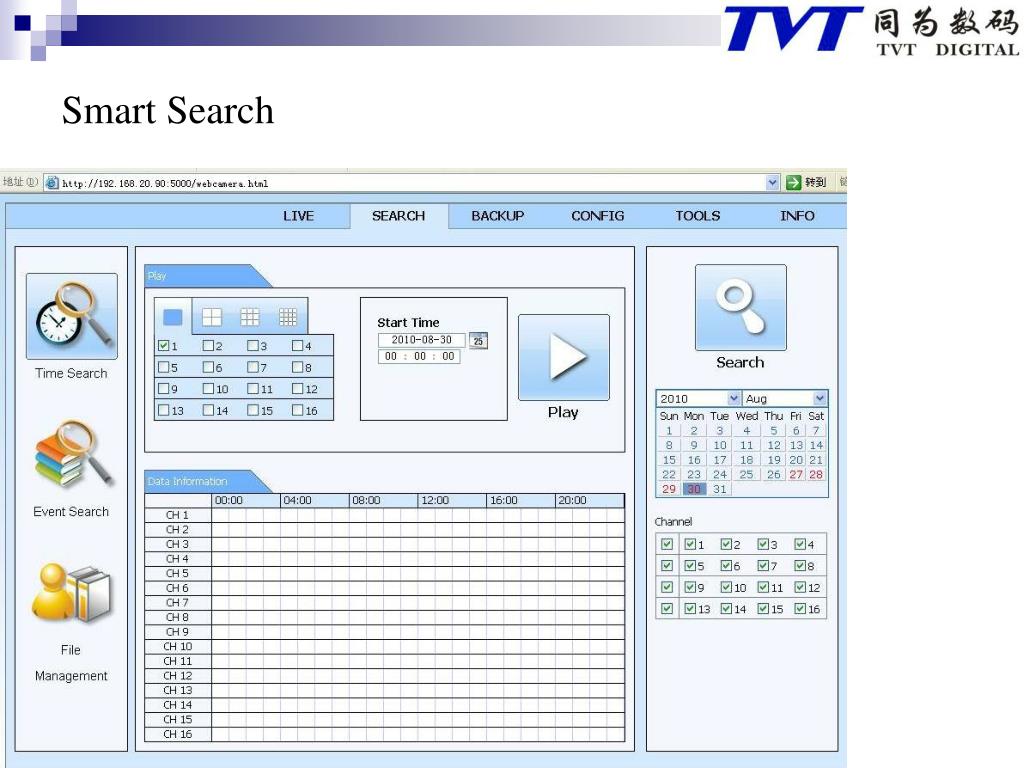

  12. Smart Search Smart search: 1- accurate 2- simple 3- no loss of file when time changes Search by time 1- click time bar to specify a time 2- or input accurate time Search by event 1- just motion 2- just sensor 3- both Search by file 1- find all files 2- including file hidden after changing time

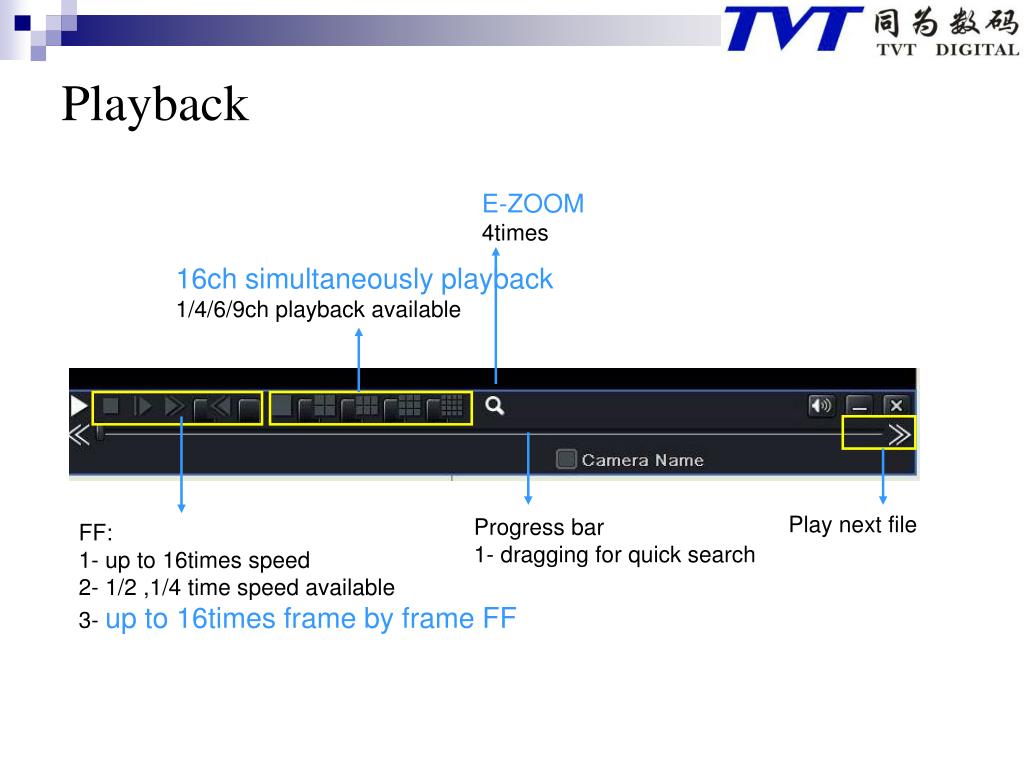

  13. Playback E-ZOOM 4times 16ch simultaneously playback 1/4/6/9ch playback available Play next file Progress bar 1- dragging for quick search FF: 1- up to 16times speed 2- 1/2 ,1/4 time speed available 3- up to 16times frame by frame FF

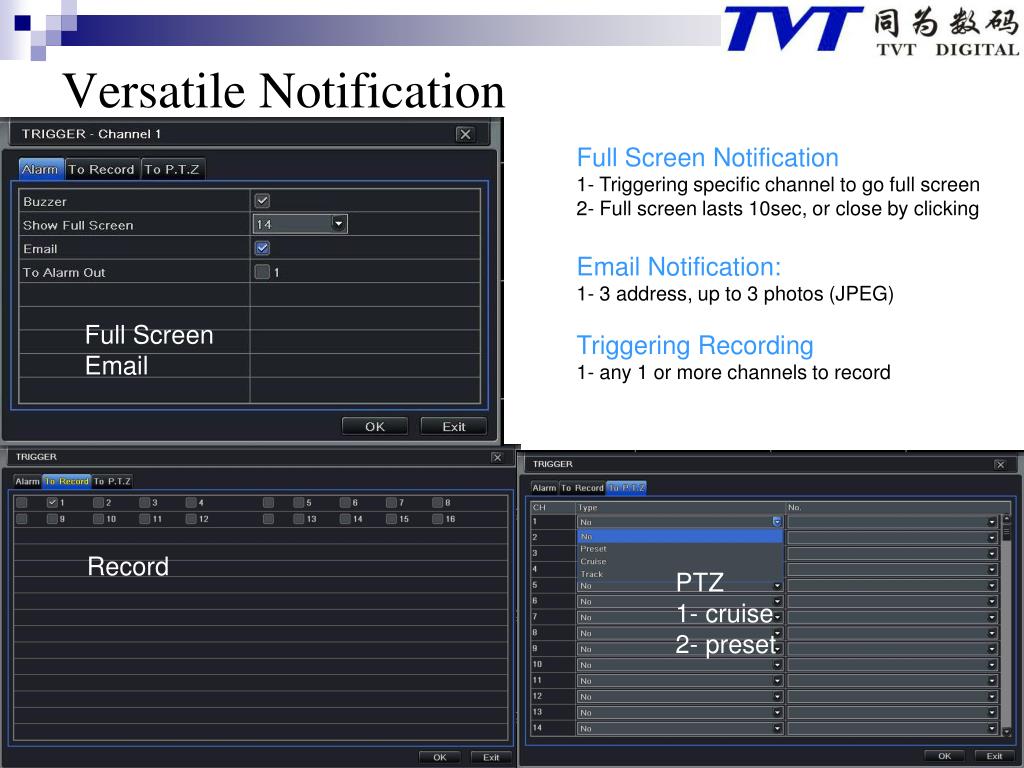

  14. Versatile Notification Full Screen Notification 1- Triggering specific channel to go full screen 2- Full screen lasts 10sec, or close by clicking Email Notification: 1- 3 address, up to 3 photos (JPEG) Triggering Recording 1- any 1 or more channels to record Full Screen Email Record PTZ 1- cruise 2- preset

  15. Other Notification More Notifications coming later

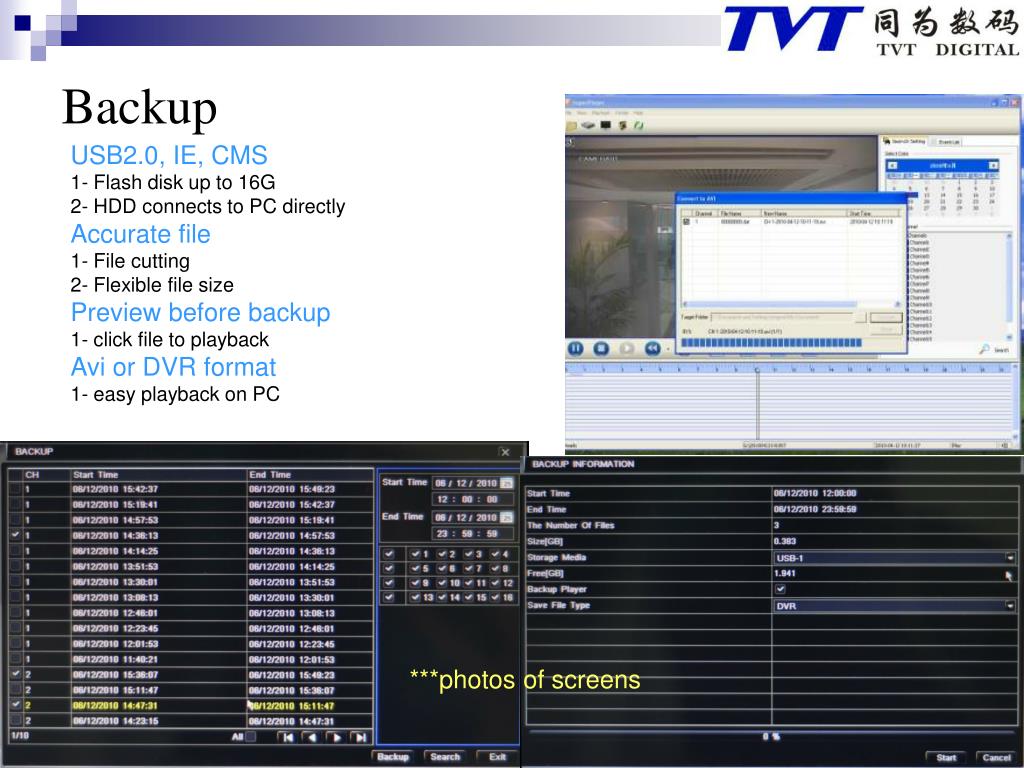

  16. Backup USB2.0, IE, CMS 1- Flash disk up to 16G 2- HDD connects to PC directly Accurate file 1- File cutting 2- Flexible file size Preview before backup 1- click file to playback Avi or DVR format 1- easy playback on PC ***photos of screens

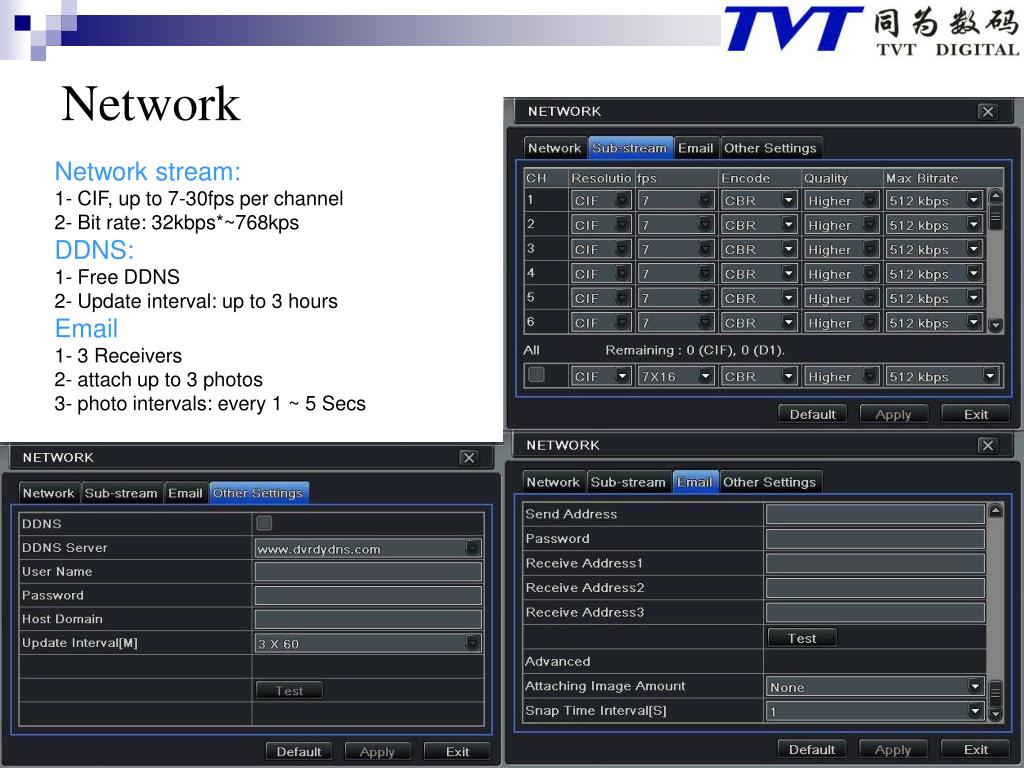

  17. Network Network stream: 1- CIF, up to 7-30fps per channel 2- Bit rate: 32kbps*~768kps DDNS: 1- Free DDNS 2- Update interval: up to 3 hours Email 1- 3 Receivers 2- attach up to 3 photos 3- photo intervals: every 1 ~ 5 Secs

  18. User Management Specific user, specific authority 1- operation independent 2- channel independent Disconnect an user

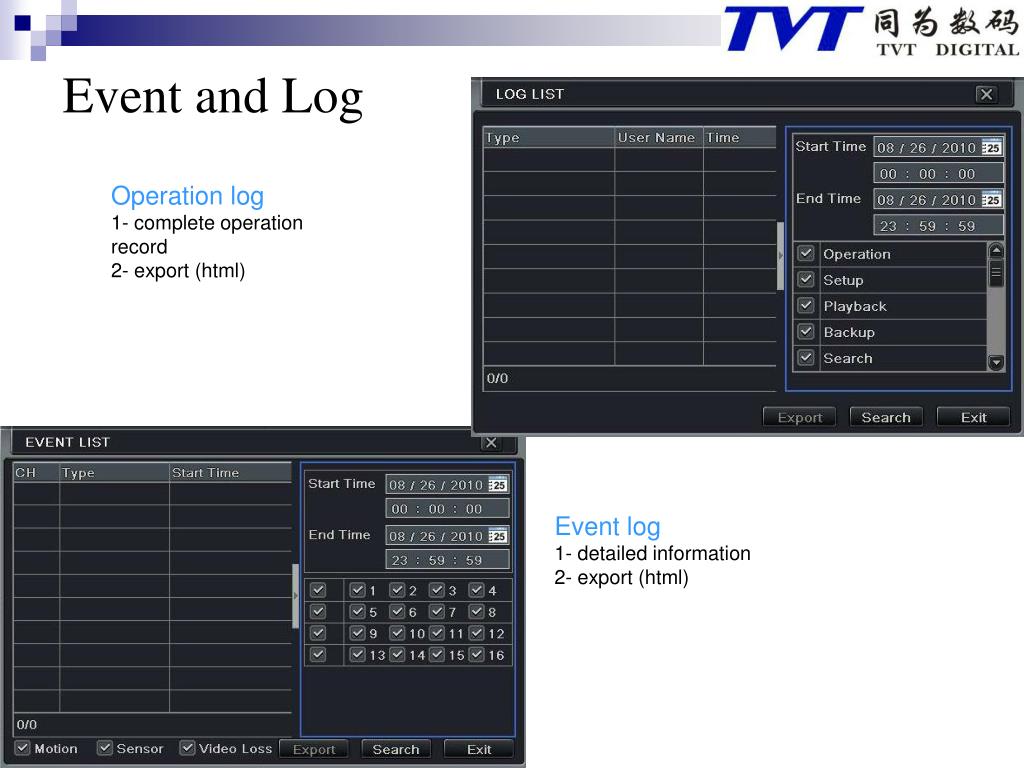

  19. Event and Log Operation log 1- complete operation record 2- export (html) Event log 1- detailed information 2- export (html)

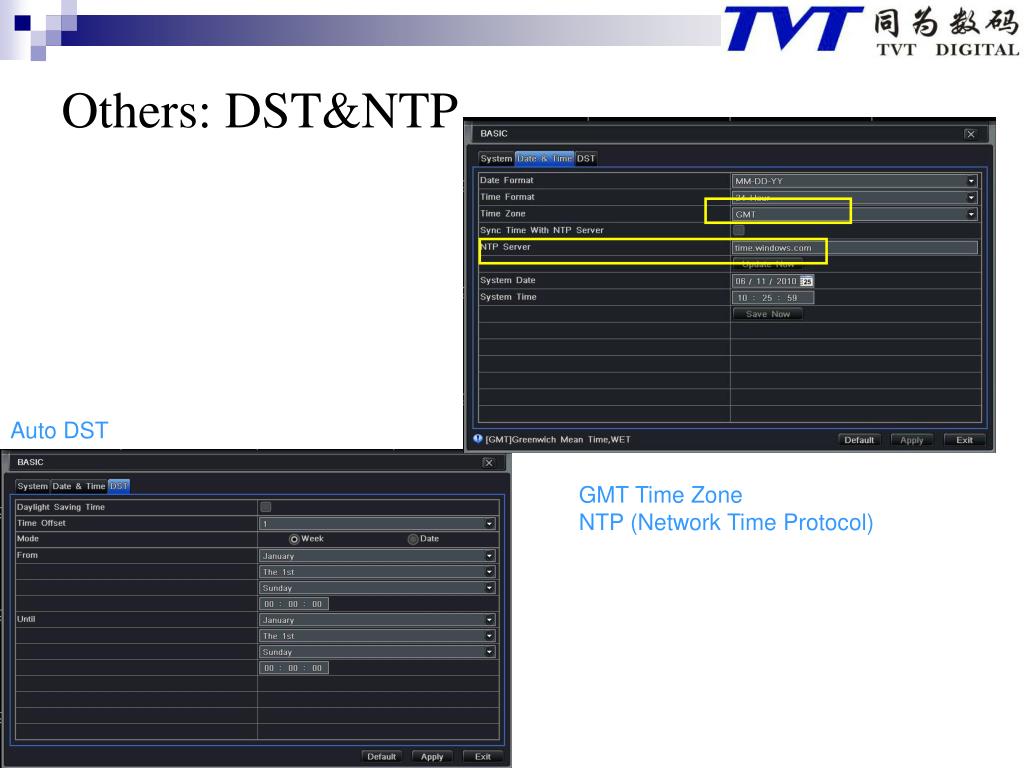

  20. Others: DST&NTP Auto DST GMT Time Zone NTP (Network Time Protocol)

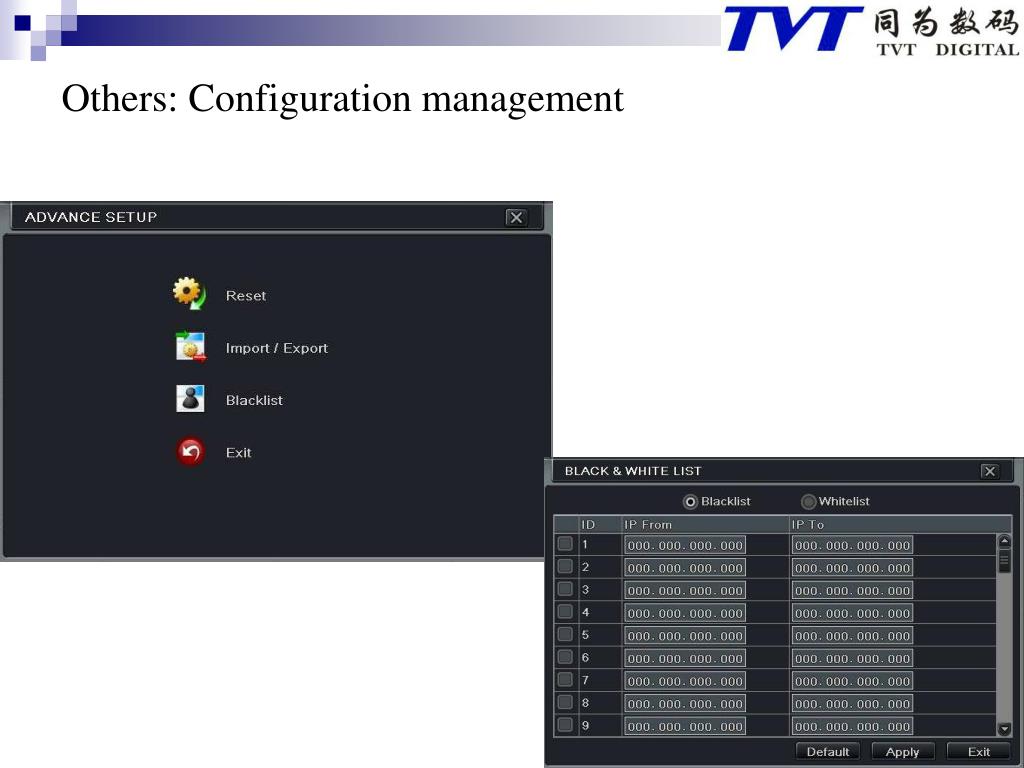

  21. Others: Configuration management

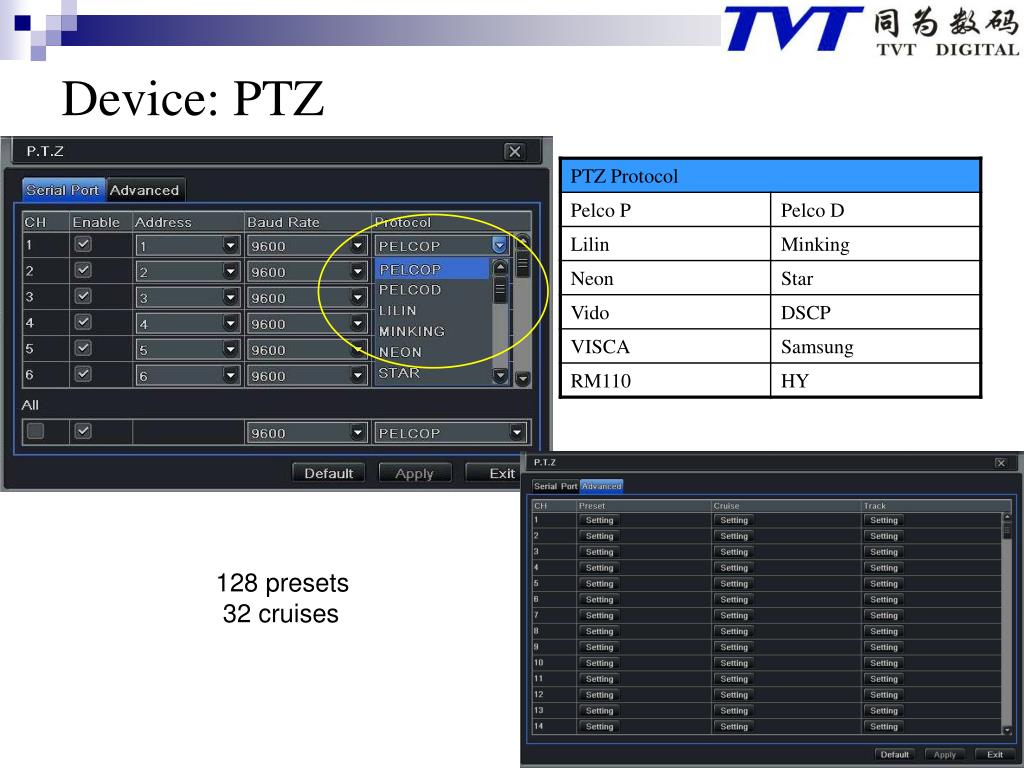

  22. Device: PTZ 128 presets 32 cruises

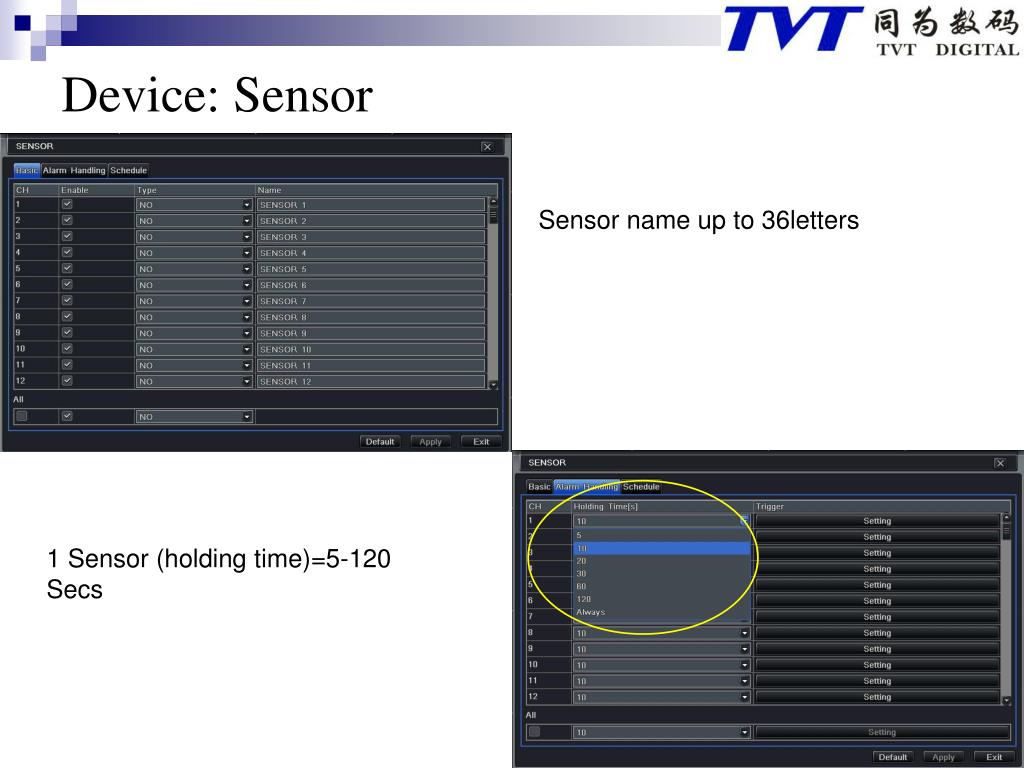

  23. Device: Sensor Sensor name up to 36letters 1 Sensor (holding time)=5-120 Secs

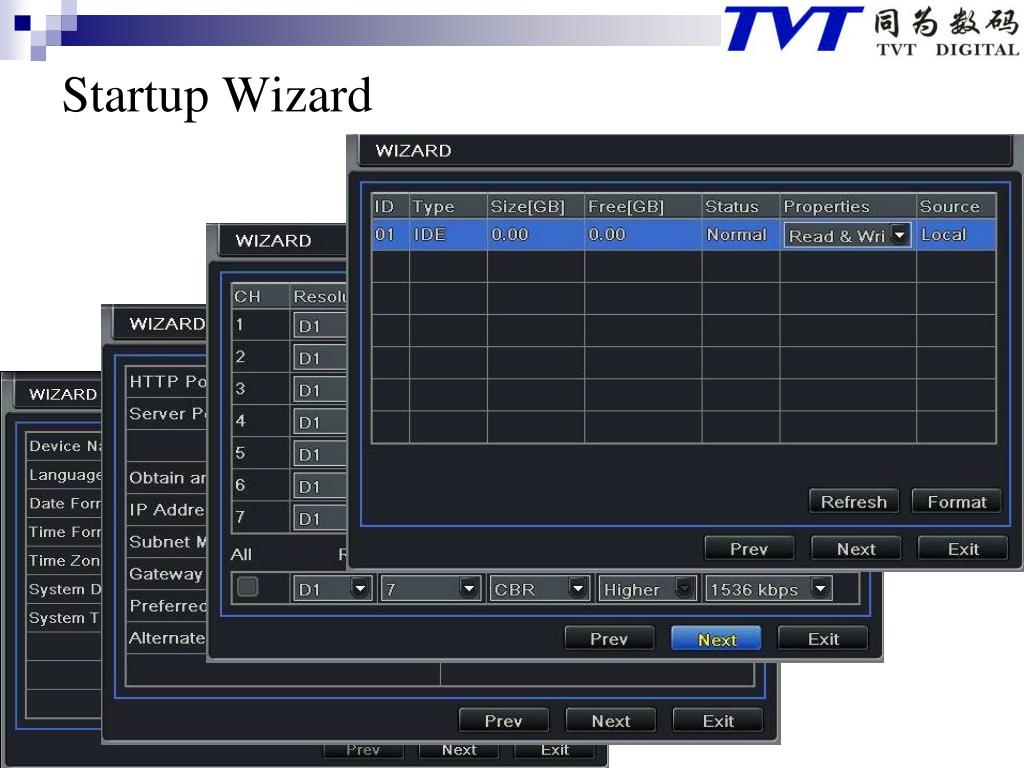

  24. Startup Wizard

  25. Introduction • DVR • CMS • IE • Cell phone • SE/ME/MD/HE/HD

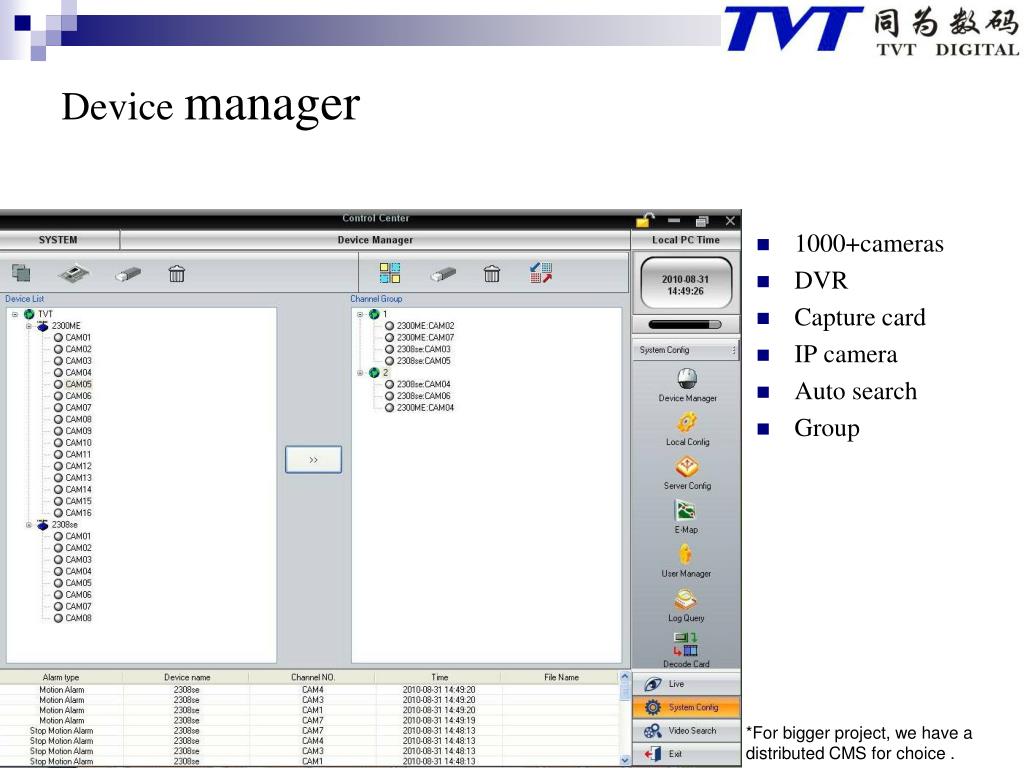

  26. Device manager • 1000+cameras • DVR • Capture card • IP camera • Auto search • Group *For bigger project, we have a distributed CMS for choice .

  27. Emap • 256maps • BMP • Camera status • Live video

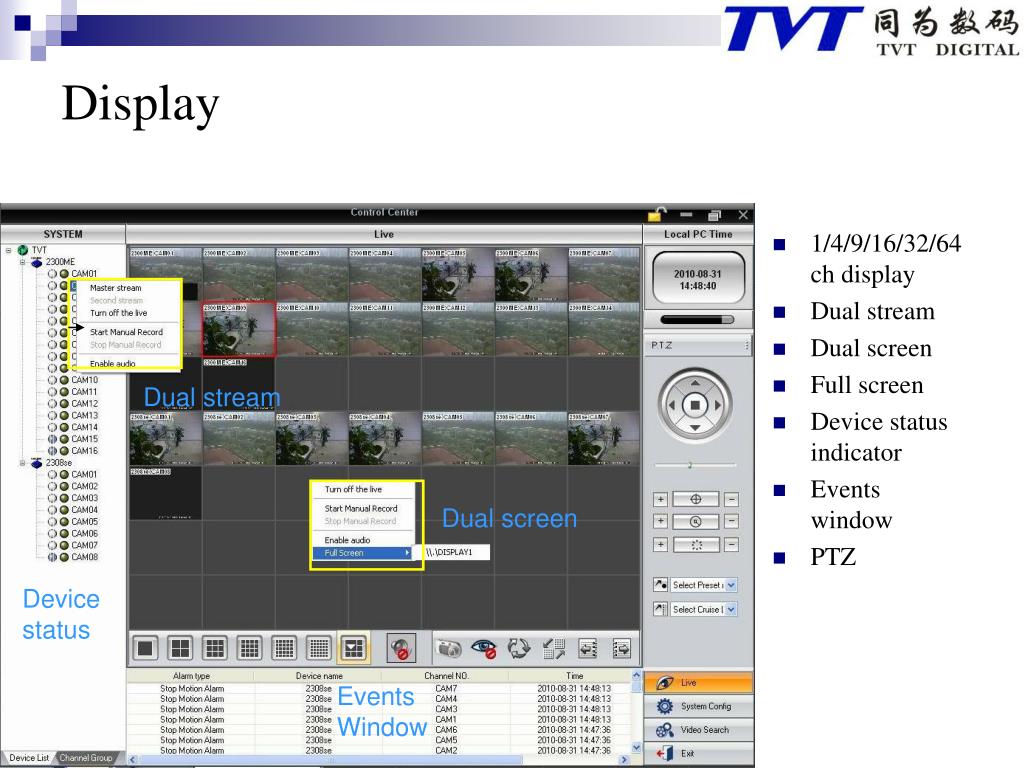

  28. Display • 1/4/9/16/32/64ch display • Dual stream • Dual screen • Full screen • Device status indicator • Events window • PTZ Dual stream Dual screen Device status Events Window

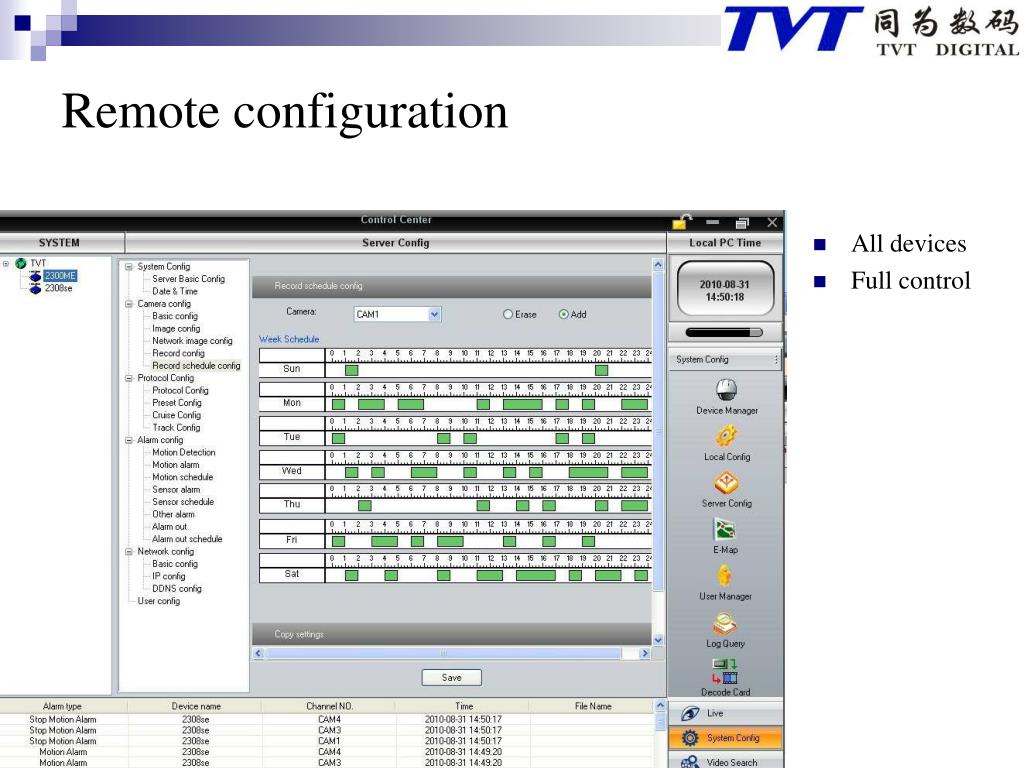

  29. Remote configuration • All devices • Full control

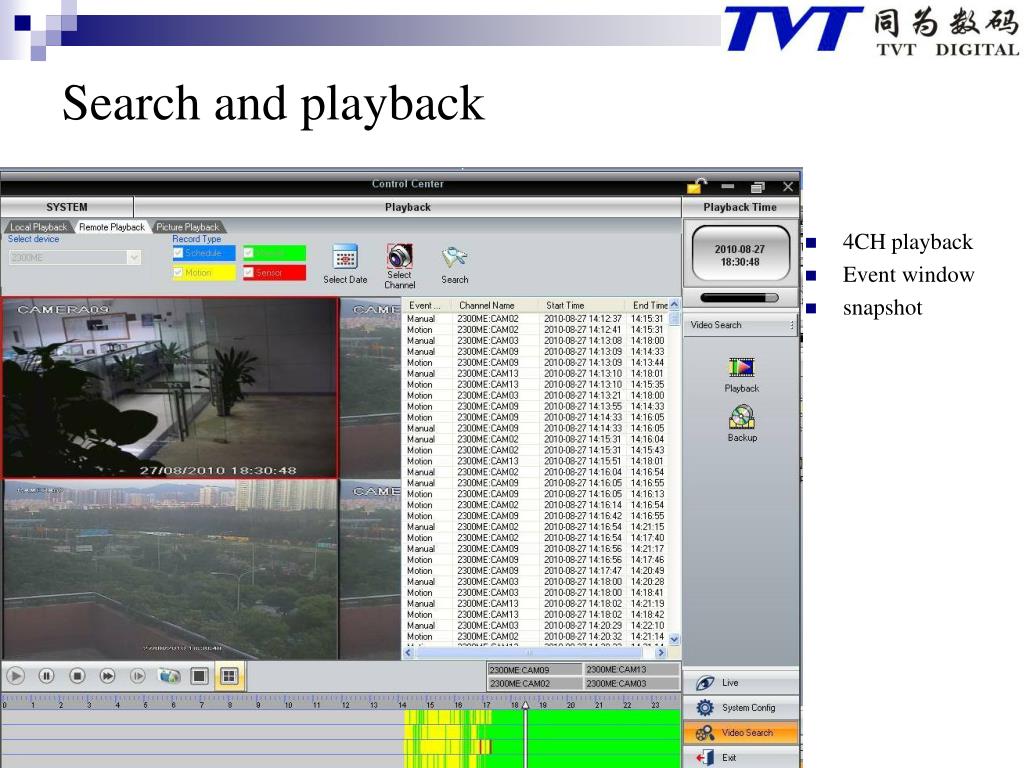

  30. Search and playback • 4CH playback • Event window • snapshot

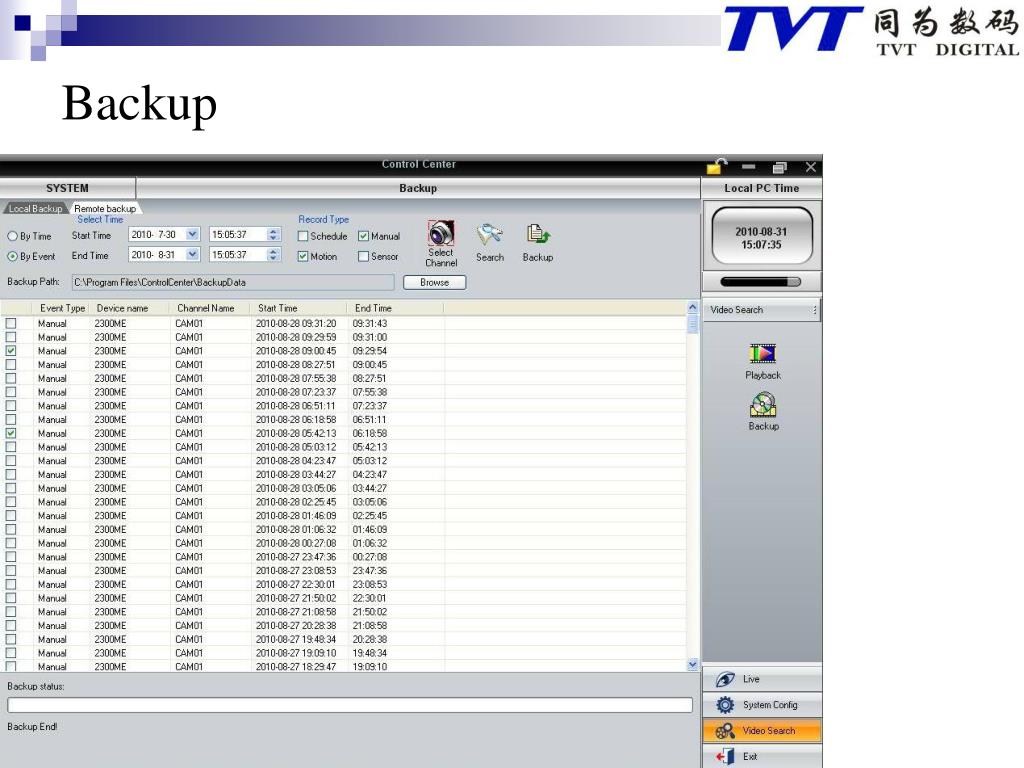

  31. Backup

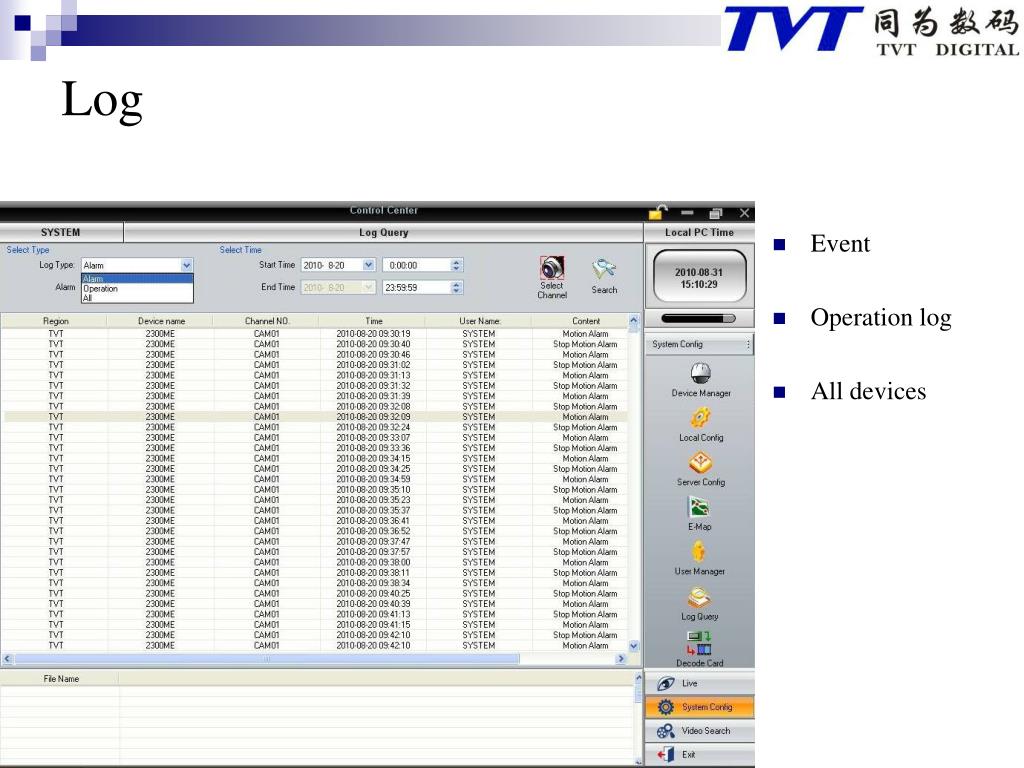

  32. Log • Event • Operation log • All devices

  33. Introduction • DVR • CMS • IE • Cell phone • SE/ME/MD/HE/HD

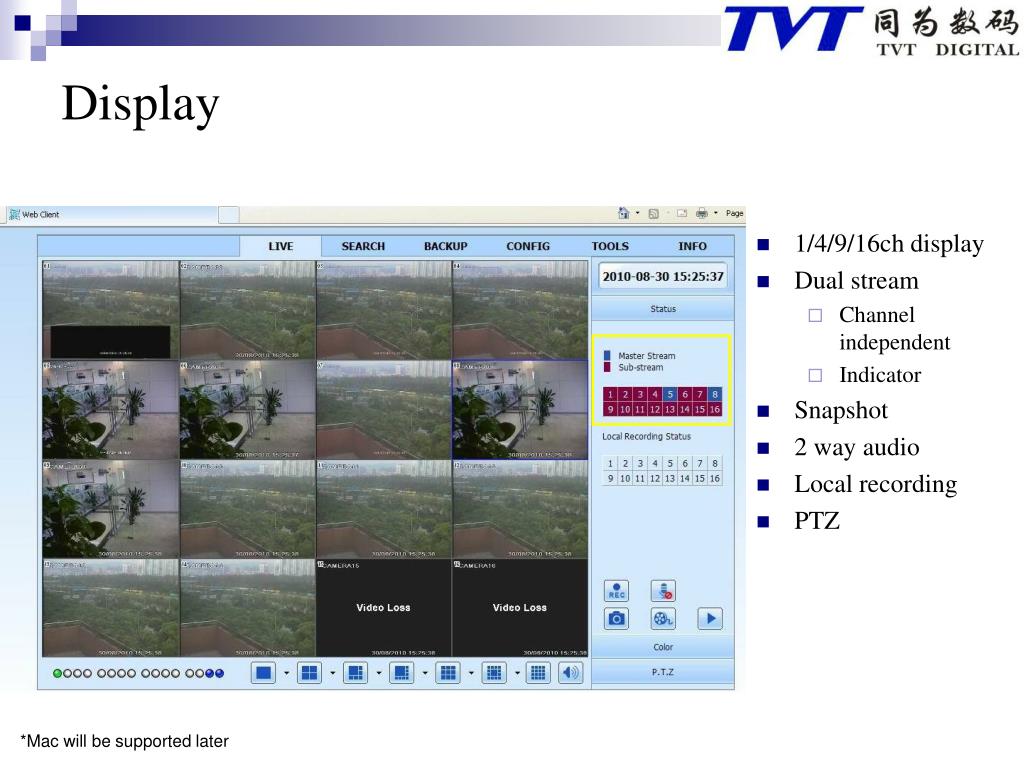

  34. Display • 1/4/9/16ch display • Dual stream • Channel independent • Indicator • Snapshot • 2 way audio • Local recording • PTZ *Mac will be supported later

  35. Smart Search

  36. Playback • 1/4/9/16ch Playback • Snapshot • FF • Full screen

  37. Backup

  38. Introduction • DVR • CMS • IE • Cell phone • SE/ME/MD/HE/HD

  39. SuperCam (pro) iPhone (App store) Windows CE/mobile (embedded) iPad (App store) Blackberry (embedded) Symbian (embedded) Google/Android (Google shop)

  40. Interface (iPhone) Server list/Favorite Login Manu

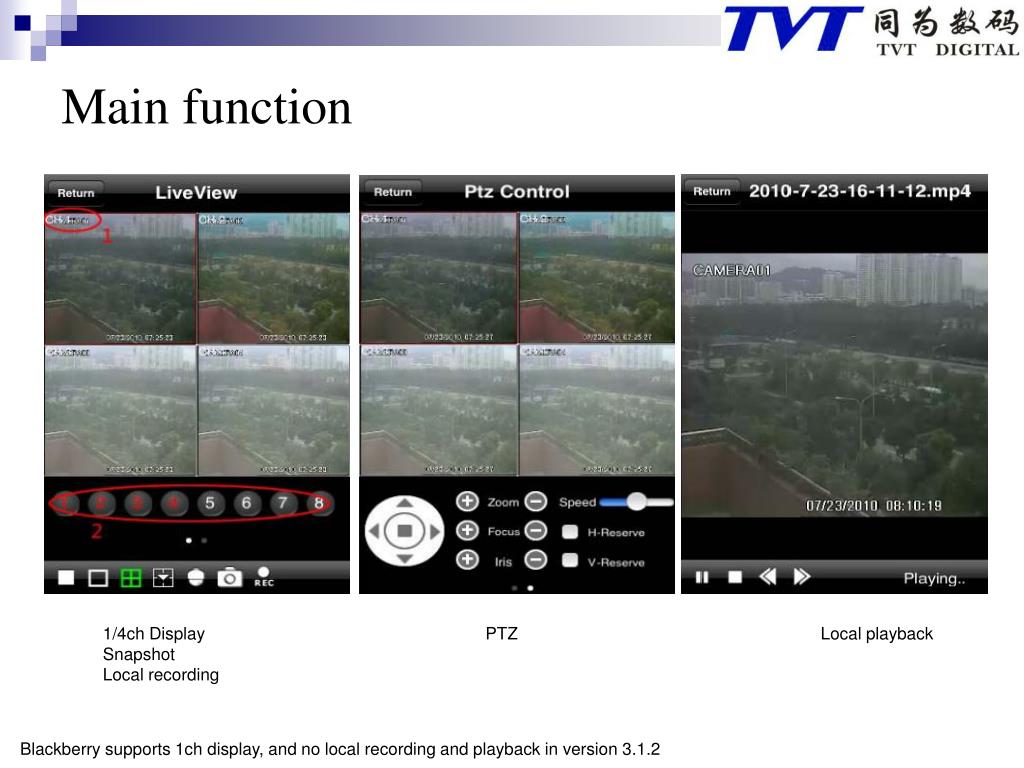

  41. Main function 1/4ch Display Snapshot Local recording PTZ Local playback Blackberry supports 1ch display, and no local recording and playback in version 3.1.2

  42. Introduction • DVR • CMS • IE • Cell phone • SE/ME/MD/HE/HD
