  1. Microelectronics Processing CourseIntroduction Microelectronics Processing Course J. Salzman Fall 2006

  2. Microelectronics Processing Course J. Salzman Fall 2006

  3. Conductivity in solids Resistivity  [  cm] 10-8 1018 108 10-3 Glass Ag Si Pure Diamond Cu GaAs Al Quartz 10-18 103 10-8 108 Conductivity  [  cm] -1 Conductors Insulators Semiconductors Microelectronics Processing Course J. Salzman Fall 2006

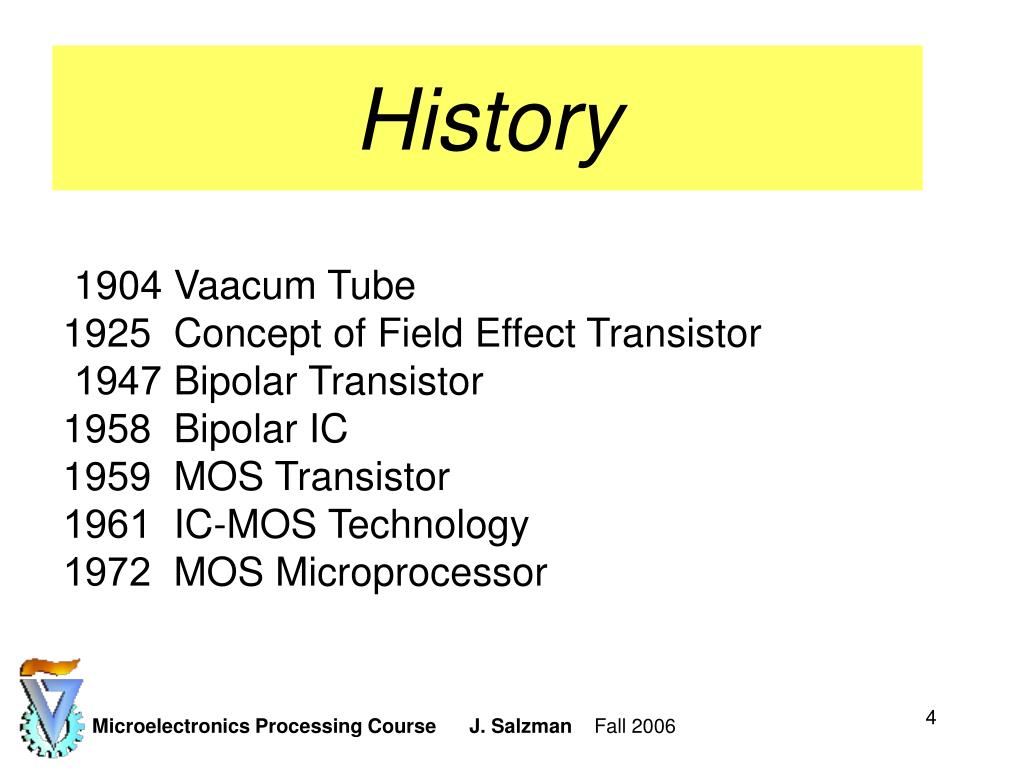

  4. History • 1904 Vaacum Tube • Concept of Field Effect Transistor • 1947 Bipolar Transistor • Bipolar IC • MOS Transistor • 1961 IC-MOS Technology • 1972 MOS Microprocessor Microelectronics Processing Course J. Salzman Fall 2006

  5. Microelectronics Processing Course J. Salzman Fall 2006

  6. Microelectronics Processing Course J. Salzman Fall 2006

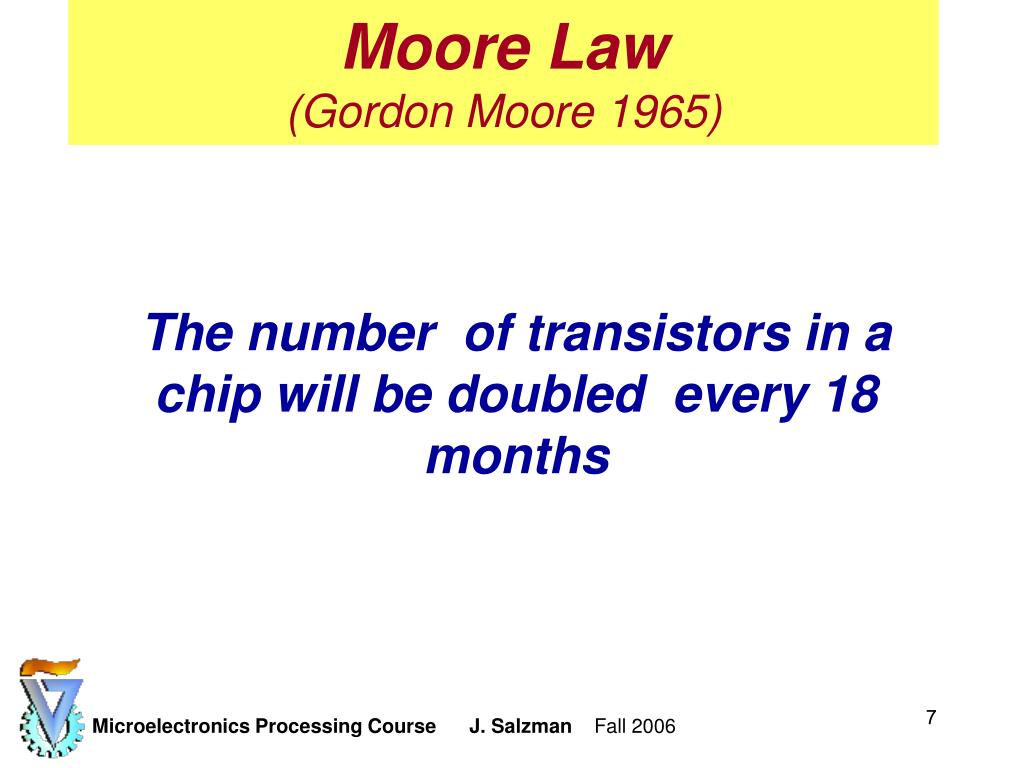

  7. Moore Law(Gordon Moore 1965) The number of transistors in a chip will be doubled every 18 months Microelectronics Processing Course J. Salzman Fall 2006

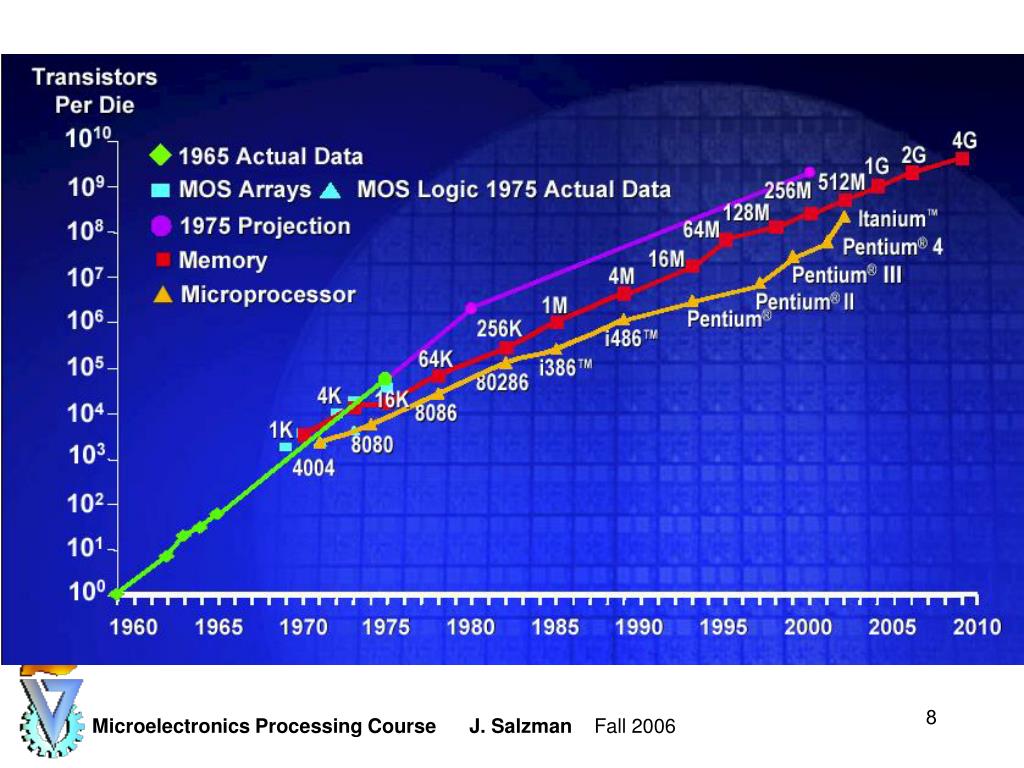

  8. Microelectronics Processing Course J. Salzman Fall 2006

  9. Microelectronics Processing Course J. Salzman Fall 2006

  10. Microelectronics Processing Course J. Salzman Fall 2006

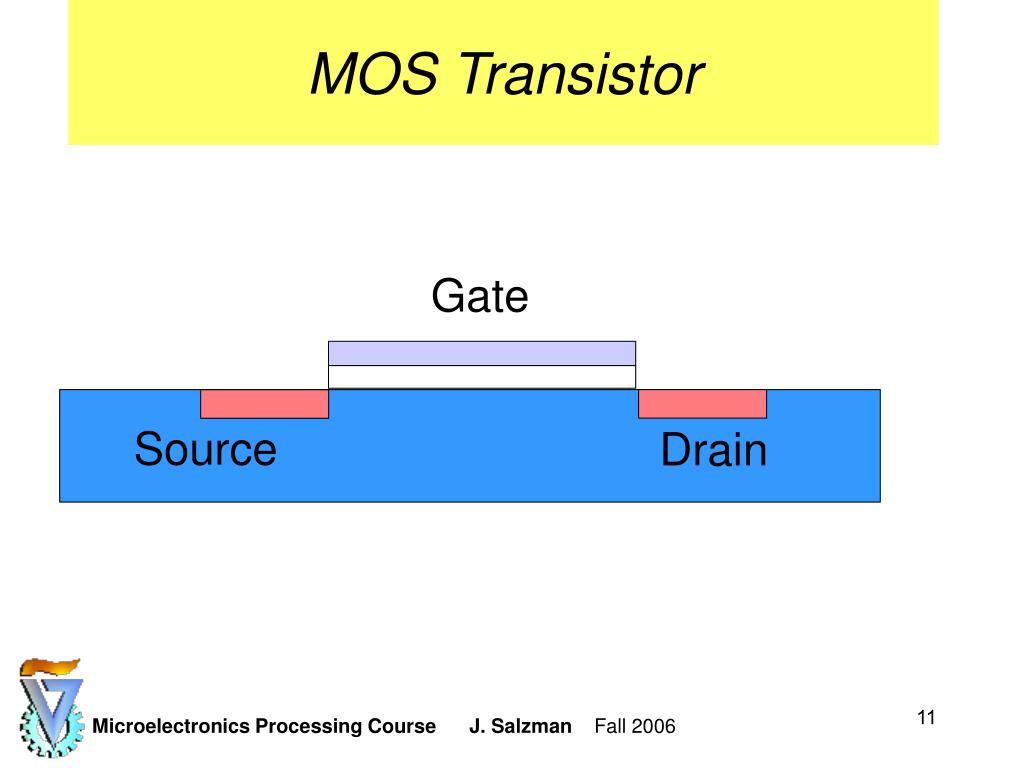

  11. MOS Transistor Gate Source Drain Microelectronics Processing Course J. Salzman Fall 2006

  12. MOS Transistor Gate Source Drain Electrons in inversion layer Microelectronics Processing Course J. Salzman Fall 2006

  13. W Drain L Gate tox Source Substrate Schottky contact Metal contact Si2O Microelectronics Processing Course J. Salzman Fall 2006

  14. Optical Measurements • Photometric • Interferometric • Polarization • Spectroscopic Microelectronics Processing Course J. Salzman Fall 2006

  15. Basic Optical Instruments • Microscope • Reflectometer (Nanospec) • Ellipsometer Microelectronics Processing Course J. Salzman Fall 2006

  16. Microelectronics Processing Course J. Salzman Fall 2006

  17. Microelectronics Processing Course J. Salzman Fall 2006

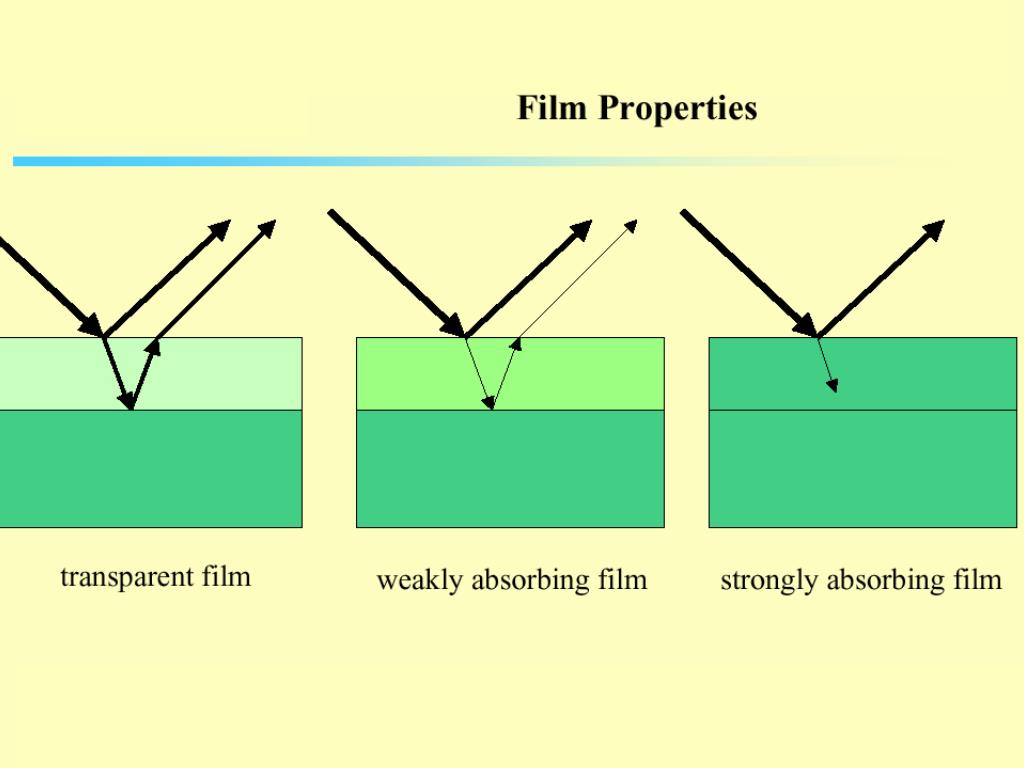

  18. Microelectronics Processing Course J. Salzman Fall 2006

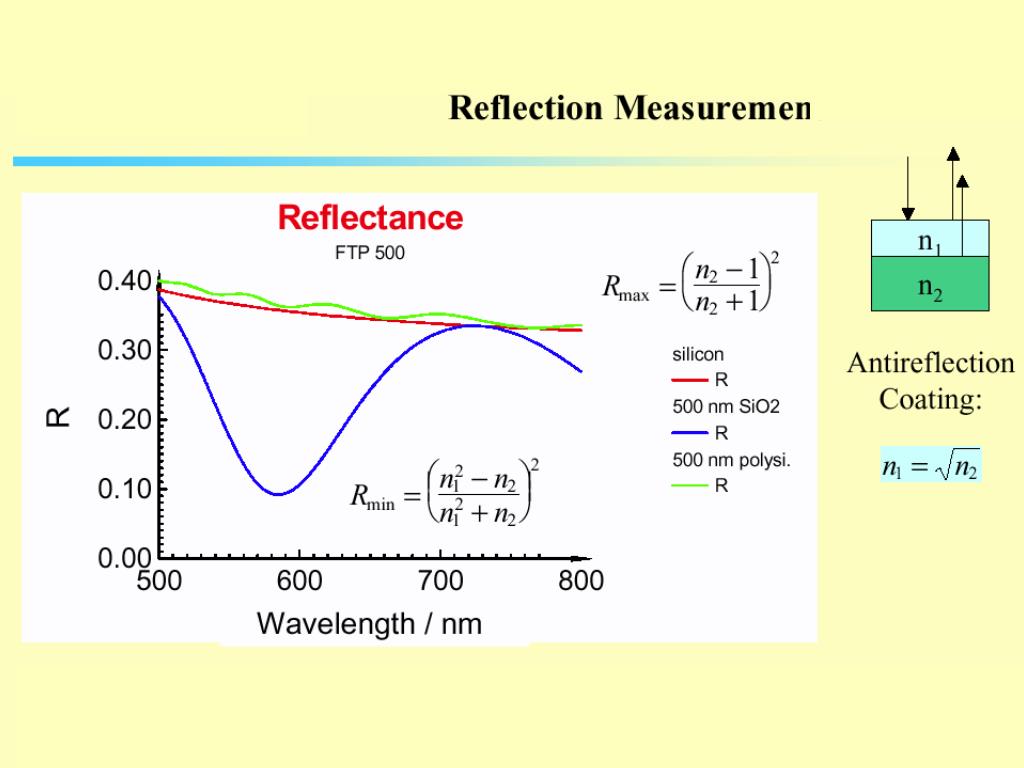

  19. Microelectronics Processing Course J. Salzman Fall 2006

  20. Microelectronics Processing Course J. Salzman Fall 2006

  21. Microelectronics Processing Course J. Salzman Fall 2006

  22. Microelectronics Processing Course J. Salzman Fall 2006

  23. Microelectronics Processing Course J. Salzman Fall 2006
