  1. Multi-Core Development Kyle Anderson

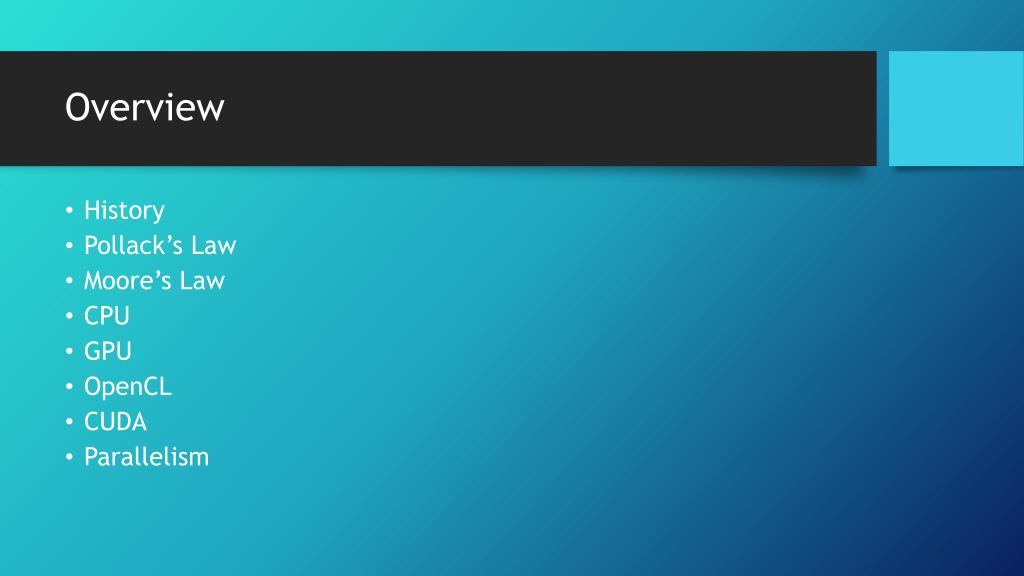

  2. Overview • History • Pollack’s Law • Moore’s Law • CPU • GPU • OpenCL • CUDA • Parallelism

  3. History • First 4 bit microprocessor – 1971 • 60,000 instructions per second • 2,300 transistors • First 8 bit microprocessor – 1974 • 290,000 instructions per second • 4,500 transistors • Altair 8800 • First 32 bit microprocessor – 1985 • 275,000 transistors

  4. History • First Pentium processor released – 1993 • 66 MHz • Pentium 4 released – 2000 • 1.5 GHz • 42,000,000 transistors • Approach 4GHz 2000 - 2005 • Core 2 Duo released – 2006 • 291,000,000 tranisitors

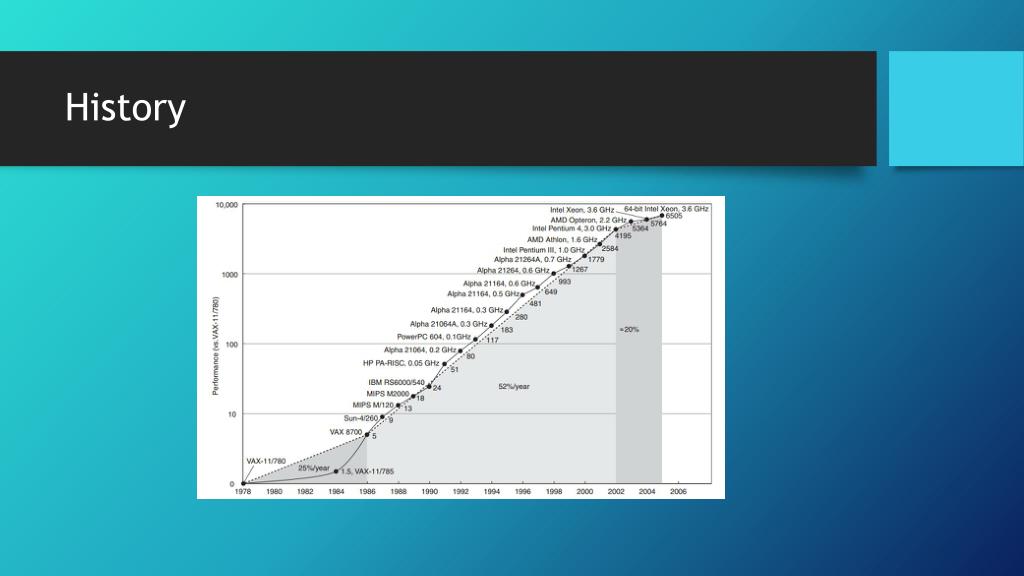

  5. History

  6. Pollack’s Law • Processor Performance grows with square root of area

  7. Pollack’s Law

  8. Moore’s Law • “The Number of transistors incorporated in a chip will approximately double every 24 months.” – Gordon Moore, Intel co-founder • Smaller and smaller transistors

  9. Moore’s Law

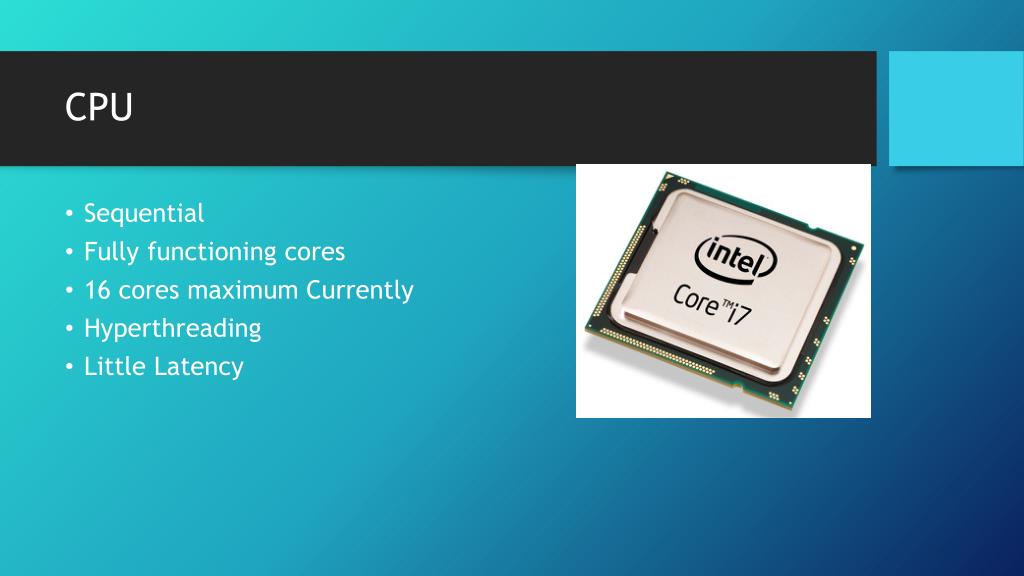

  10. CPU • Sequential • Fully functioning cores • 16 cores maximum Currently • Hyperthreading • Little Latency

  11. GPU • Higher latency • Thousands of cores • Simple calculations • Used for research

  12. OpenCL • Multitude of Devices • Run-time compilation ensures most up to date features on device • Lock-Step

  13. OpenCL Data Structures • Host • Device • Compute Units • Work-Group • Work-Item • Command Queue • Kernel • Context

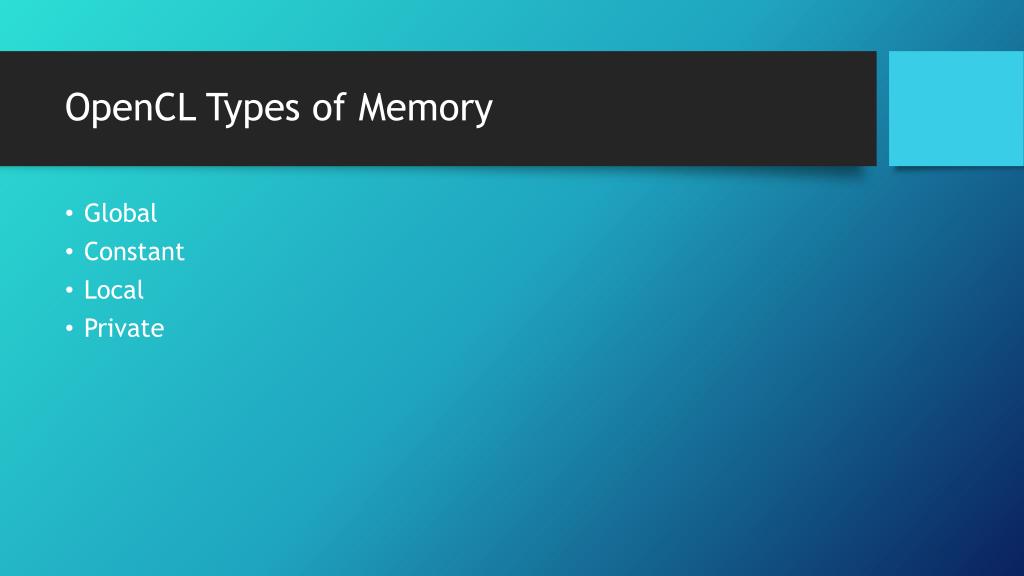

  14. OpenCL Types of Memory • Global • Constant • Local • Private

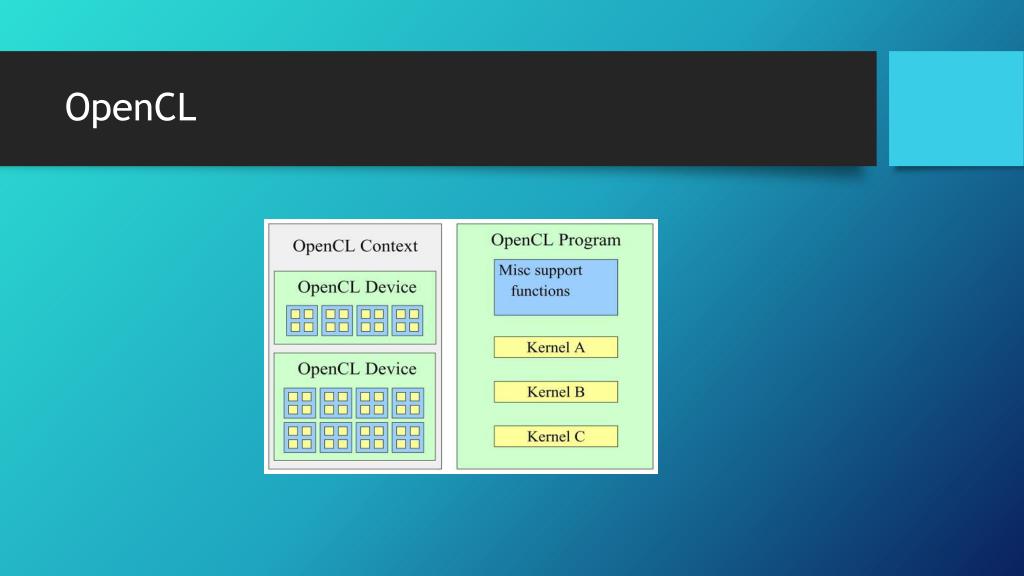

  15. OpenCL

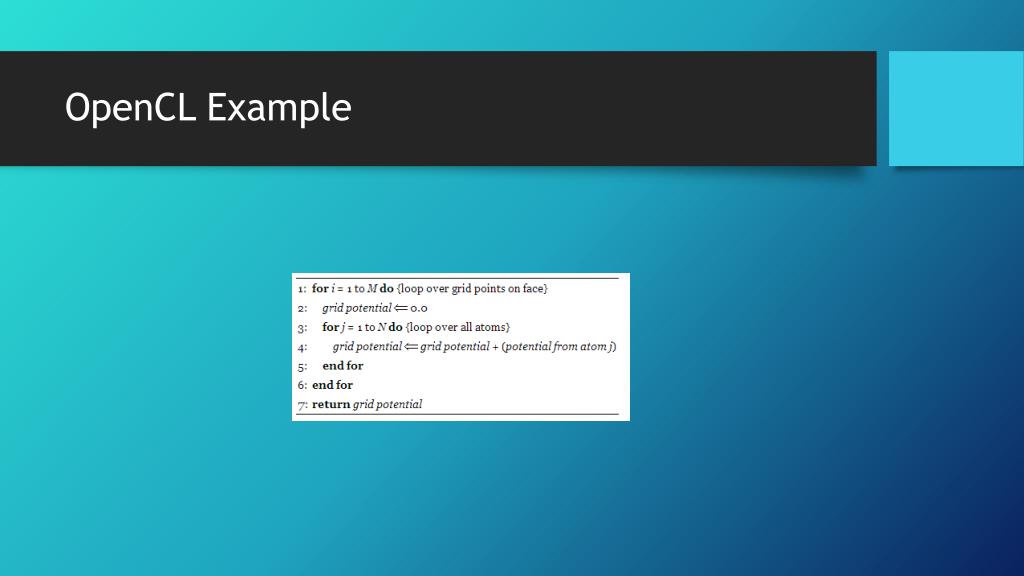

  16. OpenCL Example

  17. OpenCL Example

  18. OpenCL Example

  19. CUDA • NVidia's proprietary API for their GPU’s • Stands for “Compute Unified Device Architecture” • Compiles directly to hardware • Used by Adobe, Autodesk, National Instruments, Microsoft and Wolfram Mathematica • Faster than OpenCL because compiled directly on hardware and focus on a single architecture.

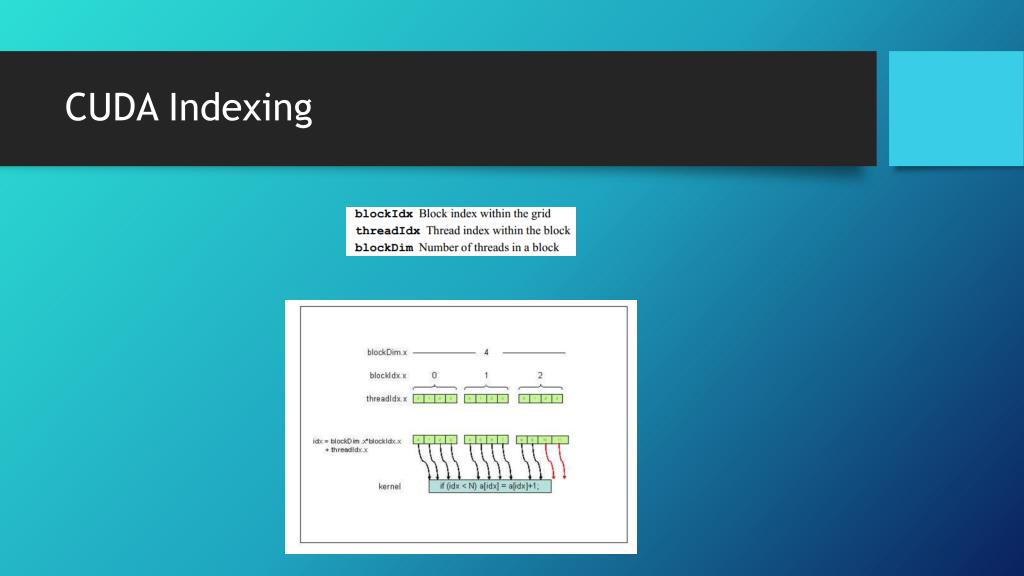

  20. CUDA Indexing

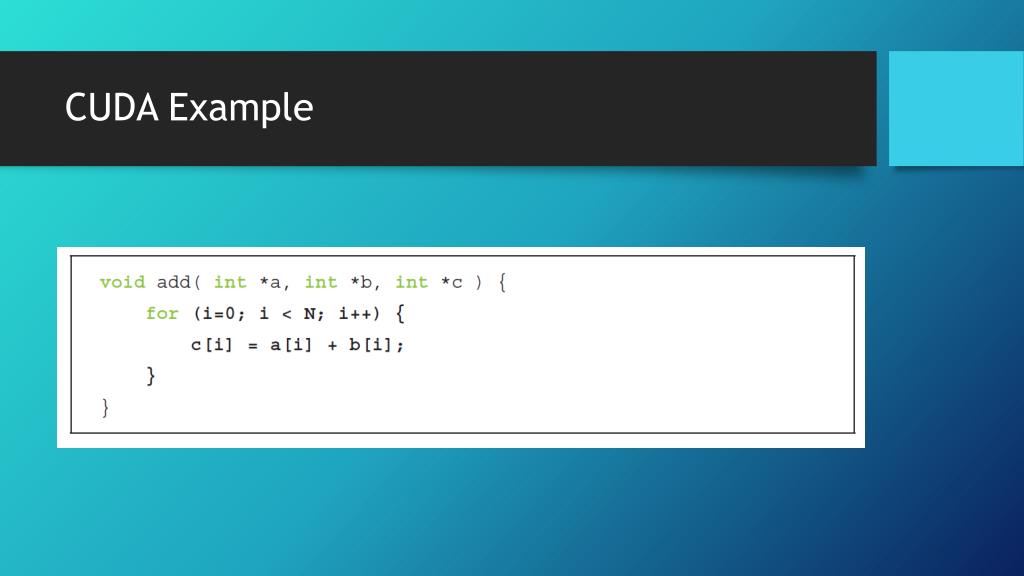

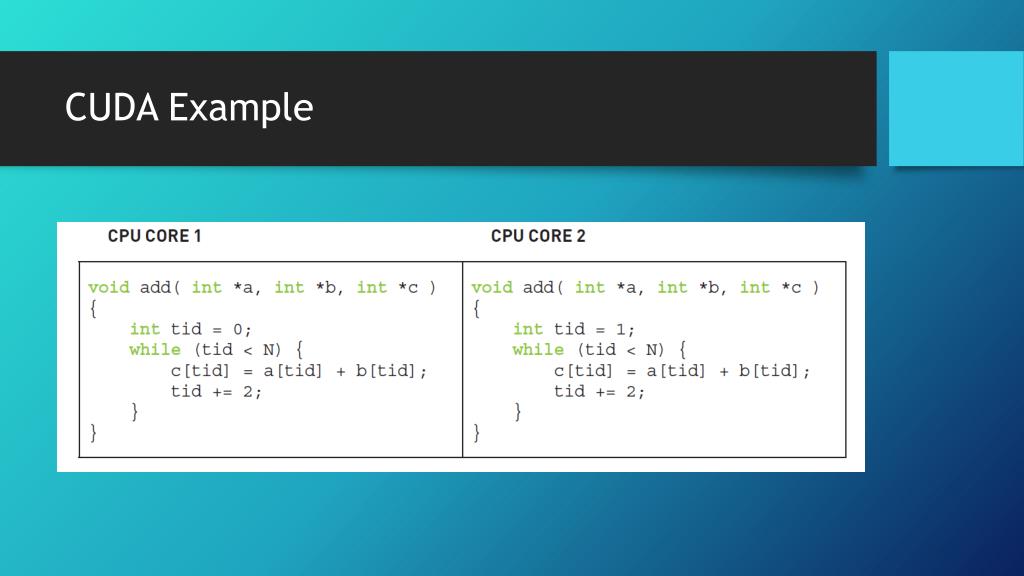

  21. CUDA Example

  22. CUDA Example

  23. CUDA Example

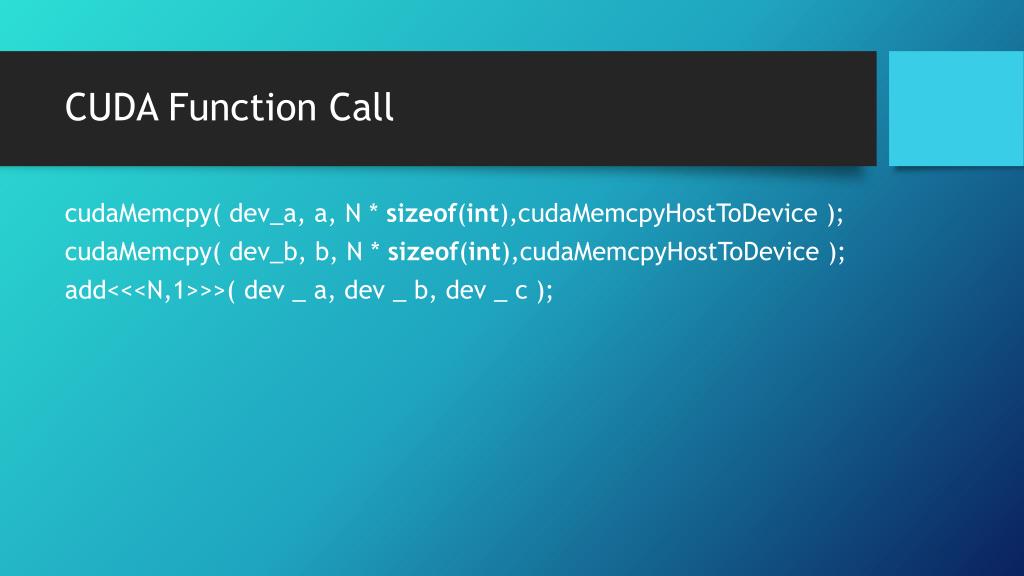

  24. CUDA Function Call cudaMemcpy( dev_a, a, N * sizeof(int),cudaMemcpyHostToDevice ); cudaMemcpy( dev_b, b, N * sizeof(int),cudaMemcpyHostToDevice ); add<<<N,1>>>( dev _ a, dev _ b, dev _ c );

  25. Types of Parallelism • SIMD • MISD • MIMD • Instruction parallelism • Task parallelism • Data parallelism

  26. SISD • Stands for Single Instruction, Single Data • Does not use multiple cores

  27. SIMD • Stands for “Single Instruction, Multiple Data Streams” • Can be process multiple data streams concurrently

  28. MISD • Stands for “Multiple Instruction, Single Data” • Risky because several instructions are processing the same data

  29. MIMD • Stands for “Multiple Instruction, Multiple Data” • Instructions are processed sequentially

  30. Instruction Parallelism • Mutually exclusive • MIMD and MISD often use this • Allows multiple instructions to be run at once • Instructions considered operations • Not programmatically done • Hardware • Compiler

  31. Task Parallelism • Dividing up of main tasks or controls • Runs multiple threads concurrently

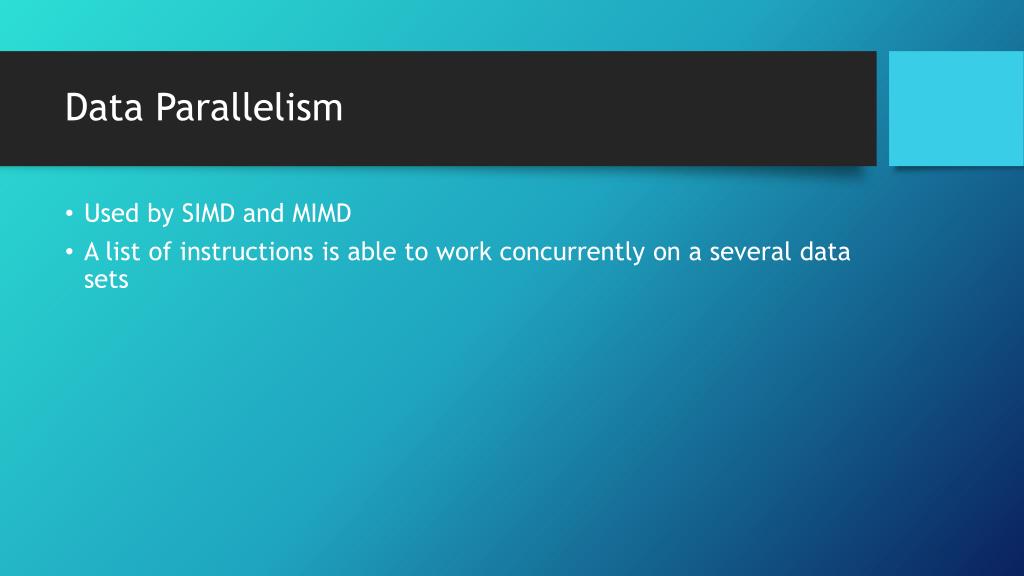

  32. Data Parallelism • Used by SIMD and MIMD • A list of instructions is able to work concurrently on a several data sets
