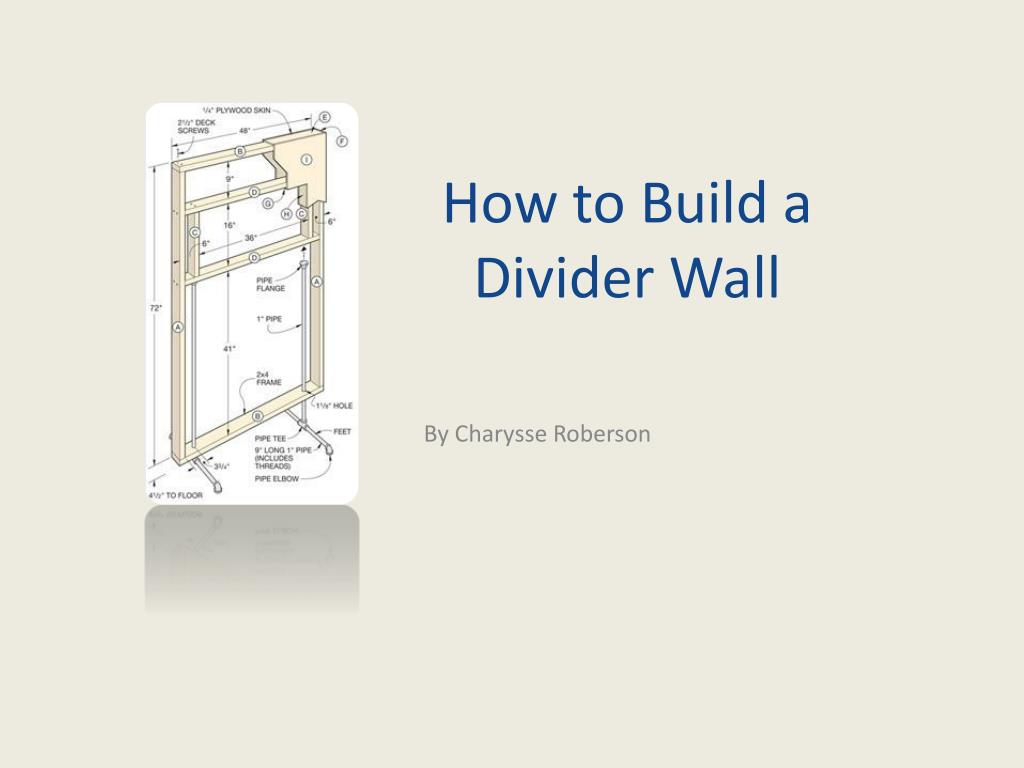

  1. How to Build a Divider Wall By Charysse Roberson

  2. Contents • Common Mistakes • Preparing your space for wall structure • Knowing how tall and wide your wall will be • Gather Materials • Build frame • Prepare wall for frame • Prepare floor for frame • Add sheetrock • Cover cracks • Paint wall • Add base boards

  3. COMMON MISTAKES • Make sure the place where you are placing your wall is a flat slab • You should always make sure that the area that you would like the wall placed is solid and in an area where there is a stud • Leveling is key to a sound structure • During construction it is imperative that you always check the levels on your boards

  4. PREPARE SPACE • Prepare your space before you build and buy materials • Decide what type of structure you want to build • The space where the wall will be should be clear of debris • The floor and wall space should be accommodating to the type of wall you want

  5. PREPARE SPACE Cont. • Make sure there is a stud in the wall where you want the wall to be placed • Remove any baseboards in the area where the wall is to be placed

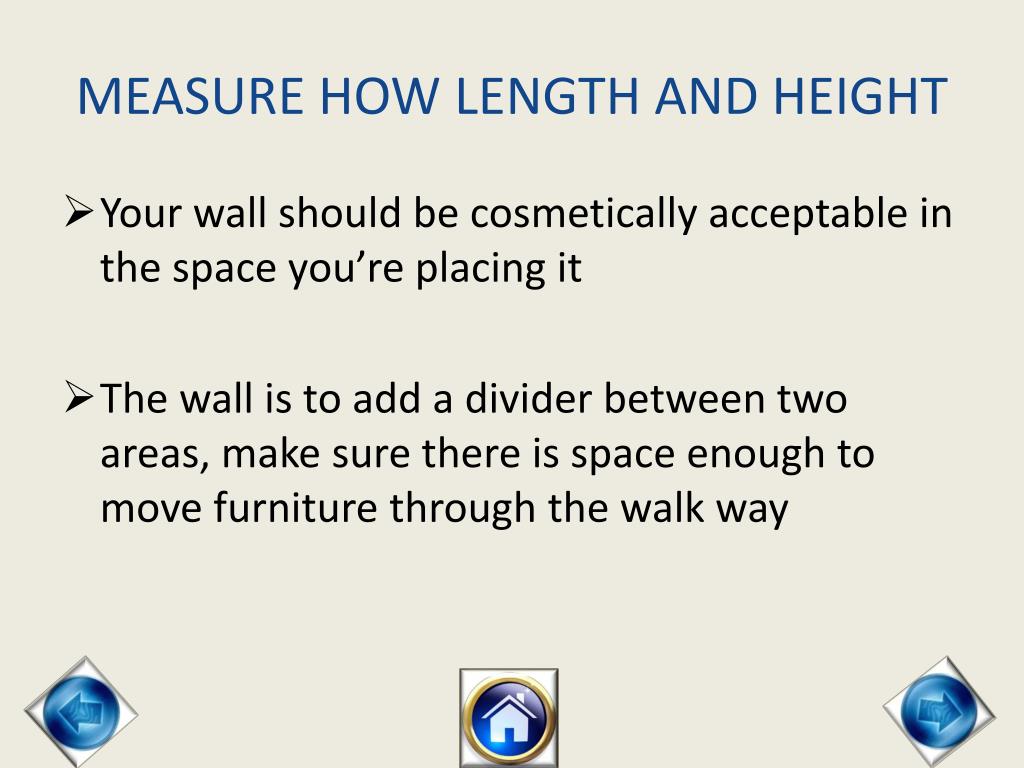

  6. MEASURE HOW LENGTH AND HEIGHT • Your wall should be cosmetically acceptable in the space you’re placing it • The wall is to add a divider between two areas, make sure there is space enough to move furniture through the walk way

  7. GATHER MATERIALS • 2 ¼ inch wood nails • Wood brackets • 2x4 wood planks • Stud nails and concrete nails • Wall plaster

  8. GATHER MATERIALS Cont. • Sheet rock and sheetrock screws • Stud finder • Miter Saw • Joint Compound tape • Leveler

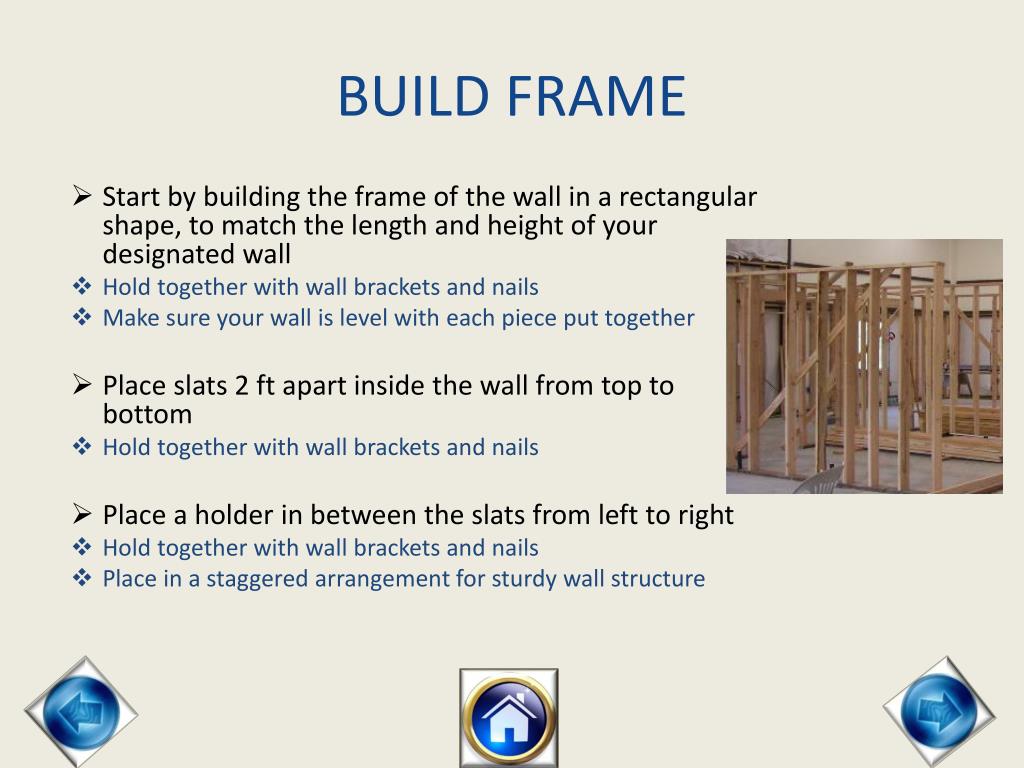

  9. BUILD FRAME • Start by building the frame of the wall in a rectangular shape, to match the length and height of your designated wall • Hold together with wall brackets and nails • Make sure your wall is level with each piece put together • Place slats 2 ft apart inside the wall from top to bottom • Hold together with wall brackets and nails • Place a holder in between the slats from left to right • Hold together with wall brackets and nails • Place in a staggered arrangement for sturdy wall structure

  10. PREPARING WALL FOR FRAME • Mark spot on wall where frame it to be located in stud • This is for support of the wall • Using a drill and bit, drill holes in wall no wider than 1 foot apart, for stud nails

  11. PREPARING FLOOR FOR FRAME • Mark spots on floor where frame it to be located • This is for support of the wall • Drill holes into concrete using a concrete drill bit, about 1 foot apart • This takes a bit of force, use caution • This is for support of the wall

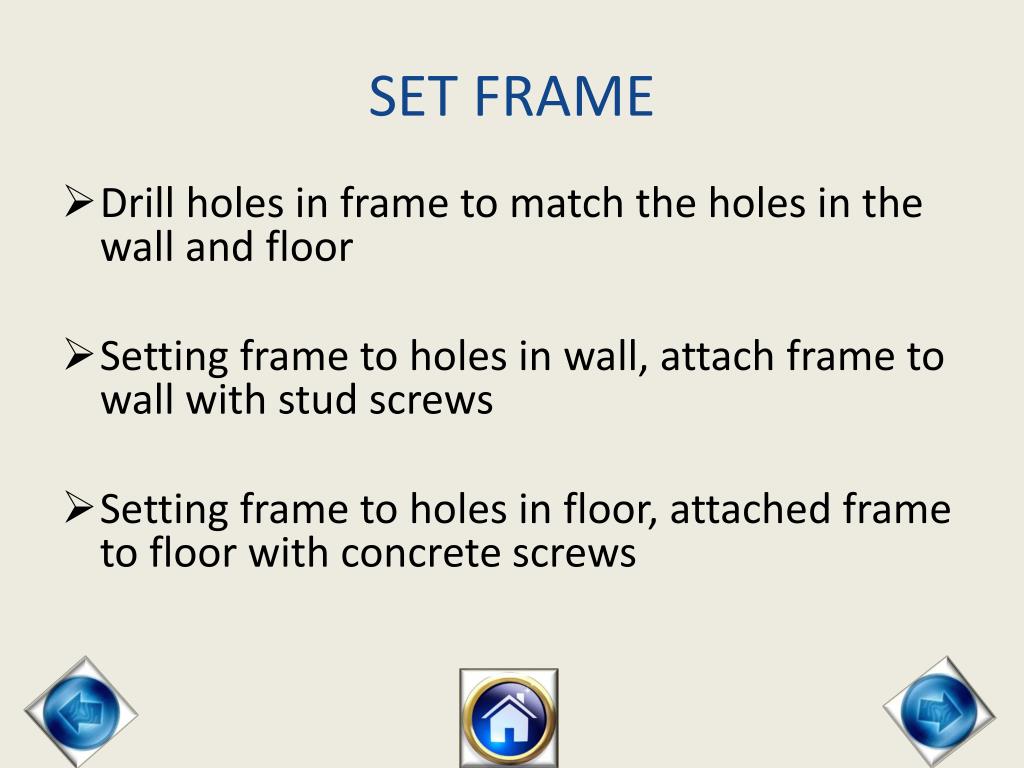

  12. SET FRAME • Drill holes in frame to match the holes in the wall and floor • Setting frame to holes in wall, attach frame to wall with stud screws • Setting frame to holes in floor, attached frame to floor with concrete screws

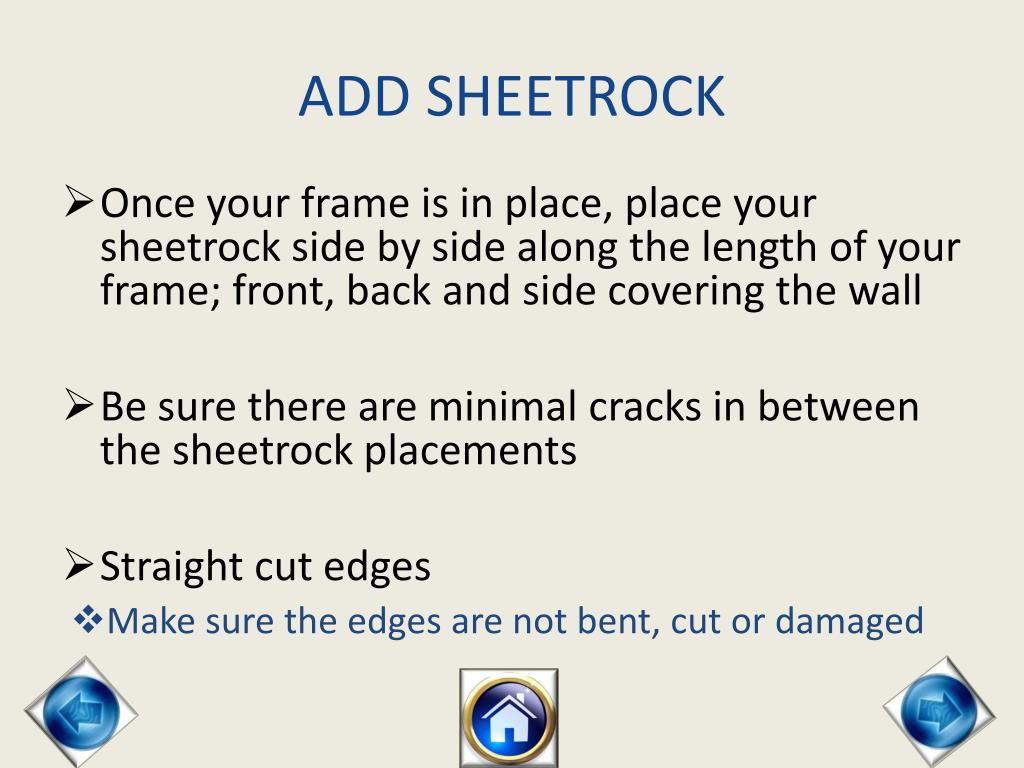

  13. ADD SHEETROCK • Once your frame is in place, place your sheetrock side by side along the length of your frame; front, back and side covering the wall • Be sure there are minimal cracks in between the sheetrock placements • Straight cut edges • Make sure the edges are not bent, cut or damaged

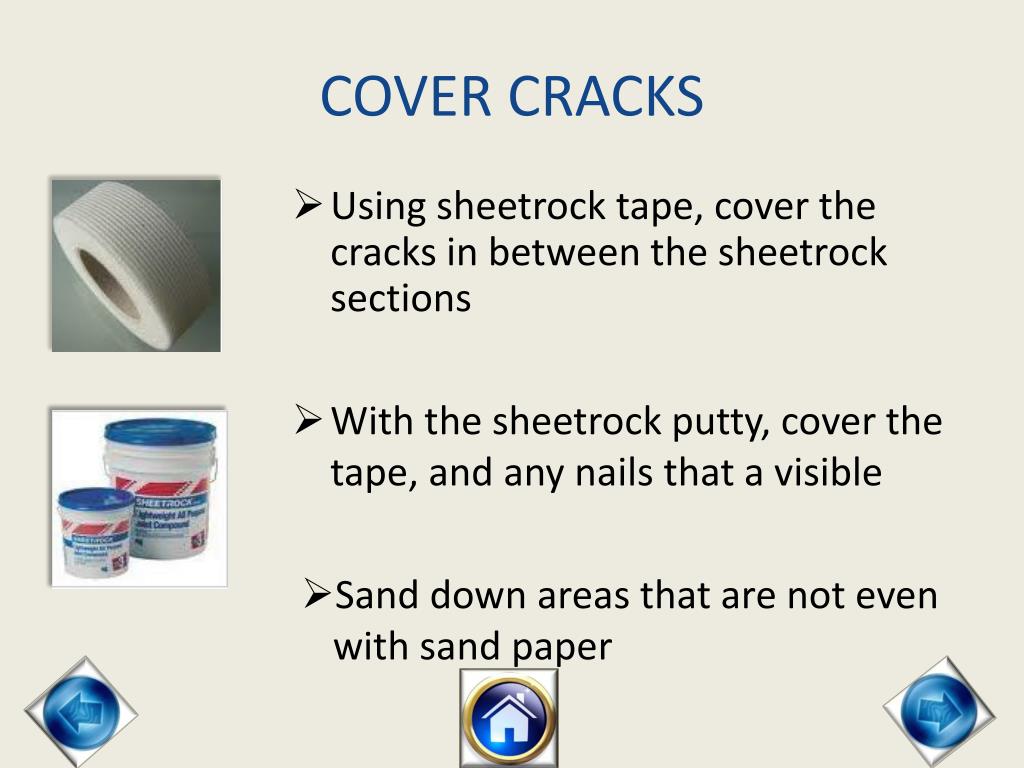

  14. COVER CRACKS • Using sheetrock tape, cover the cracks in between the sheetrock sections • With the sheetrock putty, cover the tape, and any nails that a visible • Sand down areas that are not even with sand paper

  15. PAINT WALL • Once sheetrock putty has dried – time to paint • Choose a color you like and paint the wall to your liking

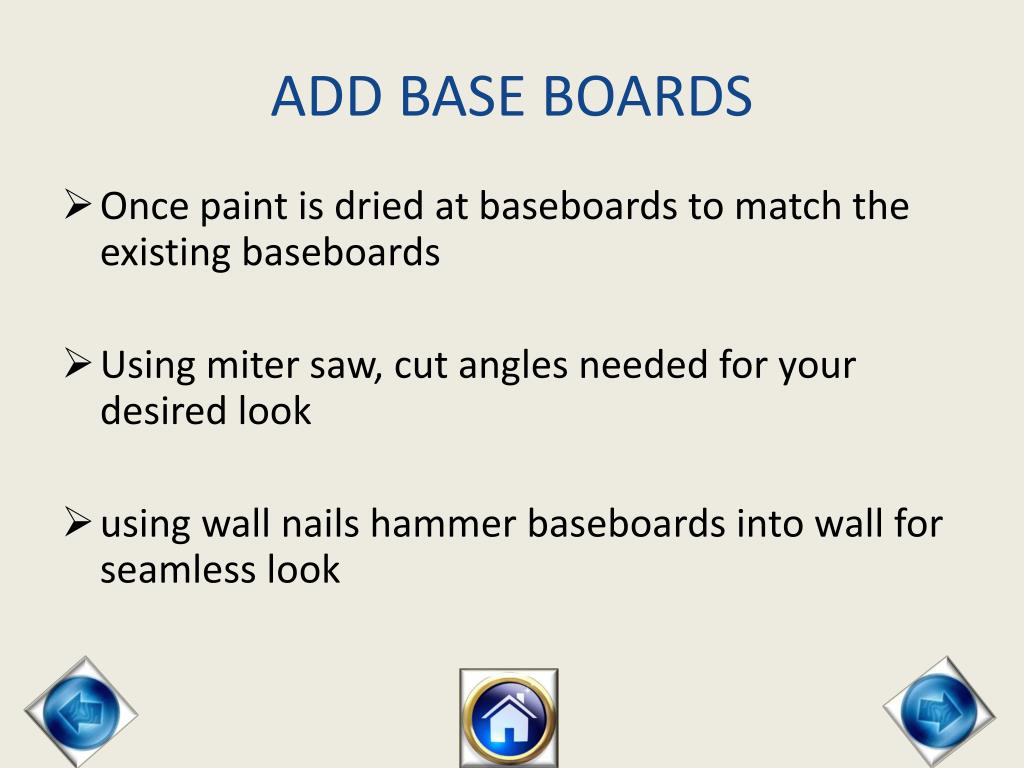

  16. ADD BASE BOARDS • Once paint is dried at baseboards to match the existing baseboards • Using miter saw, cut angles needed for your desired look • using wall nails hammer baseboards into wall for seamless look

  17. MY CRAFTED WALL

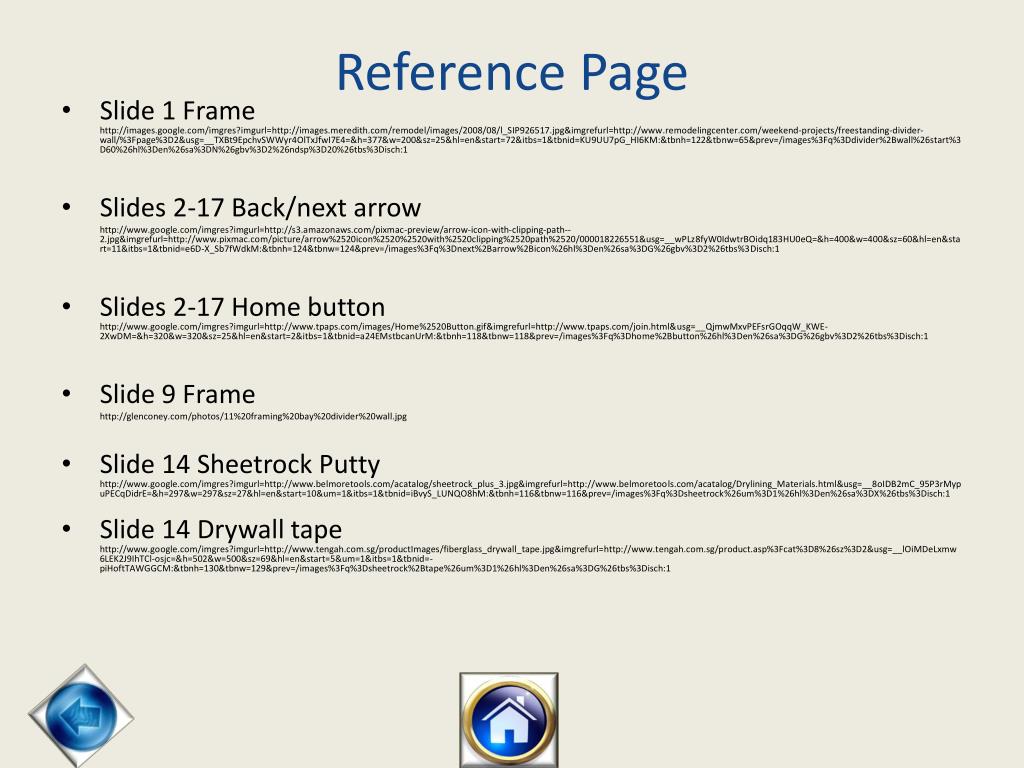

  18. Reference Page • Slide 1 Frame http://images.google.com/imgres?imgurl=http://images.meredith.com/remodel/images/2008/08/l_SIP926517.jpg&imgrefurl=http://www.remodelingcenter.com/weekend-projects/freestanding-divider-wall/%3Fpage%3D2&usg=__TXBt9EpchvSWWyr4OlTxJfwI7E4=&h=377&w=200&sz=25&hl=en&start=72&itbs=1&tbnid=KU9UU7pG_HI6KM:&tbnh=122&tbnw=65&prev=/images%3Fq%3Ddivider%2Bwall%26start%3D60%26hl%3Den%26sa%3DN%26gbv%3D2%26ndsp%3D20%26tbs%3Disch:1 • Slides 2-17 Back/next arrow http://www.google.com/imgres?imgurl=http://s3.amazonaws.com/pixmac-preview/arrow-icon-with-clipping-path--2.jpg&imgrefurl=http://www.pixmac.com/picture/arrow%2520icon%2520%2520with%2520clipping%2520path%2520/000018226551&usg=__wPLz8fyW0IdwtrBOidq183HU0eQ=&h=400&w=400&sz=60&hl=en&start=11&itbs=1&tbnid=e6D-X_Sb7fWdkM:&tbnh=124&tbnw=124&prev=/images%3Fq%3Dnext%2Barrow%2Bicon%26hl%3Den%26sa%3DG%26gbv%3D2%26tbs%3Disch:1 • Slides 2-17 Home button http://www.google.com/imgres?imgurl=http://www.tpaps.com/images/Home%2520Button.gif&imgrefurl=http://www.tpaps.com/join.html&usg=__QjmwMxvPEFsrGOqqW_KWE-2XwDM=&h=320&w=320&sz=25&hl=en&start=2&itbs=1&tbnid=a24EMstbcanUrM:&tbnh=118&tbnw=118&prev=/images%3Fq%3Dhome%2Bbutton%26hl%3Den%26sa%3DG%26gbv%3D2%26tbs%3Disch:1 • Slide 9 Frame http://glenconey.com/photos/11%20framing%20bay%20divider%20wall.jpg • Slide 14 Sheetrock Putty http://www.google.com/imgres?imgurl=http://www.belmoretools.com/acatalog/sheetrock_plus_3.jpg&imgrefurl=http://www.belmoretools.com/acatalog/Drylining_Materials.html&usg=__8oIDB2mC_95P3rMypuPECqDidrE=&h=297&w=297&sz=27&hl=en&start=10&um=1&itbs=1&tbnid=iBvyS_LUNQO8hM:&tbnh=116&tbnw=116&prev=/images%3Fq%3Dsheetrock%26um%3D1%26hl%3Den%26sa%3DX%26tbs%3Disch:1 • Slide 14 Drywall tape http://www.google.com/imgres?imgurl=http://www.tengah.com.sg/productImages/fiberglass_drywall_tape.jpg&imgrefurl=http://www.tengah.com.sg/product.asp%3Fcat%3D8%26sz%3D2&usg=__lOiMDeLxmw6LEK2J9IhTCl-osjc=&h=502&w=500&sz=69&hl=en&start=5&um=1&itbs=1&tbnid=-piHoftTAWGGCM:&tbnh=130&tbnw=129&prev=/images%3Fq%3Dsheetrock%2Btape%26um%3D1%26hl%3Den%26sa%3DG%26tbs%3Disch:1
