  1. Higher Physics – Unit 1 1.1 Vectors

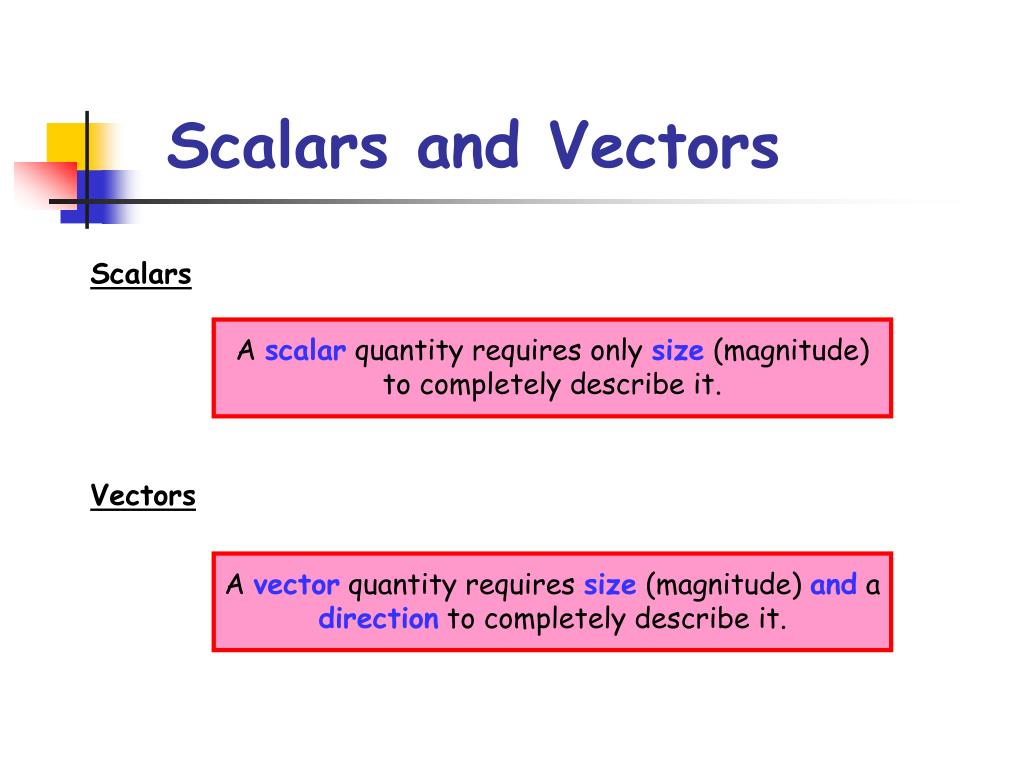

  2. A scalar quantity requires only size (magnitude) to completely describe it. A vector quantity requires size (magnitude) and a direction to completely describe it. Scalars and Vectors Scalars Vectors

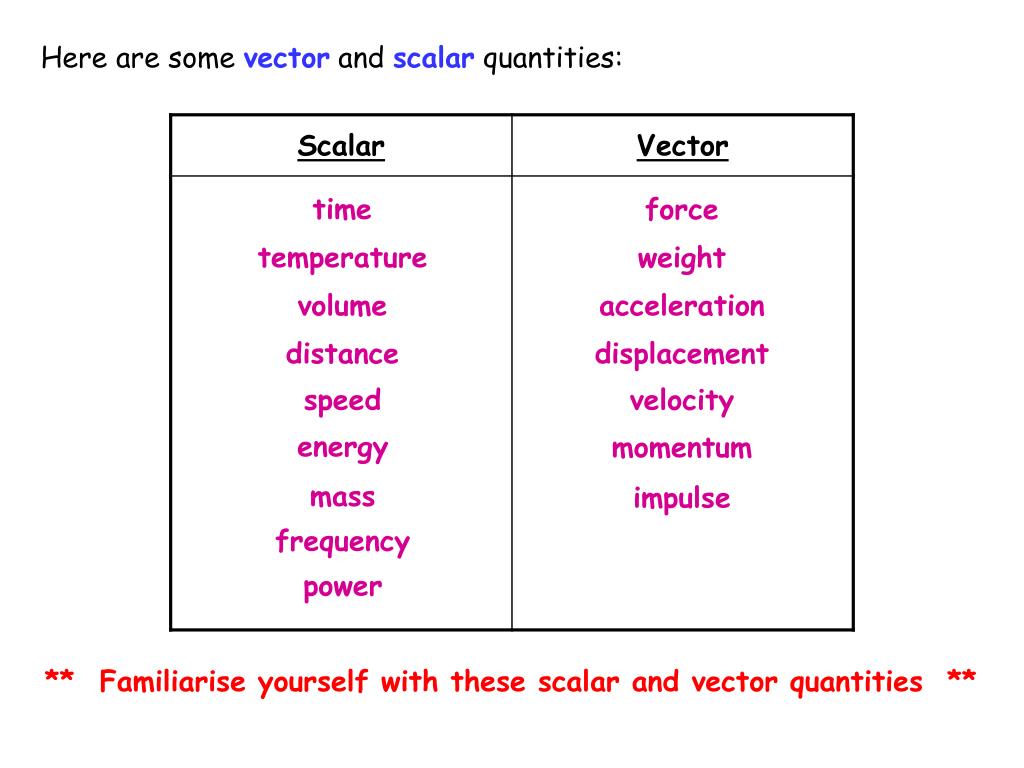

  3. Here are some vector and scalar quantities: time force temperature weight volume acceleration distance displacement speed velocity energy momentum mass impulse frequency power ** Familiarise yourself with these scalar and vector quantities **

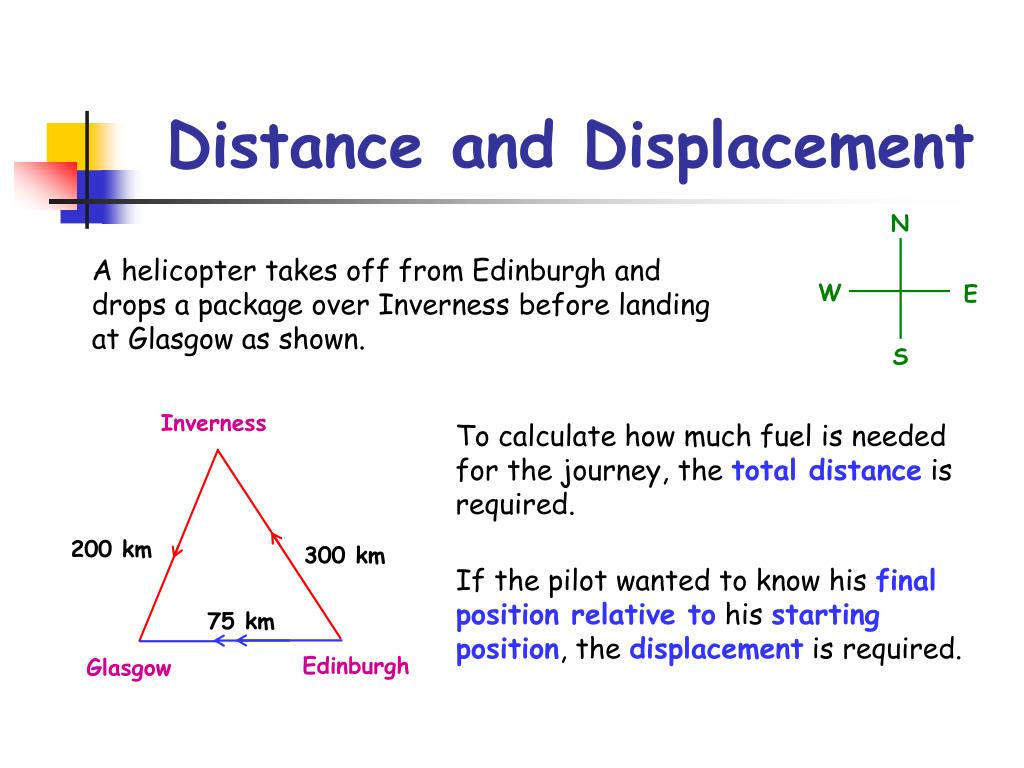

  4. N W E S Distance and Displacement A helicopter takes off from Edinburgh and drops a package over Inverness before landing at Glasgow as shown. Inverness To calculate how much fuel is needed for the journey, the total distance is required. 200 km 300 km If the pilot wanted to know his final position relative to his starting position, the displacement is required. 75 km Edinburgh Glasgow

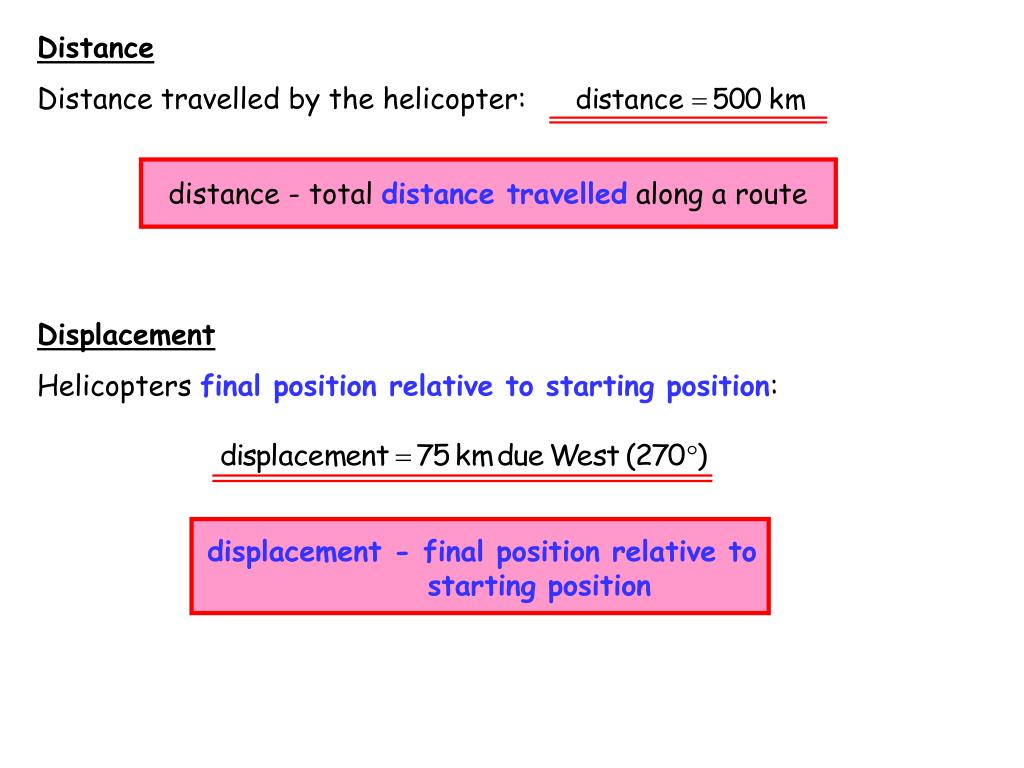

  5. distance - total distance travelled along a route displacement - final position relative to starting position Distance Distance travelled by the helicopter: Displacement Helicopters final position relative to starting position:

  6. Distance has only size, whereas displacement has both size and direction. Summary

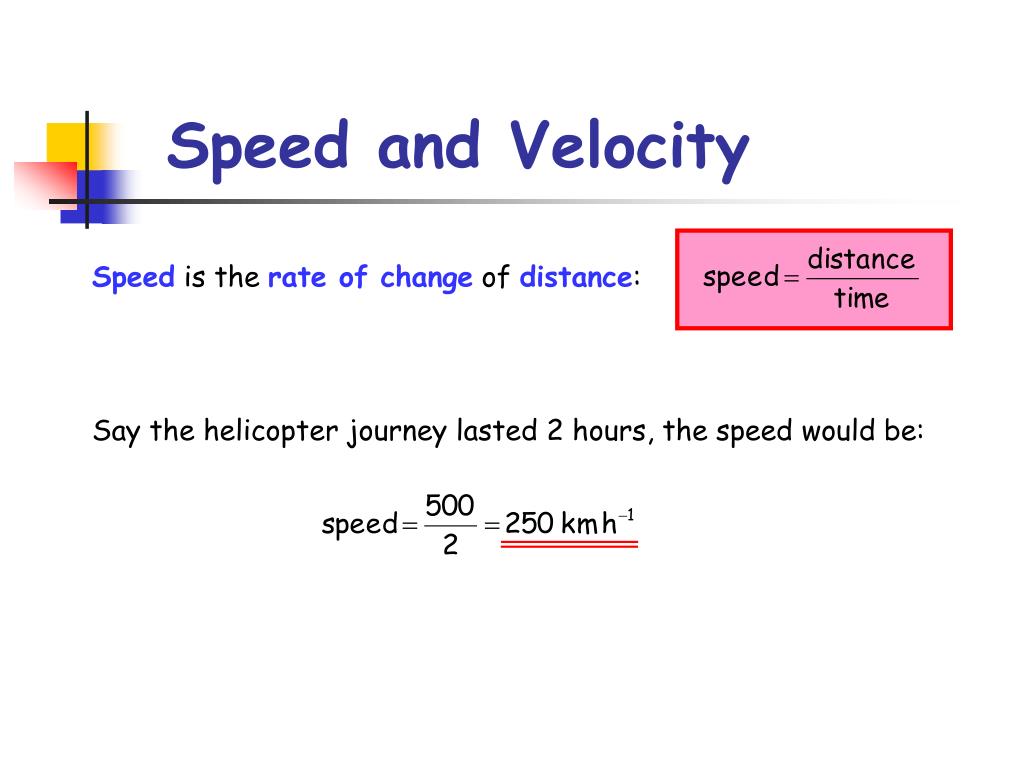

  7. Speed and Velocity Speed is the rate of change of distance: Say the helicopter journey lasted 2 hours, the speed would be:

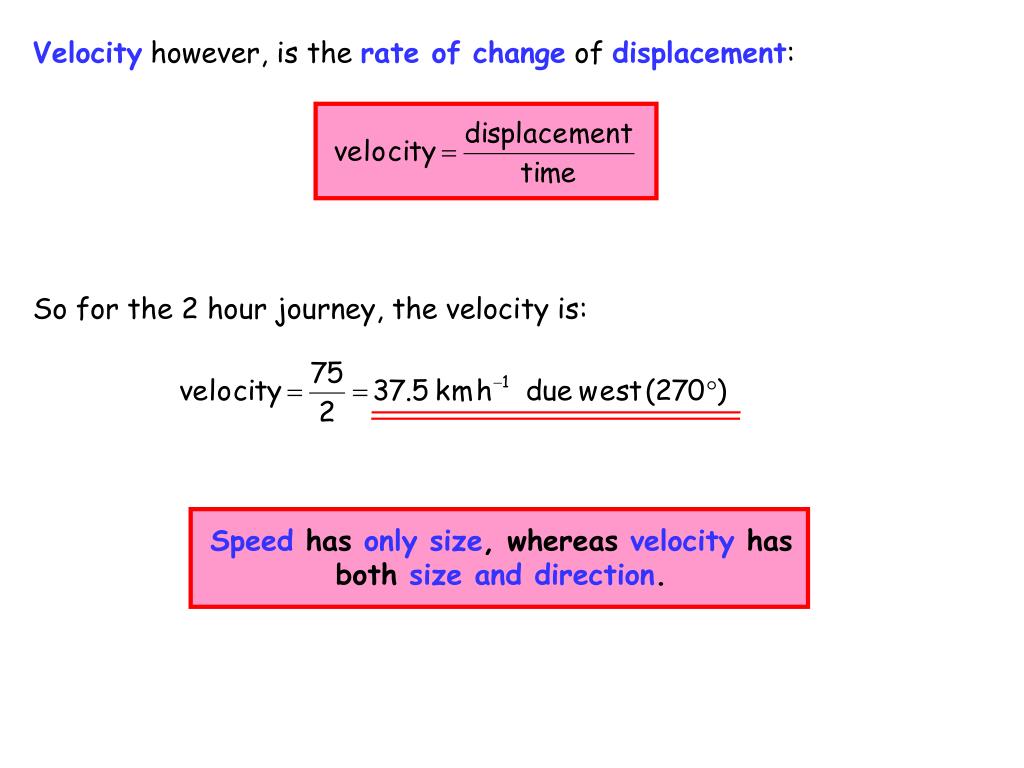

  8. Speed has only size, whereas velocity has both size and direction. Velocity however, is the rate of change of displacement: So for the 2 hour journey, the velocity is:

  9. Worksheet – Scalars and Vectors Q1 – Q9

  10. Vector Addition Vectors are represented by a line with an arrow. The length of the line represents the size of the vector. The arrow represents the direction of the vector. The sum of two or more vectors is called the resultant.

  11. Vector 2 Vector 2 Vector diagrams are drawn so that vectors are joined “tip-to-tail” Vector 1 Vector 1 RESULTANT VECTOR RESULTANT VECTOR The resultant of a number of forces is that single force which has the same effect, in both magnitude and direction, as the sum of the individual forces. Vectors can be added using a vector diagram. Resultant of a Vector

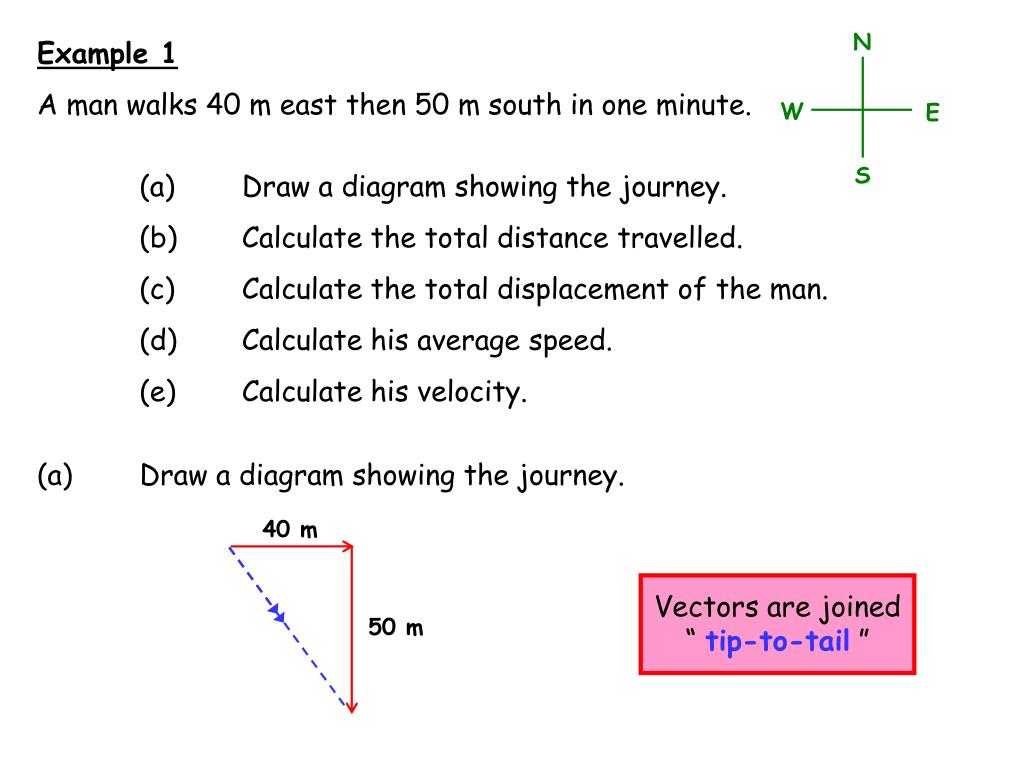

  12. N W E S 40 m 50 m Vectors are joined “ tip-to-tail ” Example 1 A man walks 40 m east then 50 m south in one minute. (a) Draw a diagram showing the journey. (b) Calculate the total distance travelled. (c) Calculate the total displacement of the man. (d) Calculate his average speed. (e) Calculate his velocity. (a) Draw a diagram showing the journey.

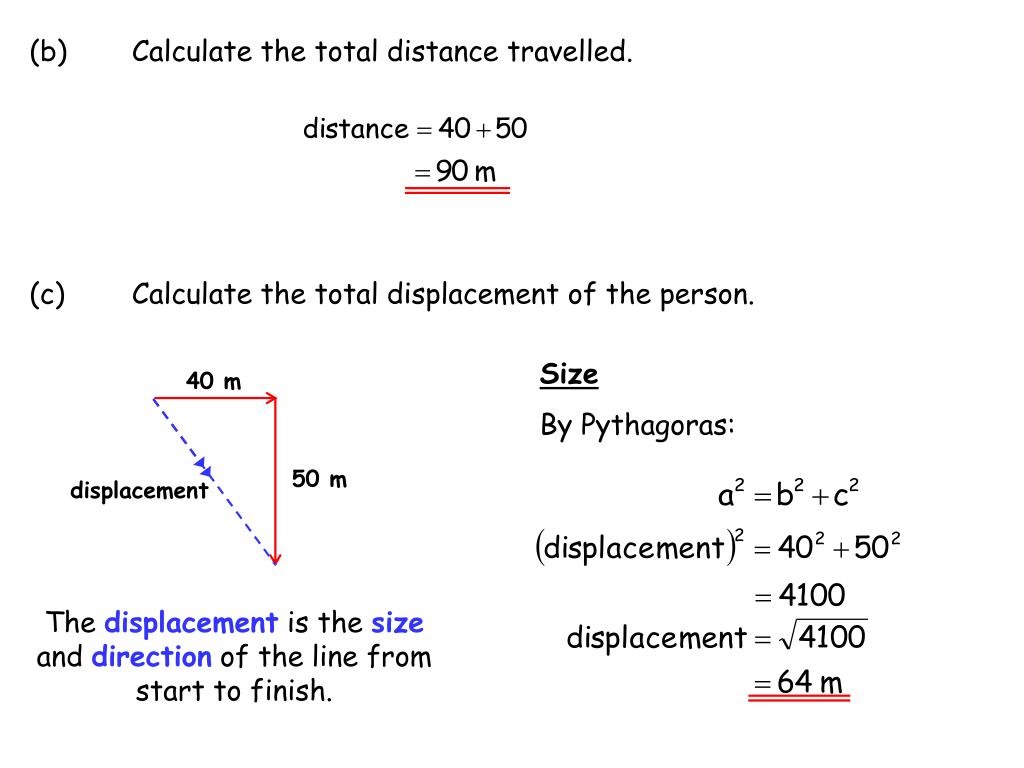

  13. 40 m 50 m (b) Calculate the total distance travelled. (c) Calculate the total displacement of the person. Size By Pythagoras: displacement The displacement is the size and direction of the line from start to finish.

  14. displacement 40 m 50 m 90 + 51.3 = 141.3° (bearing) Direction So the total displacement of the man is: (d) Calculate the speed of the man.

  15. Speed has only size, whereas velocity has both size and direction. (e) Calculate the velocity of the man.

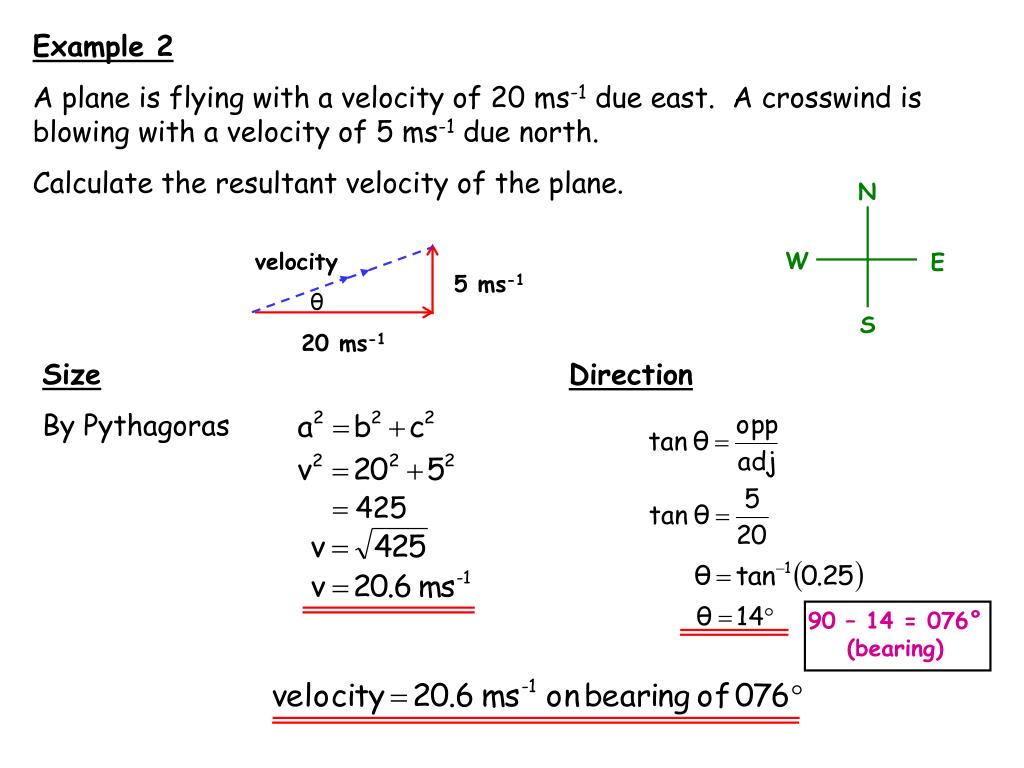

  16. velocity N W E 5 ms-1 S 20 ms-1 90 – 14 = 076° (bearing) Example 2 A plane is flying with a velocity of 20 ms-1 due east. A crosswind is blowing with a velocity of 5 ms-1 due north. Calculate the resultant velocity of the plane. Size By Pythagoras Direction

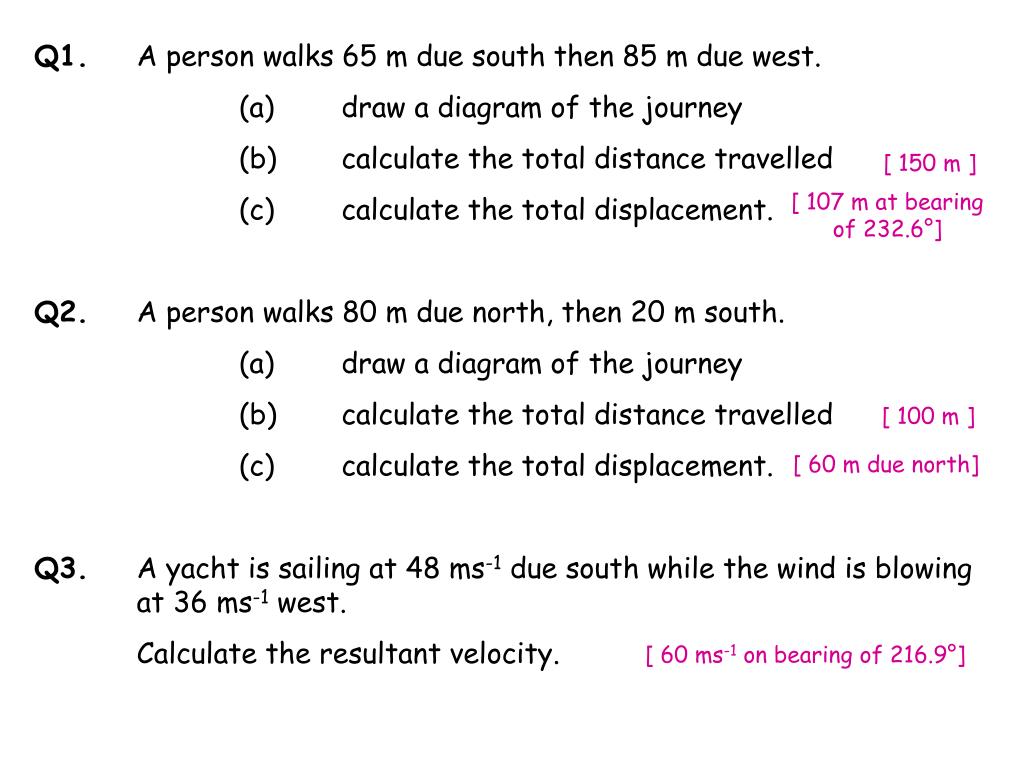

  17. Q1. A person walks 65 m due south then 85 m due west. (a) draw a diagram of the journey (b) calculate the total distance travelled (c) calculate the total displacement. Q2. A person walks 80 m due north, then 20 m south. (a) draw a diagram of the journey (b) calculate the total distance travelled (c) calculate the total displacement. Q3. A yacht is sailing at 48 ms-1 due south while the wind is blowing at 36 ms-1 west. Calculate the resultant velocity. [ 150 m ] [ 107 m at bearing of 232.6°] [ 100 m ] [ 60 m due north] [ 60 ms-1 on bearing of 216.9°]

  18. Worksheet – Vector Addition Q1 – Q12

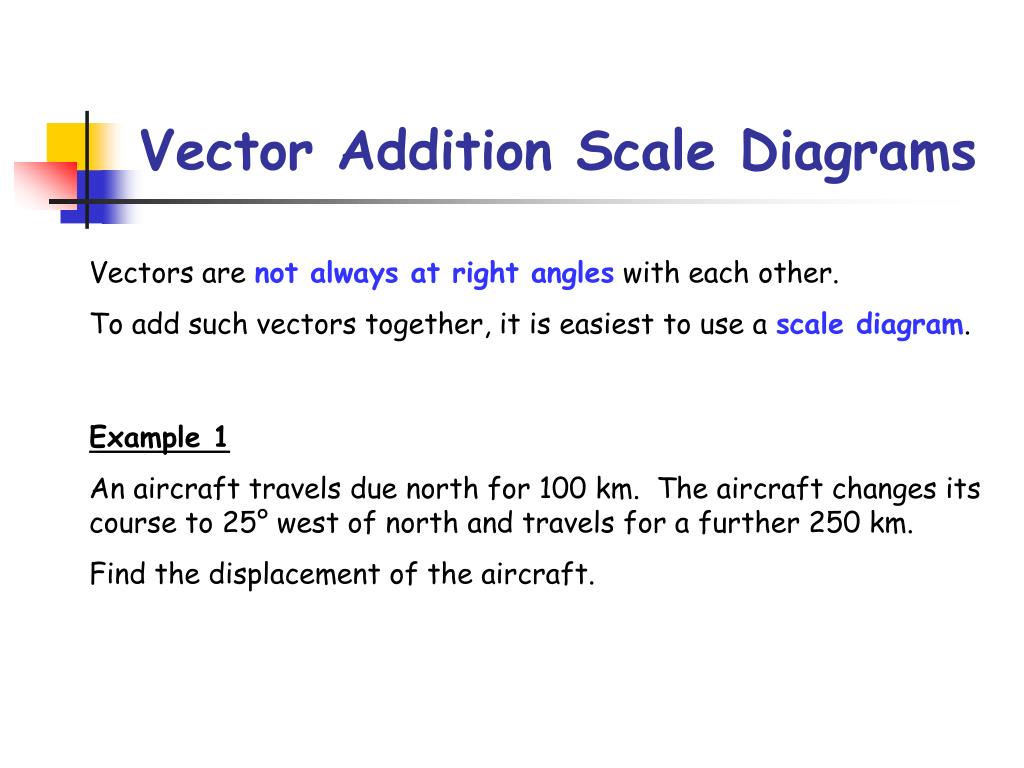

  19. Vector Addition Scale Diagrams Vectors are not always at right angles with each other. To add such vectors together, it is easiest to use a scale diagram. Example 1 An aircraft travels due north for 100 km. The aircraft changes its course to 25° west of north and travels for a further 250 km. Find the displacement of the aircraft.

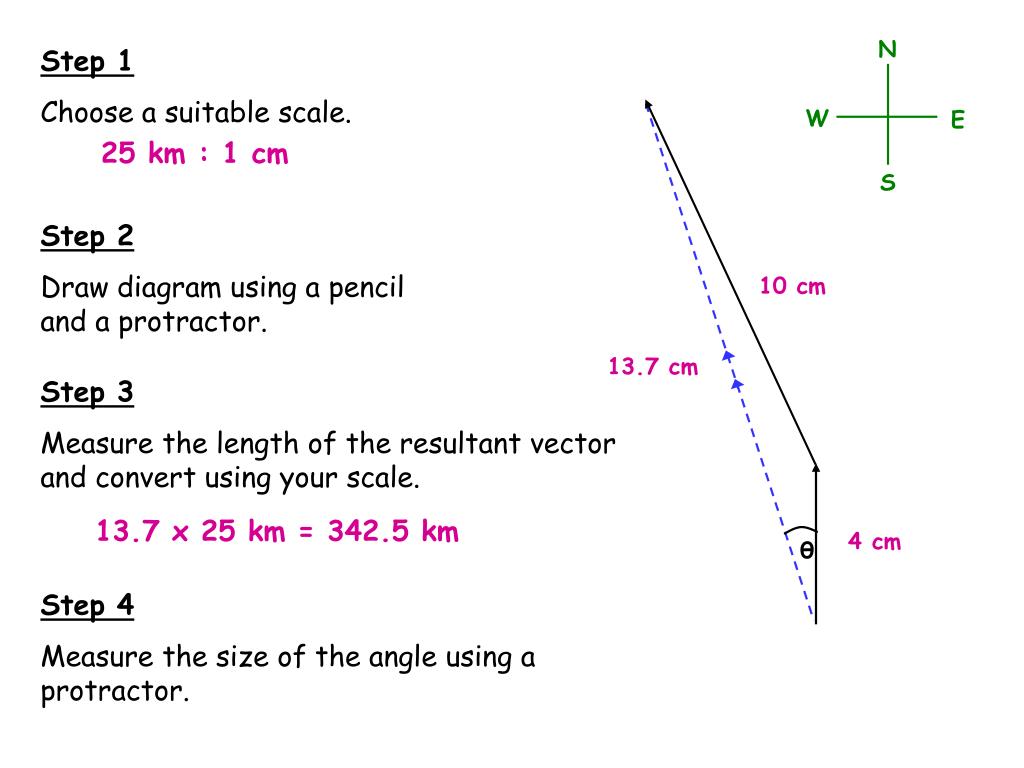

  20. N 10 cm W E S 4 cm θ Step 1 Choose a suitable scale. 25 km : 1 cm Step 2 Draw diagram using a pencil and a protractor. 13.7 cm Step 3 Measure the length of the resultant vector and convert using your scale. 13.7 x 25 km = 342.5 km Step 4 Measure the size of the angle using a protractor.

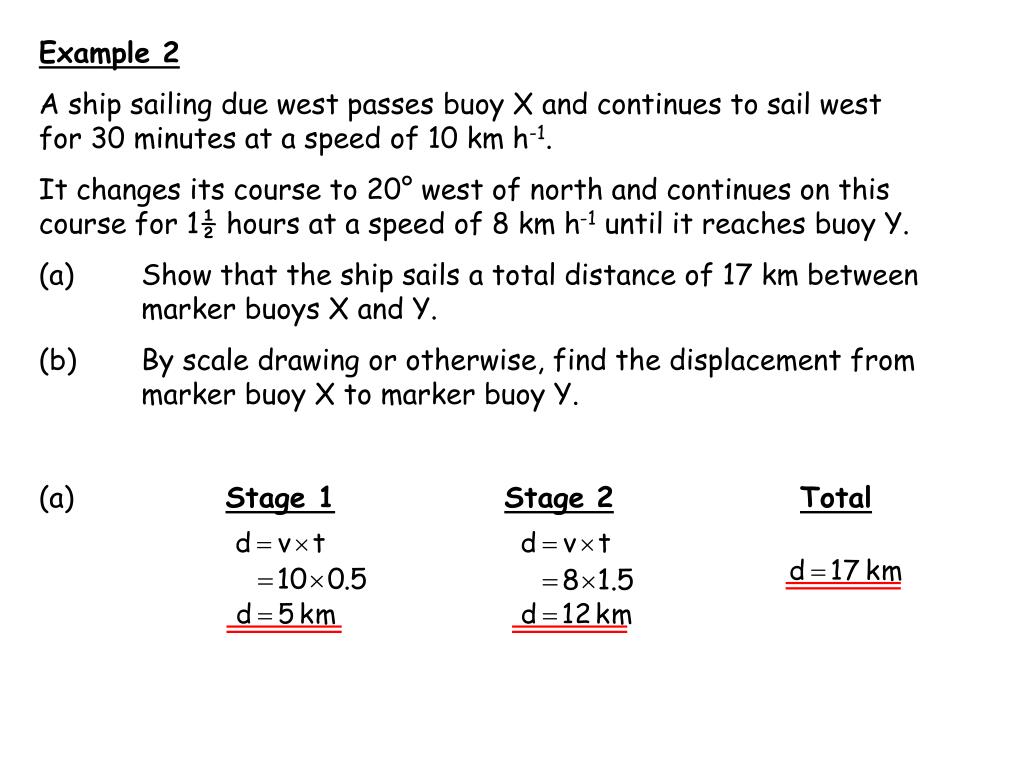

  21. Example 2 A ship sailing due west passes buoy X and continues to sail west for 30 minutes at a speed of 10 km h-1. It changes its course to 20° west of north and continues on this course for 1½ hours at a speed of 8 km h-1 until it reaches buoy Y. (a) Show that the ship sails a total distance of 17 km between marker buoys X and Y. (b) By scale drawing or otherwise, find the displacement from marker buoy X to marker buoy Y. (a) Stage 1 Stage 2 Total

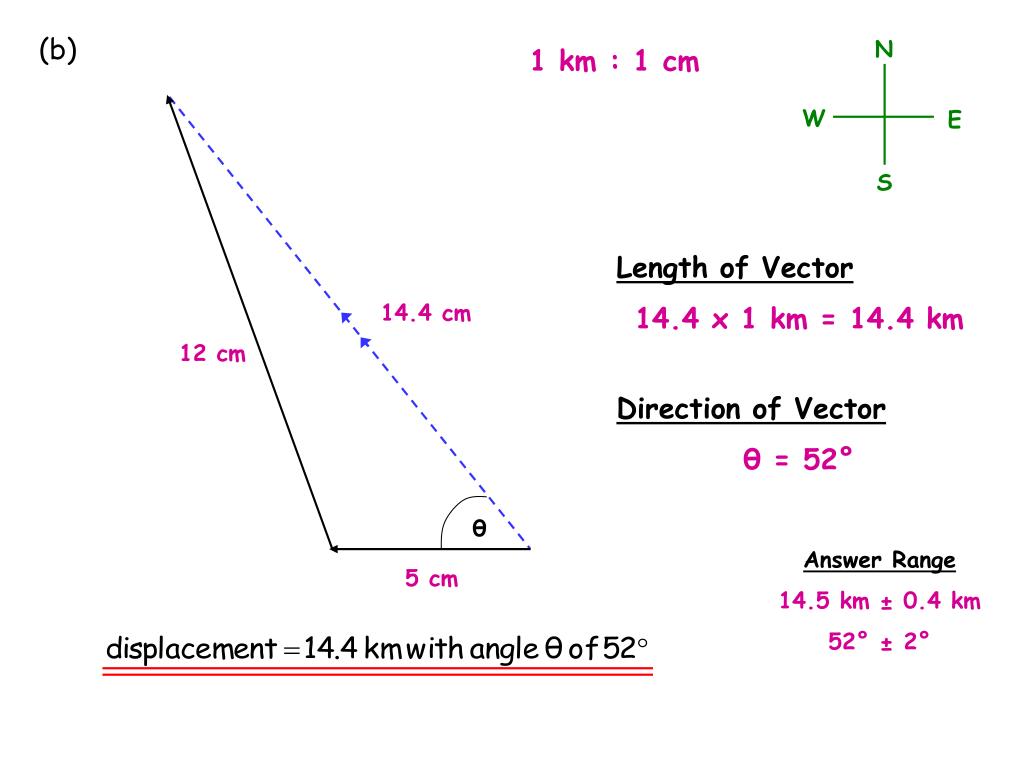

  22. N W E 12 cm S θ 5 cm (b) 1 km : 1 cm Length of Vector 14.4 x 1 km = 14.4 km 14.4 cm Direction of Vector θ = 52° Answer Range 14.5 km ± 0.4 km 52° ± 2°

  23. Worksheet – Vector Addition (Scale Diagram) Q1 – Q3

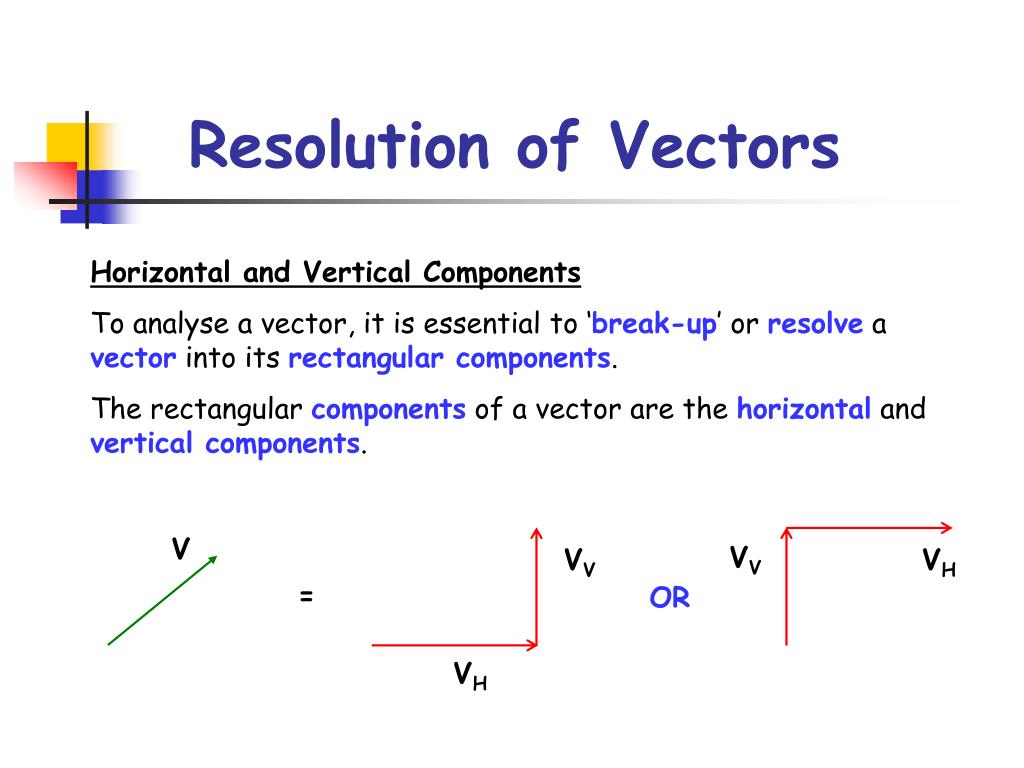

  24. Resolution of Vectors VV VH VV VH Horizontal and Vertical Components To analyse a vector, it is essential to ‘break-up’ or resolve a vector into its rectangular components. The rectangular components of a vector are the horizontal and vertical components. V = OR

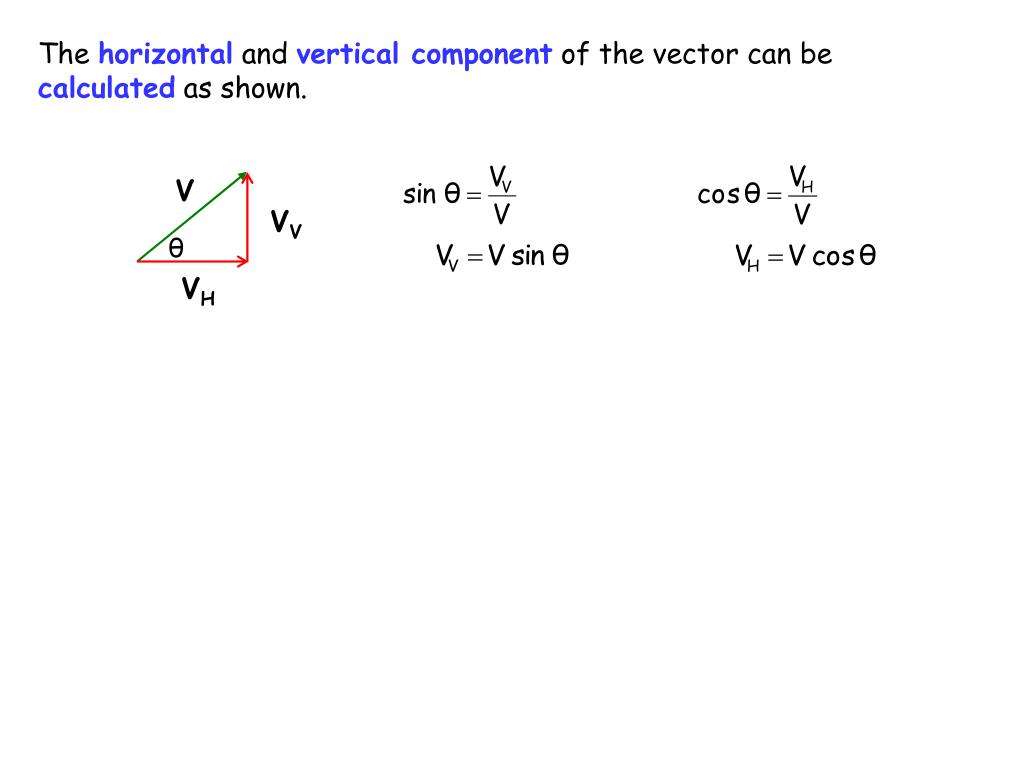

  25. V VV VH The horizontal and vertical component of the vector can be calculated as shown.

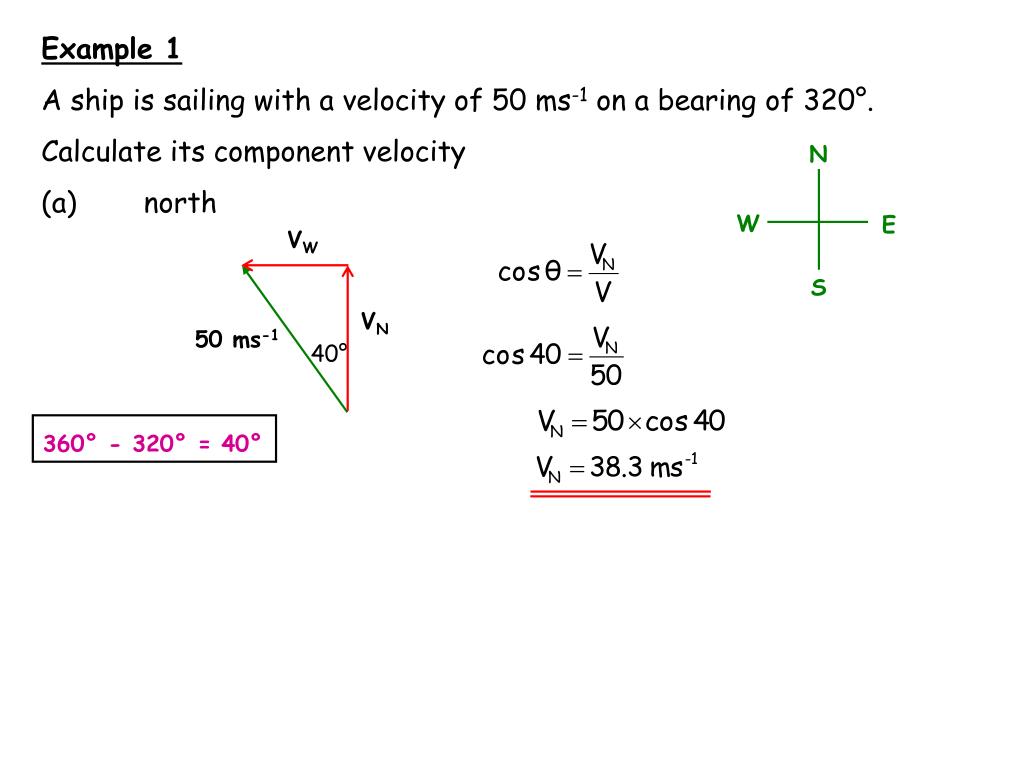

  26. N W E S VW VN 50 ms-1 360° - 320° = 40° Example 1 A ship is sailing with a velocity of 50 ms-1 on a bearing of 320°. Calculate its component velocity (a) north 40°

  27. VW VN 50 ms-1 40° (b) west

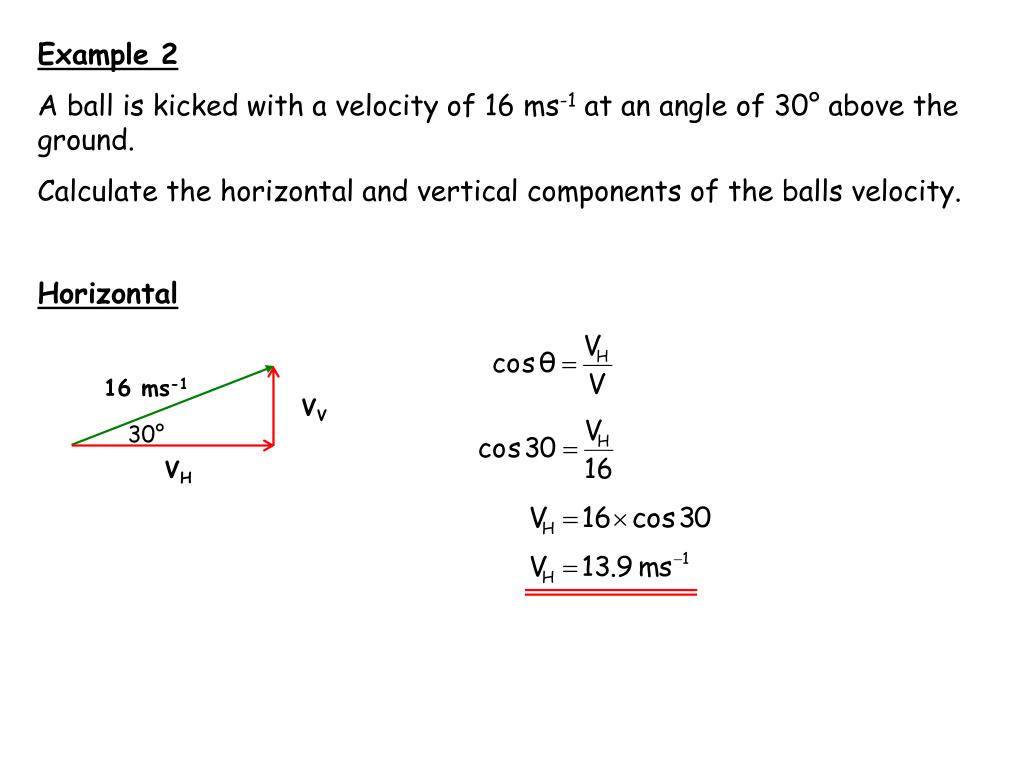

  28. Example 2 A ball is kicked with a velocity of 16 ms-1 at an angle of 30° above the ground. Calculate the horizontal and vertical components of the balls velocity. Horizontal 16 ms-1 VV 30° VH

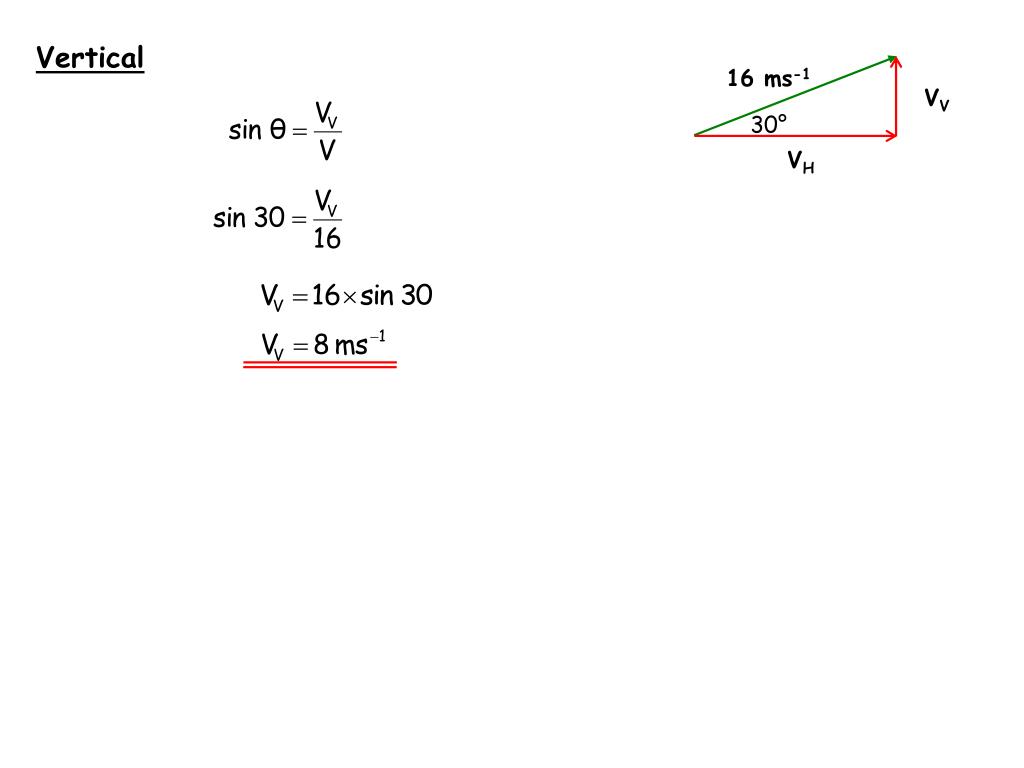

  29. 16 ms-1 VV 30° VH Vertical

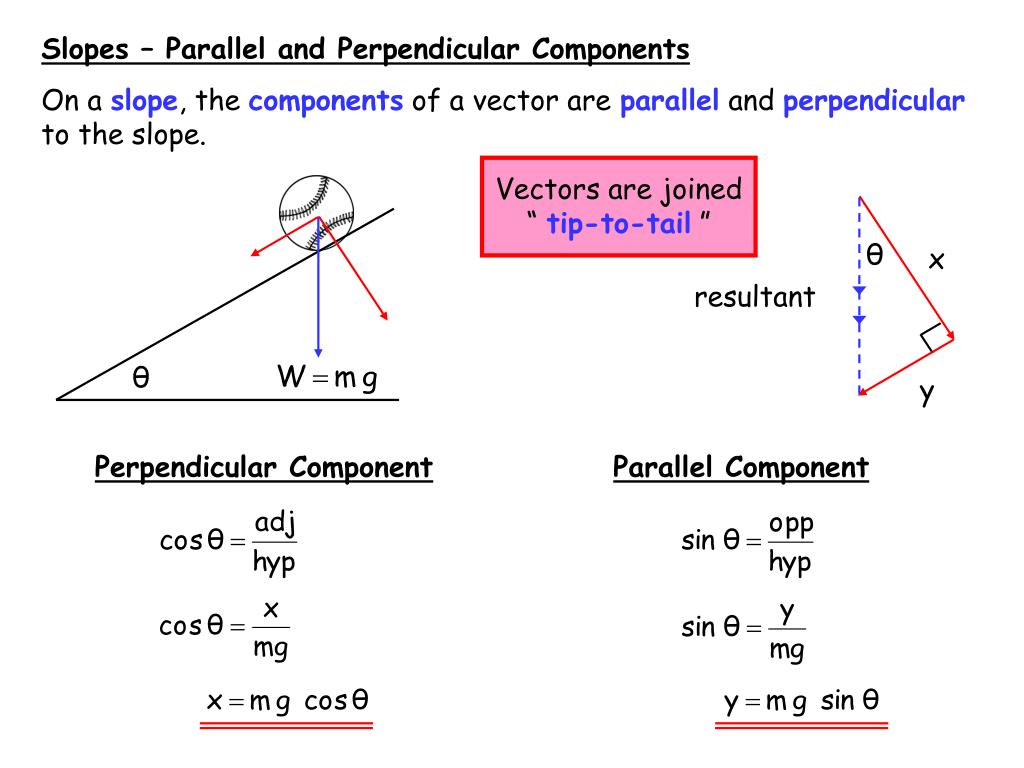

  30. y Vectors are joined “ tip-to-tail ” Slopes – Parallel and Perpendicular Components On a slope, the components of a vector are parallel and perpendicular to the slope. θ x resultant θ Perpendicular Component Parallel Component

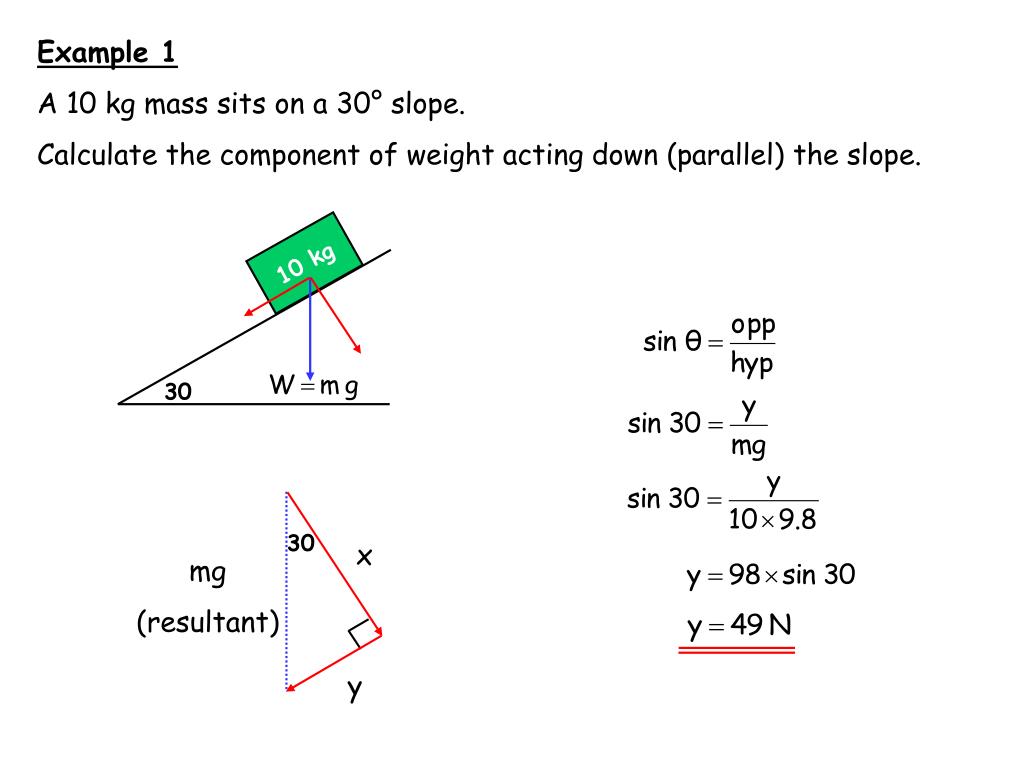

  31. x mg (resultant) 30 y 10 kg Example 1 A 10 kg mass sits on a 30° slope. Calculate the component of weight acting down (parallel) the slope. 30

  32. Worksheet – Resolution of Vectors Q1 – Q8
