  1. THE Compact Series

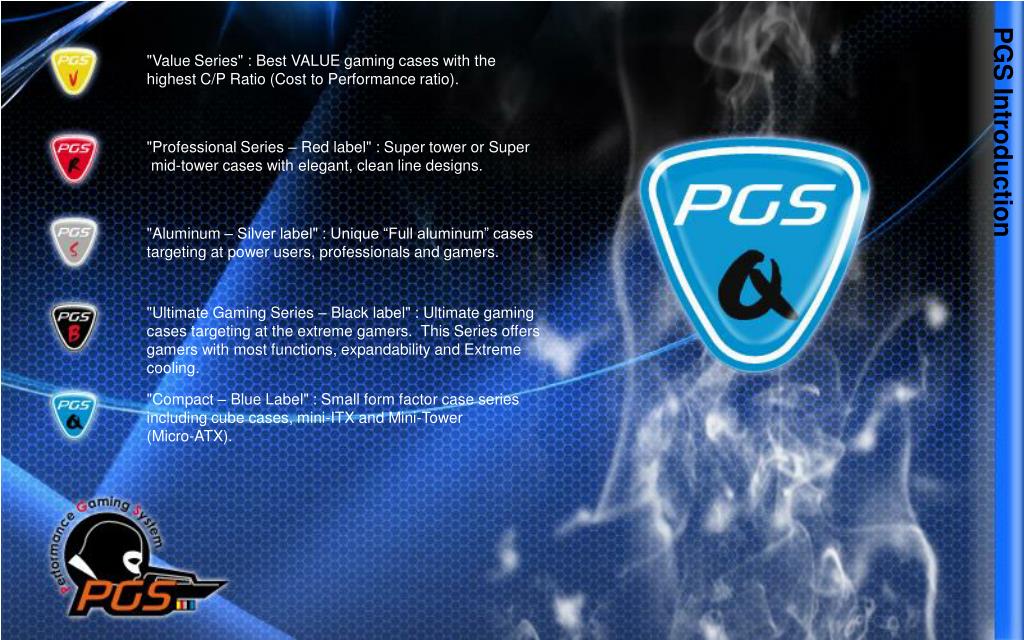

  2. "Value Series" : Best VALUE gaming cases with the highest C/P Ratio (Cost to Performance ratio). PGS Introduction "Professional Series – Red label" : Super tower or Super mid-tower cases with elegant, clean line designs. "Aluminum – Silver label" : Unique “Full aluminum” cases targeting at power users, professionals and gamers. "Ultimate Gaming Series – Black label" : Ultimate gaming cases targeting at the extreme gamers. This Series offers gamers with most functions, expandability and Extreme cooling. "Compact – Blue Label" : Small form factor case series including cube cases, mini-ITX and Mini-Tower (Micro-ATX).

  3. Aerocool is proud to announce our first compact case (Model : Qs-200) under the PGS-Q series (Compact series – Blue Label). Qs-200 is one of the best “Mini-Tower” case in the market today if not the BEST Mini-tower case. This compact case is not only elegantly designed and solidly constructed; it also provides high versatility, expandability, transportability, protection and performance. The Qs-200 is designed with “User-Friendly” concept in mind and it also gives gamers high versatility and protection for their Hard Drives. Its “Screw-less” chassis, pre-installed cable management clips and removable HDD bracket made this chassis an easy install. The chassis can support 2 x 3 1/2” HDDs or 3 x 2 1/2” HDDs. These Hard Drives are also well protected from shock with the “anti-vibration” rubbers. The Qs-200 case also delivers optimal air flow and supports Longer High-End VGA cards up to 340mm. It is the only Mini-tower case in the market which can support 5 x 12cm fans (2 x12cm fans in front, 1 x 12cm fan in the rear and 2 x 12cm fan on the side panel). Its “Mesh” front panel also helps to maximize air-intake. Design Concept

  4. Gallery Front Back Photos are for exterior reference only. Not all fans are inclusive. Please see specification page. Side

  5. Features - High performance "Mini -Tower" for gamers and enthusiast - Solidly constructed chassis - 0.6mm SECC Japanese Steel - High-end Graphic card Support - Supports longer high-end VGA cards up to 340mm - High versatility - Supports 2 x 3 1/2" HDDs or 3 x 2 1/2" HDDs - HDD Protection - Includes anti-vibration rubber to protect your HDDs from shock. - Ease of Installation - The combination of Screw-less 5 1/4” bays, 3 1/2” bay and PCI Slot PLUS a Removable HDD plate make this chassis an easy install. - Easy Access front I/O ports - 3 x USBs, Audio/Mic and E-Sata ports - Smart Cable Management - “cable management clips” are pre-installed inside the chassis to minimize your cable mess and improve the system airflow - Dust Protection - Includes front "Dust Filter" to prevent dust entering your computer

  6. Spec Specifications Case Type Material Motherboards Chassis Dimensions Drive Bays Expansion Slots Max length space available for PCI slots I / O Ports Mini Tower SECC 0.6mm Mini - ITX / Micro ATX 367(H) x 185(W) x 395(D) 2 x 5.25" (External)  / 1 x 3.5" (External)  / 2x3.5” HDDs or 3x2.5” HDDs 4 Slots 340 mm 3 x USB2.0 / 1 x E-SATA / Mic & headphone (AC97 & HD audio) : : : : : : : : Cooling System Front Rear : : : : : : : : : : Fan Rated voltage Starting voltage Power consumption Rated current Speed Air Flow (CFM) Air pressure Noise (dBA) Bearing 120 x 120 x 25mm 12V ≤ 9V(Power ON/OFF) 2.64W 0.22A 1500 RPM +- 10% 58.35 CFM (Max) 2.1mm H2O 26.67 dB-A Sleeve 120 x 120 x 25mm 12V ≤ 9V(Power ON/OFF) 2.64W 0.22A 1500 RPM +- 10% 58.35 CFM (Max) 2.1mm H2O 26.67 dB-A Sleeve

  7. 1. Front - 2 x 12cm fan (1 x 12cm Blue LED fan included) 2. Back - 1 x 12cm fan (1 x 12cm Blue LED fan included) 3. Side - 2 x 12cm fan (optional) Superb Airflow - install up to 5 x 12cm fans !!! Air Flow

  8. Inside-1 Sufficient depth for hi-end VGA cards up to 340mm Tool-free for 5.25” bays Tool-Free for PCI slots Removable HDD rack can be laid flat for ease of installation Cable clips to reduce cable mess Can install up to 2x12cm fans HDD installation option 3: 2.5” x 2 or 2.5” x 3 HDD installation option 2: 3.5” x 1 and 2.5” x 1 HDD installation option 1: 3.5” x 2

  9. Design Concept

  10. THE Compact Series
