  1. Future Transit Now Holistic Vehicle Tracking System Adam Elliott, Taylor Kinsella, Matthew Lillywhite, Christopher McNeil

  2. Agenda • Introduction • Proof of Concept • Where the idea came from • Major Components • Recommendations • Conclusions • Questions & Answers • References

  3. Introduction • Holistic Vehicle Tracking System • Adam Elliott • Database Management • Christopher McNeil • Web Development • Matthew Lillywhite • Infrastructure • Taylor Kinsella

  4. Proof of Concept • Hardware capable of tracking geographical position and sending over cellular network • Server capable of accepting data send from hardware and log into database • Web server used by transit customers to query database • Plotted on interactive google map • Login registration and favourite route • Password encryption / best practices

  5. Where Did the Idea Originate? • All Calgary Public Transit users can relate • Inconsistent scheduling times • Weather deterred

  6. Major Project Components • Server, services and virtualization • Network, routing and port forwarding • Hardware module (Arduino) • Website development • Database development & selection

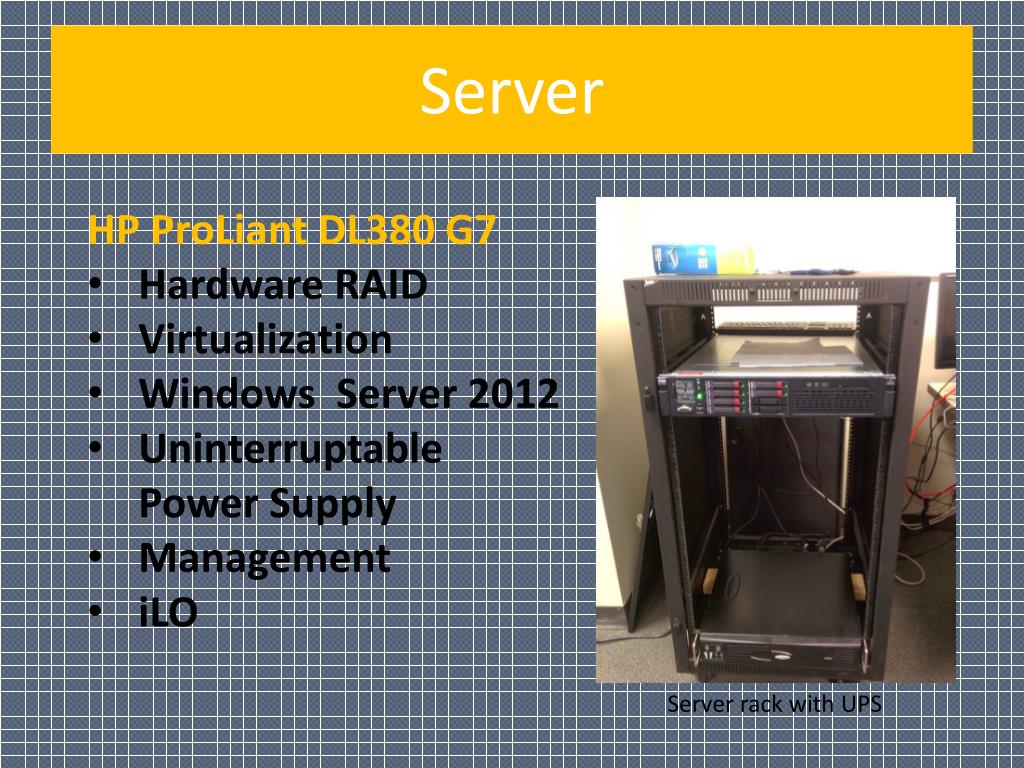

  7. Server • HP ProLiant DL380 G7 • Hardware RAID • Virtualization • Windows Server 2012 • Uninterruptable Power Supply • Management • iLO Server rack with UPS

  8. Services Member Server • IIS 7 • PHP & Python parser • MySQL Database Domain Controller • DNS • Active Directory Domain Services • GPO

  9. Virtualization Software VMWare VsphereESXi 5.1 • Bare Metal Hyper Visor • VMWare Vclient http://www.vmware.com

  10. Networking / Routing Port Forwarding • Port 80 • Port 3343 • Port 3379 • SSH D-Link Linksys • DD-WRT • Access Controls • DHCP http://www.linksys.com/en-ca

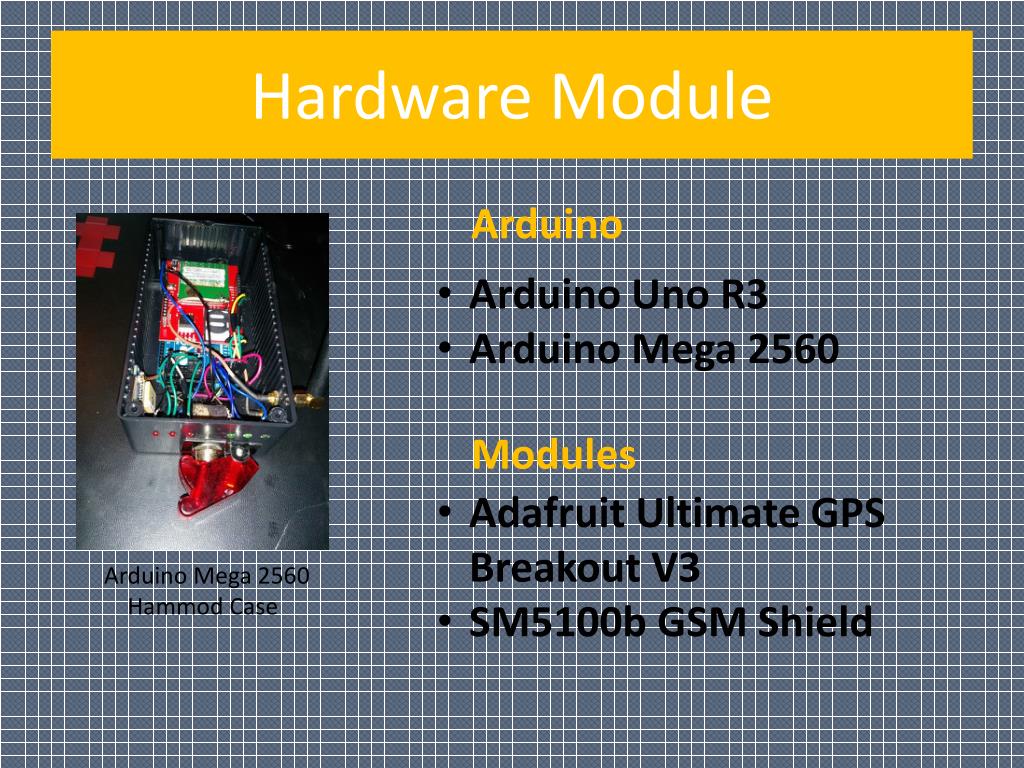

  11. Hardware Module Arduino • Arduino Uno R3 • Arduino Mega 2560 • Adafruit Ultimate GPS Breakout V3 • SM5100b GSM Shield Modules Arduino Mega 2560 Hammod Case

  12. Hardware Module Arduino Mega 2560 Bread Board Arduino Uno R3

  13. Website Development Proj354 Portal • Simplistic • Galleria • Single point of resources Transit Buddy • Responsive (percent-based CSS) • PHP interaction with MySQL database • Hosted via IIS 7 • Integrated Google map http://www.php.net

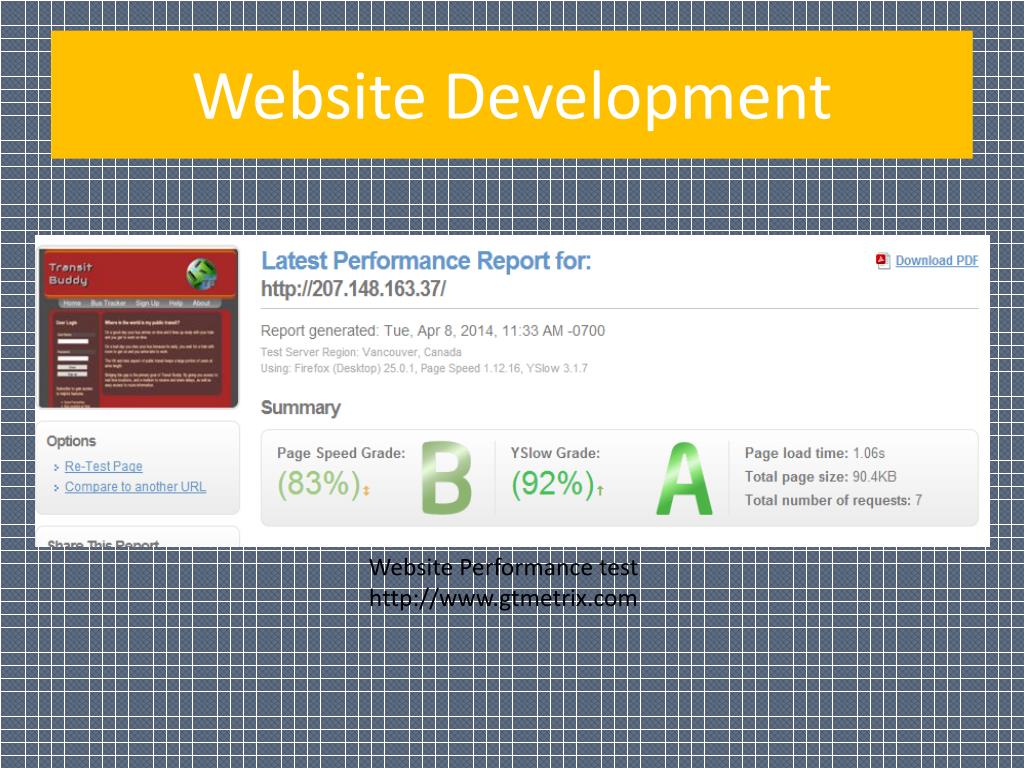

  14. Website Development Website Performance test http://www.gtmetrix.com

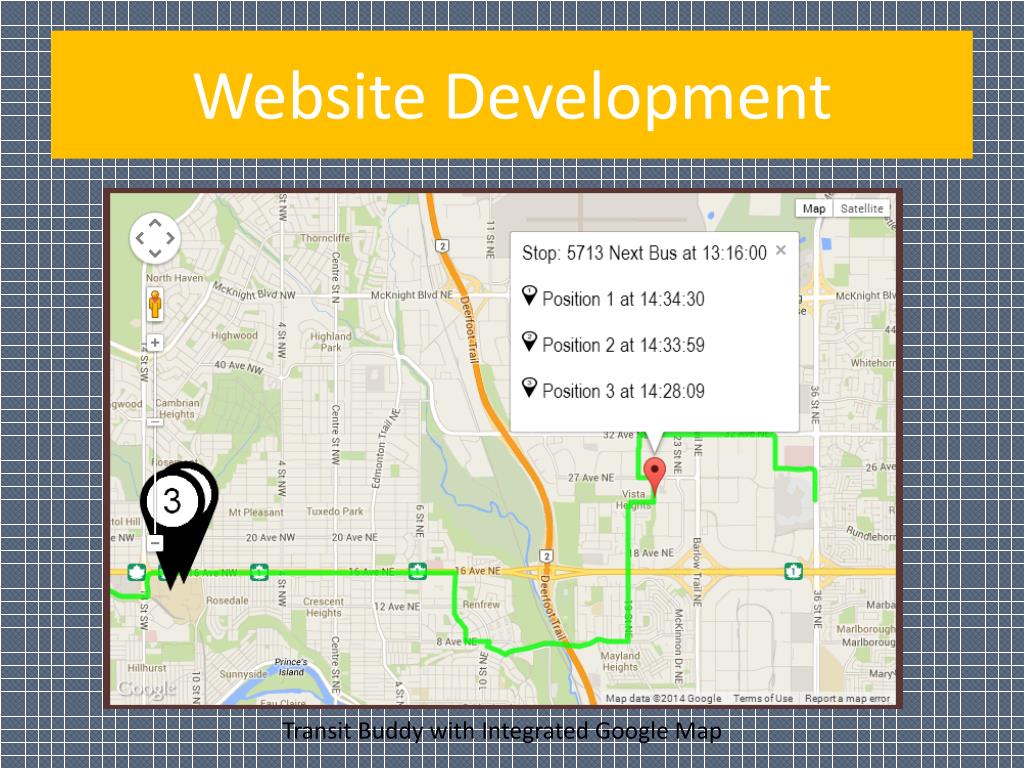

  15. Website Development Transit Buddy with Integrated Google Map

  16. Database Development • Microsoft SQL • My SQL • Microsoft Access • Calgary Transit .CSV imports • Salting and hashing

  17. Database Development Database Design

  18. Recommendations • Device be duplicated and field tested using a single route by Calgary Transit. • Arduino Mega to a “Teensy” development board • Circuit boards and programming chips on a larger scale • Script to update database daily to show which busses are servicing which routes. • Moving to C++ or C#

  19. Conclusions • Proof of concept • 6 million line database • Arduino module with GPS and GSM • Responsive web design (CSS) • Integrated google map • Use of PHP and python • MySQL over MS SQL

  20. Questions & Answers

  21. References • http://www.calgarytransit.com/html/annual_ridership.html • http://www.calgarytransit.com/html/statistics.html • http://transitcamp.ca/2013/10/13/candidate-responses-innovative-ideas-and-the-role-of-transit/ • http://www.nextbus.com/ • http://hosted.fleetcomplete.com/01_start.html • http://www.gpspolice.com/ • http://web.archive.org/web/20121105140753/http://jayeshprojects.blogspot.ca/2010/04/real-time-mobile-gps-tracker-with.html • https://data.calgary.ca/OpenData/Pages/DatasetListingAlphabetical.aspx#C
