Presentation Transcript

  1. fMRI: Biological Basis and Experiment DesignLecture 11: Distortion • Field maps • Bandwidth / pixel • Calculations Dali. The Persistence of Memory, 1931.

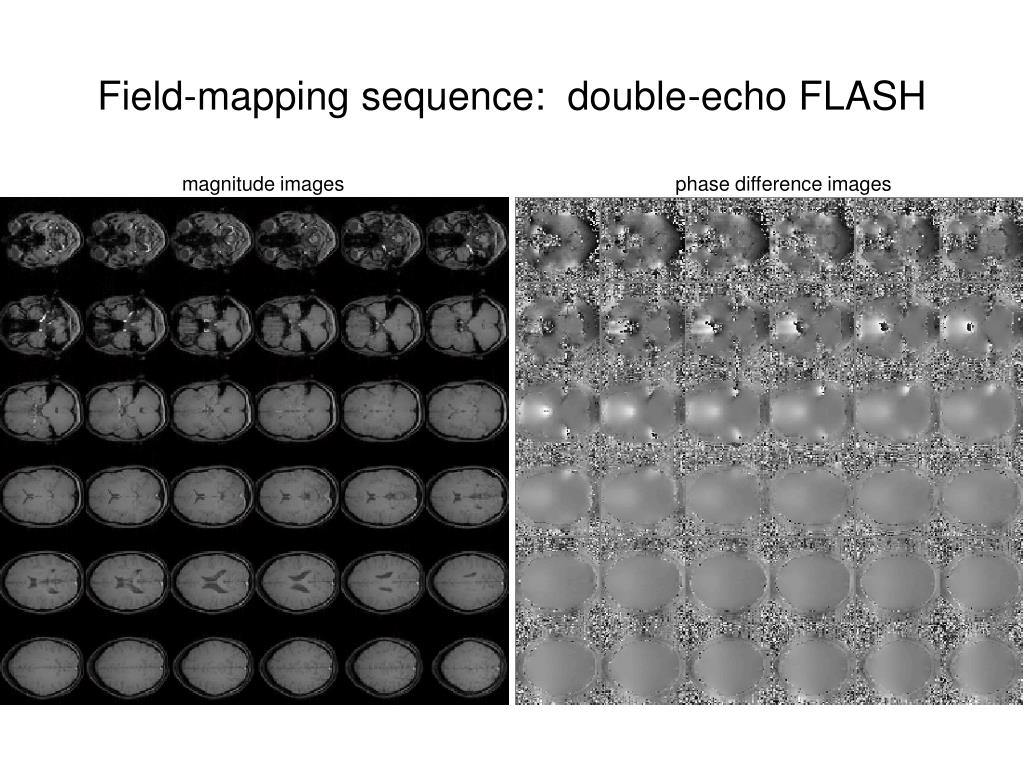

  2. Field-mapping sequence: double-echo FLASH magnitude images phase difference images

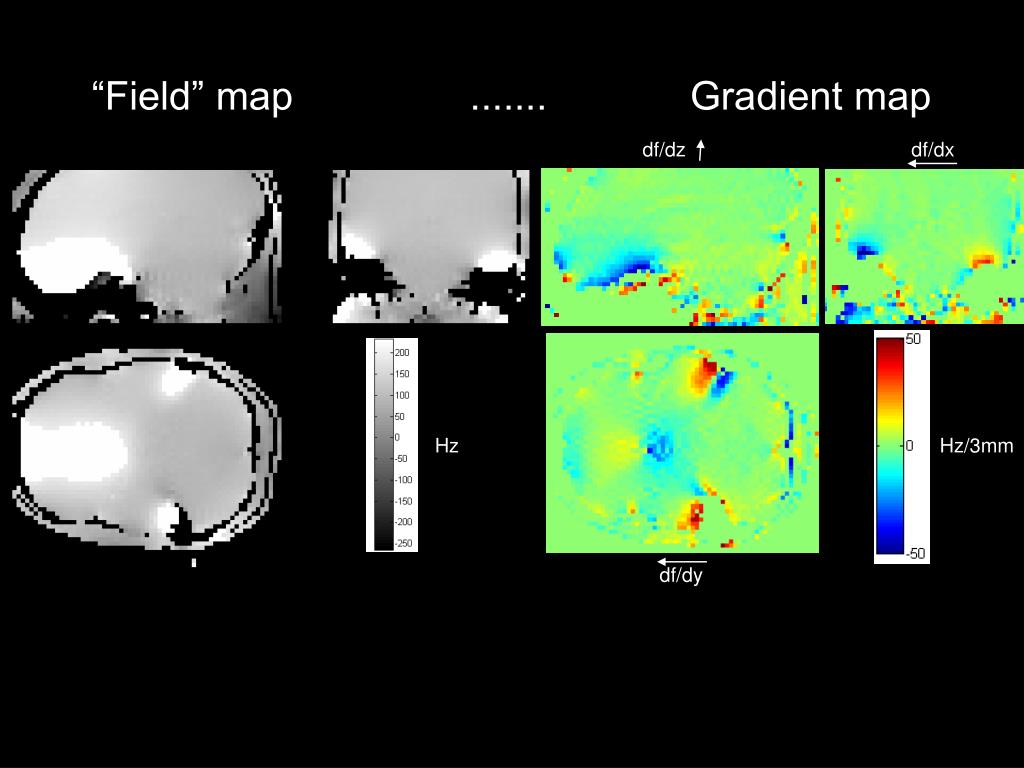

  3. “Field” map ....... Gradient map df/dz df/dx Hz Hz/3mm df/dy

  4. Through-slice dephasing review 0mm  Thinner slice, less signal loss through-slice dimension 0 - 3mm No gradient; no signal loss Strong gradient; big signal loss

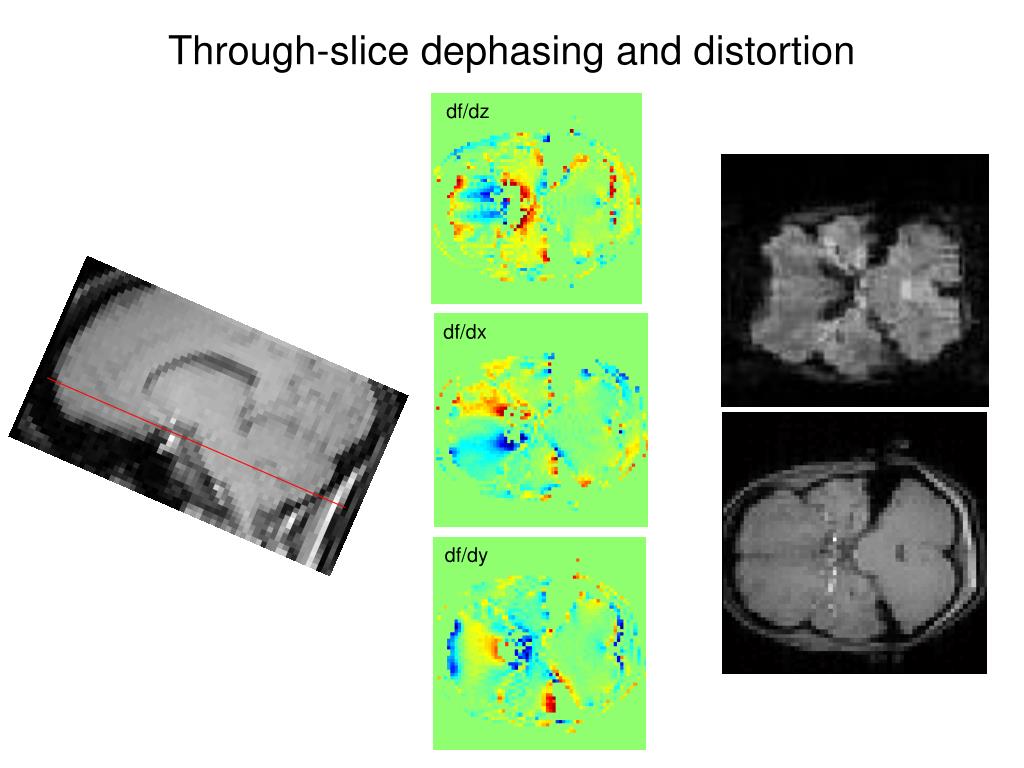

  5. Through-slice dephasing and distortion df/dz df/dx df/dy

  6. Distortion is determined by the relative magnitudes of imaging gradients and artifactual gradients

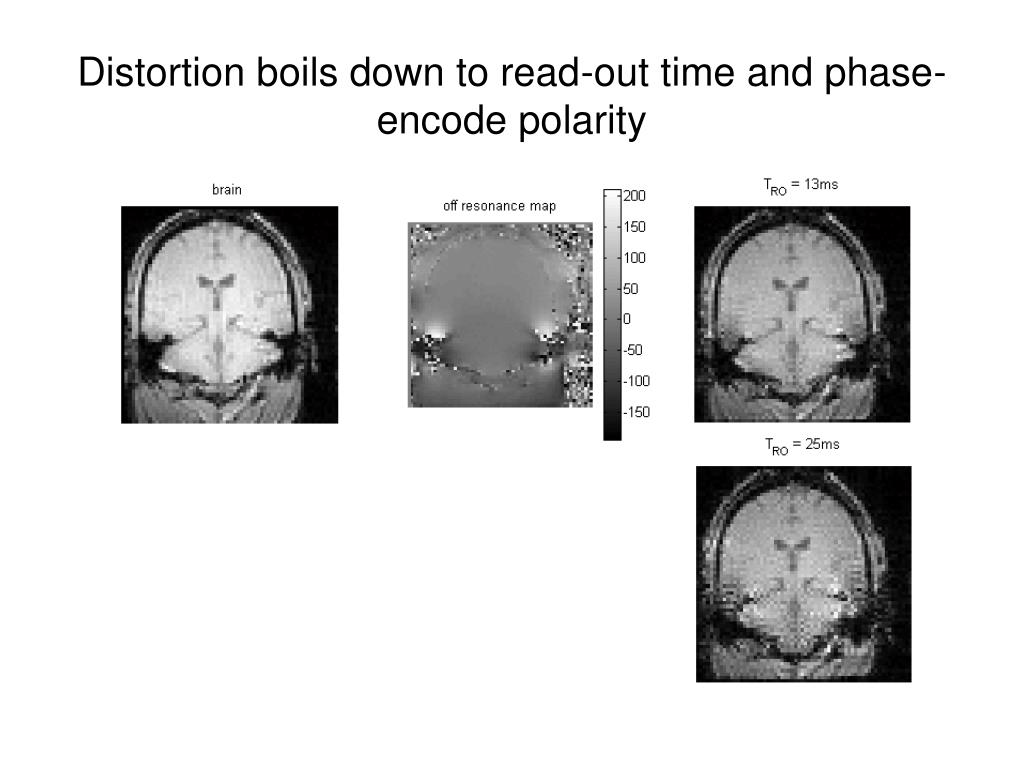

  7. Distortion boils down to read-out time and phase-encode polarity

  8. Caveat: distortion and drop-out travel together TE = 25ms; TRO = 22ms TE = 50ms; TRO = 64ms

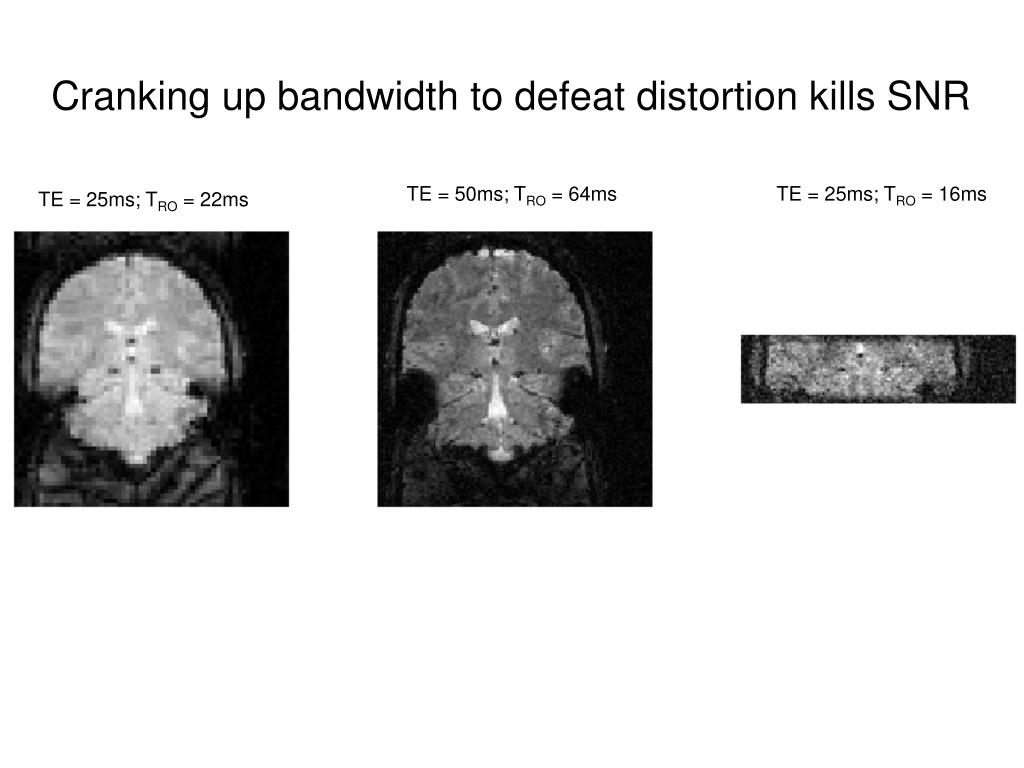

  9. Cranking up bandwidth to defeat distortion kills SNR TE = 50ms; TRO = 64ms TE = 25ms; TRO = 16ms TE = 25ms; TRO = 22ms

  10. WA5

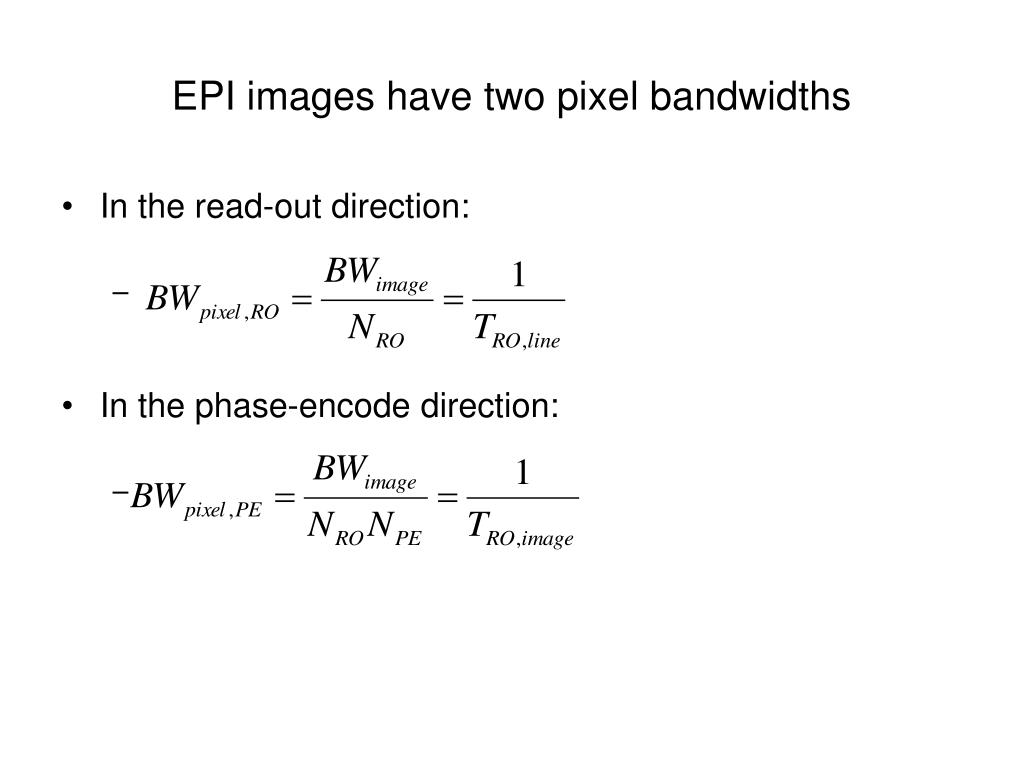

  11. EPI images have two pixel bandwidths • In the read-out direction: • In the phase-encode direction:
